CYGEREEN 36V 3A Smart LiFePO4 Battery Fast Charger

CYGEREEN 36V 3A Smart LiFePO4 Battery Fast Charger

$46.11 USD
$26.11 USD $46.11 USD
Sale Sold out
Shipping calculated at checkout.
Color
Socket Standard

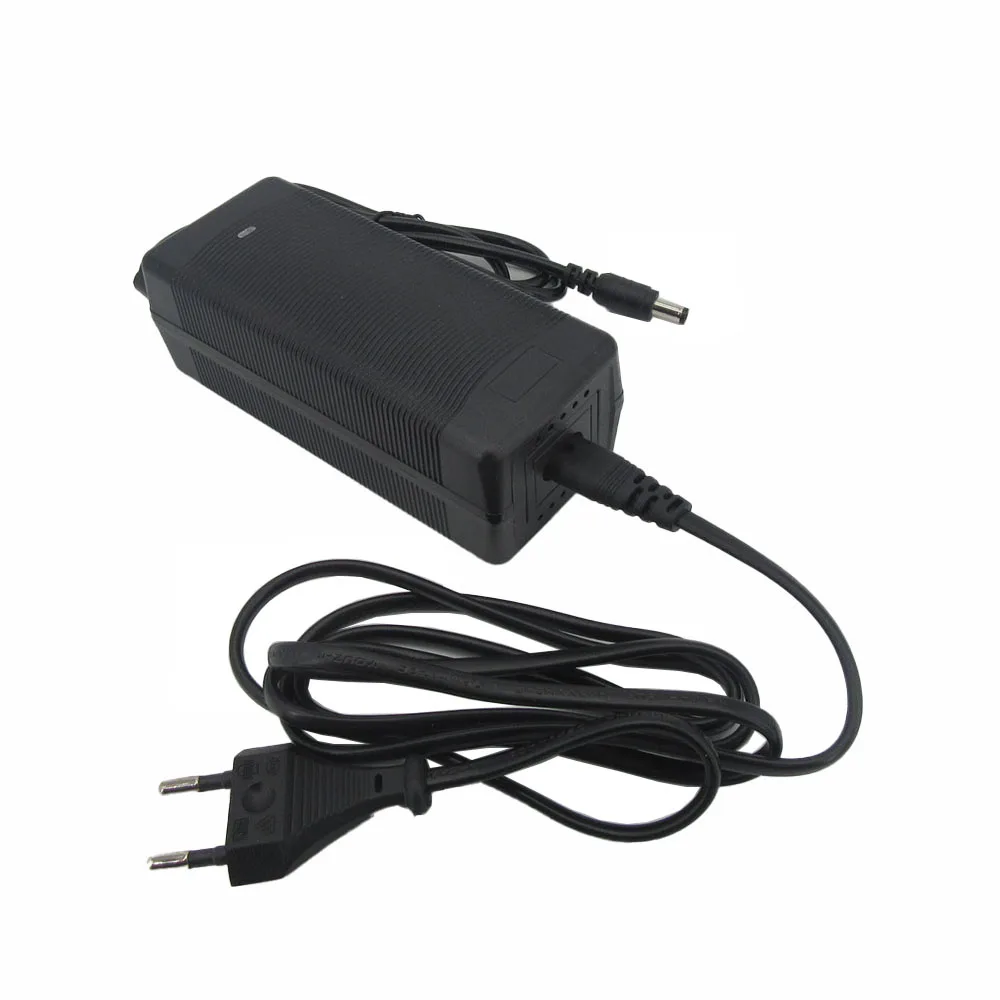

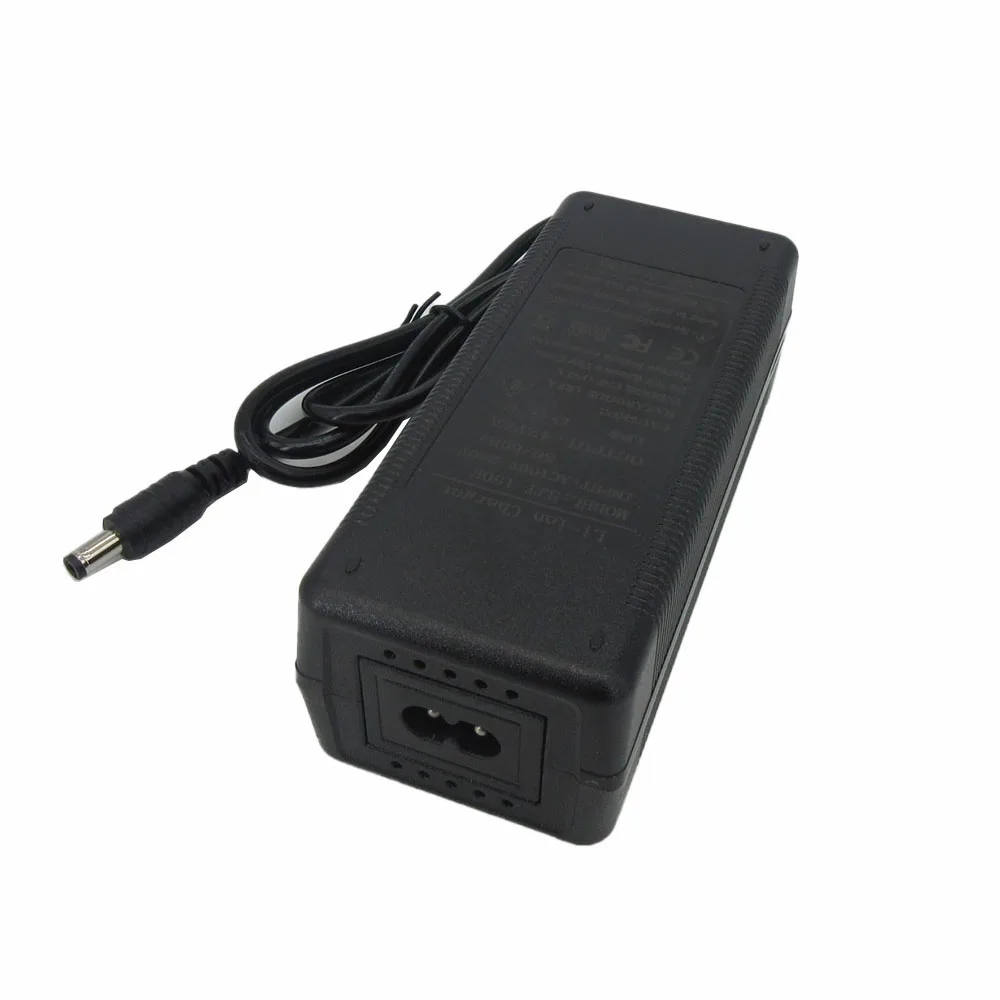

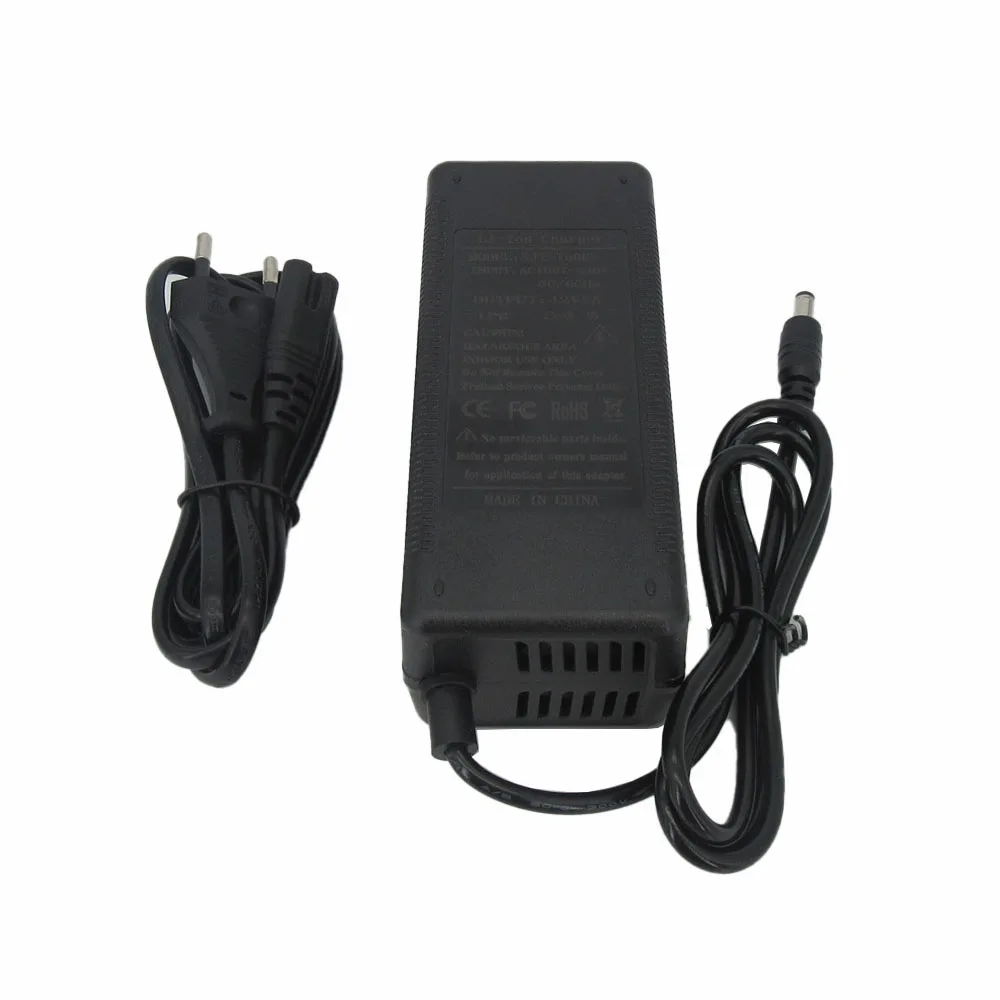

CYGEREEN 36V 3A Smart LiFePO4 Battery Fast Charger

43.8V Output for 12S Lithium Iron Phosphate (LFP) Packs (132W High Power, Universal AC 100-240V Input, CE/RoHS Certified)

Optimize and protect your energy storage setup with the high-efficiency CYGEREEN 36V 3A Smart LiFePO4 Fast Charger. Engineered specifically for 12S 36 Volt Lithium Iron Phosphate (LiFePO4 / LFP) battery packs, this charger delivers a precise 43.8V maximum output voltage at a steady 3A charge current, providing up to 132W of continuous charging power.

Designed for e-bikes, electric mobility scooters, trolling motors, and custom solar energy storage systems, the CYGEREEN SJT150E utilizes an intelligent multi-stage Constant Current / Constant Voltage (CC/CV) algorithm. This ensures your LiFePO4 cells reach a full 100% state-of-charge quickly while actively preventing thermal degradation and extending overall cell life.

⚠️ Chemistry & Voltage Matching Notice

CRITICAL BATTERY CHEMISTRY & VOLTAGE GUIDE:

  • LiFePO4 / LFP Only: This charger is engineered EXCLUSIVELY for 12S Lithium Iron Phosphate (LiFePO4) battery chemistry (3.2V nominal per cell x 12 = 38.4V nominal / 43.8V full charge cutoff).

  • DO NOT USE ON STANDARD LITHIUM-ION: Never use this charger on standard 36V (10S) Li-Ion / NMC batteries (which require a 42.0V cutoff) or Lead-Acid / AGM batteries.

  • Universal AC Power: Supports broad 100-240VAC 50/60Hz input ranges for global deployment.

🚀 Key High-Performance Features

  • Precise 43.8V Cutoff Voltage: Tailored specifically for 12S LiFePO4 cell chemistry to ensure safe, complete charge cycles without overcharging individual cells.

  • 132W Fast Charging Output: Delivers a continuous 3A current for rapid replenishment of 20Ah+ LFP battery packs with minimal heat generation.

  • Intelligent CC/CV Multi-Stage Protection: Automatically monitors charge parameters to guard against short circuits, over-voltage, over-current, and thermal overload.

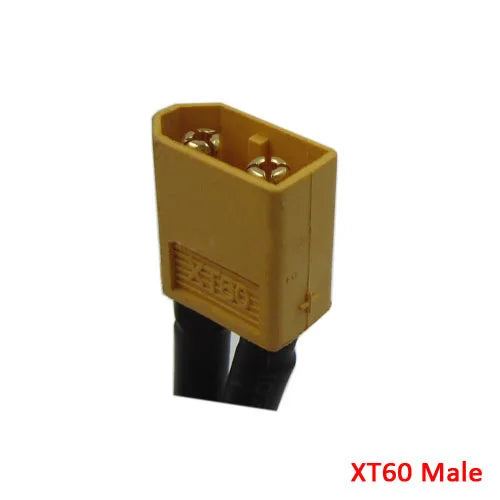

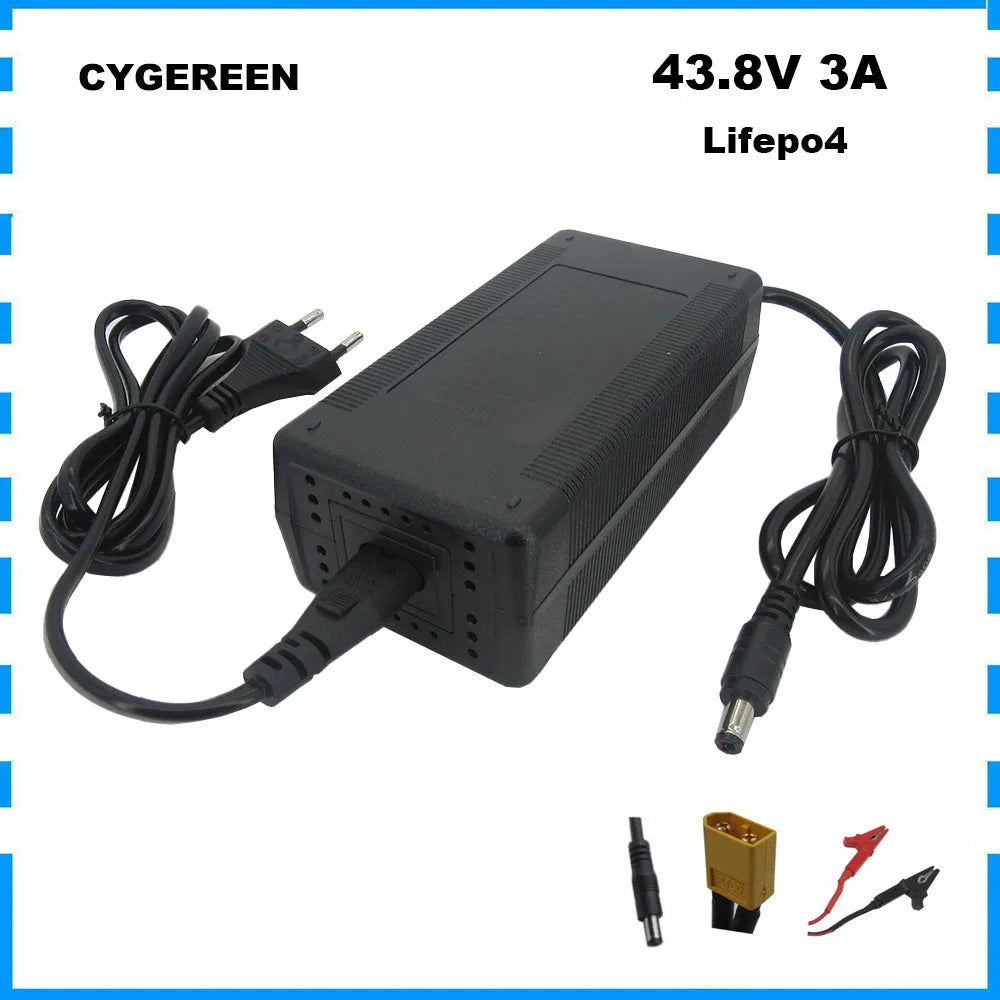

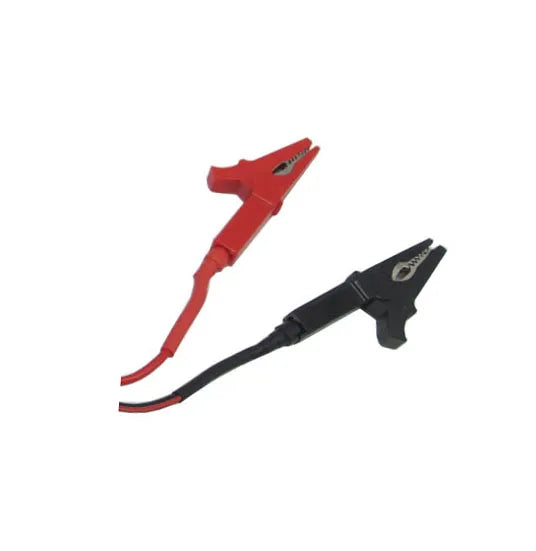

  • Multiple Output Port Options: Compatible with standard DC barrel, XT60, and Heavy-Duty Alligator Clip connection configurations.

  • CE & RoHS Certified Quality: Fully compliant with strict European and international electrical safety and environmental standards.

📊 Technical Specifications Matrix

Specification Parameter CYGEREEN SJT150E Specifications
Brand / Model CYGEREEN / SJT150E
Target Chemistry Lithium Iron Phosphate (LiFePO4 / LFP)
Series Configuration 12S (12 Cells in Series)
Nominal System Voltage 36V DC
Maximum Output Voltage 43.8V DC Cutoff
Output Current 3.0 Amps Continuous
Max Output Wattage 132 Watts
AC Input Range 100–240V AC, 50/60Hz
Available Connectors DC Port / XT60 Connector / Alligator Clips
Available AC Plugs US / EU / UK / AU Plug Options
Safety Certifications CE, RoHS Certified

semi_Choice: yes


⚙️ Operating Instructions & Sequence

  1. Verify Chemistry: Confirm your battery pack is a 12S LiFePO4 / LFP configuration requiring a 43.8V full-charge threshold.

  2. Step 1 (DC Connection): Plug the charger's output connector (DC, XT60, or Alligator Clips) firmly into your battery's charging port.

  3. Step 2 (AC Connection): Connect the AC power lead to a wall power outlet (100–240V AC).

  4. Completion: When charging is complete, the smart internal circuit automatically terminates power delivery to prevent overcharging. Unplug the AC power lead before disconnecting the DC leads from your battery.

📦 Package Contents

  • 1 x CYGEREEN 43.8V 3A Smart LiFePO4 Battery Fast Charger

  • 1 x Selected AC Power Cable (US/EU/UK/AU options)

  • 1 x Selected DC Output Port Lead (DC / XT60 / Alligator Clip)

Ensure safe, rapid charging for your 36V 12S LiFePO4 battery setup. Select your connector and plug options below, then click Add to Cart to order today!


36V 3A Lifepo4 Battery Fast Charger 43.8V 3A DC Connector For 12S 36 Volt Iron Phosphate LFP Charger


Charger description:
Input Voltage:100-240V AC 50/60HZ
Output Voltage:43.8V
Output Current:3A

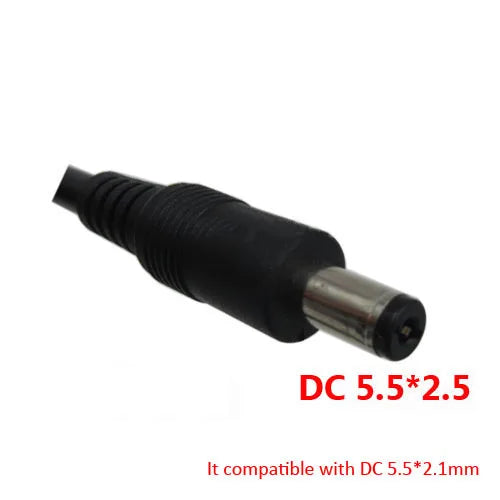

Size: DC 5.5*2.5mm ( compatible with DC 5.5*2.1mm)
Charging Plug: US/EU/UK/AU plug we can offer

Safety standard: CE/RoHS

Apply to:36V 12S Lifepo4 Battery Pack

Security protection: OVP/OCP/ Overload protection/ Short-circuit protection


Charge mode:  CC-CV


First stage: CC-constant current charging; the LED indicator is red. When charging to the rated voltage, it will switch to the second stage.

Second stage: CV-constant voltage charging; the current will gradually decrease until the LED indicator turns green, and the battery has been fully charged to 90% - 95%. The battery continues to charge at a small current until it is fully charged.

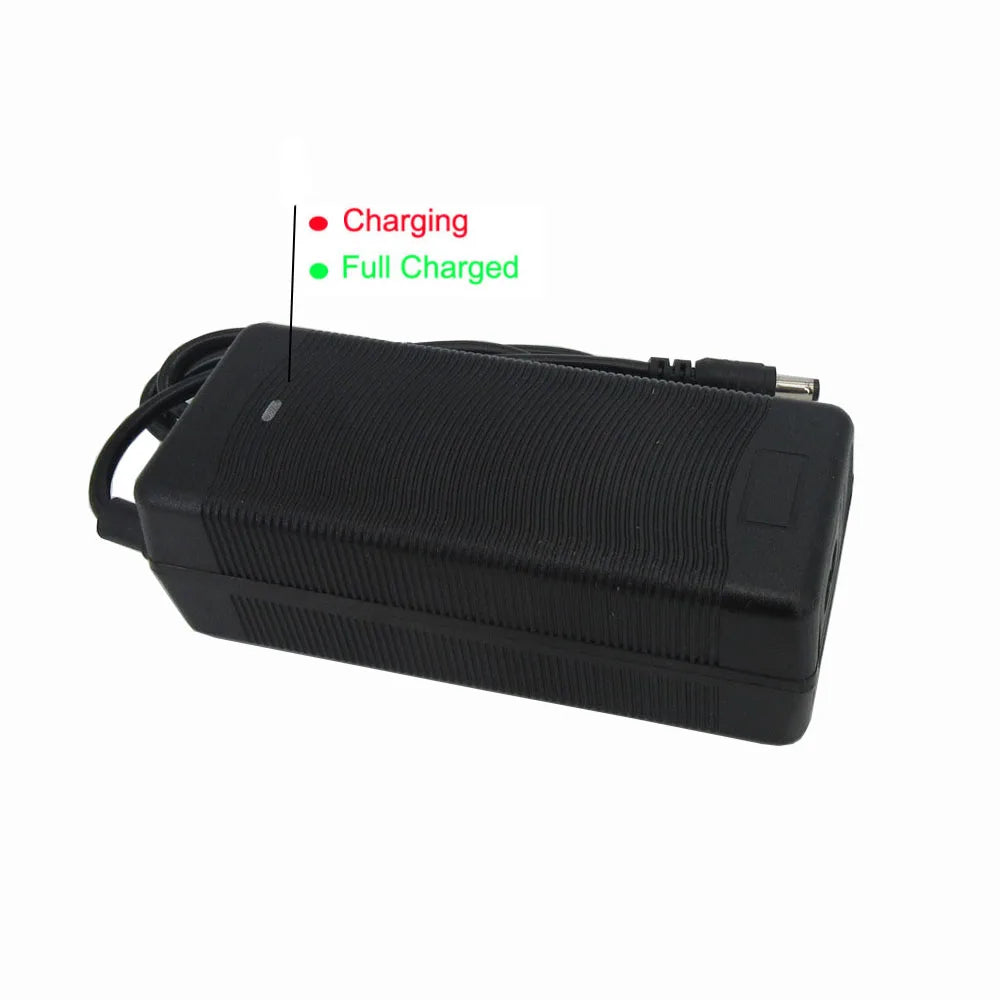

LED Light:

RED ---Charging

Green --- Fully charged; stop automatically and turn green when the battery is fully charged.


Parcel include:1pcs 36V 3A LiFEPO4 Charger with AC Charger plug(US/EU/UK/AU PLUG we can offer)
