WATE 54.6V 5A Intelligent 300W Aluminum Fast Charger
WATE 54.6V 5A Intelligent 300W Aluminum Fast Charger
WATE 54.6V 5A Intelligent 300W Aluminum Fast Charger – Industrial Power Supply for 13S 48V E-Bikes, Scooters & Commercial Fleets
Cut your wait time in half and get your ride back on the road. The WATE-300W Intelligent 5A Lithium-Ion Fast Charger is a heavy-duty, high-performance power upgrade explicitly engineered for standard 13S 48V (48.1V Nominal) battery architectures. Delivering a powerful 5 Amps of continuous current, this 300W-class workhorse slashes down-time compared to common 2A stock chargers. It safely services standard 10Ah, 15Ah, and 20Ah+ lithium-ion packs without sweating.

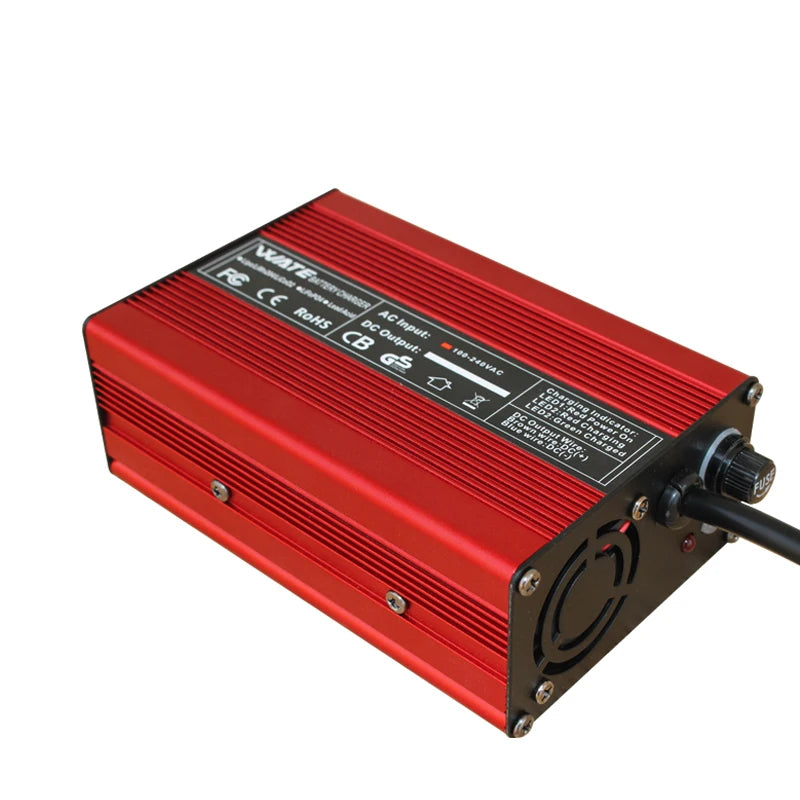

Housed in a rugged, structural aluminum alloy shell, the charger features an integrated, auto-switching forced-air cooling system that keeps components running efficiently under heavy loads.
🚀 Key High-Performance Features
-
Pro-Speed 5A Fast Charging Output: Delivers 300W of maximum output power, letting you charge up a 10Ah commuter battery pack in roughly 2 hours or fully replenish a large-capacity 20Ah delivery battery pack in about 4 hours.
-
Rugged Aluminum Alloy Build: Encased in a rigid, industrial-grade metal chassis that provides excellent drop resistance and serves as a passive heat sink.
-
Smart Forced-Air Cooling Fan: Equipped with a built-in automated cooling fan that dynamically adjusts based on the heat load. Under clean, ventilated conditions, it guarantees that full-load structural temperature rises do not exceed a safe 40°C threshold.
-
Dual-Color LED Status Tracking: High-visibility dual-color LED charging indicator makes tracking simple: Solid Red means active current transfer, and Solid Green signals a completed cycle or standby status.
-
Exceptional Commercial Durability: Features a field-tested Mean Time Between Failures (MTBF) of 30,000 operational hours and performs beautifully up to extreme heights of 10,000 meters during active operations.
Features
1.AC input: 100V AC&240V AC, 47 to 63Hz
2. Output power:300W
3. DC output voltage: 54.6V 5A
4. LED indicator light logo: red and green, double color instructions, red charging, green finished or standby
5. Efficiency: >85%
6. MTBF: 30000 hours
7. Main export markets: Asia/Eastern Europe/Mid East/Africa/Australasia/North America/Central/South America/Western Europe
Protect Characteristic
1. Short-circuit protection
2. Over-current protection
3. Over-voltage protection
4. Reverse Polarity Protection
5. Over-temperature protection
Work Conditions:
Ambient temperature: -5 - 40℃
RH: 5 - 95%
Max. altitude: 10000 meters
Cooling: chargers use a forced air cooling system. Under dustless and ventilated conditions, the full load temperature rise does not exceed 40℃.
Storage conditions
Ambient temperature: -40 - 70℃
RH: 0 - 95%
Max. altitude: 20000 meters.
| System Attribute Specs | Factory Rated Calibration |
| Model Number | WATE-300W Pro Series |
| Target Battery Chemistry | 13S 48V Lithium-Ion (Li-ion) Only |
| Peak Output Voltage | 54.6V DC Maximum Cut-off |
| Continuous Current Output | 5.0 Amps Constant Current |
| Energy Transfer Efficiency | >85% at Full Load |
| Chassis Dimensions & Weight | 135mm * 90mm * 50mm |
| Working Temperature Range | Ambient -5°C to +40°C (Humidity: 5% to 95% RH) |
🛡️ 5-Tier Industrial Security Protection Matrix
Certified for global distribution under CE, FCC, and RoHS compliance benchmarks, the WATE-300W runs with zero hazardous compounds (High-concerned chemical: None) and features an automated electronic safety system:
-
Short-Circuit Protection (SCP): Safely isolates the charger circuit if output leads ever cross paths.
-
Over-Current Protection (OCP): Controls maximum energy delivery lanes to safeguard battery cells.
-
Over-Voltage Protection (OVP): Clamps output limits to protect the cell strings against unexpected grid spikes.
-
Reverse Polarity Protection: Prevents board shorts if a battery plug is connected incorrectly.
-
Over-Temperature Protection (OTP): Continuously monitors internals, throttling energy delivery if internal ventilation narrows.
🔌 Global Grid Sourcing Compliance
Featuring an adaptive wide-input voltage window of AC 100V–240V (47 to 63Hz), this charger is perfectly optimized for universal domestic and global grids. We check your shipping address at checkout to automatically include the correct wall cord profile (US, EU, UK, or AU plug), ensuring plug-and-play simplicity right out of the box.
📦 What's Inside the Box?
-
1 x WATE 54.6V 5A Smart Intelligent Charger (Model: WATE-300W)
-
1 x Heavy-Duty Detachable AC Wall Input Power Cable (Matched to local country delivery standard)
Upgrade your charging workspace and stop wasting hours on slow stock chargers. Choose your matching frame port connector terminal tip below, then click Add to Cart to secure your WATE 300W Fast Charger today!
