Multi-Voltage Smart Lithium-Ion Battery Charger Series

$30.97 USD

~~$10.97 USD~~ $30.97 USD

Sale Sold out

Shipping calculated at checkout.

Color 36V 42V DC US 48V 56.4V DC US

Socket Standard 2A 3A 5A

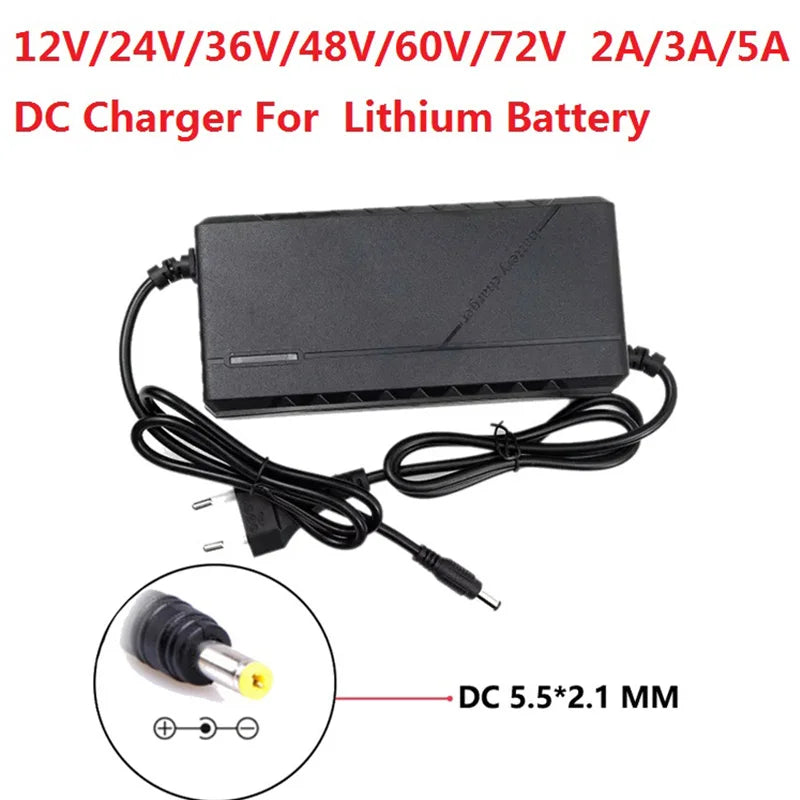

WAPUNO Multi-Voltage Smart Lithium-Ion Battery Charger Series

12V, 24V, 36V (42V Cutoff), 48V (54.6V Cutoff), 60V (67.2V Cutoff) & 72V (84V Cutoff) in 2A, 3A & 5A Options (Real-Time Digital Display Screen, Quick CC/CV Charging & EU Plug)

Power up your entire lineup of e-bikes, electric scooters, mobility carts, and custom lithium battery banks with the heavy-duty WAPUNO Multi-Voltage Smart Lithium Battery Charger. Built with a broad output range spanning from 12V up to 72V (84V maximum full-charge cutoff) and available in 2A, 3A, and high-speed 5A output variants, this intelligent power adapter delivers up to 500W of charging power.

Featuring an integrated digital display screen, WAPUNO’s smart charger allows you to track real-time charging status and voltage metrics during operation. Utilizing advanced Constant Current / Constant Voltage (CC/CV) fast-charging algorithms with multi-stage auto-cutoff protection, this unit maximizes charge speed while preserving cell health and longevity.

⚠️ Voltage Selection & Multi-Pack Guide

CRITICAL VOLTAGE & BATTERY CHEMISTRY MATCHING GUIDE:

Lithium-Ion (Li-Ion) Only: Engineered EXCLUSIVELY for Lithium-Ion battery packs. Never use on Lead-Acid, Gel, SLA, or LiFePO4 batteries unless specifically configured.

36V System Option: Delivers a 42.0V Full Charge Cutoff (10S Series).

48V System Option: Delivers a 54.6V Full Charge Cutoff (13S Series).

60V System Option: Delivers a 67.2V Full Charge Cutoff (16S Series).

72V System Option: Delivers an 84.0V Full Charge Cutoff (20S Series).

🚀 Key High-Performance Features

High-Output Fast Charging (Up to 500W): Delivers continuous high-efficiency charging power available in 2A, 3A, and rapid 5A output configurations.
Integrated Digital Display Screen: Live digital LCD/LED display provides real-time voltage and charging state metrics.
Intelligent CC/CV Multi-Stage Protection: Dynamically adjusts current and voltage to prevent over-charging, short circuits, thermal overload, and reverse polarity.
Automatic Full-Charge Cutoff: Smart circuitry halts power transmission as soon as the connected battery reaches its maximum voltage threshold.
Broad Voltage Compatibility: Tailor-fit options for 12V, 24V, 36V, 48V, 60V, and 72V lithium battery architectures.

📊 Technical Specifications Matrix

12V 24V 36V 48V 60V 72V Charger 2A 3A 5A Lithium Battery Pack 42 54.6 67.2 84V DC EU/US Smart Intelligent Fast Charging Charge

12V 24V 36V 48V 60V 72V 2A/3A/5A charger lithium battery 12.6V 42V 54.6V 67.2V 84V intelligent fast charging DC output plug EU input Plug 110~240V AC, 50/60Hz

Product Specifications:

100% Brand New and high quality. Super strong protection.
Type: lithium battery charger
Model: 12V 24V 36V 48V 60V 72V
Input: 110~240V AC, 50/60Hz
Output: DC
Charging current: 5.0A ± 0.3A
Repair current: 600mA-800mA
Trickle charging: 170mA 30mA
Shell: plastic
Color: Black
Plug:EU
Output power: 273W/336W/420W MAX
Recommended capacity: 15AH~60AH

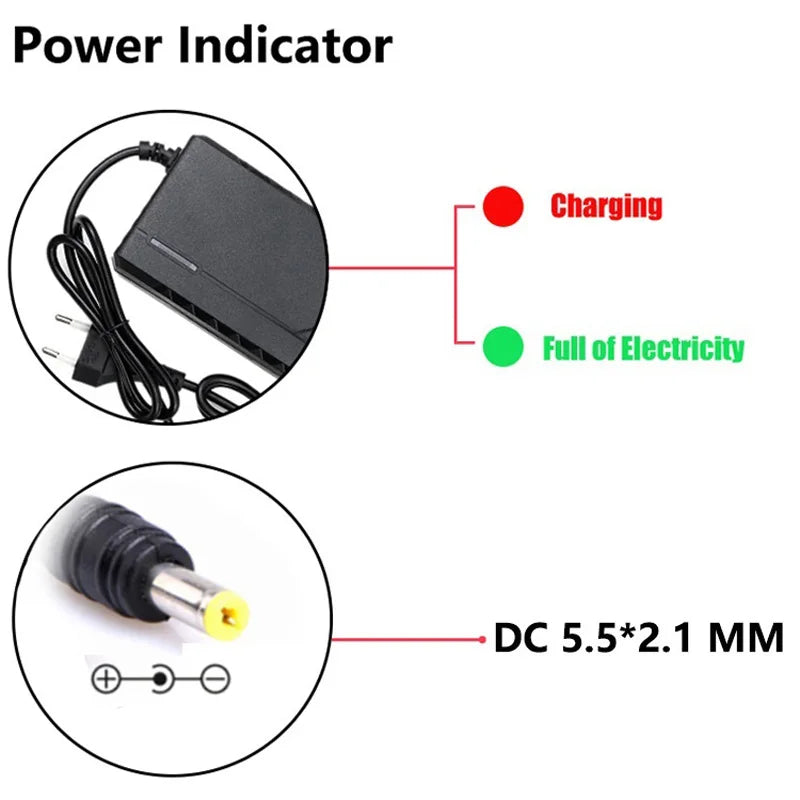

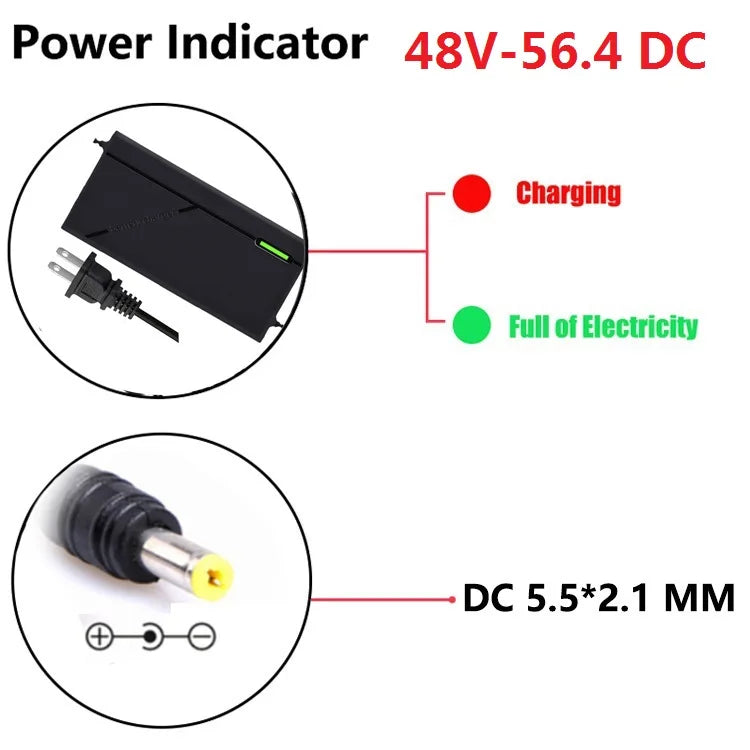

Charging indicator:
Instructions: charging-light red; Filled-light green; Failure- the lights flash.
Safety protection: OVP/OCP/overload protection/short-circuit protection

Package includes:
lithium battery charger * 1

Protection characteristics
1. Short circuit protection
2. Overcurrent protection
3. Overvoltage protection
4. Reverse polarity protection
5. Overheating protection

When the internal temperature is more than 85 ℃, it will stop automatically; When the temperature is lower than 75 ℃, it will open automatically.

Operating conditions:
Ambient temperature: - 5-40 ℃
Relative humidity: 5-95%
Maximum altitude: 10000m
Storage conditions
Ambient temperature: - 40-70 ℃
Relative humidity: 0-95%
Highest altitude: 20000 meters. seven hundred and eighty-seven

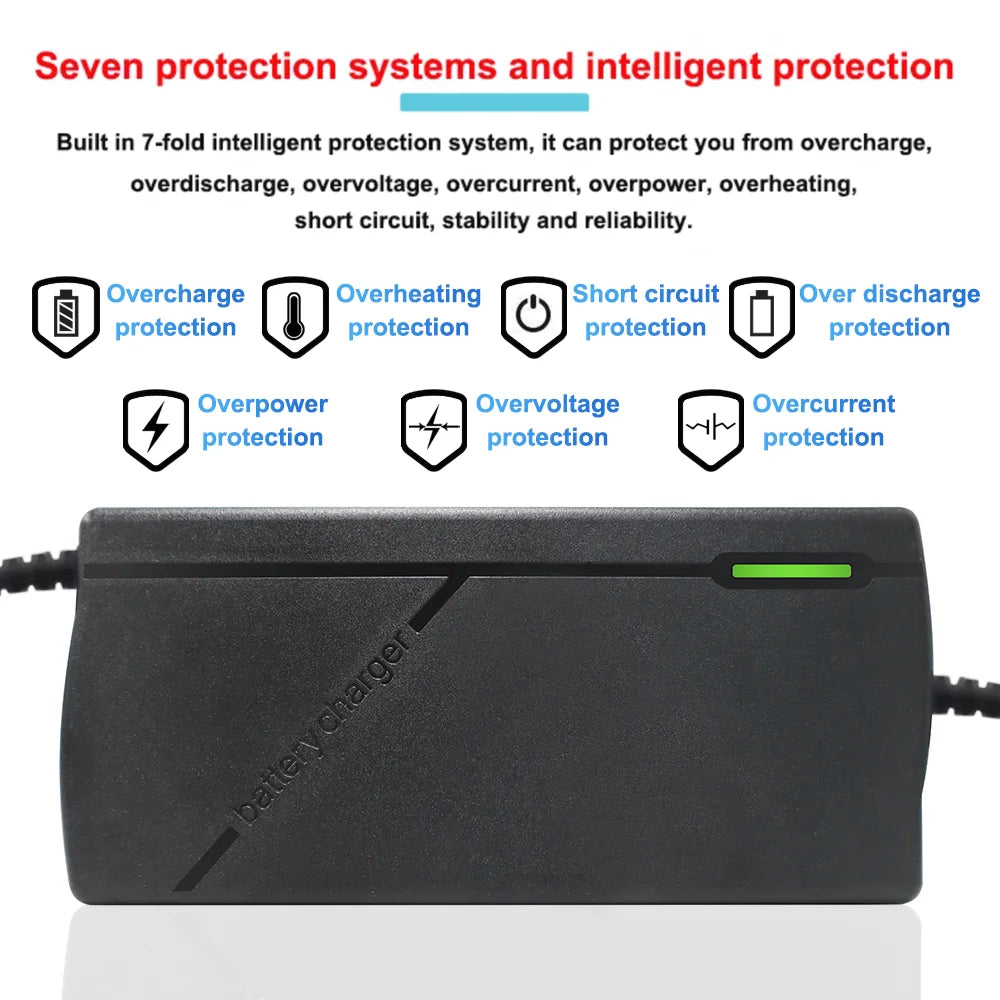

7 protection systems and intelligent protection

Overcharge protection, overheat protection, short circuit protection, overdischarge protection, overpower protection, overvoltage protection, overcurrent protection

Smart chip, multi-layer protection

Components are from big brand suppliers

Stable performance to meet more requirements

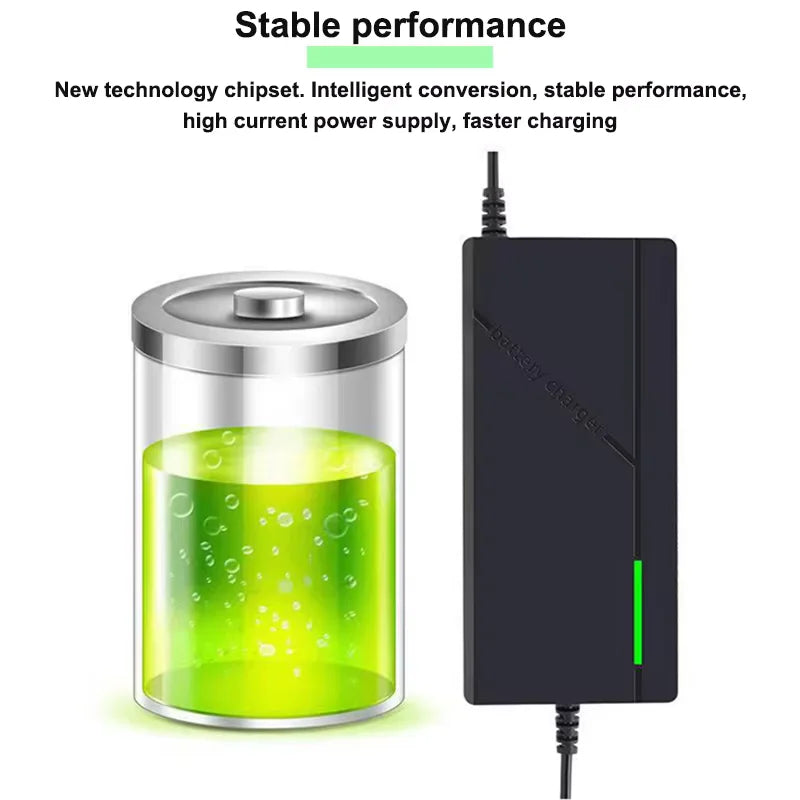

New technology chipset, intelligent conversion, more stable performance, high-current power supply, faster charging

⚙️ Operating Instructions & Sequence

Match Voltages: Double-check that your battery pack’s nominal and maximum voltage matches the selected WAPUNO charger output rating (e.g., 48V battery = 54.6V charger).
First Step (DC Connection): Plug the charger’s DC output cable securely into your electric vehicle or battery pack charging port.
Second Step (AC Connection): Connect the AC power lead to the wall outlet. The digital screen will light up to display live status during active charging.
Completion: Once full charge capacity is reached, the smart auto-cutoff engages. Disconnect the AC wall plug first, then remove the DC output cable from your vehicle.
