WAPUNO 36V/48V Smart Lithium Battery Charger
WAPUNO 36V/48V Smart Lithium Battery Charger
WAPUNO Intelligent Multi-Voltage E-Bike & Electric Scooter Battery Charger

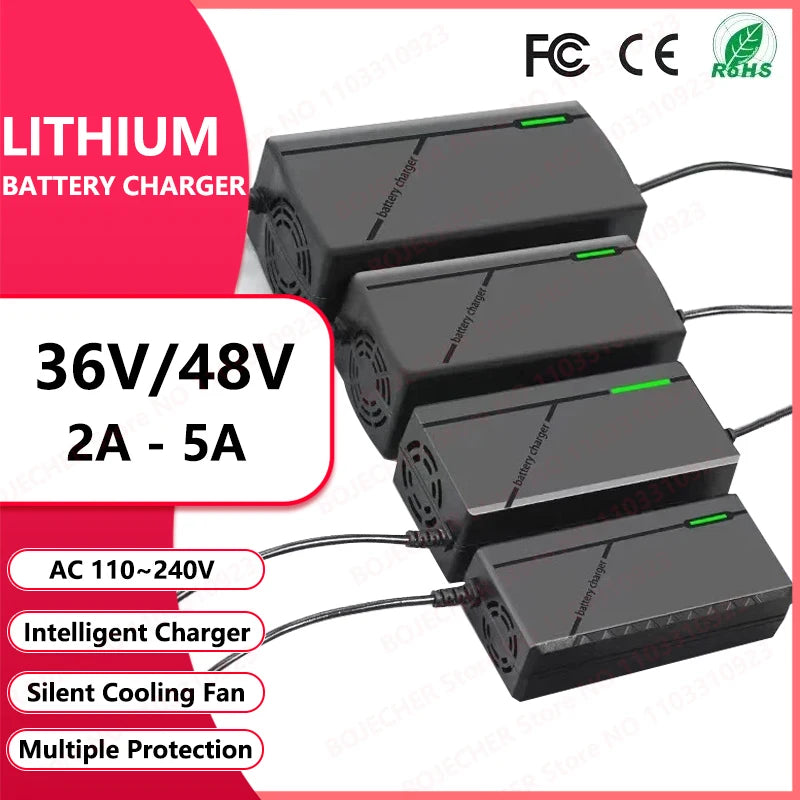

Keep your electric vehicle running efficiently with the WAPUNO Smart Lithium Battery Charger. Available in both 36V (10S) and 48V (13S) system configurations with selectable 2A standard or 5A fast-charging outputs, this adaptive charger handles all your daily home and workplace charging needs.
Powered by a premium intelligent micro-chip, the WAPUNO charger automatically manages output voltages up to 42V and 54.6V, depending on your selection. Its built-in forced-air cooling fan and fire-resistant structural shell ensure safe operation while significantly preserving your battery pack's lifespan.
🚀 Key High-Performance Features
-
Intelligent Chip Control: Offers dynamic 3-stage charging management. The charger detects battery health, optimizes amperage during main cycles, and shuts off automatically when the pack is fully charged to eliminate overcharging risks.
-
Active Cooling Fan System: Outfitted with an active internal cooling fan that handles heavy thermal loads effortlessly, keeping system temperatures completely stable.
-

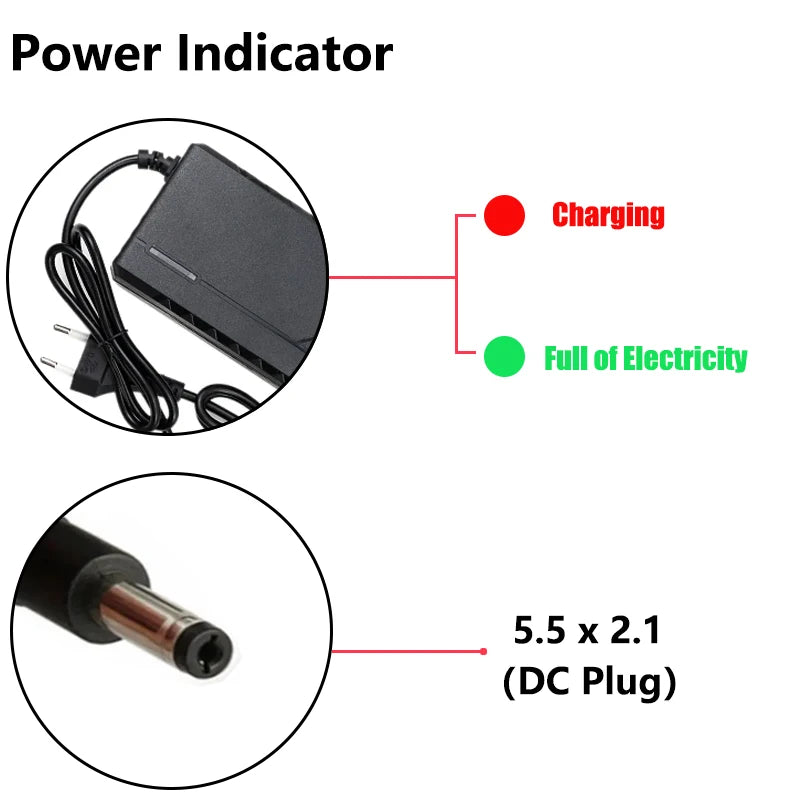

3-State LED Display Indicator: Eliminates guesswork by displaying system status clearly via color-coded signaling:
-
🔴 Solid Red: Battery is actively charging.
-
🟢 Solid Green: Charging completed successfully / Standby mode.
-
⚠️ Flashing Light: Operational fault or short-circuit failure detected.
-
-
Smart Pulled-Current Repairing: Features a specialized 600mA–800mA pulsing recovery phase alongside a safe 170mA trickle charge option to balance weak internal cells over time.
🛡️ 5-Tier Ultimate Safety Protection Matrix
To ensure total home and garage safety, the WAPUNO electric power station is backed by global certifications (CE, FCC, RoHS) and robust electrical safety components:
-
Short Circuit Protection: Instantly breaks current loops upon cross-wire detection.
-
Overcurrent Protection (OCP): Stops uncontrolled amp spikes from warping battery cells.
-
Overvoltage Protection (OVP): Caps peak voltage points to maximize cell balance longevity.
-
Reverse Polarity Protection: Prevents cross-terminal polarity damage.
-
Smart Overheating Cutoff: The unit shuts off automatically if internal temperatures breach 85°C, resuming once temperatures drop beneath 75°C.
| Feature | Product Specification |
| Brand Name | WAPUNO |
| Battery Chemistry | Lithium-ion Battery Packs Only (10S / 13S architectures) |

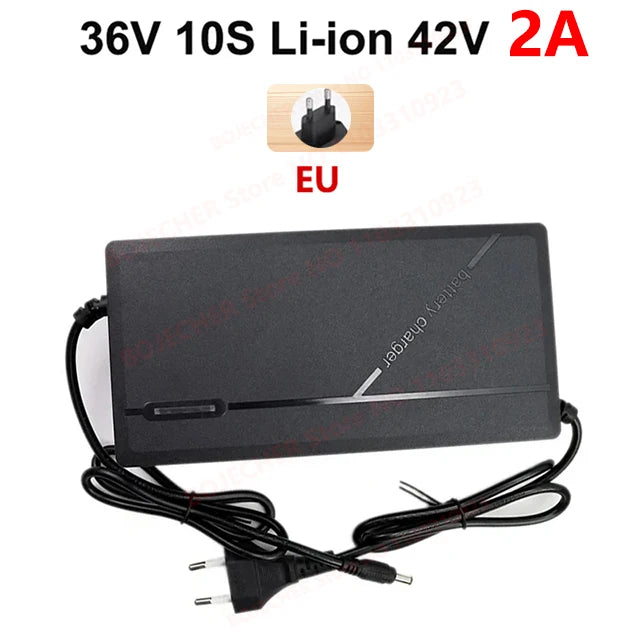

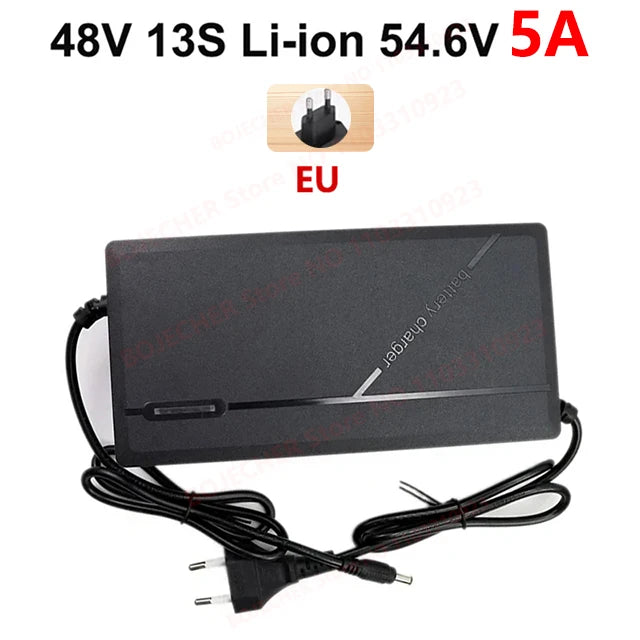

| Model Configurations | 36V System (10S) $\rightarrow$ 42V Output | 48V System (13S) $$\rightarro$ 54.6V Output |
| Amperage Selections | 2A Standard / 5A Quick Charge ($\pm$ 0.2A) |
| Main Output Connector | DC 5.5mm x 2.1mm Jack Plug |
| Power Source Input | AC 110V–240V, 50/60Hz (Universal Compatibility) |
| Wall Plug Interface | EU Input Plug (Select based on regional preference) |
| Maximum Output Power | Selectable: 84W Max / 110W Max / 210W Max / 274W Max |
| Recommended Capacity | Best suited for 15AH to 60AH standard batteries |

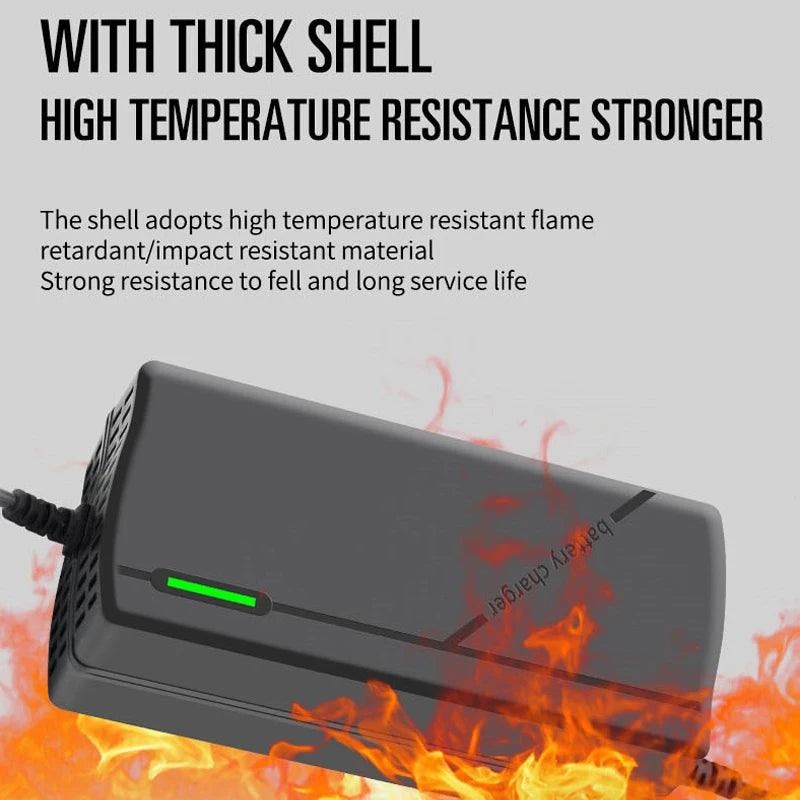

| Structural Material | Heavy-Duty Flame-Retardant Plastic Shell |
| Certifications | CE / FCC / RoHS compliant | High-concerned chemical: None |
🌡️ Operational & Environmental Limits
-
Operating Ambient Temperature: -5°C to 40°C (Up to 10,000m altitude)
-
Storage Temperature Boundaries: -40°C to 70°C (Up to 20,000m altitude)
-
Relative Humidity Limits: 5% to 95% RH (Non-condensing)
📦 Package Contents
-

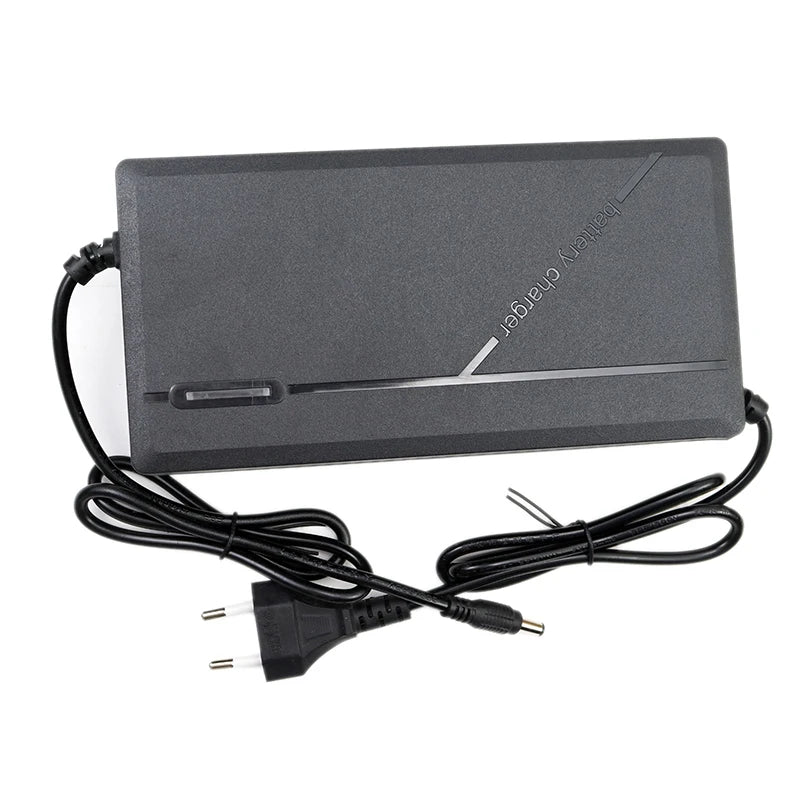

1 x WAPUNO Intelligent Smart Lithium Battery Charger
-
1 x Dedicated EU AC Wall Socket Cord
Get back on the road safely and quickly. Select your required voltage and amperage variant, and click Add to Cart to secure your WAPUNO charger today!
Product Details

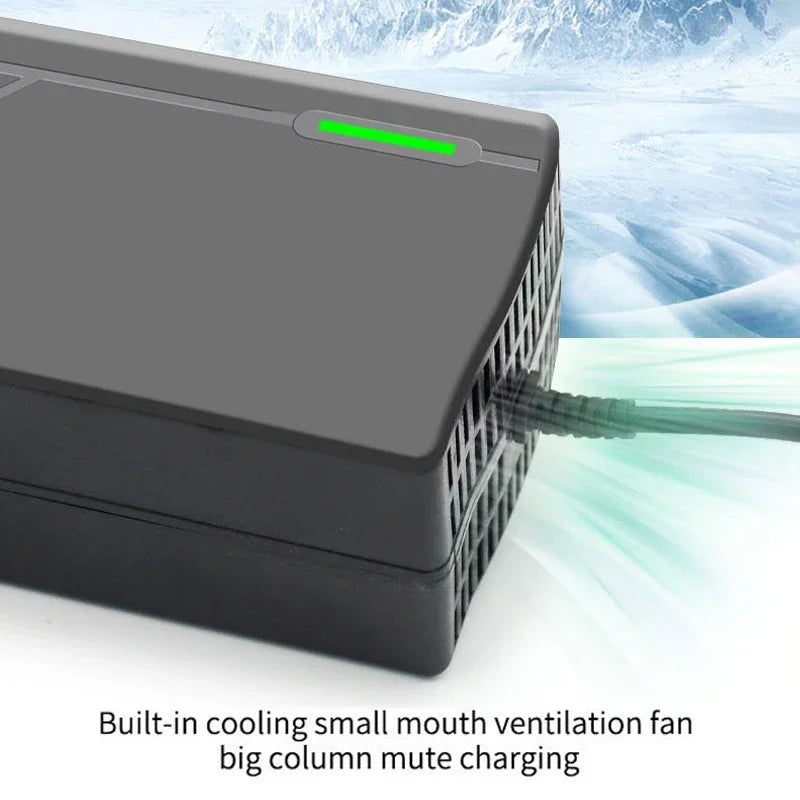

Double sided cooling hole, more comfortable charging and constant temperature
Double-sided cooling holes
Charging with a constant temperature is more secure

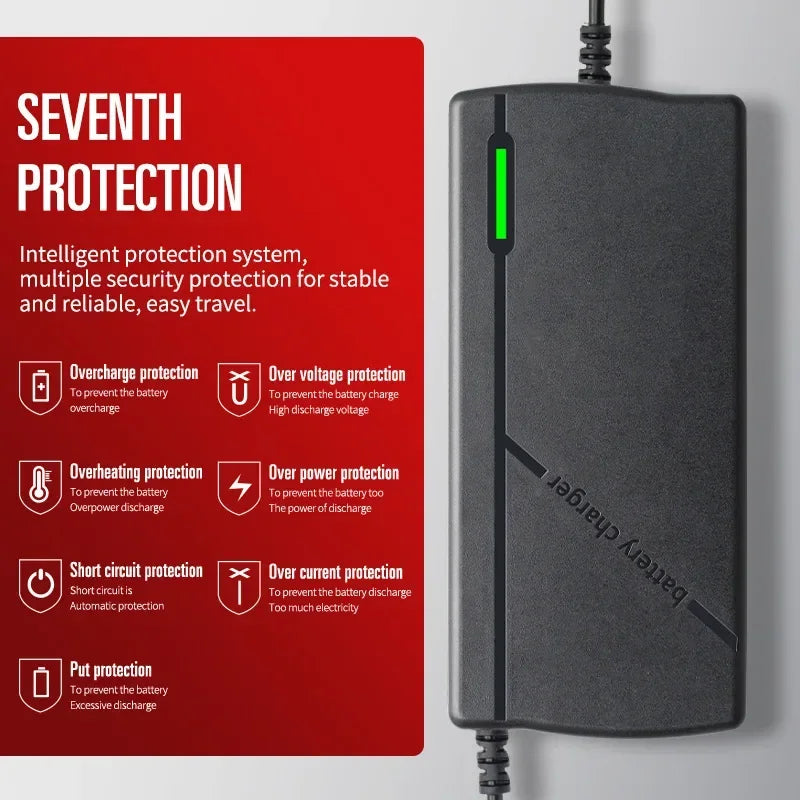

7 protection systems and intelligent protection
Overcharge protection, overheat protection, short circuit protection, overdischarge protection, overpower protection, overvoltage protection, overcurrent protection
Smart chip, multi-layer protection
Components are from big brand suppliers
Stable performance to meet more requirements
New technology chipset, intelligent conversion, more stable performance, high current power supply, faster charging
Product certificate
Scope of use
Battery pack, Harley electric vehicle, balance car, electric four-wheel vehicle, electric vehicle, scooter, unicycle, robot, tricycle
