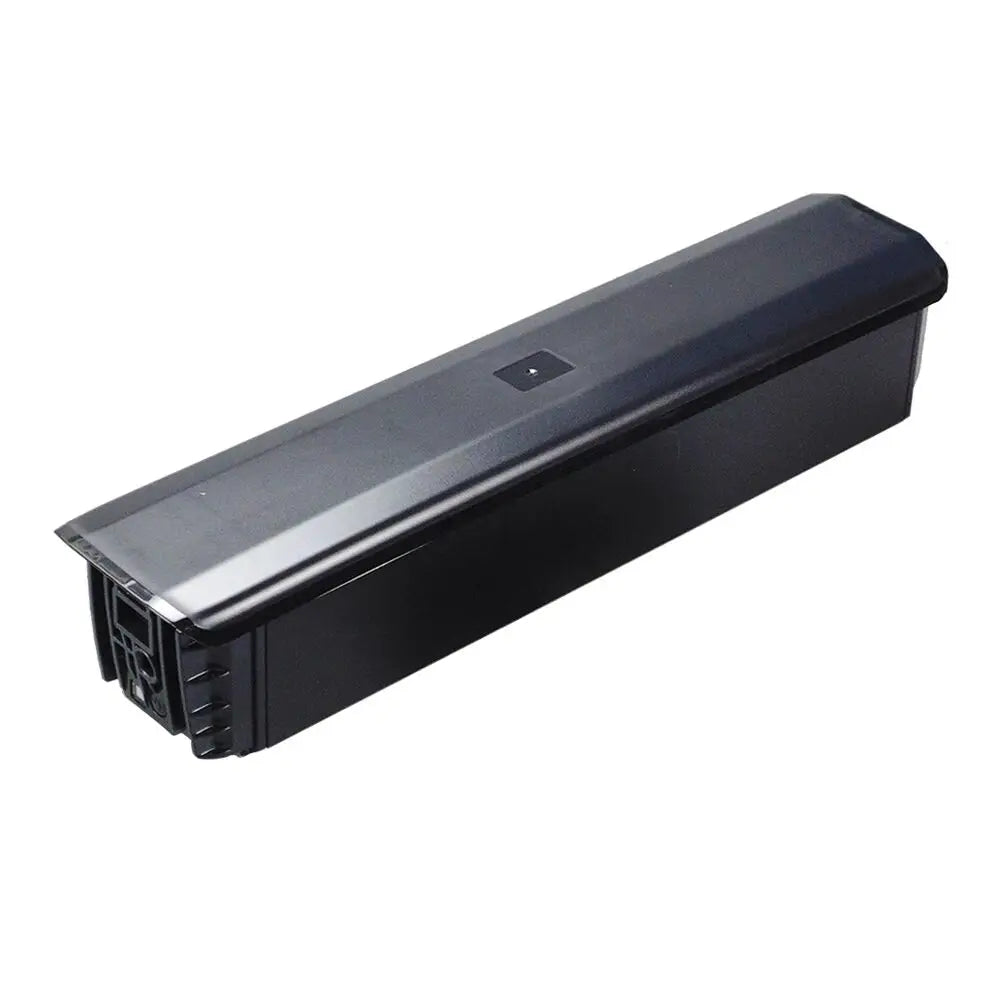

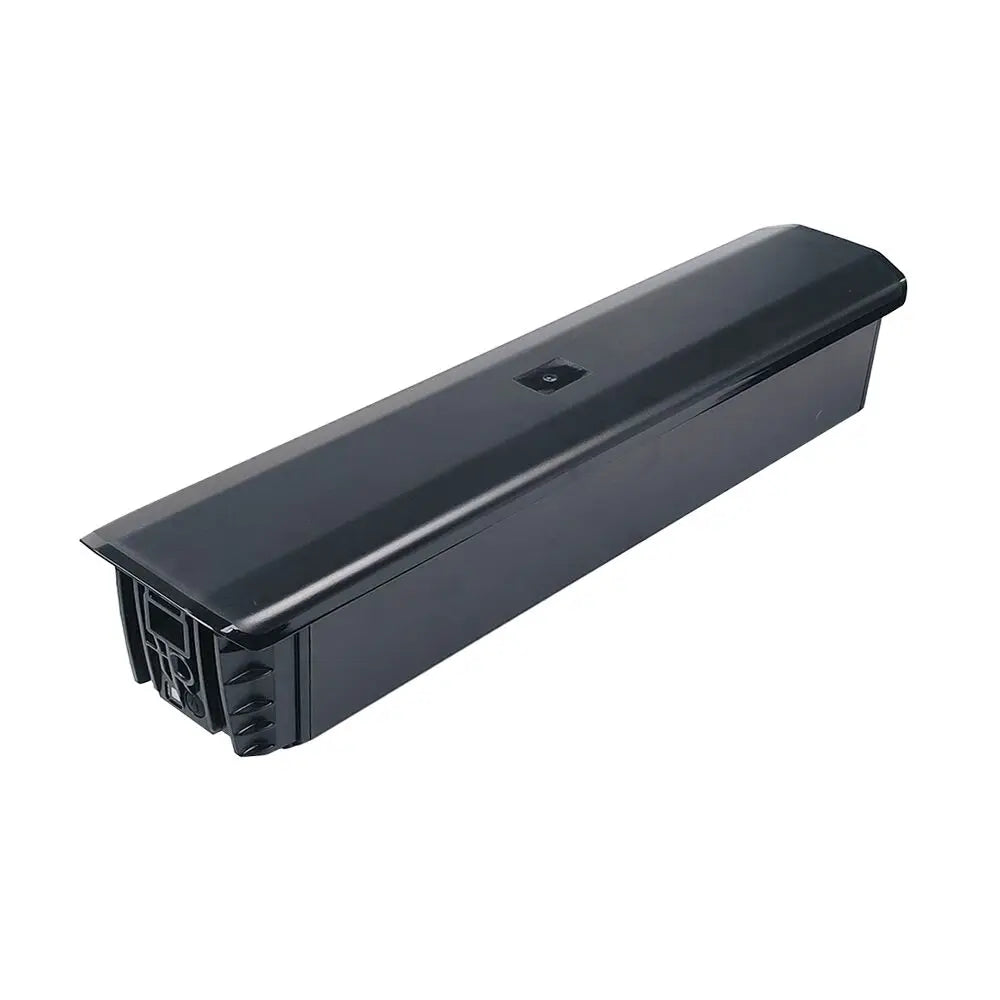

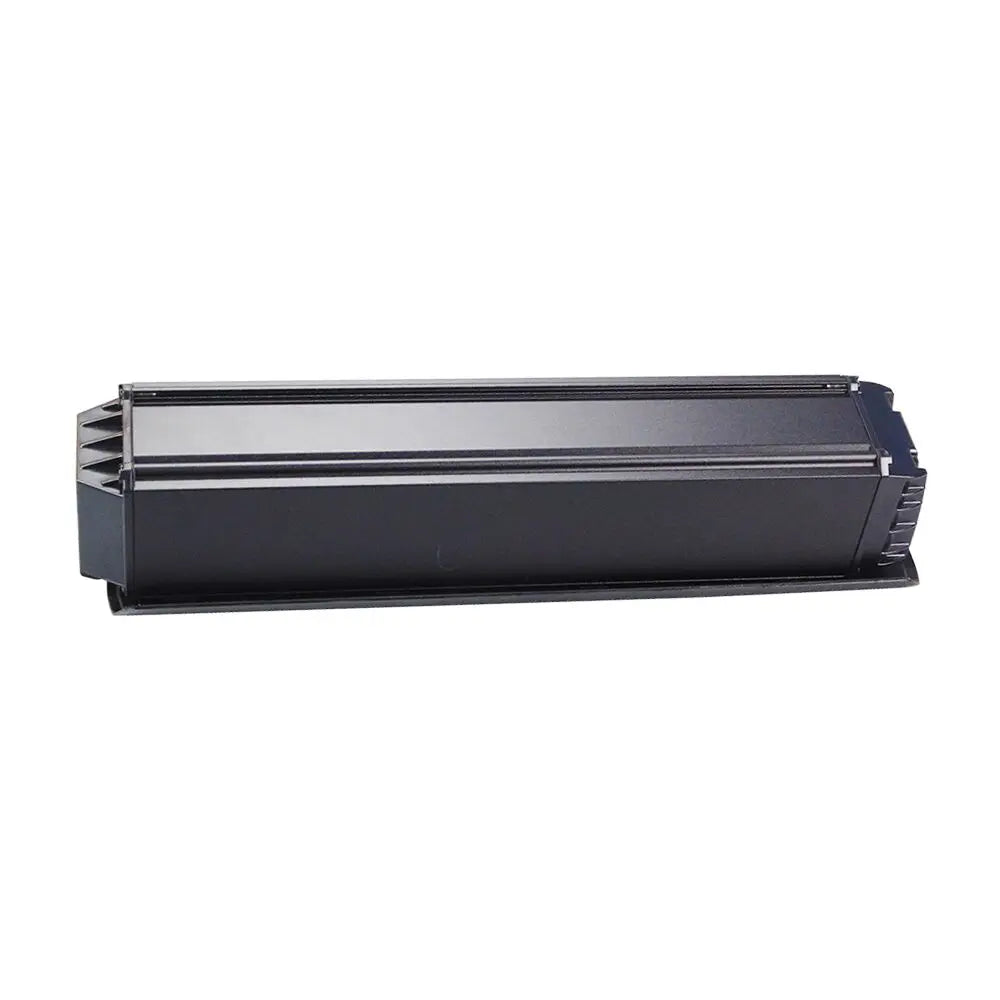

TRILUPO 48V Integrated Replacement E-Bike Battery Pack (13Ah / 15Ah / 17.5Ah | 54.6V Charger Included)
Restore peak motor performance and extended range to your ride with the TRILUPO 48V Integrated Lithium-Ion E-Bike Battery Pack. Engineered for seamless frame integration, this replacement pack is designed for popular high-power commuter and fat-tire e-bikes, including the Shengmilo MX03, MX04, MX05, MX06, Urbanbiker Dakota PLUS FE, and Ranger FMTB3 1.0. Equipped with an advanced 25A/30A Battery Management System (BMS), it safely drives 250W to 1000W motors and includes a matching 54.6V Smart Fast Charger with every purchase.
⚠️ Key Performance & Safety Guidelines
IMPORTANT VEHICLE & BATTERY SPECIFICATIONS:

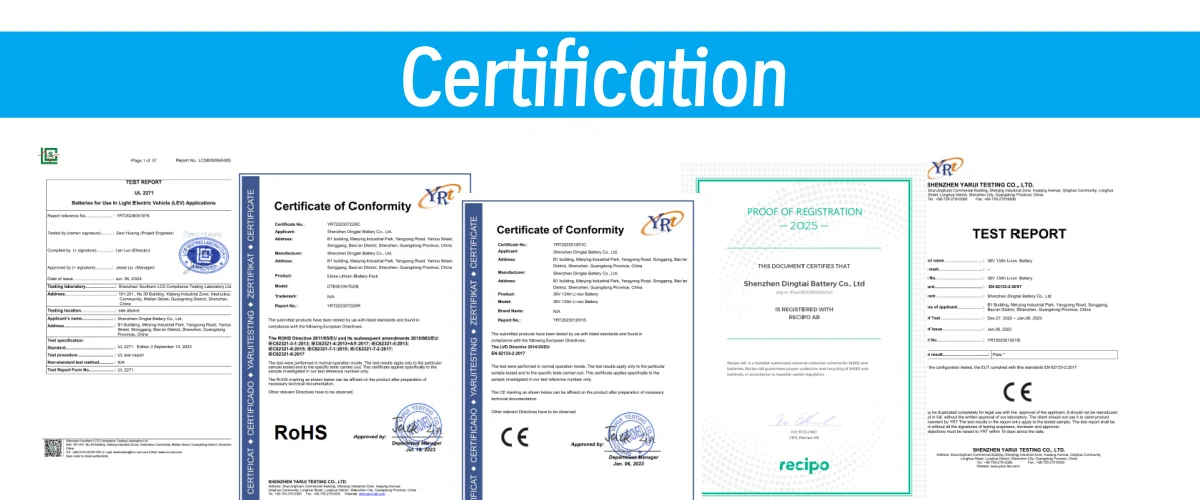

UL & CE Safety Certified: Thoroughly tested to meet stringent international standards for electrical safety, short-circuit defense, and thermal management.
Broad Motor Power Band: Integrated 25A/30A Smart BMS supports motor power outputs from 250W up to 1000W continuous.
High-Density 18650 Cell Configurations: Choose from 13Ah ($624\text{Wh}$), 15Ah ($720\text{Wh}$), or 17.5Ah ($840\text{Wh}$) energy capacities built with premium 18650 cells.
Complete Charger Bundle: Every battery includes a dedicated 54.6V (2A or 3A) smart fast charger for safe home or office recharging.
🚀 Key High-Performance Features
-

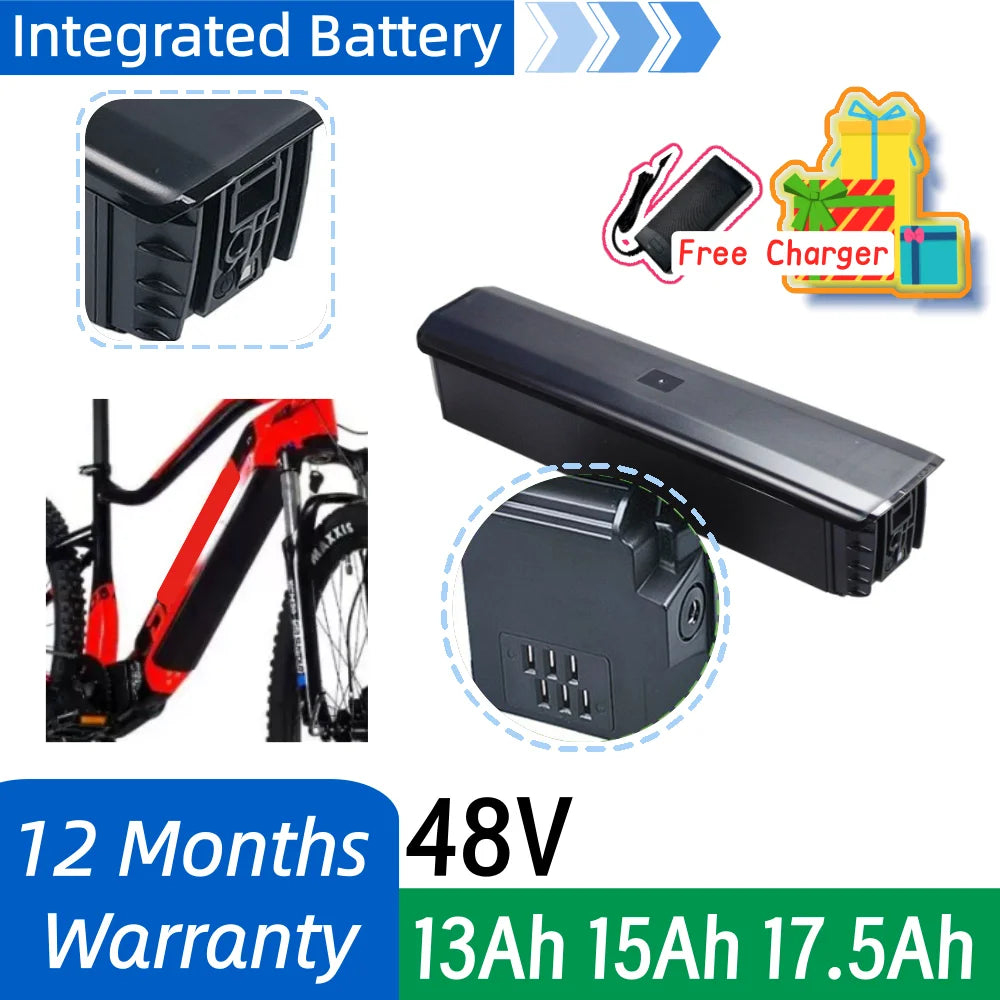

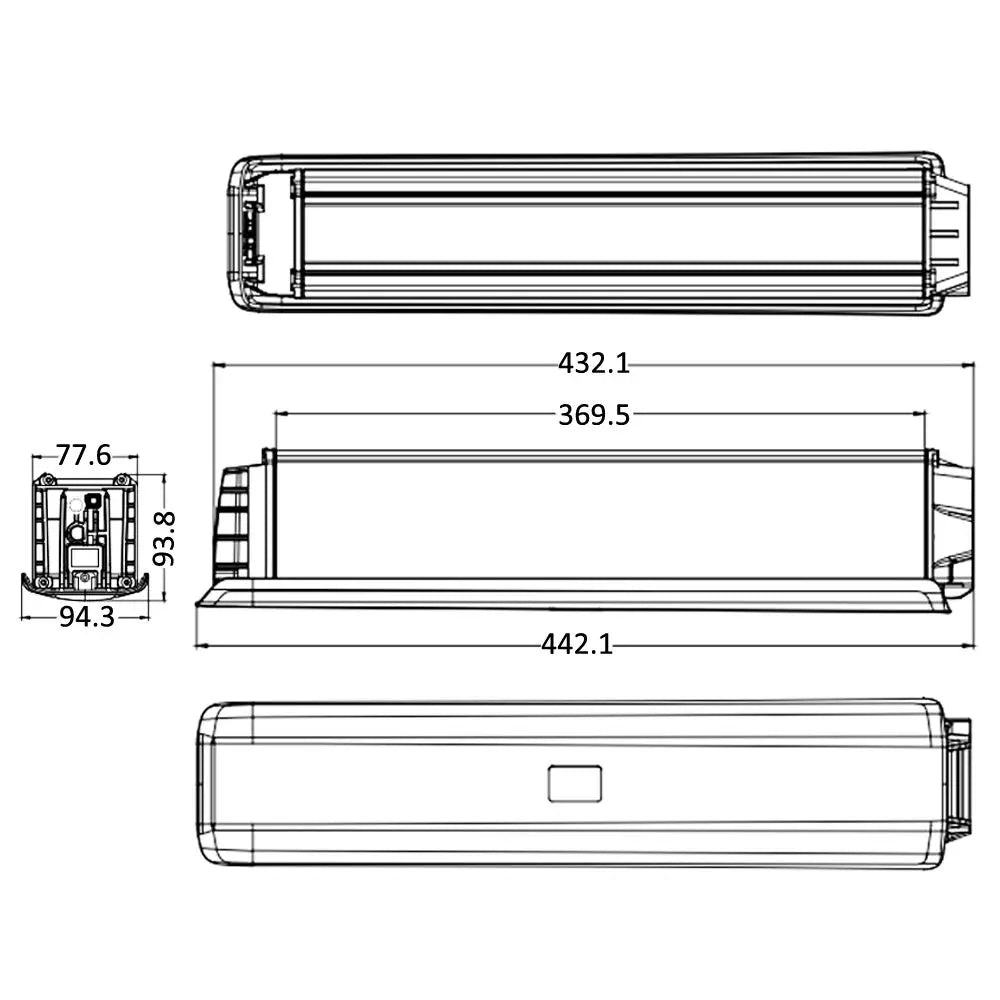

Direct Down-Tube Frame Fitment: Custom-molded integrated casing fits flush inside the down-tube battery bay of Shengmilo MX-series and Urbanbiker frames.
-
Smart 25A/30A BMS Protection: Keeps battery temperature stable while guarding against overcharging, over-discharging, short circuits, and power surges.
-
Up to 17.5Ah Capacity Option: Maximizes riding range ($840\text{Wh}$ total reserve), letting you take on long commutes and weekend trail rides without range anxiety.
-
Key-Lock Security System: Frame lock mechanism prevents battery theft when parked in public spaces.
-
Free Matching Fast Charger: Includes a 54.6V AC smart charger with auto-cutoff to protect total battery cycle life.

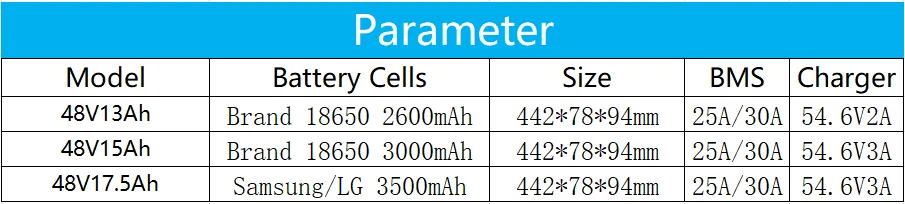

📊 Technical Specifications Matrix
| Specification Parameter | TRILUPO Integrated 48V Battery Specifications |
| Brand & Manufacturer | TRILUPO Power Solutions |

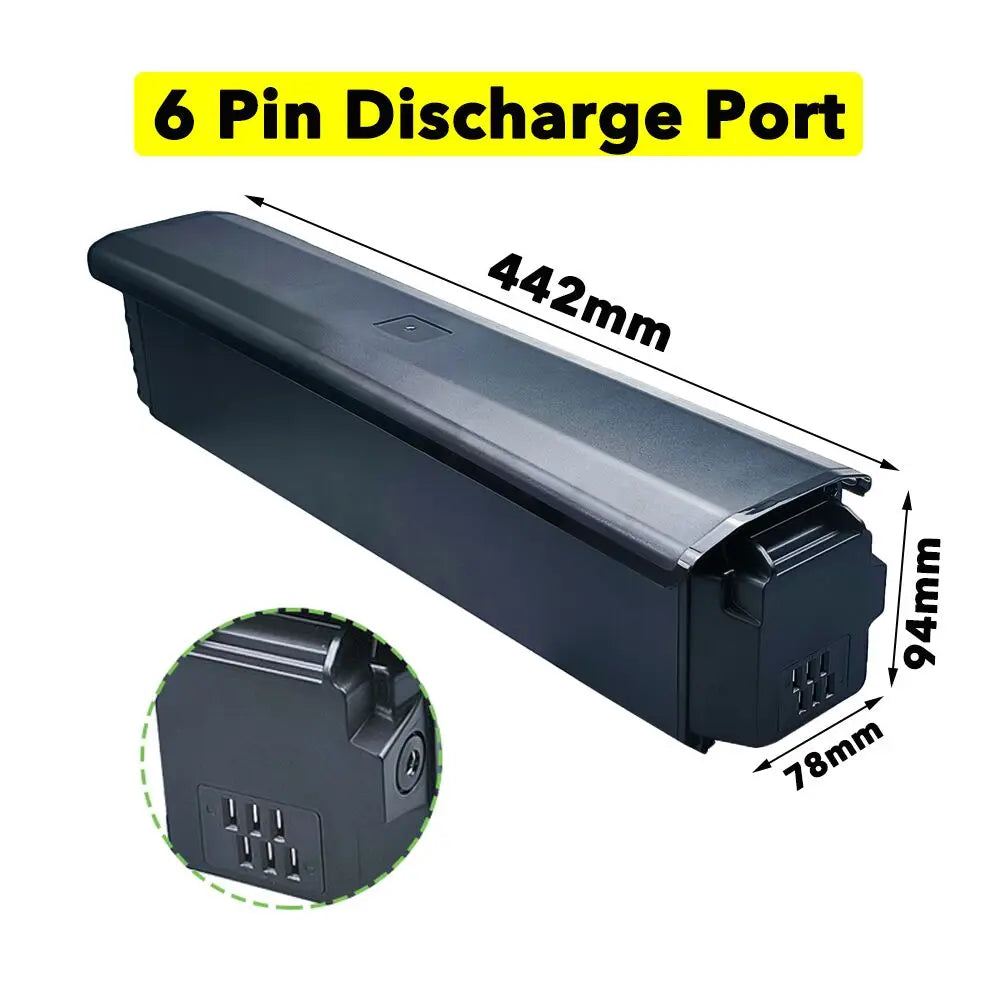

| Compatible Models | Shengmilo MX03, MX04, MX05, MX06 / Urbanbiker Dakota PLUS FE / Ranger FMTB3 1.0 |
| Cell Type & Rating | 18650 Grade-A Lithium-Ion (2600mAh / 3000mAh / 3500mAh) |
| Nominal System Voltage | 48V Architecture (54.6V Peak Charge Voltage) |
| Capacity Options | 13Ah ($624\text{Wh}$) / 15Ah ($720\text{Wh}$) / 17.5Ah ($840\text{Wh}$) |
| Integrated BMS Protection | 25A / 30A Continuous Output BMS |
| Motor Output Range | Fits $250\text{W} - 1000\text{W}$ Hub & Mid-Drive Motors |
| Safety Certifications | UL Certified, CE Marked |
| Included Charger | 54.6V 2A / 3A Smart Charger Included |
📋 Ideal Applications
-
Shengmilo & Urbanbiker Upgrades: Perfect direct-fit replacement for worn-out original batteries on Shengmilo MX-series fat bikes or Urbanbiker models.
-
Range Extender Pack: Keep a second charged battery on hand to double your travel range on long backcountry or cross-city trips.
-
1000W High-Torque Motor Support: High-discharge BMS reliably powers high-wattage motor setups on steep inclines and loose trail terrain.
📦 Package Contents
-
1 x TRILUPO Integrated 48V Lithium-Ion Battery Pack
-
1 x 54.6V AC Smart Fast Charger (Free Bundle)
-
2 x Frame Security & Ignition Keys
-
1 x User Safety & Charging Guide
Power your Shengmilo or Urbanbiker e-bike with certified lithium performance! Select your capacity option above, click Add to Cart, and order today!
.
Battery Manual:
1. Charge: Connect the battery pack to the charge controller, then connect the charger to recharge.
2. Discharge: Connect the battery pack to the load; connect the load to discharge.
3. When you combine the batteries in series or parallel, if there is an oxidation layer on the surface, you
should brush the surface of the metal with a thin steel brush to lower the contact resistance to the minimum.
4. When combining with many batteries, if the voltage between the two electrodes is over 24V, the safe
voltage for human beings, to guarantee safety, you should not touch the two electrodes with your body.
5. If shelved for a long time suggested that the battery keep the voltage at 80%; regular recharging is needed (even if
not used), must charge and discharge for three months one time;
6. Do not expose the battery to extreme heat or flame.
7. Do not short-circuit, overcharge, or over-discharge the battery pack;
8. Do not disassemble or modify the battery pack.
9. Do not handle or store with metallic items like necklaces, coins, or hairpins, etc.
10. Do not reverse the polarity of the battery pack for any reason.
11. Do not immerse the battery pack in water or seawater, or get it wet.
12. Use a constant current, constant voltage (CC/CV) lithium-ion (Li+) battery charge controller.
FAQ:
1. Is this battery compatible with my ebike?
R: Pls compare our battery with your old battery; if the look and dimensions are the same, then it is compatible with your bike. Meanwhile, pls pay attention to your motor. If your motor is 36V, pls choose a 36V battery; if your motor is 48V, pls choose a 48V or 52V battery; if your motor is 60V, pls choose a 60V battery.
2. What is the type of this ebike battery?
R: It is a lithium-ion battery; the chemistry is LiCoMnO2.

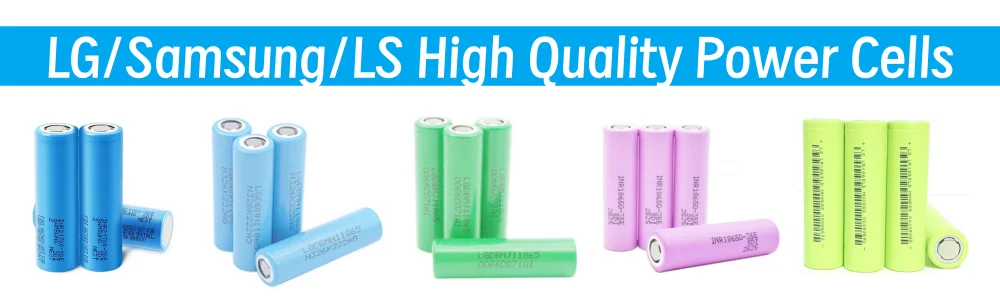

3. What kind of single cells are used in this ebike battery?
R: We use different cells for different capacitybattery, we assemble the battery pack with original A grade S-amsung,P-anasonic,S-anyo,LG- and high power China brad cells,standard capacity is 18650 2600mAh, 2900mAh, 3000mAh,3200mAh, 3500mAh and 21700 4800mAh, 5000mAh. We can customize different batteries as per your requests.
4. What is the difference between li ion battery, NI-MH battery, and lead-acid battery?
R: Ebike lithium-ion battery has a longer cycle life; the normal cycle life is more than1000 times, and also with light weight, small size, no memory effect, is non-toxic, and is environmentally friendly.
5. What's the temperature range of charge and discharge?
R:Charge Temperature: 0 to 45°C,Discharge Temperature: -20 to 65°C
6. Does your ebike battery come with a charger?
R: Yes, all of our ebike batteries come with a charger. A normal charger and a fast charger are optional. If you need a fast charger, please contact us.

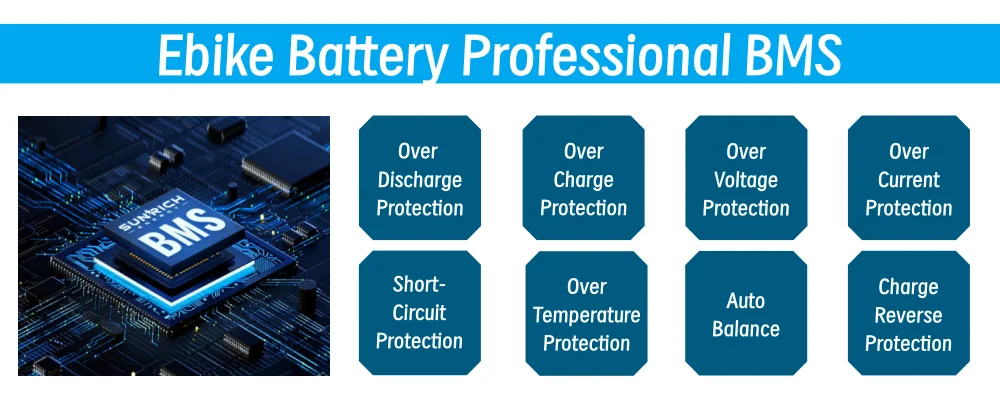

7. Do your ebike batteries come with a BMS?
R: Yes, all of our ebike batteries come with a high-quality SEIKO IC BMS, with stable and high performance, which can protect the battery from short circuits, Overcharge, overdischarge, and overcurrent.
8. Can you provide OEM and ODM service?
R: Yes, we are a professional Ebike battery manufacturer that produces all kinds of high-quality e-bike lithium-ion batteries according to customers' requirements and designs. You are welcome to place OEM and ODM orders and visit us.
After-sales service and Warranty:
1. We provide 18 months warranty for our ebike batteries.
2. Battery with quality problem within one month, we can send you a new one after you provide the available proof.
3. Battery with quality problem within one year, we provide free repair.
4. All of our ebike batteries have high-quality cells and a high-performance BMS, and they will be 100% tested before shipping.
