SUYIJIA 72V High-Power 21700 Lithium-Ion Battery Series.
SUYIJIA 72V High-Power 21700 Lithium-Ion Battery Series.
SUYIJIA High-Power 72V 21700 Lithium-Ion Battery Series –
10Ah to 50Ah Capacity Options for Up to 3800W Motors (20S Smart BMS, XT90 Output & Matching 5A Fast Charger Included)
Supercharge your high-speed electric motorcycle, heavy-duty e-bike conversion, or utility trike with the SUYIJIA 72V 21700 High-Power Lithium Battery Pack. Assembled with premium high-density 3.7V 5000mAh 21700 cylindrical cells, this 72V system delivers exceptional discharge efficiency, reduced voltage sag under load, and extended service life compared to traditional lead-acid or standard 18650 packs.
Engineered to support peak power draws up to 3800W, each pack is governed by an integrated 20S 40A/50A Smart BMS with up to 100A peak discharge bursts. Complete with heavy-duty XT90 output connectors, a dedicated DC5.5x2.1mm charging port, and an included 84V 5A fast charger, this turnkey kit provides high-voltage performance for demanding builds.
⚠️ System Compatibility & Connector Guide
IMPORTANT VOLTAGE & CONNECTOR INFORMATION:
Nominal 72V (20S Configuration): Charges to 84V Maximum and operates down to a 55V Discharge Cutoff. Ensure your motor controller is rated for 72V nominal systems ($55\text{V–}84\text{V}$ operating window).
Standard Discharge Connector: Pre-wired with heavy-duty XT90 connectors for high-current throughput (Default output plugs can be customized upon request).
Charging Port: Features a dedicated DC 5.5mm × 2.1mm charging port designed specifically for the included 84V 5A charger (Maximum charge current: $10\text{A}$).
🚀 Key High-Performance Features
-
High-Density 21700 Cell Technology: Built using $5000\text{mAh}$ 21700 cell matrices for maximum energy-to-weight ratio and cooler operation under high discharge rates.
-
3500W+ Peak Power Handling: Capable of feeding high-torque hub and mid-drive motors rated up to 3800W without triggering premature thermal cutoffs.
-
Integrated 20S Smart BMS: Provides comprehensive multi-point circuit protection against overcharging, deep discharge, over-current, and short circuits.
-
Included 5A Fast Charger: Shipped complete with an 84V 5A smart CC/CV charger to minimize downtime between rides.
-
Zero Memory Effect: Recharge at any state of charge without diminishing cell capacity over time.
📊 Technical Specifications Matrix
| Specification Parameter | SUYIJIA 72V 21700 Battery Specifications |
| Brand Name | SUYIJIA |
| Cell Format / Chemistry | 21700 Lithium-Ion (3.7V 5000mAh base cells) |
| Nominal Voltage | 72V DC (20S Configuration) |

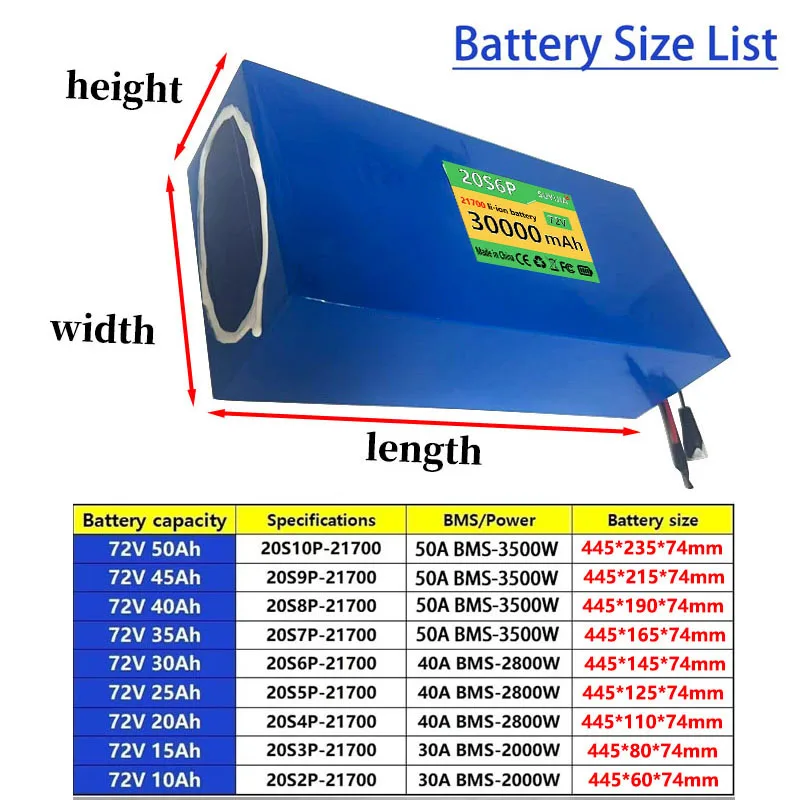

| Capacity Options | 10Ah, 15Ah, 20Ah, 25Ah, 30Ah, 35Ah, 40Ah, 45Ah, 50Ah |
| Voltage Range | 55V Cutoff – 84V Full Charge |
| Continuous Discharge Current | 40A / 50A Continuous |
| Peak Burst Discharge | 80A / 100A Peak |
| Max Suitable Motor Power | Up to 3800W (72V) |
| Connectors | XT90 Discharge / DC5.5×2.1mm Charge Port |
| Cycle Lifespan | > 1,000 Full Cycles |
| Charger Included | 84V 5A Fast Charger (CC/CV Mode) |
| Operating Temperature | Charge: $0^\circ\text{C}$ to $45^\circ\text{C}$ | Discharge: $$-20^\circ\text{C$ to $$65^\circ\text{C$ |
| Certifications | CE Certified |
📋 Ideal Applications
The SUYIJIA 72V 21700 Lithium Series is engineered for:
-
High-Power 72V Electric Bicycles and Off-Road E-Bikes (2000W–3500W+)
-
72V Electric Scooters, Mopeds, and Motorcycles
-
Commercial Delivery Trikes, Rickshaws, and Utility Transport
-
High-Thrust Electric Trolling Motors & Custom EV Builds
📦 Package Contents
-
1 x SUYIJIA 72V 21700 Lithium-Ion Battery Pack (Selected Capacity)
-
1 x 84V 5A Smart Lithium Fast Charger
-
1 x XT90 Discharge Cable Harness
Power your 72V setup with high-density 21700 energy. Select your desired Ah capacity above, click Add to Cart, and order today!
