SUTENAI DCH-Series Hidden In-Frame Folding E-Bike Lithium Battery Pack –

 DCH-003 / DCH-006 / DCH-009 Form Factors (36V, 48V & 52V Options) for 350W–1000W Motors (Includes Integrated Smart BMS & Key Lock)

Restore or upgrade the range of your foldable electric bicycle with the SUTENAI DCH-Series Concealed Lithium-Ion Battery Pack.

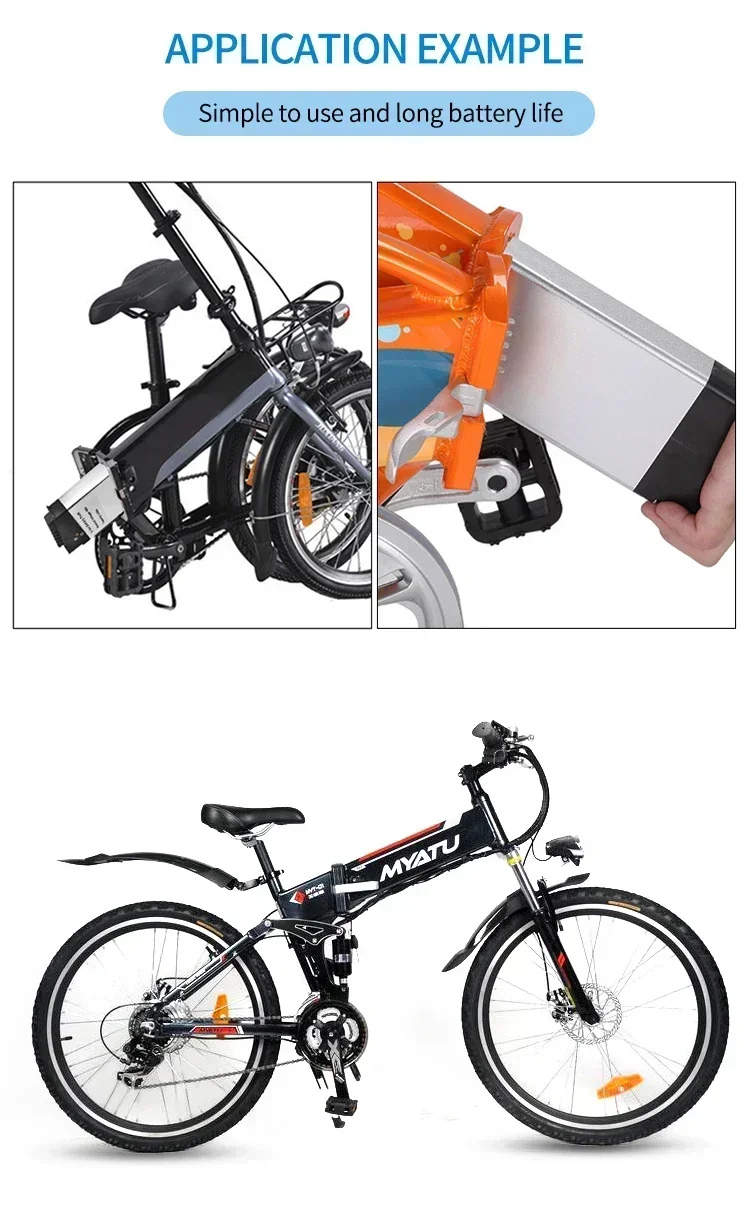

Designed specifically to slide directly inside the main frame tubing of popular folding e-bikes (including Lectric XP, ENGWE EP-2 Pro, Samebike, Mate X, and CMACEWHEEL), the DCH series protects your power source from weather, debris, and theft while preserving a clean frame geometry.

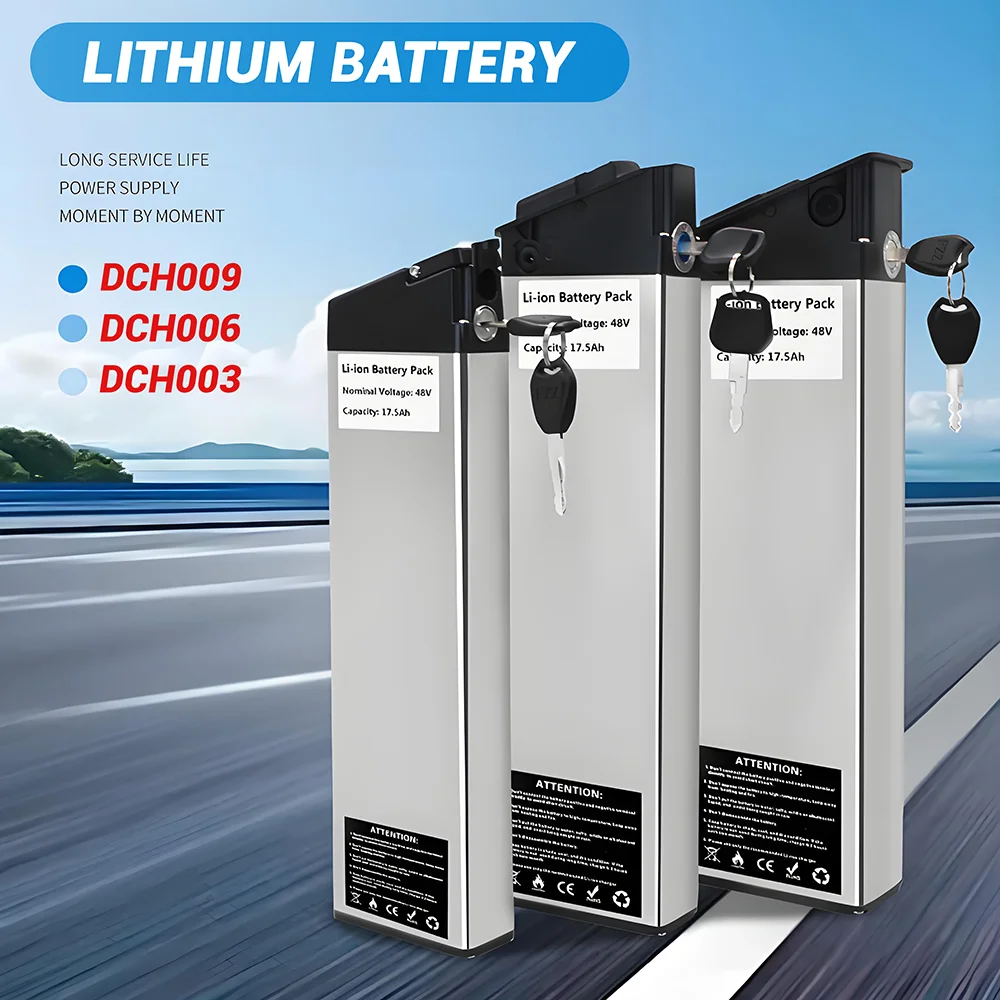

Available in three standard casing dimensions (DCH-003, DCH-006, and DCH-009), this series covers 36V, 48V, and 52V nominal system voltages with energy capacities from 10Ah up to 17Ah.

Each pack features a high-current Smart Battery Management System (BMS), a heavy-duty aluminum housing, an anti-theft key locking switch, and a fold-out handle for effortless battery removal.

⚠️ Dimensions & Voltage Compatibility Notice

IMPORTANT FITMENT GUIDANCE:

• Measure Your Internal Tube: Measure your original battery casing length and cross-section before ordering:

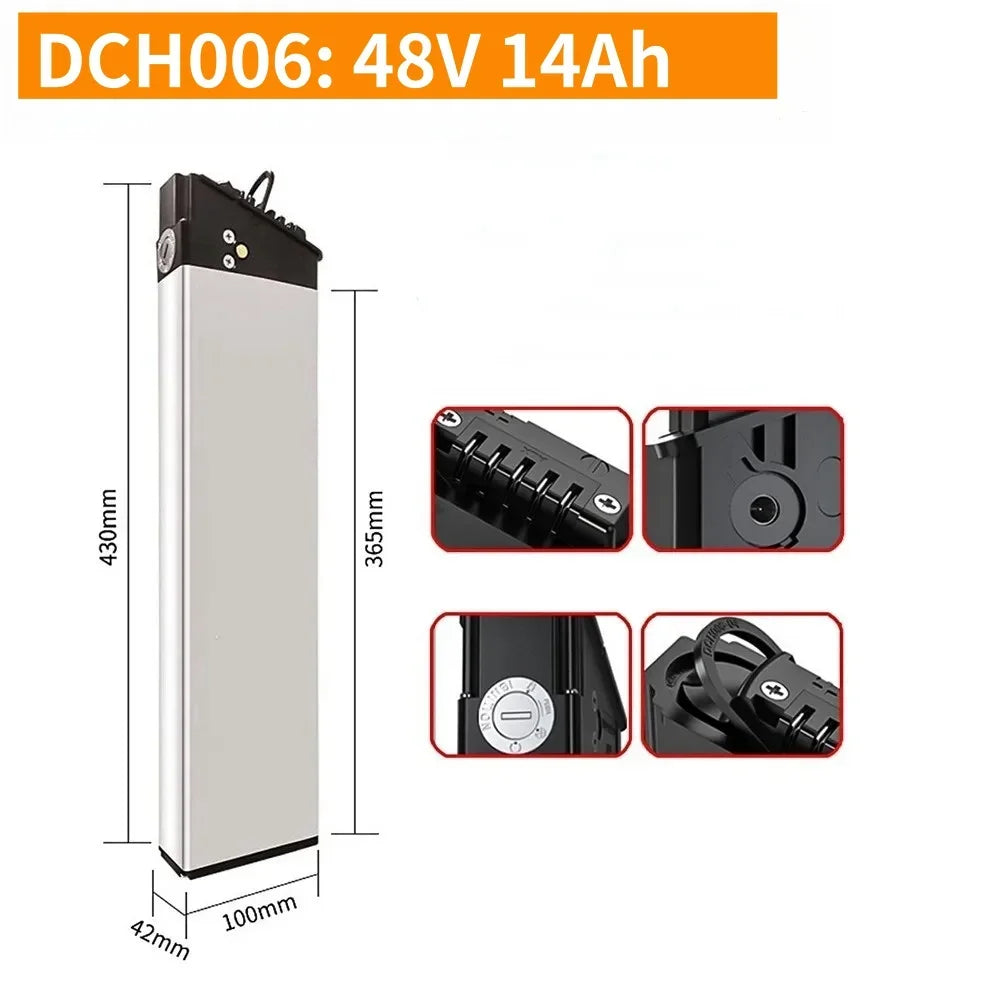

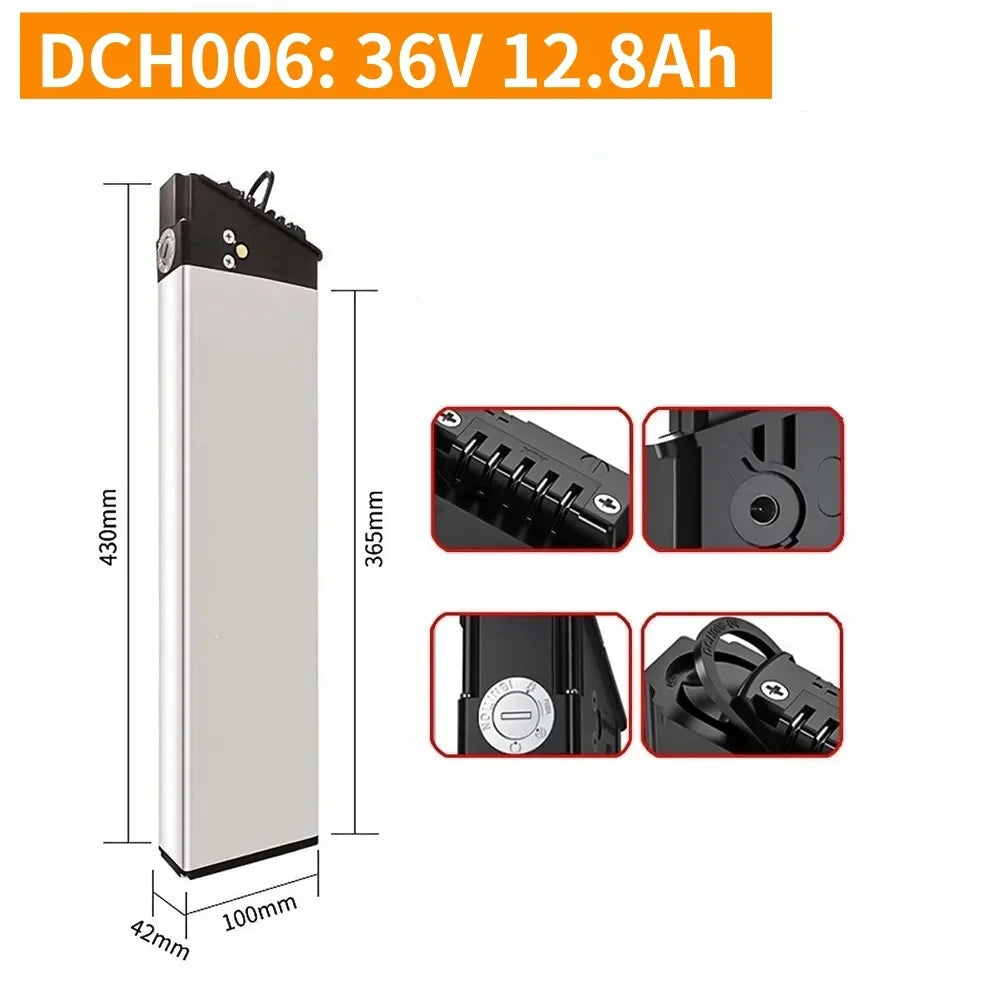

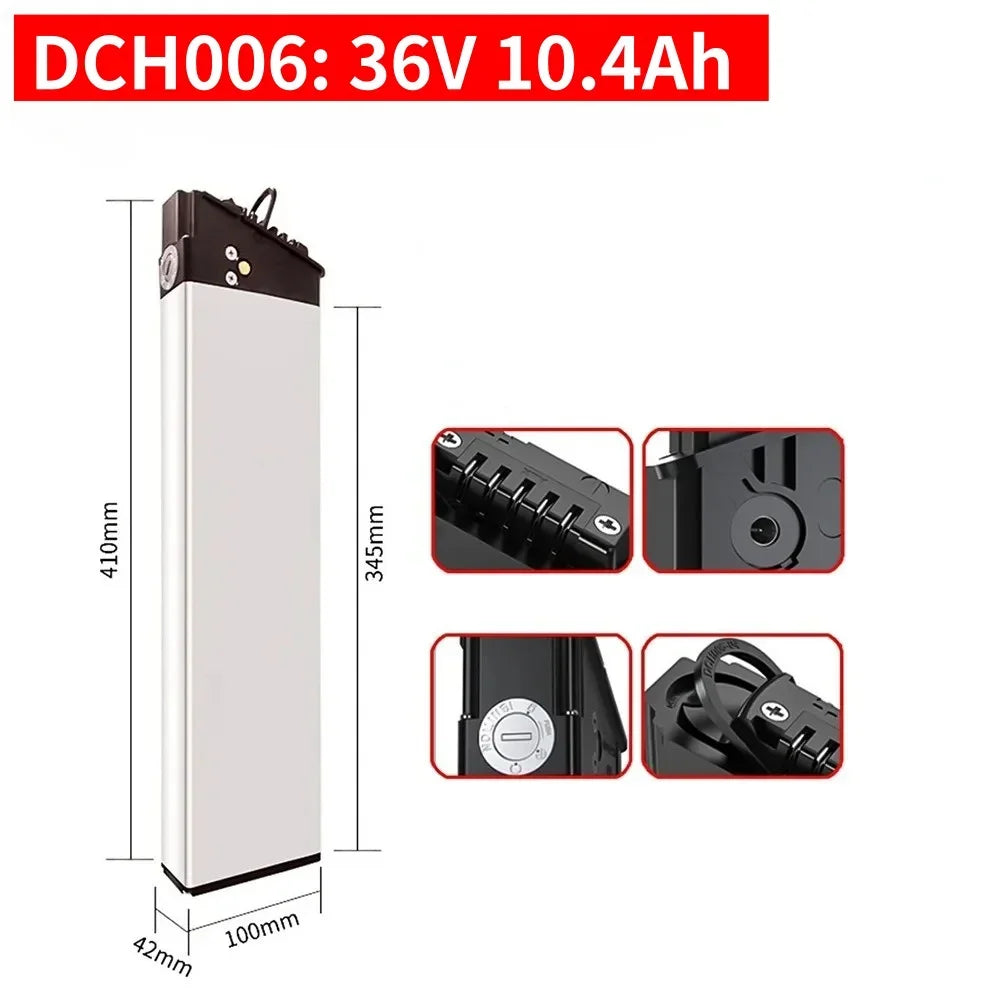

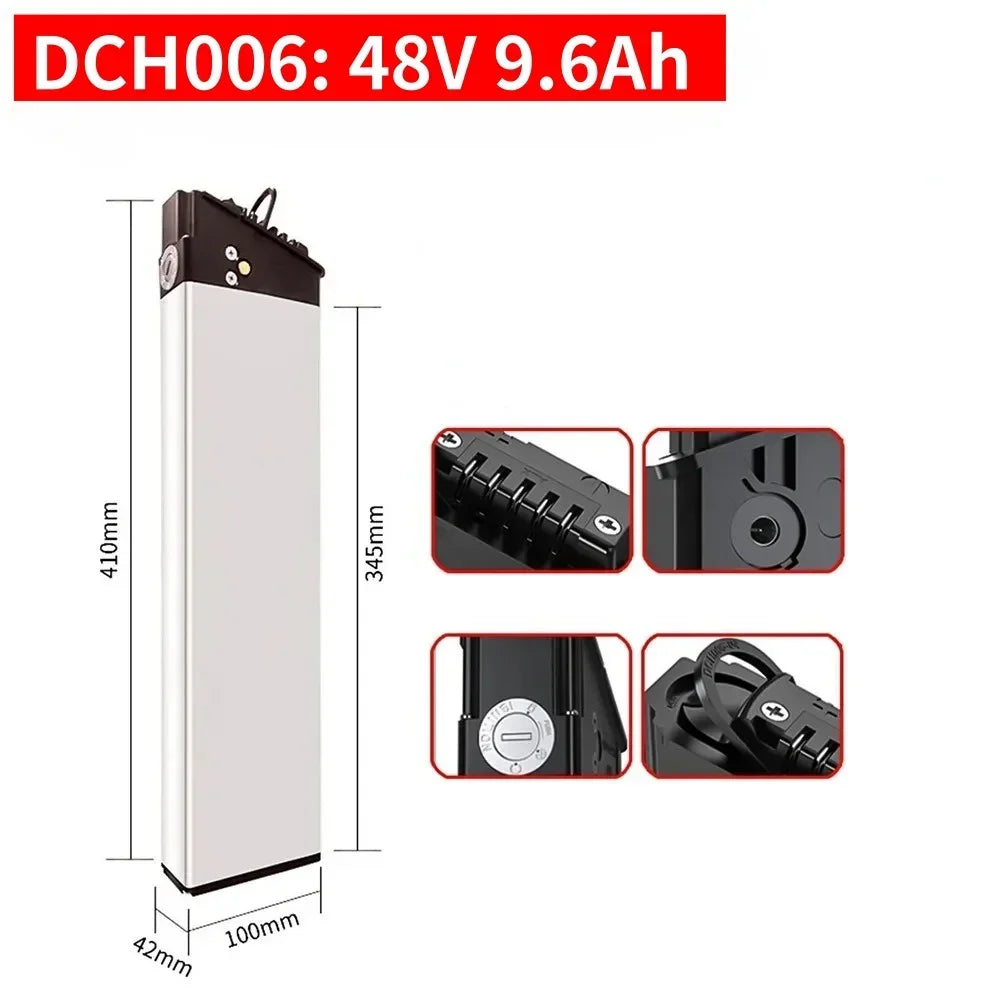

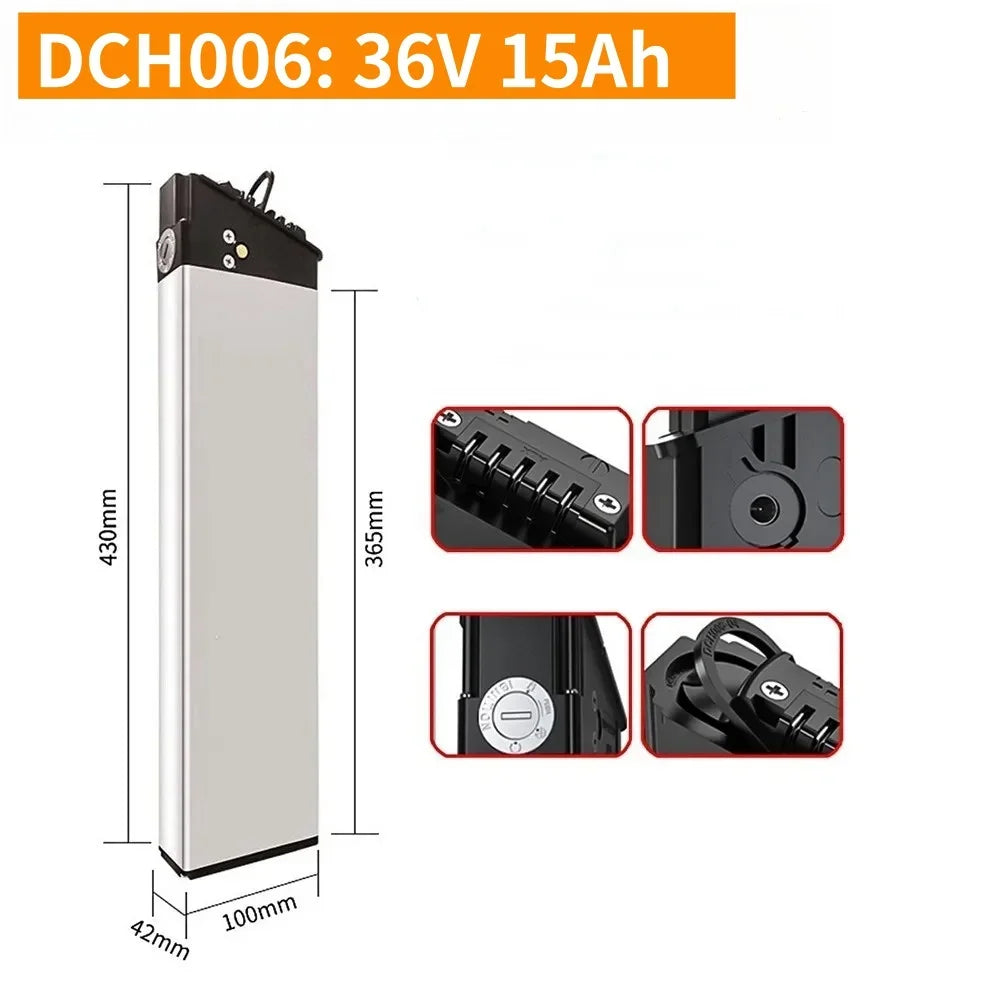

  • DCH-006 Casing Size: ~430 mm × 103 mm × 43 mm

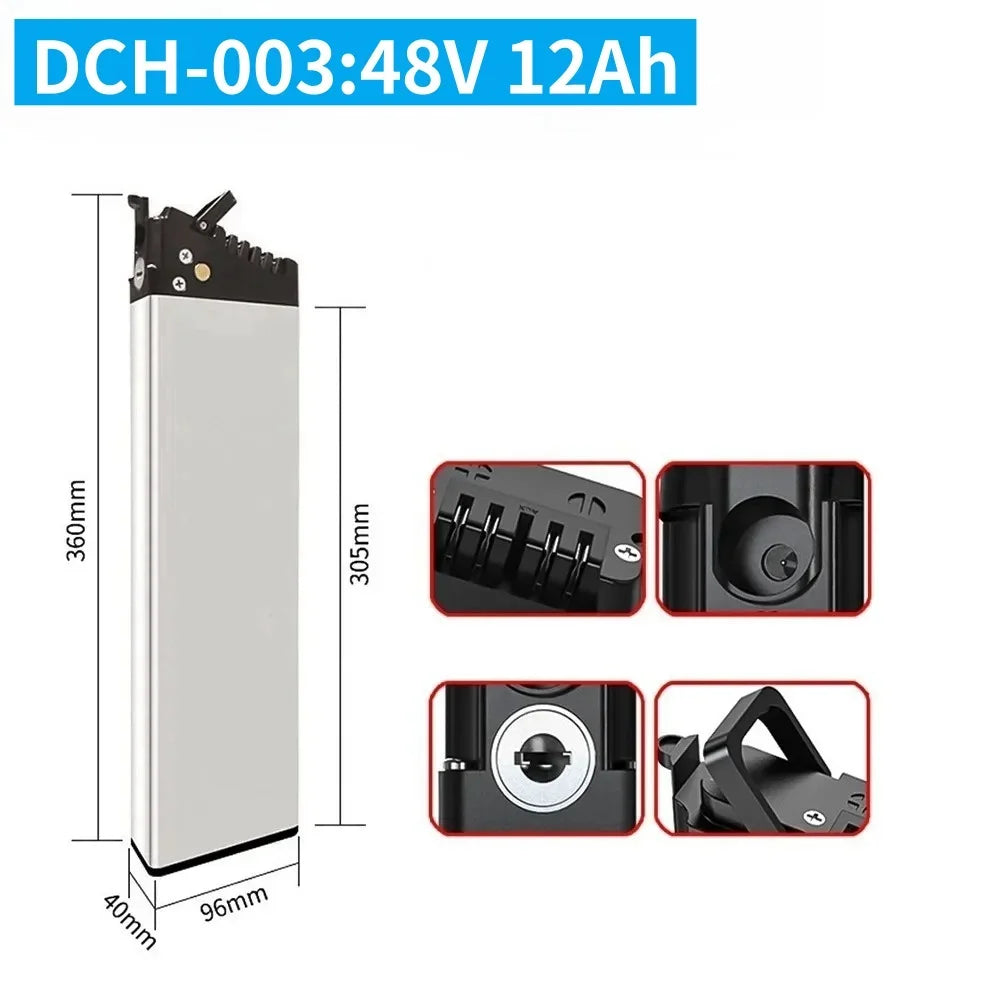

  • DCH-003 Casing Size: ~410 mm × 103 mm × 43 mm

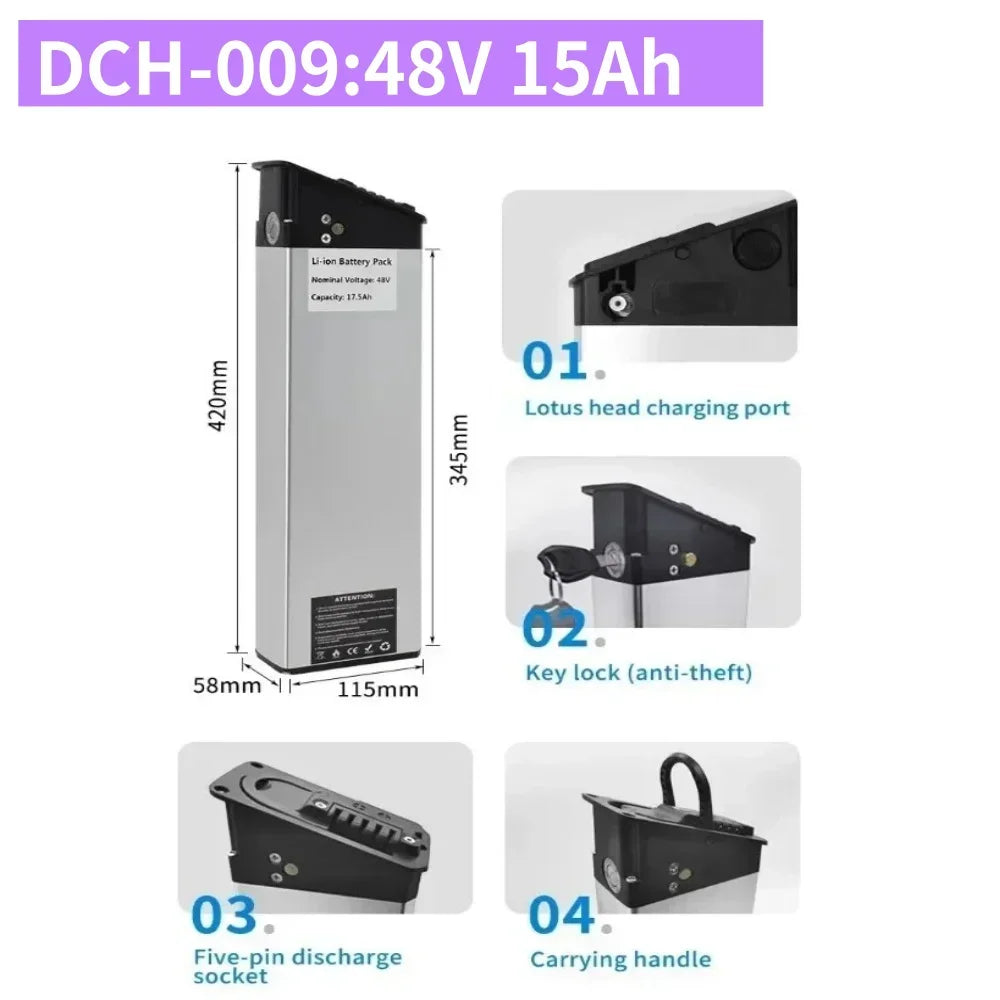

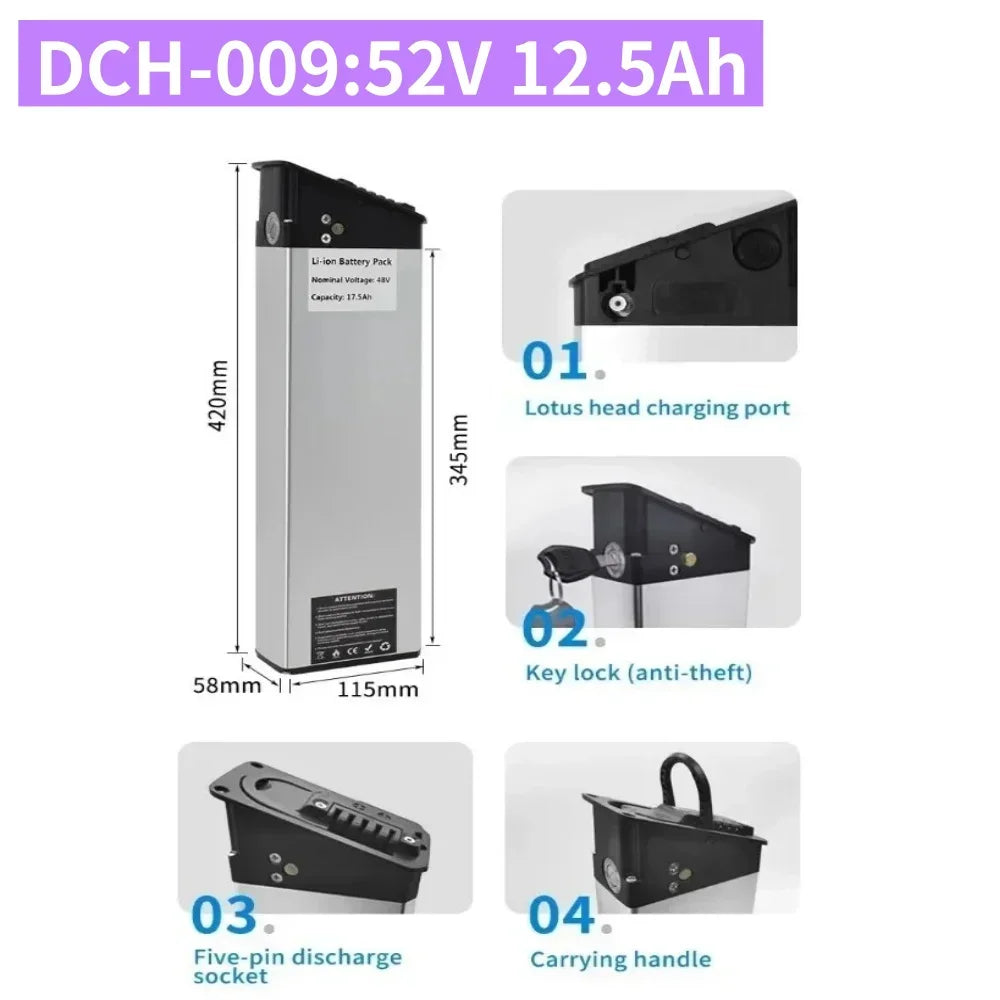

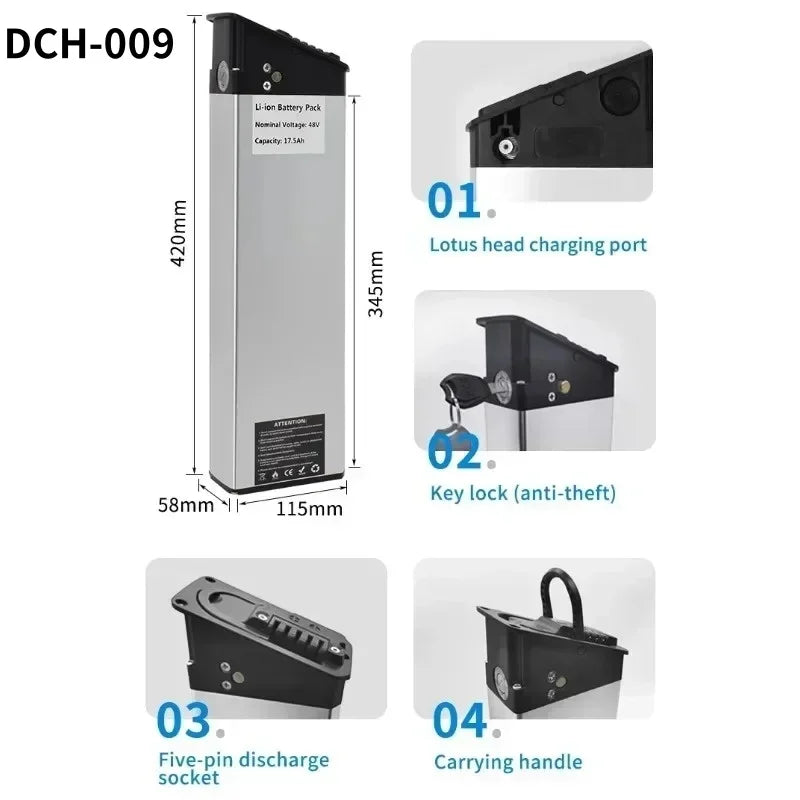

  • DCH-009 Casing Size: ~420 mm × 115 mm × 58 mm (Wider high-capacity profile)

• Voltage Matching: Match system voltage strictly with your controller rating (36V, 48V, or 52V).

• Motor Output Rating: Rated for continuous motor current from 350W up to 1000W setups.

🚀 Key High-Performance Features

• Hidden In-Frame Protection: Keeps the battery fully enclosed inside the bike frame to protect cells from rain, impacts, mud, and external damage.

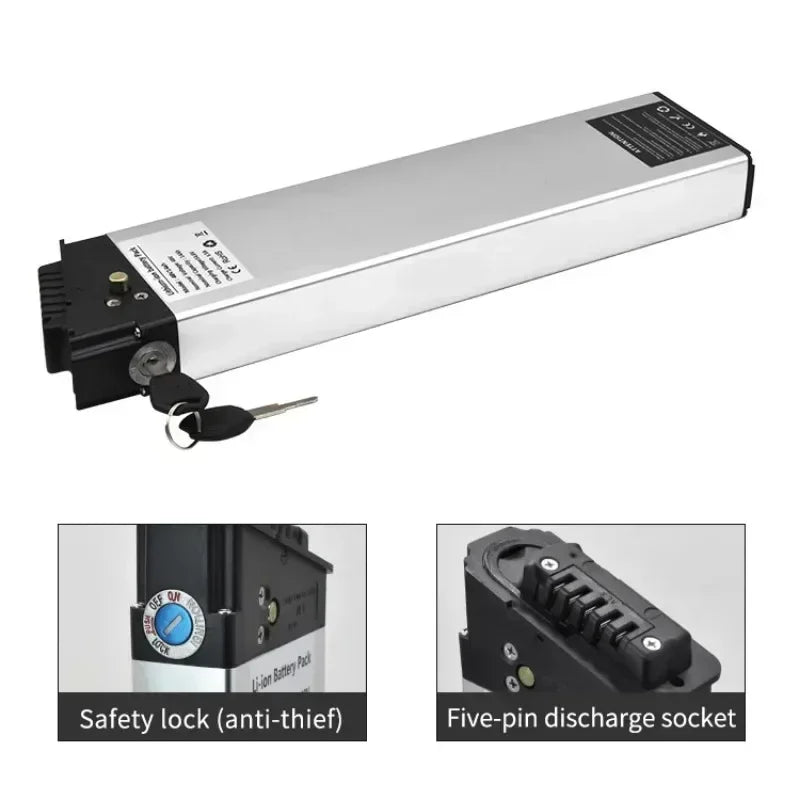

• Integrated Anti-Theft Lock & Switch: Key-operated locking mechanism secures the battery inside the frame while acting as the main circuit power switch.

• Multi-Voltage System Support: Available in 36V, 48V, and 52V versions to replace stock factory packs or upgrade system power output.

• Internal Smart BMS Security: Guards internal cell blocks against short circuits, overcharging, over-discharging, and over-current events.

• Retractable Fold-Out Handle: Integrated pull-handle allows quick removal for off-bike charging at home or at your desk.

📊 Technical Specifications Matrix

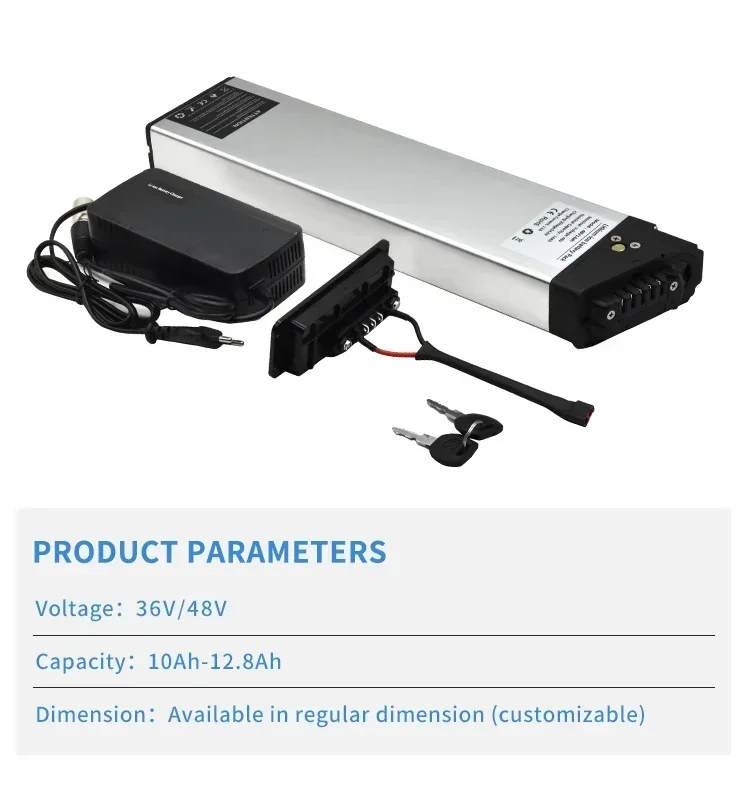

Product Information

ALEAIVY foldable electric bicycle battery parameter table
Nominal Voltage:	36V/48V(Optional voltage)
Nominal Capacity:	10.4Ah 12.8Ah 14Ah 14Ah (Customized capacity)
BMS:	20A-30A (350W to 1000W motor use)
BMS Function:	Over-Current, Over-Discharge, Over-Charge,  Short-Circuit Protection, Balance act.
Size:	It is up to your battery needs
Discharge Cut-Off Voltage:	upon request(Please consult customer service)
Charge Voltage:	upon request(Please consult customer service)
Cycle Life:	80% capacity after 800 cycles
Battery Type:	LI(NiCoMn)O 2  18650
Batteries:	Brand 18650 cells
Warranty:	12 months
Weight:	as required
Charging Working Temperature:	0~45°C
Discharge Working Temperature:	-20~60°C
Storage Temperature:	-10~40°C



Product Details
