SMALL DEN 84V Intelligent Lithium-Ion Fast Charger Series – Premium Fan-Cooled Smart Power Supply (2A / 3A / 5A Models) for 20S 72V Electric Motorcycles, Scooters, and E-Bikes
Restore your torque and hit the asphalt faster. Engineered by SMALL DEN, this 84V Intelligent Lithium-Ion Charger Series delivers a high-quality, high-efficiency power replenishment system for 20S (72V Nominal) Lithium-Ion battery banks. Built with a rugged, structural composite shell and an integrated high-velocity internal cooling fan, this charger cuts through charging bottlenecks, offering scalable speed options up to 5.0 Amps to support high-performance urban two-wheelers.
Featuring precise automated Constant Current / Constant Voltage (CC/CV) charging logic, this premium power adapter monitors your pack's saturation levels, automatically shutting down current transfer the moment your cells hit maximum structural capacity.
🚀 Key High-Performance Features
-
Tailored 20S 72V Calibration Grid: Specifically engineered to supply the exact 84.0-Volt DC peak output voltage line required to safely balance 72V lithium-ion scooter and motorcycle packs.
-
Active High-Velocity Air Cooling: Built with an internal forced-air cooling fan that runs continuously during high-amperage current transfer, ensuring structural component longevity and low thermal profiles.
-
Smart Auto-Stop Status Diagnostics: Take the guesswork out of your staging bay with clear, intuitive LED indicator light readouts:
-
🔴 Solid Red Light: Active high-amperage fast charging in progress.
-
🟢 Solid Green Light: Fully saturated, cells balanced, charging automatically cut off.
-
⚡ Flashing LED Light: System failure or terminal anomaly detected.
-
-
Wide System Amp Capacity Matching: Perfectly optimized to recharge a wide array of 72V power reserves, safely servicing packs from 10Ah, 15Ah, 20Ah, 25Ah, up to 30Ah.
-

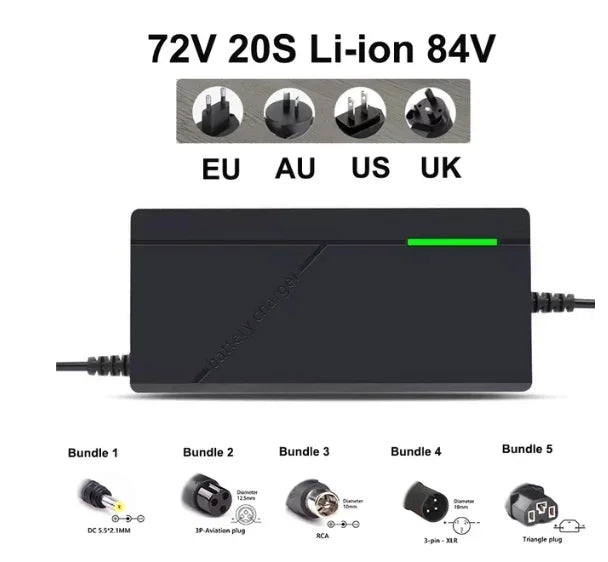

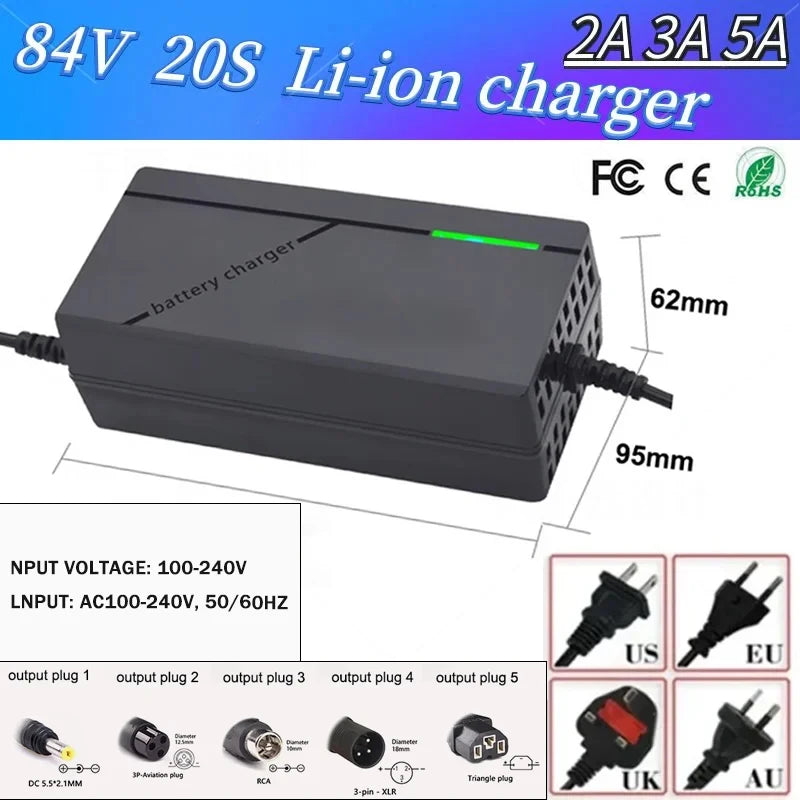

Global Auto-Sensing Voltage Core: Accepts wide input parameters (AC 100V–240V at 50/60Hz). We look at your shipping destination to automatically provide the proper wall plug standard (US, EU, UK, or AU).
📊 Master Amperage & Power Output Configuration
Select your desired charging speed variant from the dropdown options at checkout:
| Selectable Speed Model | Peak Power Consumption | Primary Battery Match Recommendation | Standard Output Plug |
| 84V 2A Standard | 180 Watts Max | 72V 10Ah – 15Ah Battery Packs | Coaxial DC 5.5mm × 2.1mm |
| 84V 3A Accelerated | 260 Watts Max | 72V 15Ah – 20Ah Battery Packs | Coaxial DC 5.5mm × 2.1mm |
| 84V 5A Rapid Charge | 450 Watts Max | 72V 20Ah – 30Ah Battery Packs | Coaxial DC 5.5mm × 2.1mm |
⚠️ Critical Battery Chemistry Restriction Warning
-
LITHIUM-ION ONLY: This power supply is calibrated exclusively for standard Lithium-Ion (Li-ion) chemistries.
-
DO NOT USE ON LIFEPO4: Never plug this charger into a Lithium Iron Phosphate (LiFePO4) battery pack. Doing so will cause severe battery cell mismatch and cause the charger unit to overheat excessively.

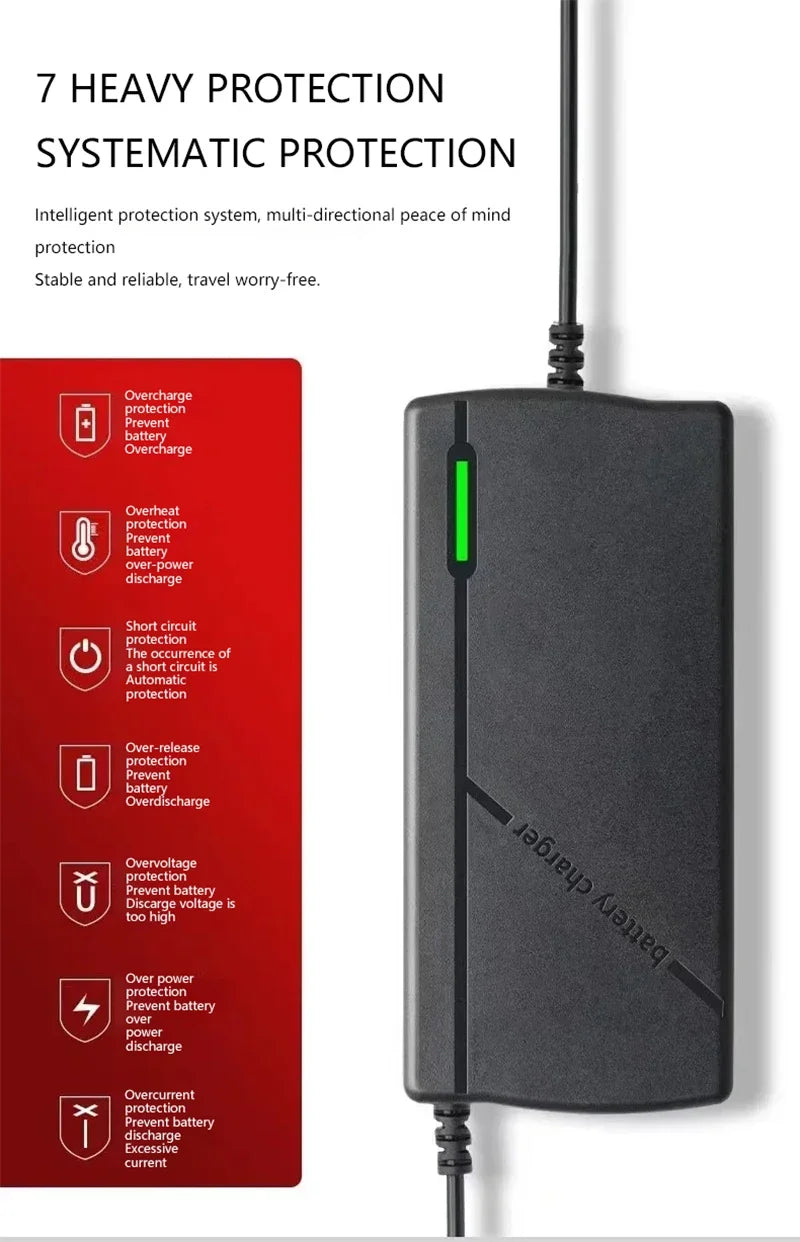

🛡️ 4-Tier Intelligent Safety Protection Grid
Holding elite international structural safety marks, including CE, FCC, and RoHS compliance certifications, the internal board protects your vehicle from operational terminal faults (High-concerned chemical: None):
-
Over-Voltage Protection (OVP): Caps the absolute output line strictly at 84.0V to eliminate battery pack overcharging or bloating.
-
Over-Current Protection (OCP): Regulates cell intake parameters smoothly to your pre-selected 2A, 3A, or 5A current threshold.
-
Short-Circuit Automatic Isolation: Safely trips and shuts down power delivery if the terminal pins bridge or arc.
-
Overload Defenses: Protects internal electronics from downstream draw anomalies during extended overnight connections.
🛠️ Pro Field Maintenance & Operational Guidelines
To maximize your battery life and maintain factory warranty protection, adhere to the following 5-step charging protocol:
-
Connection Logic: Always plug the charger's DC coaxial plug into your battery port first, then connect the AC plug into the wall outlet.
-
Saturation Top-Off: For maximum cell-to-cell string balancing, let the charger remain connected for 2 to 3 hours after the LED light flips from Red to Green.
-
Prevent Deep Voltage Sag: Do not let your battery run completely down to 0% before plugging it in. Charging a completely dead pack can compromise internal cells.
-
Deep Maintenance Cycling: For batteries undergoing shallow everyday runs, perform a deep discharge cycle once every 3 months to reset the internal cells.
-
Disconnection Logic: Once charging is finalized, pull the AC wall cord first, then safely unplug the battery's DC connector lead.
📦 What's Inside the Box?
-
1 x SMALL DEN 84V Smart Lithium-Ion Battery Charger Host (Speed Model Selected at Checkout)
-
1 x Integrated Heavy-Gauge DC 5.5mm × 2.1mm Output Coaxial Cable
-
1 x Integrated Global AC Input Power Cable (Matched to Checkout Country Plug Standard)
Stop choking your heavy 72V motorcycle with slow, underpowered charging bricks. Give your cells the clean, fan-cooled fast charge they deserve. Select your performance amperage variant below, click Add to Cart, and upgrade your garage grid today!
| Selectable Speed Model | Peak Power Consumption | Primary Battery Match Recommendation | Standard Output Plug |
| 84V 2A Standard | 180 Watts Max | 72V 10Ah – 15Ah Battery Packs | Coaxial DC 5.5mm × 2.1mm |
| 84V 3A Accelerated | 260 Watts Max | 72V 15Ah – 20Ah Battery Packs | Coaxial DC 5.5mm × 2.1mm |
| 84V 5A Rapid Charge | 450 Watts Max | 72V 20Ah – 30Ah Battery Packs | Coaxial DC 5.5mm × 2.1mm |
Double-sided cooling holes
