1000W–2000W Sine Wave eBike Controller | 36V–60V S966 LCD PAS & Throttle

Upgrade your electric bike or scooter with a high-power sine wave brushless motor controller designed for compatible 1000W, 1200W, 1500W, and 2000W electric motor systems.

This controller is available for 36V, 48V, 52V, and 60V applications and is designed for electric bicycles, electric scooters, e-mountain bikes, and custom electric motorcycle-style builds.

The package configuration supports an S966 LCD display, pedal-assist system (PAS), and throttle control, giving riders convenient control over speed, riding modes, and system information.

High-Power Sine Wave Controller

Choose from controller power options designed for:

• 1000W

• 1200W

• 1500W

• 2000W

The sine-wave design is intended to provide smooth motor operation and responsive power delivery when properly matched with the motor, battery, and electrical system.

Always match controller voltage and current requirements with your battery and motor specifications before installation.

Multiple Voltage Options

Available voltage applications include:

• 36V

• 48V

• 52V

• 60V

Select the voltage that matches your battery and motor system.

Important Voltage Warning

The controller's voltage selection must match the battery system.

For example:

• 36V controller → compatible 36V battery system

• 48V controller → compatible 48V battery system

• 52V controller → compatible 52V battery system

• 60V controller → compatible 60V battery system

Do not connect a controller to a battery with an incompatible voltage.

S966 LCD Display

The controller system is designed to work with an S966 LCD display, providing a convenient interface for monitoring and controlling your eBike system.

Depending on the specific configuration, the display may provide information such as:

• Battery status

• Speed

• PAS level

• Riding information

• System settings

• Error/status information

Display functions can vary depending on the controller and display configuration.

PAS & Throttle Support

The system supports both:

Pedal Assist Sensor (PAS)

PAS allows the motor to provide assistance while you pedal.

Throttle

Throttle control allows the rider to request motor power directly through the throttle.

Using PAS and throttle together provides flexibility for different riding situations and conversion setups.

Brushless Motor Compatibility

This is a brushless motor sine-wave controller designed for compatible electric motors.

Before purchasing, verify:

• Motor voltage

• Motor wattage

• Hall sensor configuration

• Phase-wire configuration

• Battery voltage

• Controller connector configuration

• Throttle compatibility

• PAS compatibility

• LCD/display compatibility

Connector layouts can vary between manufacturers, so do not assume that two controllers with the same wattage will use identical wiring.

Designed for Custom eBike Builds

This controller can be used for:

• Electric bicycles

• E-mountain bikes

• Electric scooters

• DIY eBike conversions

• Custom electric motorcycles

• High-power electric bicycle projects

• Motor repair and replacement applications

Product Specifications

Specification	Details
Product Type	Brushless Sine Wave Motor Controller
Power Options	1000W / 1200W / 1500W / 2000W
Voltage Options	36V / 48V / 52V / 60V
Motor Type	Brushless
Controller Type	Sine Wave
Display	S966 LCD
Pedal Assist	PAS
Throttle	Supported
Application	eBike / Electric Scooter / E-Mountain Bike
Indicator Panel	LED
Brand	No Brand
Origin	China

Choose the Correct Controller

Before ordering, verify the following specifications:

1. Battery Voltage
Confirm that the controller voltage matches your battery.

2. Motor Power
Select a controller appropriate for your motor's rated power.

3. Motor Compatibility
Confirm the controller is compatible with your brushless motor and wiring configuration.

4. Display Compatibility
Verify that your selected controller is compatible with the S966 LCD.

5. Connectors
Compare connector types and wiring before installation.

Important Power Consideration

A higher-wattage controller can allow a motor to draw more electrical power, but the battery and wiring must also be capable of supplying the required current.

For example, approximately:

2000W ÷ 48V = 41.7A

and:

2000W ÷ 60V = 33.3A

Actual battery current depends on controller programming, operating conditions, motor efficiency, load, and system configuration.

Make sure the battery's BMS, wiring, connectors, and battery current rating can safely support the controller.

Installation

Professional installation is recommended for high-power eBike systems.

Before connecting power:

1. Turn the battery system OFF.

2. Confirm controller voltage.

3. Verify motor phase and Hall connections.

4. Connect the display according to the wiring diagram.

5. Connect the throttle and PAS.

6. Check all connectors for proper fit.

7. Verify battery polarity.

8. Secure the controller where it has adequate cooling.

9. Perform a low-speed test before normal riding.

Never connect or disconnect major motor/controller wiring while the battery is powered.

Frequently Asked Questions

What voltage options are available?

The supplier lists 36V, 48V, 52V, and 60V versions.

What motor power is this controller designed for?

Available power options are listed as 1000W, 1200W, 1500W, and 2000W.

Does it support a throttle?

Yes. The supplied specification identifies the system as supporting PAS and throttle operation.

Does it include an S966 LCD?

The product listing identifies the controller system with an S966 LCD. Verify the exact package option before ordering because configurations can vary.

Is this a sine-wave controller?

Yes. It is marketed as a brushless sine-wave motor controller.

Can I use the 2000W controller with a 48V battery?

A 2000W/48V system can require approximately 42A at full rated power. Your battery, BMS, wiring, connectors, and motor must be capable of supporting the required current.

Can I use it with a 60V battery?

Yes, if you select the 60V-compatible version and all other components are compatible.

Is this controller programmable?

The supplied specifications do not provide enough information to confirm specific programming capabilities. Do not assume programmable current limits or settings unless they are confirmed for the selected version.

Package & Compatibility

Package contents can vary by selected option.

Before purchasing, confirm whether your selected configuration includes:

• Controller

• S966 LCD

• PAS sensor

• Throttle

• Wiring harness

• Other accessories

Product images may show components that are not included in every configuration.

Shop eBike Controllers & Power Units

Looking for more eBike controllers, power units, batteries, and electrical components?

Browse the eBike Controllers & Power Units collection at ChargeMyEBike.com.

Power Your Ride. Charge Anywhere. Ride Longer.

sine wave eBike controller, 2000W eBike controller, 1500W eBike controller, 1000W eBike controller, 60V eBike controller, 52V eBike controller, 48V eBike controller, 36V eBike controller, S966 LCD controller, eBike PAS controller, electric scooter controller

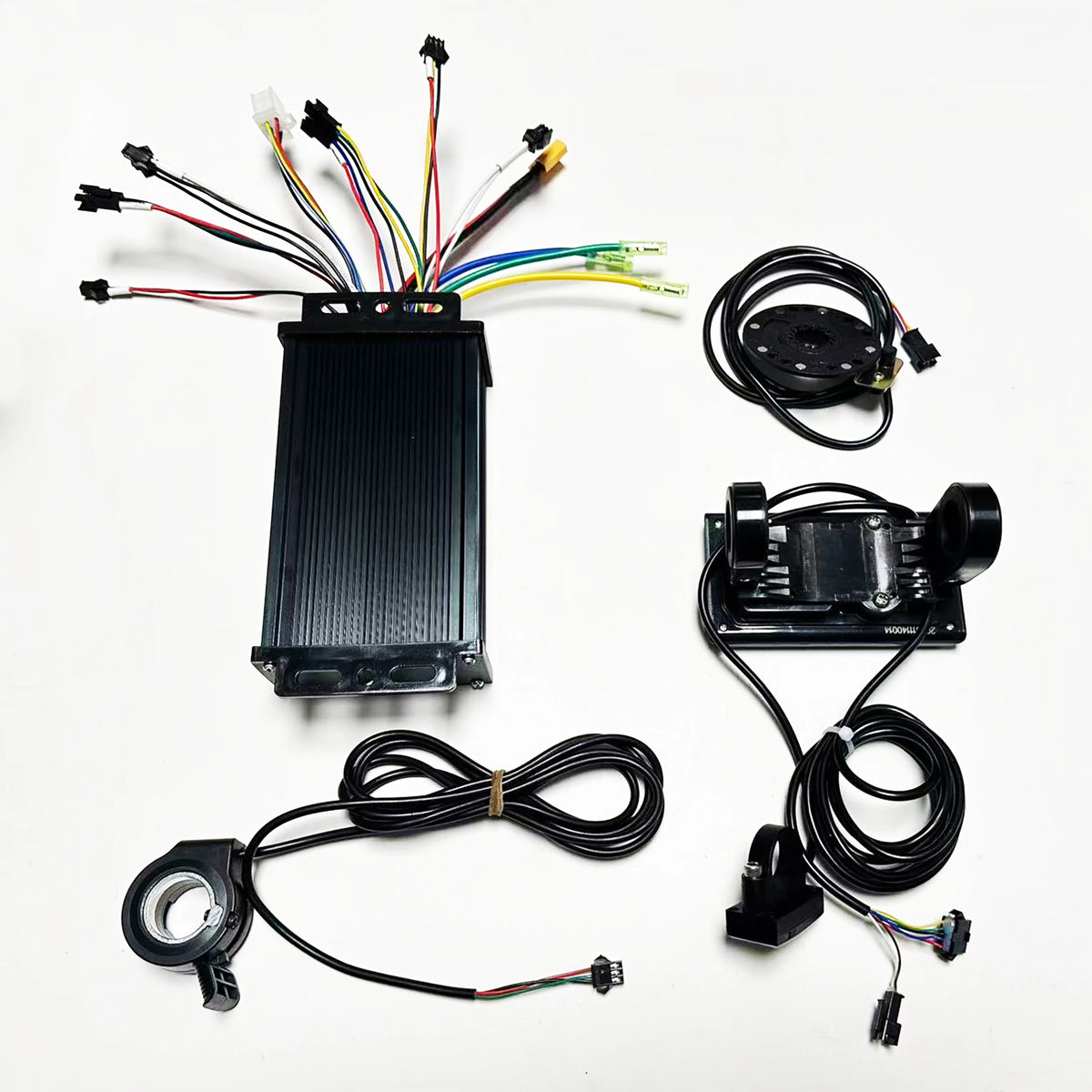

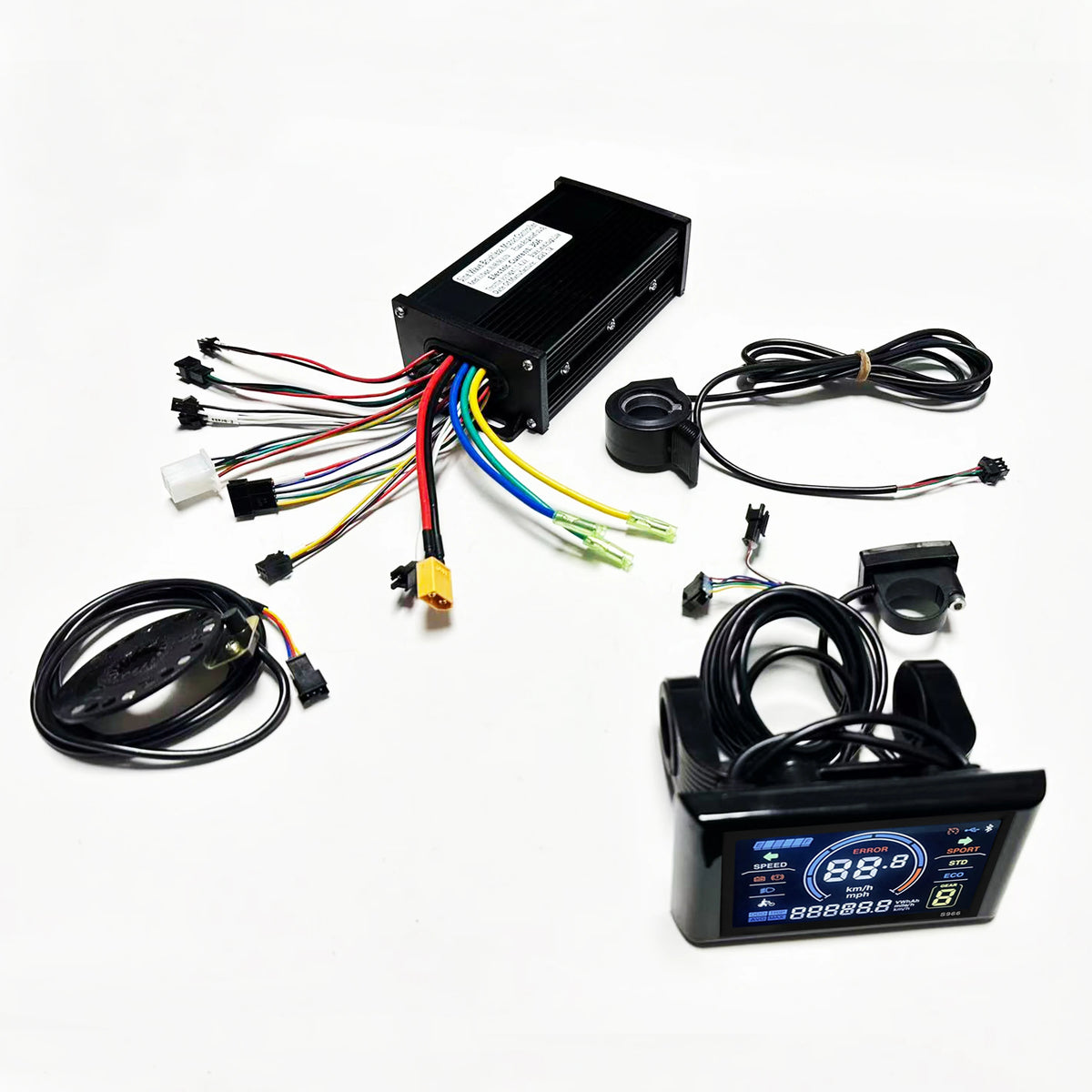

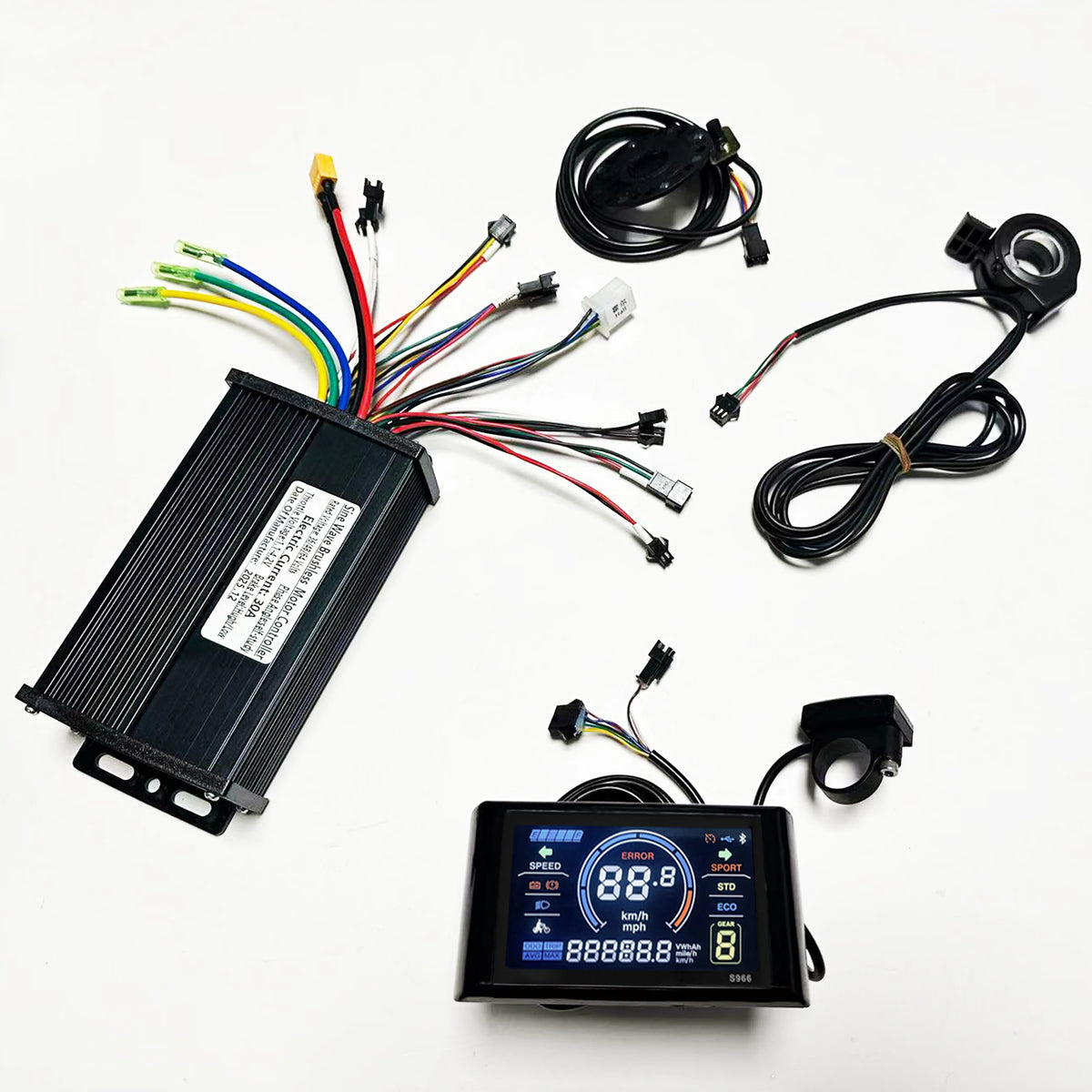

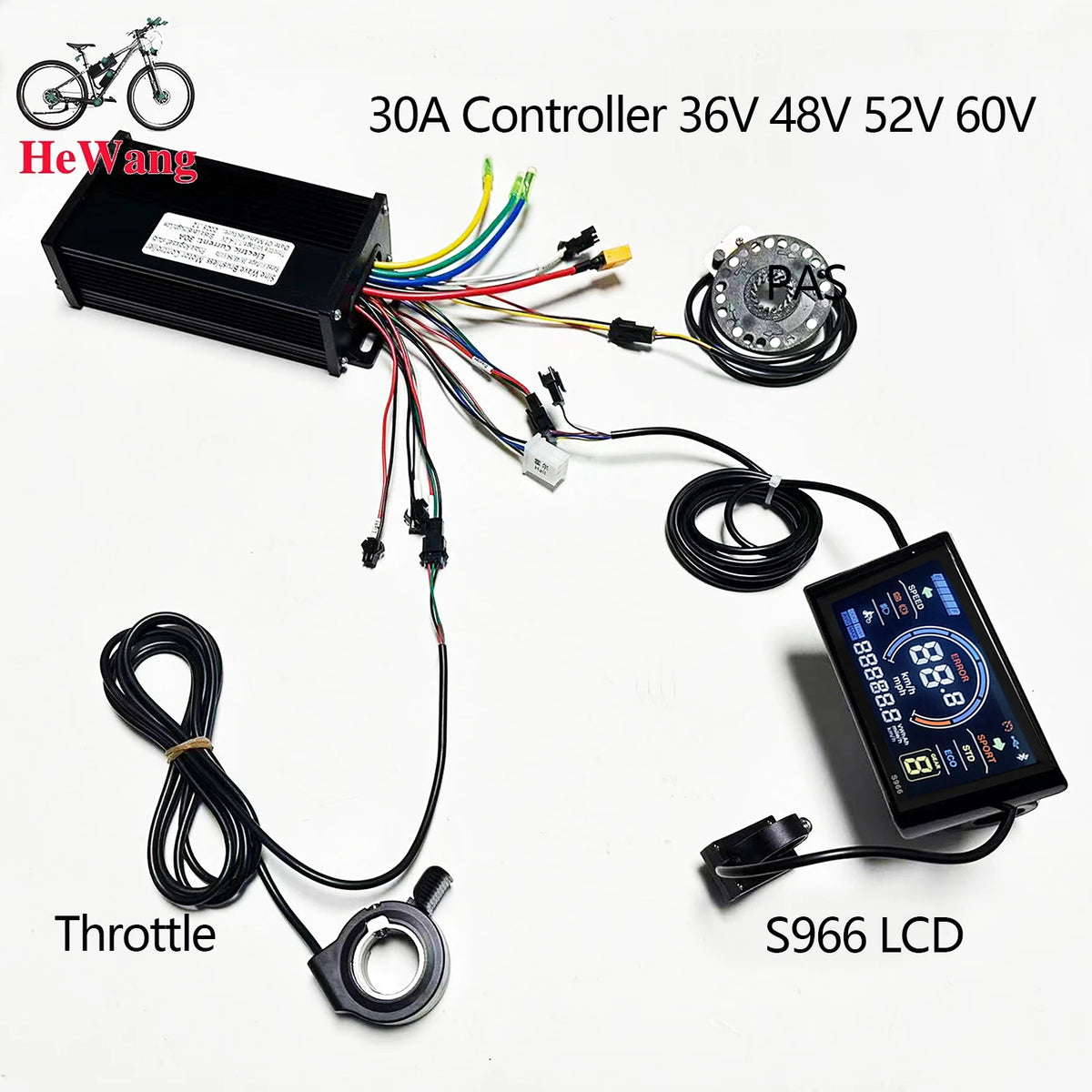

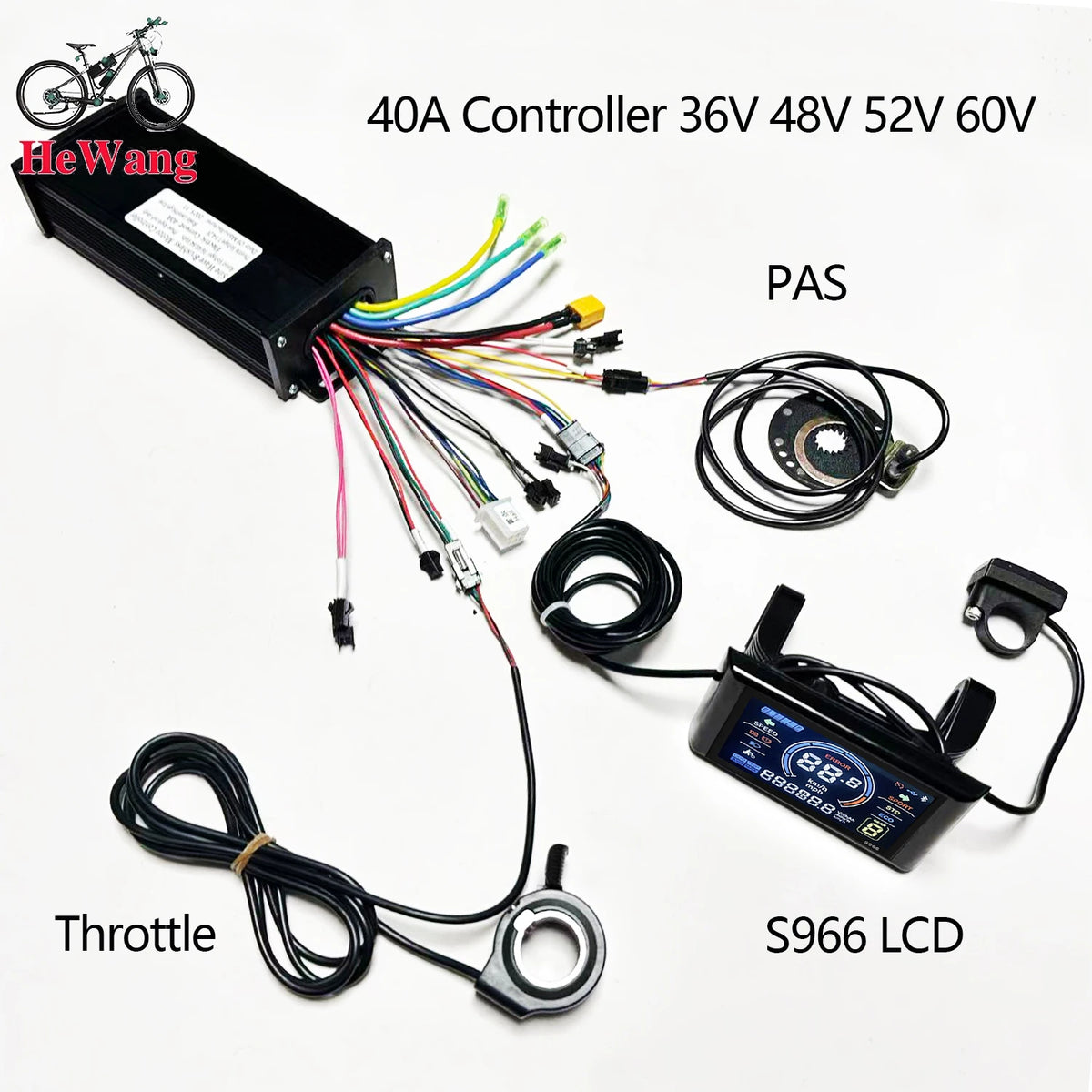

Product List: One 30A/40A controller, one S966 meter, one PAS, one throttle.

40A:

FOC Sine Wave Controller & S966 LCD Display & PAS & throttle Kit

36V 48V 52V 64V Black Gold Sine Wave Brushless Motor Controller 40A 1500W 2000W Controller Suitable for 6Pin SM Connector No. 2 Protocol Instrument Electric Bicycle

Specifications: 1000w 1500 W 2000W 36v/48v/52v/64v

Material: Aluminum Alloy, Black Gold

Working Voltage: 36v/48v/52v/64v

Undervoltage: 32v

Rated Power: 1000W 1500W 2000W

Current: 40A

Shell Size: 18.5*8.3*4.5cm

MOS Tube: HY3410

Function: Headlight Power Supply (Light), Throttle, No. 2 Protocol Instrument (Display), Hall, E-brake, PAS

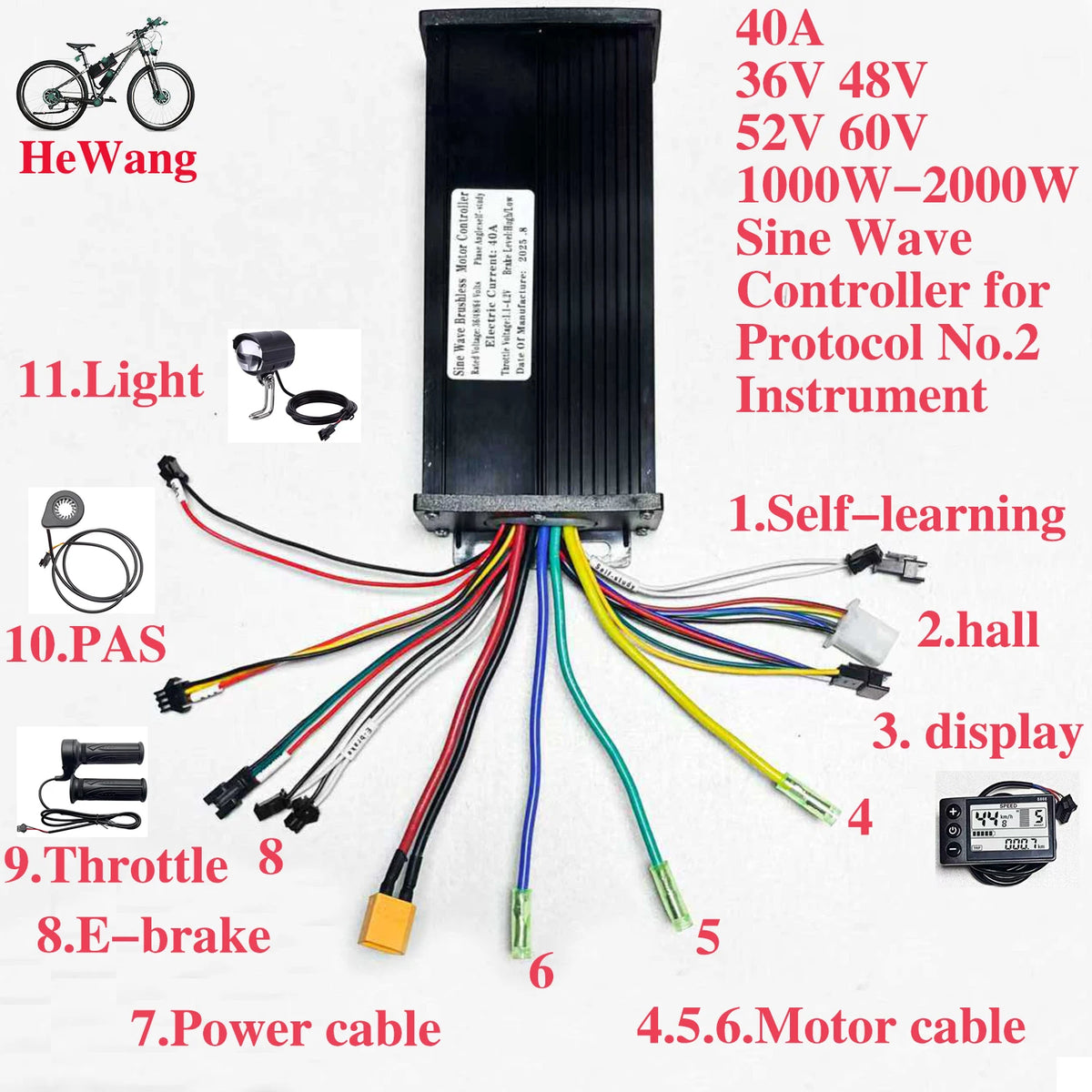

1. Motor cable 2.Motor cable 3.Motor cable

4. Power cable

5. Self-learning

6. Hall

7. No.2 protocol LCD

8. Electronic brake

9. Throttle

10. P.A.S

11. Light

Important note

The brushless controller is for brushless motors only.

Not suitable for brushed motors; please don't buy the wrong one.

Please be sure to test the motor parameters by plugging in the learning wires the first time after the controller is installed!

If using PAS pedal assist. Please use dual Hall PAS sensors

The motor needs to have a Hall sensor; if you use it for a Hall-less brushless motor, it will always display the E07 fault code.

If your motor is a hall-less motor or the hall is damaged, please choose carefully whether you accept displaying the E07 code all the time.

FOC Sine Wave Controller & SW900 LCD Display Kit

E-bike/Scooter Repair & Conversion Universal Kit

High-power motor high-speed controller

36V/48V/52V/64V Black Gold Sine Wave Brushless Motor Controller, 40A, 1500W/2000W, Suitable for Electric Bicycles with 6-Pin Single-Mode Interface and Protocol II Instrument

Specifications: 1000W/1500W/2000W, 36V/48V/52V/64V

Material: Black Gold Aluminum Alloy

Operating Voltage: 36V/48V/52V/64V

Undervoltage Protection: 32V

Rated Power: 1000W/1500W/2000W

Current: 40A

Case Dimensions: 18.5*8.3*4.5cm

MOSFET: HY3410

Functions: Headlight Power (Lighting), Accelerator, Protocol II Instrument (Display), Hall Effect, Electronic Brake, Anti-theft Power

LCD BS900 Manual Control Panel

User Manual

The Latest Version 2022

1.1. Exterior Parameters

Casing Material: ABS

Display Material: High Hardness Acrylic (the same hardness value as tempered glass).

2. Operating Voltage and Connections

a. Operating Voltage: DC24V / 36V Compatible; 36/48V Compatible (set by the control panel). Other operating voltages can be customized.

b. Connections:

Standard connector sequence

Standard Connector Sequence Table

Sequence No.	Wire Colour	Functions
1	Red（VCC）	Panel Power Cord
2	Blue（K）	Controller Power Cord
3	Black（GND）	Panel Ground Wire
4	Green（RX）	Panel Data Receiving Wire
5	Yellow（TX）	Panel Data Sending Wire

Extended Functions

Light: Brown (DD): The positive electrode of the light

       White (GND): The negative electrode of the light.

The wire colours of the PWM Voltage Motor Power Controller and the independent speed sensor will be defined otherwise.

Note: Some products are equipped with waterproof connectors, whose internal wire colors cannot be determined from outside.

3. Functions

a. Display

Speed Display, Motor Power Ratio Display, Battery Level Display,

Error Indication, Total Mileage, Single Mileage, Cruise Control, Single

Running Time, Light Signal

b. Control and Settings

 Power Switch, Front Light Control, 6km/h Inching Control, Wheel Diameter Setting, Top Speed Setting, Idleness Time Setting for Auto-Off, Backlight Brightness Setting, Voltage Level Setting,

c. Communications Protocol: UART

Display Readings (display at start for 1 second)

3. 1 Light

3.2 Battery Level:

3.3 Multi-Functions Display

Total Mileage: ODO

    Single Mileage: TRIP

3.4 Vehicle Mode

ECO: Economical Mode

     STD: Standard Mode

     POWER: Intensified Mode

     SPEEDHANDLE: Throttle-Controlled Speed Mode

     WALK: Walk Assist Mode

3.5 Speed Display

The panel will calculate the actual travelling speed based on the wheel diameter and signal data (the number of magnets is needed for Hall motors).

3.6 Assist Status

Power Assist Status

3.7 Error Code：

Code for Protocol SWC No. 2

Code (Decimal)	Indication	Note
0	Normal
1	Reserved
2	Brake
3	Power Sensor Error (riding mark)	Not realizable
4	Reserved
5	Reserved
6	Low Battery Voltage
7	Motor Error
8	Throttle Error
9	Controller Error
10	Communications Receiving Error
11	Communications Sending Error
12	BMS Communications Error
13	Light Error

Code for Protocol K5S

Code (Decimal)	Indication	Note
21	Controller Error
22	Throttle Error
23	Motor Error
24	Motor Hall Error
25	Brake
30	Communications Receiving Error

Code for Protocol 8F

Code (Decimal)	Indication	Note
0	Normal
1	Reserved
2	Brake
3	Power Sensor Error (riding mark)	Not realizable
4	Walk Mode at 6km/h
5	Real-time Cruise
6	Low Battery Voltage
7	Motor Error
8	Throttle Error
9	Controller Error
10	Communications Receiving Error
11	Communications Sending Error
12	BMS Communications Error
13	Light Error

3.8 Menu Settings

P00: Factory Settings: set the value to 10 and switch to the next item; the interface will show full content and reset all values to the original factory settings.

P01: Backlight Brightness (1: darkest; 3: brightest)

P02: Mileage Unit (0: KM; 1: MILE)

P03: Voltage Level: 24V /36V (default) / 48V

P04: Auto-Off Time (0~60, 0: never, other values mean Auto-Off interval) Unit: minutes

P05: Assist Level

1. Normally, 3 types are available: 3/5/9 Levels (requires controller support, subject to actual situation)

2. Some previous products may show 0/1/2 to represent assist levels 3/5/9. The latest products will show directly 3/5/9 for 3 types.

3. Some display supports start-level setting by changing the extra first value to 0/1.

For example: “0 3” means 0 assist level at start, and 3 assist levels in total.

“1 3” means level 1 at start, and 3 assist levels in total.

1.  Some protocols (e.g., Lishui 5S, Protocol 2B as extended Protocol 2) support manually setting the PWM value for each assist level, which allows users to enter a secondary menu by long-pressing the down key in Assist Level settings (the interface will show from “3” to “31 55” and a blinking indication). Then users can set the PWM value for each assist level (incl. PWM for 6km/h walk assist mode).

4.1 For example: “31 55” means in 3-level mode, the PWM value

for level 1 is 55.

              4.2 If the cursor blinks at “31”, press the Power/Mode key, and “55” will blink; then press the up key. The value will turn to “31 56”, and the PWM value for level 1 has been set to 56.

4.3 Switch the cursor back to blinking at “31”, press the up key. The value will change to “32 110”; now you may set the PWM value for level 2.

4.4 Long-press the down key again to exit the secondary menu to the home menu; the new values will be automatically saved.

   Note: The first digit blinking “P” indicates the PWM value for 6km/h walk assist mode.

    For example, “P35” means the PWM value for 6km/h walk assist mode is 35; increase the value to speed up, decrease to slow down.

4.5 Some displays use analog voltage output for each level (no protocols); the output voltage for each level:

    3-Level Mode: Level 1: 2V, Level 2: 3V, Level 3: 4V;

    5-Level Mode: Level 1: 2V, Level 2: 2.5V, Level 3: 3V, Level 4: 3.5V, Level 5: 4V.

P06: Wheel Size.   Unit: inch    Precision: 0.1

P07: Magnetic Steel Number for Speed Test.    Range: 1-100

P08: Speed Limit

    Range: 0-50km/h, parameter 50 indicates no speed limit.

    1. Non-communication status (panel-controlled)

      When the current speed exceeds the speed limit, the PWM output will be shut down; when the current speed falls below the speed limit, the PWM output will be activated, and the driving speed will be set to the current speed ±1km/h (only applies to assist power speed, not applicable to the throttle speed).

    2. Communications status (controller-controlled)

       The driving speed will be kept constant at the limited value.

       Error Value: ±1km/h (applicable to both the assist power/throttle speed)

    Note: The above-mentioned values are measured in metric units (kilometers). When the measuring unit is switched to imperial units (miles), the speed value displayed on the panel will be automatically switched to the corresponding imperial unit; however, the speed limit value in the imperial unit interface won’t change accordingly.

P09: Zero / Non-zero Start Setting:

    0: Zero Start (direct start when throttle turns)

    1: Non-zero Start (kick to start)

P10: Drive Mode Setting

    0: Pedal Assist Only – The specific gear of the assist drive decides the assist power value. In this status, the throttle does not work.

    1: Throttle Only – The vehicle is driven by the throttle. In this status, the power gear does not work.

    2: Pedal Assist+Throttle – Electric drive does not work in zero-start status.

P12:  Assist Power Intensity   Range: 0-5

P13:  PAS Sensor Magnet Steel Number:  5 / 8 / 12pcs

P14:  Current Limit Value:  12A by default; Range: 1-20A

P15:  Unspecified

P16:  ODO Zero-Out: Long-press the upper key for 5 seconds, and the ODO value will be cleared.

P17: (required by customer) Auto Cruise Option.

0: No Auto-cruise

1: Auto-Cruise On. The trigger time of auto-cruise is decided by the controller.

P18: (K5S, APT Protocol Bound) Forward / Backward PAS Option.

0: Forward PAS.1: Backward PAS.

P19: (K5S Protocol Bound) Throttle Level Option.

0: No throttle level. 1: Has throttle levels.

P19: (K5S Protocol Bound) 6km/h Cruise Throttle Definition.

0: Throttle without 6km/h cruise definition.

1: Throttle with 6km/h cruise definition.

4. Keys

Arrangement of Keys:

1.M key, works as Mode Switch key and Power key.

   If it has NFC function, for security concerns, password is required when turning on the display by M key.

2. Up key, also known as Plus key (common operation: press it and the value will add 1 “Plus”).

3. Down key, also known as Minus key (common operation: press it and the value will deduct 1 “Minus”).

:

1. Press (press and release a single key)

Press is used for frequent operations:

1.1 During a ride, press the Up or Down key to switch assist levels.

In settings, press the Up or Down key to change the value for a certain item.

1.2 Press the M key to switch items displayed in the multifunction

area. To avoid false triggering, normally a press is not used in two-key operation, but some displays support double press (similar to “double click” on the mouse) or multiple press.

2. Long Press (long press a single key for over 1s before release);

Long press on a single key is used in non-frequent On/Off, e.g.

Turn on/off the front light.

3. Multiple-Key Operation (long press 2 or more keys together for over

1s before release)

Compared to long-pressing a single key, multiple-key operation

Is used in rarer cases.

Detailed Introduction of Key Operations

1. Switch Assist Level

On the home interface, press the Plus key or Minus key.

2. Switch Displayed Items in Multi-Function Area

On the home interface, press the M key to switch among total range (ODO), single trip range (TRIP), working time (TIME), battery voltage, working current, error code, etc. (not every model supports all the above items).

3. Turn On the Front Light (Backlight Brightness)

   Long-press the Plus key to turn on/off the front light.

   In most cases, the backlight of displays is on by default. However, in some cases, the backlight status is subject to (synchronized with) the front light.

4. Turn On 6km/h Walk Assist Mode or Cruise

   When the vehicle is parked, long-press the Minus key to enter 6km/h walk assist mode. To exit, normally release the key, yet in some rare cases, subject to the controller, to exit, long press the Minus key again instead of simply

release.

   Moreover, in some cases, the controller decides the speed of walk assist/cruise mode by the engaging motor speed; e.g., if the engaging speed is 0, enter 6km/h walk assist mode; if the engaging speed reaches a certain preset value (like 15km/h), the controller will turn on cruise mode. In this case, to exit 6km/h walk assist mode or cruise mode, long-press the Minus key again.

5. Turn On/Off the Display

  Long-press the M key to turn on/off the display

6. Display 3 Types of Speed

 Real-time speed (CUR), maximum speed (MAX), average speed (AVG)

   Long-press the M key and the Plus key to switch among 3 types of displayed speed. If there’s only one speed type displayed, the M key is invalid.

7. Setting Menu

Long-press the Plus and Minus keys together to enter the setting interface; available setting items are as follows:

Backlight brightness, system unit, voltage class, auto-off time, assist levels, wheel size, magnetic steel number, speed limit, zero start and non-zero start, assist sensitivity, start power, type of PAS sensor disc, controller current and ODO clearance.

The setting area consists of two sectors: one is the numbering of parameters, normally displayed as PXX (XX is the number of parameter, e.g. P01 is the first parameter, often defined as backlight brightness).

Another section is the value of the parameter.

In the Setting interface, press the M key; the display will save the new parameter and switch to the next item, e.g., P01->P02. Press the Plus or Minus key to adjust the value by +1 or -1.

Some parameters have a wide range, e.g., wheel size, and pressing the operation key would be inefficient. In this case, long-press the Plus key to enter auto-plus mode to boost efficiency.

To clear total distance (P16 in most cases), long-press the Plus key for 5 s. When the ODO sector shows 0, the total distance value is cleared.

Long-press Plus and Minus to exit the setting menu. In the setting menu, without any operation for 10s, the system will automatically exit the setting mode to avoid false operation.

NFC Display Function Introduction:

When the device with NFC functionality is being produced, after the program is loaded, upon startup, a prompt "C1" will be displayed, indicating that it's now necessary to record Master Card 1. Place an appropriate card near the screen. When the display detects the card, it will automatically read the ID of the card and write it into the display's memory. Then, "C2" will be displayed to indicate the need to record the second Master Card. By replacing the card with another and recording it again, the "C2" display will disappear. Once the recording of two Master Cards is complete, the display will automatically enter its normal swipe card power on/off mode. (Generally, the recording of Master Cards is carried out by the display manufacturer.)

The NFC display can also opt for recording Sub Cards. When the display is turned off, place any Master Card on the display (without covering the mileage position). If the display detects the Master Card, it will power on. If the Master Card remains stationary for more than 10 seconds, the display will prompt "SC1," indicating the entry into Sub Card recording mode. Remove the Master Card and place the Sub Card near the display; it will automatically record the Sub Card. If the display is set to record multiple Sub Cards, it will sequentially display "SC2," "SC3," "SC4," etc. Typically, support is provided for recording 2 Sub Cards, but based on customer requirements, it can be configured to support up to 4 Sub Cards. Once Sub Card recording is complete, the Master Card can be kept aside, and only the Sub Card used for operations. If a Sub Card is lost, it can be re-recorded using the Master Card. (All Sub Cards need to be re-recorded. Sub Card recording is generally carried out by the display distributor or the user themselves.)

It's also possible to clone and simulate NFC Master Cards (the same applies to Sub Cards) using a smartphone. If you're not familiar with the specific process, you can search online for various brands' methods of duplicating NFC cards. This method is independent of the display, so it won't be elaborated further here.

For displays with NFC functionality, when the display is in motion, it's not possible to swipe the card to power it off; it can only be done when the speed is 0, i.e., when the vehicle is stopped. After powering off, the NFC card reading function continues to work, so the display also has a certain power consumption.

Note: Due to product upgrades, the product you purchased may be slightly different from the descriptions in this user manual, and this won’t affect normal usage.

Specifications:

Type: A: Normal Connector, B: Waterproof Connector (Optional)

Color: Black

Material: ABS

Voltage: 24-72V

Model: A: 5Pin+2Pin, B: 5Pin

Item Size: 100 * 61.5mm/3.94 * 2.42in

Item Weight: 272.7g/9.62oz, 187g/6.6oz

Package Size: 12 * 10 * 6cm/4.72 * 3.94 * 2.36in

Package Weight: 265g/9.35oz, 228g/8.04oz

Packing List:

1*LCD Display

30A;

FOC Sine Wave Controller & S966 LCD Display & PAS & Throttle Kit

36V 48V 52V 64V Black Gold Sine Wave Brushless Motor Controller 30A 1000W Controller Suitable for 6Pin SM Connector No. 2 Protocol Instrument Electric Bicycle

Specifications: 1000w 1500 W 36v/48v/52v/64v

Material: Aluminum Alloy, Black Gold

Working Voltage: 36v/48v/52v/64v

Undervoltage: 32v

Rated Power: 1000W 1500W

Current: 30A

Shell Size: 15*8.5*4cm

MOS Tube: HY3410
