Ridstar Q20 Pro Replacement eBike Battery

$487.00 USD

~~$170.28 USD~~ $487.00 USD

Sale Sold out

Shipping calculated at checkout.

Color 36V 25Ah 900Wh 36V 28Ah 1008Wh 48V 20Ah 960Wh 52V 20Ah 1040Wh

Ships From China Mainland

Ridstar Q20 Pro Replacement eBike Battery – 48V / 52V, 20Ah

Restore your ride with a Belicore Lithium-Ion Replacement Battery advertised for the Ridstar Q20 Pro and select Quercus, Sequoia, Pinus, and step-through electric bikes. With 48V and 52V options advertised, this down-tube battery is designed for riders seeking a replacement power source for compatible electric bike systems.

The battery features a built-in 5V USB output for compatible devices, a black housing, and a listed continuous working current of 20A or 30A depending on the version. Before ordering, match your original battery's voltage, dimensions, connector, mounting system, and electrical requirements.

Key Features

Listed compatibility: Ridstar Q20 Pro and select Quercus, Sequoia, Pinus, and step-through e-bike models
Brand: Belicore
Battery type: Lithium-ion
Advertised voltage options: 48V and 52V; confirm availability
Advertised capacity options: 20Ah, 25Ah, and 28Ah; confirm which options are available for each voltage
Approximate energy: 960Wh for 48V 20Ah; 1,040Wh for 52V 20Ah

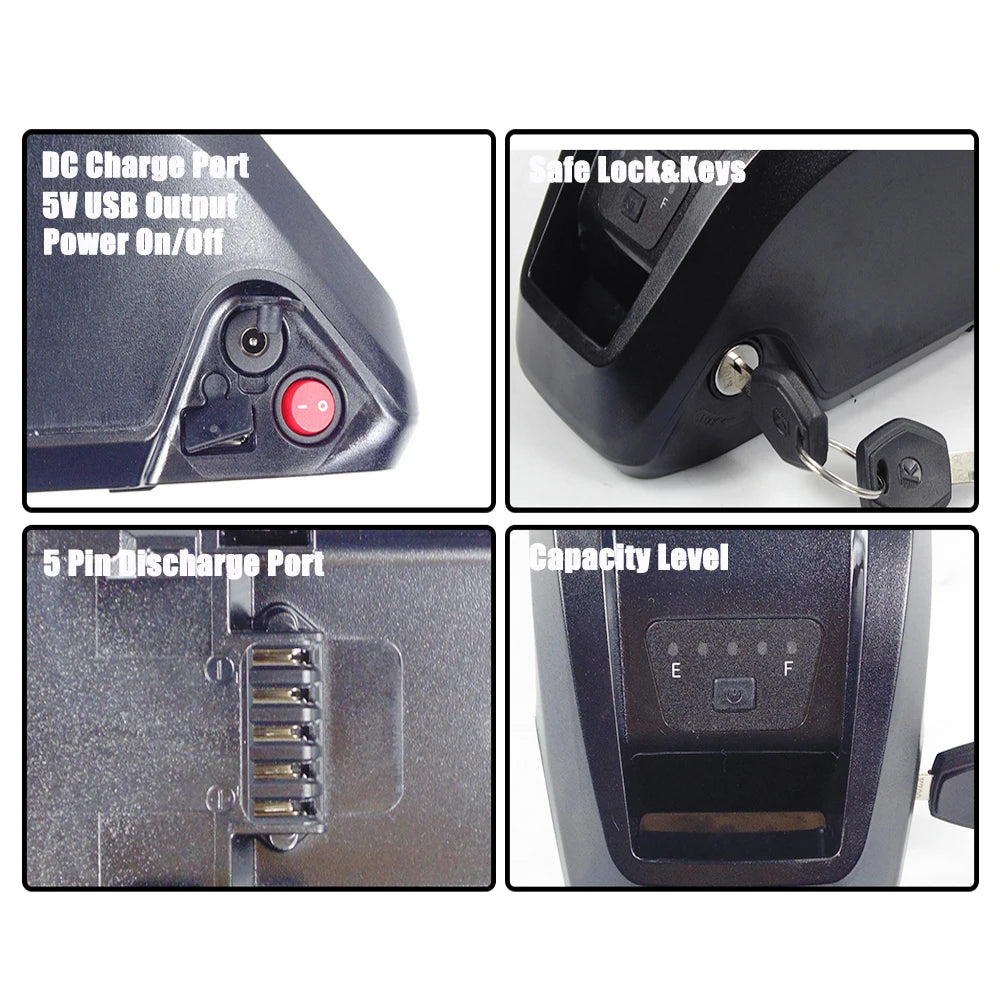

USB output: 5V
Continuous working current: 20A or 30A, depending on version
Mounting location: Down tube
Color: Black
Certifications: CE and RoHS, according to supplier specifications
Warranty: 1 year, according to supplier

Technical Specifications

Specification	Details
Brand	Belicore
Listed bike compatibility	Ridstar Q20 Pro and selected other models; verify exact fit
Battery chemistry	Lithium-ion
Voltage	48V / 52V advertised; confirm exact variant
Capacity	20Ah / 25Ah / 28Ah advertised; confirm availability
Energy at 20Ah	960Wh at 48V; 1,040Wh at 52V
USB output	5V
Continuous working current	20A / 30A, depending on version
Listed charger options	42V / 54.6V / 58.8V, 4A; confirm correct charger for selected battery

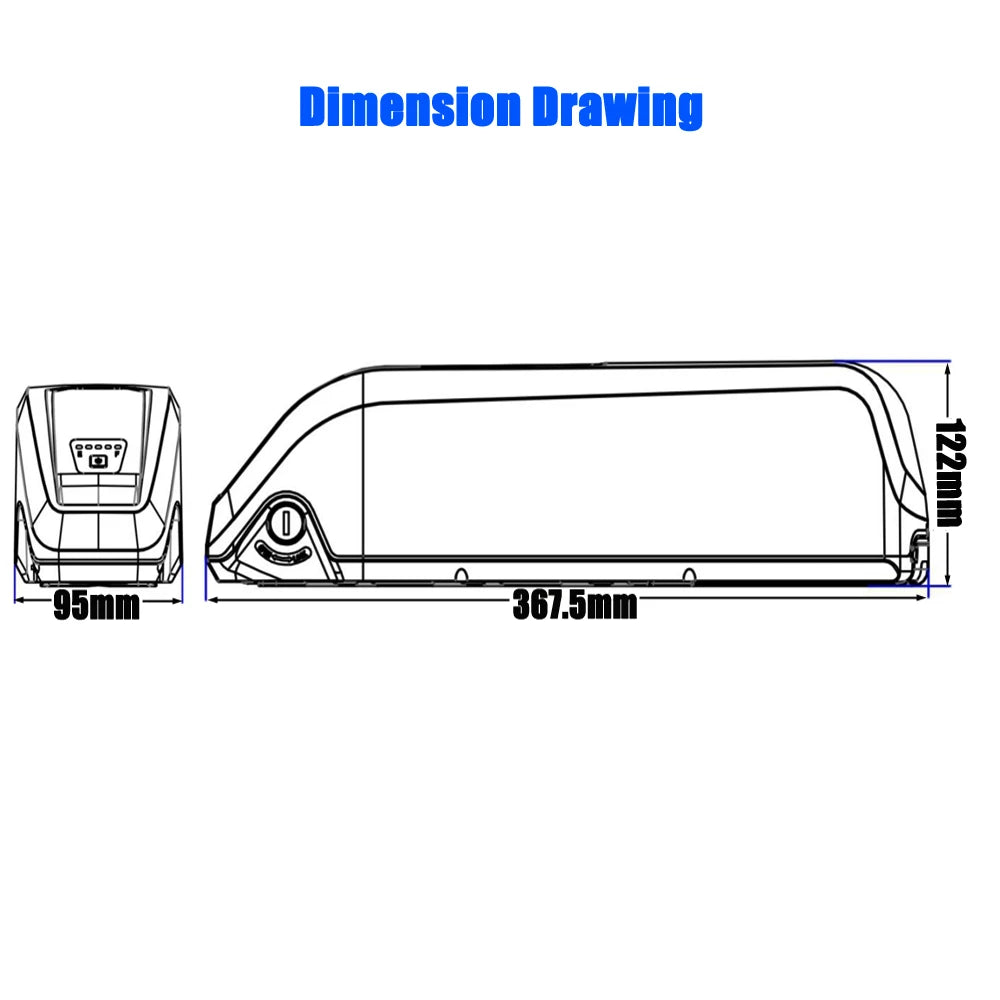

Dimensions	367.5 × 122 × 95 mm
Installation position	Down tube
Color	Black
Certifications	CE, RoHS, supplier-stated
Warranty	1 year, supplier-stated
Country of origin	China

Choose the Correct Voltage

Battery voltage and charger output must match your bike's electrical system.

48V lithium-ion battery: Typically uses a 54.6V full-charge charger.
52V lithium-ion battery: Typically uses a 58.8V full-charge charger.

The supplier also lists a 42V charger, which is typically used for a 36V lithium-ion battery. Confirm the exact battery variant and charger compatibility before connecting or purchasing a charger.

Compatibility Guide

This battery is advertised as compatible with selected Ridstar Q20 Pro, Quercus, Sequoia, Pinus, and step-through e-bike models. Compatibility is not guaranteed across every model year or configuration.

Before ordering, check:

Voltage: Match your bike's original battery voltage.
Dimensions: Compare the listed 367.5 × 122 × 95 mm dimensions with your battery compartment and mounting rail.
Connector and polarity: Ensure the electrical connector matches exactly.
Current requirements: Confirm the battery's continuous current rating is suitable for your controller.
Mounting style: Verify the down-tube rail and locking arrangement.
Charger: Use only a charger rated for the selected battery voltage and chemistry.

A battery that physically fits may still be electrically incompatible with your bike.

Why Choose a Replacement eBike Battery?

A correctly matched replacement battery can help restore riding range and everyday usability when an original battery loses capacity. Actual range depends on battery condition, motor power, rider weight, terrain, temperature, tire pressure, and riding style.

What's Included

1 × replacement lithium-ion battery in the selected configuration
Charger: confirm whether included or sold separately
Mounting rail, keys, and accessories: confirm with the seller before purchase

Battery Care and Safety

Use the correct charger and follow the manufacturer's charging and storage instructions. Protect the battery from water immersion, excessive heat, and physical damage. Stop using a battery that is swollen, leaking, unusually hot, or visibly damaged.

Shop eBike Batteries, Chargers & Accessories

Explore more replacement batteries, chargers, and accessories at ChargeMyEBike.com:

https://chargemyebike.com/collections/collections-ebike-chargers-batteries-accessories

ChargeMyEBike.com — Power Your Ride. Charge Anywhere. Ride Longer.

Attentions:

1. Before you place the order, pls kindly compare our battery with your old battery; if they are 100% the same, then it fits your bike.

2. This battery has a non-smart BMS. If your old battery has a smart BMS, it will not be compatible with your bike, pls don't place the order.

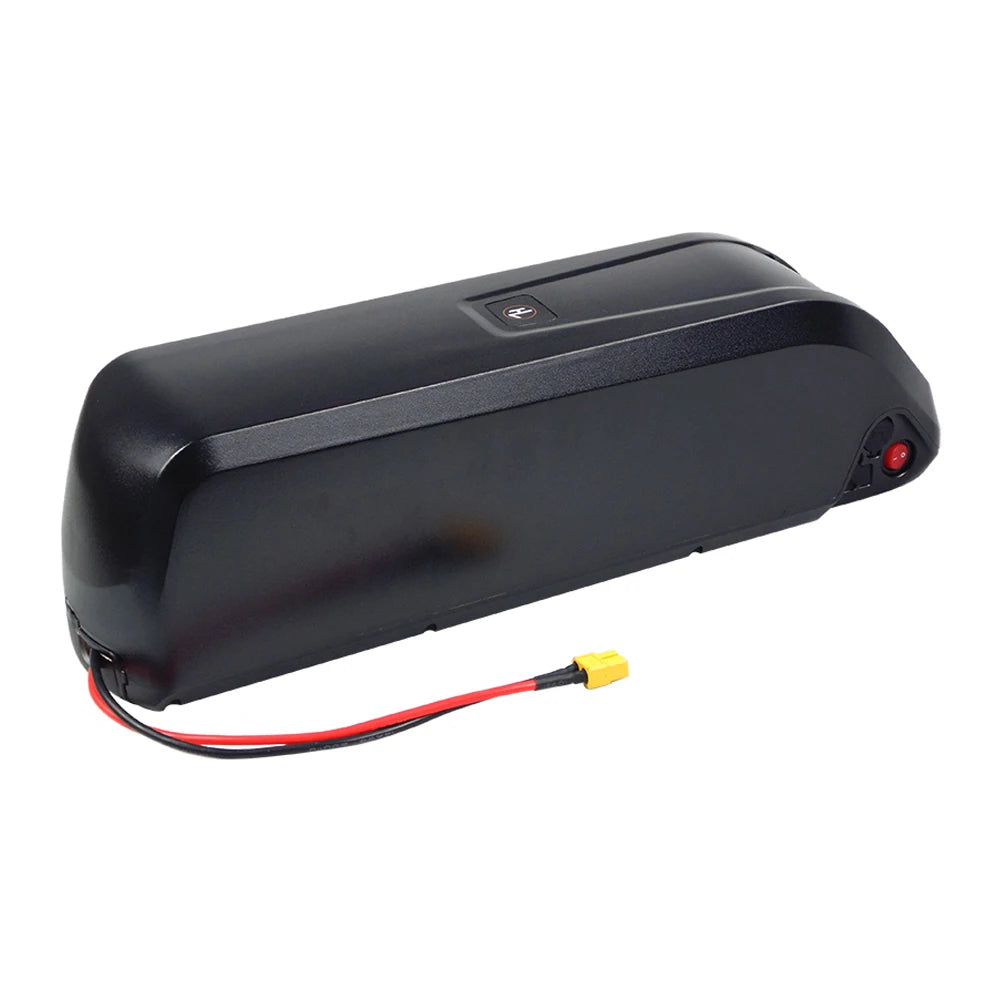

3. The external discharge connector of this battery is XT-60. If you need other discharge connectors, pls leave a message; Anderson/XT-90/Bullet/T-shape etc can be provided too.

4. This Product link does not include the charger; if you need a charger, pls buy it from our other link.

Packing List

1.1 Pcs Battery. (No charger in this link; if you need a charger, pls buy it from our other link)

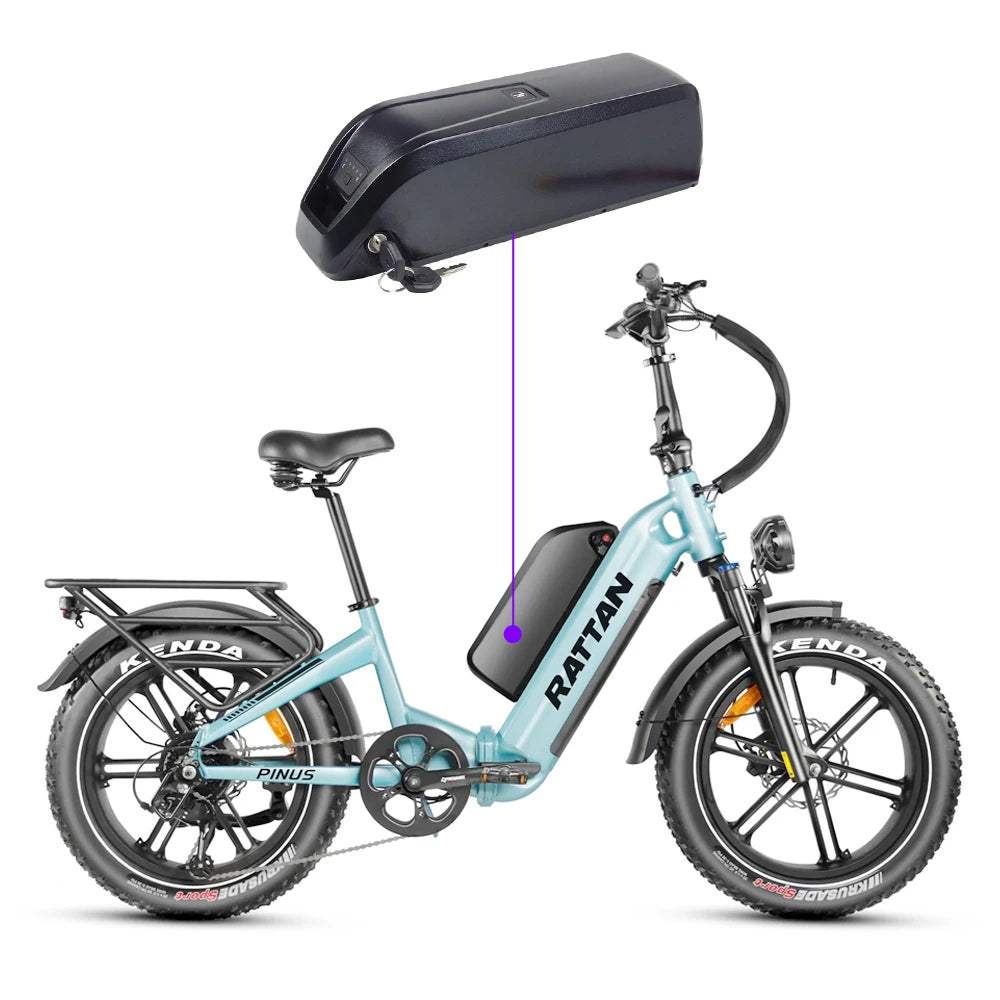

Battery Installation Position

Battery Manuel

1. Charge: Connect the battery pack to the charge controller, and connect the charger to recharge.

2. Discharge: Connect the battery pack to the load, and connect the load to discharge.

3. When you combine the batteries in series or parallel, if there is an oxidation layer on the surface, you

should brush surface to the metal glow with thin steel brush to lower the connective resistance to the minimal resistance.

4. When combining with many batteries, if the voltage between the two electrodes is over 24V, the safe
voltage for human beings, to guarantee safety, you should not touch the two electrodes with your body.

5. If stored for a long time, it is suggested that the battery keep voltage at 80%; regular recharging is needed (even if

not used), it must be charged and discharged once every three months one time;

6. Do not expose the battery to extreme heat or flame.

7. Do not short-circuit, overcharge, or over-discharge the battery pack;

8. Do not disassemble or modify the battery pack.

9. Do not handle or store with metal objects like necklaces, coins, or hairpins, etc.

10. Do not reverse the polarity of the battery pack for any reason.

11. Do not immerse the battery pack in water or seawater, or get it wet.

12. Use a constant current, constant voltage (CC/CV) lithium-ion (Li+) battery charge controller.

FAQ

1. Is this battery compatible with my ebike?

R: Pls compare our battery with your old battery, if the outlook and dimension are same, then it is compitable with your bike, meanwhile, pls pay attention to your motor, if your motor 36V, pls choose a 36V battery, if your motor is 48V, pls choose a 48V or 52V battery, if your motor is 60V, pls choose a 60V battery.

2. What is the type of this ebike battery?

R: It is a lithium-ion battery; the chemistry is LiCoMnO2.

3. What kind of single cells are used in this ebike battery?

R: We use different cellsfor different capacitybattery, we assemble the battery pack with original A grade S-amsung,P-anasonic,S-anyo,LG- and high power China brad cells,standard capacity is 18650 2600mAh, 2900mAh, 3000mAh,3200mAh, 3500mAh and 21700 4800mAh,5000mAh, we can customized different battery as your requests.

4. What is the difference between li ion battery, NI-MH battery, and lead-acid battery?

R: Ebike Lithium-ion battery has longer cycle life,normal cycle life is more than1000 times, and also with light weight,small size, No memory effect,Nontoxic, environmental friendly.

5. What's the temperature range of charge and discharge?

R:Charge Temperature: 0 to 45°C,Discharge Temperature: -20 to 65°C

6. Does your ebike battery come with a charger?

R: Yes, all of our ebike batteries come with a charger. A normal charger and fast charger are optional. If you need a fast charger, please contact us.

7. Do your ebike batteries come with a BMS?

R: Yes, all of our ebike batteries come with a high-quality SEIKO IC BMS, with stable and high performance, which can protect the battery and avoid short circuits, Overcharge, overdischarge, and overcurrent.

8. Can you provide OEM and ODM service?

R: Yes, We are a professional Ebike Battery manufacturer, which produce all kinds of high quality EbikLithium-ion batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit us.
