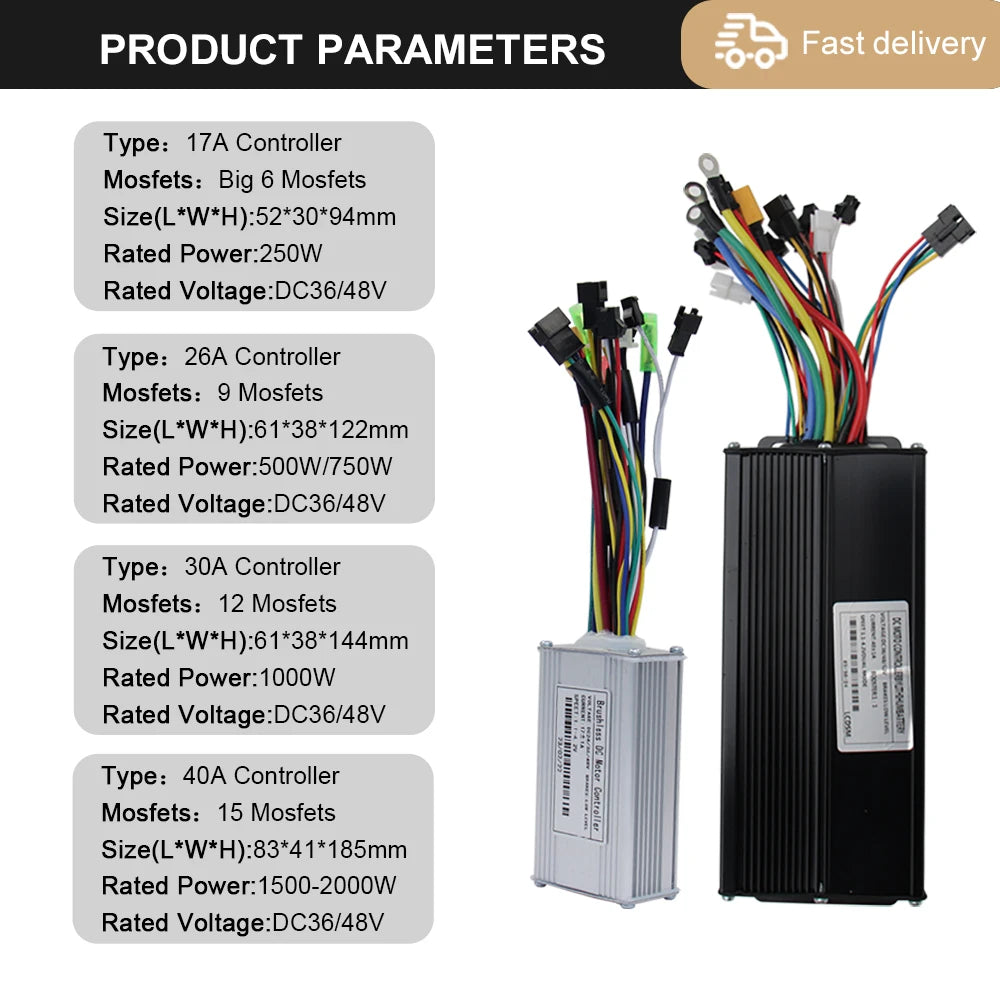

  • A product information graphic showing four electric motor controllers labeled by current rating and mosfet count, alongside three physical controllers and multicolored wiring leads on a white background with a blue header reading Product Parameters.
  • Technical wiring diagram labeled 'PRODUCT PARAMETERS' showing an electric motor or controller cable assembly with multicolored wires, connector plugs, and callouts pointing to phase line, hall line, throttle, PAS, battery, display, light, and E-brake pins.

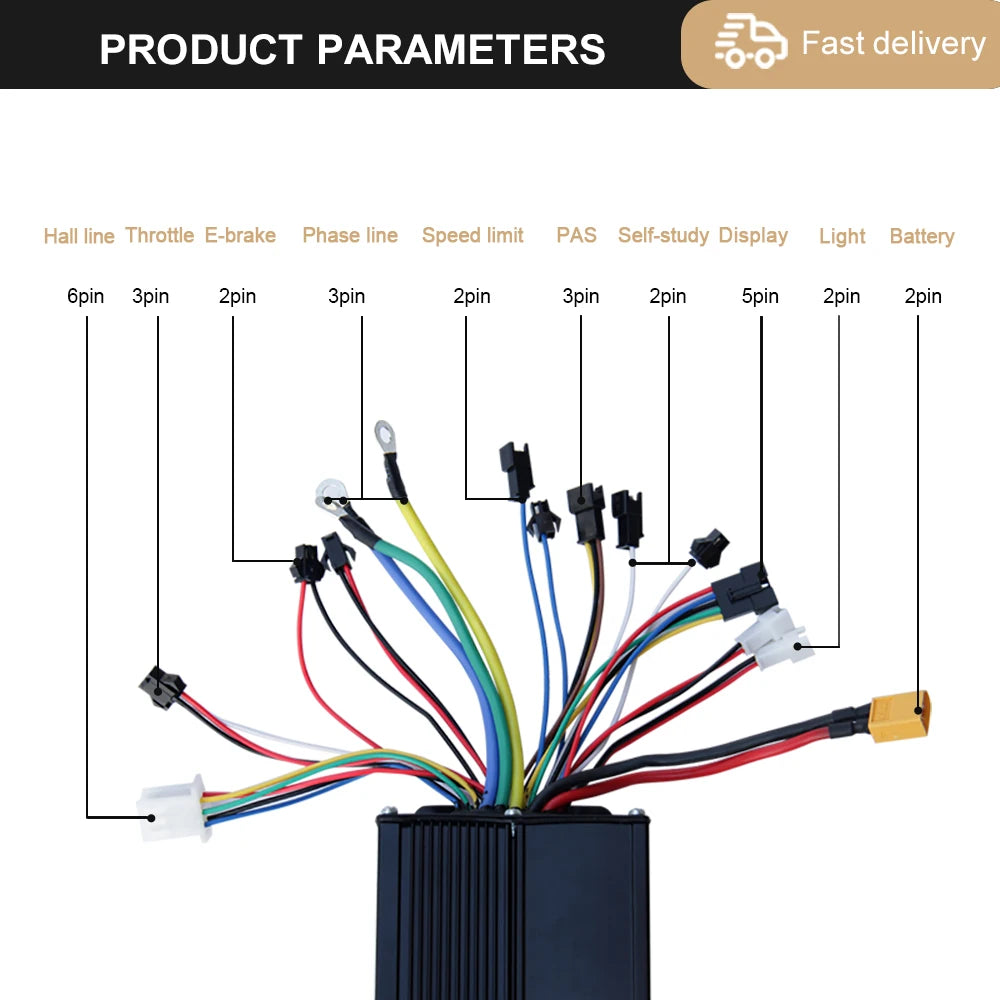

  • Product parameters diagram showing a multi-colored wiring harness with labeled connector pins and lines for hall line, throttle, e-brake, phase line, speed limit, PAS, self-study display, light, and battery, above a black rectangular motor or controller unit on a white background.

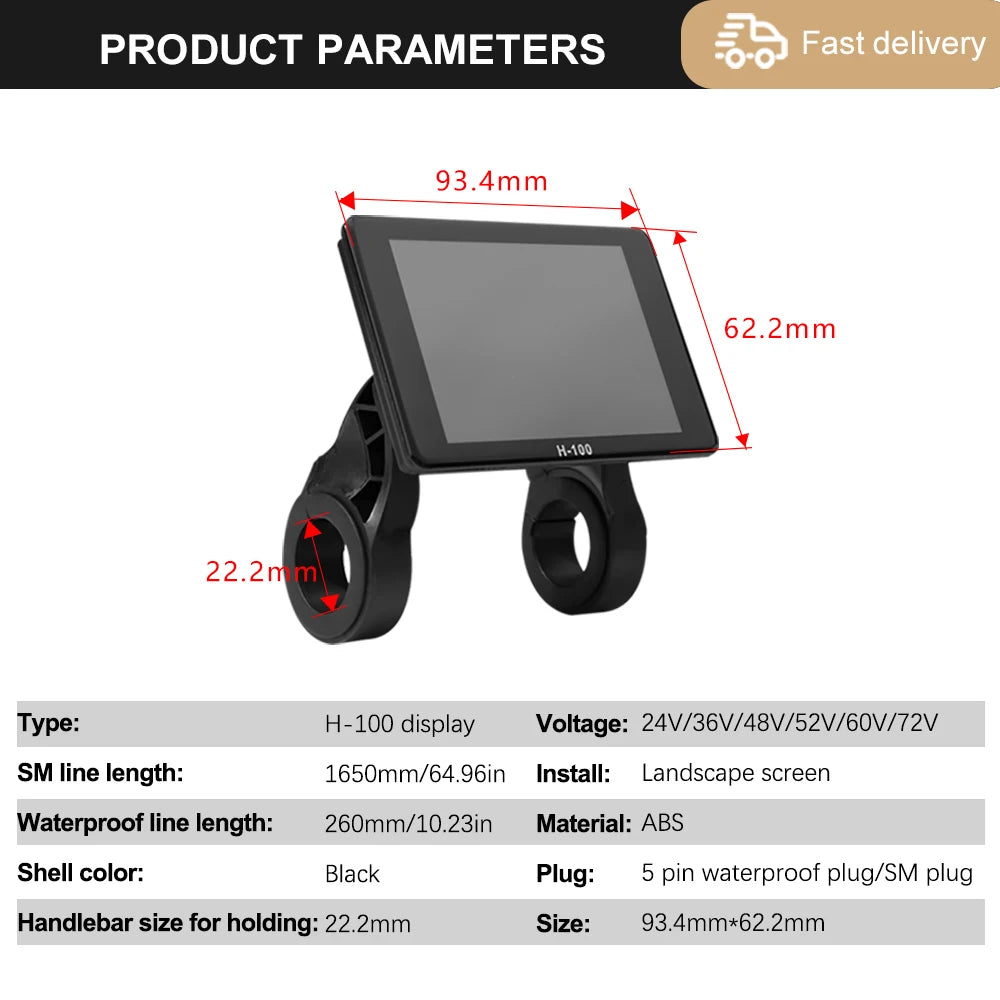

  • Product parameters diagram for a black H-100 landscape display stand, showing the dimensions of the screen (93.4mm x 62.

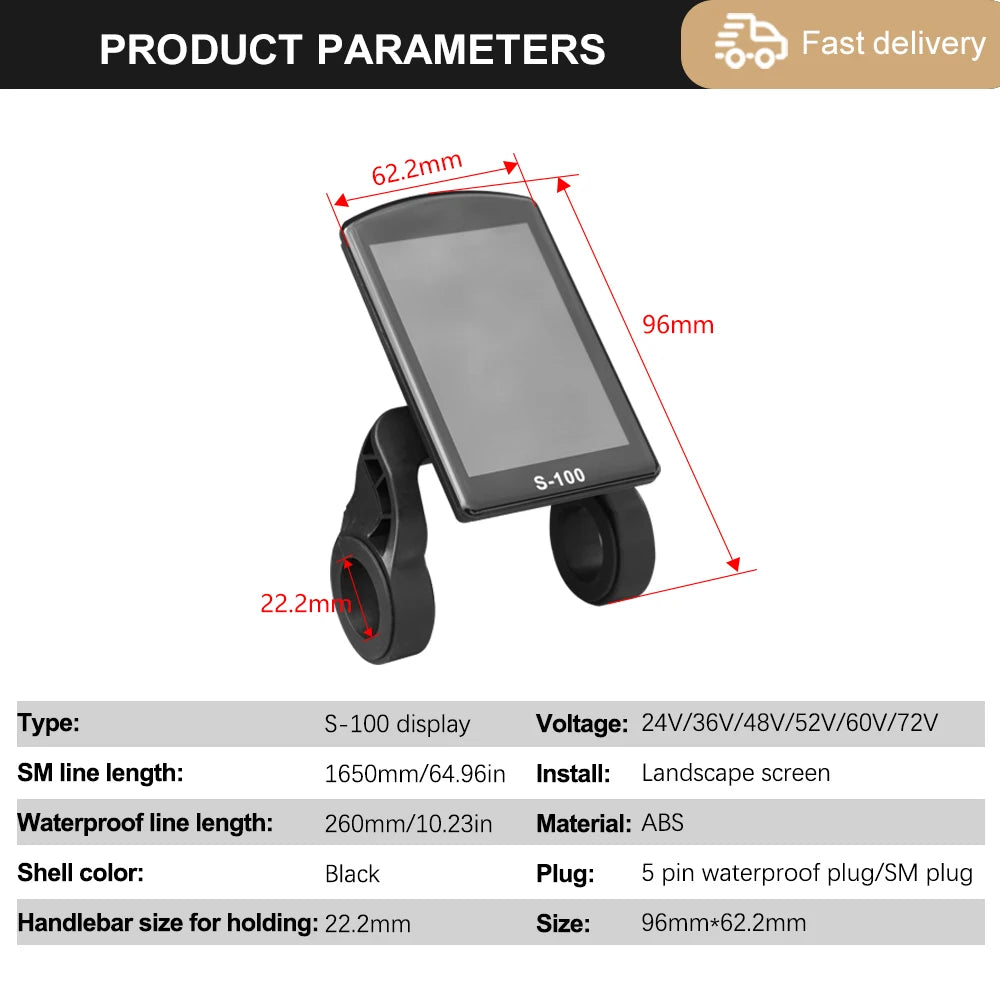

  • Product parameters diagram for a black S-100 bicycle display screen, showing the device with red dimension lines indicating 62.2mm width, 96mm height, and 22.

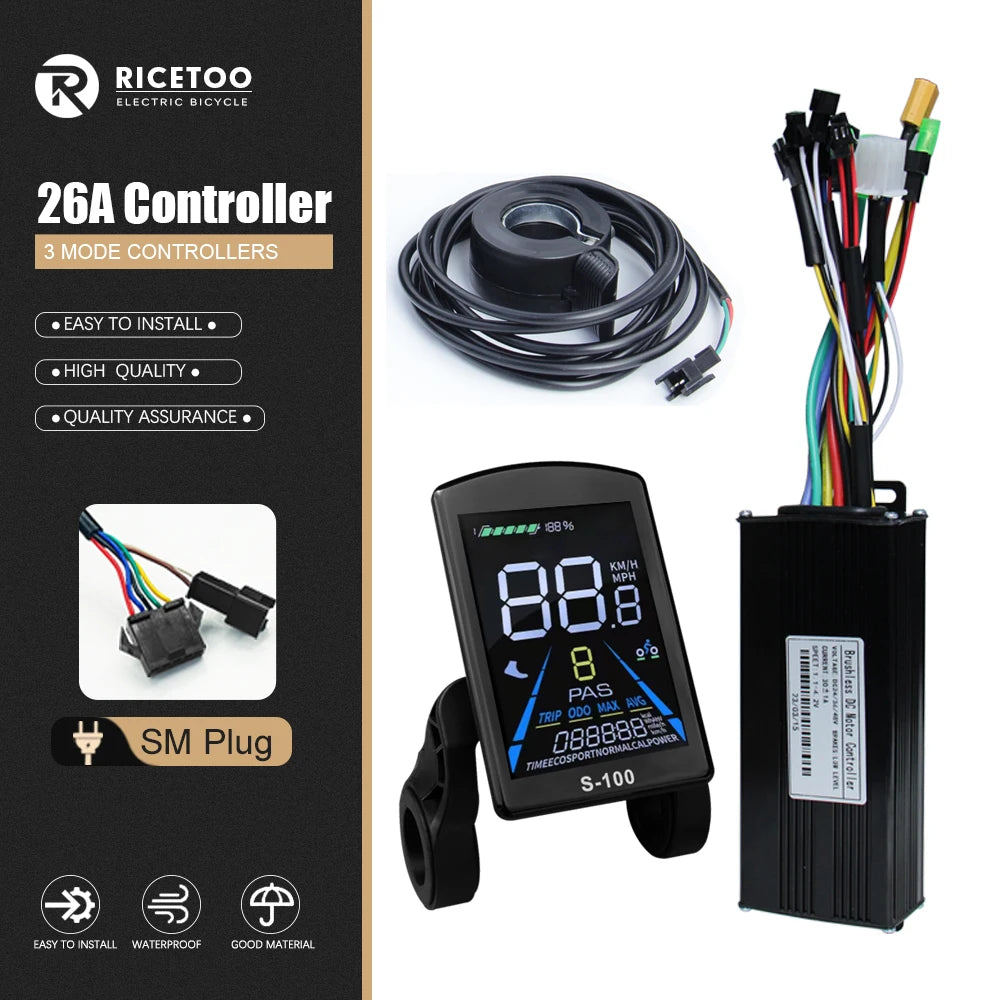

  • A 26A electric bicycle controller kit by RICETOO, featuring a black digital display controller, a black 3-mode controller module with multicolored wires, a black coil, and a black rectangular receiver box, shown alongside a black product information panel on a white background.
  • RICETOO 3-Mode Sine Wave E-Bike Controller
  • RICETOO 3-Mode Sine Wave E-Bike Controller
  • RICETOO 3-Mode Sine Wave E-Bike Controller
  • RICETOO 3-Mode Sine Wave E-Bike Controller
  • RICETOO 3-Mode Sine Wave E-Bike Controller
  • RICETOO 3-Mode Sine Wave E-Bike Controller
  • RICETOO 3-Mode Sine Wave E-Bike Controller
  • RICETOO 3-Mode Sine Wave E-Bike Controller

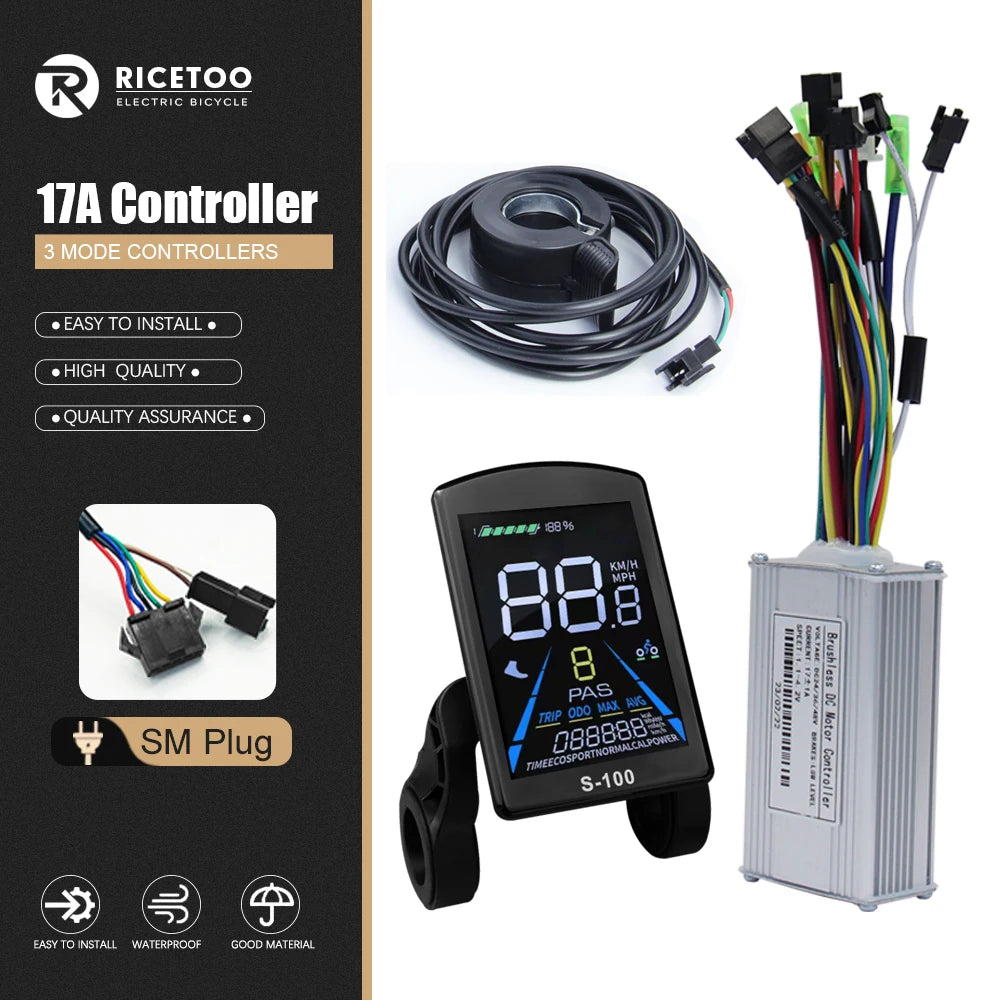

  • Ricetoo 17A e-bike controller kit including a black digital display controller, a black coiled cable, a silver metal control box, and multicolored wiring harnesses, shown on a white background with a black product info panel on the left.
  • A product information graphic showing four electric motor controllers labeled by current rating and mosfet count, alongside three physical controllers and multicolored wiring leads on a white background with a blue header reading Product Parameters.
  • Technical wiring diagram labeled 'PRODUCT PARAMETERS' showing an electric motor or controller cable assembly with multicolored wires, connector plugs, and callouts pointing to phase line, hall line, throttle, PAS, battery, display, light, and E-brake pins.
  • Product parameters diagram showing a multi-colored wiring harness with labeled connector pins and lines for hall line, throttle, e-brake, phase line, speed limit, PAS, self-study display, light, and battery, above a black rectangular motor or controller unit on a white background.
  • Product parameters diagram for a black H-100 landscape display stand, showing the dimensions of the screen (93.4mm x 62.
  • Product parameters diagram for a black S-100 bicycle display screen, showing the device with red dimension lines indicating 62.2mm width, 96mm height, and 22.

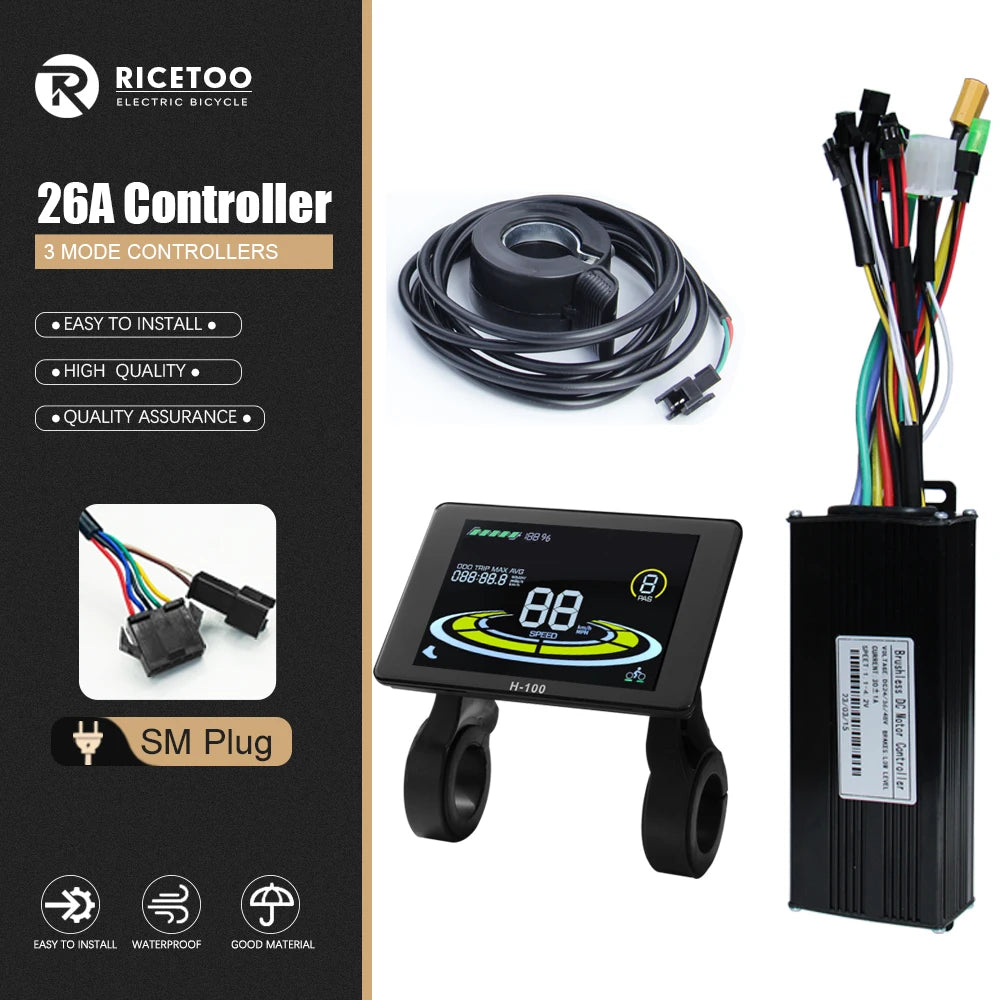

  • A 26A electric bicycle controller kit by RICETOO, featuring a black digital display controller, a black 3-mode controller module with multicolored wires, a black coil, and a black rectangular receiver box, shown alongside a black product information panel on a white background.
  • RICETOO 3-Mode Sine Wave E-Bike Controller
  • RICETOO 3-Mode Sine Wave E-Bike Controller
  • RICETOO 3-Mode Sine Wave E-Bike Controller
  • RICETOO 3-Mode Sine Wave E-Bike Controller
  • RICETOO 3-Mode Sine Wave E-Bike Controller
  • RICETOO 3-Mode Sine Wave E-Bike Controller
  • RICETOO 3-Mode Sine Wave E-Bike Controller
RICETOO 3-Mode Sine Wave E-Bike Controller

RICETOO 3-Mode Sine Wave E-Bike Controller

$154.66
$154.66 $54.66
Shipping calculated at checkout.
Color

Ebike 3 Mode Controller Sine Wave Controller 17A 26A 30A 40A with Color S-100 Or H-100 Display


Upgrade, repair, or custom-build your electric bike system with the RICETOO Universal 3-Mode Smart Sine Wave Motor Controller. Available in 17A, 26A, 30A, and 40A current outputs, this versatile controller kit works seamlessly with hub motors ranging from 250W all the way up to 2000W. Featuring an intelligent 3-mode sine wave algorithm, it automatically adapts to drive motors with or without Hall sensors, providing whisper-quiet operation, self-learning directional calibration, and high-efficiency thermal management. Paired with your choice of the S-100 or H-100 high-definition color LCD display, you get complete real-time control over telemetry, speed limits, and pedal assist levels.

⚠️ Intelligent 3-Mode Compatibility & Safety Guidelines

IMPORTANT POWERTRAIN & SELF-LEARNING SPECIFICATIONS:

  • Automatic Hall Sensor Detection (3-Mode Sine Wave): Intelligently operates in Sine Wave Mode when Hall sensors are healthy, switches to Square Wave/Hall-less Mode if Hall sensors fail, ensuring you're never stranded on a ride.

  • Automatic Forward/Reverse Self-Learning: Includes dedicated learning wire loops to quickly calibrate motor rotation direction during initial installation.

  • Broad Voltage System Support: Supports 36V and 48V systems across all current ratings, with the high-output 40A variant expanding support to 52V architectures.

  • Programmable 25 km/h Speed Limit Wire: Includes a manual plug wire loop for easy legal compliance with regional 25 km/h (15.5 mph) speed caps.

🚀 Key High-Performance Features

  • Advanced Sine Wave FOC Technology: Delivers smooth acceleration, reduced motor vibration, and ultra-quiet torque output across all speed ranges.

  • High-MOSFET Thermal Architecture: Equipped with premium 9-MOSFET (17A/26A), 12-MOSFET (30A), and 15-MOSFET (40A) arrays in a heavy-duty finned aluminum heat sink casing.

  • Smart PAS & Low-Level Braking: Built-in 1:5 cadence pedal assist ratio and low-level brake cut-off inputs for instant safety response.

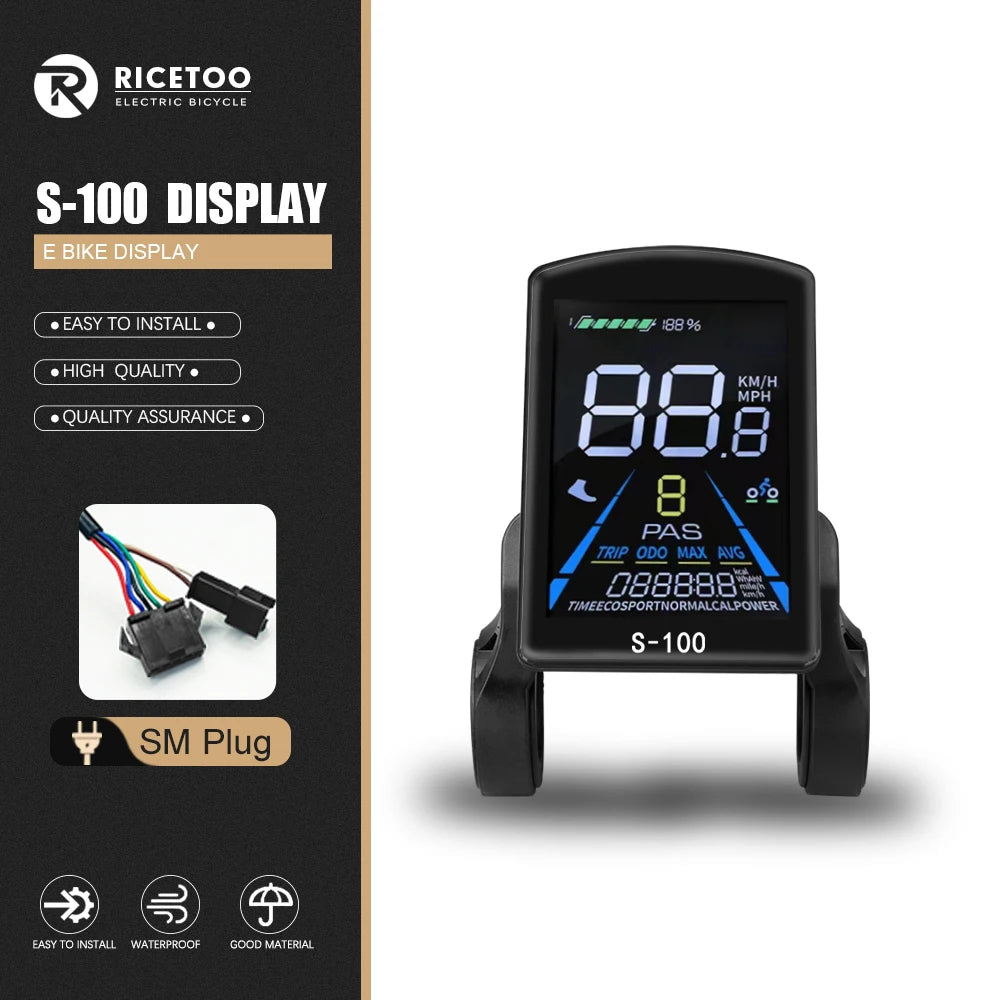

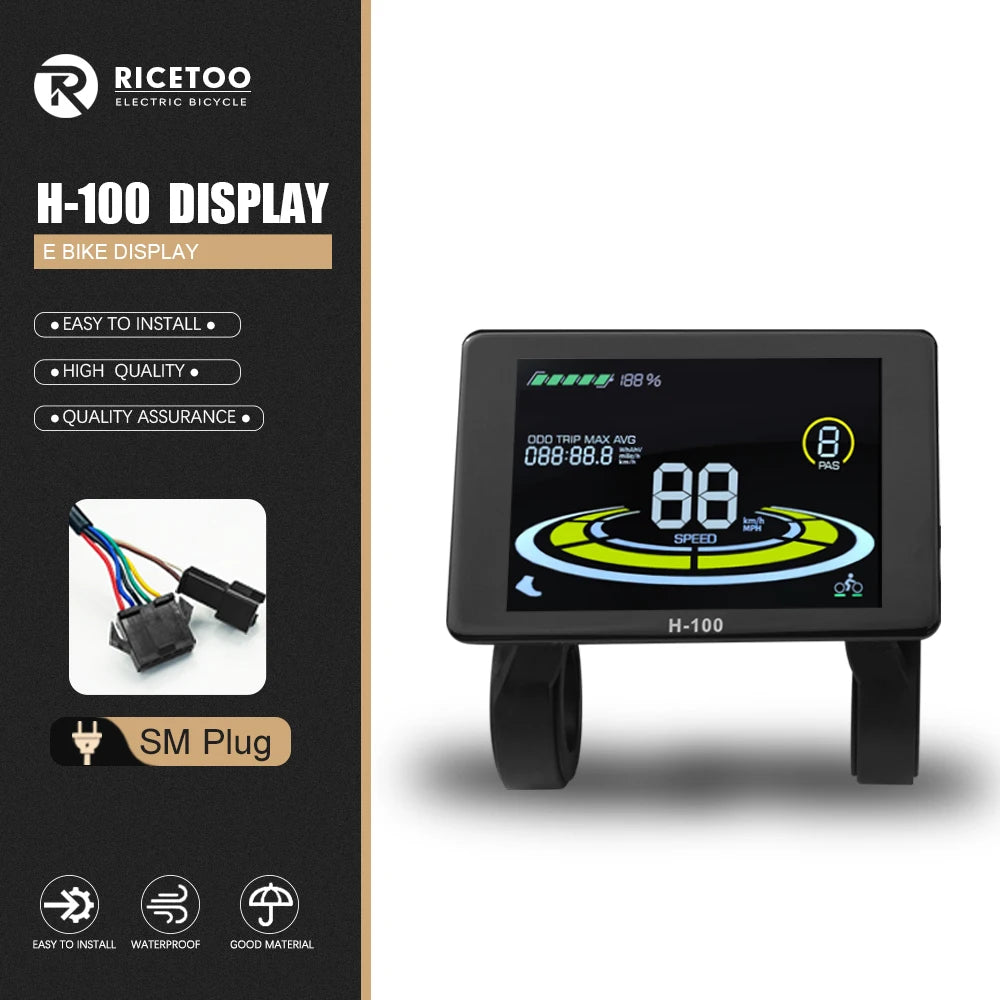

  • Multi-Function Color LCD Display (S-100 / H-100): Real-time monitoring of speed, battery voltage status, trip distance, power output, error diagnostics, and 5-level PAS adjustment.

  • Universal Throttle Compatibility: Accepts standard 1.1–4.2V twist or thumb throttles for smooth speed control.

📊 Technical Specifications Matrix

Feature / Model 17A Controller 26A Controller 30A Controller 40A Controller
Rated Motor Power 250W – 350W 500W – 750W 1000W 1500W – 2000W
System Voltage DC 36V / 48V DC 36V / 48V DC 36V / 48V DC 36V / 48V / 52V
MOSFET Array 9 MOSFETs 9 MOSFETs 12 MOSFETs 15 MOSFETs
Dimensions (LWH) $95 \times 53 \times 30\text{ mm}$ $122 \times 61 \times 30\text{ mm}$ $145 \times 61 \times 38\text{ mm}$ $185 \times 82 \times 41\text{ mm}$
Throttle Signal Voltage 1.1V – 4.2V 1.1V – 4.2V 1.1V – 4.2V 1.1V – 4.2V
Motor Drive Algorithm 3-Mode Sine Wave 3-Mode Sine Wave 3-Mode Sine Wave 3-Mode Sine Wave
Hall Sensor Support Hall / Hall-less Auto Hall / Hall-less Auto Hall / Hall-less Auto Hall / Hall-less Auto
PAS Booster Ratio 1:5 Assist Ratio 1:5 Assist Ratio 1:5 Assist Ratio 1:5 Assist Ratio
Brake Cut-off Type Low-Level Signal Low-Level Signal Low-Level Signal Low-Level Signal
Speed Limit Loop N/A N/A N/A Manual 25 km/h Line



📋 Ideal Applications

  • DIY E-Bike Builds & Conversions: Perfect power match for front hub, rear hub, or mid-drive motor kit projects.

  • Faulty Controller Upgrades: Replaces failed factory controllers with a quiet, efficient sine wave module that self-learns motor rotation.

  • High-Power 52V Conversions: The 40A 15-MOSFET model provides heavy-duty power handling for 2000W high-speed e-bikes.

📦 Package Contents

  • 1 x RICETOO 3-Mode Sine Wave E-Bike Controller (Selected Amperage: 17A, 26A, 30A, or 40A)

  • 1 x S-100 or H-100 Color LCD Display Panel with Handlebar Mount

  • 1 x Integrated Display Wiring Harness & Extensions

  • 1 x Self-Learning Calibration Wiring Line

  • 1 x User Wiring Diagram & Parameter Settings Guide

Upgrade your motor performance with whisper-quiet 3-mode sine wave power! Select your controller amperage and display model above, click Add to Cart, and order today!
