Nanjing FarDriver ND84450 / ND96450 Controller
Nanjing FarDriver ND84450 / ND96450 Controller
Nanjing FarDriver High-Voltage Programmable FOC Sine Wave DC Motor Controller Series –
Models ND84450 (84V) & ND96450 (96V) ESC (170A/180A Continuous DC Battery Current, 450A Peak Phase Current) Engineered for High-Power Electric Motorcycles, Racing ATVs & Custom EV Upgrades (Wireless App Tuning & QS Motor Optimization)
⚠️ Voltage Model Selection & Operating Limits
IMPORTANT VOLTAGE & SPECIFICATION GUIDELINES:
🚀 Key High-Performance Features
-
Massive 450A Peak Phase Output: Delivers exceptional off-the-line launch torque and sustained top-end speed for 6KW–10KW builds.
-
FOC Sine Wave Architecture: Provides smooth throttle ramps, eliminates low-speed motor shudder, and improves overall electrical efficiency compared to square-wave units.
-
Wireless App Tuning: Wirelessly adjust battery current limits, phase current, flux weakening (top speed extension), and regen braking via smartphone app.
-
Integrated Self-Learning Function: Simplifies initial commissioning by automatically detecting Hall sensor timing and motor phase angles.
-

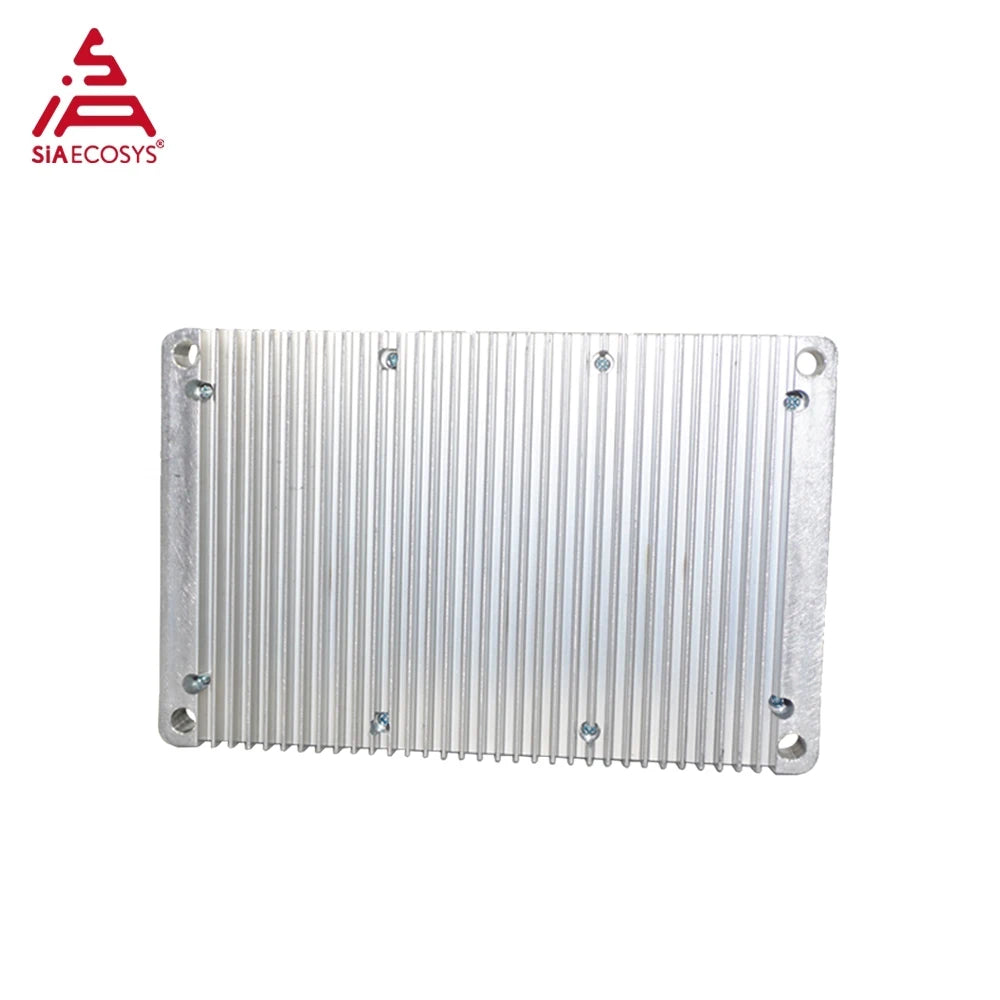

Heavy-Duty Heat Dissipation Casing: Built with an aluminum shell heatsink ($180 \times 150 \times 260\text{ mm}$, $2.5\text{ kg}$) to protect internal power MOSFETs during sustained high-wattage operation.
📊 Technical Specifications Matrix
| Specification Parameter | FarDriver ND84450 Specs | FarDriver ND96450 Specs |
| Brand / Manufacturer | Nanjing FarDriver | Nanjing FarDriver |
| Model Number | ND84450 | ND96450 / ND96450B |
| Controller Architecture | FOC Sine Wave BLDC / PMSM | FOC Sine Wave BLDC / PMSM |
| Nominal Operating Voltage | 84V DC (100V Max Cutoff) | 96V DC (115V Max Cutoff) |
| Continuous Battery DC Current | 180A | 170A |
| Peak Phase Current Output | 450A | 450A |
| Matched Motor Power | 6000W – 10,000W Motors | 6000W – 10,000W Motors |
| Placement on Vehicle | Rear Frame / Battery Compartment | Rear Frame / Battery Compartment |
| Physical Dimensions ($L \times W \times H$) | $180 \times 150 \times 260\text{ mm}$ | $180 \times 150 \times 260\text{ mm}$ |
| Net Weight | $2.5\text{ kg}$ ($5.5\text{ lbs}$) | $2.5\text{ kg}$ ($5.5\text{ lbs}$) |
📋 Ideal Applications
-

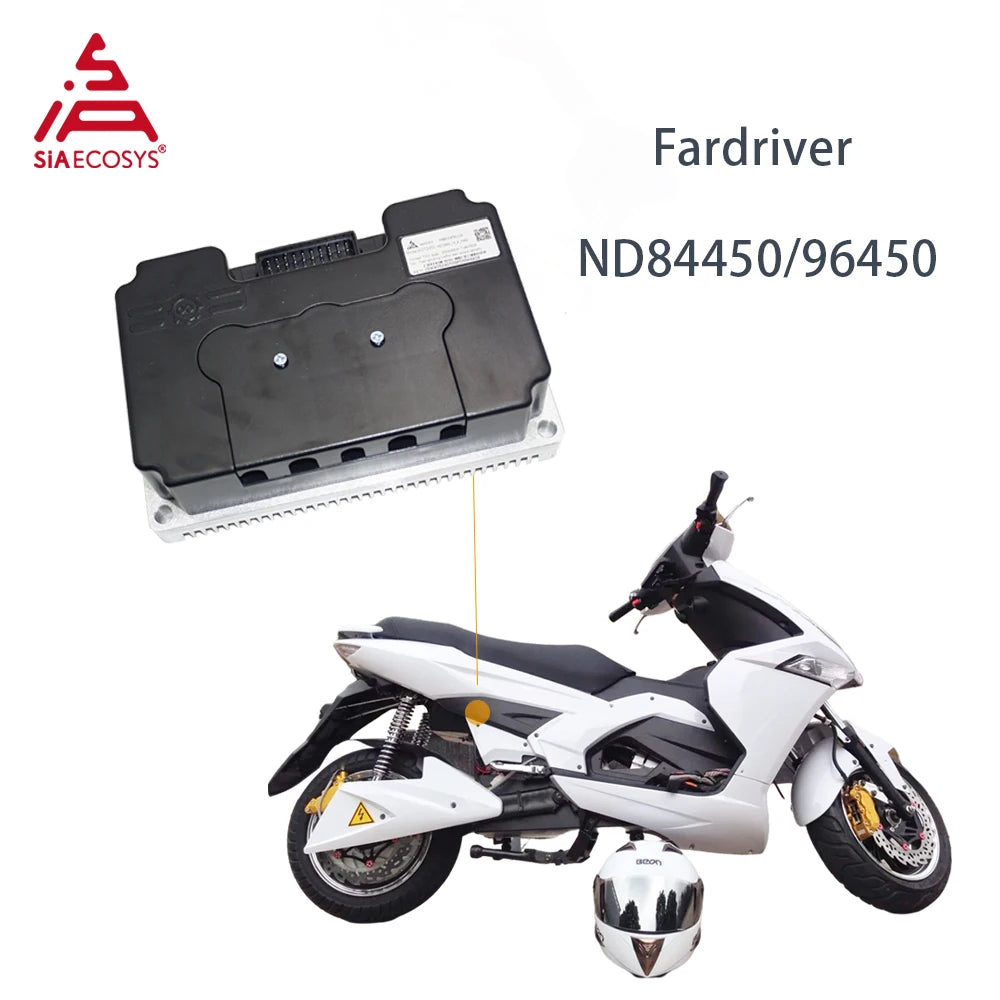

84V & 96V High-Power Electric Motorcycles, Track Bikes & Supermotos
-
QS Motor Hub & Mid-Drive High-Voltage Performance Conversions
-
Custom Electric ATVs, Adult Go-Karts & Light EV Buggies
📦 Package Contents
-

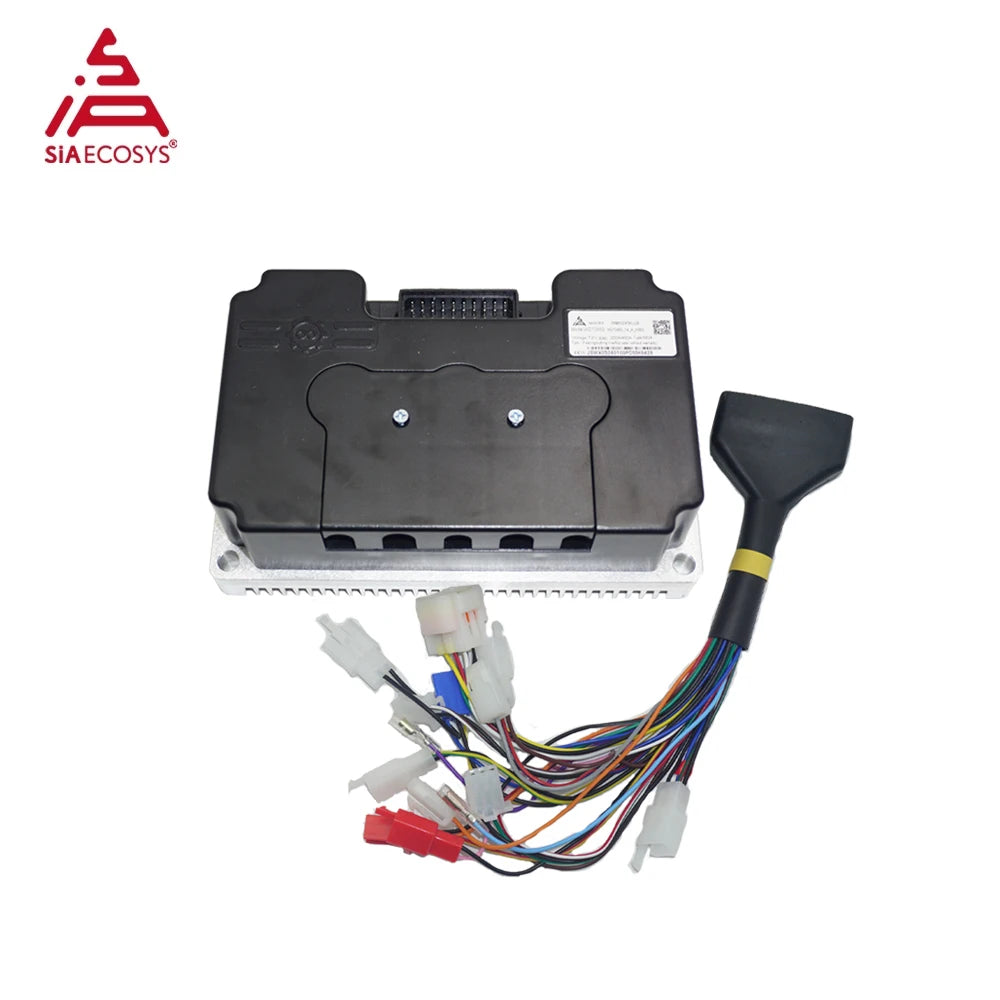

1 x Nanjing FarDriver High-Voltage FOC Controller (ND84450 or ND96450 based on selection)
-

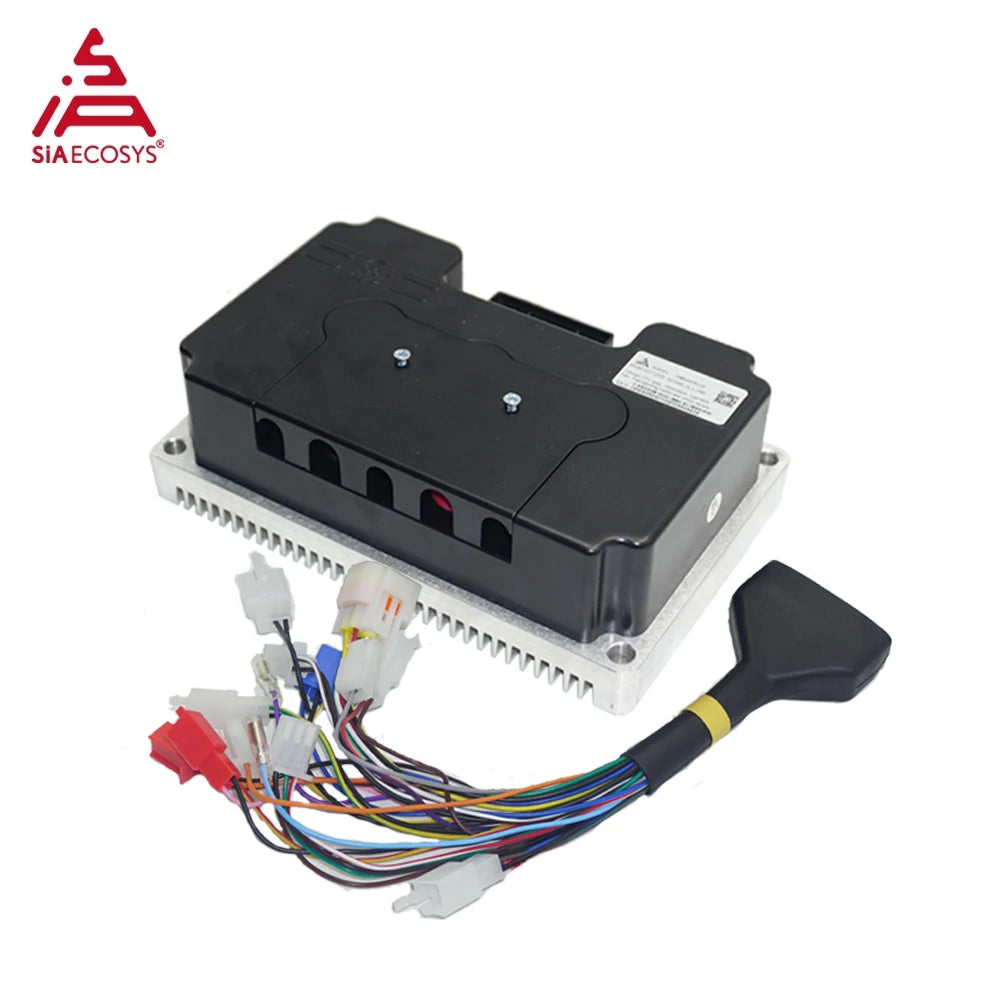

1 x Main Signal Wiring Harness Assembly
-
1 x Mobile App Link & Parameter Tuning Setup Documentation
FarDriver, ND84450, ND96450, FarDriver Controller, 84V Controller, 96V Controller, 180A DC, 450A Phase, Sine Wave Controller, Electric Motorcycle Controller, QS Motor-----------------------------------------------------------------------------------------
⚡ eBike Power Network LLC
Smart Power Infrastructure for Next-Gen Urban Transit.
-----------------------------------------------------------------------------------------
eBike Power Network LLC
8735 Dunwoody Place, Ste N
Atlanta, GA 30350
CONTACT INFORMATION
Main Office: (678) 340-4455
General Inquiries: info@ebikepowernetwork.com
Support Hours: Mon - Fri | 8:00 AM - 6:00 PM EST
REGIONAL SALES TEAM
• Bernard Butler | Regional Sales Rep | (404) 494-0086
#ebikepowernetwork #SmartMobility #VoltGrid #CleanTransit
-----------------------------------------------------------------------------------------
© 2026 eBike Power Network LLC. All Rights Reserved.
Designed for high-performance residential and commercial infrastructure deployments.
-----------------------------------------------------------------------------------------
Fardriver ND96450 ND84450 96V 450A Programmable Controller for Electric Motorcycle Sine Wave FOC ESC
FarDriver controller is a sine wave type controller, which is a brushless DC controller with self-learning function. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.
NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)
P.S. If you have any confused about the shipping cost, please feel free to contact with us.
Also could place order but don't pay first, then we could adjust the price.
One set including below kits
Combo1.
1. 1pc X ND84450 sine wave controller
2. 1pc X Bluetooth module
Combo2.
1. 1pc X ND96450 sine wave controller
2. 1pc X Bluetooth module
Combo3.
1. 1pc X ND84450 sine wave controller
2. 1pc X USB Cable
Combo4.
1. 1pc X ND96450 sine wave controller
2. 1pc X USB Cable
Key Features
1). All the raw materials are imported, using high-performance Moss tube
2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board
3). Small in size
4). High efficiency, low temperature rise, small running current
5). With self-learning function, excellent commonality
6). The app compatible with Android and Apple
7). With flux weakening function.(The product does not contain magnetism)
Product Description

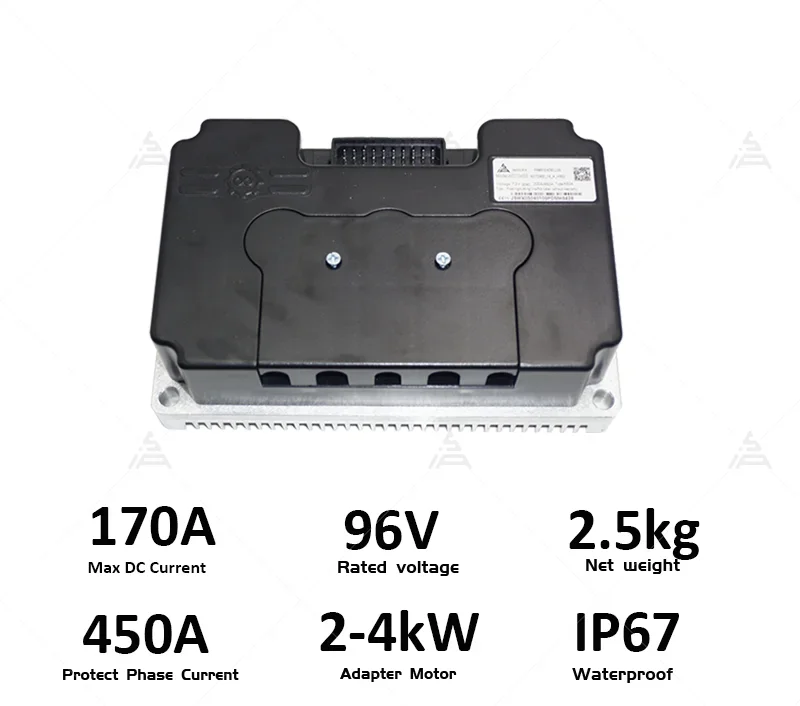

ND84450/ND96450 are sine wave controllers with waterproofing grade IP67, suit for 3-4kW motors.
For ND84450, the peak voltage is 100V.
For ND96450, the peak voltage is 115V.
It’s hall version (as default) which suit with hall motors.
It could also support encoders, please check with sales.
ND84450 Spec
ND96450 Spec

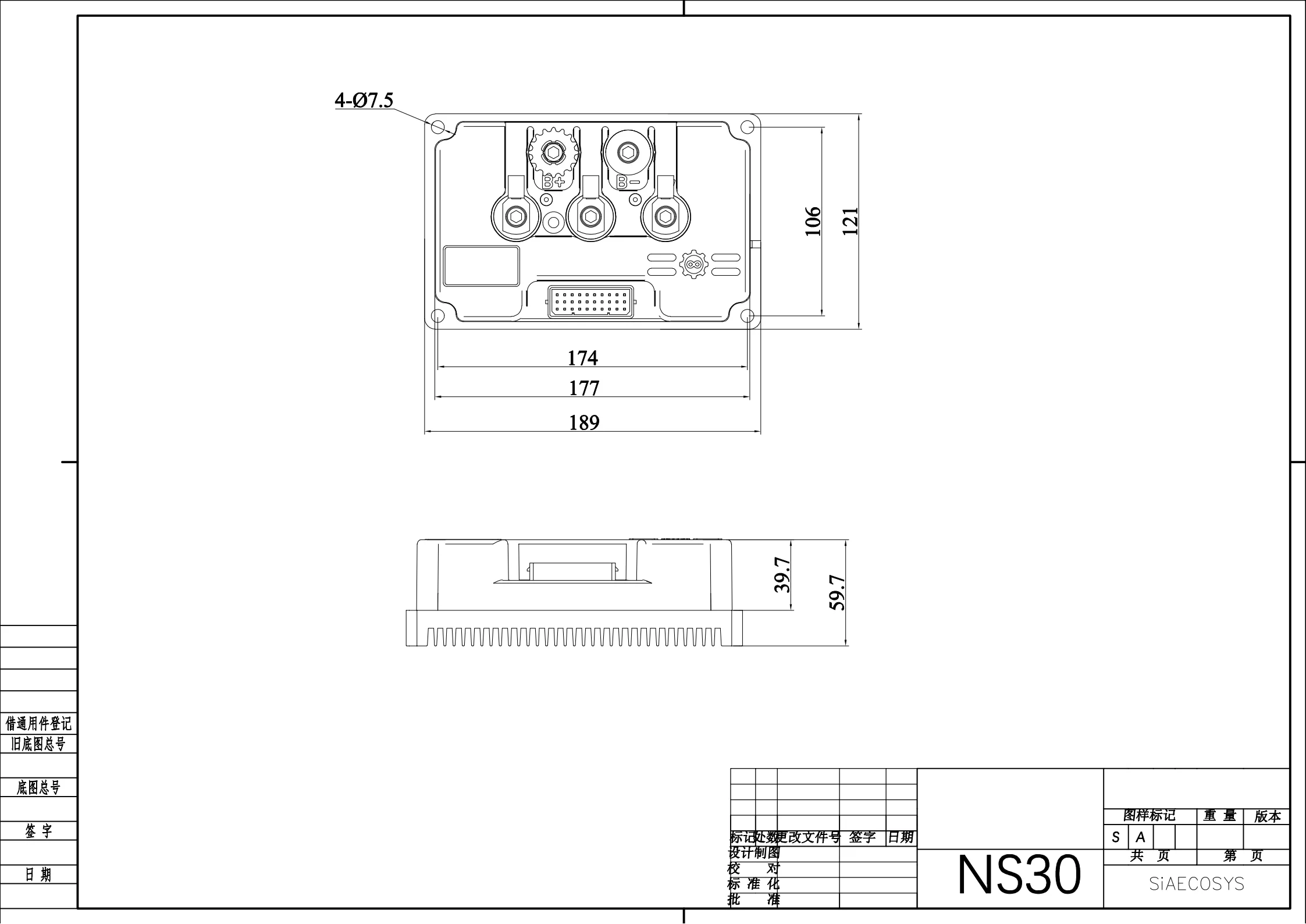

Drawing

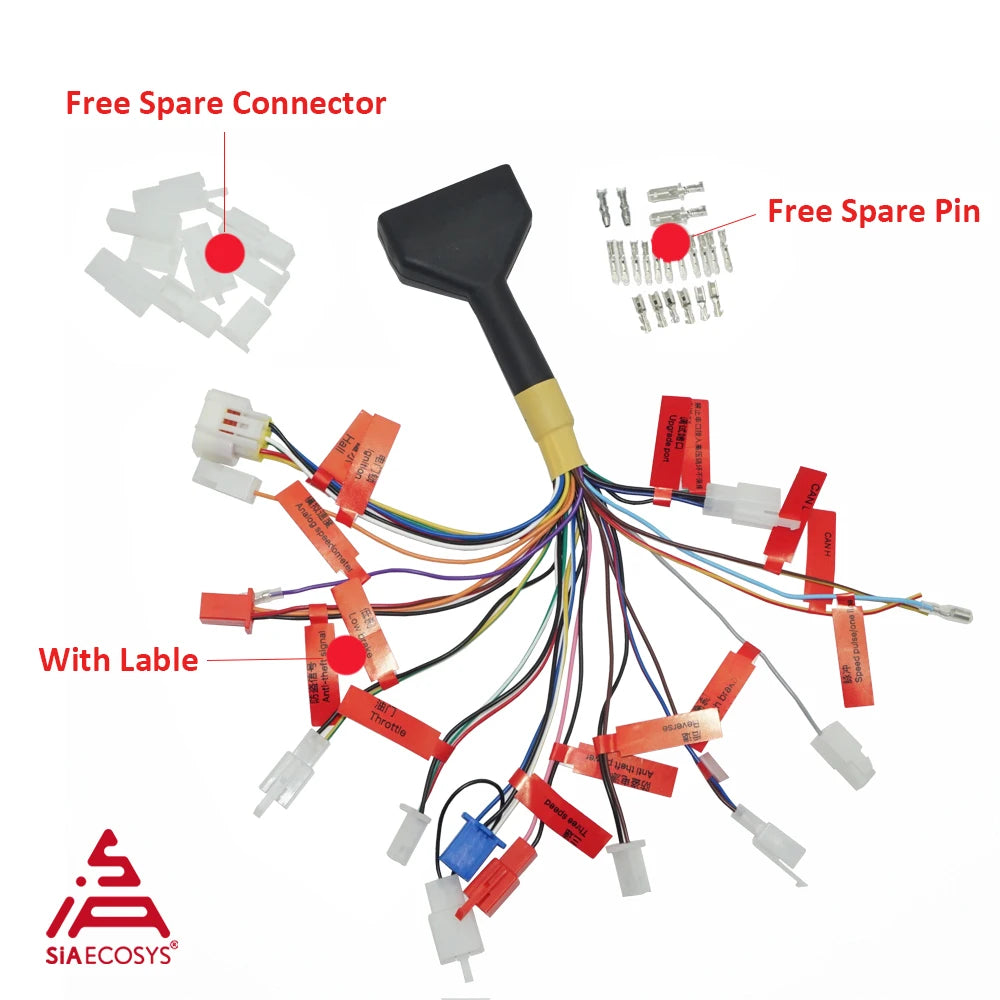

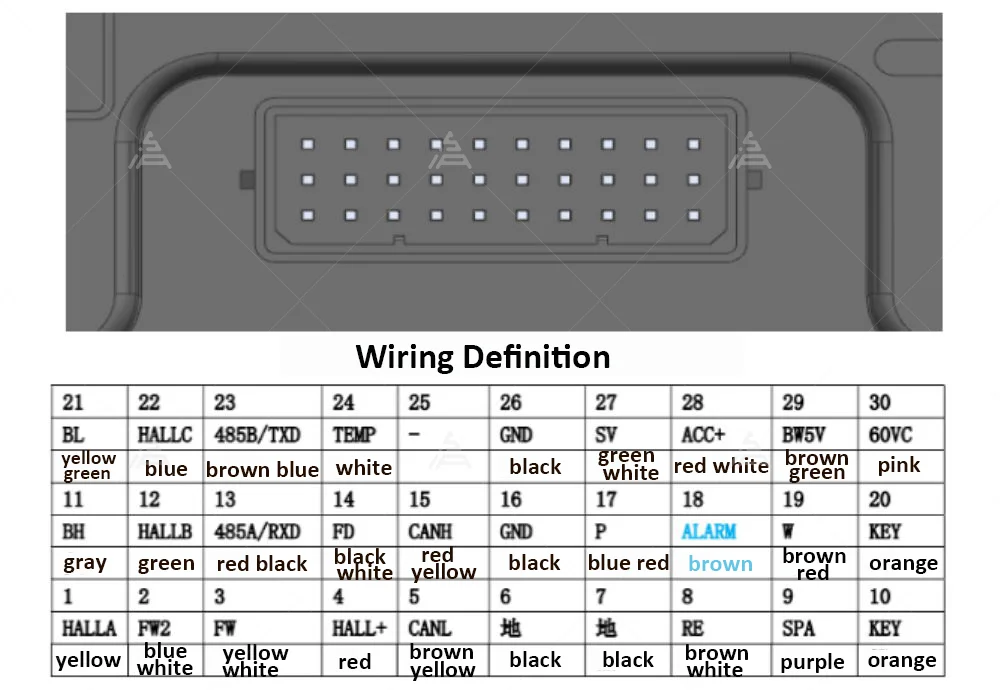

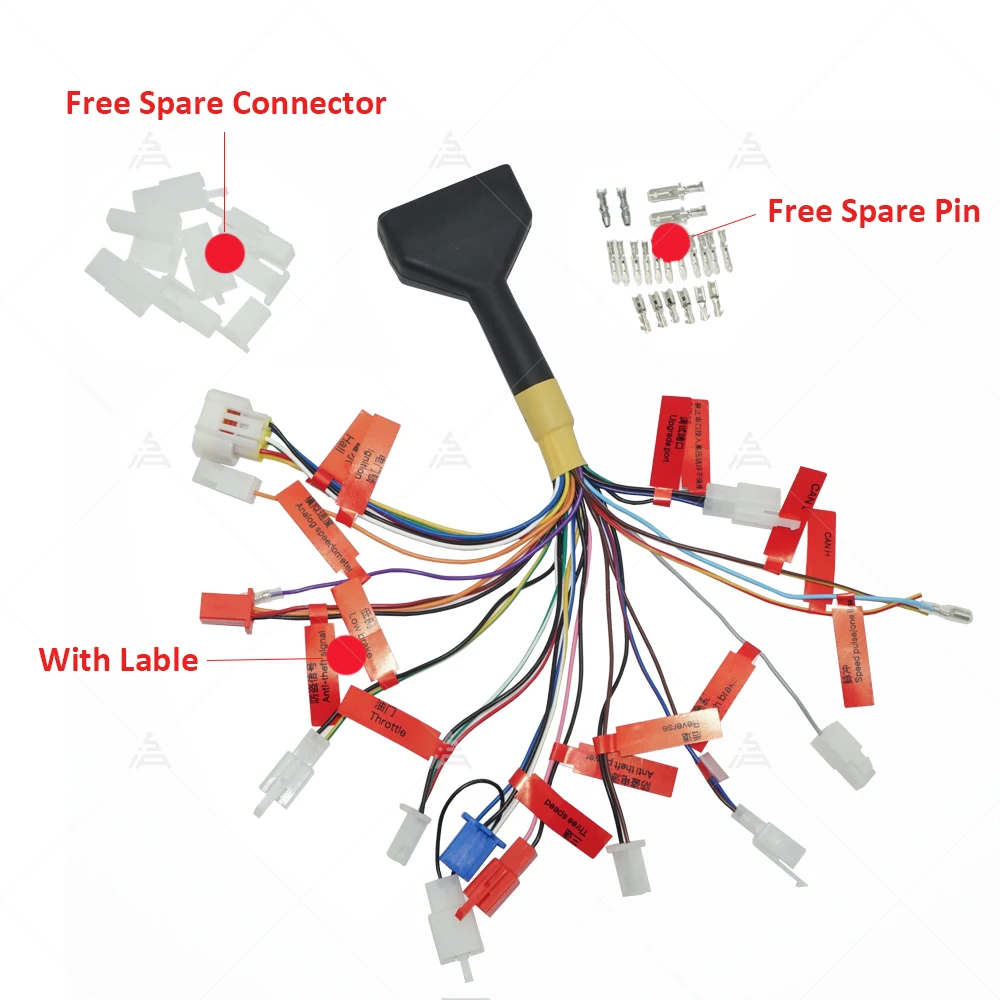

Harness Definition
Adapter Cable
we free provide wiring function lable, which will be more convenient to wire.

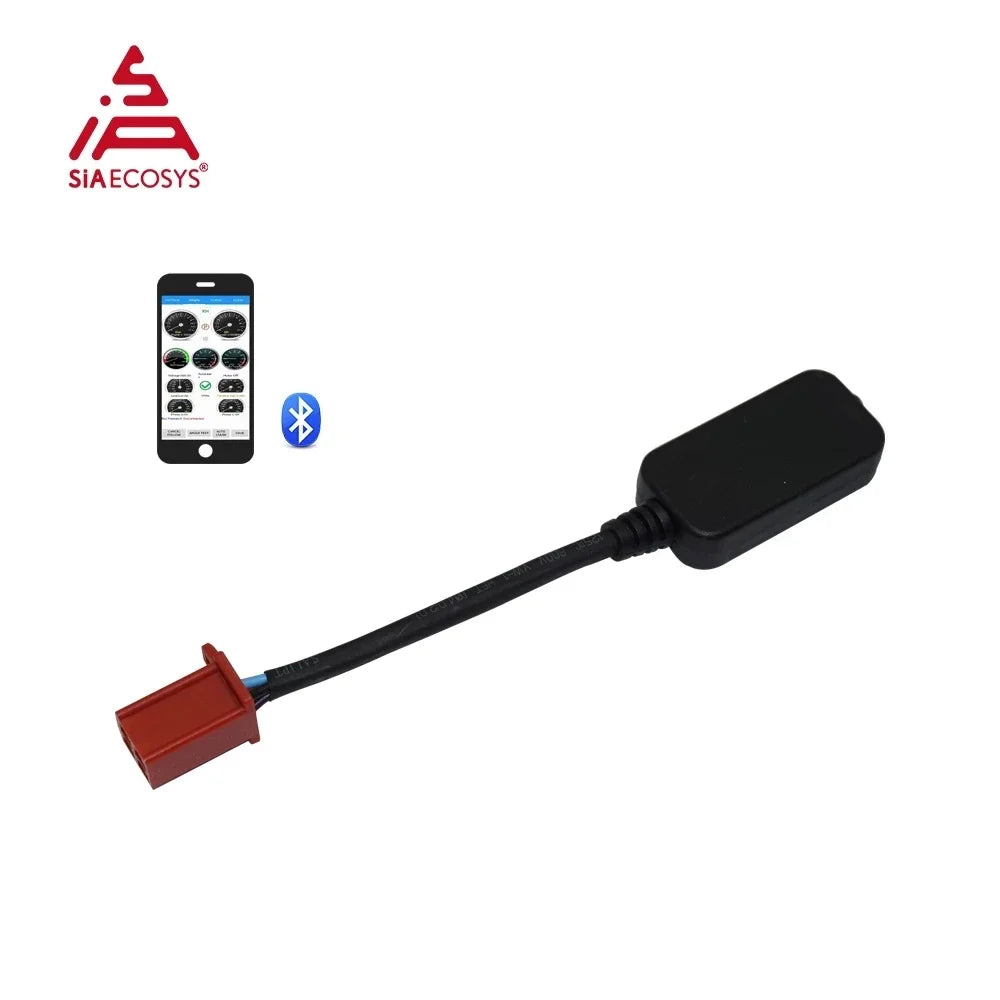

Bluetooth Module
Software interface (APP)
Programmable Software & User manual (Before you received the controller)
Pls contact with seller to get the link to download the manuals and software before/when you get the controllers.
