OHRIJA HRH300 OLED Smart Fast Charger – 36V, 48V, 60V & 72V eBike Charger

Smart Charging. Live Monitoring. Compact Power.

Upgrade your charging setup with the OHRIJA HRH300 OLED Smart Lithium-Ion Fast Charger, a compact aluminum charger designed for compatible electric bikes, electric scooters, and custom lithium-ion battery systems.

The HRH300 combines a live OLED display, aluminum-alloy housing, smart CC/CV charging technology, and multiple voltage configurations in a compact 135 × 90 × 50 mm enclosure weighing approximately 0.7 kg (1.5 lb).

Choose the voltage configuration that matches your battery system, including 36V, 48V, 60V, or 72V lithium-ion batteries.

Important: Select the charger according to your battery's required charging voltage—not simply the nominal battery voltage. A typical 36V lithium-ion battery requires 42V charging, 48V requires 54.6V, 60V requires 67.2V, and 72V requires 84V.

🚀 Key Features

• Integrated OLED Display for live charging information

• Compact aluminum-alloy enclosure

• Approximately 135 × 90 × 50 mm

• Lightweight design at approximately 0.7 kg / 1.5 lb

• Intelligent CC/CV charging process

• Available for 36V, 48V, 60V and 72V lithium-ion systems

• Selectable charging-current configurations

• Built-in short-circuit protection

• Over-voltage protection

• Over-current protection

• Over-temperature protection

• XLR charging connector

• CE/RoHS compliance markings

• US, EU, UK and AU AC plug options

• Suitable for compatible eBikes, scooters and custom lithium-ion battery systems

📺 Live OLED Charging Display

The integrated OLED screen gives you convenient visibility while your battery is charging.

Depending on the configuration, the display is designed to provide charging information such as:

• Output voltage

• Charging status

• Power/charging information

Display accuracy note: Supplier specifications state that displayed parameters may have approximately 10% operating reference tolerance. The display should therefore be considered a monitoring aid rather than a laboratory-grade measurement instrument.

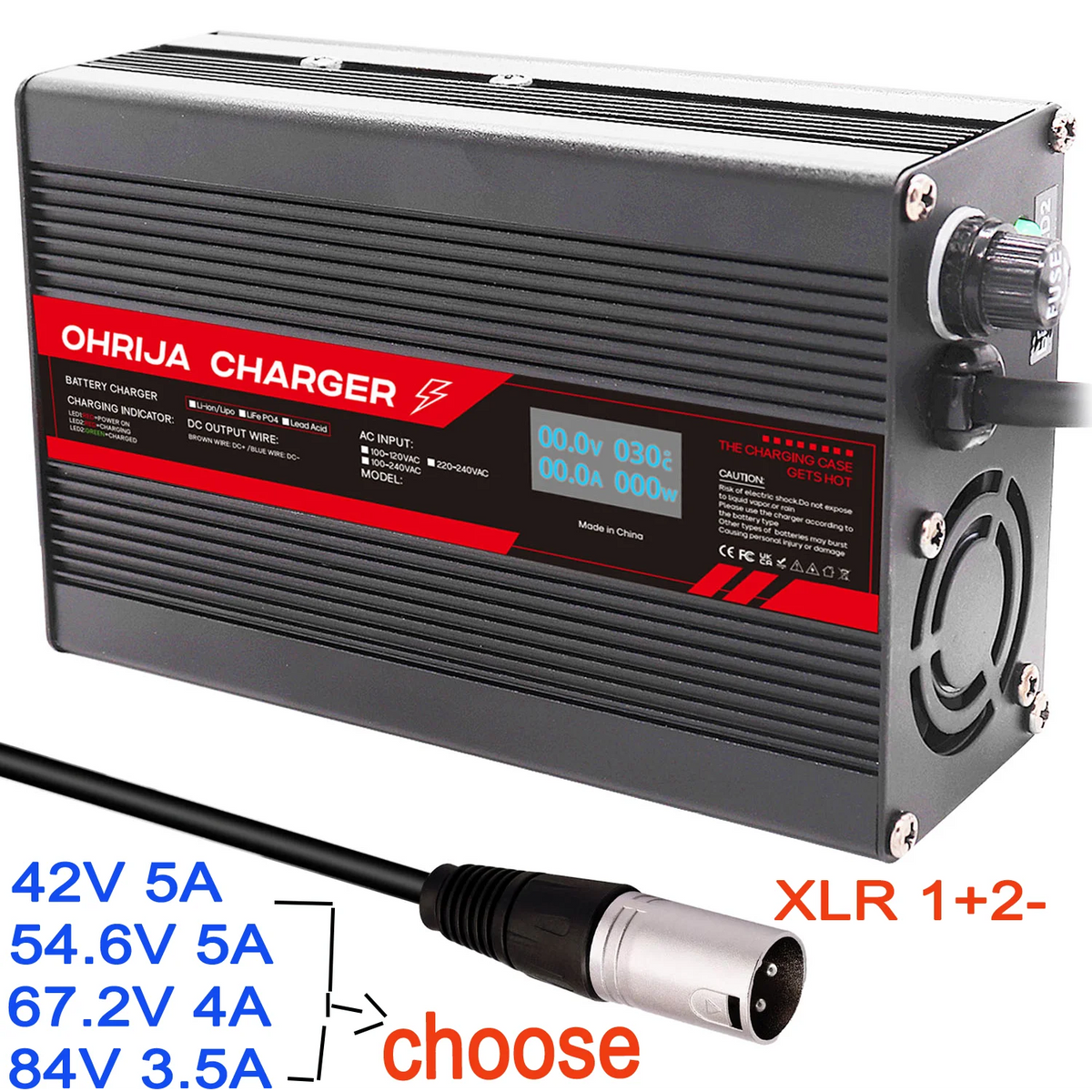

🔋 Available Voltage Configurations

Select the charger configuration that corresponds to your battery.

Charger Output	Nominal Battery	Battery Configuration	Current	Typical Use
42V	36V	10S Li-ion	5A	36V eBike
54.6V	48V	13S Li-ion	5A	48V eBike
67.2V	60V	16S Li-ion	4A*	60V eBike
84V	72V	20S Li-ion	3.5A	72V eBike

*The supplied specifications contain a discrepancy for the 67.2V model: the configuration matrix lists 3.5A, while the detailed specification lists 4A. Verify the selected product variant/current before purchase.

⚡ 42V 5A Charger – 36V Battery

The 42V version is designed for standard 36V 10S lithium-ion batteries.

Specifications

• Output: 42V DC

• Current: 5A

• Input: 100–110V / 180–240V AC

• Frequency: 50/60Hz

• Battery: 36V 10S Li-ion

• Charging connector: XLR 1+2

• Safety certifications: CE/RoHS

• Minimum battery voltage to operate: approximately 28V

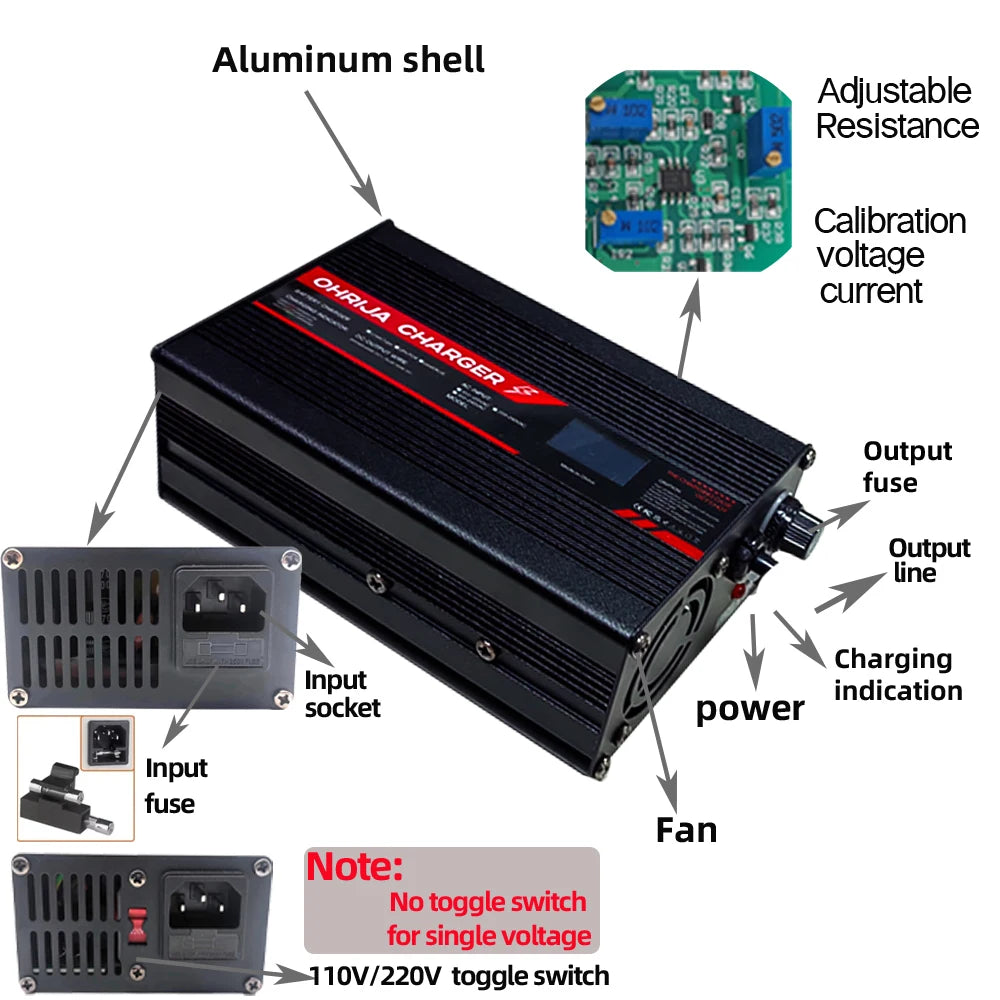

Adjustable Output

The supplier states that the charger can be calibrated internally:

• Voltage adjustment: approximately 36–42V

• Current adjustment: approximately 3.7–5A

Important: Internal calibration requires opening the charger housing. Adjustments should only be performed by someone qualified to work safely with electrical equipment.

⚡ 54.6V 5A Charger – 48V Battery

The 54.6V version is designed for standard 48V 13S lithium-ion batteries.

Specifications

• Output: 54.6V DC

• Current: 5A

• Input: 100–110V / 180–240V AC

• Frequency: 50/60Hz

• Battery: 48V 13S Li-ion

• Charging connector: XLR 1+2

• Safety certifications: CE/RoHS

• Minimum battery voltage to operate: approximately 36V

Adjustable Output

Supplier specifications state:

• Voltage adjustment: approximately 50–59V

• Current adjustment: approximately 3.7–5A

Internal adjustment requires opening the charger housing.

⚡ 67.2V Charger – 60V Battery

The 67.2V version is designed for compatible 60V 16S lithium-ion batteries.

Specifications

• Output: 67.2V DC

• Current: 4A according to detailed supplied specifications

• Input: 100–110V / 180–240V AC

• Frequency: 50/60Hz

• Battery: 60V 16S Li-ion

• Charging connector: XLR 1+2

• Safety certifications: CE/RoHS

• Minimum battery voltage to operate: approximately 42V

Adjustable Output

Supplier specifications state:

• Voltage adjustment: approximately 60–73V

• Current adjustment: approximately 3–4A

Note: The supplier's configuration table lists the 60V version as 3.5A, while the detailed specification lists 4A. Confirm the exact current of the selected variant before ordering.

⚡ 84V 3.5A Charger – 72V Battery

The 84V version is designed for compatible 72V 20S lithium-ion batteries.

Specifications

• Output: 84V DC

• Current: 3.5A

• Input: 100–110V / 180–240V AC

• Frequency: 50/60Hz

• Battery: 72V 20S Li-ion

• Charging connector: XLR 1+2

• Safety certifications: CE/RoHS

• Minimum battery voltage to operate: approximately 48V

Adjustable Output

Supplier specifications state:

• Voltage adjustment: approximately 76–89V

• Current adjustment: approximately 2.5–3.5A

Internal adjustments require opening the charger housing.

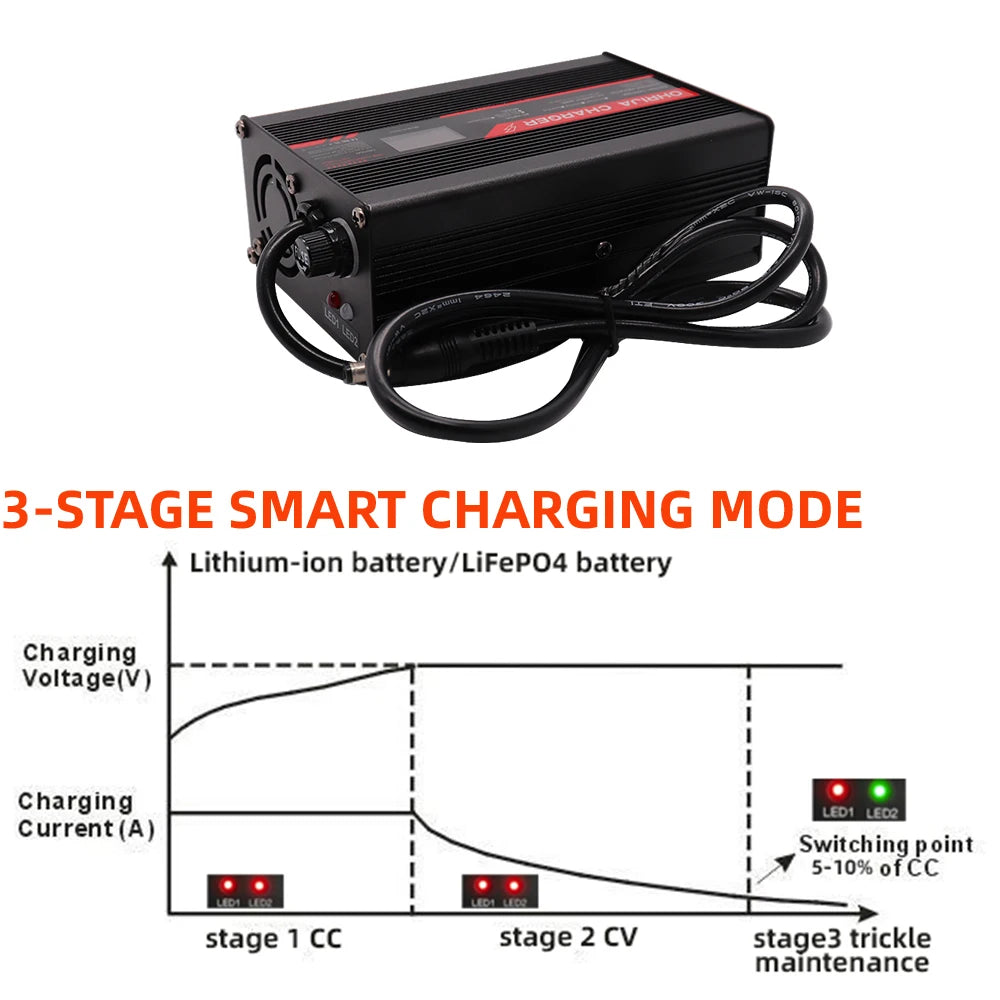

🧠 Smart CC/CV Charging

The HRH300 uses a multi-stage charging approach based on Constant Current (CC) and Constant Voltage (CV) charging.

The charging process is designed to provide higher current during the main charging stage before transitioning toward the battery's target voltage.

This helps provide a controlled charging process for compatible lithium-ion battery packs.

Important: The charger should not be assumed to actively balance individual cells unless the manufacturer specifically confirms communication or balancing functionality with the battery's BMS.

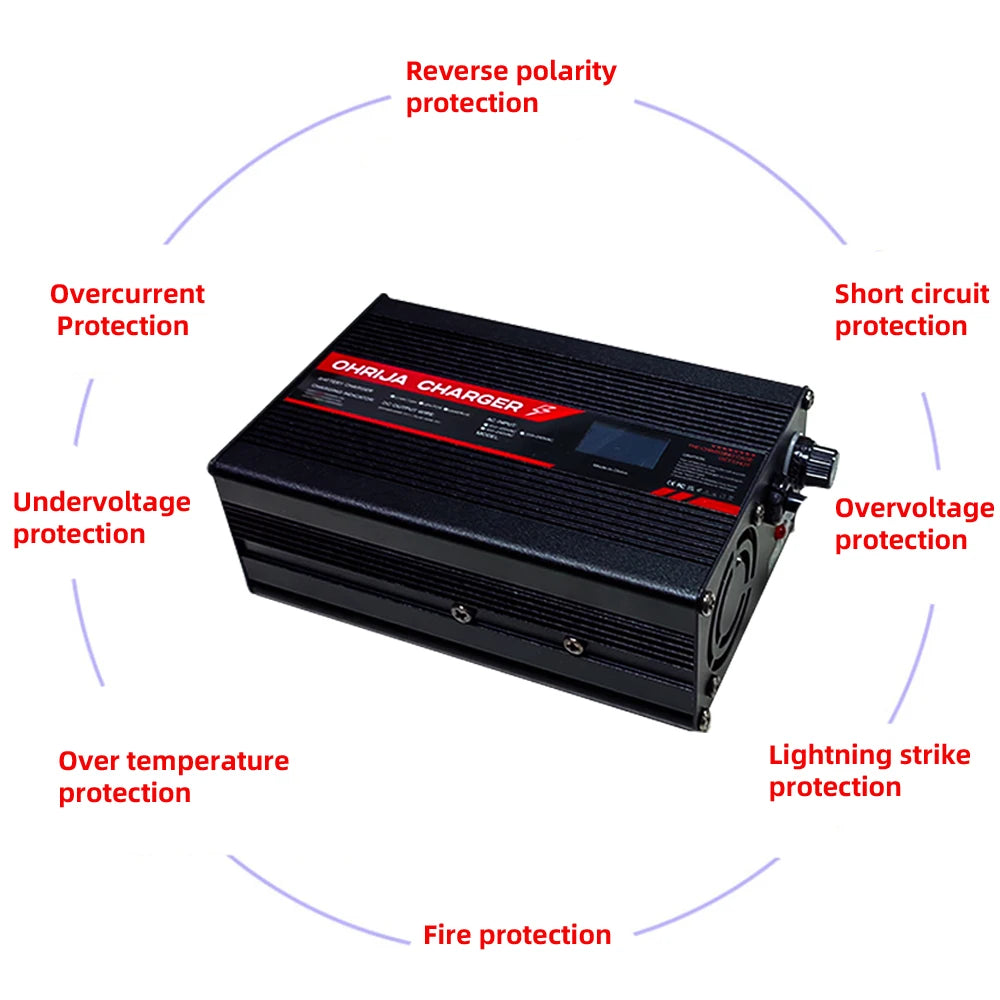

🛡️ Built-In Protection

The HRH300 incorporates multiple protection functions designed to help protect the charger and connected battery system.

Short-Circuit Protection

Designed to interrupt output in the event of a short circuit.

Over-Voltage Protection

Helps prevent the charger from exceeding its configured voltage limit.

Over-Current Protection

Helps limit output current to the charger's specified operating range.

Over-Temperature Protection

Designed to reduce or shut down charging when excessive internal temperature is detected.

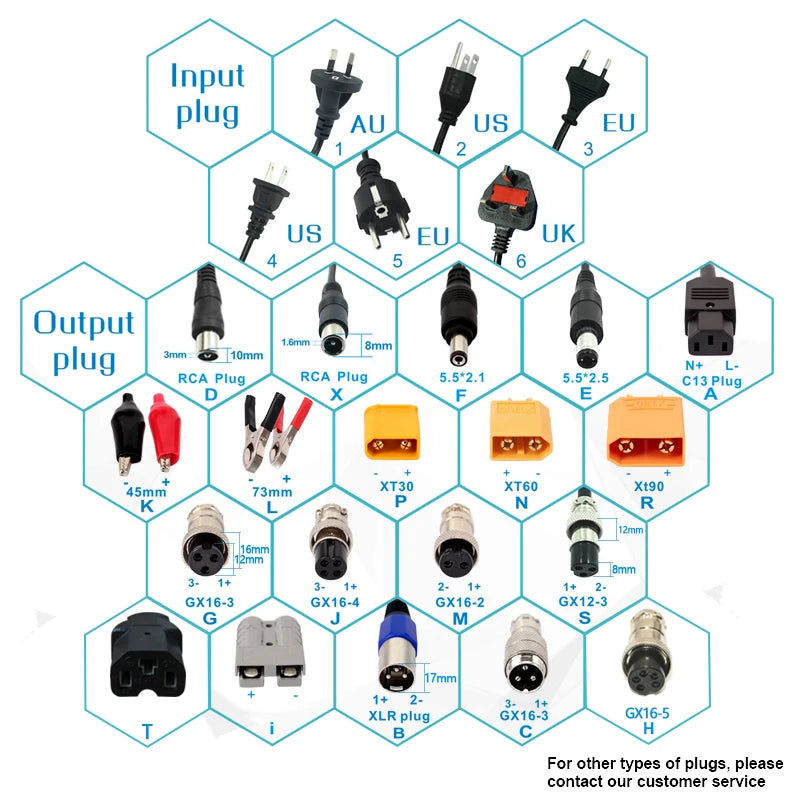

🔌 Connector & Power Options

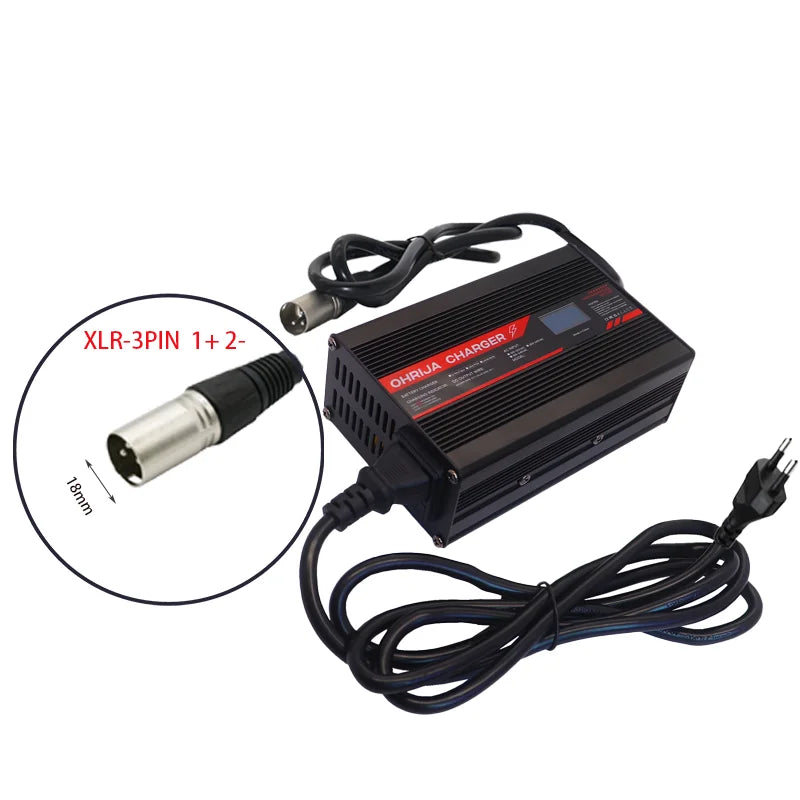

The supplied specifications identify an XLR 1+2 charging connector.

Available AC input plug configurations include:

• 🇺🇸 US

• 🇪🇺 EU

• 🇬🇧 UK

• 🇦🇺 AU

Always verify the connector type and polarity before connecting the charger to your battery.

📦 Compact Aluminum Design

The HRH300 features a compact aluminum-alloy enclosure measuring approximately:

135 mm × 90 mm × 50 mm

Approximate weight:

0.7 kg / 1.5 lb

The aluminum housing provides a durable enclosure and helps dissipate heat generated during operation.

⚠️ Lithium-Ion Battery Compatibility

FOR LITHIUM-ION BATTERIES ONLY

This charger series is specified for compatible:

• Lithium-ion (Li-ion)

• Lithium Polymer (LiPo)

Do NOT use with:

• LiFePO4 batteries

• Lead-acid batteries

• Ni-MH batteries

• Other battery chemistries unless specifically approved by the manufacturer

Using the wrong charger chemistry or voltage can damage the battery and create a serious safety hazard.

🔎 How to Choose the Correct Charger

Before ordering, check the label on your battery or existing charger.

Look for:

1. Nominal Battery Voltage
36V / 48V / 60V / 72V

2. Required Full-Charge Voltage
42V / 54.6V / 67.2V / 84V

3. Charging Current
Make sure the battery and BMS can accept the selected amperage.

4. Connector
Verify the XLR connector, dimensions and polarity.

5. Battery Chemistry
Confirm that the battery is compatible lithium-ion or LiPo.

Quick Reference

Battery	Charger Output
36V Li-ion	42V
48V Li-ion	54.6V
60V Li-ion	67.2V
72V Li-ion	84V

📦 What's Included

Each charger package includes:

• 1 × OHRIJA HRH300 OLED Smart Battery Charger

• 1 × Integrated output cable with XLR charging connector

• 1 × AC input power cord

• Selected regional AC plug configuration

❓ Frequently Asked Questions

What batteries does the OHRIJA HRH300 support?

The HRH300 series is specified for compatible 36V, 48V, 60V and 72V lithium-ion battery systems, depending on the selected charger configuration.

What charger do I need for a 52V battery?

A standard 52V lithium-ion battery typically requires a 58.8V charger. The HRH300 configurations supplied here are 36V, 48V, 60V and 72V, so a 52V battery should not be connected to one of those versions unless the charger is specifically configured for 58.8V.

What charger do I need for a 60V battery?

A standard 60V 16S lithium-ion battery typically requires a 67.2V charger.

What charger do I need for a 72V battery?

A standard 72V 20S lithium-ion battery typically requires an 84V charger.

Can I adjust the charger voltage?

The supplied specifications state that certain HRH300 models have internal voltage and current adjustment potentiometers. Opening the charger is required, so adjustments should only be performed by a qualified person.

Can this charger be used as a power supply?

The supplier states that the charger can directly output voltage and current for use as an adapter. However, output configuration and electrical requirements should be verified before using it for applications other than battery charging.

Does the OLED display measure accurately?

The supplier states that the display parameters have approximately a 10% operating reference tolerance. Use the display primarily as a charging-status/monitoring indicator.

⚠️ Important Ordering Notice

Do not choose your charger based solely on the nominal battery voltage.

Verify your battery's:

Voltage • Full-Charge Voltage • Chemistry • Charging Current • Connector • Polarity

If you're unsure which charger you need, check your battery label for the required voltage and charger specifications before ordering.

🛒 Upgrade Your Charging Setup

Get compact, intelligent charging with the OHRIJA HRH300 OLED Smart Fast Charger Series.

With its aluminum housing, live OLED display, multiple voltage configurations, and built-in protection features, the HRH300 is designed for riders and builders who want a more compact and informative charging solution.
