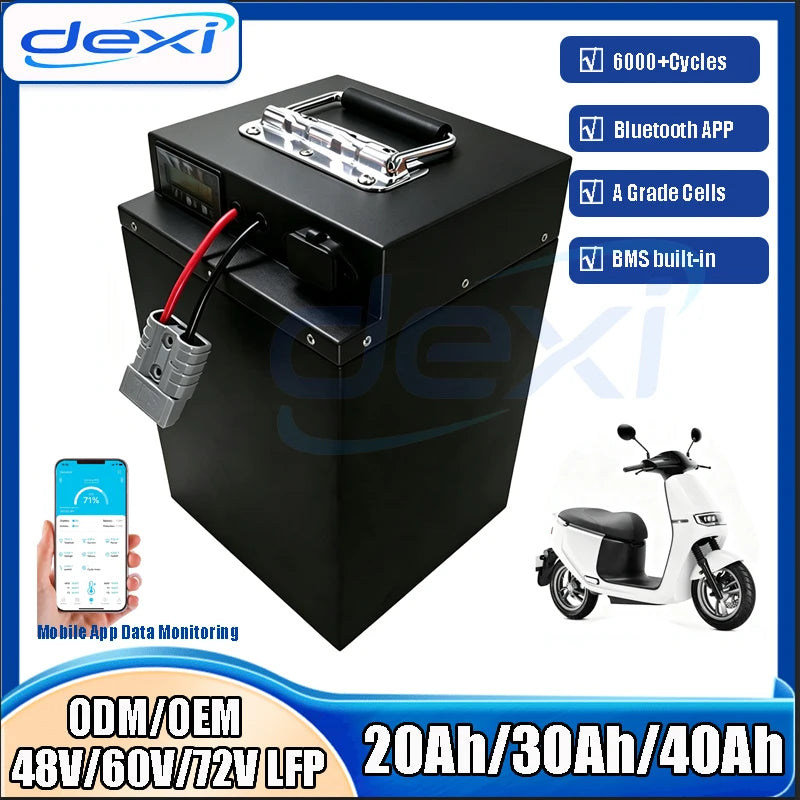

Smart Commercial-Grade LiFePO4 E-Vehicle Battery Series –

48V / 60V / 72V Nominal (20Ah, 30Ah, 40Ah Options) with Bluetooth Smart BMS & Active Cell Balancing (6000+ Deep Cycles & 5-Year Factory Warranty)

Power your golf carts, commercial delivery trikes, light electric vehicles, and marine motors with maximum thermal safety and longevity. Built with new, genuine automotive-grade LiFePO4 (Lithium Iron Phosphate) prismatic cells, this battery series delivers exceptional chemical stability, zero maintenance, and up to 10 times longer operational life than conventional lead-acid or standard NMC lithium packs.

Featuring a heavy-duty 16S, 20S, or 24S Smart BMS with Bluetooth connectivity and an integrated 400mA–600mA active balancer, you can monitor cell voltages, state of charge (SOC), and temperature in real-time right from your smartphone. Designed for high-duty-cycle applications, these packs deliver up to 6,000+ deep charge cycles back to 80% capacity.

⚠️ System Voltage & Configuration Guide

SELECTING YOUR BATTERY SYSTEM:

• 48V LiFePO4 (16S Configuration): Nominal 51.2V DC (Full Charge 58.4V). Perfect 48V drop-in replacement for golf carts, utility carts, and 48V e-trikes.

• 60V LiFePO4 (20S Configuration): Nominal 64.0V DC (Full Charge 73.0V). Ideal for heavy-duty two-wheeler scooters, cargo scooters, and municipal transit fleets.

• 72V LiFePO4 (24S Configuration): Nominal 76.8V DC (Full Charge 87.6V). Engine-grade power delivery for high-speed electric motorcycles, passenger tricycles, and utility EVs.

• Bluetooth Smart BMS Protection: Fully customizable 30A to 150A BMS protects against over-charging, over-discharging, thermal runaway, and short circuits while performing real-time active cell balancing.

🚀 Key High-Performance Features

• Automotive-Grade Prismatic LiFePO4 Cells: Built exclusively with new, high-density prismatic cells for maximum thermal stability and no expansion swelling.

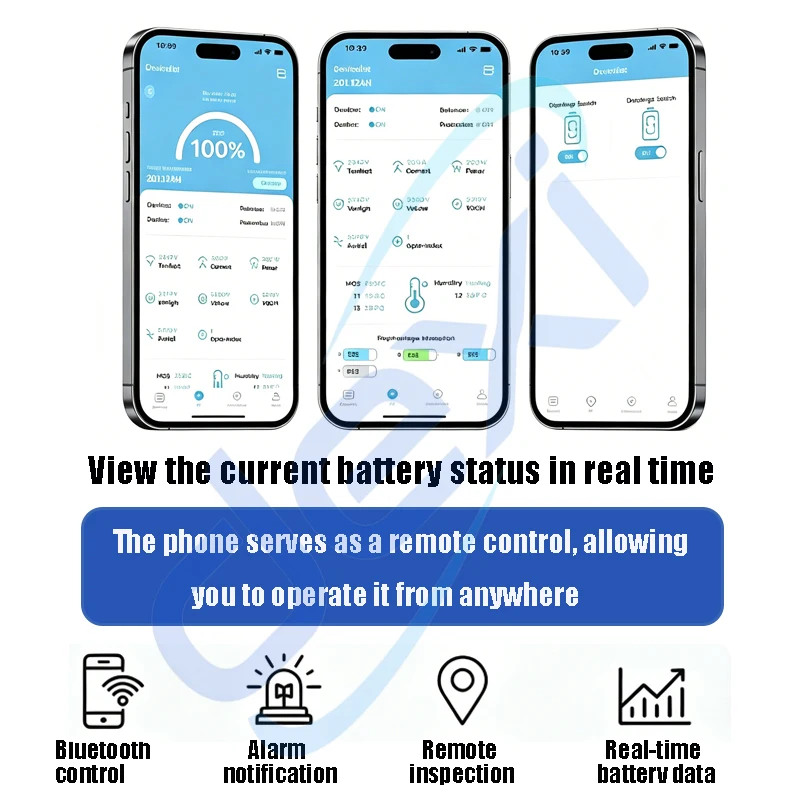

• Smart Bluetooth Connectivity: Wirelessly pair your iOS or Android smartphone to track individual cell health, voltage levels, current draw, and internal temperatures in real-time.

• Active Balancing Circuit (400–600mA): Integrated active balancer continuously transfers energy between cells to eliminate voltage drift and maximize usable range throughout the battery's lifespan.

• Extreme 6000+ Deep Cycle Lifespan: Rated for 6,000+ full charge/discharge cycles—delivering over a decade of continuous service under normal operating conditions.

• 5-Year Extended Manufacturer Warranty: Backed by an industry-leading 5-year warranty for commercial fleet peace of mind.

📊 Technical Specifications Matrix

Available Models – 48V LiFePO4 Series

48V Common Specs: Charge Voltage 58.4V, Cut-off Voltage 40V

Available Models – 60V LiFePO4 Series

60V Common Specs: Charge Voltage 71.4V, Cut-off Voltage 51V

Available Models – 72V LiFePO4 Series

72V Common Specs: Charge Voltage 84V, Cut-off Voltage 60V

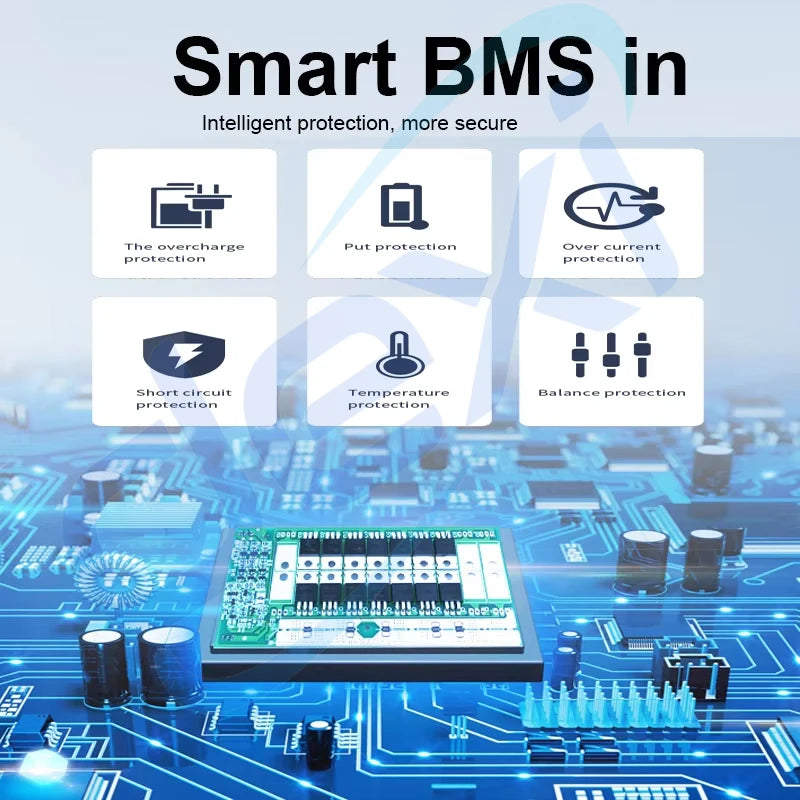

Built-in Smart BMS (All Models)

• Smart Bluetooth BMS – monitor voltage, temperature, and cycle count via smartphone app (iOS/Android)

• Active balancing – 400–600mA balancing current for extended cell life

• Protections – overcharge, over-discharge, overcurrent, short circuit, temperature

Key Features

• ✅ Genuine automotive-grade LiFePO4 cells – no used or B-grade cells

• ✅ 1,500+ cycle life – years of reliable service

• ✅ Metal shell – durable and impact-resistant

• ✅ Dimensions customizable – we can tailor sizes to fit your vehicle

• ✅ Wide operating range – -20°C to 60°C discharge, 0°C to 45°C charge

• ✅ Smart BMS with active balancing – 400–600mA for optimal cell health

• ✅ Safer chemistry – LiFePO4 offers superior thermal stability and safety

Applications

• Golf carts/utility vehicles

• Electric tricycles and scooters

• Low-speed electric vehicles (LSV)

• Trolling motors/marine

• Solar energy storage systems

• Industrial equipment & AGVs

What’s Included?

• 1 × LiFePO4 battery pack (voltage and capacity as selected, with built-in Smart BMS)

• (Charger, cables, and accessories not included – please purchase separately)

📋 Ideal Applications

The Smart LiFePO4 Battery Series is engineered for heavy-use micro-mobility and transport fleets:

• Golf Carts & Commercial Utility Vehicles (EZ-GO, Club Car, Yamaha replacements)

• Electric Passenger Tricycles, Cargo Tuk-Tuks, and Rickshaws

• High-Speed 60V & 72V Electric Scooters and Motorcycles

• Marine Trolling Motors & Off-Grid Energy Storage Systems

📦 Package Contents

• 1 x Smart LiFePO4 E-Vehicle Battery Pack (Selected Voltage/Capacity)

• 1 x Bluetooth Smart BMS Module (Pre-installed)

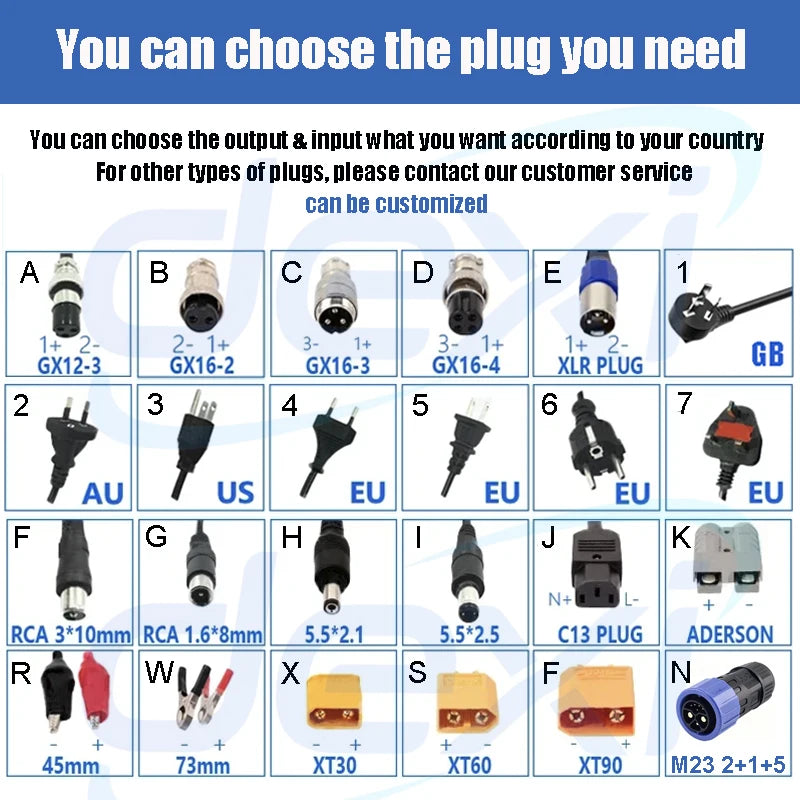

• 1 x Heavy-Duty Output Cable Harness with High-Current Connectors

• 1 x User Manual & App Setup Guide

Upgrade your vehicle fleet to ultra-durable LiFePO4 smart power. Select your voltage, capacity, and current requirements, click Add to Cart, and order today!
