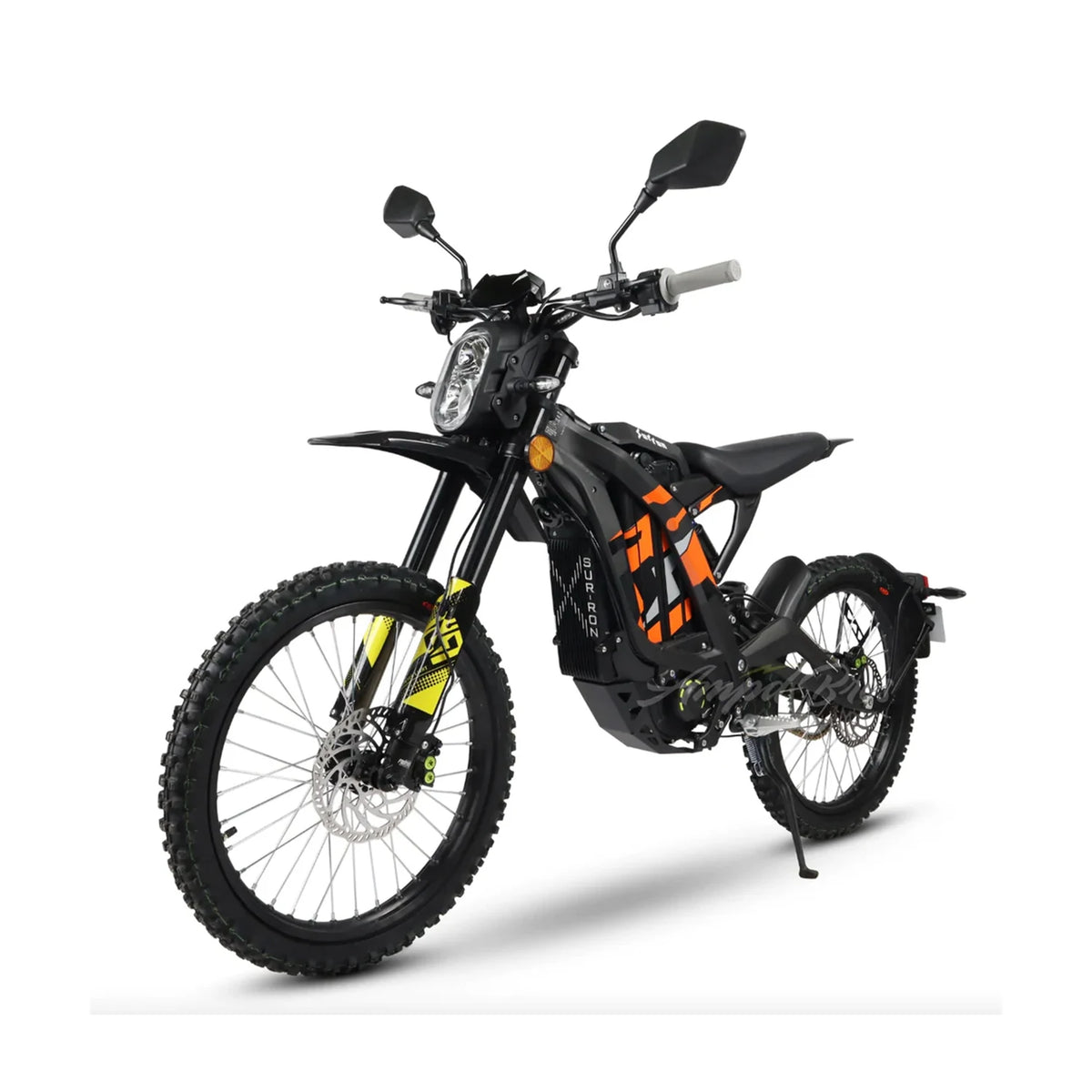

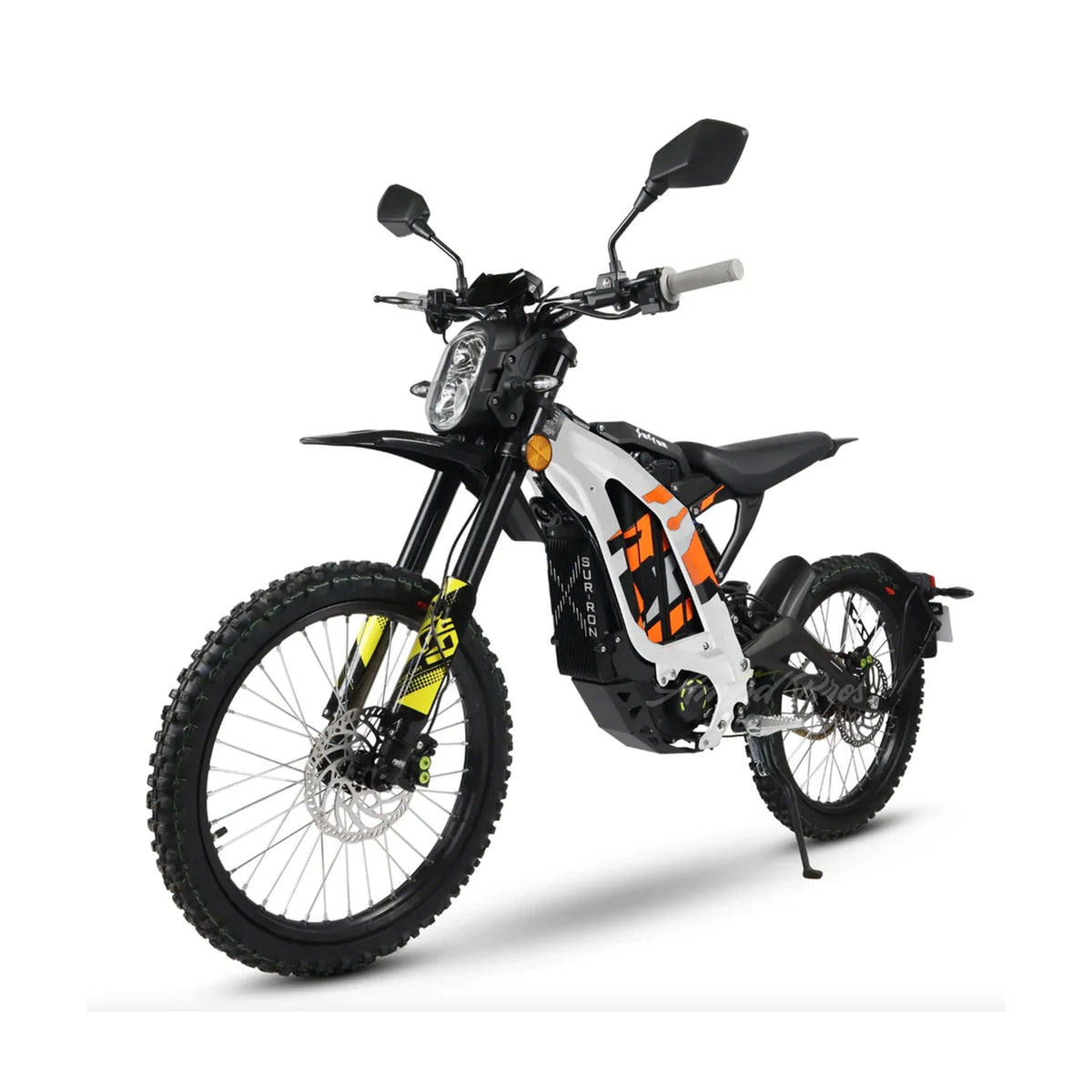

LBX High-Output Electric Dirt Bike (60V 6000W Mid-Drive | 40Ah 21700 Battery | KKE Suspension)

⚠️ Powertrain & Chassis Operational Guidelines

IMPORTANT VEHICLE & RIDING SPECIFICATIONS:

• High-Torque Central Mid-Drive Engine: Central motor placement centers rotational mass low in the chassis, reducing unsprung weight for superior suspension action over rocks and jumps.


• 21700 Lithium Cell Technology: Powered by high-discharge 21700 cell architecture delivering consistent continuous current draw with minimal voltage sag under heavy loads.


• Pro-Spec KKE Inverted Suspension: Long-travel KKE front fork provides adjustable compression and rebound damping to soak up heavy trail landings and rough terrain.


• Hydraulic Oil Braking Power: Equipped with 4-piston hydraulic disc brakes for immediate stopping force and heat resistance during rapid descents.



🚀 Key High-Performance Features

• 6000W Peak Mid-Drive Powertrain: High-rpm central motor delivers explosive off-the-line throttle response and smooth top-end speed.


• 250 Nm Wheel Torque Output: Easily scales steep inclines, deep ruts, and loose dirt without motor overheating.


• 60V 40Ah ($2.4\text{ kWh}$) Removable Down-Tube Battery: High-capacity pack charges in just 3–5 hours, delivering an extended range of 80–100 km (50–62 miles) under light cruising or 25–35 miles of hard-charging trail riding.


• Rugged 6061 Aircraft Aluminum Frame: Engineered for extreme rigidity with a maximum weight capacity of 200 kg (440 lbs).


• Full 19-Inch Off-Road Wheelset: Runs standard 70/100-19 knobby dirt tires on high-strength spoked wheels for maximum traction and ground clearance.

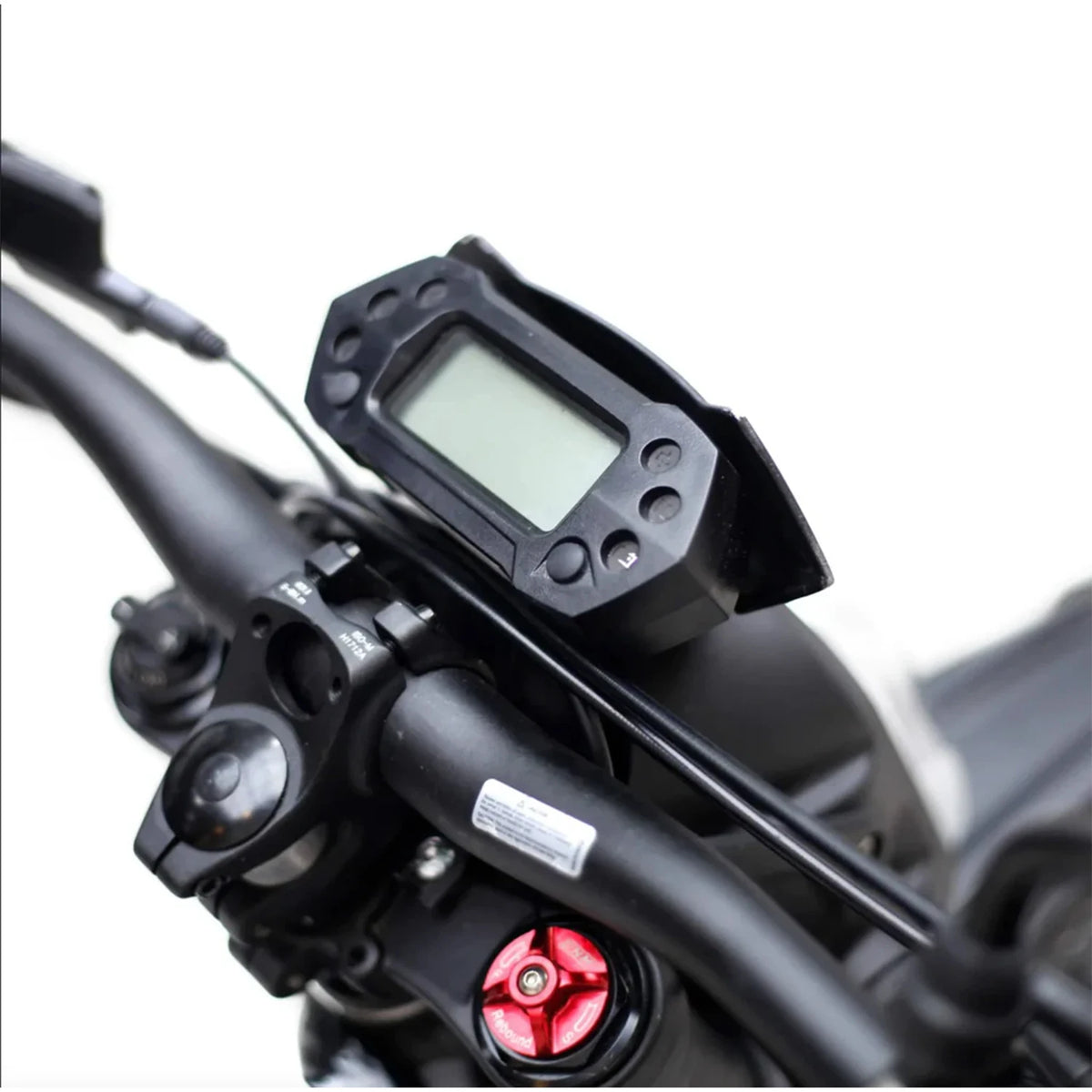

• 3-Speed Dynamic Engine Modes: Switch between Low, Medium, and High performance maps directly on the multi-function LCD dashboard.



📊 Technical Specifications Matrix

📋 Ideal Applications

• Singletrack & Enduro Trail Riding: Light $127.8\text{ lb}$ footprint paired with 250 Nm torque makes navigating tight woods and steep hill climbs smooth and effortless.


• Lightweight E-Moto Sessioning: Balanced mid-drive chassis and 19" wheelset provide jump confidence and agile handling on motocross practice tracks.


• Fast Utility & Property Patrol: Long-range $2.4\text{ kWh}$ battery allows for all-day property maintenance, farm transport, or off-road trail scouting.



📦 Package Contents

• 1 x LBX 2024 6000W Electric Dirt Bike Assembly


• 1 x 60V 40Ah 21700 Removable Lithium Battery Pack


• 1 x 60V Fast AC Smart Charger


• 2 x Battery Security / Ignition Keys


• 1 x Tool Set & Assembly Manual



-----------------------------------------------------------------------------------------
