Kaliobes Universal Multi-Voltage Lithium-Ion Charger Matrix (For 36V, 48V, 52V, 60V & 72V E-Bikes & Scooters)
Consolidate and streamline your charging infrastructure with professional-grade hardware reliability. The Kaliobes Universal Multi-Voltage Lithium-Ion Charger Matrix is a complete, highly adaptive power supply ecosystem engineered to match almost any standard electric bike or scooter on the road today. Designed to replace slow stock units or serve as high-output fleet upgrades, this collection gives you precision-engineered voltage matching paired with Standard 2A, Accelerated 3A, or High-Output 5A Fast Charging current speeds.
Featuring an intelligent constant current/constant voltage (CC/CV) charging board layout, each unit provides clean, low-ripple power delivery. The intelligent internal chip actively monitors cell saturation, initiating an automatic safety cutoff the moment your pack reaches full capacity to maintain optimal cell health.
🚀 Key High-Performance Features
-
Expansive Multi-Voltage System Options: Built with dedicated, factory-tuned internal boards perfectly matched to 10S (36V), 13S (48V), 14S (52V), 16S (60V), and 20S (72V) series cell configurations.
-
Three Scalable Charging Speeds: Choose a standard 2A overnight top-off, an accelerated 3A mid-range pace, or a high-powered 5A pro-amperage speed upgrade (up to 420W Max) to slash down-time on heavy high-capacity commuter or delivery fleets.
-
5 Modular Connector Port Formats: Ships with heavy-duty, low-resistance terminal interfaces to ensure a secure mechanical lock and zero spark gaps.
-
Smart Location Grid Matching: Built with a wide-input 100V–240V AC (50/60Hz) transformer grid. We match your checkout address at shipping to automatically provide the correct regional power cord standard (US, EU, UK, or AU plug standard).
-
Tri-State Visual Status Monitor: High-visibility onboard LED tracks cycles at a glance: Solid Red indicates active power transfer, Solid Green confirms a fully isolated, completed charge, and a Flashing Light alerts you to terminal faults.
📊 Master System Architecture & Power Output Grid
Please use this technical guide to locate your platform's nominal voltage and choose your required current output from our configuration dropdown menus:
| Nominal System Voltage | Series Pack Mapping | Required Cut-Off Voltage | 2A Current Wattage | 3A Current Wattage | 5A Current Wattage |
| 36V Systems | 10S Li-ion Battery | 42.0V DC | 85W Peak | 130W Peak | 210W Peak |
| 48V Systems | 13S Li-ion Battery | 54.6V DC | 110W Peak | 165W Peak | 275W Peak |
| 52V Systems | 14S Li-ion Battery | 58.8V DC | 120W Peak | 180W Peak | 300W Peak |
| 60V Systems | 16S Li-ion Battery | 67.2V DC | 140W Peak | 200W Peak | 340W Peak |
| 72V Systems | 20S Li-ion Battery | 84.0V DC | 168W Peak | 250W Peak | 420W Max |

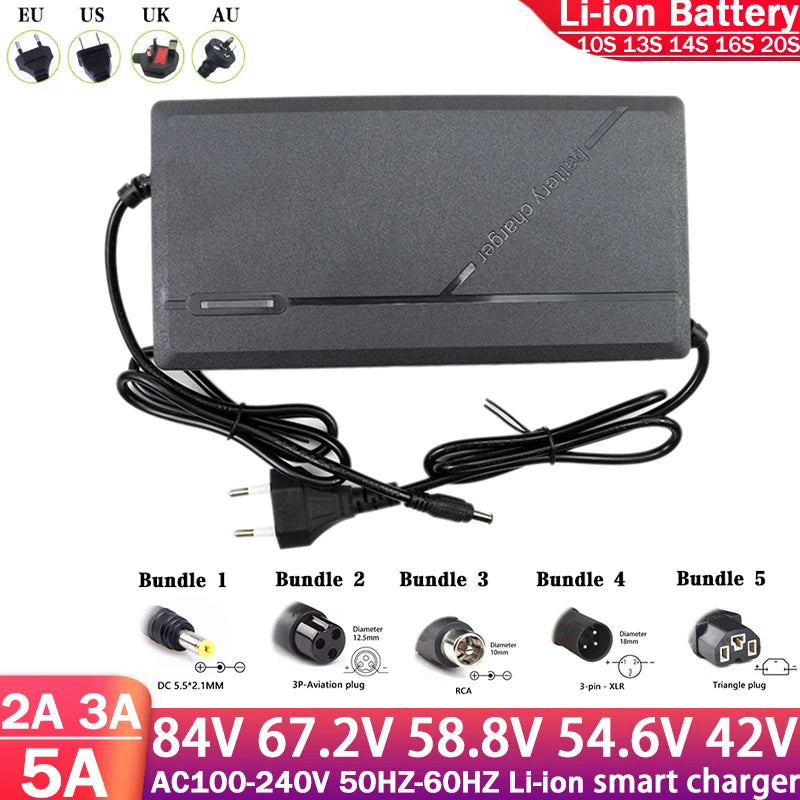

Kaliobes universal ebike lithium charger showing multiple voltage configurations from 42V to 84V
product certificate

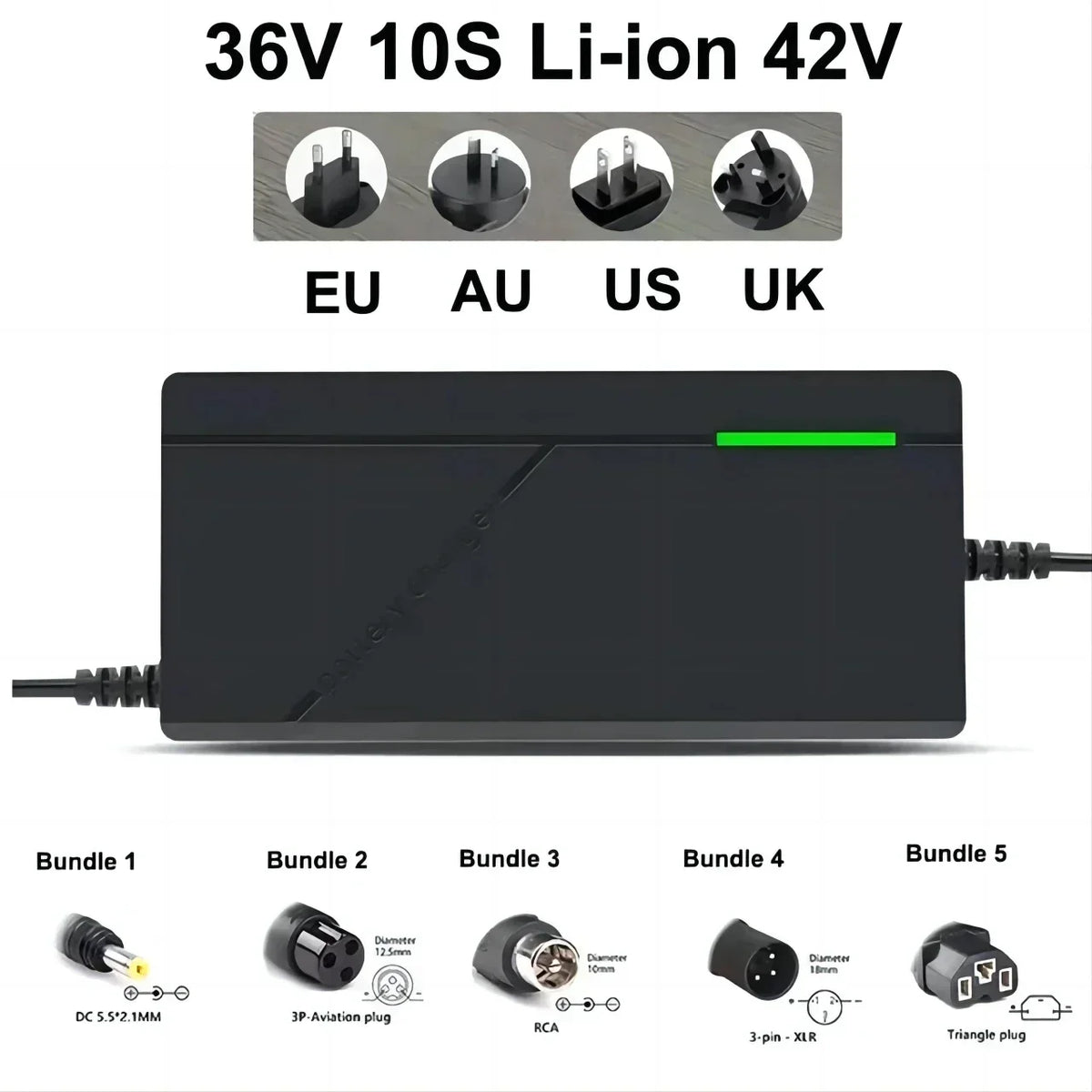

🔌 Step 1: Select Your Matching Frame Port Connection
-
Package 1: Coaxial DC 5.5mm * 2.1mm Barrel Plug
-
Package 2: Three-Pin Aviation 12.5mm Circular Terminal
-
Package 3: Round RCA Audio-Style Single-Prong Plug
-
Package 4: Industrial Three-Pin XLR Male Connector
-
Package 5: Heavy-Duty Concentric Triangle E-Bike Plug
🛡️ Multi-Tier Hardware Security Protections
-
Global Safety Certification Portfolio: Built to full production compliance benchmarks with rigorous international certifications, including CE, RoHS, FCC, UL, KC, and PSE safety guidelines. Completely clean internal trace layout with no materials of regulatory concern (
High-concerned chemical: None). -
Active Defense Grids: Fully equipped with built-in electronic barriers: Over-Voltage Protection (OVP), Over-Current Protection (OCP), Overload Protection, and Output Short-Circuit Protection.
📖 Essential Owner's Charging Care & Maintenance Protocol
To keep your charger running cool and to maximize the lifespan of your lithium cells, follow these baseline guidelines:
-
The Sequential Plug-In: Connect the charger's output lead to your battery socket first, and then plug the AC adapter into your wall outlet. When a cycle finishes, disconnect the AC wall plug first before pulling the lead from the battery frame. Disconnecting live battery leads under load can lead to spark wear.
-
The Saturation Window: Let the charger stay plugged in for an additional 2 to 3 hours after the LED turns Green. This gives your battery pack's internal BMS balancing matrix the time it needs to align individual cell strings.
-
Prevent Deep Discharge Strain: Avoid running your battery pack completely down to empty. Charging before your motor controller's low-voltage cutoff triggers will greatly extend the working longevity of your cells.
-
The 3-Month Deep Activation: If you routinely perform short, shallow rides, the internal chemistry can settle. Once every three months, run your battery down until the undervoltage safety activates, then give it a full, uninterrupted charge to wake up deep cell material.
-
No LiFePO4 Cross-Use: This charger is strictly tuned for standard Lithium-Ion (Li-ion) cell chemistry maps. Do not use this charger on Lithium Iron Phosphate (LiFePO4) packs, as doing so will cause extreme heat stress and hardware mismatches.
📦 What's Inside the Box?
-
1 x Kaliobes Universal Smart Lithium Battery Charger
-
1 x Heavy-Duty Detachable AC Wall Power Cable (Automatically matched to your shipping address standard)
Take control of your vehicle charging speed and eliminate the long wait times. Select your required system voltage, charging current tier, and mechanical connection profile below, and click Add to Cart to secure your Kaliobes Charger today!
