JHOPASS HD LED 22S Smart 92.4V 5A Lithium-Ion Intelligent Battery Charger – High-Voltage Power Adapter for Premium E-Bikes, Scooters & Electric Motorcycles
Keep your high-voltage ride primed for peak acceleration. The JHOPASS 22S 92.4V 5A Smart Lithium-Ion Battery Charger is a dedicated, commercial-grade electrical power adapter engineered for high-end 22S (22-Series) Lithium-Ion battery packs. Delivering a stable, rapid 5-Amp output current, this smart desktop charger provides a quick, safe turnaround for high-power electric scooters, custom e-moto builds, and specialized transit platforms without stressing cell chemistry.
Equipped with an automatic multi-stage charging loop and bright LED diagnostic lights, it serves as the perfect replacement or upgrade charger to keep your high-voltage grid running cleanly.
🚀 Key High-Performance Features
-
Dedicated 22S Li-ion Power Calibration: Factory-tuned specifically to handle the high-voltage requirements of 22S standard Lithium-Ion battery packs. (Note: Formulated strictly for Li-ion chemistry; do not apply to LiFePO4 configurations.
-

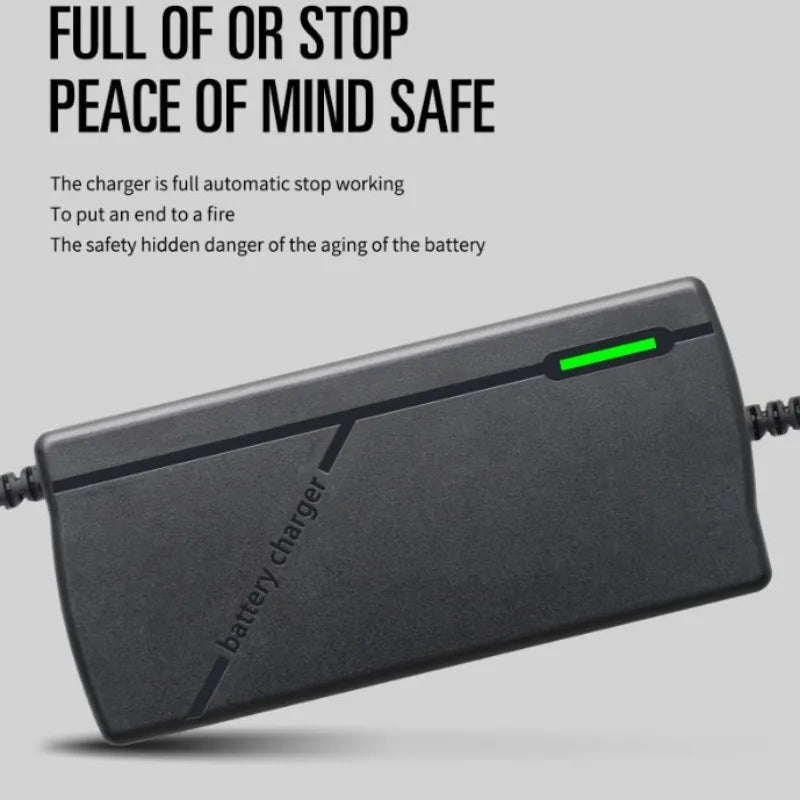

Intelligent Multi-Stage Charging Logic: Features an automatic CC/CV system that actively protects your battery. It pumps maximum current safely, preventing battery damage and maximizing longevity.
-

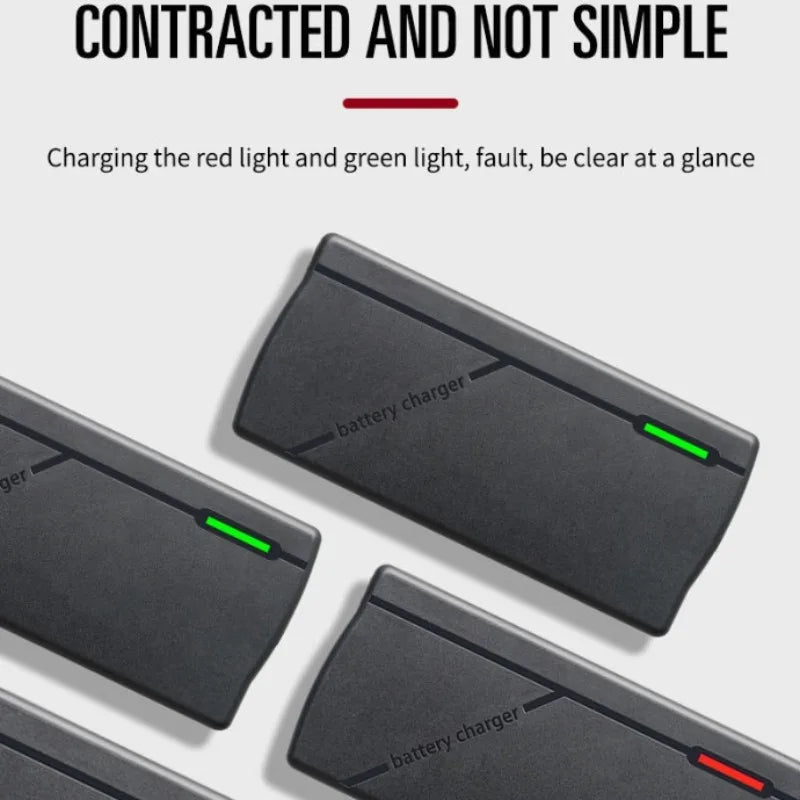

Dual-Color HD LED Diagnostic Indicator: Takes the guesswork out of your charge cycles. The high-contrast LED indicator gives clear visual feedback: Red means active charging, and Green confirms full cell balancing is achieved.
-

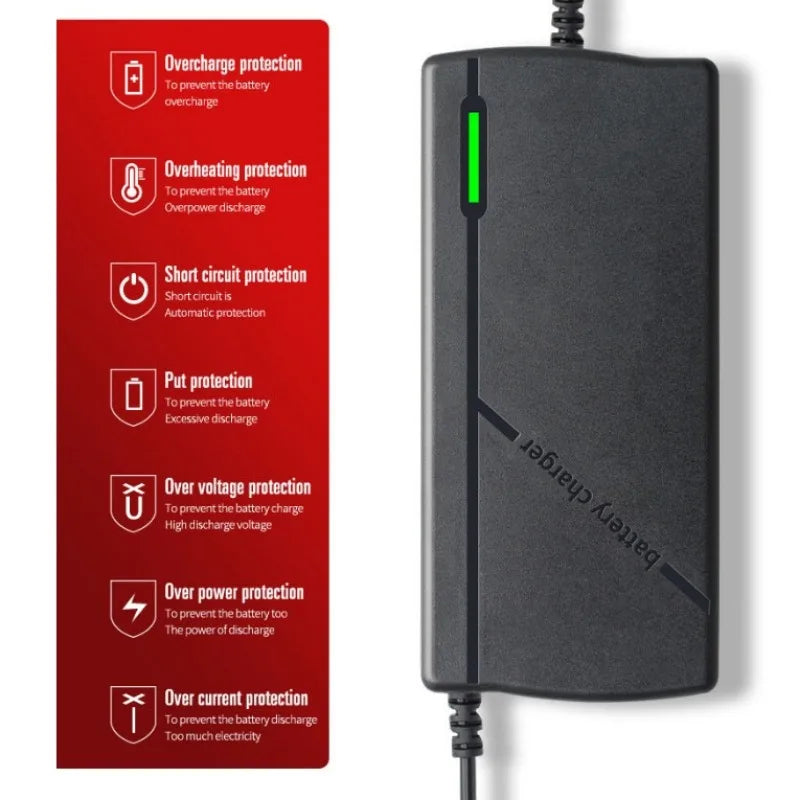

Automated Short-Circuit Defense Lines: Built with robust internal circuitry defenses to instantly isolate power delivery if terminal shorts or reverse configurations occur, keeping your home and equipment safe.
-

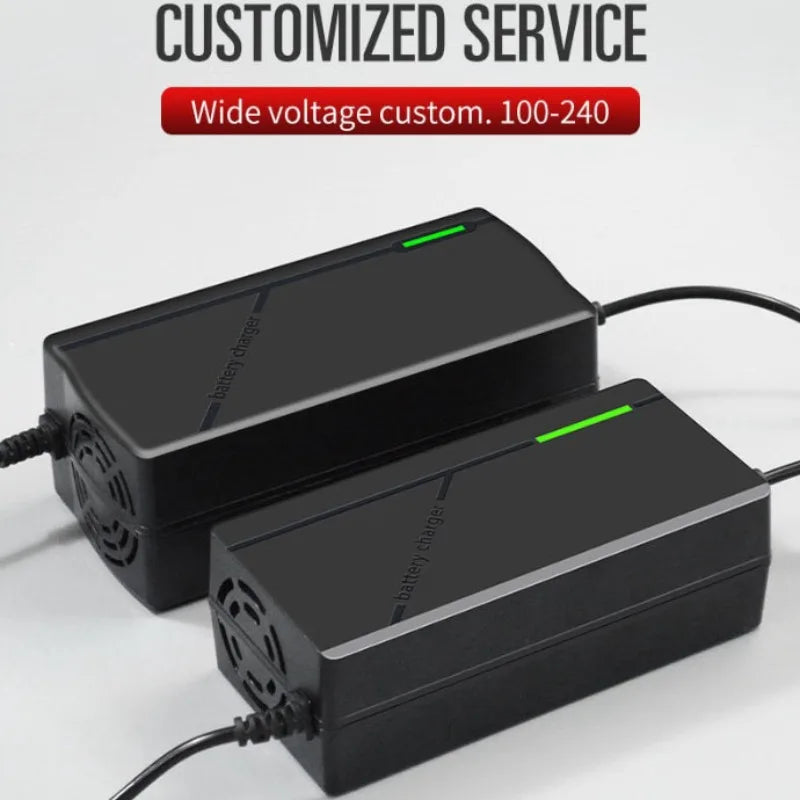

Universal Wide-Input Grid Compatibility: Operates smoothly across international AC 100V–240V power grids. We supply the exact plug profile tailored to your region (US, EU, UK, or AU).
📊 System Architecture & Operational Specifications
Please confirm your battery pack string configuration and target voltage parameters match the charger's exact outputs below before connecting:
| Architecture Profile | High-Voltage Target Specifications |
| Compatible Chemistry | Standard Lithium-Ion Only (22-Series / 22S Packs) |
| Output Voltage (Constant) | DC 92.4 Volts |
| Continuous Charging Amperage | 5.0 Amps |
| Rated Output Power Window | 150 Watts – 500 Watts Max |
| Wide-Input AC Infrastructure | AC 110V–220V Adaptive (50/60Hz) |
| Certified Safety Compliance | CE, FCC, RoHS Certified Production |

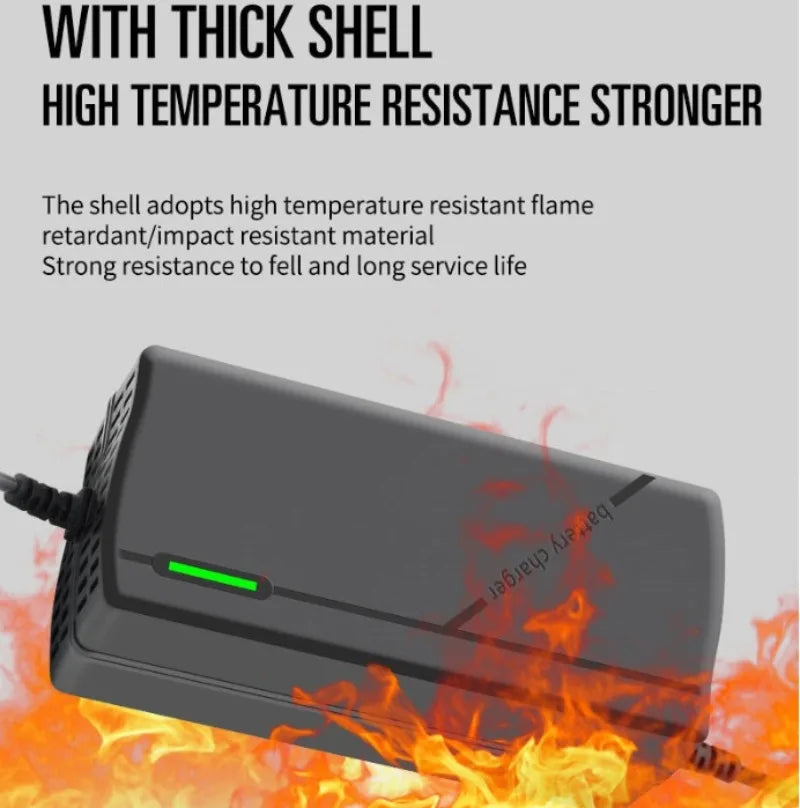

| Chassis Build Material | High-Impact Heat-Resistant Insulated Plastic |
💡 Pro-Tier Operational & Maintenance Guide
To maximize the life of both your new JHOPASS charger and your premium high-voltage battery pack, our engineering team recommends adhering to these operational loops:
-
Correct Sequencing Sequence: Always plug the charger's connector into your vehicle's battery port first, then connect the AC wall plug. Once fully charged (Green light), unplug the AC wall source before disconnecting the battery plug to prevent terminal arcing.
-
Saturating the Cells: When the LED light sequence snaps from Red to Green, leave the unit connected for an extra 2–3 hours. This lets the internal BMS execute deep cell-string balancing.
-
Prevent Critical Voltage Drops: Avoid running your vehicle's battery completely dry before plugging it in. Charging from absolute zero strains the cells and can degrade the maximum capacity.
-
Quarterly De-Undervoltage Activation: For long-term stored batteries, perform a deep discharge cycle once every 3 months down to the vehicle's low-voltage cutoff, followed by a full saturation charge, to activate deep, stagnant cell materials.

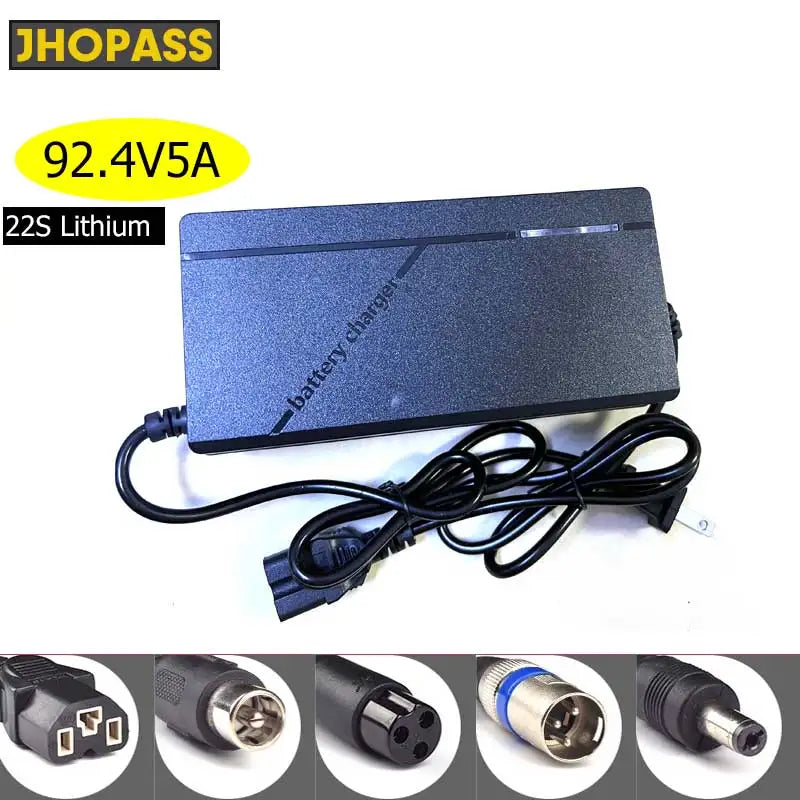

🔌 Choose Your Matching Connector Interface
We inventory a wide range of charging ports to sync seamlessly with your high-power micro-mobility vehicles. Select your required output tip at checkout:
-
Heavy-Duty 3-Pin XLR
-
High-Current original Anderson SB50
-
Aviation GX16 Standard
-
Chassis-Specific Coaxial Tip
📦 What's Inside the Box?
-
1 x JHOPASS HD Smart 22S 92.4V 5A Lithium-Ion Intelligent Power Supply Host
-
1 x Heavy-Duty Integrated Output Lead Cord with Selected Connector
-
1 x Regional Specific AC Input Power Cord (US, EU, UK, or AU Style Based on Checkout Address)
Get rid of unreliable trickle chargers and restore the range your high-performance electric scooter deserves. Select your vehicle's charging port connection style below, then click Add to Cart to secure your smart charger today!
