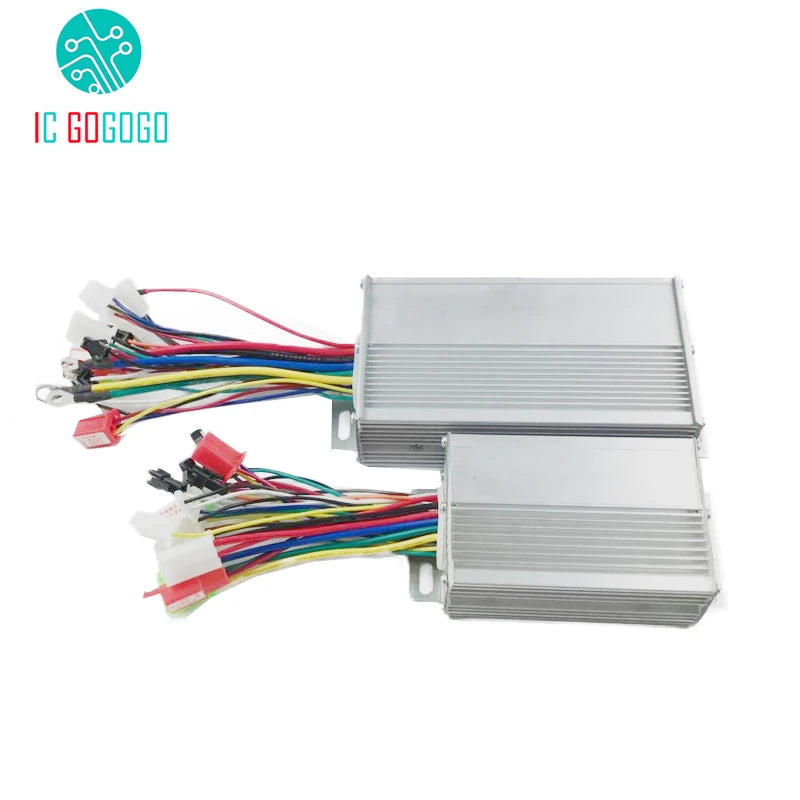

Universal Smart Dual-Mode Brushless Motor Controller
Universal Smart Dual-Mode Brushless Motor Controller
IC GOGOGO Universal Smart Dual-Mode Brushless Motor Controller –
48V / 64V Auto-Recognizing (350W, 450W, 500W, 600W, 800W, 1000W, 1200W Output Range) for Electric Bicycles, E-Tricycles & Scooters (Smart Hall Detection, Self-Learning Wires & Aluminum Heat-Sink Shell)
Upgrade, repair, or customize your electric vehicle setup with the IC GOGOGO Universal Smart Brushless Motor Controller. Built to support high-torque, heavy-duty applications—including multi-wheel passenger tricycles, cargo e-bikes, and high-speed commuters—this heavy-duty controller automatically accommodates both 48V and 64V battery configurations.
Featuring an advanced Dual-Mode Smart Hall system, the controller intelligently detects motor phase angles ($60^\circ$ or $120^\circ$) and automatically runs the motor in hall sensor or sensorless mode. If your motor's Hall sensors get damaged on the trail, the smart circuit automatically switches modes so you are never left stranded.
⚠️ Voltage & Power Selection Guide
UNIVERSAL COMPATIBILITY & WIRING NOTICE:
Broad Power Range: Select the current/wattage tier that matches your motor: 350W, 450W, 500W, 600W, 800W, 1000W, or 1200W.
Automatic Dual Voltage (48V/64V): Automatically adjusts low-voltage cut-offs and over-voltage limits depending on whether you connect a 48V or 64V battery pack.
Self-Learning Wire Harness: Connect the white self-learning leads during initial installation to automatically match phase wire sequences and motor direction—no manual pin swaps needed!
🚀 Key High-Performance Features
-
Smart Dual-Mode Logic: Seamlessly operates with healthy Hall sensors or shifts automatically to sensorless operation if Hall lines fail.
-

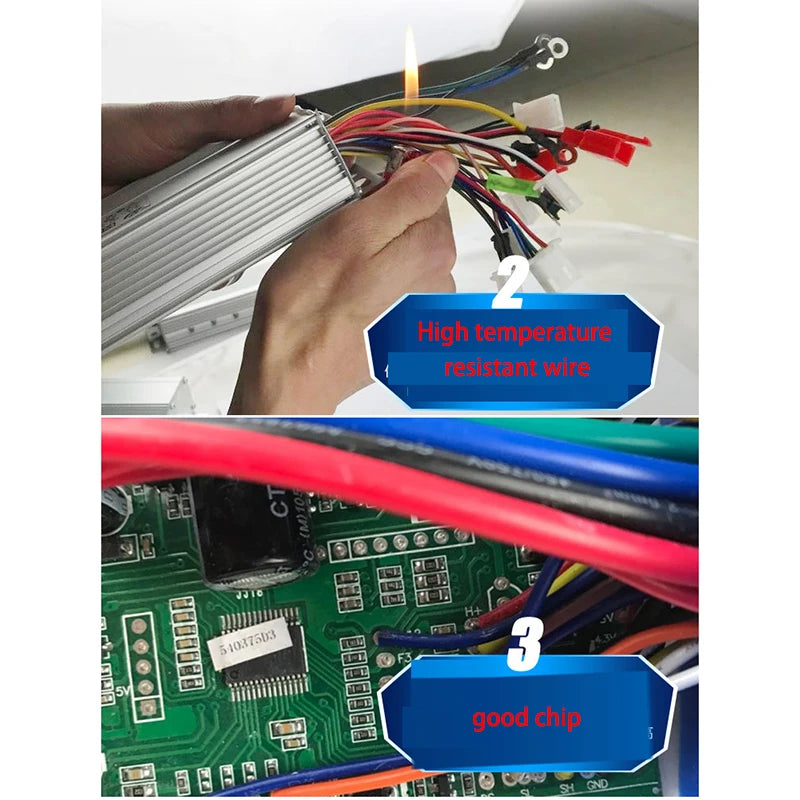

Heavy-Duty Aluminum Heat Dissipation: Housed in a thick, grooved aluminum alloy casing that rapidly draws heat away from the internal MOSFETs to prevent thermal throttling.
-
Anti-Tire-Noise & Smooth Launch: Square/Sine hybrid wave logic dampens initial motor hum and eliminates standard start-up jerkiness for ultra-smooth acceleration.
-
Multi-Function Wire Harness Included: Pre-wired leads for power supply, 3-phase motor wires, Hall sensors, twist/thumb throttle, 3-speed selector, low/high brake cut-offs, speedometer output, and anti-theft alarm power.
-
High Uphill Torque: Boosts current delivery during steep gradient climbs without triggering thermal shutoffs.
📊 Technical Specifications Matrix
| Specification Parameter | IC GOGOGO EV Controller Specifications |
| Brand Name | IC GOGOGO |
| Model / Item | Universal EV Brushless DC Controller |
| Compatible Operating Voltages | 48V / 64V DC (Auto-Detecting) |

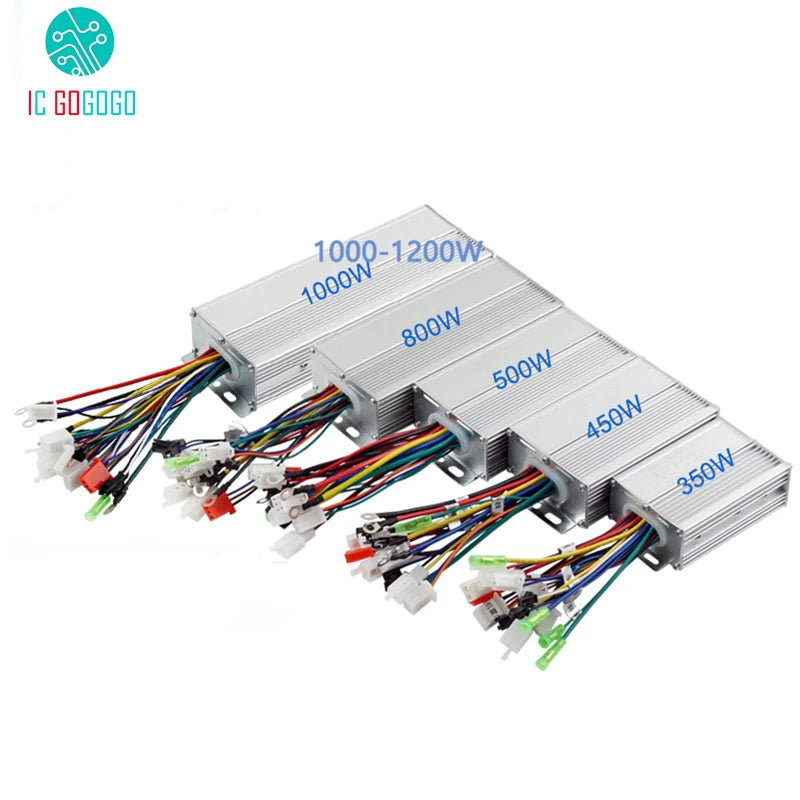

| Available Power Output Variants | 350W, 450W, 500W, 600W, 800W, 1000W, 1200W |
| Phase Angle Compatibility | $60^\circ$ / $120^\circ$ Universal Phase Detection |
| Motor Type Support | Brushless DC (BLDC) Motors (With or Without Hall Sensors) |
| Enclosure Material | High-Thermal Aluminum Alloy Shell |
| Protection Features | Under-Voltage Cut-Off, Over-Current Protection, Thermal Overload |
| Target Vehicles | E-Bikes, Heavy Cargo Tricycles, E-Scooters, Golf Carts |
China
Warranty: Other
|
EV Controller
|
|
|
|
|
