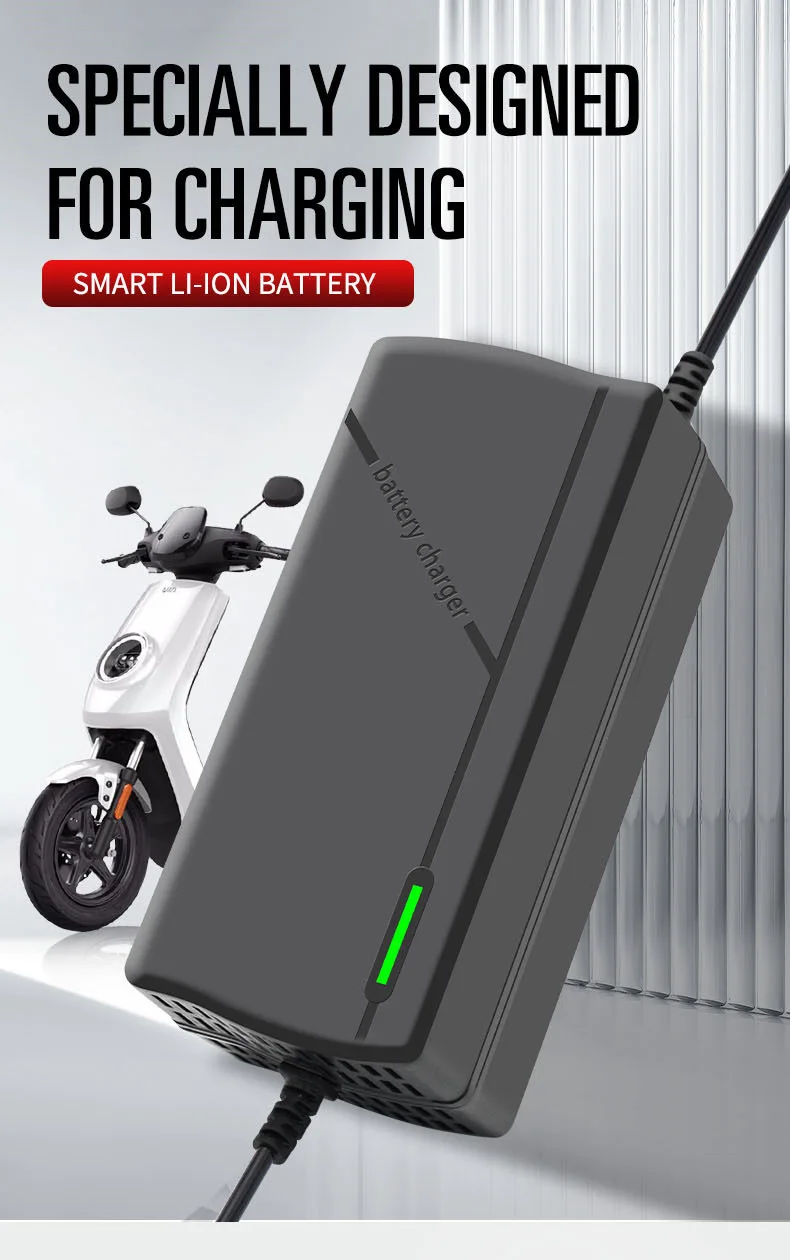

High-Performance Multi-Voltage Lithium Battery Smart Fast Charger (12V–72V / 2A–5A)
High-Performance Multi-Voltage Lithium Battery Smart Fast Charger (12V–72V / 2A–5A)
High-Performance Multi-Voltage Lithium Battery Smart Fast Charger – Advanced CC/CV Charging for 12V, 24V, 36V, 48V, 60V & 72V E-Bike & Lithium Battery Packs
Charge your lithium-ion battery packs safely and efficiently with maximum precision. The High-Performance Multi-Voltage Lithium Battery Smart Fast Charger is a multi-stage charging solution engineered for lithium battery configurations ranging from 12V (12.6V max) up to 72V (84V max). Offering adjustable charge currents up to 5.0A, this intelligent power unit optimizes energy delivery using constant current/constant voltage (CC/CV) control, pulse repair, and trickle balancing to extend total cell life.

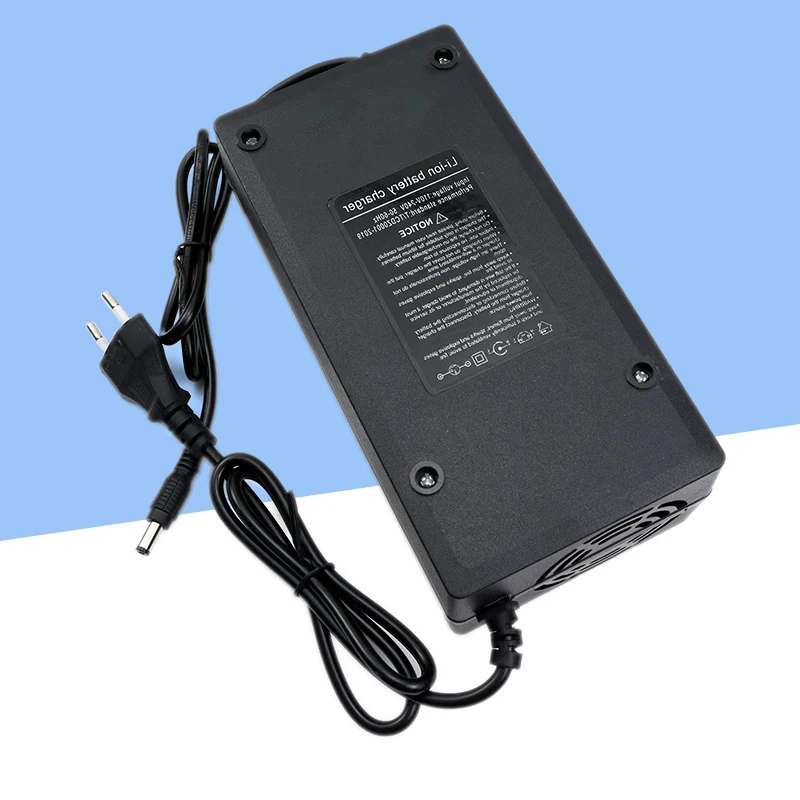

Designed with a lightweight, heat-resistant ABS housing and an EU plug input, this charger delivers reliable power management for e-bikes, e-scooters, electric motorcycles, and energy storage systems from 15Ah to 60Ah capacity.
🚀 Key High-Performance Features
-

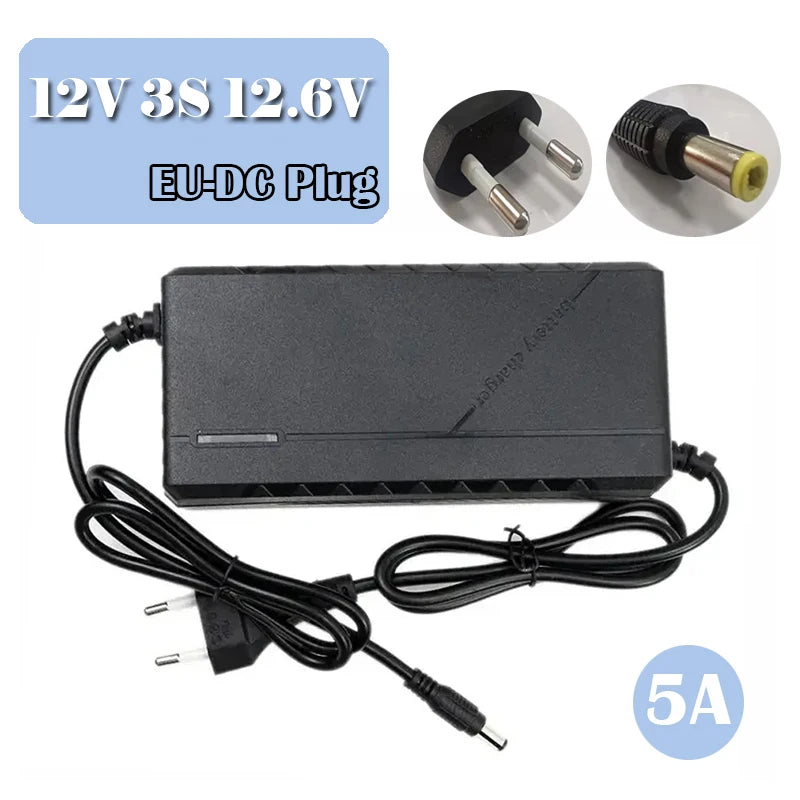

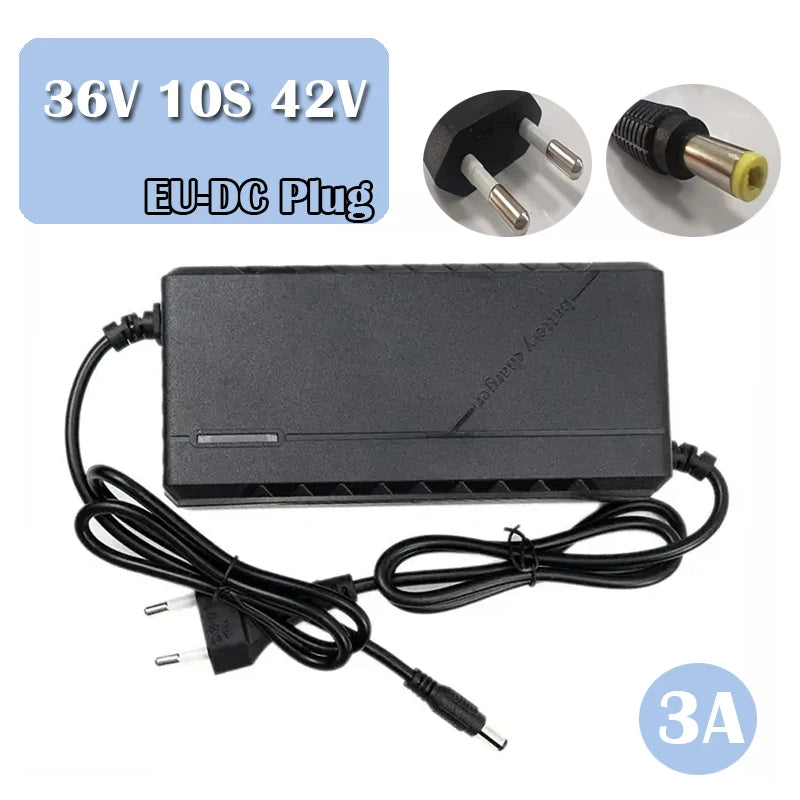

Wide Voltage Range Support: Factory-calibrated voltage models covering 12.6V (12V), 29.4V (24V), 42V (36V), 54.6V (48V), 67.2V (60V), and 84V (72V) battery architectures.
-
Multi-Stage Smart Fast Charging: Delivers up to 5.0A (±0.3A) output with integrated pulse repair (600mA–800mA) and trickle current (170mA ± 30mA) for complete cell balancing.
-

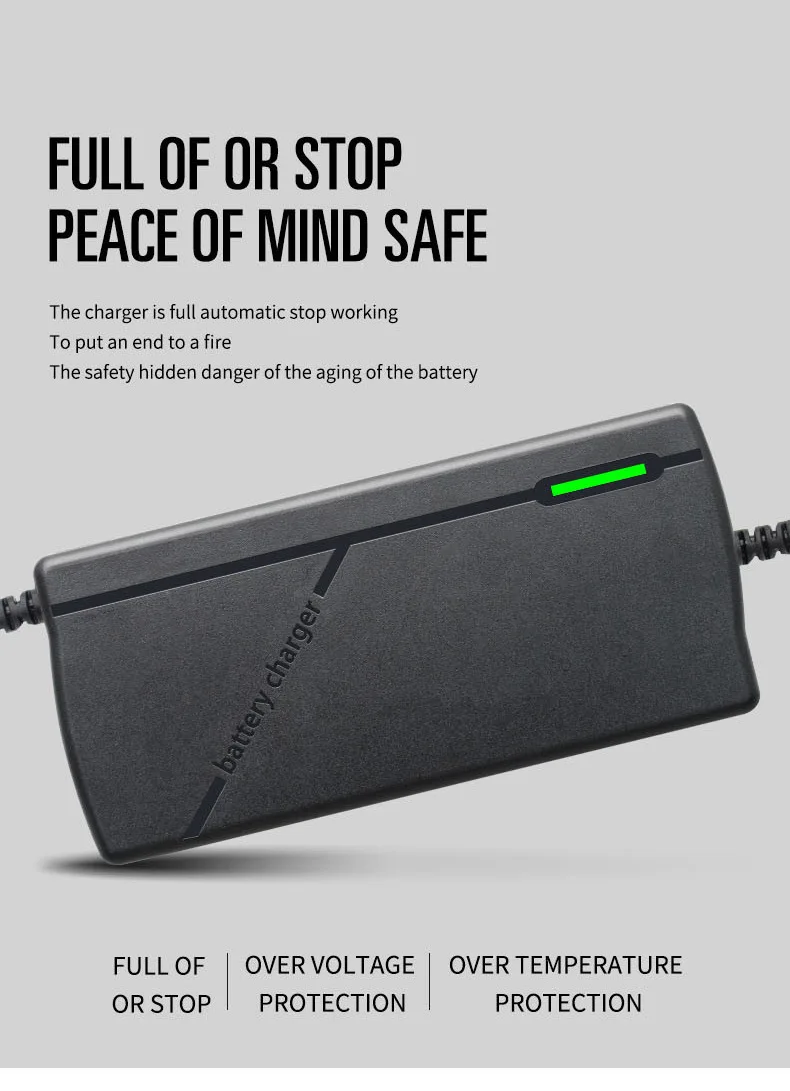

5-Layer Advanced Safety Matrix: Fully protected against Short Circuits, Over-Current, Over-Voltage, Reverse Polarity, and Thermal Overload.
-
Automatic Overheat Recovery: Safety shut-off activates if internal temperatures reach 85°C, automatically resuming charge cycles once cooled to 75°C.
-
Universal Input Compatibility: Operates on standard 100–240V AC (50/60Hz) power grids for consistent output everywhere.
-

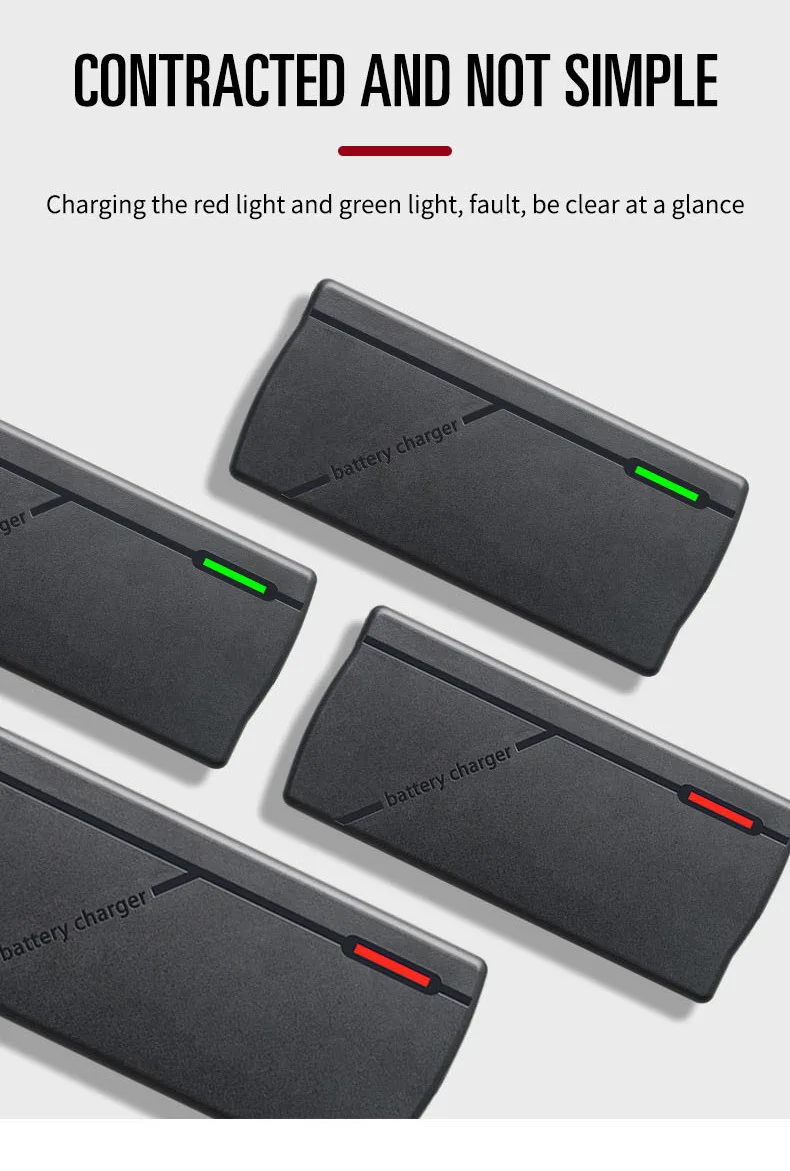

Tri-Color LED Status Indicator: Clear visual alerts for real-time diagnostics (Solid Red: Charging, Solid Green: Fully Charged, Flashing: Fault Detected).

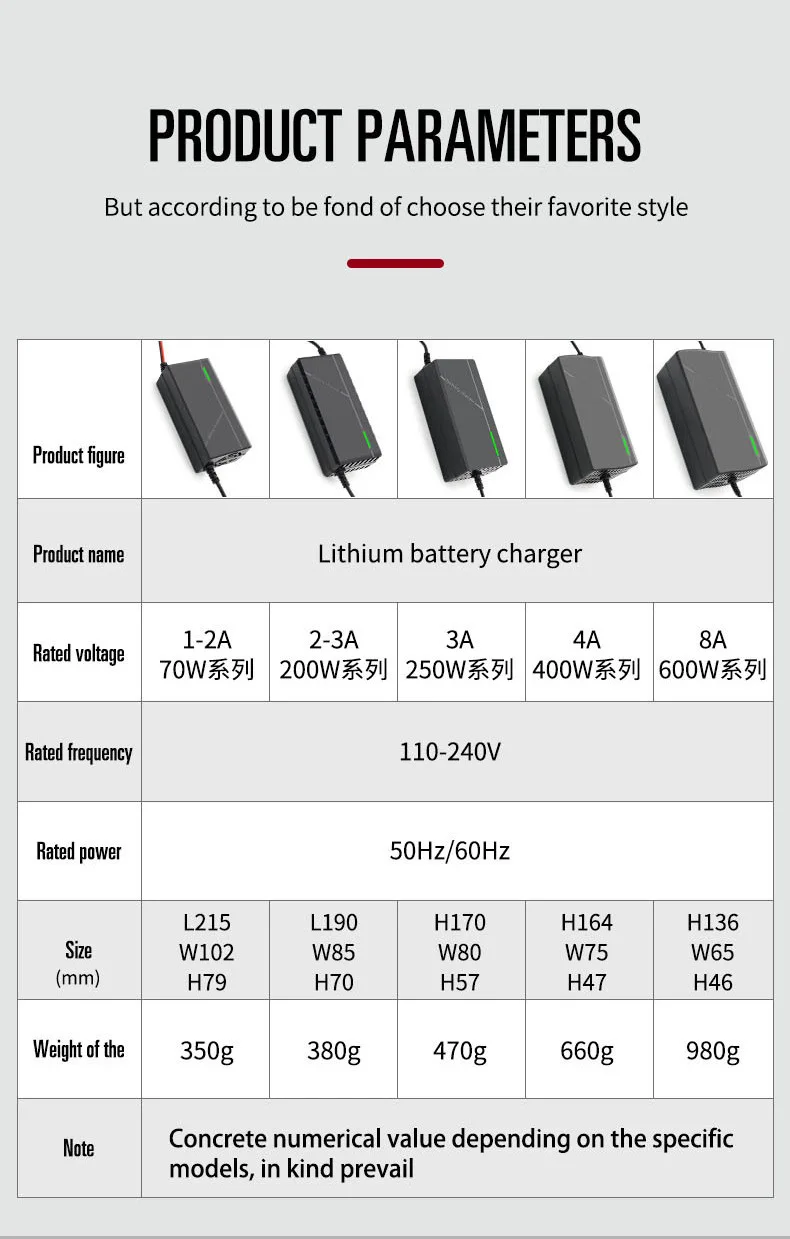

📊 Electrical Specifications & System Matrix
Review your battery pack specs carefully to select the exact voltage and amperage rating:
| Technical Spec Matrix | Smart Charger Performance Parameters |
| Output Voltage Options | 12.6V / 29.4V / 42V / 54.6V / 67.2V / 84V DC |
| Charge Current Options | 2A / 3A / 5.0A (±0.3A) |
| Maximum Output Power | 280W / 390W / 450W / 600W (Model Dependent) |
| Recommended Battery Capacity | 15Ah to 60Ah Lithium Packs |
| Input Connection | 100–240V AC, 50/60Hz (EU Plug) |
| Specialized Modes | Repair Current: 600–800mA | Trickle Mode: 170mA ± 30mA |
| Housing Construction | Durable High-Impact Black ABS Shell (~0.3kg) |
| Operating Limits | -5°C to 40°C Ambient | 5–95% RH | Up to 10,000m Altitude |
| Hazardous Compound Registry | High-concerned chemical: None |
Lithium Battery Charger, Ebike Charger, 72V Fast Charger, 48V Fast Charger, 36V Charger, 84V Charger, 54.6V Charger, Smart Lithium Charger, 5A Ebike Charger, Energy Storage Charger, Ebike Power Accessories, Fast Charger
⚙️ Operating Instructions & Safety Guidelines
To maximize charger efficiency and protect your lithium cells:
-

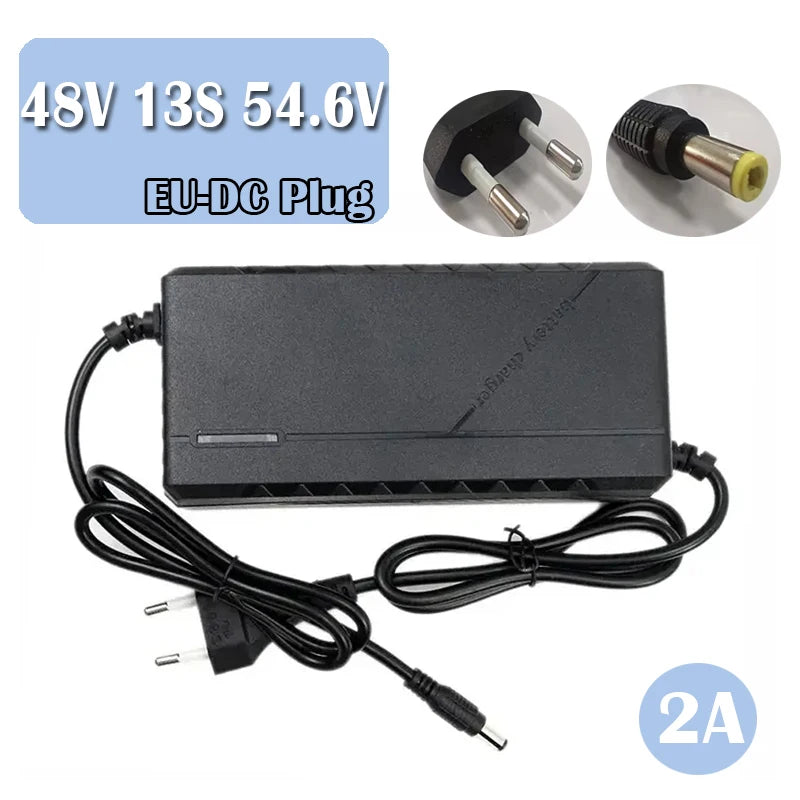

Verify Voltage Cutoff: Ensure the charger's max voltage matches your pack's full-charge voltage (e.g., a 54.6V charger for a 48V 13S lithium pack).
-
Connecting Order: Always connect the DC connector to your battery charging port first before plugging the AC power cord into the wall outlet.
-
Read LED Light: A solid red light indicates active fast charging. When the light switches to solid green, the charger has completed its full cycle and switched to maintenance mode.
📦 What's Inside the Box?
-

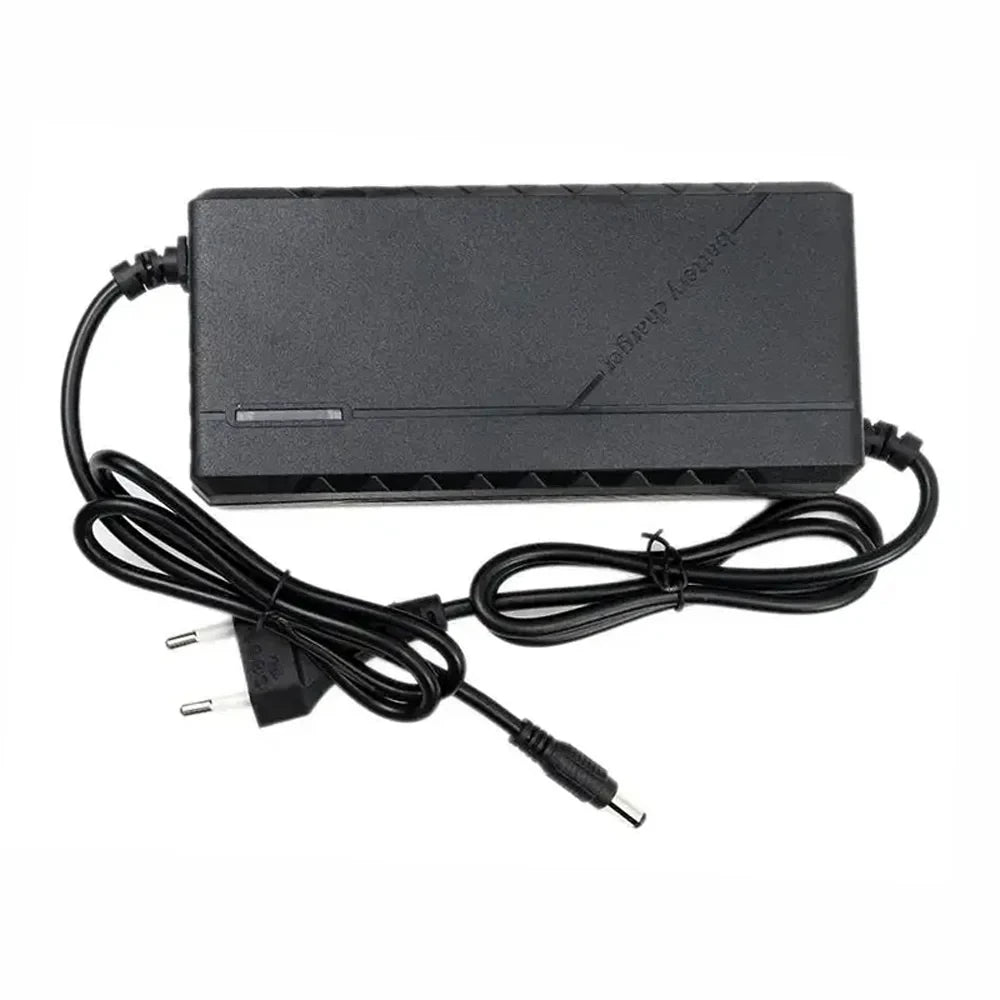

1 x High-Performance Multi-Voltage Lithium Battery Smart Fast Charger (EU Plug)
Keep your e-bike and energy storage batteries operating at peak capacity. Select your required output voltage and amperage below, click Add to Cart, and order yours today!
