Hailong eBike Battery 36V 48V 52V – 20Ah / 30Ah Lithium Battery for Bafang Motors

High-Capacity Hailong Replacement Battery for Bafang 250W–1500W eBikes

Upgrade or replace your electric bike battery with a TINSAAS Hailong lithium-ion eBike battery designed for compatible Bafang-powered electric bicycles and other electric mobility applications.

Available in 36V, 48V, and 52V configurations with 20Ah and 30Ah capacity options, this battery features 18650 lithium-ion cells, a stated 30A BMS, and a Hailong-style battery case.

With a listed 1,500+ cycle life and a discharge temperature range of -20°C to 65°C, it is designed for demanding everyday eBike applications.

Key Features

• Brand: TINSAAS

• Battery Type: Lithium-Ion

• Cell Type: 18650 lithium battery

• Voltage Options: 36V / 48V / 52V

• Capacity Options: 20Ah / 30Ah

• BMS: 30A

• Charging Current: 2A

• Cycle Life: 1,500+ cycles

• Discharge Temperature: -20°C to 65°C

• Dimensions: 367 × 110 × 90 mm

• Certifications: CE, EAC, RoHS, EPA, FCC, WEEE, UL

• Applications: Electric bicycle, e-scooter, scooter, trolling motor

• Origin: Mainland China

---

Choose the Right Battery Voltage

36V eBike Battery

The 36V configuration is designed for compatible 36V electric bike systems.

Available capacities:

• 20Ah

• 30Ah

Approximate nominal energy:

36V 20Ah = 720Wh

36V 30Ah = 1,080Wh

---

48V eBike Battery

The 48V configuration is suitable for compatible 48V eBike and Bafang systems.

Available capacities:

• 20Ah

• 30Ah

Approximate nominal energy:

48V 20Ah = 960Wh

48V 30Ah = 1,440Wh

---

52V eBike Battery

The 52V configuration is intended for compatible 52V systems.

Available capacities:

• 20Ah

• 30Ah

Approximate nominal energy:

52V 20Ah = 1,040Wh

52V 30Ah = 1,560Wh

Important: Your motor and controller must specifically support 52V operation before selecting this configuration.

---

Designed for Compatible Bafang Motors

The product listing identifies this battery for Bafang motors from 250W to 1500W.

Compatible applications can include different Bafang hub and mid-drive configurations, depending on the motor voltage and controller.

Before ordering, verify:

• Motor voltage

• Controller voltage

• Controller current

• Battery connector

• Battery mounting system

• BMS requirements

Motor wattage alone does not determine battery compatibility.

---

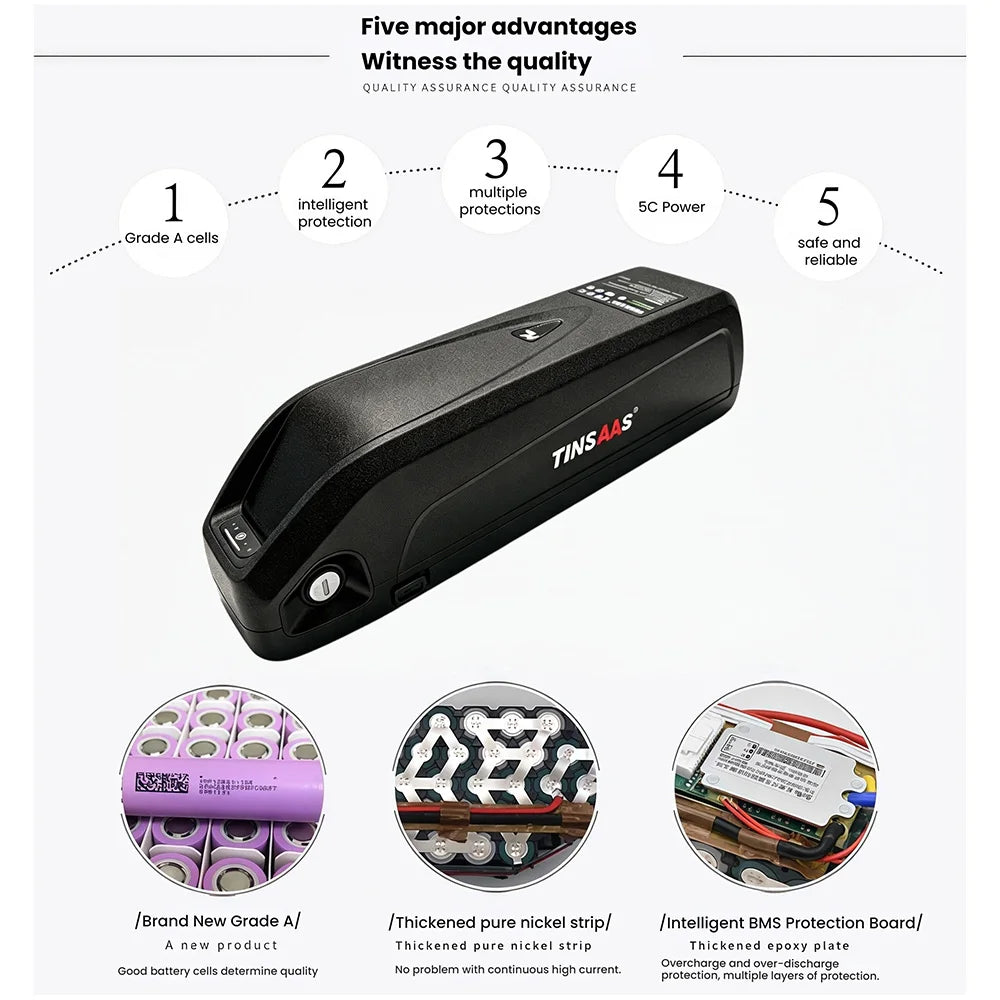

30A Battery Management System

This Hailong battery is specified with a 30A Battery Management System (BMS).

The BMS helps monitor battery operation and protects against conditions such as:

• Overcharging

• Over-discharging

• Excess current

• Short circuits

• Cell imbalance

The 30A specification should not automatically be interpreted as the battery's continuous safe discharge current under every operating condition. Confirm the manufacturer's detailed BMS specifications for your selected configuration.

---

18650 Lithium-Ion Cells

The battery uses 18650 lithium-ion cells.

18650 cells are widely used in rechargeable battery packs for electric bicycles and other electric mobility applications.

The overall performance of the battery depends on the cell configuration, cell quality, BMS, current requirements, temperature, and battery construction.

---

Cold-Resistant Battery Design

The supplied specifications list a discharge temperature range of:

-20°C to 65°C

This specification refers to discharge operation.

Charging lithium-ion batteries at extremely low temperatures can require different limits. Always follow the manufacturer's recommended charging-temperature range.

---

1,500+ Cycle Life

The manufacturer's specifications list a cycle life of 1,500+ cycles.

Actual battery service life depends on:

• Depth of discharge

• Charging frequency

• Charging temperature

• Storage conditions

• Discharge current

• Battery maintenance

• Cell aging

Proper charging and storage can help extend battery life.

---

2A Charging Current

The supplied specifications list a 2A charging current.

Charging time depends on the selected battery capacity.

A larger-capacity battery will generally require more time to charge at the same charging current.

Use only a charger specifically matched to the selected battery voltage and charging requirements.

---

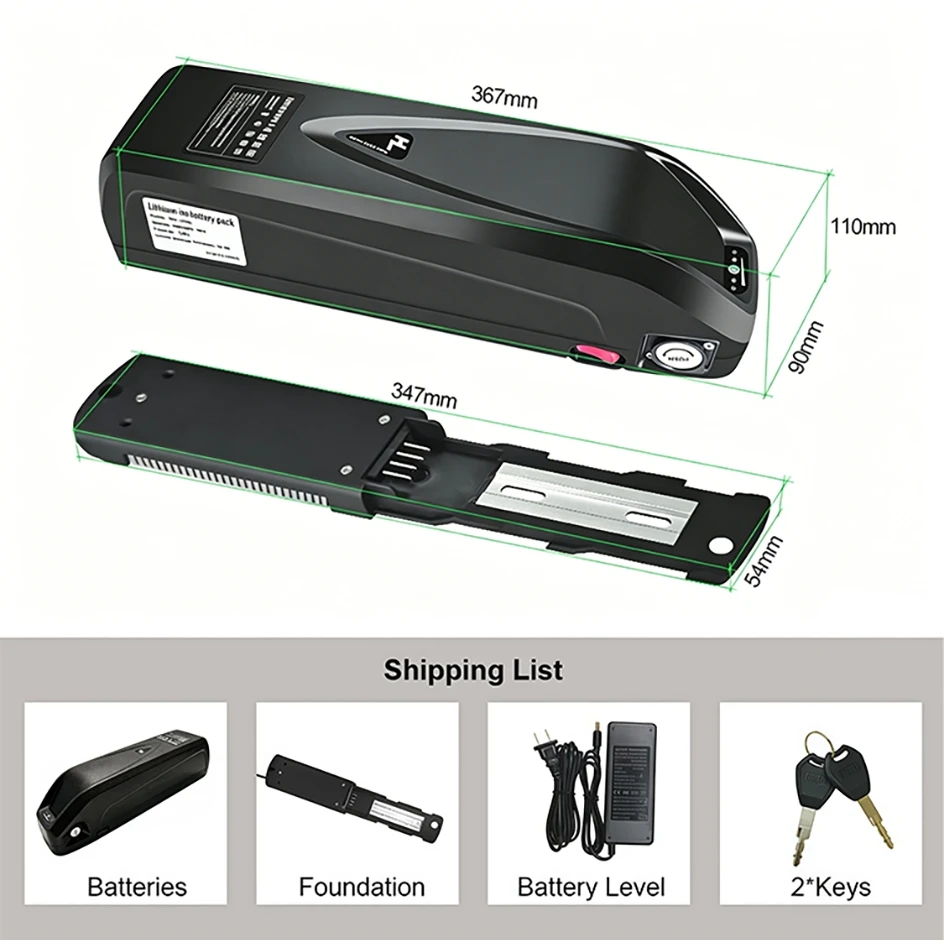

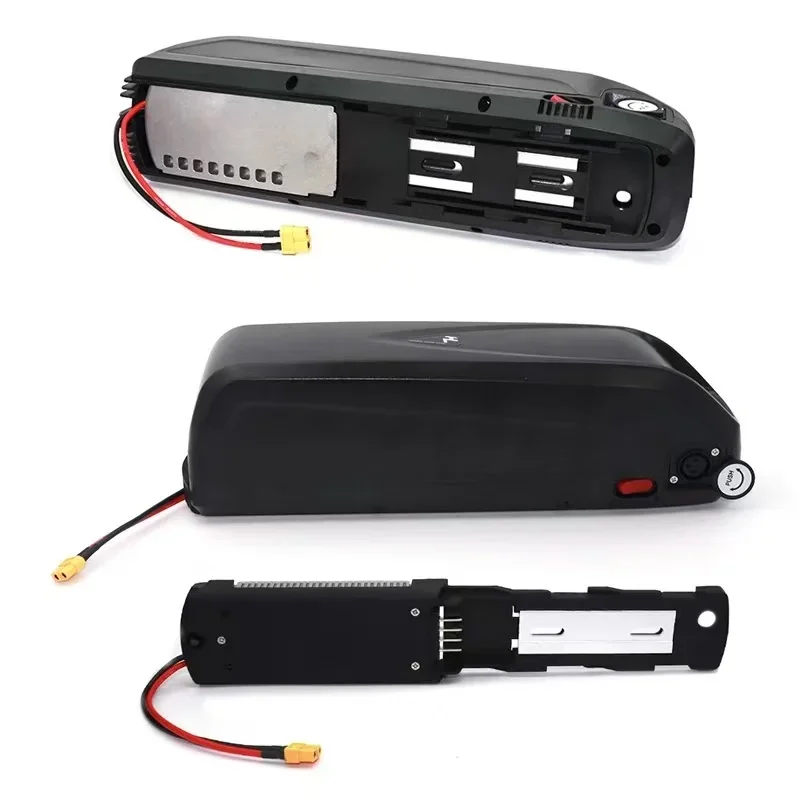

Hailong Battery Dimensions

367mm × 110mm × 90mm

Before ordering, compare these dimensions with your existing battery and frame.

Make sure there is enough space for:

• Battery case

• Mounting rail

• Charging port

• Discharge connector

• Wiring

• Frame clearance

• Battery removal

---

Battery Energy Comparison

Battery Configuration	Approx. Nominal Energy
36V 20Ah	720Wh
36V 30Ah	1,080Wh
48V 20Ah	960Wh
48V 30Ah	1,440Wh
52V 20Ah	1,040Wh
52V 30Ah	1,560Wh

Formula: Voltage × Ah = Wh

Actual riding range depends on motor power, controller settings, speed, rider weight, terrain, wind, temperature, tire pressure, riding mode, and other conditions.

---

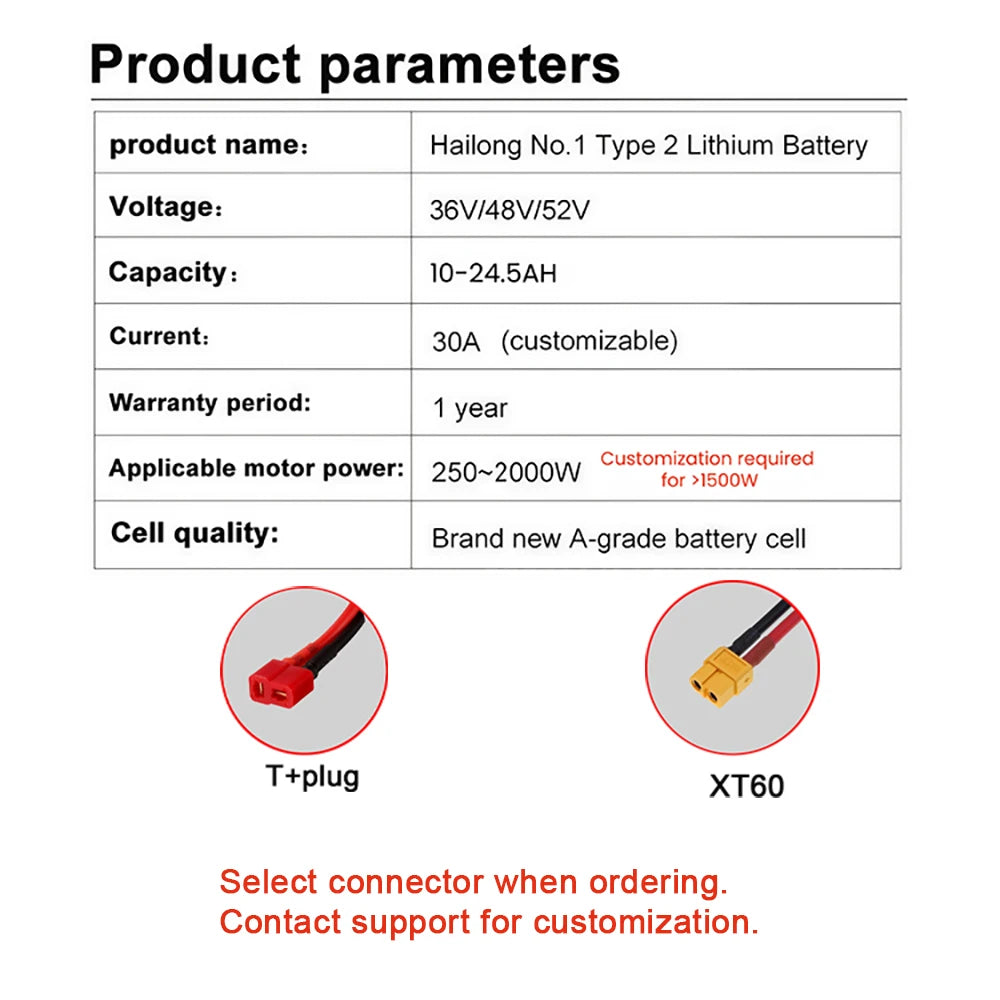

Hailong eBike Battery Specifications

Specification	Details
Brand	TINSAAS
Battery Type	Li-Ion
Cell Type	18650
Voltage	36V / 48V / 52V
Capacity	20Ah / 30Ah
BMS	30A
Charging Current	2A
Cycle Life	1,500+ cycles
Discharge Temperature	-20°C to 65°C
Dimensions	367 × 110 × 90 mm
Applications	eBike / eScooter / Scooter / Trolling Motor
Certifications	CE / EAC / RoHS / EPA / FCC / WEEE / UL
Origin	Mainland China

---

Check Compatibility Before Ordering

Battery Voltage

Choose the voltage that matches your electrical system:

36V / 48V / 52V

Battery Capacity

Choose:

20Ah or 30Ah

Based on your desired energy capacity, range requirements, and available space.

Motor

Verify your Bafang motor's voltage and power requirements.

Controller

Confirm that your controller supports the selected battery voltage and current.

Connector

Check connector style and polarity.

Mounting

Confirm that your frame accepts the Hailong battery configuration.

Charger

Use the correct charger for your selected battery voltage.

---

Frequently Asked Questions

What voltage options are available?

This Hailong battery is available in 36V, 48V, and 52V configurations.

What capacity options are available?

The listed capacity options are 20Ah and 30Ah.

What type of battery cells are used?

The battery uses 18650 lithium-ion cells.

Does it have a BMS?

Yes. The product specifications list a 30A BMS.

Is it compatible with Bafang motors?

The product is listed for Bafang motor applications from 250W to 1500W. Verify your specific motor and controller compatibility before ordering.

What are the battery dimensions?

The listed dimensions are 367mm × 110mm × 90mm.

What is the cycle life?

The supplied specifications state 1,500+ cycles.

What temperature can the battery operate in?

The listed discharge temperature range is -20°C to 65°C.

How much energy does a 48V 30Ah battery have?

Approximately 1,440Wh of nominal energy.

How much energy does a 52V 30Ah battery have?

Approximately 1,560Wh of nominal energy.

---

Upgrade Your Compatible eBike

The TINSAAS Hailong eBike Battery provides multiple voltage and capacity choices for compatible electric bicycles, Bafang motor systems, scooters, and other electric mobility applications.

36V • 48V • 52V

20Ah • 30Ah

18650 Lithium-Ion Cells • 30A BMS • 1,500+ Cycle Life

Power Your Ride. Charge Anywhere. Ride Longer.
