GTK 96V 26S Triangle Lithium-Ion Battery with Bluetooth BMS – 30Ah, 50Ah & Custom Capacities

Power high-performance electric builds with the GTK 26S 96V triangle lithium-ion battery from ChargeMyEBike.com. Designed for compatible high-voltage electric bikes and custom electric vehicle projects, this battery pack features a Bluetooth-enabled Battery Management System (BMS) that lets you monitor supported battery information through a compatible mobile app.

Available configurations and discharge ratings depend on the selected battery capacity and BMS option. Confirm the specifications of your exact configuration before ordering.

Key Features

• Battery brand: GTK

• Battery configuration: 26S lithium-ion

• Advertised nominal voltage: 96V

• Battery chemistry: Lithium-ion NMC (ternary lithium); not LiFePO4

• Capacity options: 30Ah, 50Ah, and custom capacities, subject to supplier confirmation

• Bluetooth BMS: App-based monitoring on supported devices

• Advertised charging voltage: 109.2V DC

• Advertised charger: 109.2V 5A charger included

• Battery shape: Triangle-style pack

• Custom sizing: Available by supplier request

Battery Capacity Options

96V 30Ah

• Approximate energy: 2,880Wh, calculated using the advertised 96V nominal rating

• Advertised BMS rating: 50A continuous and 100A peak

96V 50Ah

• Approximate energy: 4,800Wh, calculated using the advertised 96V nominal rating

• Confirm the available BMS current rating and physical dimensions with the supplier before ordering.

Custom battery capacities and configurations may be available. Contact us to confirm availability, dimensions, BMS specifications, and lead time.

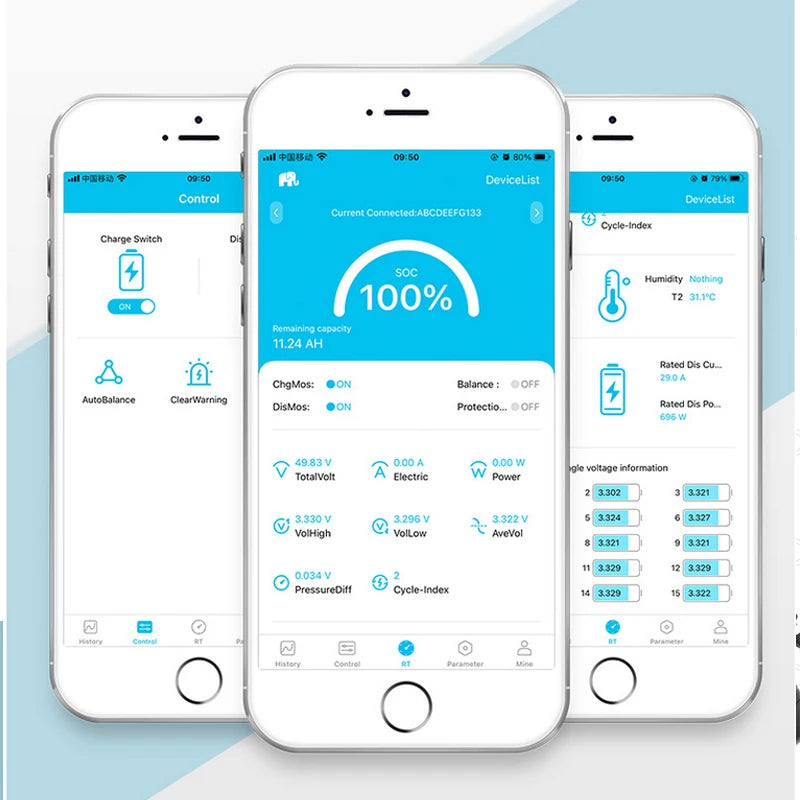

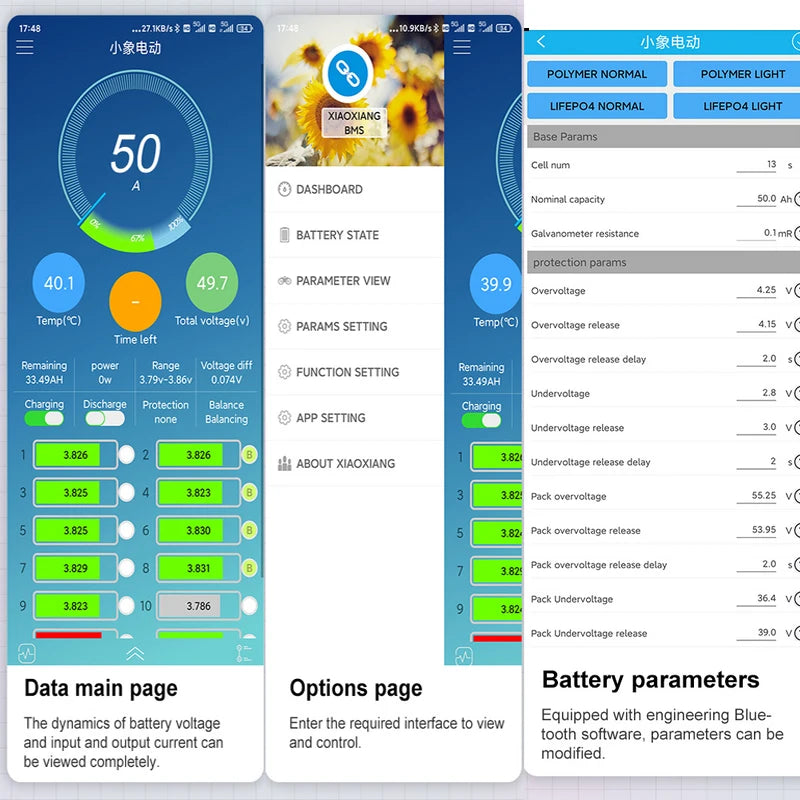

Bluetooth Battery Management System

The supplier advertises a Bluetooth-enabled BMS designed to provide app-based battery monitoring and protection functions. Listed protection features include safeguards against overcharging, over-discharging, and excessive current.

BMS features, app compatibility, temperature monitoring, and protection limits may vary by configuration. Confirm the functions supported by the selected BMS before purchase.

Charging Specifications

The supplier lists a 109.2V charging voltage and includes a 109.2V 5A charger with the battery package.

• Specified charging voltage: 109.2V DC

• Advertised charger current: 5A

• Supplier's stated standard charging current: 3–5A

• Advertised charging temperature range: 0°C to 45°C (32°F to 113°F)

Use only the charger specified for the exact battery configuration. Verify the charger's output, connector, polarity, and compatibility before connecting it to the battery.

Discharge Ratings and Motor Compatibility

The supplier advertises applications for high-power electric builds, including 3,000W, 4,000W, 5,000W, and 8,000W systems. Actual compatibility depends on the selected pack's continuous discharge rating, BMS configuration, cell specifications, controller current, and operating voltage.

The supplier lists the following ratings for certain configurations:

• 30Ah configuration: 50A continuous, 100A peak

• 45Ah configuration: 100A continuous, 200A peak

These are different configurations. Do not assume that a 50Ah battery includes the 100A/200A BMS unless the supplier confirms it in writing.

Before ordering, verify that the battery's continuous current rating is sufficient for your controller and intended motor power.

Temperature and Storage

The supplier lists these operating ranges:

• Charging: 0°C to 45°C (32°F to 113°F)

• Discharging: -20°C to 60°C (-4°F to 140°F)

• Storage: -20°C to 45°C (-4°F to 113°F)

Follow the manufacturer's instructions for installation, charging, storage, and operation.

Package Contents

The advertised package includes:

• 1 × GTK 26S lithium-ion battery pack with Bluetooth BMS

• 1 × 109.2V 5A charger

Confirm the charger plug, battery connector, mounting hardware, and any additional accessories included with your selected configuration.

Custom Battery Pack Options

Need a specific triangle battery size or discharge-current configuration? Customization may be available based on your frame dimensions and electrical requirements.

Before ordering, provide your desired capacity, available mounting space, controller current, connector requirements, and intended application so the supplier can confirm a suitable configuration.

Important compatibility notice: This is a high-voltage battery. Confirm the battery's nominal voltage, maximum charging voltage, controller compatibility, BMS rating, connector wiring, and charger specifications before installation or use.

Shop ChargeMyEBike.com for e-bike batteries, chargers, controllers, and electrical power accessories.

96V 30Ah triangle lithium ion battery with bluetooth APP BMS 100A continual discharging 5000W 8000W 10KW output and 5A charger 96V 30Ah triangle lithium ion battery with bluetooth APP BMS 100A continual discharging 5000W 8000W 10KW output and 5A charger

Recommended Universal Electric Bike Lithium-Ion Battery Replacement Pack

3. Verify these details before publishing

There are a few inconsistencies in the supplier's specifications worth resolving:

• 50Ah BMS rating: The headline refers to 50Ah and 50A/100A BMS options, but the detailed table lists 30Ah with 50A/100A and 45Ah with 100A/200A. Get the exact 50Ah configuration in writing.

• Nominal voltage: The supplier calls it a 96V 26S pack and lists 109.2V charging voltage. Confirm the manufacturer's nominal voltage and full-charge specification for the exact pack.

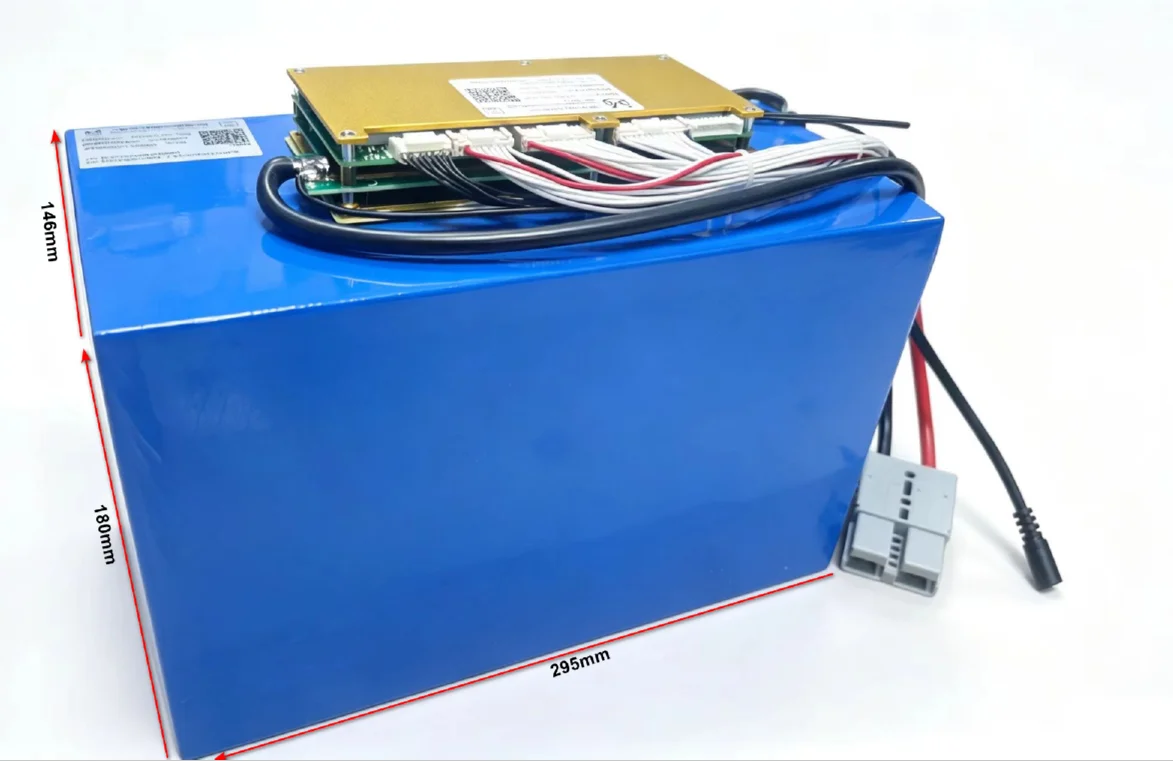

• Dimensions: The stated 295 × 180 × 146 mm size is described as customizable. Confirm the actual dimensions of the triangle battery you will receive.

• Cycle life: The supplier advertises 2,000+ cycles at 80% depth of discharge. Treat this as an unverified supplier claim unless supporting test documentation is available.

• Power rating: Do not advertise 8,000W as suitable for every version. At a nominal 96V, 8,000W requires approximately 83A before accounting for voltage sag and system losses, so a 50A continuous BMS configuration may not support that load continuously.
