FREE SHIPPING | Nanjing FarDriver ND961000 V2 High-Power Programmable FOC Sine Wave DC Motor Controller –
Up to 96V Systems (450A Continuous DC Battery Current, 1000A Peak Phase Current) Complete with Plug-and-Play Wireless Bluetooth Module for 8KW–10KW Electric Motorcycles, ATVs & Custom Light EVs
Unleash extreme acceleration and top-end performance with the Nanjing FarDriver ND961000 V2 High-Power FOC Sine Wave Motor Controller. Purpose-built to power 8,000W to 10,000W continuous (8KW–10KW) brushless DC (BLDC) and PMSM motors, this heavy-duty V2 motherboard architecture delivers up to 450A continuous DC battery current and a massive 1000A peak phase current across high-voltage platforms up to 96V nominal.
Utilizing advanced Field-Oriented Control (FOC) sine wave technology, the ND961000 V2 provides ultra-smooth, whisper-quiet motor operation, instant off-the-line torque, and low operating temperatures. Every unit includes a plug-and-play Bluetooth Adapter, enabling wireless parameter tuning and real-time telemetry monitoring directly from your iOS or Android device.
⚠️ System Operating Limits & Specifications
IMPORTANT VOLTAGE & MOTOR FITMENT GUIDELINES:
High Voltage Range: Rated for high-voltage DC systems up to 96V nominal (operates up to 115V DC max peak voltage limit).
Matched Power Range: Engineered to drive 8000W to 10,000W continuous motors (handles surge capability well above 15kW peak).
QS & Third-Party Motor Optimization: Pre-configured auto-learning routines pair seamlessly with QS Motors, Yuma Motors, and other high-power BLDC/PMSM platforms.
ONE-LIN Communication Protocol: Features ONE-LIN single-wire speedometer signal output for digital dashboard compatibility.
🚀 Key High-Performance Features
-
🚚 FREE SHIPPING INCLUDED: Fast dispatch and delivery straight to your door with no added shipping fees at checkout.
-
Extreme Output Capabilities (450A DC / 1000A Phase): Provides maximum launch torque and continuous high-speed current without thermal cutout.
-
Wireless Smartphone Tuning: Connect via the included Bluetooth adapter using the FarDriver App to adjust phase current, throttle curves, flux weakening (top speed boost), and regen strength.
-
Advanced FOC Sine Wave Control: Eliminates low-speed motor shudder while maintaining maximum power efficiency and lower motor heat buildup.
-
Integrated Self-Learning Function: Simplifies setup by automatically detecting Hall sensor timing and motor phase angles.
-

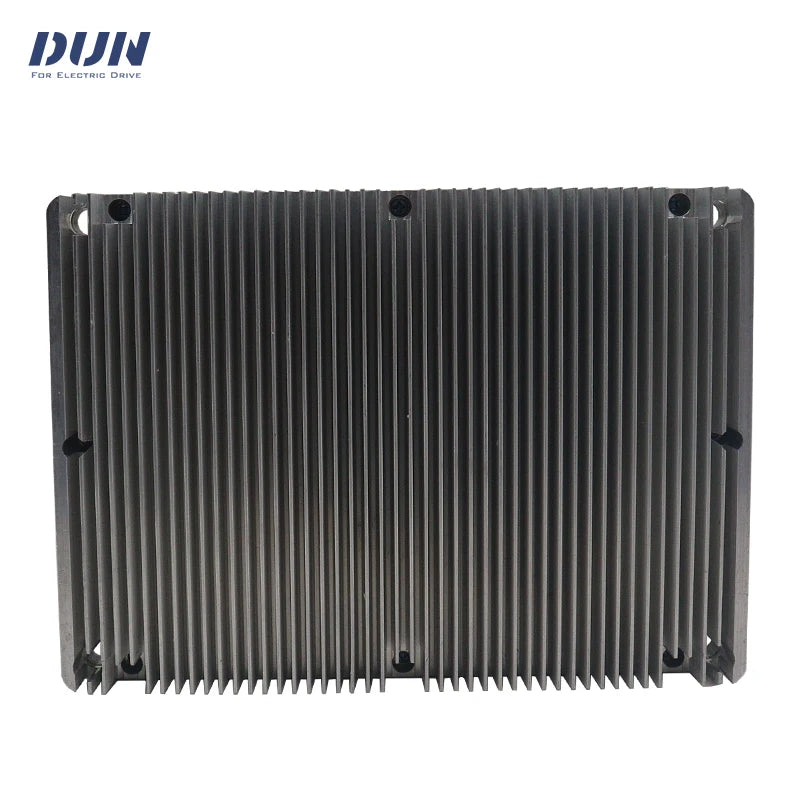

Rugged Heavy-Duty Aluminum Casing: Built with an all-aluminum heat sink shell ($189 \times 136 \times 67\text{ mm}$) weighing $2.65\text{ kg}$ ($5.84\text{ lbs}$) for maximum thermal dissipation.
-

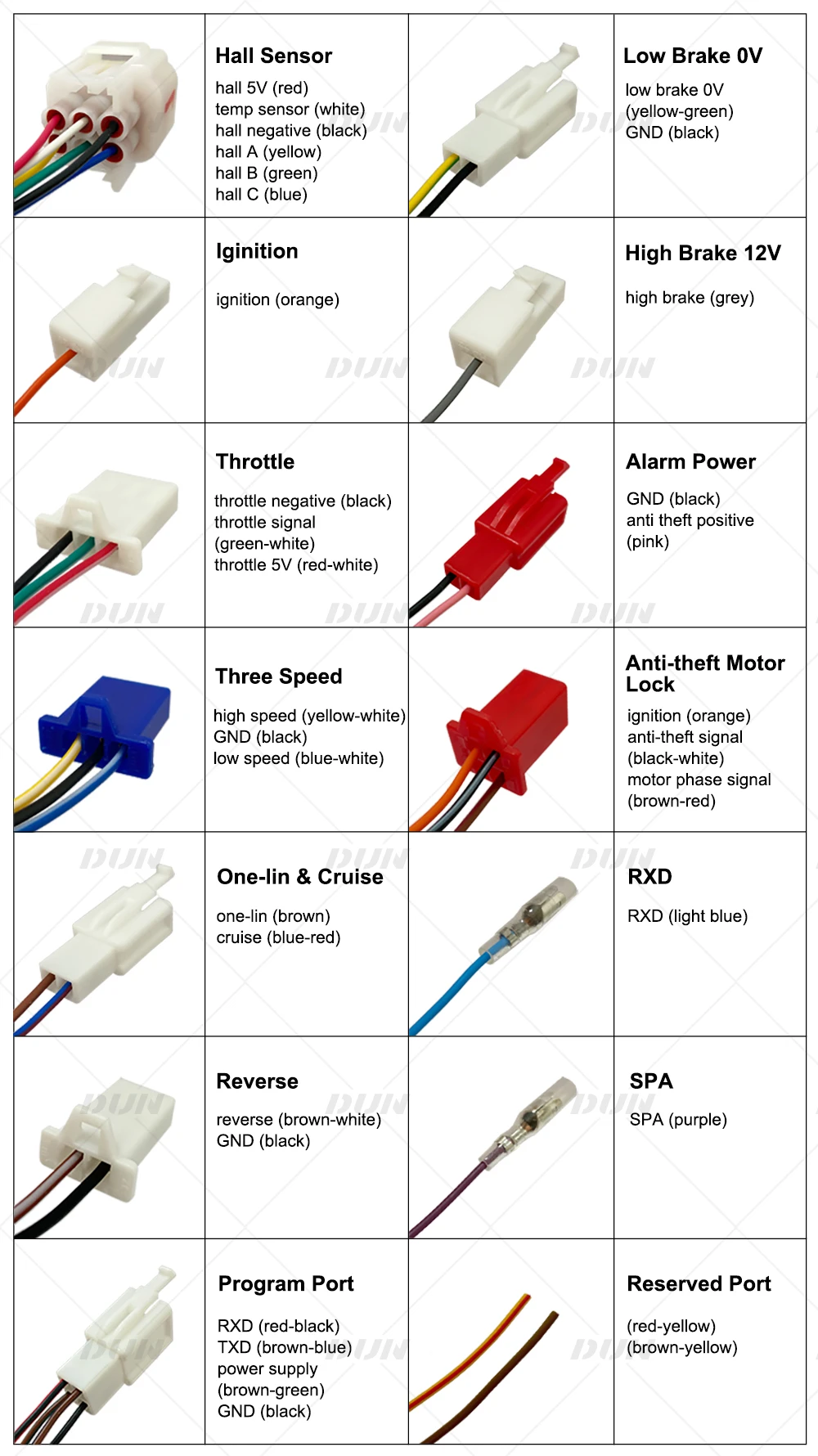

Complete Wiring Suite: Pre-wired for 0-5V throttle, motor temperature sensor input, 3-speed modes, high/low brake cutoffs, reverse, flux weakening, anti-theft, cruise, and ONE-LIN speed output.
📊 Technical Specifications Matrix
| Specification Parameter | Nanjing FarDriver ND961000 V2 Specifications |
| Manufacturer / Brand | Nanjing FarDriver |
| Model Number | ND961000 V2 Motherboard |
| Controller Architecture | FOC Sine Wave BLDC / PMSM Controller |
| Housing Material | Heavy-Duty Aluminum Heat Sink Shell |
| Operating Voltage Range | Up to 96V DC Nominal (115V Max Peak Cutoff) |
| Max Continuous Battery DC Current | 450A |
| Max Peak Phase Current | 1000A |
| Matched Motor Power | 8000W – 10,000W (8KW–10KW) |
| Speedometer Signal Protocol | ONE-LIN Protocol |
| Physical Dimensions ($L \times W \times H$) | $189 \times 136 \times 67\text{ mm}$ |
| Net Weight | $2.65\text{ kg}$ ($5.84\text{ lbs}$) |
| Wireless Support | Included Plug-and-Play Bluetooth Adapter |
📋 Ideal Applications
The FarDriver ND961000 V2 Controller with Bluetooth is engineered for:
-
8KW to 10KW High-Power Electric Motorcycles, Track Bikes & Supermotos
-
Electric ATVs, Side-by-Sides, Buggies & Adult Electric Cars
-
QS Motor & High-Current Hub / Mid-Drive Custom EV Builds

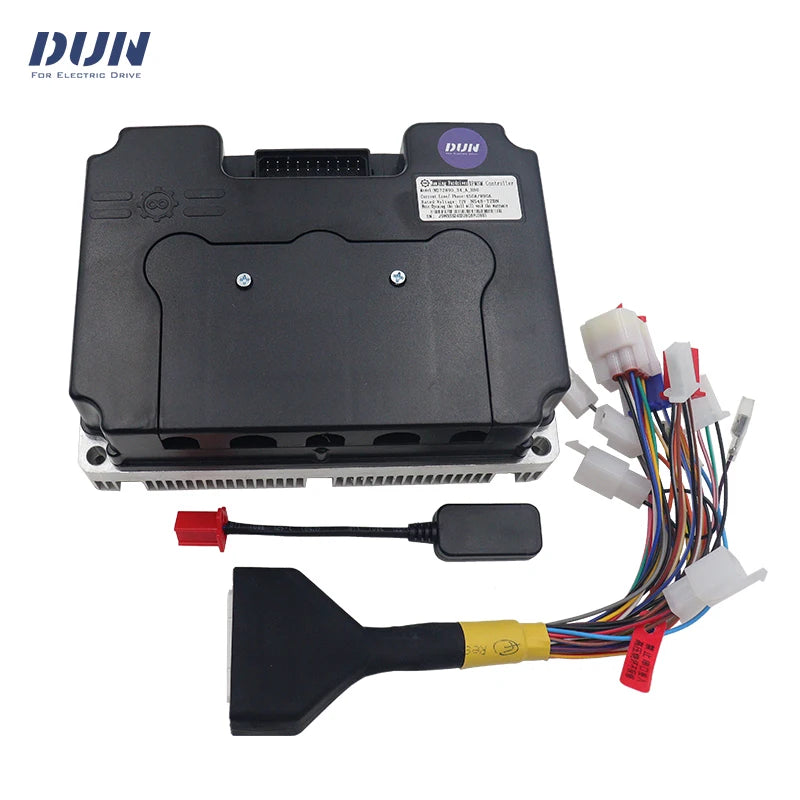

📦 Package Contents
-
1 x Nanjing FarDriver ND961000 V2 96V 450A DC / 1000A Phase Controller
-

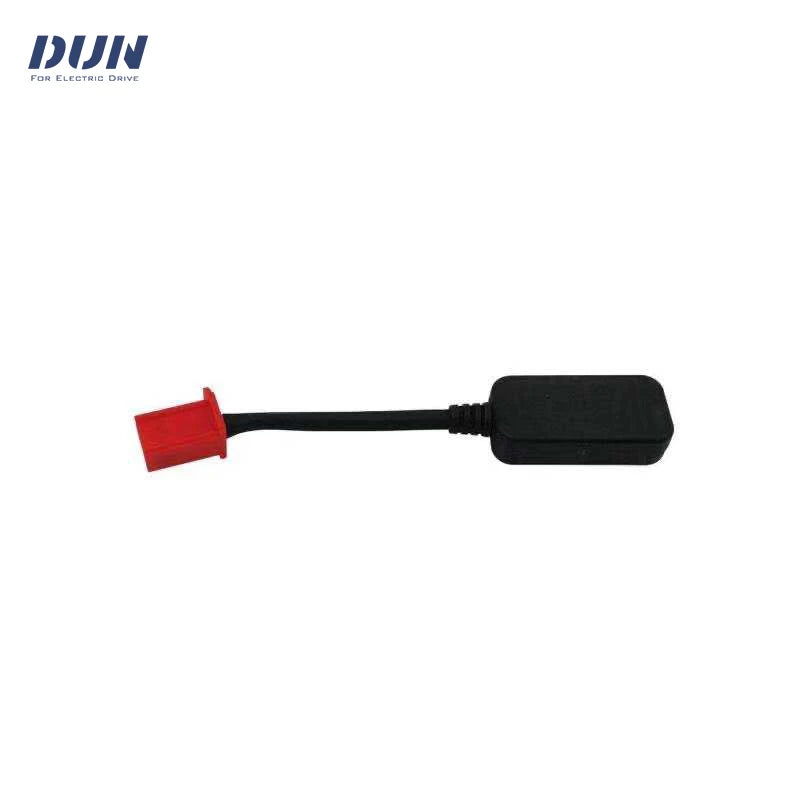

1 x Plug-and-Play Wireless Bluetooth Adapter Module
-
1 x Signal & Function Wiring Harness Assembly
-
1 x Software Access & Quick-Start Documentation Link
Unlock 1000A phase current for your 8KW–10KW vehicle build. Select your quantity above, click Add to Cart, and order today with FREE SHIPPING!
General SPEC
1 Model: Fardriver Controller ND961000 NS48
2 Working Communication: Hall Sensor
3 Available Rated Battery Voltage:72V/84V/96V
4 Peak Battery Voltage: 115V
5 Available Motor Power: 8KW-10KW
6 Default Throttle Working Voltage: 0V - 5V
7 Peak DC Current: 450A
8 Peak Phase Current: 1000A
9 Mosfets Detail: 48 FET
10 Weight: 2.6 kg
11 Installing Size: 189mm * 136mm * 67mm
12 Controller Design: Sine Wave BLDC/PMSM
13 Case Material: Aluminum
14 Support Programmable: PC & Phone
15 Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV

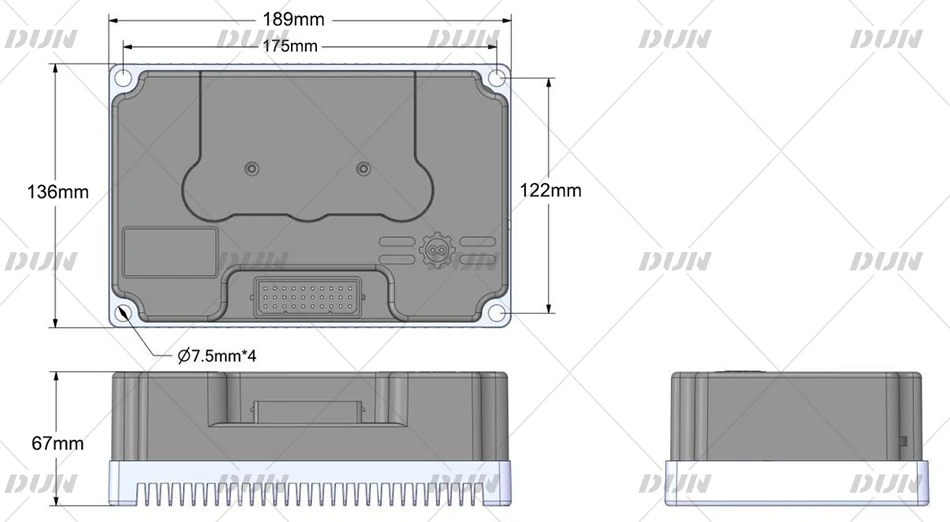

Size Drawing

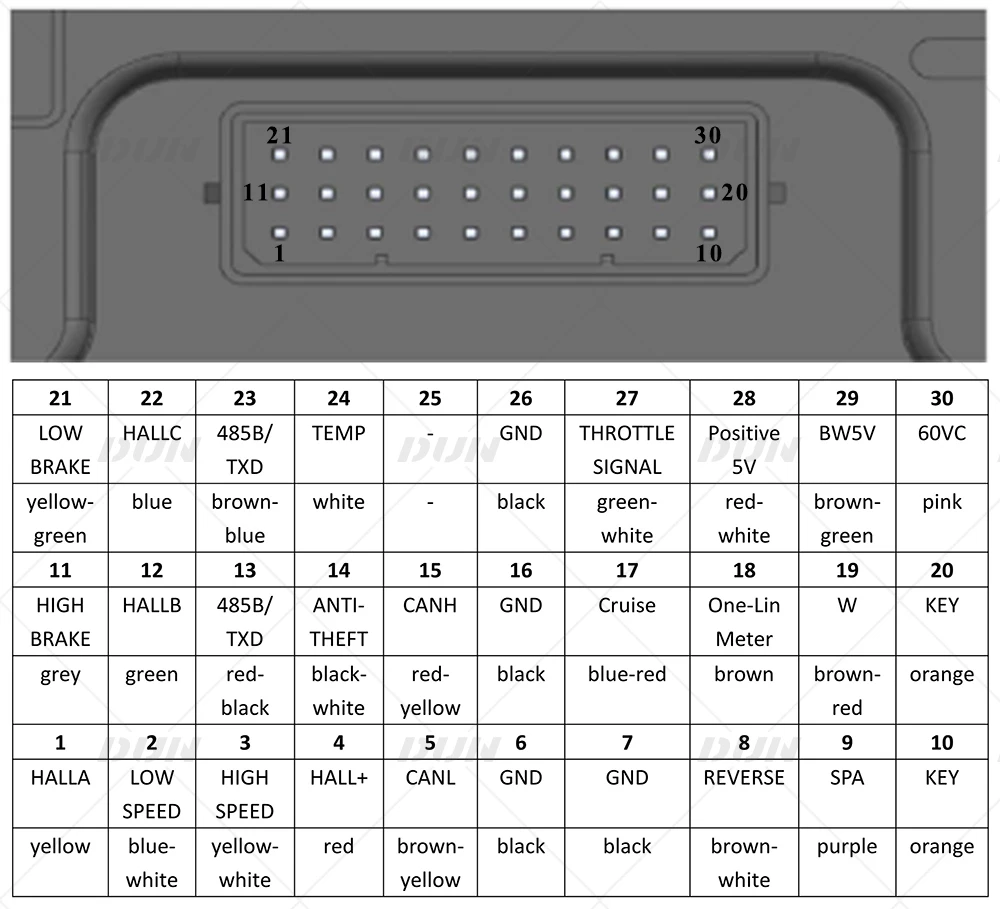

Pin Definition
Controller Test
We will test each controller, motor before shipment to ensure that the product is working properly.
FAQ
Q: How about the Duty & Tax?
A: All products are sent in DDU mode; the total price does not include tax and duty. The relevant tax and duty need to be paid by the buyer.
We are not responsible for product customs clearance; please ensure that you have the ability to clear the goods before purchasing.
Q: About the functions and interfaces of the controller
A: Most of the controllers we sell are universal versions, not customized for a specific brand. Therefore, after installation, some auxiliary functions of the original vehicle may not work normally (such as speedometer display)
Most functional interfaces need to be modified, not plug and play.
Before refitting, please carefully check the function line on the original vehicle and the communication signal of the speedometer.
Q: How long is the delivery time?
A: For some stock controllers and motors, we could ship it out within 24 hours. If no stock, the delivery time is normally 6- 10 working days (some customized products will take more days).
Q: How about the warranty?
A: We offer a 1-year warranty for motors and controllers, but the buyer has to pay the return shipping cost for repairing or replacing a new one.
If you have any problems, please feel free to contact us, and we will try our best to help you.
If you don't have any knowledge of electric kit assembly, please make a prudent choice to buy it or not! There is no warranty for man-made damage.
Q: About the shipping way
A: Sometimes the online shipping cost and shipping way are not the best; we will choose the most convenient shipping way for you and will inform you before shipping. Thank you for your understanding.
