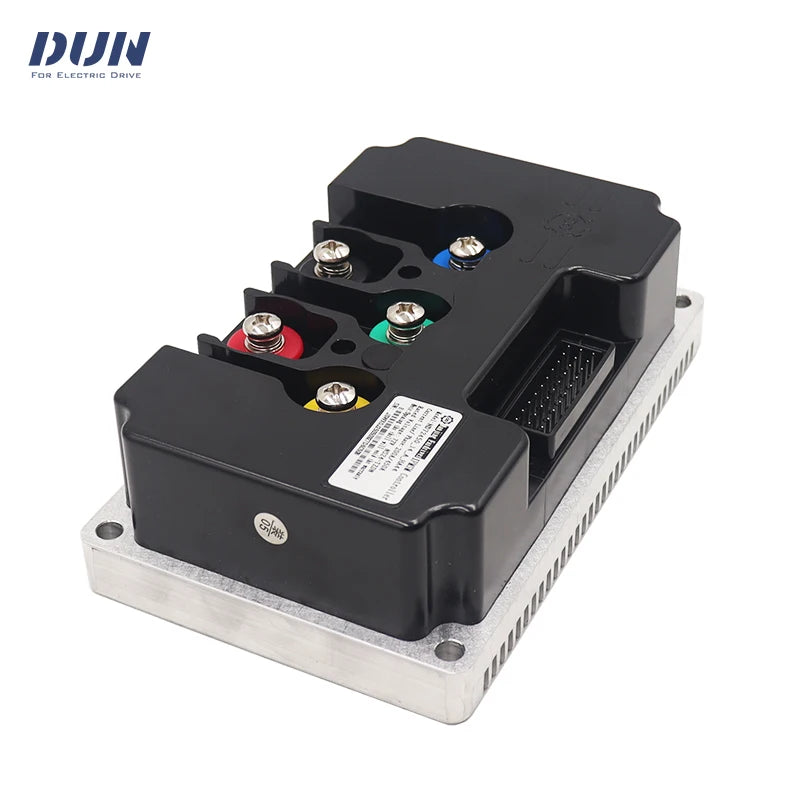

FarDriver ND72680 High-Performance Controller Kit
FarDriver ND72680 High-Performance Controller Kit
Couldn't load pickup availability
FarDriver ND72680 High-Performance Controller Kit –
350A Continuous DC / 680A Peak Phase Current, N7 Speedometer Display & T08 Throttle Assembly (Optimized for QS138 90H V3 Motors)
Unleash full power from your high-performance electric motorcycle, Sur-Ron/Talaria conversion, or QS138 mid-drive setup with the FarDriver ND72680 Controller Kit. Engineered to drive 4000W to 6000W+ high-torque motors (specifically optimized for the QS138 90H V3), this controller handles a massive 350A continuous DC battery current and an extreme 680A peak phase current.
This complete performance package includes the N7 LCD Speedometer Display, T08 Twist Throttle Assembly, and a Wireless Bluetooth Tuning Adapter. Utilizing Field-Oriented Control (FOC) vector processing and flux weakening algorithms, the ND72680 extends top-end motor RPM while providing smooth, precise low-speed modulation.
⚠️ Technical Wiring & Voltage Selection Notice
IMPORTANT WIRING & DISPLAY SETUP:
Display Voltage Matching: Select your exact battery operating voltage (48V, 60V, or 72V) for the N7 Display at checkout so the speedometer battery gauge calibrates correctly.
Manual Wiring Required: The included N7 Display and T08 throttle are not plug-and-play out-of-the-box. Connectors must be pinned and wired to match your harness according to the schematic.
Speed Signal Protocol: Speedometer output uses standard One-Line (YXT) digital signaling.
🚀 Key High-Performance Features
-
Extreme 680A Phase Current: Delivers aggressive off-the-line torque for instantaneous wheelies and rapid launch acceleration.
-
Optimized for QS138 90H V3: Pre-configured control parameters tailored for popular 4000W–6000W mid-drive motors.
-
Wireless Bluetooth Smartphone Tuning: Wirelessly calibrate phase limits, busbar current, throttle response curves, regen braking force, and flux weakening using the FarDriver App.
-
Full-Featured Signal Protocol: Integrated logic for 3-speed toggles, reverse, high/low brake cutoffs, anti-theft immobilizers, cruise control, and motor temperature monitoring.
-
Automated Self-Learning: Built-in self-learning routine detects phase angles and Hall sensor timing automatically during setup.
📊 Technical Specifications Matrix
| Specification Parameter | FarDriver ND72680 Kit Specifications |
| Brand / Manufacturer | Nanjing FarDriver |
| Model Number | ND72680 (ND72680+Display+Throttle Kit) |
| Continuous Battery DC Current | 350A DC |
| Peak Phase Current Protection | 680A Phase |
| Matched Motor Wattage | 4000W – 6000W+ (e.g., QS138 90H V3) |
| Control Architecture | Sine Wave FOC Vector Control |
| Speedometer / Telemetry Display | N7 Digital LCD Display (48V / 60V / 72V Options) |
| Throttle Interface | T08 Precision Twist Throttle Assembly |
| Speed Signal Output | One-Line (YXT) Digital Signal |
| Tuning Connectivity | Wireless Bluetooth Dongle (iOS/Android App) |
⚙️ Commissioning & Installation Guide
-
Phase & Power Hookup: Connect your 72V main battery leads, 3-phase motor lines (U, V, W), and 5V Hall sensor harness.
-
Throttle & Display Pinning: Wire the T08 throttle (0–5V) and N7 Display (YXT speed signal & ignition power) to the main controller plug per the wiring schematic.
-
Bluetooth Self-Learning Routine: Power on the ignition, open the FarDriver app via Bluetooth, and execute the automated self-learning process before initial test riding.

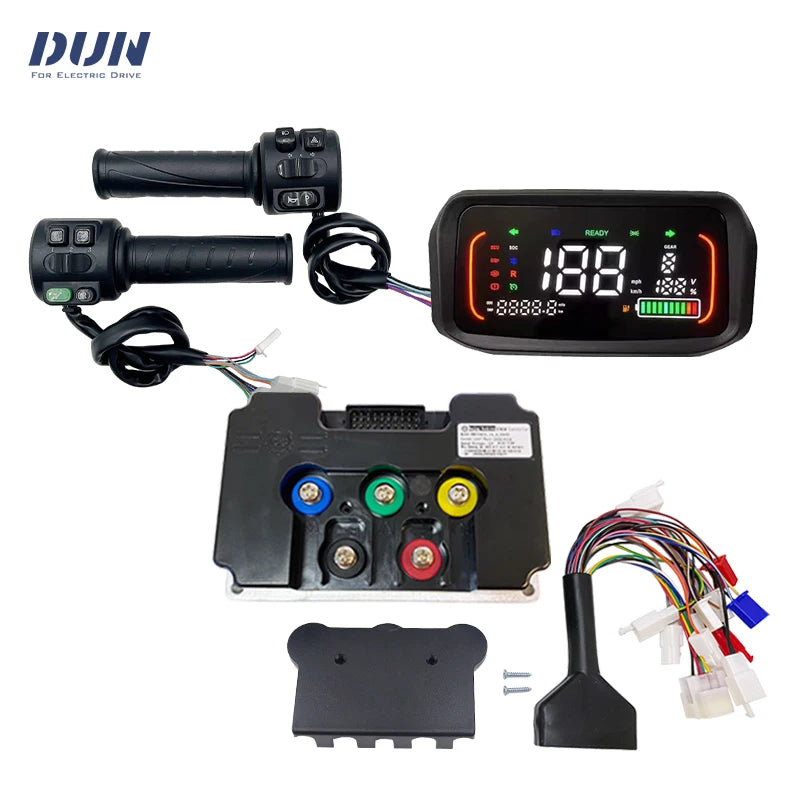

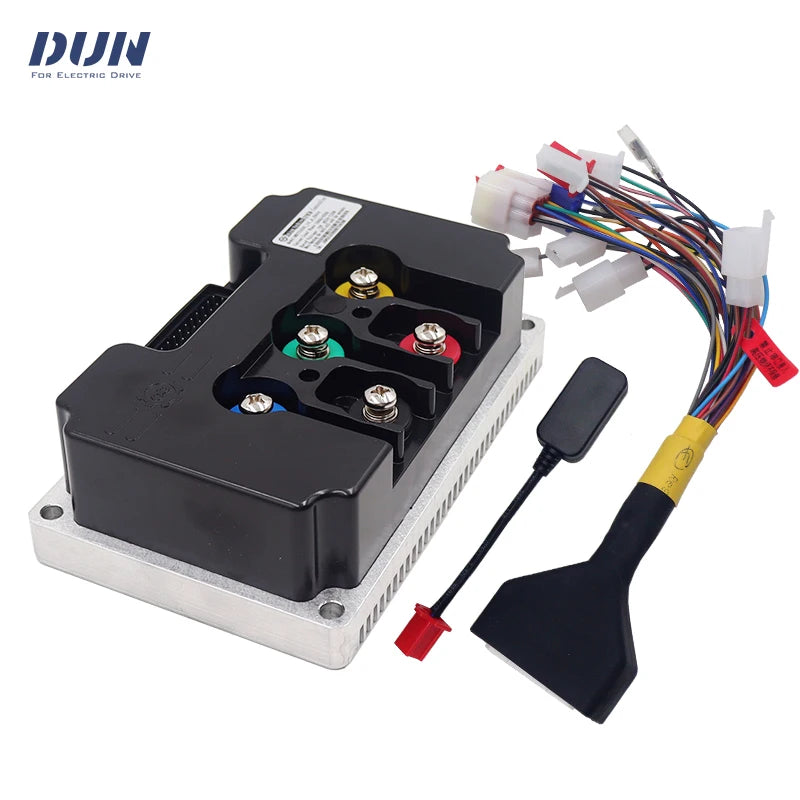

📦 Package Contents
-

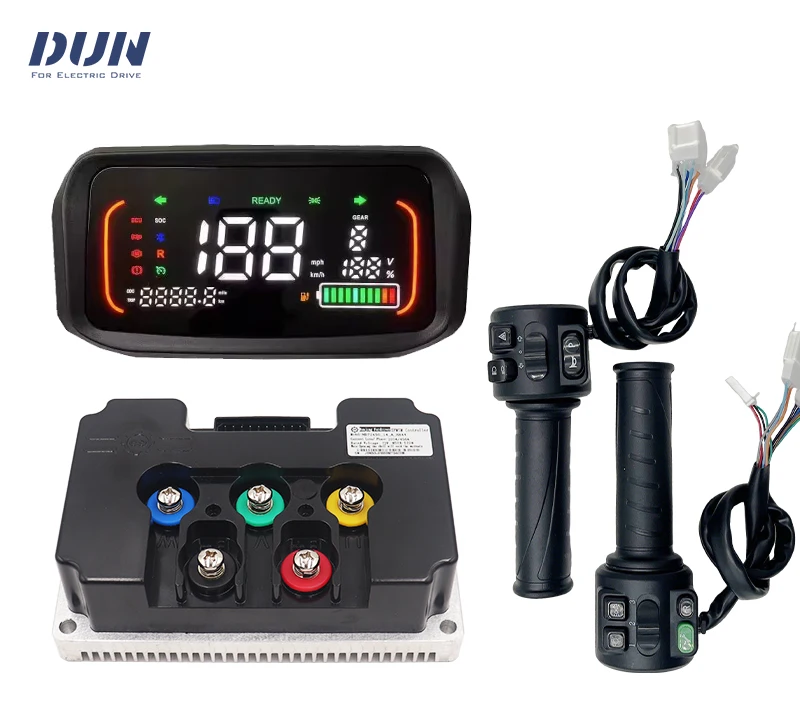

1 x FarDriver ND72680 High-Power Sine Wave Controller
-
1 x Wireless Bluetooth Debugging Adapter
-
1 x N7 Digital LCD Display (with Mounting Bracket)
-
1 x T08 Twist Throttle Assembly Set
-
1 x Wiring Harness Pinout Diagram
Product Description
ND72680/ND84680/ND96680 are sine wave controllers with IP67 waterproofing, suitable for 4-6kw motors.
For ND72680, the peak voltage is 88V;
For ND84680, the peak voltage is 100V;
For ND96680, the peak voltage is 115V.
It's the Hall version (by default), suitable for Hall motors.
*ND72680/ND84680/ND96680 come with heat sinks.

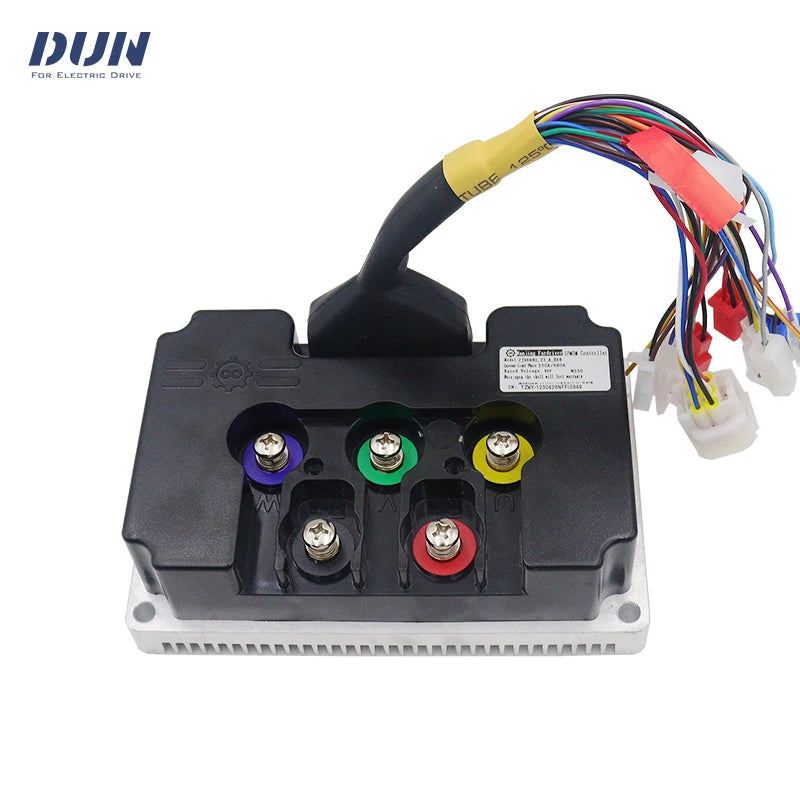

Controller Specification
ND72680 is the Hall version by default, suitable for Hall motors.
1. Model: ND72680
2. Working Communication: Hall Sensor
3. Available Rated Battery Voltage: 48V-72V
4. Peak Battery Voltage: 88V
5. Available Motor Power: 3000W - 6000W
6. Default Throttle Working Voltage: 0V - 5V
7. Peak DC Current: 350A
8. Peak Phase Current: 680A
9. Mosfets Detail: 30 FET
10. Weight: 2.4 kg
11. Installation Size: 189mm * 120mm * 60mm
12. Controller Design: Sine Wave BLDC
13. Case Material: Aluminum
14. Supports Programmable
15. Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV

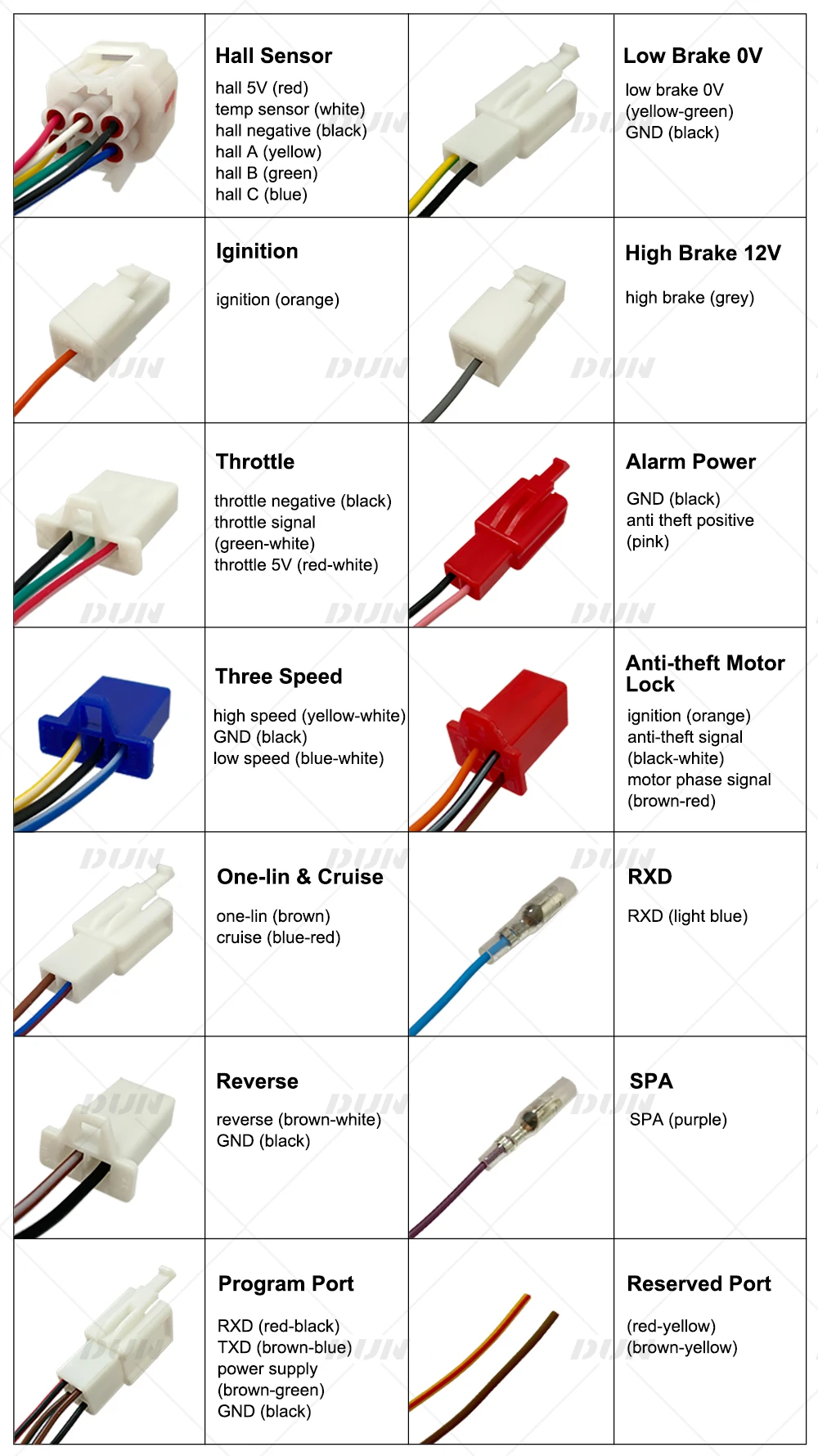

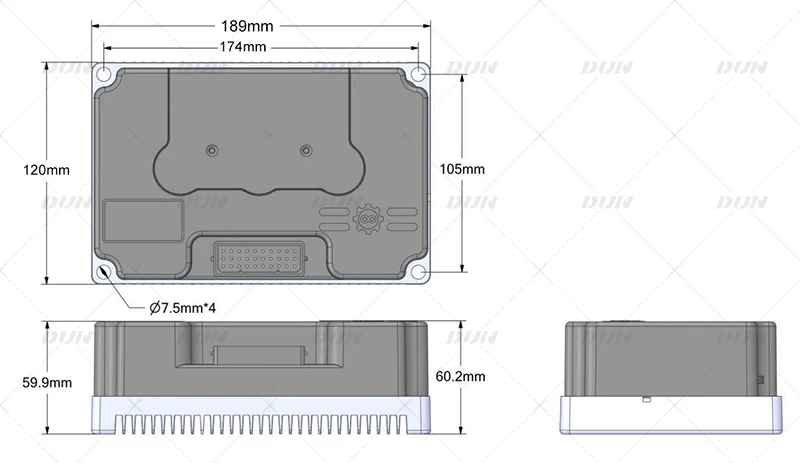

Controller Drawing & Wiring

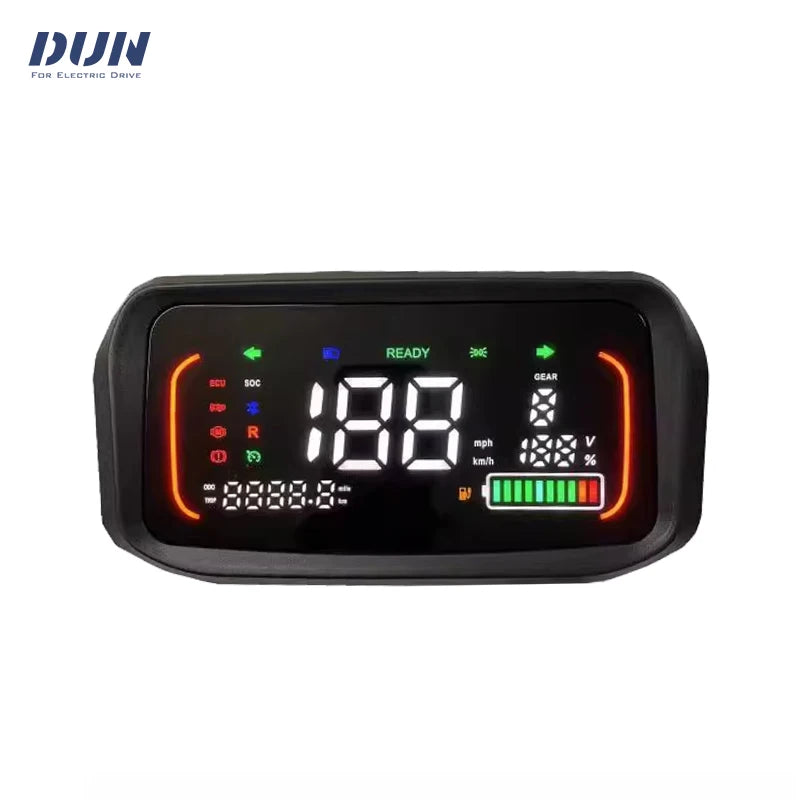

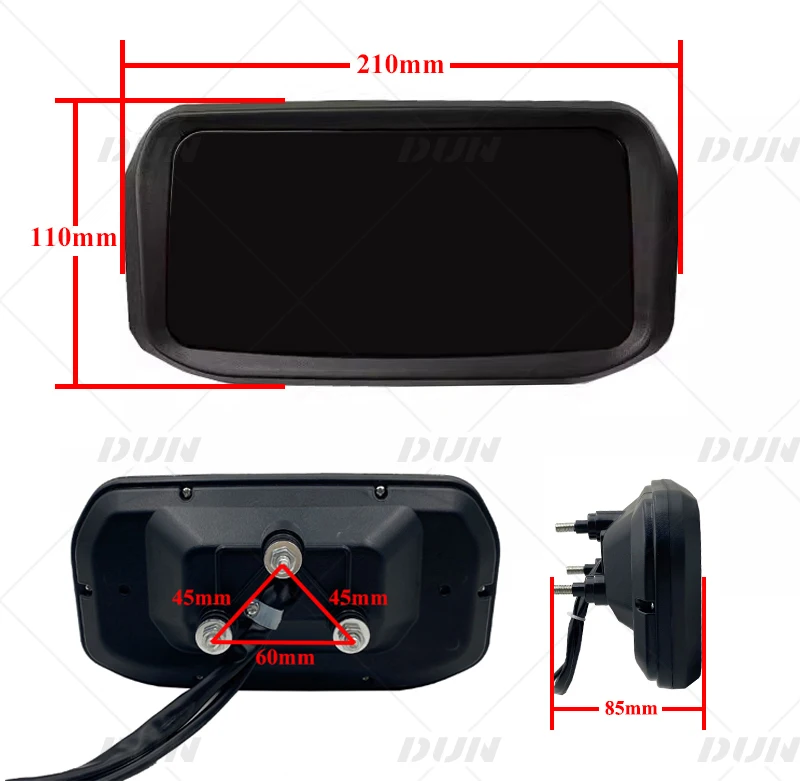

N7 Display Specification

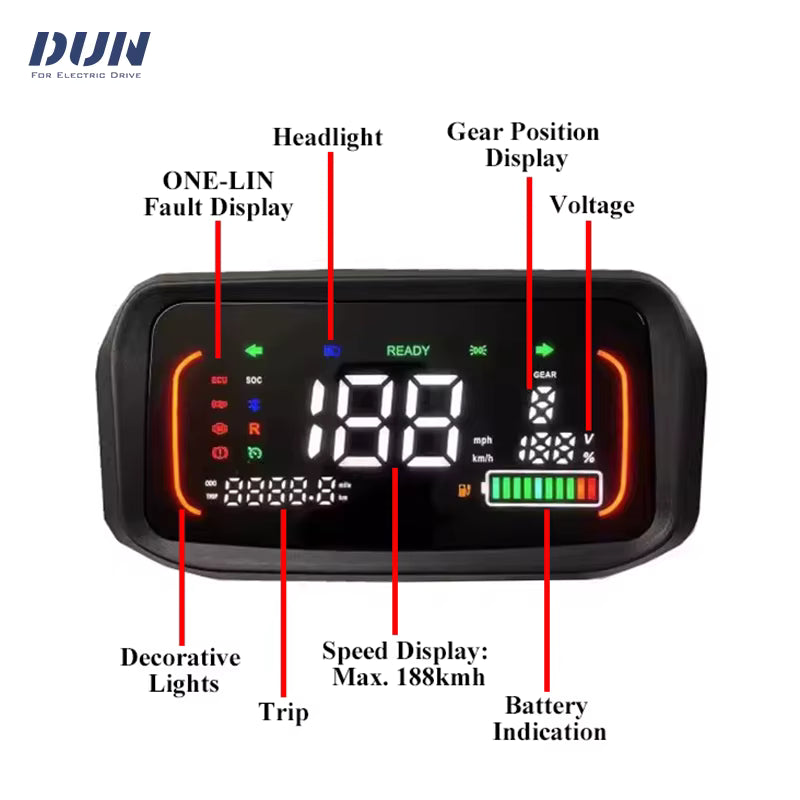

Displays data: Speed (Max 188 km/h), Voltage, Battery Level, Trip Distance, Headlighting, Gear, Fault Display, Turning Lighting.
Display Wiring & Drawing
Red: Positive: +36V-108V
Black/Green: Negative - GND
Purple: ONE-LIN Speed Sensor
Dark Blue: Headlight
Orange: Left Light
Light blue: Right Light
Black Plug 1: KMH/MPH Switching
Black Plug 2: Battery voltage switching

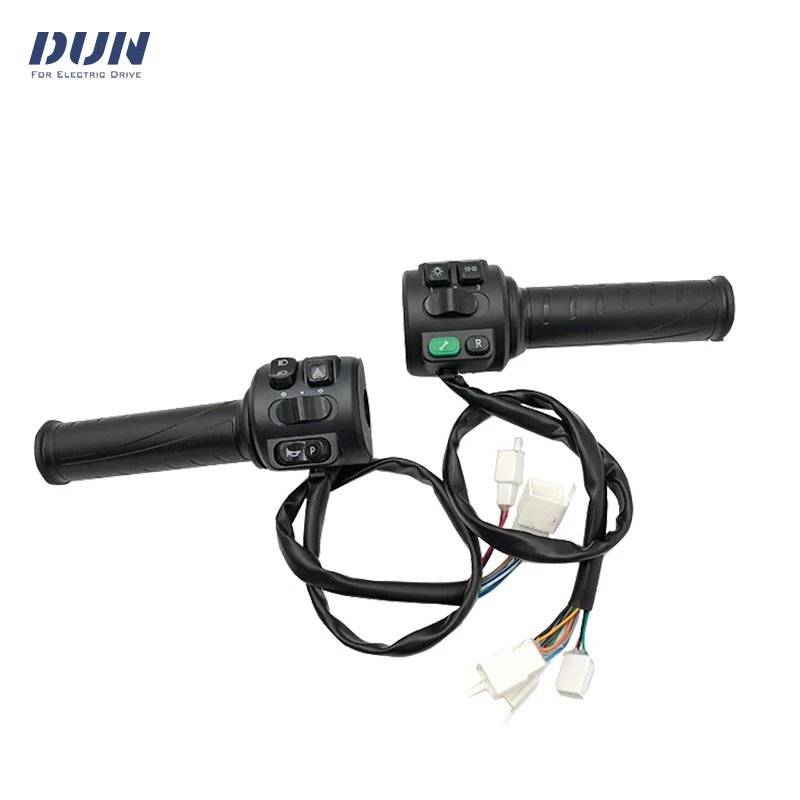

T08 Throttle Specification
Functions: Throttle, Three Speed, Parking, Reverse, One Click Repair, Left Turn Signal, Right Turn Signal, Headlight, Parking Light, Horn.
