Fardriver ND72530 72V 270A (5000W–6000W) Programmable Sine Wave BLDC/PMSM Controller Bundle with DKD Speedometer Display
Unlock maximum acceleration, ultra-smooth torque delivery, and surgical power tuning for your electric motorcycle, high-powered e-bike, or custom EV build. The Fardriver ND72530 Programmable Sine Wave Controller is an industry-favorite power unit engineered for high-output 72V Brushless DC (BLDC) and Permanent Magnet Synchronous Motors (PMSM) rated from 5000W up to 6000W peak.
Capable of pushing up to 270A line current, the ND72530 utilizes advanced field-oriented vector control (FOC) to ensure whisper-quiet, high-efficiency motor rotation without harsh startup shudder. Bundled together with the crisp, multi-function DKD Speedometer Display, this kit gives you real-time telemetry alongside deep Bluetooth/PC software programmability for self-learning phase angle alignment, flux weakening, and custom throttle curves.
🚀 Key High-Performance Features
-
High-Output 270A Current Rating: Handles up to 270A line current / 330A–350A phase current, making it ideal for 72V motor setups pushing 5000W to 6000W bursts.
-
Precision Sine Wave (FOC) Drive: Eliminates electrical buzz and vibration for silky-smooth throttle response, reduced thermal buildup, and higher overall system efficiency.
-
Smart Self-Learning & Auto-Tuning: Features automated Hall sensor recognition and phase wire angle calibration—delivering immediate compatibility with QS Motor, Yuma Motor, Siaecosys, and custom hub/mid-drive motors.
-
Includes DKD Speedometer Display: High-visibility LCD gauge displays real-time vehicle speed (km/h or mph), battery voltage, gear mode, fault codes, turn indicators, and odometer metrics.
-
Fully Programmable (Bluetooth / PC): Fine-tune phase current limits, regenerative braking intensity, 3-speed gear switches, field weakening speed boosts, and temperature protection thresholds via mobile app or PC cable.
📊 Technical Specifications & Controller Matrix
Verify mechanical and electrical compatibility for your custom build:
| Specification Parameter | Fardriver ND72530 Performance Specs |
| Controller Model | Fardriver ND72530 |
| Working Voltage Range | 72V Nominal (Supports typical 60V–84V working window) |
| Max Line Current | 270A |
| Continuous / Peak Power | 5000W Continuous / 6000W Peak |
| Drive Technology | Sine Wave / Vector FOC Controller with Hall Sensors |
| Compatible Motor Types | PMSM / BLDC Brushless Motors (QS Motor, Yuma, etc.) |
| Included Gauge Display | DKD Digital LCD Speedometer Display |
| Communication Interface | LIN Bus / CAN Bus / One-line Speed / Bluetooth App |
| Color Finish | Industrial Anodized Stealth Black |
| Hazardous Chemical Registry | High-concerned chemical: None |
⚙️ Programming & Self-Learning Installation Protocol
-
Phase & Hall Wiring: Connect motor Phase wires (U, V, W) and 5-pin Hall sensor plug securely. Ensure battery voltage is matched to 72V Nominal before powering on.
-
Executing Self-Learning: Activate the self-learning feature in the Fardriver smartphone app or PC software while the drive wheel is elevated off the ground. The controller will automatically detect motor phase angle and rotation direction.
-
Custom Tuning: Adjust phase current ratios and flux weakening parameters incrementally. Note: When pairing with non-standard motor brands, test initial parameters under low-speed conditions.
📦 What's Inside the Box?
-

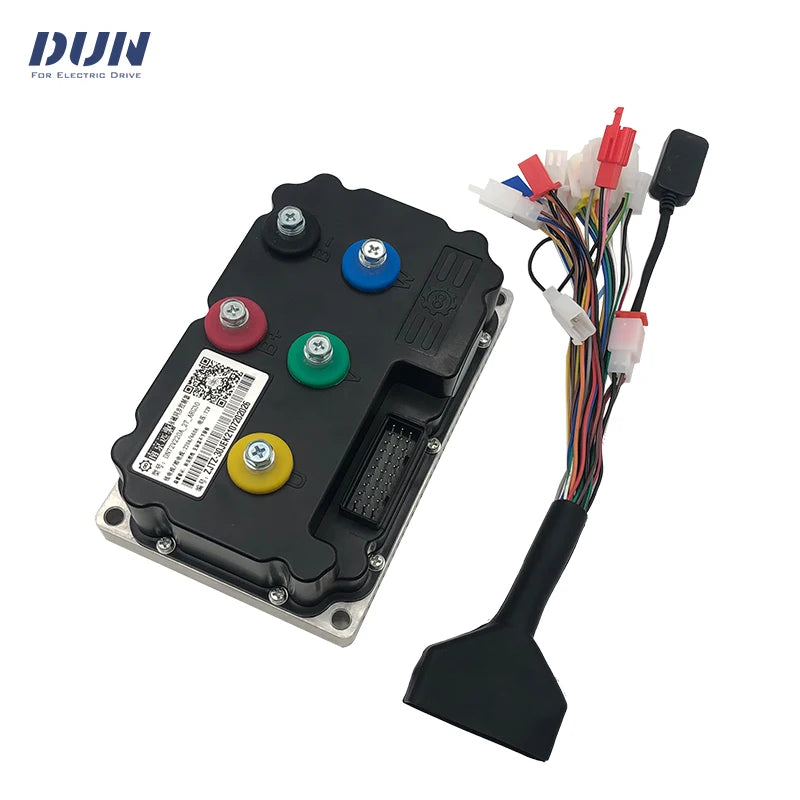

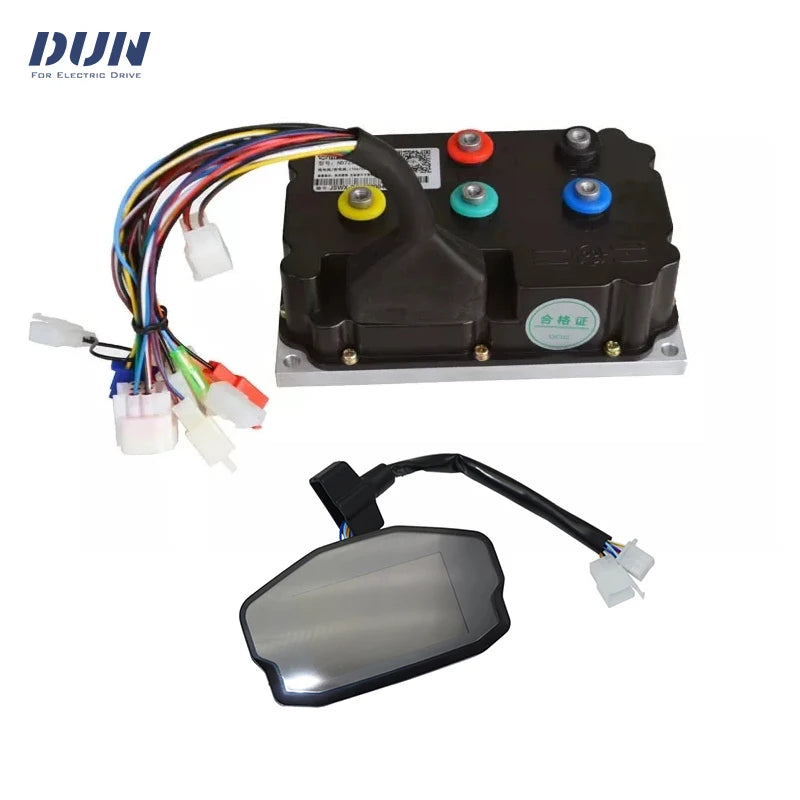

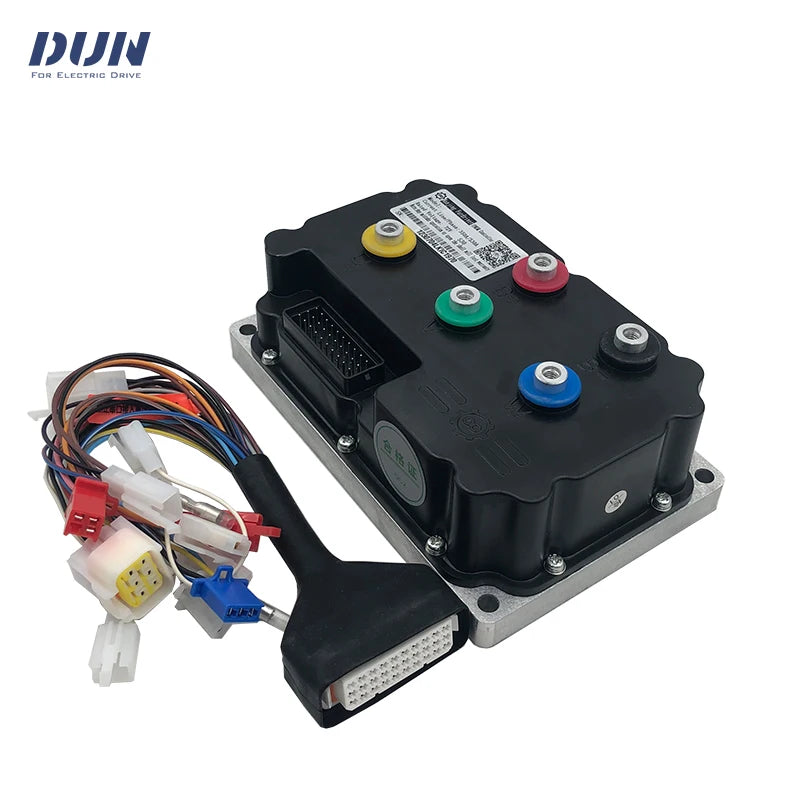

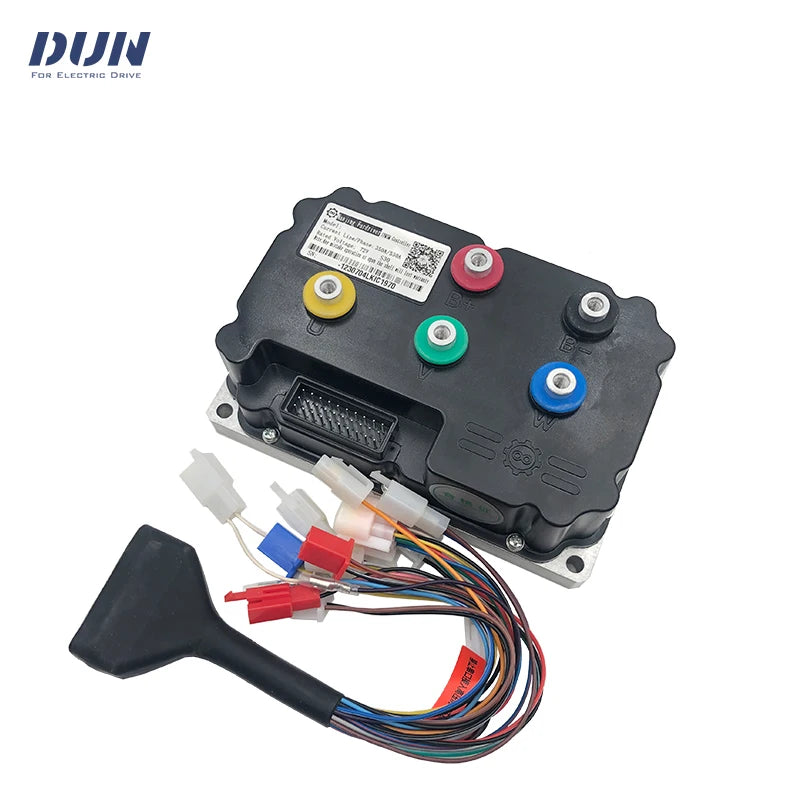

1 x Fardriver ND72530 72V 270A Programmable Sine Wave Controller
-
1 x DKD Digital LCD Speedometer Display Unit
-
1 x Multi-Pin Wiring Harness Lead Set
-
1 x PC/Bluetooth Programming Interface Module
Take full control of your 5000W–6000W e-vehicle build. Select your kit configuration below, click Add to Cart, and experience precision Fardriver performance!
- Package includes -
1pc x Controller ND72530
1pc x Bluetooth module for Cell Phone
1pc x DKD Display
1pc x Manuals & Software Link for Download
- Order Guide -
1) Pls. check your motor type, does it BLDC or PMSM Motor? with Hall or encoder?
2) Pls. check the controller functions if it's suitable for you or not.
3) Pls. check the controller size if it's ok or not for installation.
- Controller SPEC -
Nanjing Fardriver Controller
1 Model: ND72530
2 Working Communication: Hall Sensor
3 Available Rated Battery Voltage: 48V/60V/72V
4 Peak Battery Voltage: 88V
5 Available Motor Power: 3000W - 7000W
6 Default Throttle Working Voltage: 0V - 5V
7 Peak DC Current: 350A
8 Peak Phase Current: 530A
9 Mosfets Detail: 24 FET
10 Weight: 2.5 kg

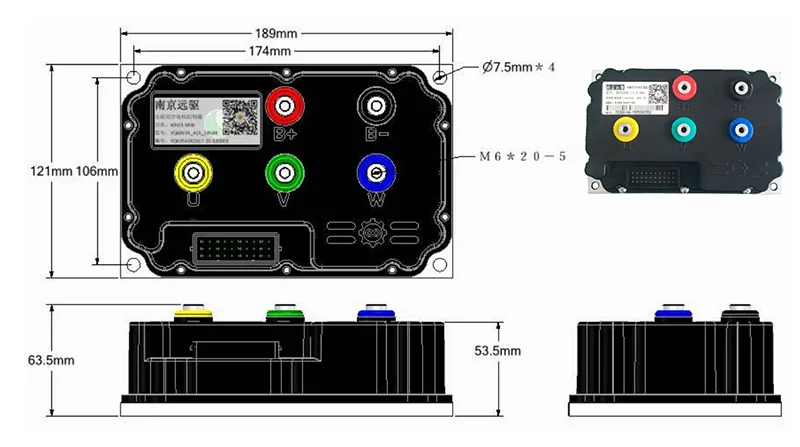

11 Installing Size: 189mm * 121mm * 65mm
12 Controller Design: Sine Wave BLDC
13 Case Material: Aluminum
14 Support Programmable: PC & Phone

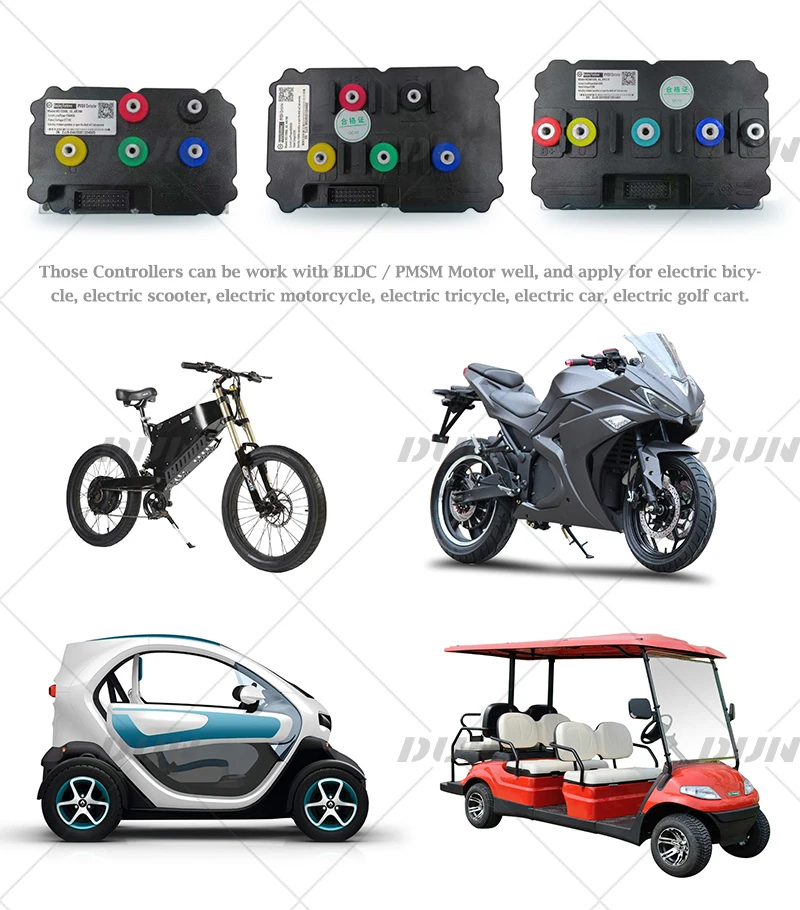

15 Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV

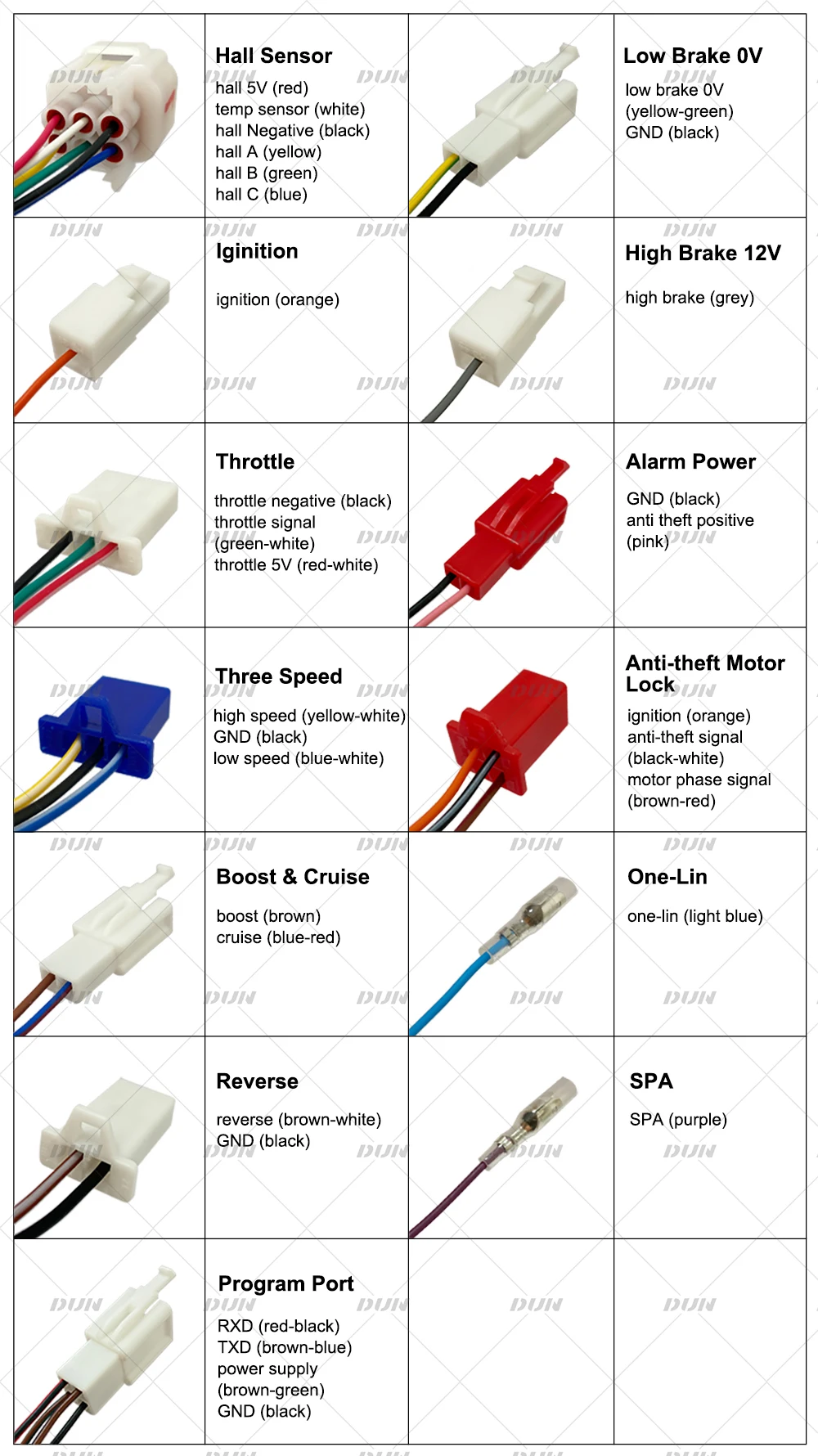

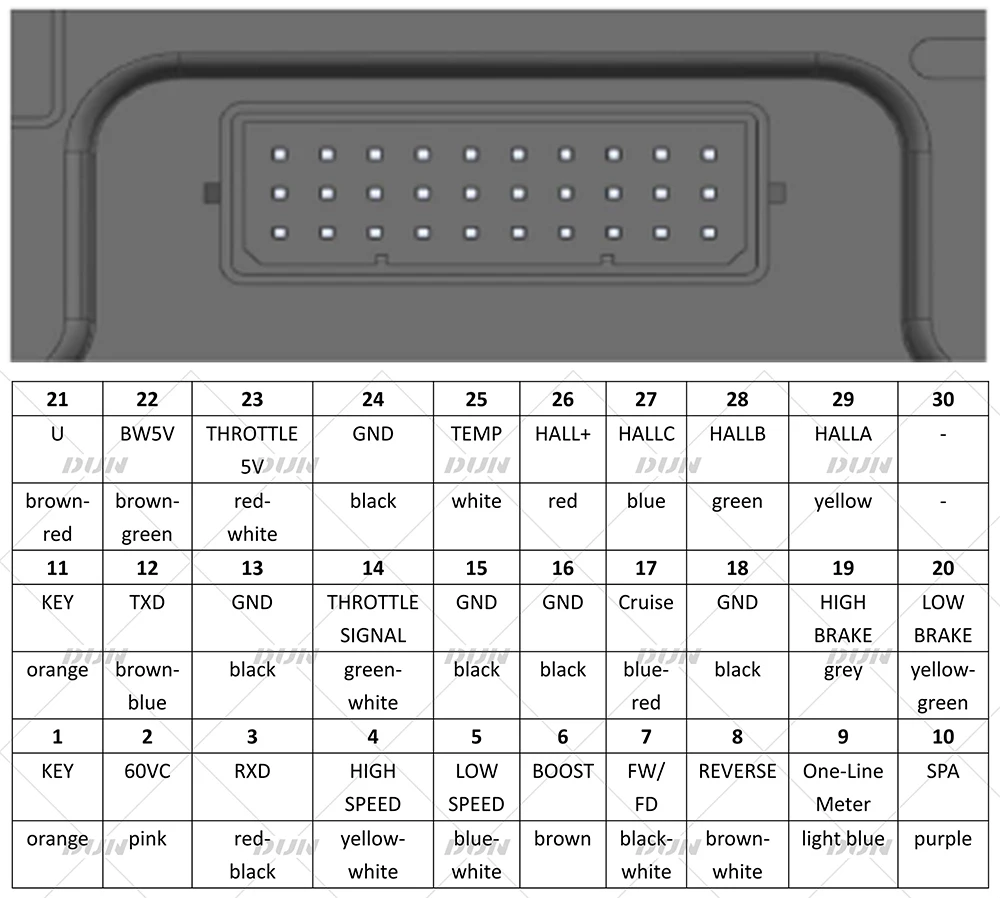

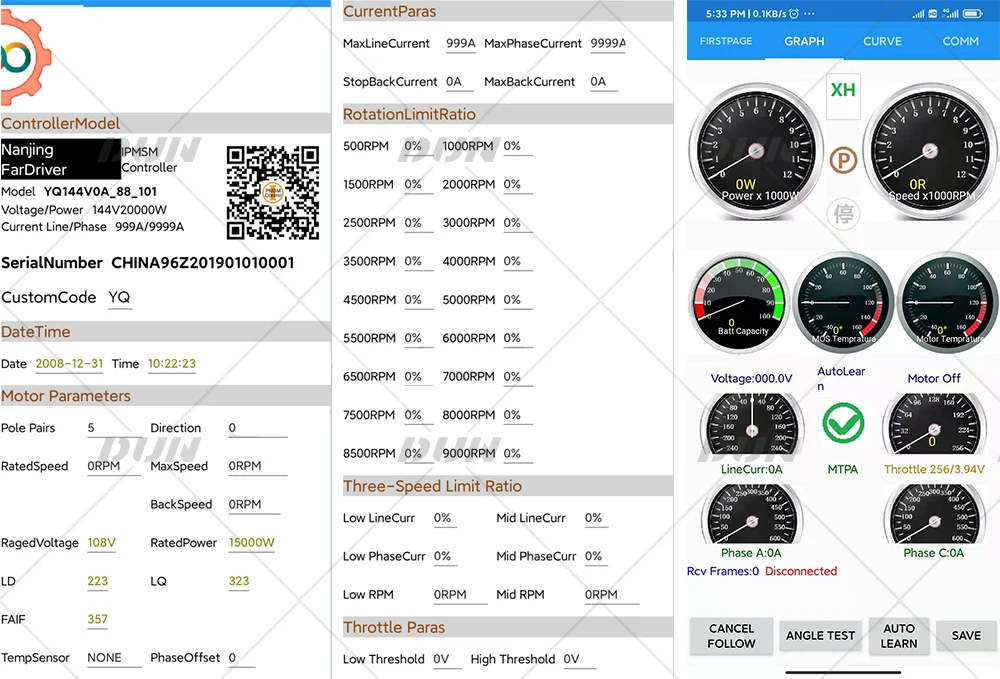

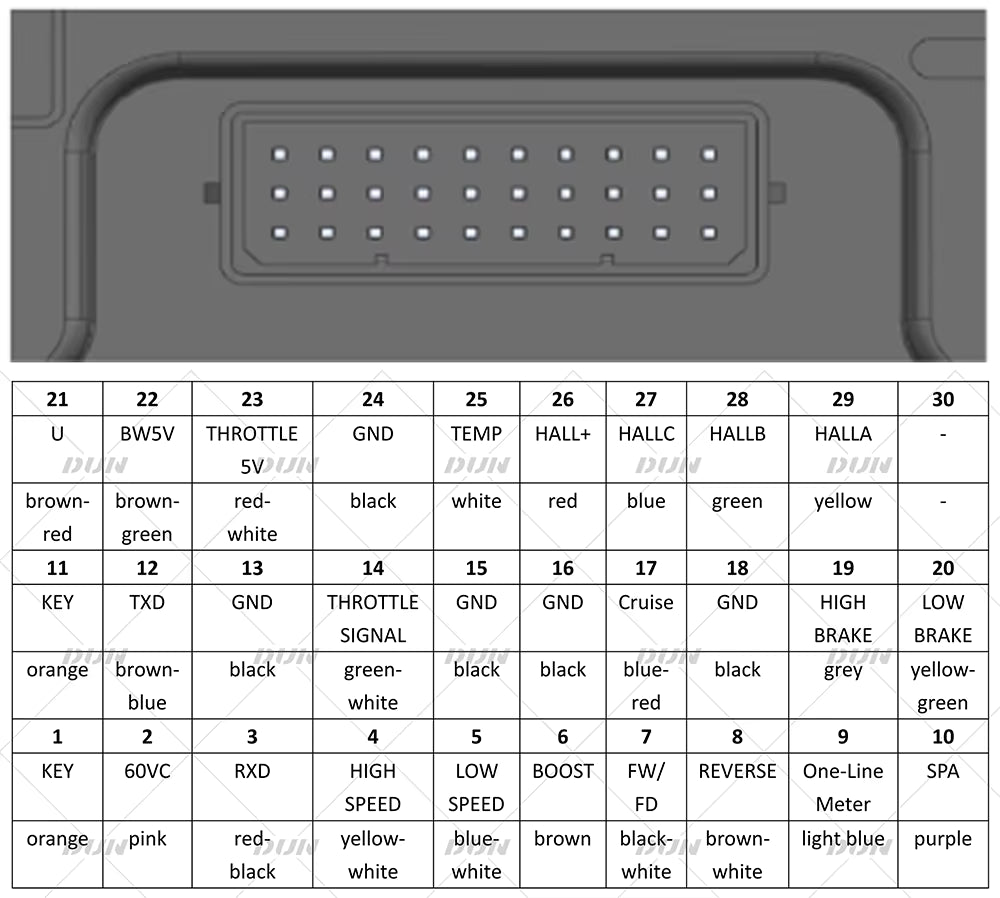

- APP Surface & Wiring -

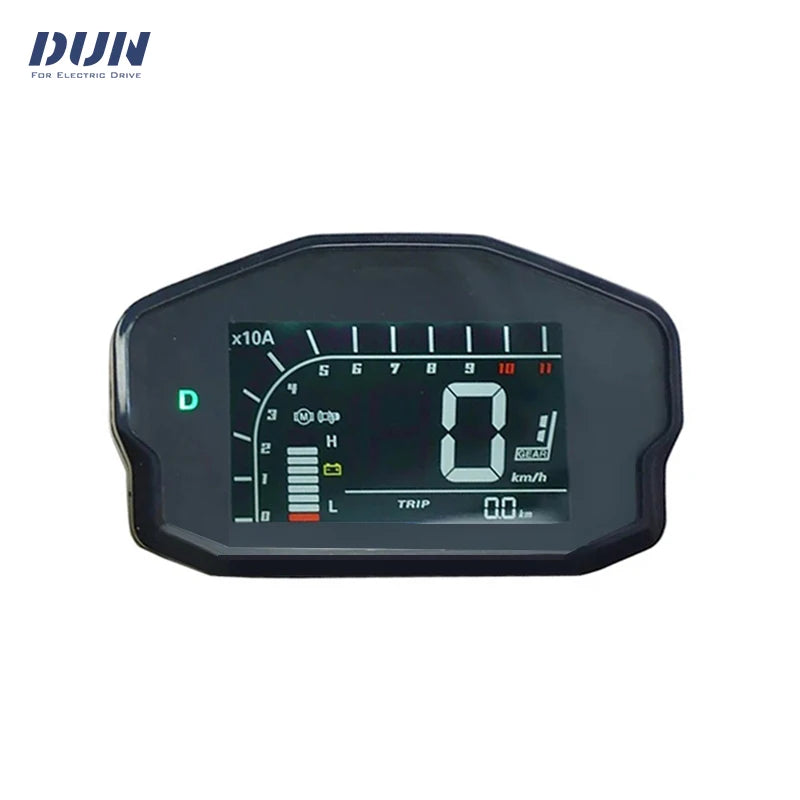

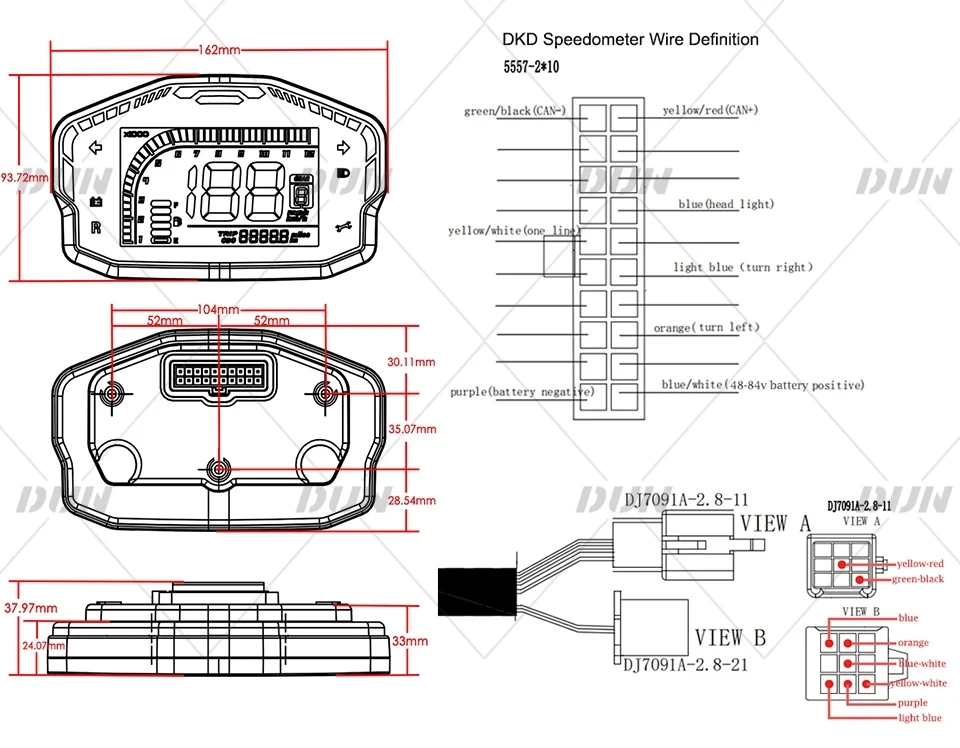

-DKD Display-
1) After power on, the self-test of the display is completed, then press and hold the left button for 10 seconds to enter the background and enter the password;
2) Left-click to adjust data, right-click to shift;
3) Password 153, set the perimeter(mm), the number of motor pole pairs, the offset, the unit mm is CC 1413mm (18inch tire perimeter) by default, after the setting is completed, long press the right button to enter the number of motor pole pairs(PL 24-10, pole pair number 24 by default) and offset(10);
4) Password 256, high and low gear (E, S gear) and normal gear selection; -2 is high and low gear, -0 is normal gear display;
5) Password 372, clear ODO, limited to 3 times;
6) Password 856, 48V, 60V, 72V, for selection, synchronized with the grid number, the lithium battery automatically takes the SOC, and automatically switches. If the lithium battery is changed to another battery, it must be powered on again;
7) Password 879, fixed voltage calibration, 48V, 60V, 72V, corresponding to the volatge setting;
8) Password 824, self-input voltage calibration;
9) Password 974, KMH/MPH switch setting;
10) Password 928, D gear light, N gear light off setting, can be turned off when only the liquid crystal display gear is needed.
11) Password 919, to change the value of overvoltage and undervoltage. Front is overvoltage, back is undervoltage.

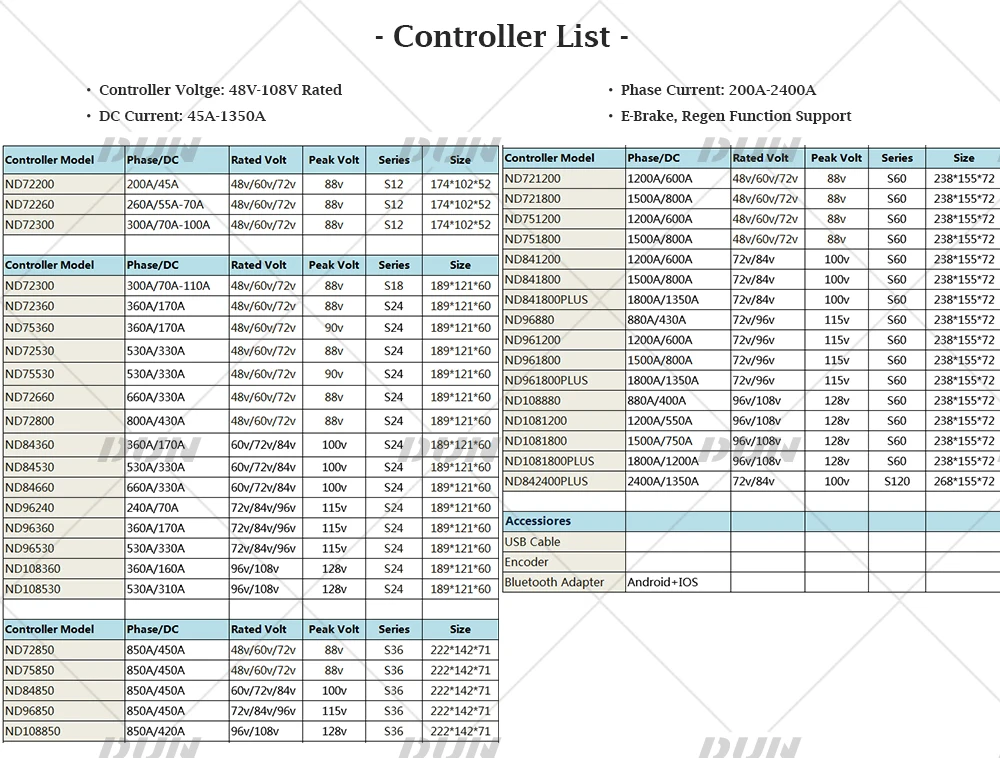

- All Models -
