FarDriver ND72450 V2 3000W–5000W Controller (48V/60V/72V 200A DC / 450A Phase) for QS138 70H Motor
The FarDriver ND72450 V2 Controller handles 450A peak phase current and 200A continuous battery current across 48V, 60V, and 72V DC system voltages, optimized natively for the QS138 70H 3000W mid-drive motor and high-performance electric motorcycles.
⚠️ Wiring & Tuning Guidelines
IMPORTANT SYSTEM SPECIFICATIONS:
QS138 70H Motor Calibration: Pre-configured for seamless auto-tuning with QS138 70H 3000W–5000W mid-drive motors and QS hub motors.
Speed Signal Protocol: Features One-Line (YXT) Speed Signal transmission for direct speedometer telemetry.
Wireless Bluetooth Module Included: Connects via Bluetooth to Android and iOS devices for auto-learning motor phase setup, throttle curve adjustment, and flux weakening configuration.
🚀 Key High-Performance Features
-
Extreme 450A Phase Current Output: Delivers exceptional launch torque for high-output mid-drive setups and aggressive hill climbing.
-
Multi-Voltage System Compatibility: Operates seamlessly across 48V, 60V, and 72V DC lithium battery architectures (up to 88V max).
-
Advanced Sine Wave FOC Drive: Reduces motor noise, current ripple, and heat generation for smooth, linear power delivery.
-
Complete Harness Functionality: Pre-wired for Hall sensor, 0–5V Throttle, Ignition, YXT Speedometer, High (12V) / Low (0V) Brake cutoffs, 3-Speed Shift, Motor Temp Sensor, Reverse, Flux Weakening, Anti-Theft, Cruise, and Auto-Learning.
-
Sealed IP67 Construction: Heavy-duty aluminum substrate PCB and casing provide full protection against water, dust, and vibration.
📊 Technical Specifications Matrix
| Specification Parameter | FarDriver ND72450 V2 Specifications |
| Model Designation | ND72450 V2 Series |
| Drive Technology | FOC Sine Wave BLDC with Auto Self-Learning |
| Supported System Voltages | 48V | 60V | 72V DC (Max Peak Voltage: 88V) |
| Continuous Battery Current | 200A Max DC Current |
| Peak Phase Current | 450A Max Phase Current |
| Matched Motor Power Range | 3000W – 5000W (Optimized for QS138 70H) |
| Speedometer Telemetry Protocol | One-Line (YXT) Speed Signal |
| Ingress Protection Rating | IP67 Sealed Waterproof Enclosure |
| App Wireless Connectivity | Bluetooth Dongle Included (Android & iOS Compatible) |
📋 Ideal Applications
The FarDriver ND72450 V2 3000W–5000W Controller is engineered for:
-
QS138 70H 3000W Mid-Drive Electric Motorcycle Conversions
-
48V, 60V, and 72V Custom E-Moto Builds Requiring 450A Phase Output
-
High-Output Performance Builds Seeking Wireless App Auto-Tuning and Flux Weakening
📦 Package Contents
-
1 x FarDriver ND72450 V2 3000W–5000W Motor Controller
-
1 x Wireless Bluetooth Programming Adapter
-
1 x Main Multi-Function Connection Harness
Unleash maximum mid-drive launch torque with 450A phase power and Bluetooth auto-tuning! Select your options above, click Add to Cart, and order today!
Product Description
ND72450/ND84450/ND96450 are sine wave controllers with waterproofing grade IP67, suitable for 3-5kw motors.
For ND72450, the peak voltage is 88V;
For ND84450, the peak voltage is 100V;
For ND96450, the peak voltage is 115V.
It's a Hall version (by default), suitable for Hall motors.
*ND72450/ND84450/ND96450 come with heat sinks.
Controller Specification
ND72450 is the Hall version by default, suitable for Hall motors.
1. Model: ND72450
2. Working Communication: Hall Sensor
3. Available Rated Battery Voltage: 48V-72V
4. Peak Battery Voltage: 88.7V
5. Available Motor Power: 3000W - 5000W
6. Default Throttle Working Voltage: 0V - 5V
7. Peak DC Current: 200A
8. Peak Phase Current: 450A
9. Mosfets Detail: 24 FET
10. Weight: 2.1 kg
11. Installation Size: 189mm * 120mm * 60mm
12. Controller Design: Sine Wave BLDC
13. Case Material: Aluminum
14. Supports Programmable
15. Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV
Controller Drawing

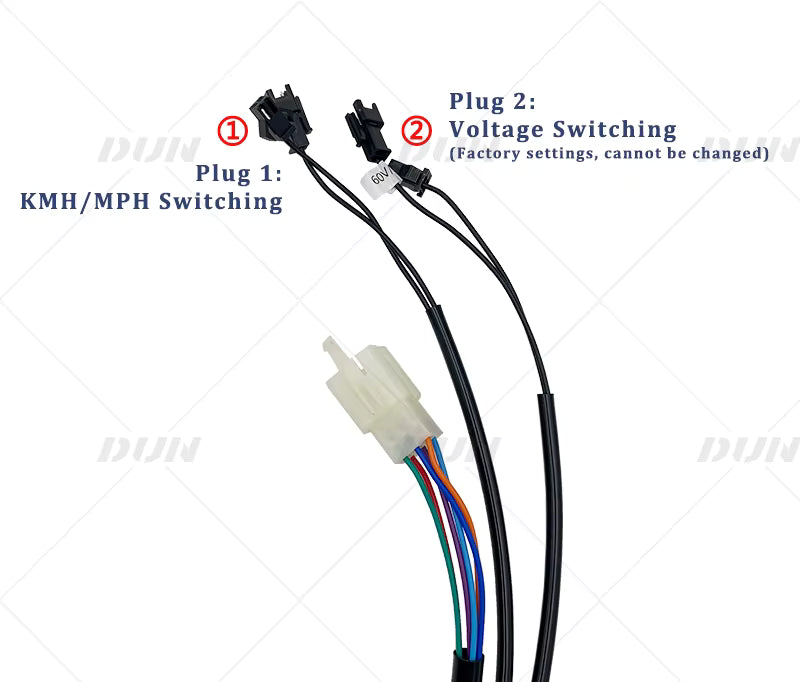

Port & Wiring Definition
App Page
