FarDriver ND72450 72V 450A Kit with DKD Display & T08 Throttle
FarDriver ND72450 72V 450A Kit with DKD Display & T08 Throttle
FarDriver ND72450 Controller Kit 48V-72V 200A/450A with DKD Display & T08 Throttle

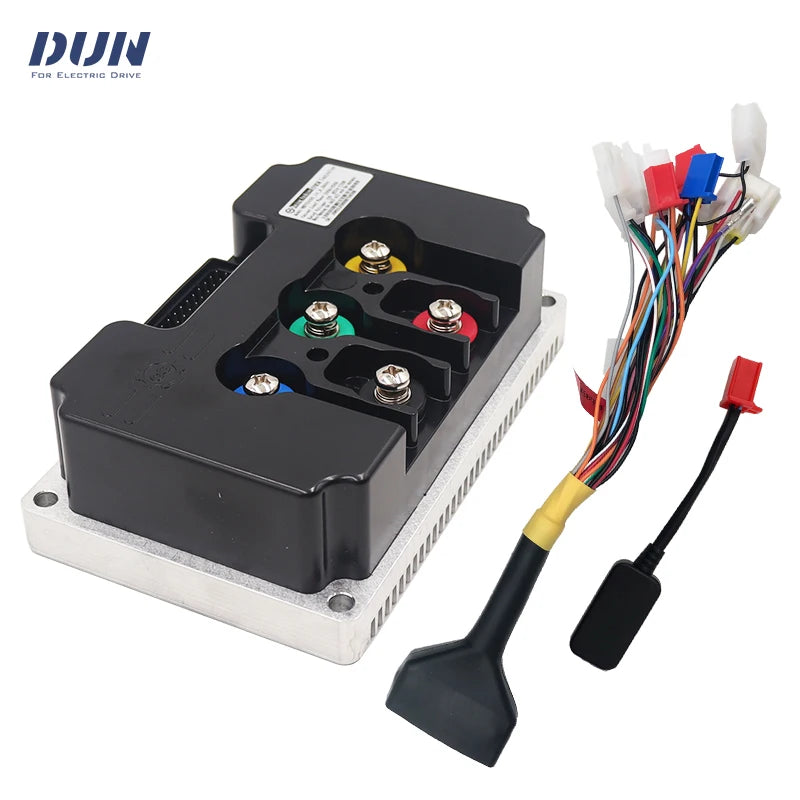

The FarDriver ND72450 Controller Kit includes a 72V 450A phase current sine wave controller, wireless Bluetooth adapter, DKD LCD Display with mounting bracket, and T08 Combination Throttle Switch, matched specifically for QS138 70H V3 mid-drive motors and 3000W–5000W builds.
⚠️ Wiring & System Compatibility Guidelines
IMPORTANT WIRING & HARNESS REQUIREMENTS:
Manual Wiring Required: The included DKD LCD Display and T08 Combination Throttle are not plug-and-play out of the box; custom terminal pinning or soldering is required to integrate with the main controller harness.
One-Line (YXT) Speed Signal: The DKD Display communicates via the YXT single-wire speed protocol provided on the FarDriver wiring harness.
Broad Motor Matching: Optimized natively for QS138 70H V3 mid-drive motors and QS hub motors; third-party motors require auto-tuning parameter calibration via the Bluetooth app.
🚀 Key High-Performance Features
-
Complete Drivetrain Control Package: Includes controller, Bluetooth module, DKD speedometer, and multi-switch handlebar throttle for total electric motorcycle management.
-
Massive 200A Battery / 450A Phase Output: Delivers exceptional torque for high-performance mid-drive and hub motor launches up to 5000W peak.
-
Integrated Hardware Functions: Features pre-configured leads for 0-5V Throttle, Ignition, YXT Speed Output, High/Low Brake triggers, 3-Speed Shift, Temp Sensor, Reverse, Flux Weakening, Anti-Theft Alarm, Cruise, and Auto-Learning.
-
Wireless Bluetooth Parameter Tuning: Includes plug-and-play Bluetooth module compatible with Android and iOS smartphone apps for custom throttle curves, current limits, and diagnostic logs.
-
US Warehouse Fast Shipping: Shipped directly from domestic US inventory for quick turnaround times.
📊 Technical Specifications Matrix
| Specification Parameter | FarDriver ND72450 Kit Specifications |
| Model Designation | ND72450 + DKD Display + T08 Throttle Kit |
| Controller Architecture | FOC Sine Wave BLDC with Auto Self-Learning |
| Operating Voltage Range | 48V – 72V DC |
| Continuous Battery Current | 200A Max DC Current |
| Maximum Phase Current | 450A Max Phase Current |
| Matched Motor Power Range | 3000W – 5000W (Ideal for QS138 70H V3 Mid-Drive) |
| Speedometer Signal Protocol | One-Line (YXT) Speed Signal |
| Included Peripherals | Bluetooth Dongle, DKD Display + Bracket, T08 Throttle |
| Harness Integration | Requires Manual Terminal Wiring for Display & Switch |
Product Description
ND72450/ND84450/ND96450 are sine wave controllers with waterproofing grade IP67, suitable for 4-6kw motors.
For ND72450, the peak voltage is 88V;
For ND84450, the peak voltage is 100V;
For ND96450, the peak voltage is 115V.
It's hall version (as default), suitable for Hall motors.
*ND72450/ND84450/ND96450 come with heat sinks.

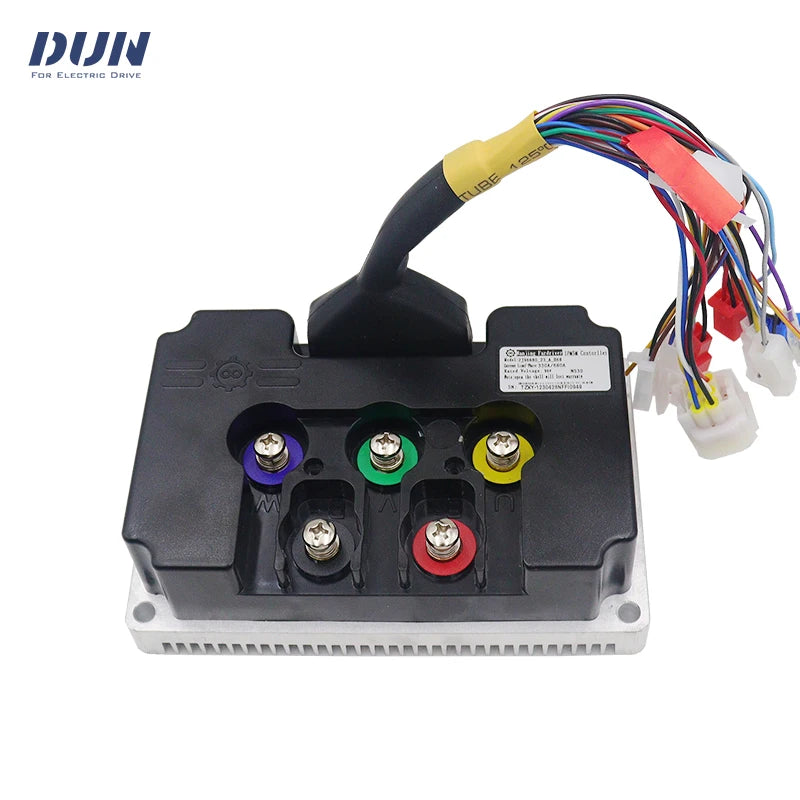

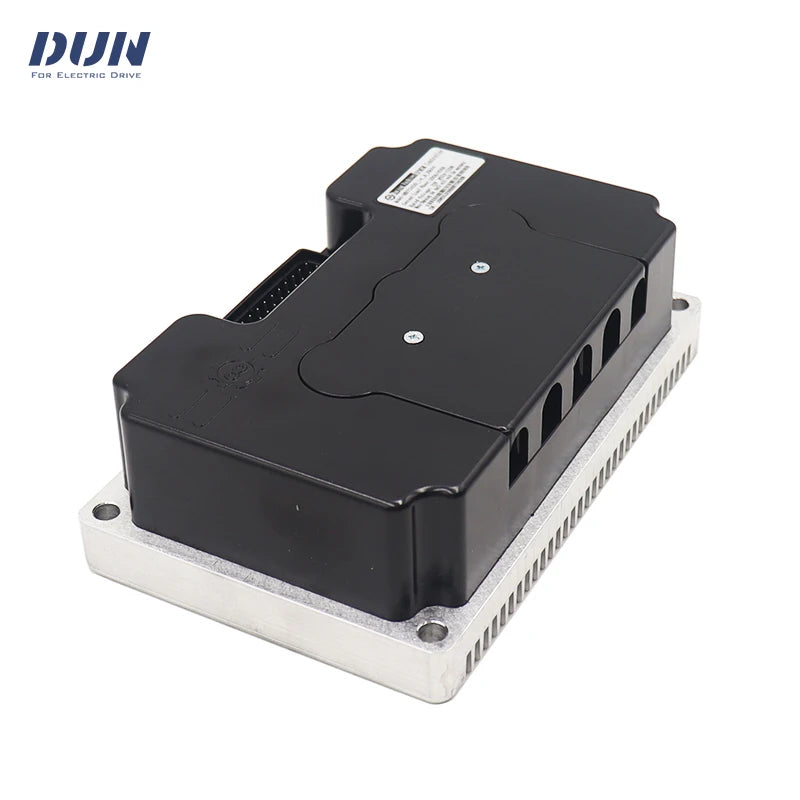

Controller Specification
ND72450 is the Hall version by default, suitable for Hall motors.
1. Model: ND72450
2. Working Communication: Hall Sensor
3. Available Rated Battery Voltage: 48V-72V
4. Peak Battery Voltage: 88.7V
5. Available Motor Power: 3000W - 5000W
6. Default Throttle Working Voltage: 0V - 5V
7. Peak DC Current: 200A
8. Peak Phase Current: 450A
9. Mosfets Detail: 24 FET
10. Weight: 2.1 kg
11. Installation Size: 189mm * 120mm * 60mm
12. Controller Design: Sine Wave BLDC
13. Case Material: Aluminum
14. Supports Programmable
15. Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV
Controller Drawing & Wiring

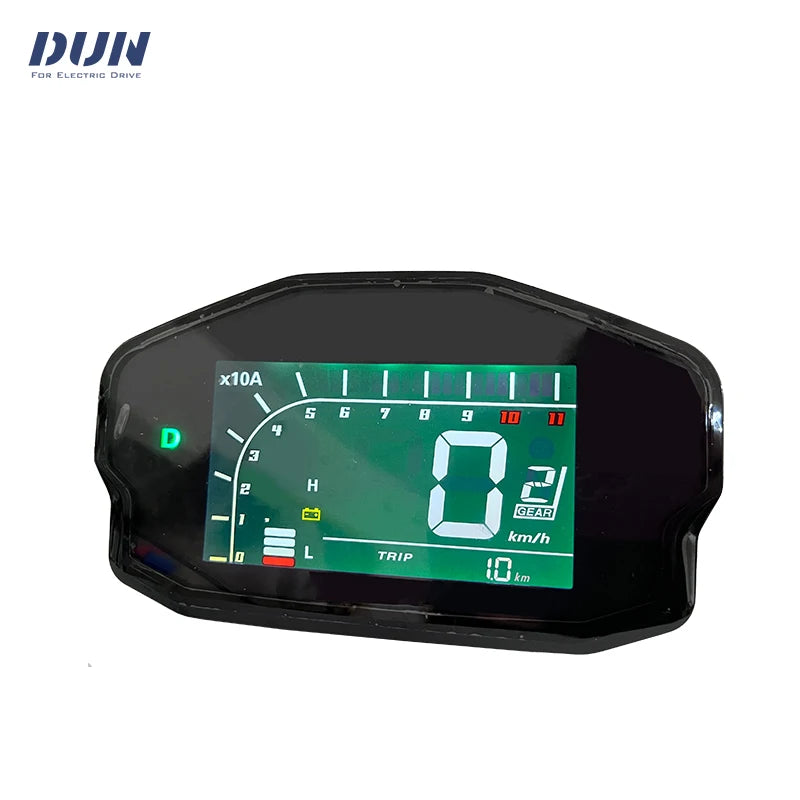

DKD Display Specification
Displays data: Speed KMH/MPH, DC, Battery Level, Trip Distance, Fault Display, Headlight, Turning Light, Gear Display.

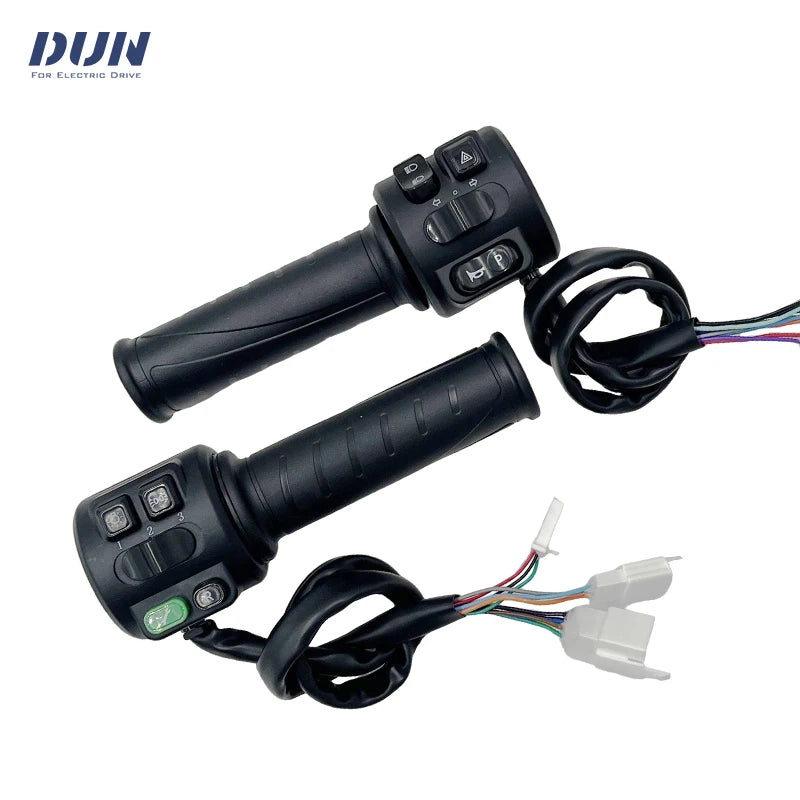

T08 Throttle Specification
Functions: Three Speed, P Gear, Reverse, One Click Repair, Left Turn Signal, Right Turn Signal, Headlight, Horn, High Beam, Low Beam.
More Products
Click the picture to check more fardriver kits.
FAQ
Q: How about the Duty & Tax?
A: All products are sent in DDU mode; the total price does not include tax and duty.The relevant tax and duty need to be paid by the buyer.
We are not responsible for product customs clearance; please ensure that you have the ability to clear the goods before purchasing.
Q: About the functions and interfaces of the controller
A: Most of the controllers we sell are universal versions, not customized for a specific brand. Therefore, after installation, some auxiliary functions of the original vehicle may not work normally (such as the speedometer display)
Most functional interfaces need to be modified, not plug-and-play.
Before refitting, please carefully check the function line on the original vehicle and the communication signal of the speedometer.
Q: How long is the delivery time?
A: For some stock controllers and motors, we can ship them out within 24 hours. If no stock, the delivery time is normally 6- 10 working days (some customized products will take more days).
Q: How about the warranty?
A: We offer a 1-year warranty for motors and controllers, but the buyer has to pay the return shipping cost for repair or replacing a new one.
If you have any problems, please feel free to contact us, and we will try our best to help you.
If you don't have any experience with electric kit assembly, please make a prudent choice to buy it or not! There is no warranty for man-made damage.
Q: About the shipping way
A: Sometimes the online shipping cost and shipping way is not the best; we will choose the most convenient shipping way to you and will inform you before shipping. Thank you for your understanding.
