Fardriver ND72450 Programmable Controller Kit
Fardriver ND72450 Programmable Controller Kit
Couldn't load pickup availability
Fardriver ND72450 High-Power Sine Wave BLDC Programmable Motor Controller Kit (72V / 450A Peak) –
Complete Performance Bundle with Bluetooth Module, SCJ313 Digital Display & Z6 Throttle for 3000W–5000W Electric Motorcycles
Take total control of your electric motorcycle, high-output e-dirt bike, or custom motor build with the Fardriver ND72450 Programmable Controller Kit. Designed to manage high-torque brushless DC motors ranging from 3000W to 5000W continuous output, this sine wave controller delivers smooth acceleration, extreme phase current handling, and unmatched thermal efficiency.
Equipped with a self-learning function and flux weakening capabilities, the ND72450 allows you to fine-tune torque curves and extend top-end speeds. This complete plug-and-play performance bundle includes a wireless Bluetooth adapter for real-time smartphone tuning, the SCJ313 digital handlebar display, and a responsive Z6 twist throttle assembly.
⚠️ Tuning & Compatibility Notice
MOTOR COMPATIBILITY & SELF-LEARNING:
QS Motor Optimization: The Fardriver ND72450 is pre-programmed to match seamlessly with QS Motor hall and phase angle protocols.
Custom / Third-Party Motors: When pairing with other motor brands, the self-learning sequence and custom parameter tuning must be performed via the Fardriver App (iOS/Android) or PC software via the program port.
🚀 Key High-Performance Features
-
450A Peak Phase Current Handling: Easily manages high-drain battery discharges to supply max acceleration and hill-climbing power for 3000W–5000W motors.
-
Smooth Sine Wave Vector Control: Provides ultra-quiet, efficient motor operation with smooth throttle response and reduced motor vibration.
-
Wireless Smartphone Tuning (Bluetooth Included): Use the included Bluetooth adapter to monitor live telemetry, adjust acceleration curves, set flux weakening, and run self-learning programs directly from your phone.
-
Integrated SCJ313 Display & Z6 Throttle: Dashboard unit tracks speed, battery level, and fault codes using the one-line (YXT) speed signal protocol, paired with an ergonomic Z6 throttle.
-
Advanced Flux Weakening Technology: Unlocks higher top speeds beyond the motor's nominal RPM rating by dynamically adjusting field magnetization.
📊 Technical Specifications Matrix
| Specification Parameter | Fardriver ND72450 Kit Specifications |
| Brand Designation | FARDRIVER |
| Controller Model | ND72450 + Display + Throttle Kit |
| Controller Architecture | Sine Wave BLDC / Permanent Magnet Controller |
| Peak Phase Current | 450A Continuous / Surge Peak |
| Compatible Motor Power | 3000W – 5000W Motors |
| Speed Signal Protocol | One-Line (YXT) Communication Interface |
| Physical Dimensions | 30 cm x 20 cm x 20 cm (11.8" L x 7.8" W x 7.8" H) |
| Key Operational Features | Self-Learning, Flux Weakening, Reverse, 3-Speed Switch, Cruise, Anti-Theft |
| Brake Input Compatibility | High Brake (12V) / Low Brake (0V) Inputs |
| Hazardous Chemical Registry | High-concerned chemical: None |

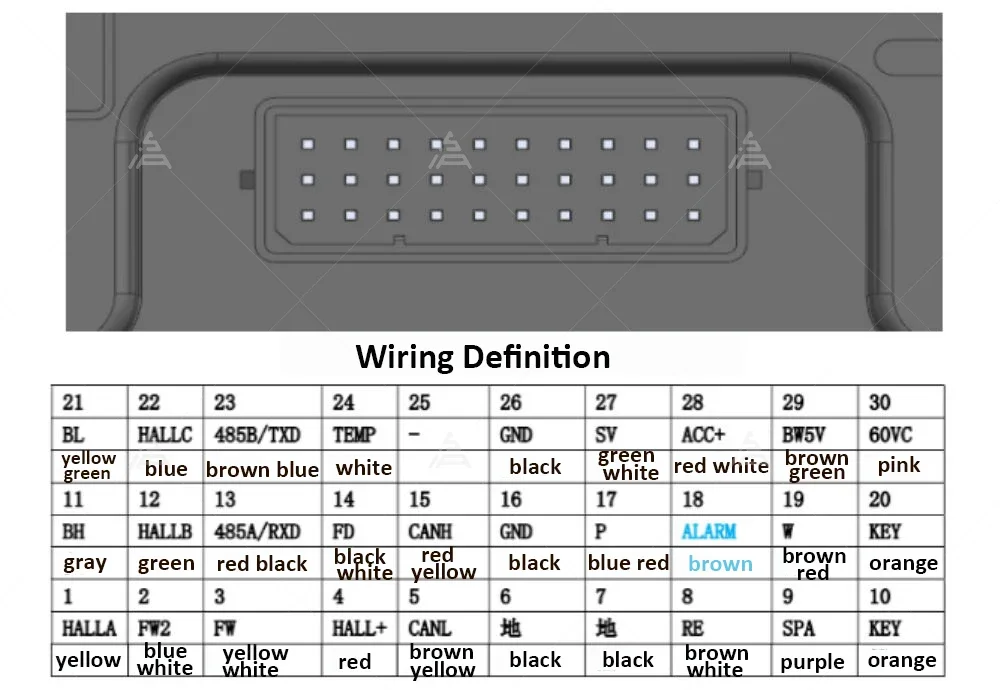

⚙️ Default Controller Pinout & Functions
-
Hall Sensor Plug & Temperature Sensor: Standard 6-pin hall connector with motor thermistor support.
-
Throttle Input: 0V–5V Hall throttle signal input (Z6 throttle included).
-
Ignition / Lock Line: 12V key/switch power activation wire.
-
Speed Signals & Display: One-line (YXT) output wired directly to the SCJ313 display interface.
-
Auxiliary Control Wires: Reverse switch, 3-speed selector, cruise control trigger, low/high brake lines, and anti-theft alarm wiring.

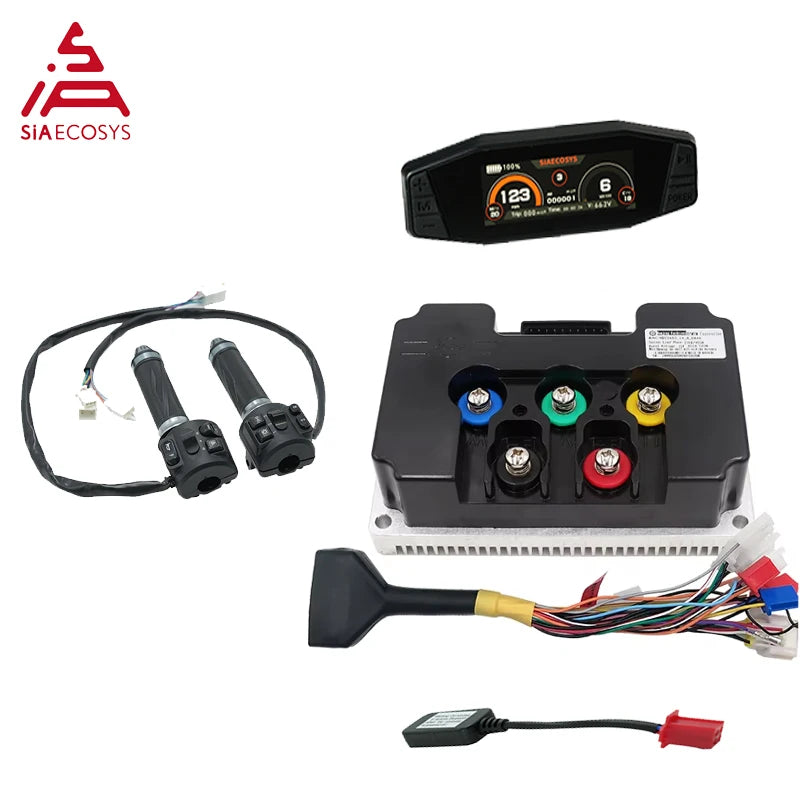

📦 Package Contents
-

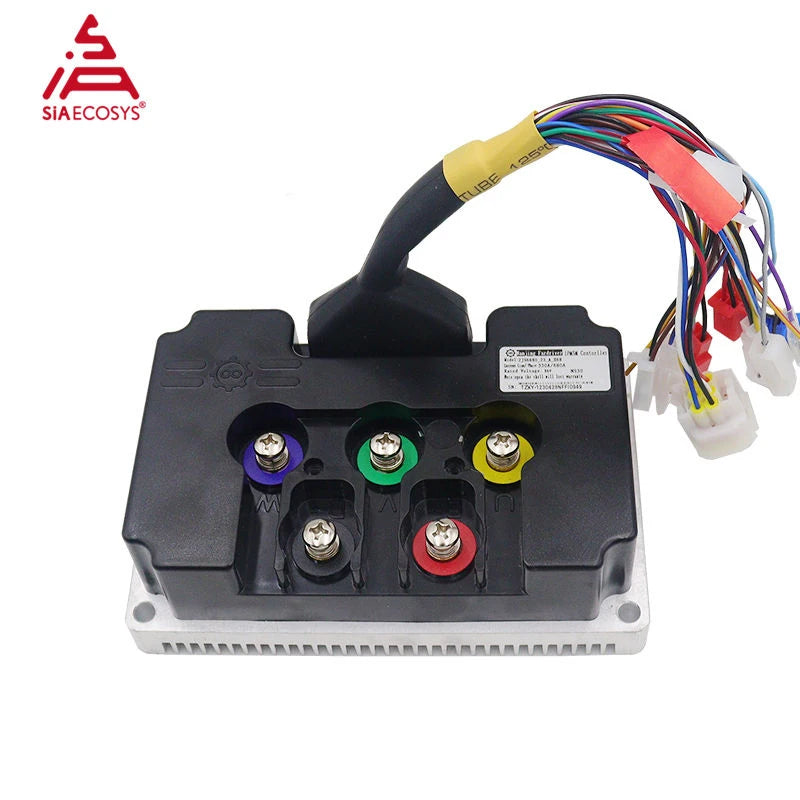

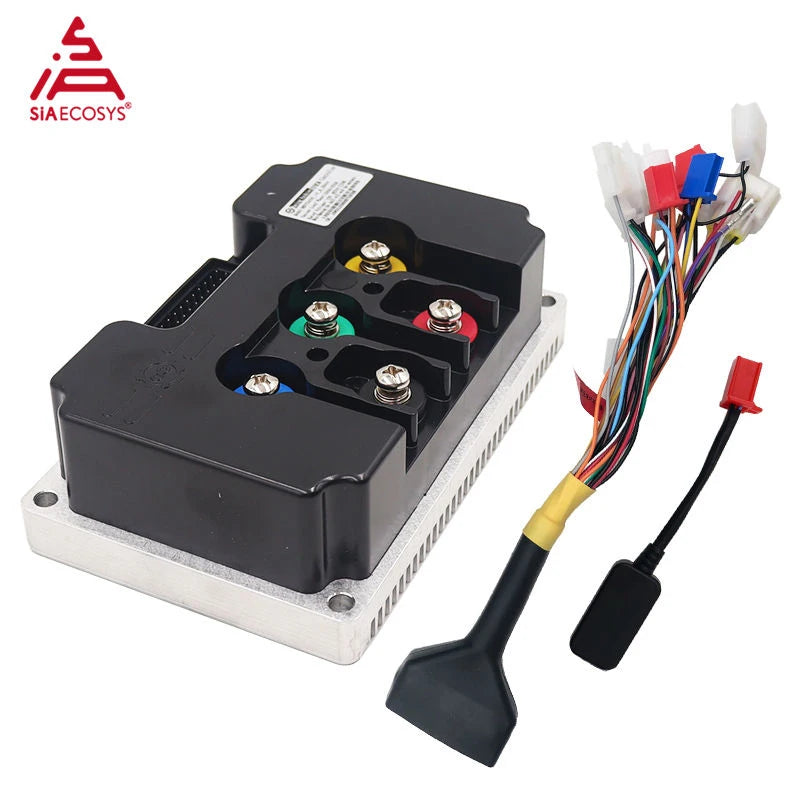

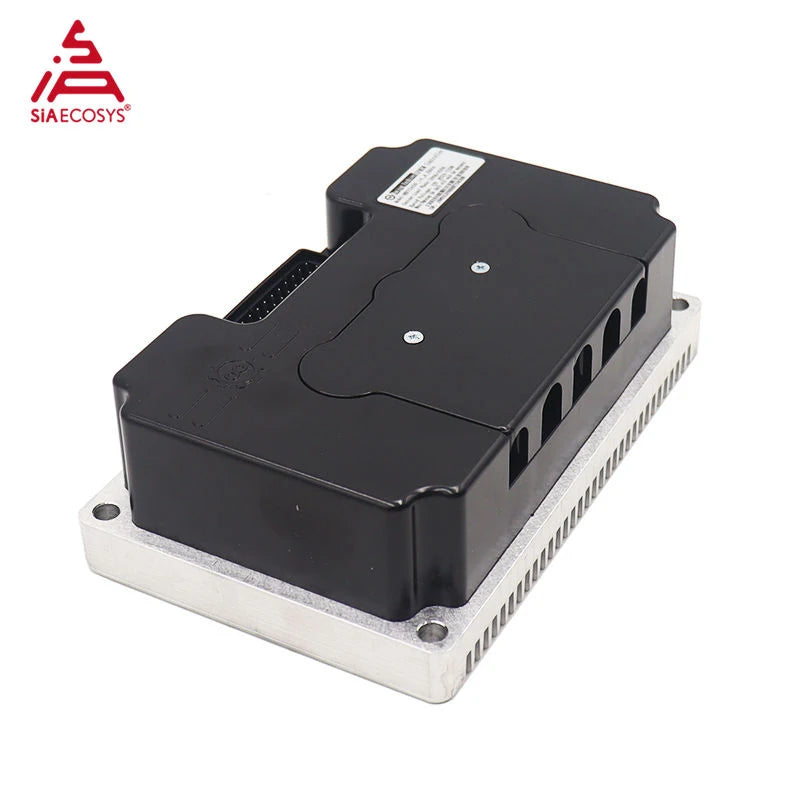

1 pc x FarDriver ND72450 450A Programmable Controller
-
1 pc x Wireless Bluetooth Program Adapter
-
1 pc x SCJ313 Digital Display Unit
-

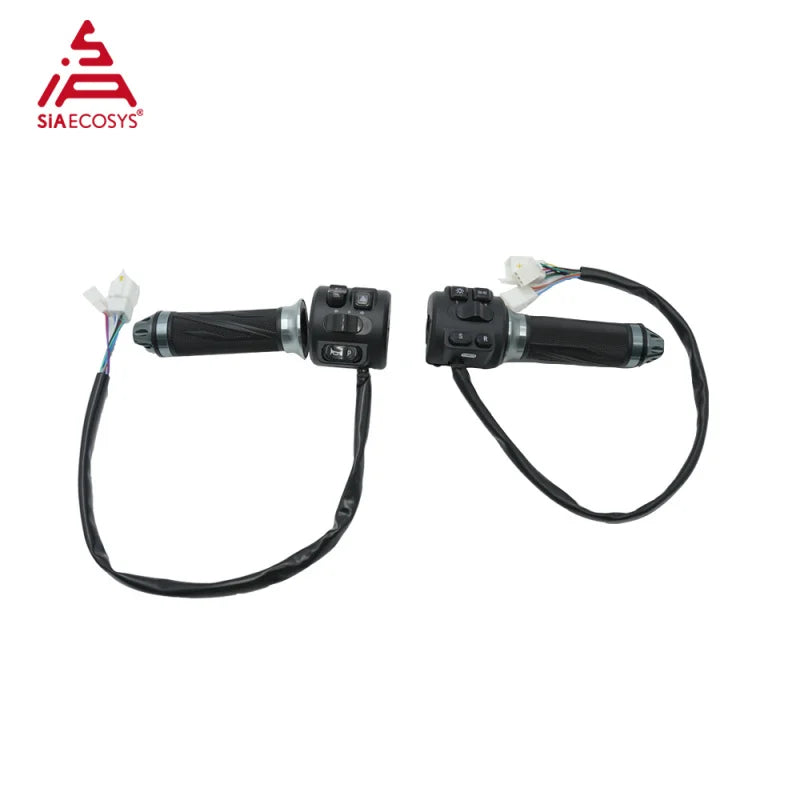

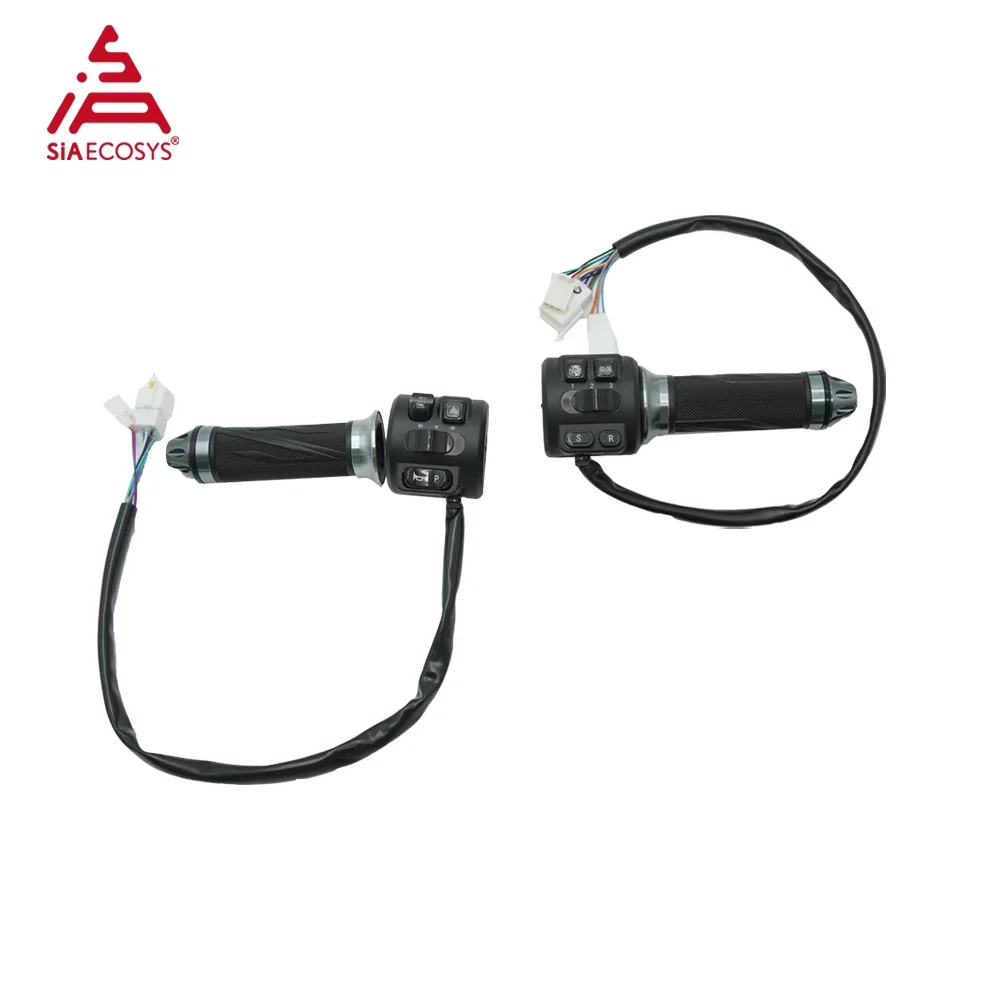

1 pc x Z6 Twist Throttle Assembly
Product Description
ND72450/ND84450/ND96450 are sine wave controllers with IP67 waterproofing, suitable for 4-6kw motors.
For ND72450, the peak voltage is 88V;
For ND84450, the peak voltage is 100V;
For ND96450, the peak voltage is 115V.
It's the Hall version (by default), suitable for Hall motors.
*ND72450/ND84450/ND96450 come with heat sinks.
Controller Specification
ND72450 is the Hall version by default, suitable for Hall motors.
1. Model: ND72450
2. Working Communication: Hall Sensor
3. Available Rated Battery Voltage: 48V-72V
4. Peak Battery Voltage: 88.7V
5. Available Motor Power: 3000W - 5000W
6. Default Throttle Working Voltage: 0V - 5V
7. Peak DC Current: 200A
8. Peak Phase Current: 450A
9.Mosfets Details: 24 FET
10. Weight: 2.1 kg

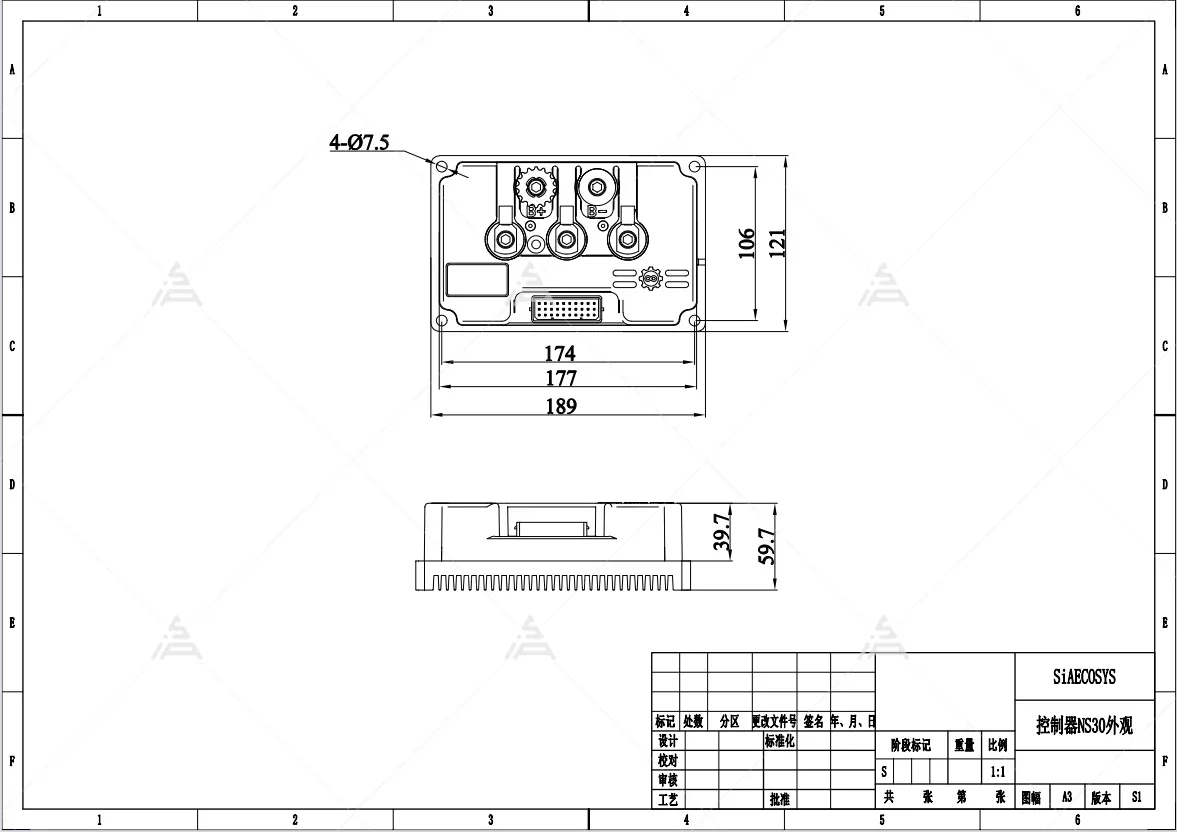

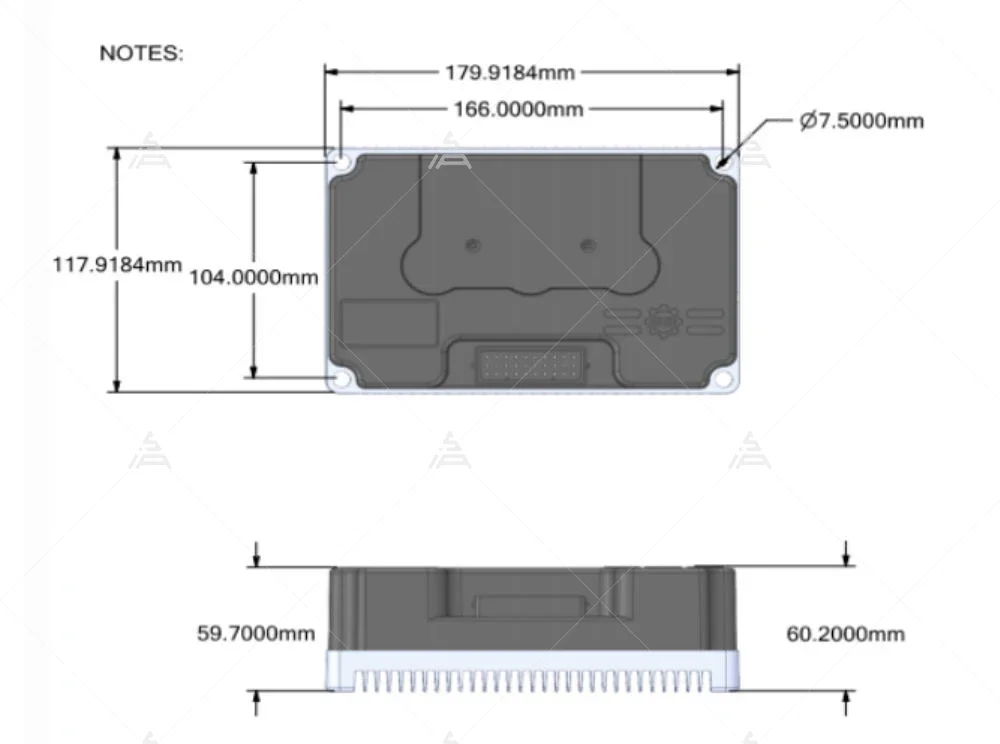

11. Installation Size: 189mm * 120mm * 60mm
12. Controller Design: Sine Wave BLDC
13. Case Material: Aluminum
14. Programmable Support
15. Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV

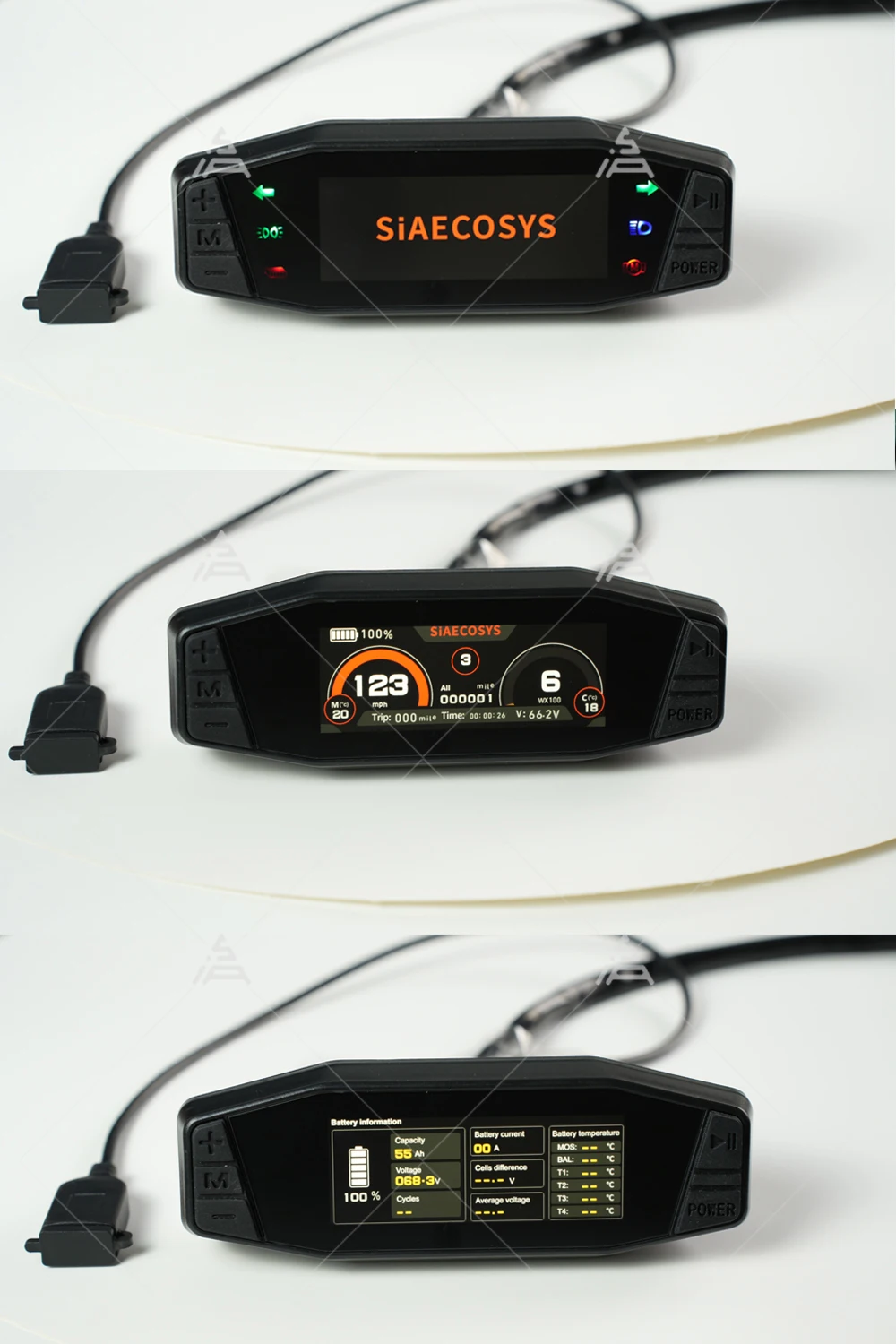

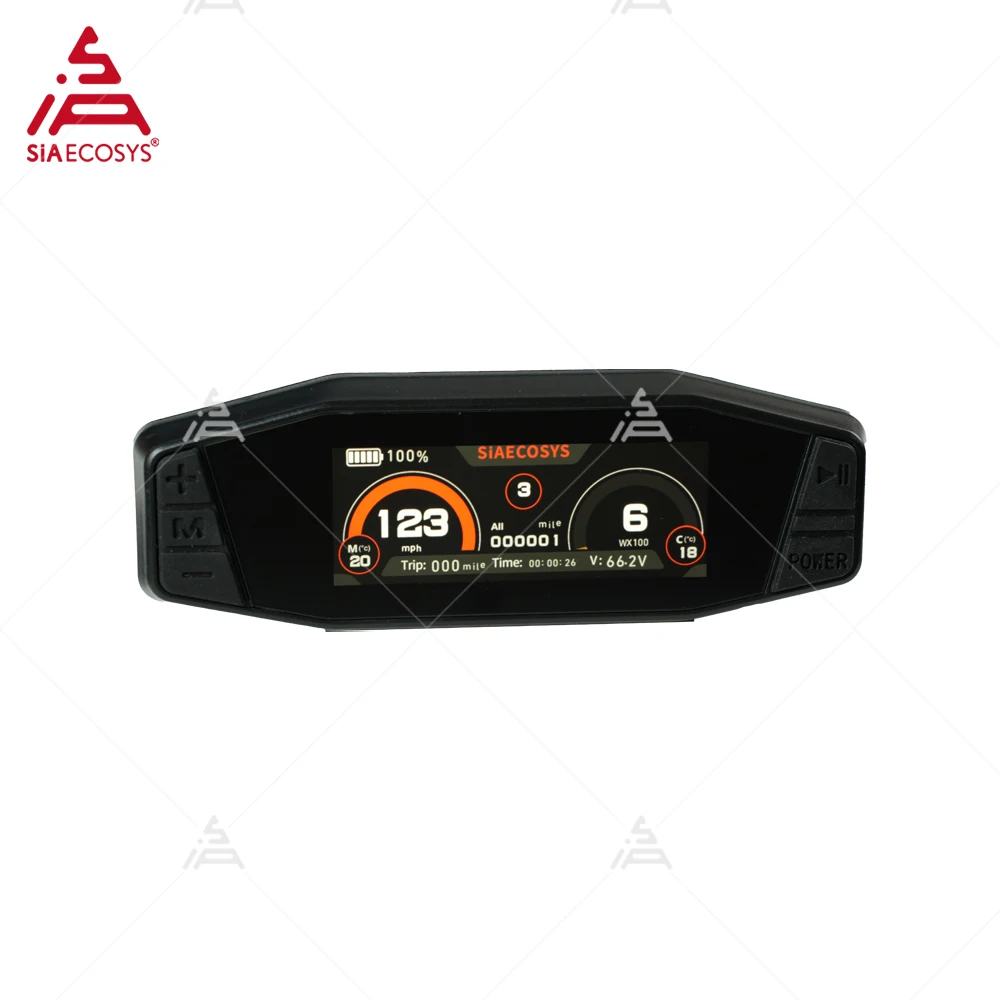

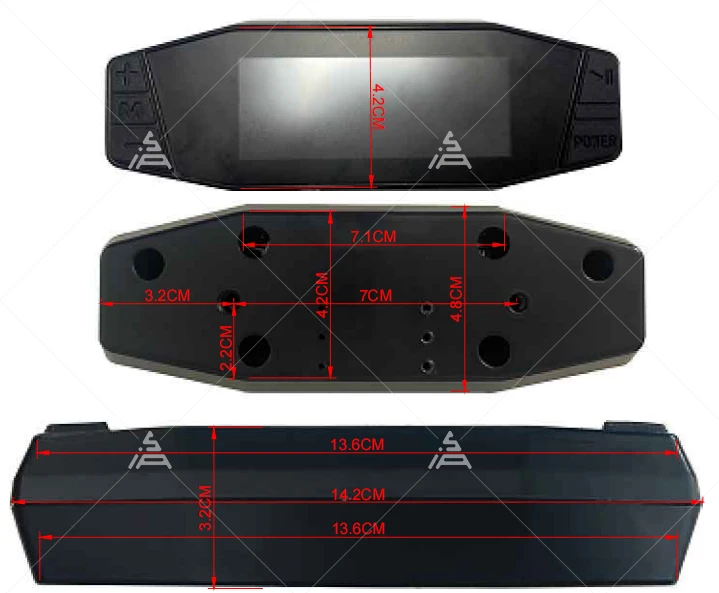

SCJ313 Display Specification
1. Pixel: 376*960. Brightness: 1000 cd/m²
2. Speedometer operating voltage range: DC 12- 150 V
3. The Speedometer displays both lithium and lead-acid battery levels universally.
4. Protection level: IP65, Operating range: -20°C ~ +70°C
5. Background settings: voltage range setting, voltage calibration, adjustable speed, public mile switching, speed limit, power unit accuracy, viewing software version number, etc.
6. USB software upgrade function

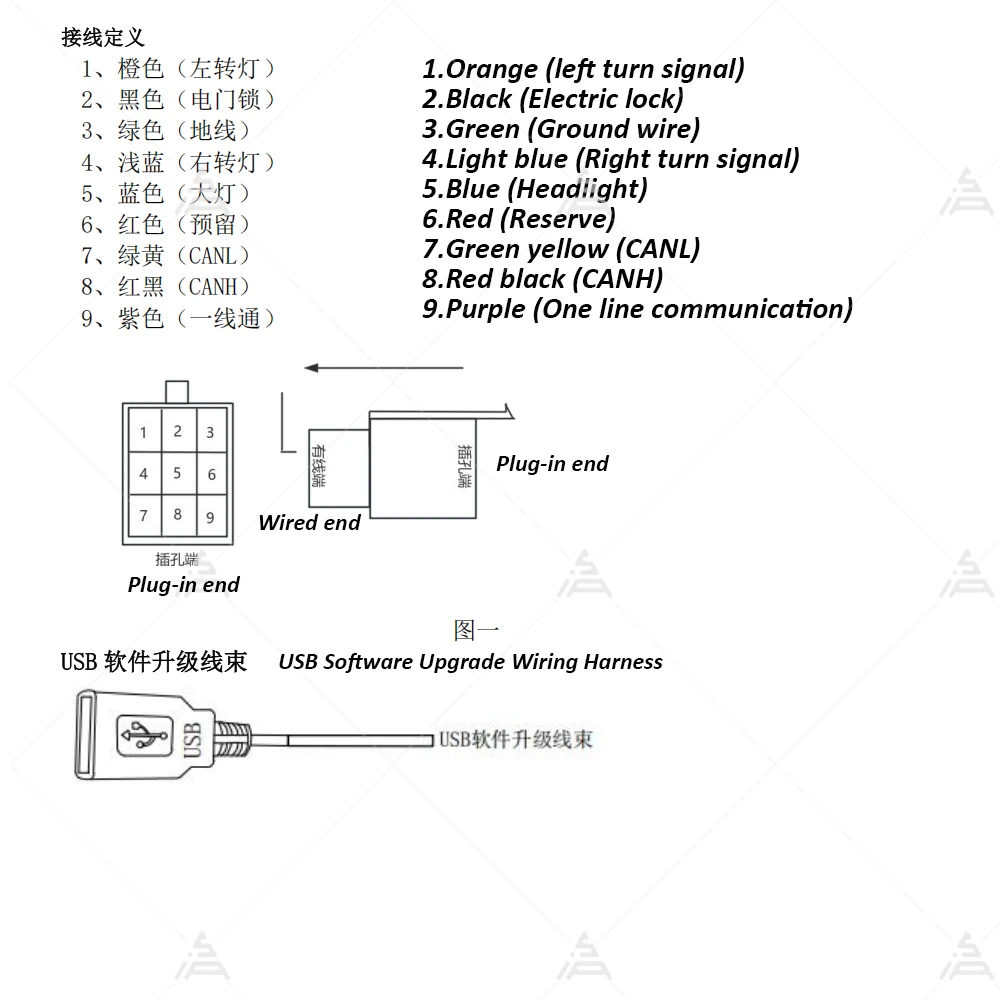

7. Support CAN, One-line communication.
Functions: Three Speeds, P Gear, Reverse, One-Click Repair, Left Turn Signal, Right Turn Signal, Headlight, Horn, High Beam, Low Beam.
