FarDriver ND72450 72V 450A High-Power BLDC Controller with Bluetooth Adapter (3000W–4000W)
The FarDriver ND72450 High-Power Controller delivers up to 450A phase current for 72V brushless DC motors (3000W–4000W output range), featuring IP67 waterproof protection, 120° motor Hall angle support, and US Warehouse fast shipping.
⚠️ System Integration & Compatibility Guidelines
IMPORTANT PROGRAMMING & MOTOR FITMENT NOTICE:
120° Hall Angle Motor Support: Engineered to work with standard 120-degree motor Hall sensors.
QS Motor Native Tuning: Pre-configured out of the box for QS Motors; third-party motors require auto-tuning parameter setup via the FarDriver App.
US Warehouse Dispatch: Shipped directly from domestic US inventory for fast transit times without import delays.
🚀 Key High-Performance Features
-
Extreme 450A Phase Output: Provides high launch torque and hill-climbing power for high-output electric motorcycles and e-bikes.
-
Compact High-Density Casing: Sealed alloy construction measuring $20\text{ cm} \times 14\text{ cm} \times 8\text{ cm}$ and weighing $2.5\text{ kg}$ allows easy fitment inside tight frame cavities.
-
Wireless Smartphone Bluetooth Module: Included Bluetooth dongle pairs with iOS and Android FarDriver apps for real-time telemetry, auto-tuning, and flux weakening.
-
IP67 Waterproof Certification: Fully sealed against water ingress, dust, and harsh weather conditions.
-
CE Certified Safety Standards: Built and tested under European CE structural and electrical safety standards.
📊 Technical Specifications Matrix
| Specification Parameter | FarDriver ND72450 Specifications |
| Brand & Series | FarDriver ND Series |
| Manufacturer Part Number | ND72450 |
| Drive Architecture | FOC Sine Wave BLDC with Auto Self-Learning |
| Rated Operating Voltage | 72V DC (Max Peak 88V) |
| Peak Phase Current | 450A Max Phase Current |
| Continuous Battery Current | 190A – 200A Max DC |
| Matched Motor Output | 3000W to 4000W Brushless DC Motors |
| Motor Hall Sensor Compatibility | 120-Degree Hall Angle |
| Physical Dimensions ($L \times W \times H$) | $20\text{ cm} \times 14\text{ cm} \times 8\text{ cm}$ |
| Product Weight | 2.5 kg (5.5 lbs) |
| Ingress Protection Rating | IP67 Sealed Waterproofing |
| Certifications & Origin | CE Certified | US Warehouse Inventory |
📋 Ideal Applications
The FarDriver ND72450 72V 450A Controller is engineered for:
-
3000W–4000W High-Power Electric Motorcycle & Scooter Conversions
-
72V High-Torque QS Hub and Mid-Drive Motor Upgrades
-
Riders Requiring Fast US Domestic Shipping and Wireless App Tuning
📦 Package Contents
-
1 x FarDriver ND72450 72V 450A High-Power BLDC Controller
-
1 x Plug-and-Play Wireless Bluetooth Adapter
-
1 x Multi-Pin Connection Harness Diagram
Upgrade your 72V motor setup with 450A phase output and Bluetooth auto-tuning! Select your options above, click Add to Cart, and order today with US WAREHOUSE DISPATCH
One set including below kits
1. 1pcs X ND72450 sine wave controller
2. 1 pc X Bluetooth adapter
which will be more convenient for wiring.
Key Features
1). All the raw materials are imported, using high-performance Moss tube
2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board
3). Small in size
4). High efficiency, low temperature rise, small running current
5). With self-learning function, excellent commonality
6). The app is compatible with Android and Apple
7). With flux weakening function(The product does not contain magnetism)
Product Description
ND72450/ND84450/ ND96450 are sine wave controllers with waterproofing grade IP67, suitable for 2-4kw motors.
For ND72450, the peak voltage is 88V; For ND84450, the peak voltage is 100V; For ND9450, the peak voltage is 115V.
It’s the Hall version (by default), which suits Hall motors.
It can also support encoders; please check with sales.
ND72450 Spec

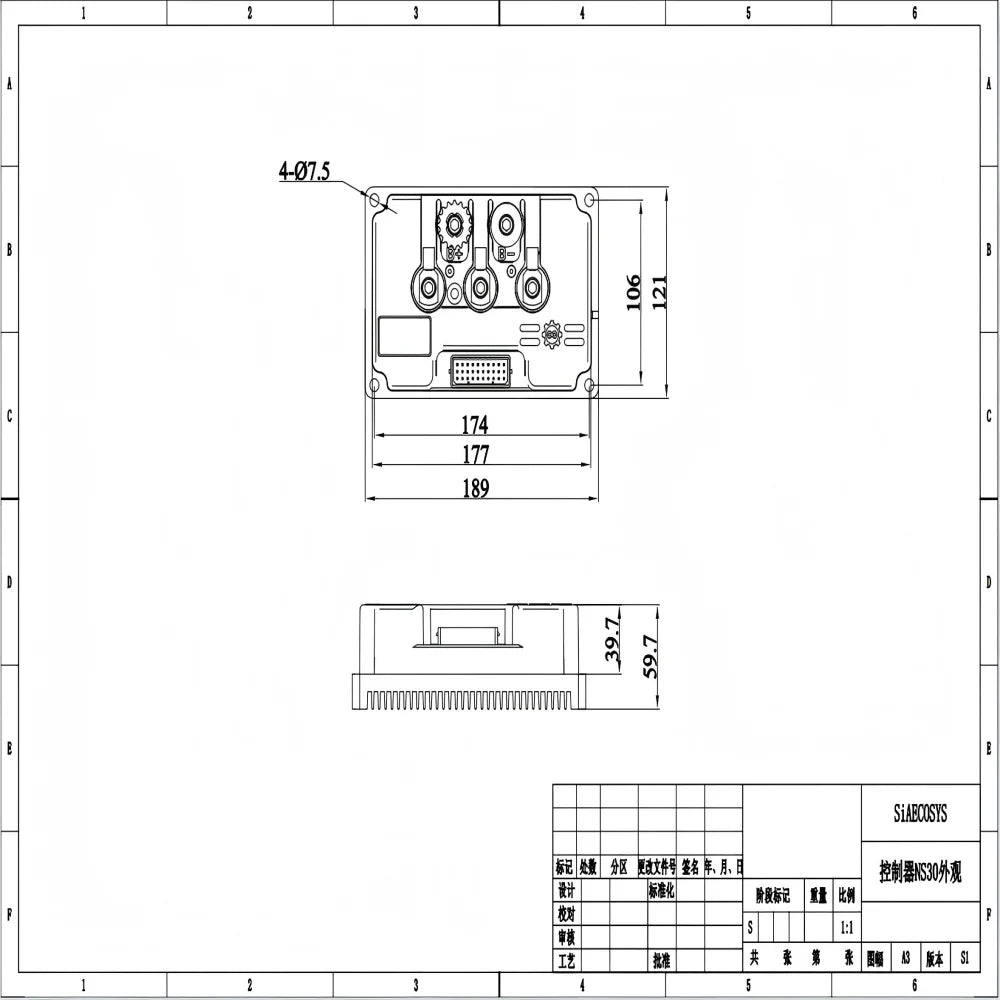

Drawing
Harness Definition
Adapter Cable

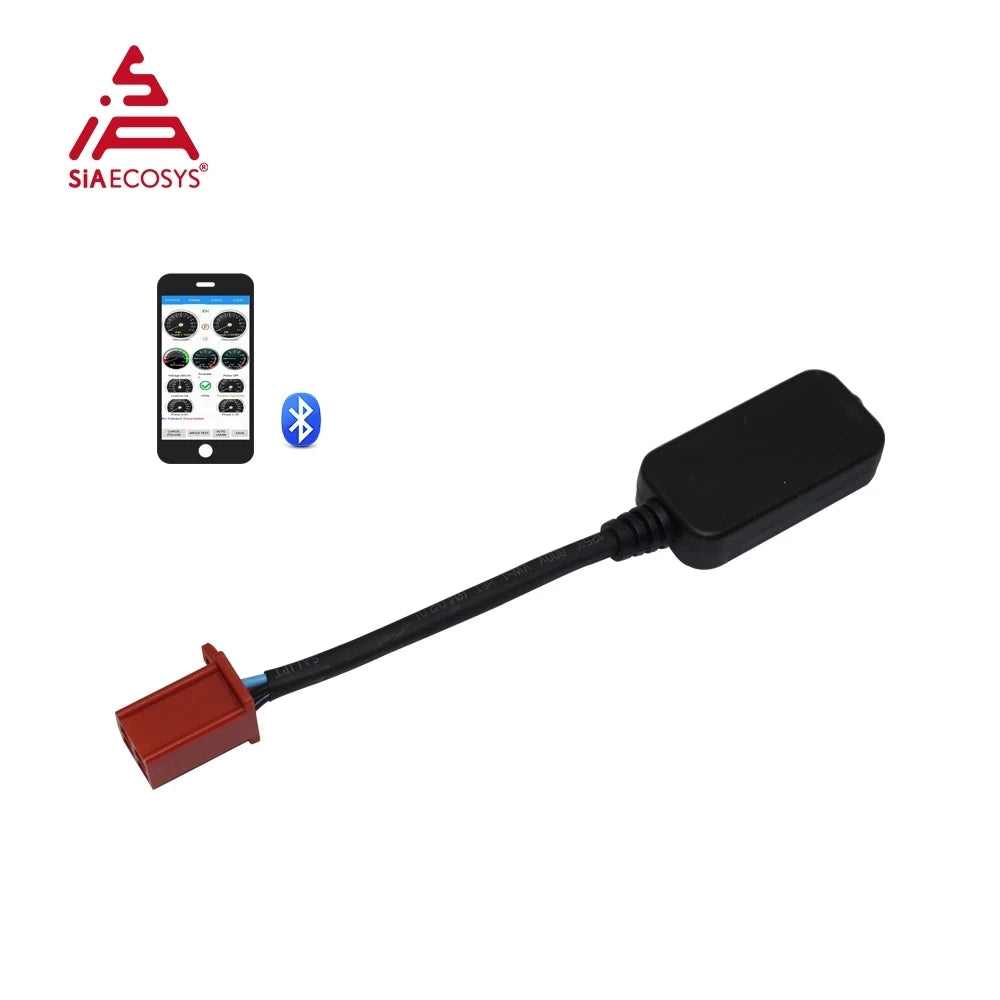

Bluetooth
Software interface（APP）
Programmable Software & User manual (Before you received the controller)
Pls. Contact sales to get the link and password to download the manuals and software before/when you receive the controllers.
Application
Details
