FarDriver ND72450 72V 450A High-Power BLDC Sine Wave Controller with Bluetooth Adapter
The FarDriver ND72450 High-Power Controller delivers up to 450A phase current and 190A maximum DC for 72V high-performance e-bikes, electric motorcycles, and QS motor conversions, complete with an iOS/Android Bluetooth programming adapter.
⚠️ Compatibility & Tuning Specifications
IMPORTANT PROGRAMMING GUIDELINES:
QS Motor Native Pairing: Optimized out-of-the-box for QS Motors; custom or third-party motors require self-learning auto-tuning via the FarDriver App.
Bluetooth Programming Dongle Included: Allows real-time parameter tuning, throttle response adjustment, flux weakening setup, and diagnostic monitoring from smartphone apps.
IP67 Waterproof Enclosure: Sealed aluminum substrate layout protects control circuitry from heavy rain and road spray.
🚀 Key High-Performance Features
-
Extreme 450A Phase Current Output: Supports aggressive launch torque for high-power hub and mid-drive BLDC motors.
-
Advanced Aluminum Substrate MOSFET Design: High-performance imported MOSFETs mounted on an aluminum-substrate PCB deliver low temperature rise and minimal current loss.
-
Wireless Bluetooth Parameter Tuning: Includes a plug-and-play Bluetooth module compatible with Android and iOS FarDriver smartphone apps.
-
Integrated Flux Weakening Function: Expands top-end motor RPM to achieve higher top speeds on flat straights without losing low-end acceleration.
-
Comprehensive Protective Safeguards: Features locked-rotor protection, over-current, over-voltage, under-voltage, and thermal protection.
📊 Technical Specifications Matrix
| Specification Parameter | FarDriver ND72450 Controller Specifications |
| Manufacturer Part Number | ND72450 |
| Controller Architecture | FOC Sine Wave BLDC with Auto Self-Learning |
| Rated Operating Voltage | 72V DC (Operating Range: 48V – 72V DC) |
| Protection Phase Current | 450A Max Phase Current |
| Maximum DC Battery Current | 190A – 200A Max DC Current |
| Waterproof Rating | IP67 Certified Water and Dust Resistance |
| Dimensions ($L \times W \times H$) | $26\text{ cm} \times 15\text{ cm} \times 18\text{ cm}$ |
| Product Weight | 2.5 kg (5.5 lbs) |
| App Wireless Connectivity | Bluetooth Dongle Included (iOS & Android Compatible) |
📋 Ideal Applications
The FarDriver ND72450 72V 450A Controller is engineered for:
-
High-Power 72V QS Motor Electric Motorbike & E-Bike Conversions
-
Fiido Q1 / Q1S High-Output Speed Builds & Custom Razor Dirt Bike Conversions
-
Performance Riders Requiring Precise Smartphone Bluetooth Tuning & Flux Weakening
📦 Package Contents
-

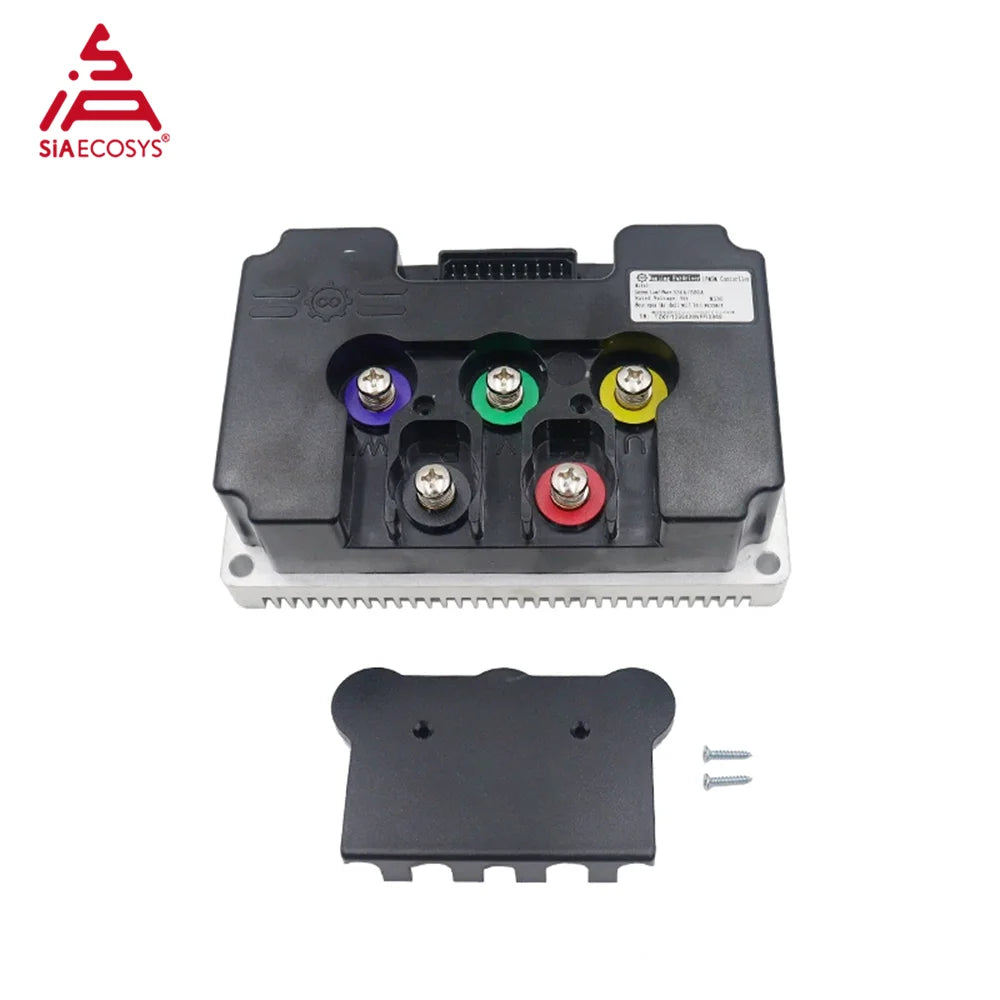

1 x FarDriver ND72450 72V 450A High-Power Motor Controller
-
1 x External Bluetooth Programming Adapter
-

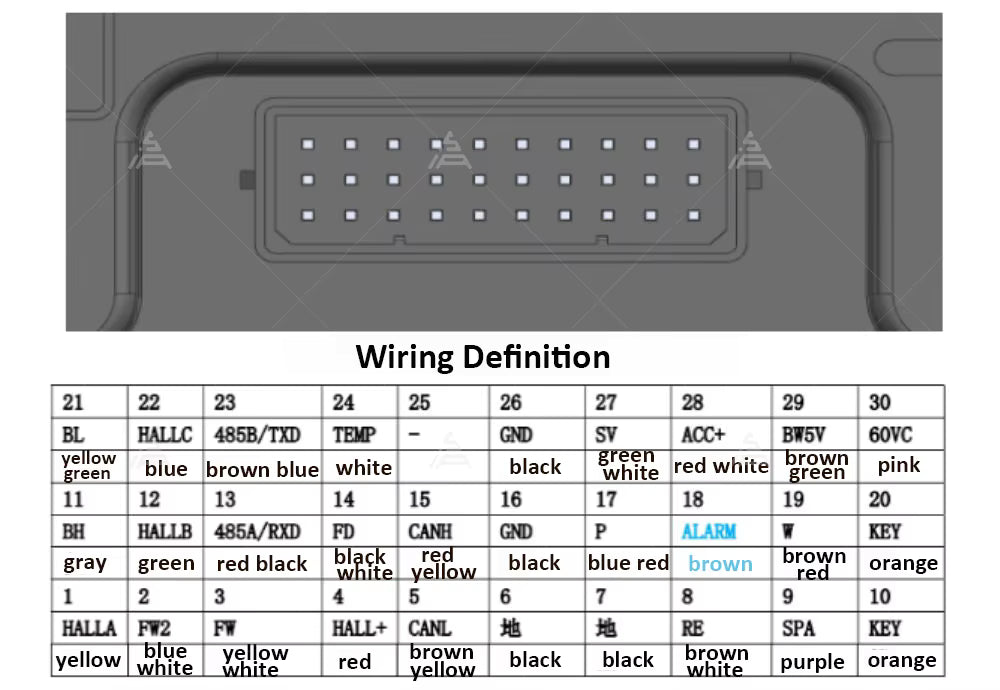

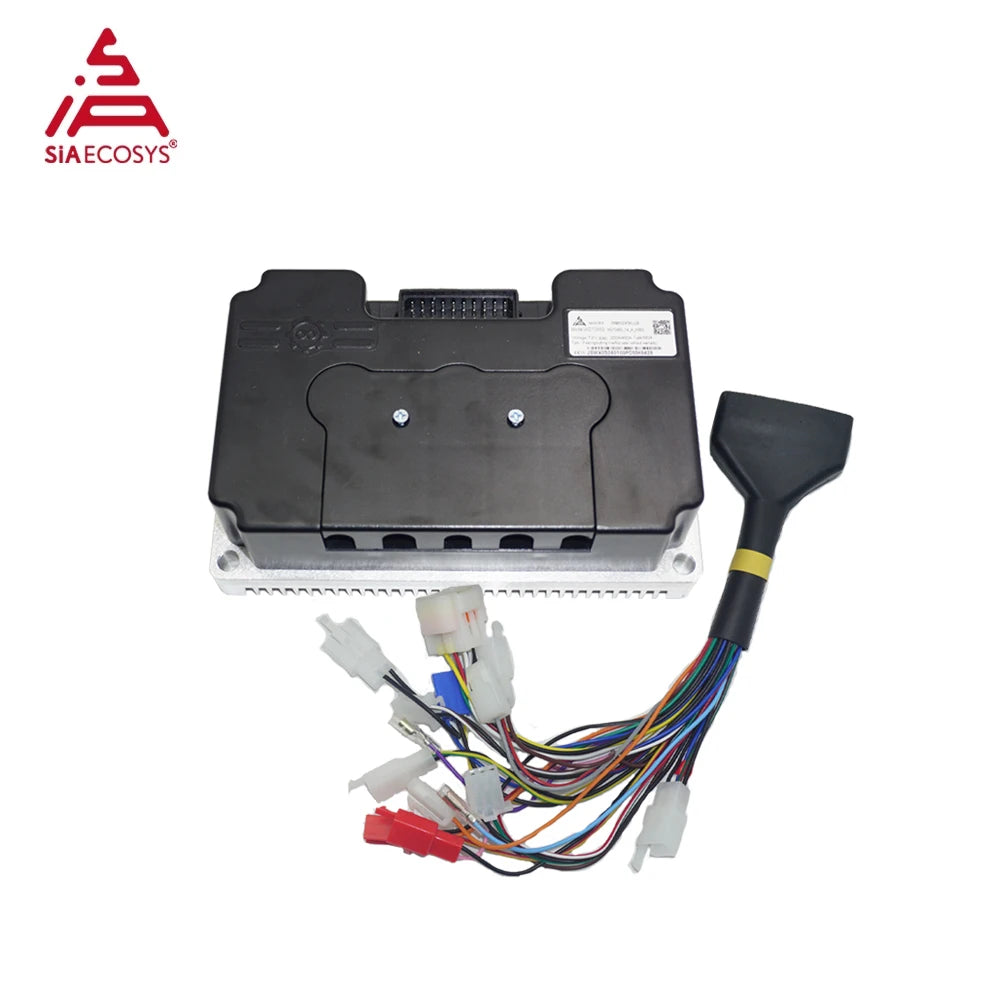

1 x Wiring Connection Harness Pinout Map
Upgrade your high-power motor build with 450A phase power and wireless Bluetooth tuning! Select your options above, click Add to Cart, and order today with US WAREHOUSE DISPATCH!
NOTE: This is a US warehouse delivery item

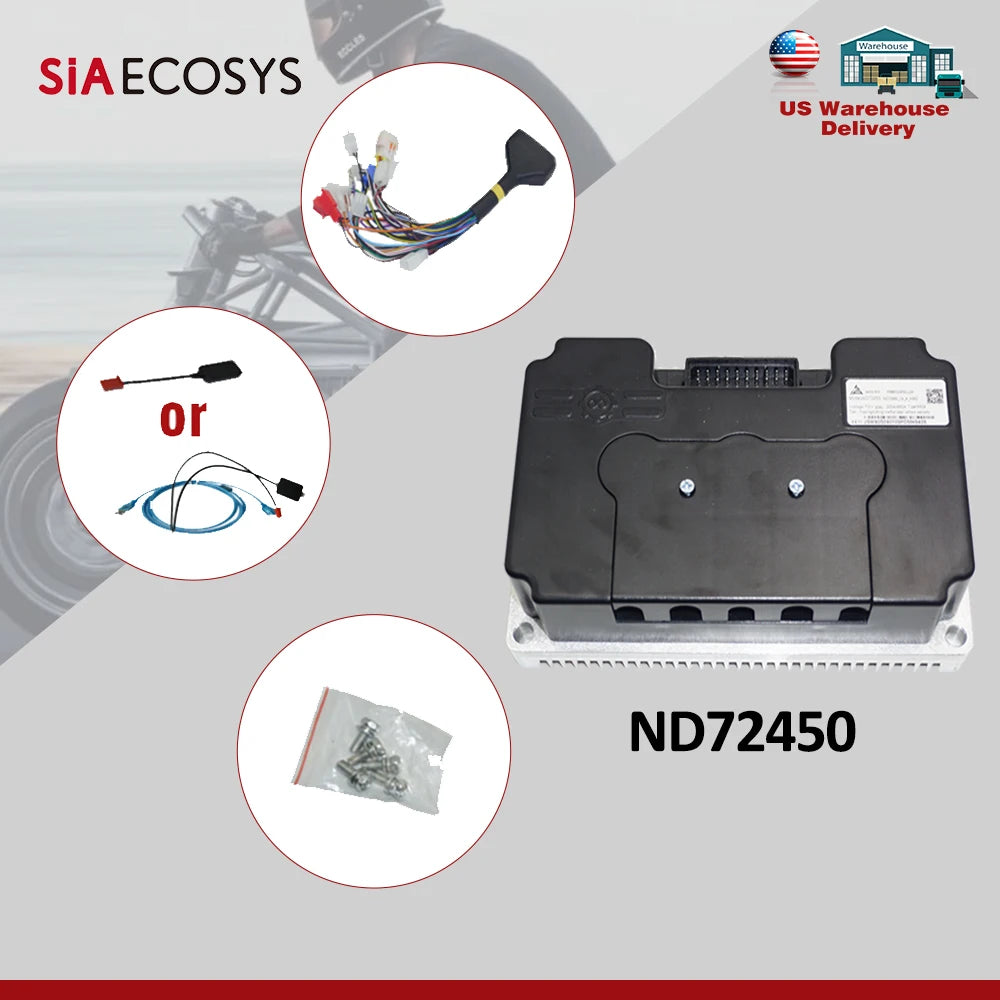

One set including below kits
1.1pcs X ND72450 sine wave controller
2.1pcs X Bluetooth adaptor
Key Features
1). All the raw materials are imported, using high-performance Moss tube
2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board
3). Small in size
4). High efficiency, low temperature rise, small running current
5). With self-learning function, excellent commonality
6). The app is compatible with Android and Apple
7). With flux weakening function. (The product does not contain magnetism)
Product Description
ND72450 Spec
Max DC Current:200A
Rated voltage:72V
Net weight:1.94kg
Protect Phase Current:450A
Adapter Motor:3-4KW
Waterproof:IP67

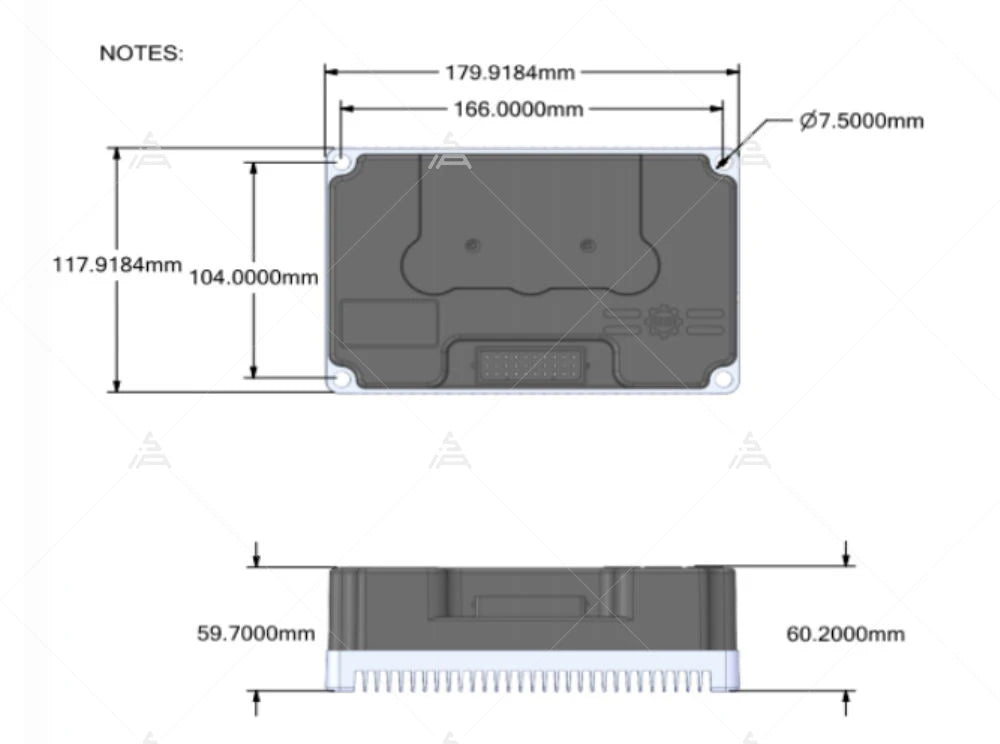

Drawing
Note: The drawing is for reference only; the actual height will be less than 59.7mm because of without cooling slot.

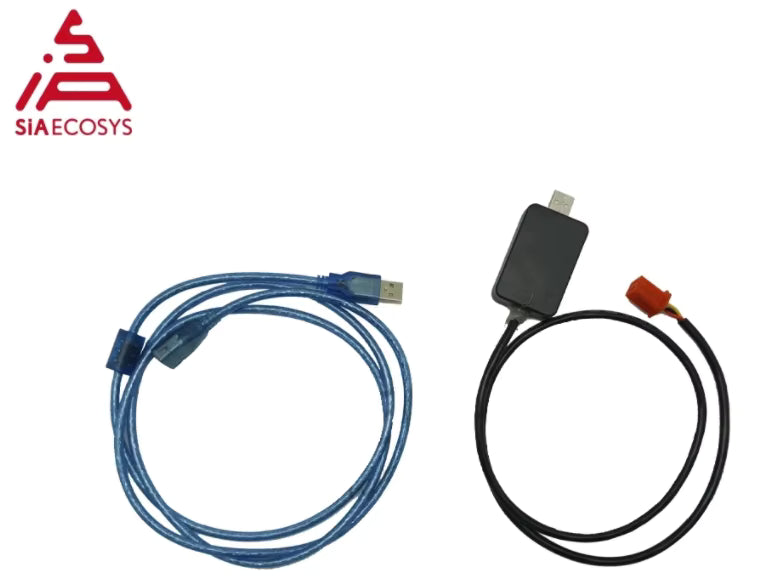

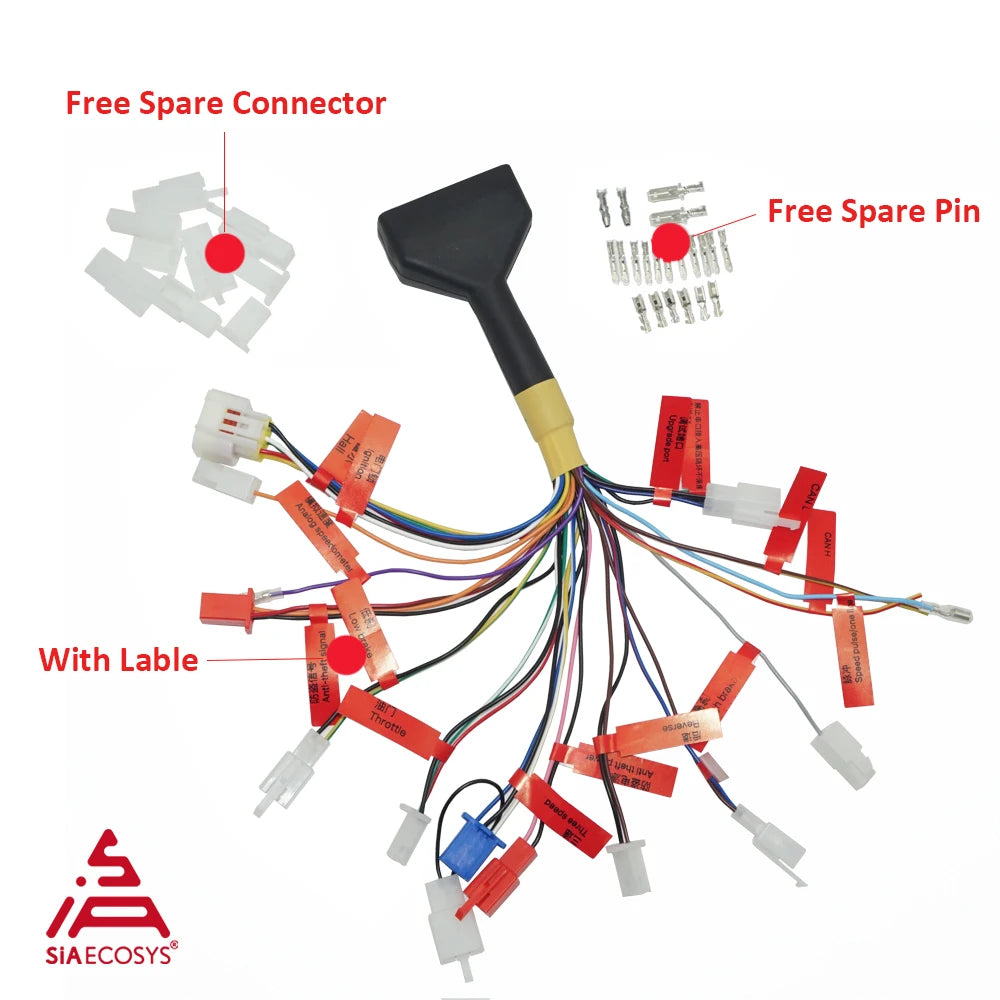

Adapter Cable
Bluetooth
USB Cable

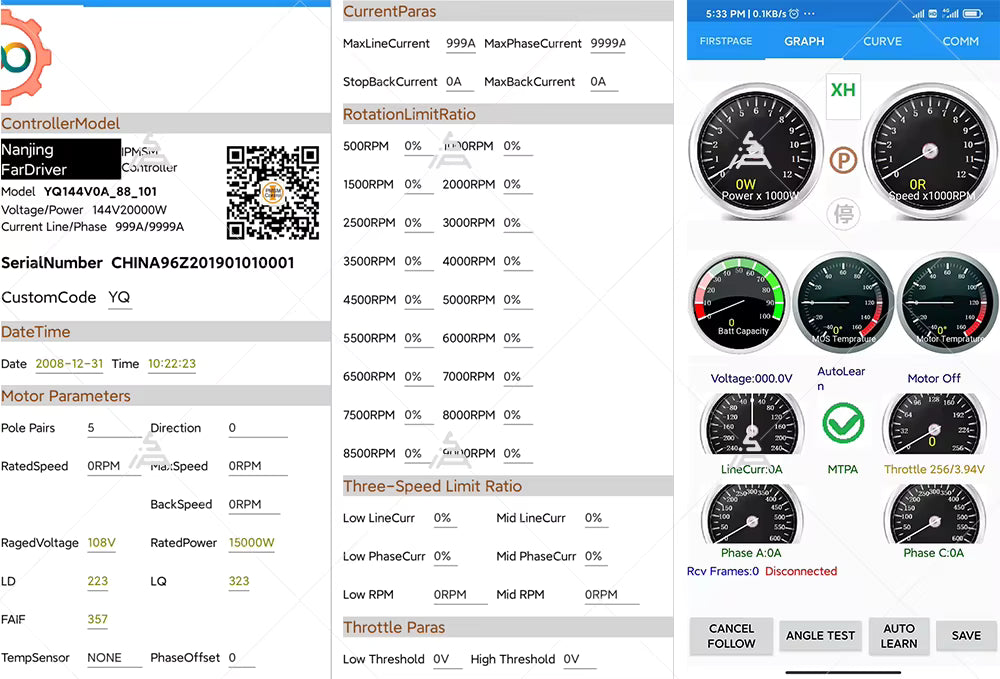

Software interface（APP）
Programmable Software & User manual (Before you receive the controller)
Pls. Contact sales to get the link and password to download the manuals and software before/when you receive the controllers.
Application
Details
