Fardriver Controller ND72450 48V-72V DC 200A BLDC
Fardriver Controller ND72450 48V-72V DC 200A BLDC
Couldn't load pickup availability
FarDriver ND72450 48V–72V 200A Sine-Wave BLDC Controller Bundle with DKD Speedometer Display.
Take total control of your high-power electric motorcycle, retro scrambler, or custom e-scooter build with the FarDriver ND72450 Sine-Wave BLDC Controller Kit. Engineered for whisper-quiet phase commutation, instant throttle response, and massive continuous torque, the ND72450 handles system voltages from 48V to 72V nominal (88V max peak) with up to 200A DC battery current.
This complete performance package includes the digital DKD LCD Speedometer Display for real-time speed, telemetry, voltage tracking, and error diagnostics.
⚠️ Tuning & Compatibility Guidelines
IMPORTANT MOTOR MATCHING & SELF-LEARNING NOTICE:
QS Motor Factory Optimization: Pre-programmed for seamless plug-and-play synchronization with QS Motor hub and mid-drive motors.
Universal BLDC Motor Compatibility: Compatible with third-party BLDC motors (SIAECOSYS, Golden Motor, Ningbo, etc.). Initial parameter setup, Hall sensor angle identification, and self-learning must be performed using the FarDriver Smartphone App or PC Software via Bluetooth/USB Dongle.
BMS Discharge Rating Required: Ensure your battery pack's BMS can support a 200A continuous DC discharge without tripping over-current protection.
🚀 Key High-Performance Features
-
Advanced Field-Oriented Control (FOC): High-efficiency sine-wave technology eliminates motor hum and delivers silky-smooth low-end acceleration.
-
Smart Bluetooth Tuning Capabilities: Adjust phase current, flux weakening (top speed boost), throttle curves, regenerative braking levels, and voltage cutoffs wirelessly from your iOS or Android phone.
-
Bundled DKD Color LCD Display: Provides crisp, high-contrast readouts of current speed (mph/kmh), voltage level, trip meter, error codes, and headlight status.
-
Programmable Regenerative Braking: Recovers energy back into your battery pack while reducing mechanical brake pad wear.
-
Rugged Thermal Dissipation Architecture: Heavy-gauge aluminum heat-sink base plate rapidly sheds heat under sustained high-amperage acceleration.
📊 Technical Specifications Matrix
| Specification Parameter | FarDriver ND72450 + DKD Bundle Specifications |
| Controller Model | FarDriver ND72450 Sine-Wave FOC |
| Working Voltage Range | 48V to 72V DC (Max Allowed Peak: 88V) |
| Max Continuous DC Current | 200 Amperes |
| Max Peak Phase Current | 450 Amperes |
| Rated Output Power Range | 3000W – 6000W Continuous (Up to 12,000W Peak) |
| Commutation Method | Sine-Wave (Field-Oriented Control) |
| Display Unit | DKD One-Line / CAN / LIN Speedometer Display |
| Communication Interface | Bluetooth Module (App-based parameter tuning) |
| Physical Dimensions | |
| Package Shipping Weight | Approx. $3.0\text{ kg}$ ($6.61\text{ lbs}$) |
📋 Ideal Applications
-
High-Speed E-Bike & Scrambler Upgrades (Super73, customSur-Ron, DIY fat tire builds).
-
Electric Scooter & Moto Conversions pairing QS hub motors or mid-drive units.
-
Replacing Low-Output Trapezoidal/Square-Wave Controllers to achieve smoother acceleration and higher top speeds through flux weakening.
📦 Package Contents
-
1 x FarDriver ND72450 48V-72V 200A Sine-Wave Controller
-
1 x DKD Digital LCD Speedometer Display
-
1 x Main Wiring Harness Assembly
-
1 x Bluetooth Programming Adapter Module
Unlock maximum power, speed, and smooth acceleration for your electric build! Select your options above, click Add to Cart, and order today!
P.S. If you are confused about the shipping cost, please feel free to contact us.
Also, could place an order but don't pay first; then we can adjust the price.
Pls. When placing an order, note the country in the order

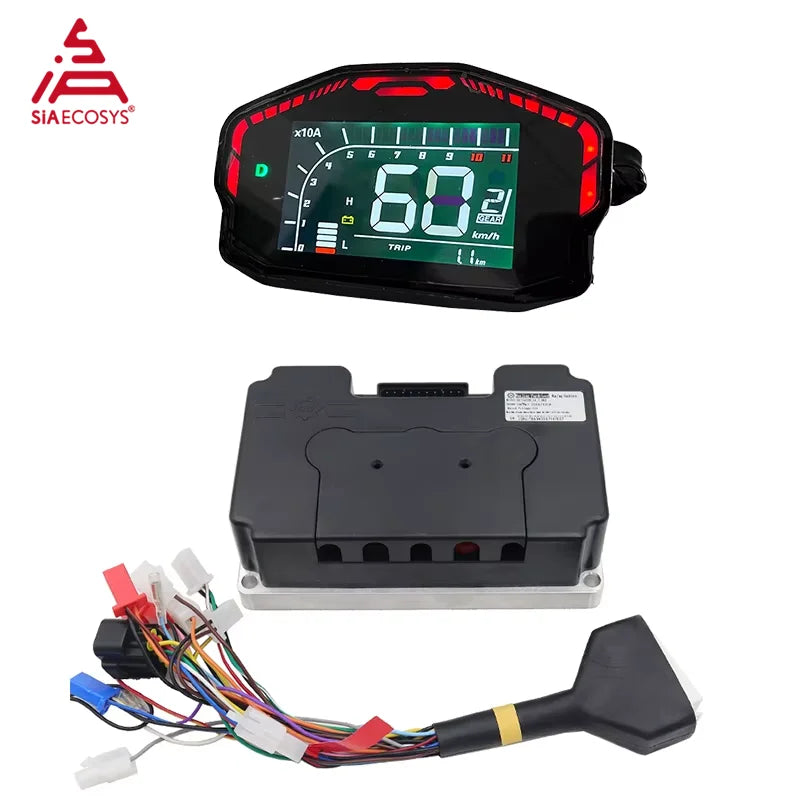

One set including the kits
Combo1.
1. 1pcs X ND72450 sine wave controller
2. 1 pc X DKD LCD Display
3. 1 pc X Bluetooth adapter
Key Features
1). All the raw materials are imported, using high-performance Moss tube
2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board
3). Small in size
4). High efficiency, low temperature rise, small running current
5). With self-learning function, excellent compatibility
6). The app is compatible with Android and Apple
7). With flux weakening function. (The product does not contain magnetism)
Product Description

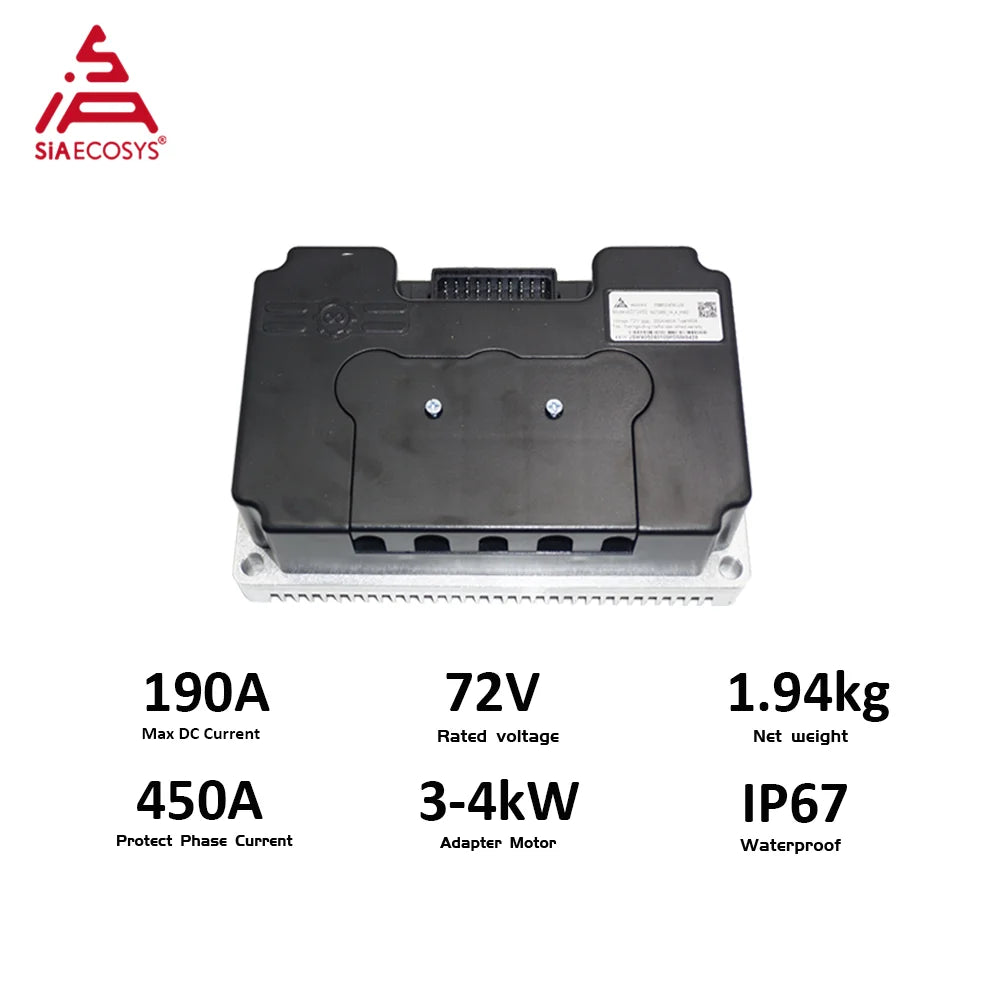

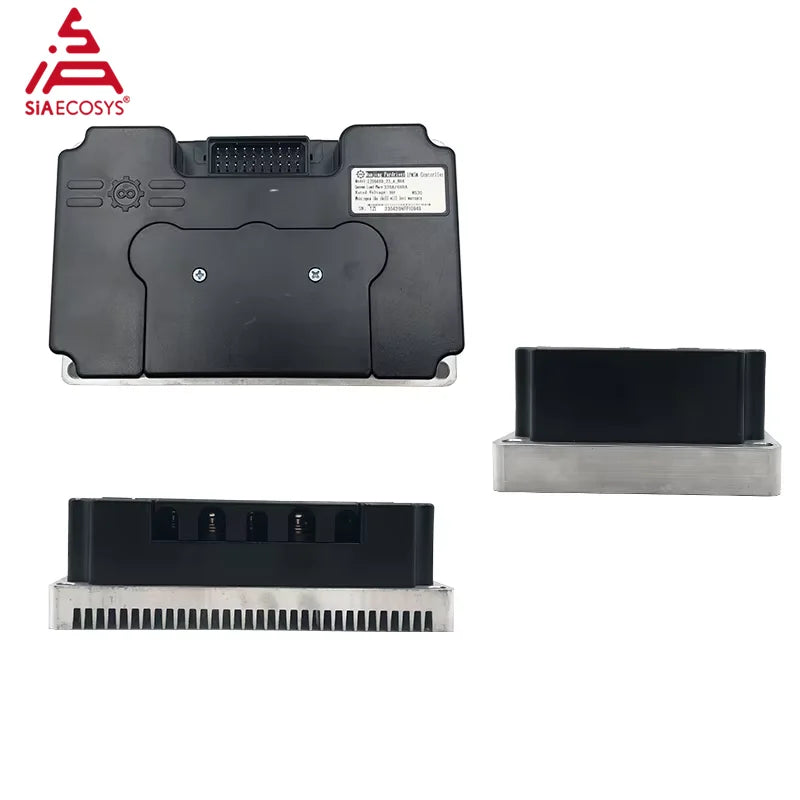

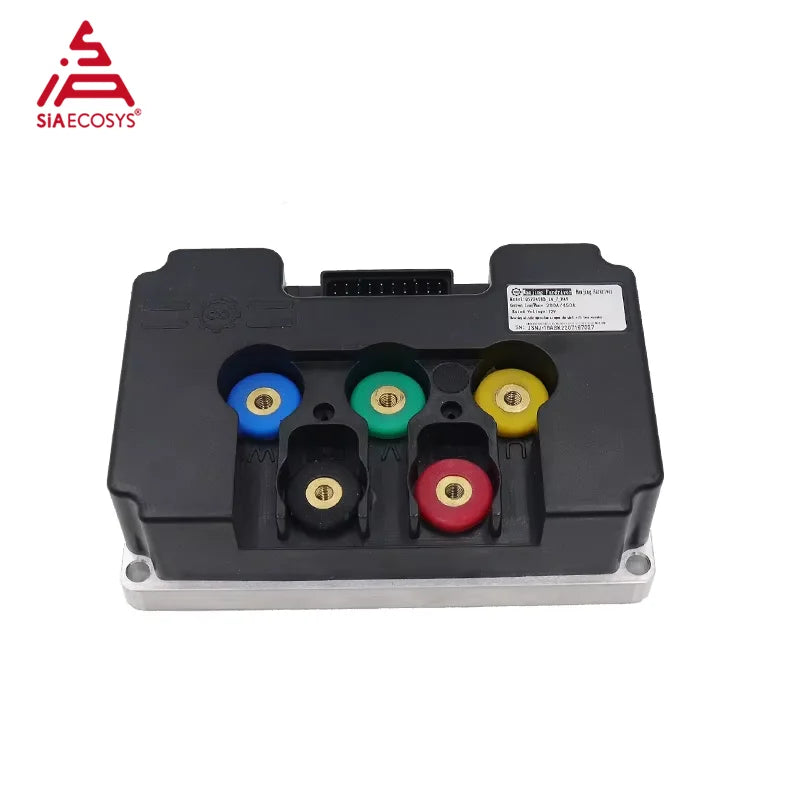

ND72450 is a sine wave controller with waterproofing grade IP67, suitable for 2-4kw motors.
It’s the Hall version (by default), which suits Hall motors.
It can also support encoders; please check with sales.
Max DC Current:190A
Rated voltage:72V
Net weight:1.94kg
Protect Phase Current:450A
Adapter Motor:3-4KW
Waterproof: IP67

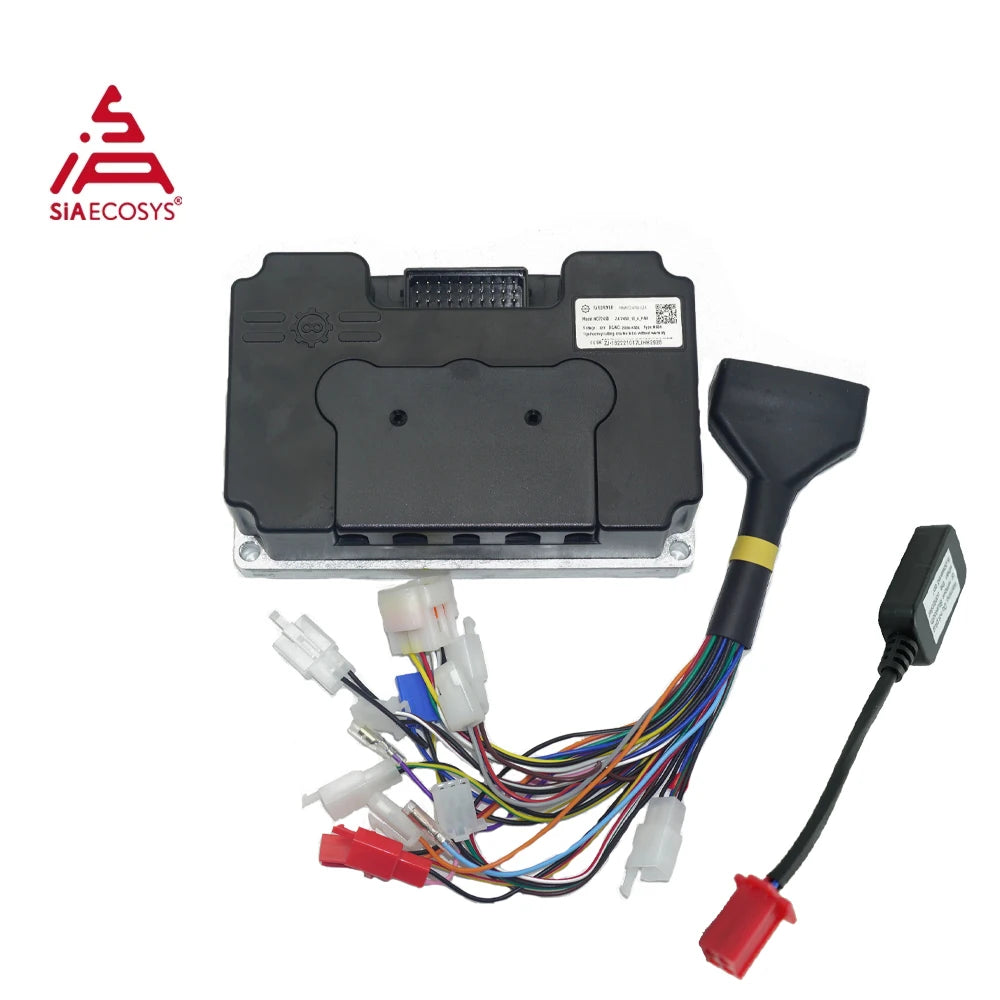

Adapter Cable
we free provide wiring function labels, connectors, and pins for free,
which will be more convenient for wiring.
Programmable Software & User Manual (Before you receive the controller)
Pls. Contact sales to get the link and password to download the manuals and software before/when you receive the controllers.
Key Features
Both CAN and LIN communication are supported
Product Description

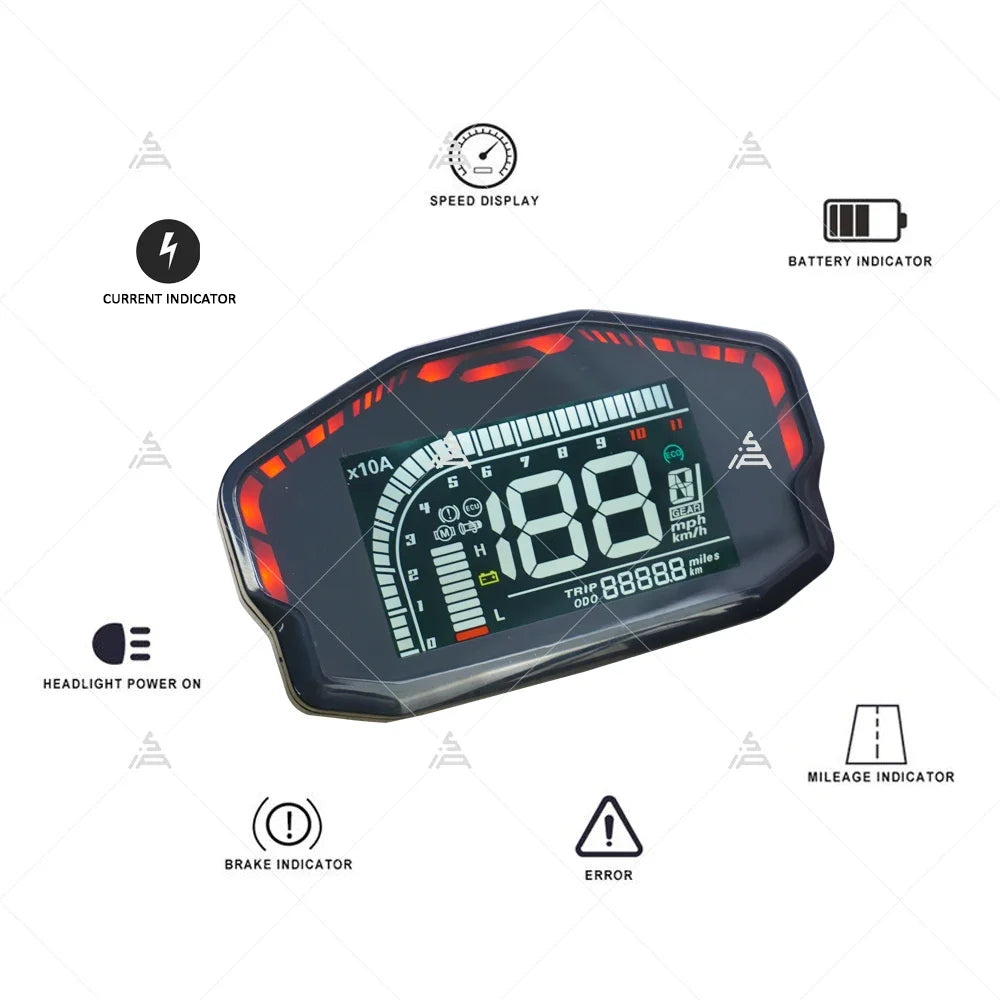

DKD LCD speedometer, Adjustable
It displays D, N, R, P, 1, 2, 3, S gears, and battery current X10.
For the speed, we recommend setting it as follows by default (to match the QS138 3 kW 12-inch assembly).
·Wheel tire size: 130/70-12
·Pole Pairs: 5
·Gear Ratio: 1: 4.77
·Voltage: 72V (20s Lithium battery)
