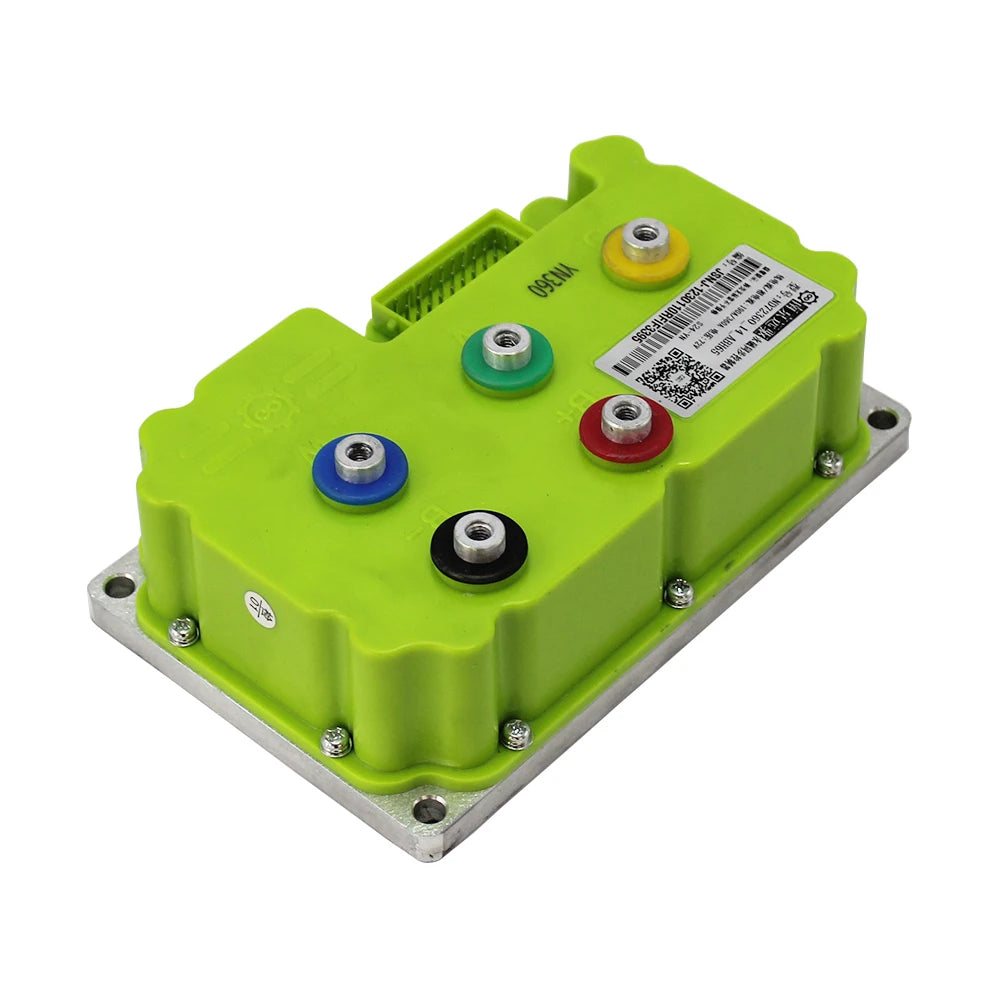

A bright lime green industrial electronic module with a silver metal mounting base and four colored terminal connectors (blue, green, red, black) on a white background.
  • A bright lime green industrial electronic module with a silver metal mounting base and four colored terminal connectors (blue, green, red, black) on a white background.

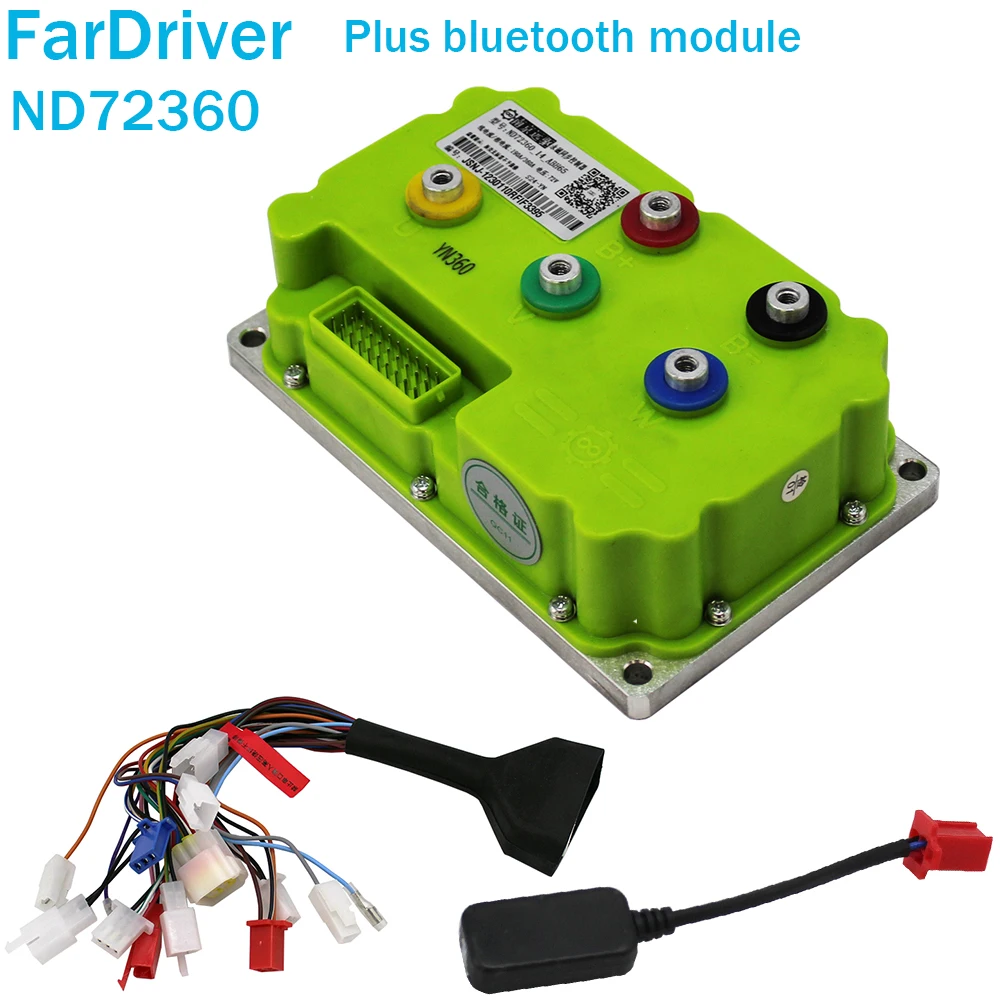

  • FarDriver ND72360 battery management system module in bright green with a silver metal mounting plate, shown alongside a black inline switch and multi-pin wiring harness on a white background.

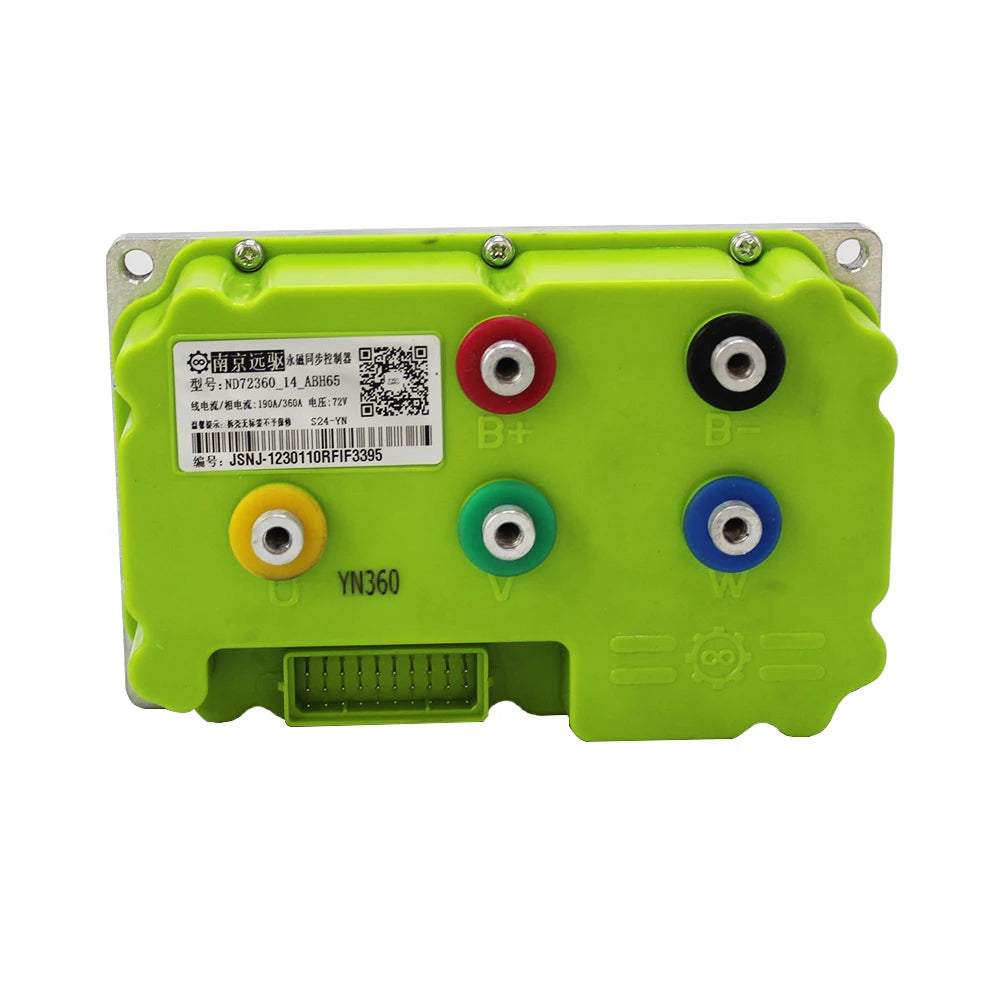

  • A bright lime green electronic control module with a white label, featuring four colored terminal connectors (red, black, green, yellow) and a multi-pin connector at the bottom, shown on a white background.

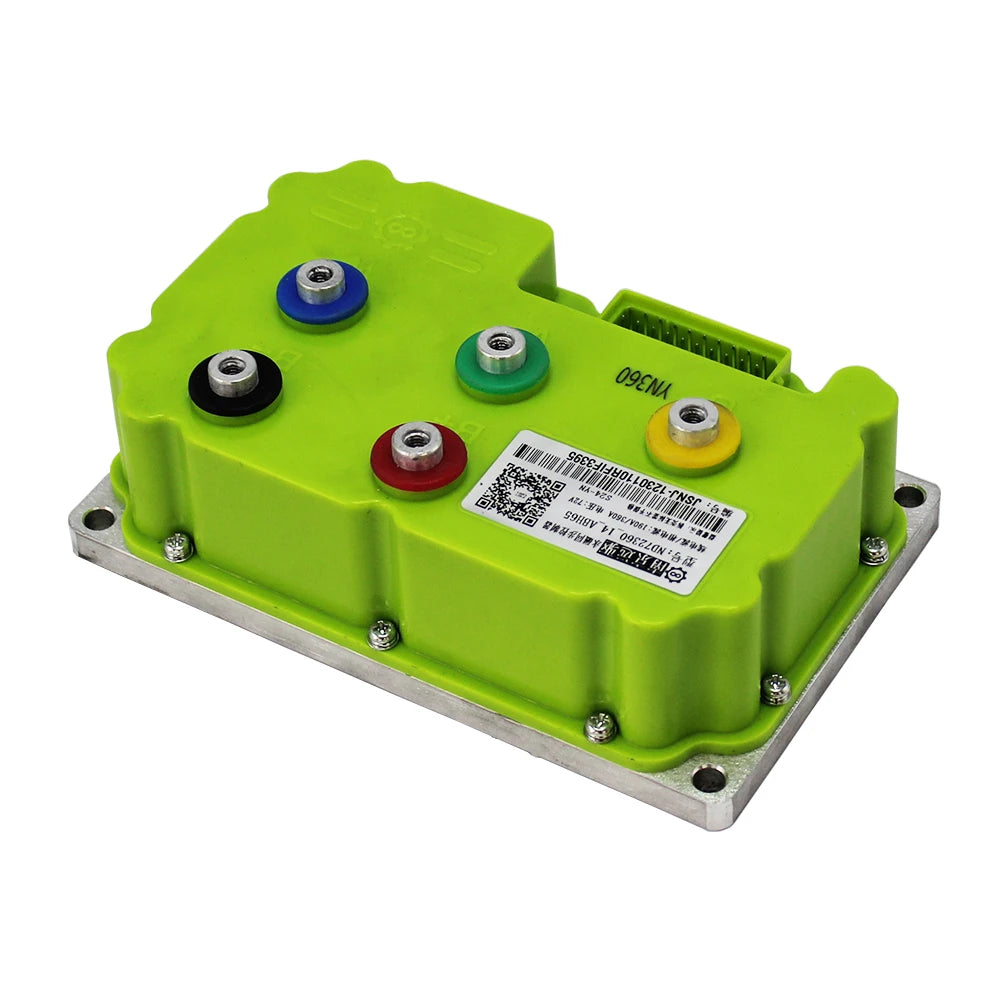

  • A bright lime green industrial electronic module with a silver metal mounting base, featuring multiple colored terminal connectors and a white barcode label.

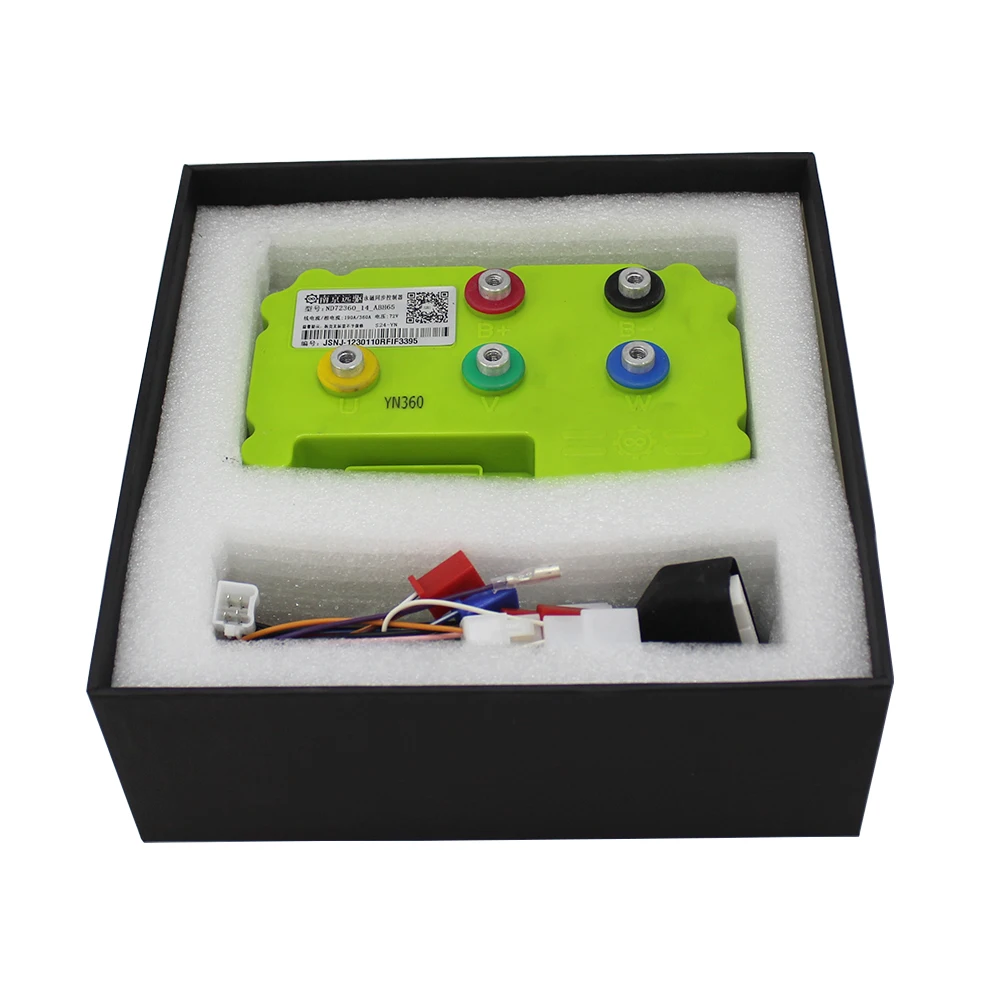

  • A green electronic control module with four colored terminal buttons and attached wiring, presented in a black box with white foam insert.

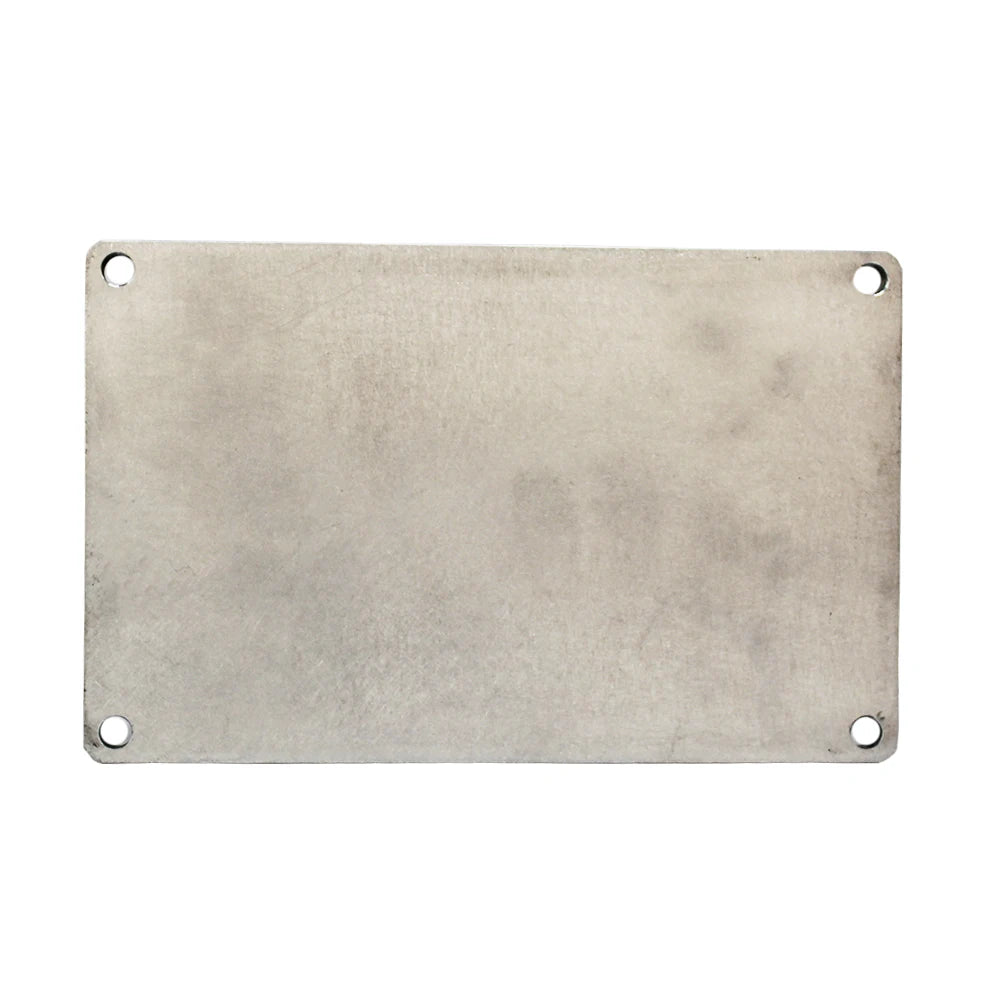

  • A rectangular metal mounting plate with rounded corners and four pre-drilled holes, shown against a plain white background.
  • A bright lime green industrial electronic module with a silver metal mounting base and four colored terminal connectors (blue, green, red, black) on a white background.
  • FarDriver ND72360 battery management system module in bright green with a silver metal mounting plate, shown alongside a black inline switch and multi-pin wiring harness on a white background.
  • A bright lime green electronic control module with a white label, featuring four colored terminal connectors (red, black, green, yellow) and a multi-pin connector at the bottom, shown on a white background.
  • A bright lime green industrial electronic module with a silver metal mounting base, featuring multiple colored terminal connectors and a white barcode label.
  • A green electronic control module with four colored terminal buttons and attached wiring, presented in a black box with white foam insert.
  • A rectangular metal mounting plate with rounded corners and four pre-drilled holes, shown against a plain white background.
ND72360 High-Power Sine Wave Controller

ND72360 High-Power Sine Wave Controller

$228.54
$228.54 $128.54
Shipping calculated at checkout.
Default TitleDefault Title

Nanjing FarDriver ND72360 High-Power Sine Wave Controller – 60V–72V, 190A DC / 360A Phase Current, Wireless Bluetooth App Tuning & Flux Weakening

Take full control of your high-performance electric scooter, light motorcycle, or custom e-bike build with the Nanjing FarDriver ND72360 Sine Wave Controller. Built with high-grade MOSFETs and advanced Field-Oriented Control (FOC) vector algorithms, this controller delivers ultra-smooth acceleration, silent motor operation, and maximum energy efficiency for motors rated from 2,000W to 4,000W+.

Engineered for extreme performance, the ND72360 handles up to 190A continuous DC battery current and a staggering 360A peak phase current. With integrated Bluetooth module support, you can wirelessly tune throttle response, line currents, regenerative braking force, and flux weakening (top-speed extension) directly from your smartphone via the FarDriver iOS/Android app.

⚠️ Technical Compatibility & Setup Guidance

TUNING & HARDWARE COMPATIBILITY:

  • System Voltage Range: Nominal 60V to 72V DC architectures (Max DC input cutoff ~88V).

  • High-Current Handling: Requires high-discharge battery packs capable of sustaining 190A continuous DC draw.

  • Motor Pairing: Compatible with 3-phase brushless DC (BLDC) and Permanent Magnet Synchronous Motors (PMSM) equipped with standard 0–5V Hall sensors.

  • Wireless Programming: Connect via the FarDriver App using the included/optional Bluetooth dongle for auto-learning motor phase angles and live parameter adjustments.

🚀 Key High-Performance Features

  • 360A Peak Phase Current: Delivers instantaneous low-end torque for rapid off-the-line launch and steep hill climbing.

  • Wireless Bluetooth Debugging: Adjust busbar current, phase limits, throttle ramps, soft-start curves, and reverse settings on-the-fly.

  • Flux Weakening Speed Boost: Unlock higher top speeds beyond your motor's standard RPM limits through electronic field weakening adjustments.

  • Smart Regenerative Braking: Configurable high/low electronic braking recharges your battery while reducing mechanical brake pad wear.

  • Die-Cast Aluminum Heat-Sink Casing: Heavy-duty IP67-rated enclosure provides maximum thermal dissipation and weatherproofing against rain and road debris.

📊 Technical Specifications Matrix

Specification Parameter FarDriver ND72360 Specifications
Brand / Manufacturer Nanjing FarDriver
Model Number ND72360
Operating Voltage Range 60V – 72V DC (Nominal)
Max Continuous DC Current 190A
Max Peak Phase Current 360A
Control Algorithm Sine Wave FOC (Field-Oriented Control)
Suitable Motor Power 2,000W – 4,000W Nominal (Hub or Mid-Drive)
Programming Interface Bluetooth Wireless App (iOS/Android) & PC Cable
Ingress Protection Rating IP67 Waterproof & Dustproof
Physical Dimensions 190 mm (L) × 120 mm (W) × 70 mm (H)
Net Weight Approx. 2.5 kg

⚙️ Quick Start Tuning Guide

  1. Wiring Connection: Connect motor phase lines (U, V, W), main battery power cables, 0–5V twist throttle, and the 5V Hall sensor plug.

  2. Auto-Learning Calibration: Open the FarDriver Bluetooth app, navigate to self-learning mode, and initiate automated phase angle identification to ensure smooth rotation.

  3. Current & Regen Tuning: Set your maximum battery continuous discharge limit according to your BMS specifications and adjust regen braking strength to your preference.

📦 Package Contents

  • 1 x Nanjing FarDriver ND72360 Sine Wave Controller

  • 1 x Full Plug-and-Play Main Wiring Harness

  • 1 x Bluetooth Debugging Module

  • 1 x User Wiring Diagram & Parameter Manual

Maximize your motor potential with high-phase sine wave control and real-time app tuning. Select your options below, click Add to Cart, and upgrade your setup today!
