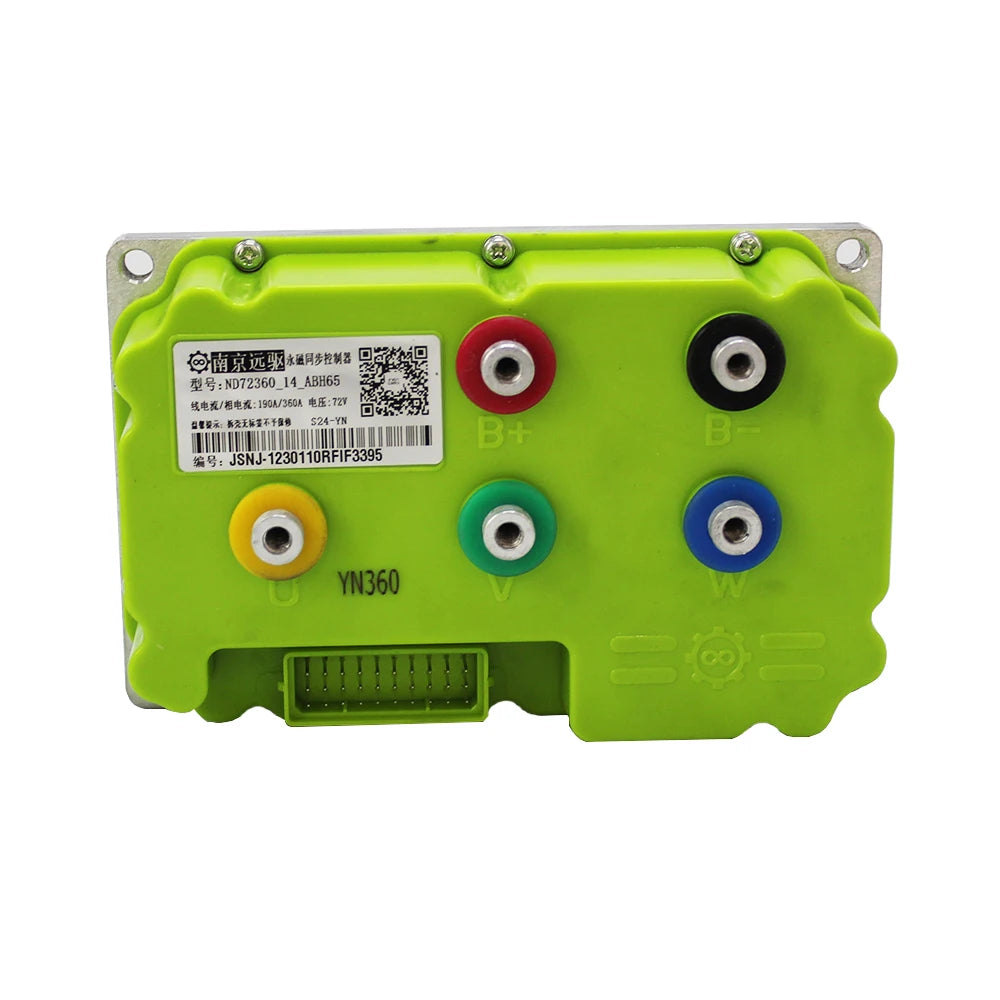

• A bright lime green electronic control module with a white label, featuring four colored terminal connectors (red, black, green, yellow) and a multi-pin connector at the bottom, shown on a white background.

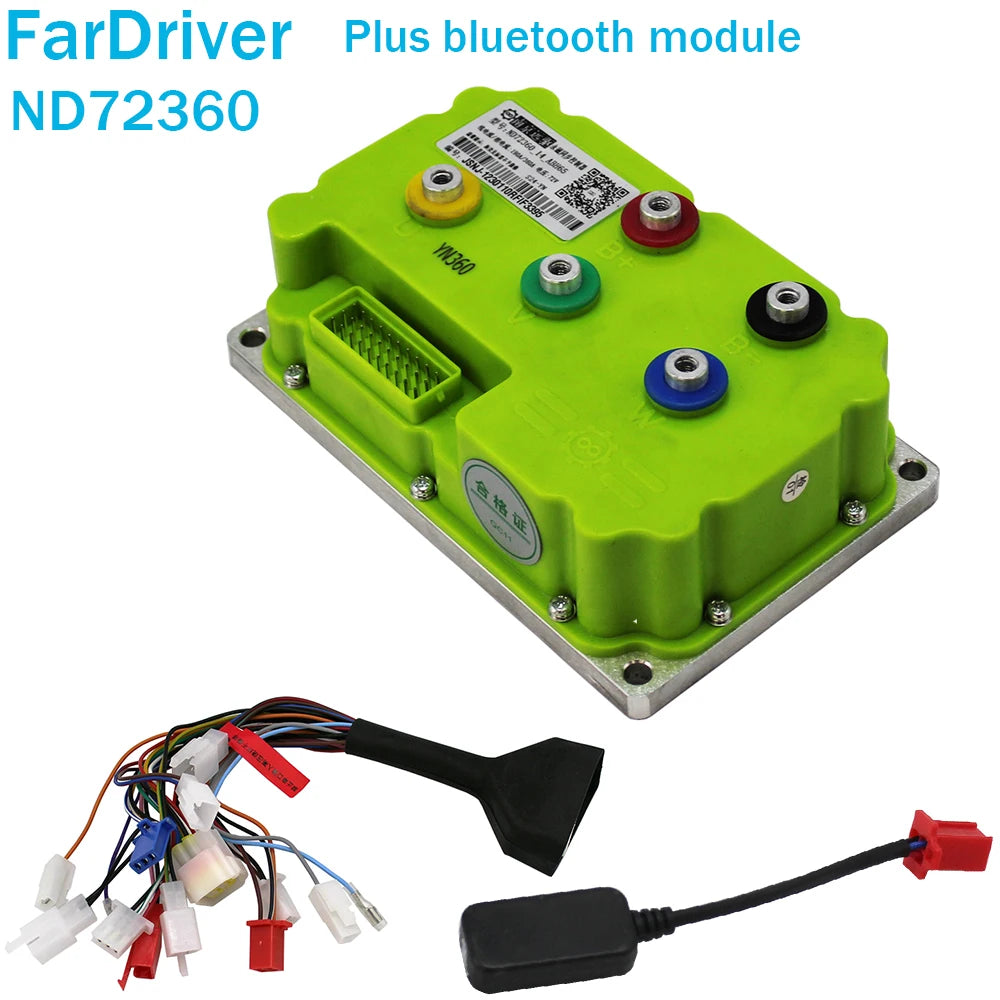

  • FarDriver ND72360 battery management system module in bright green with a silver metal mounting plate, shown alongside a black inline switch and multi-pin wiring harness on a white background.

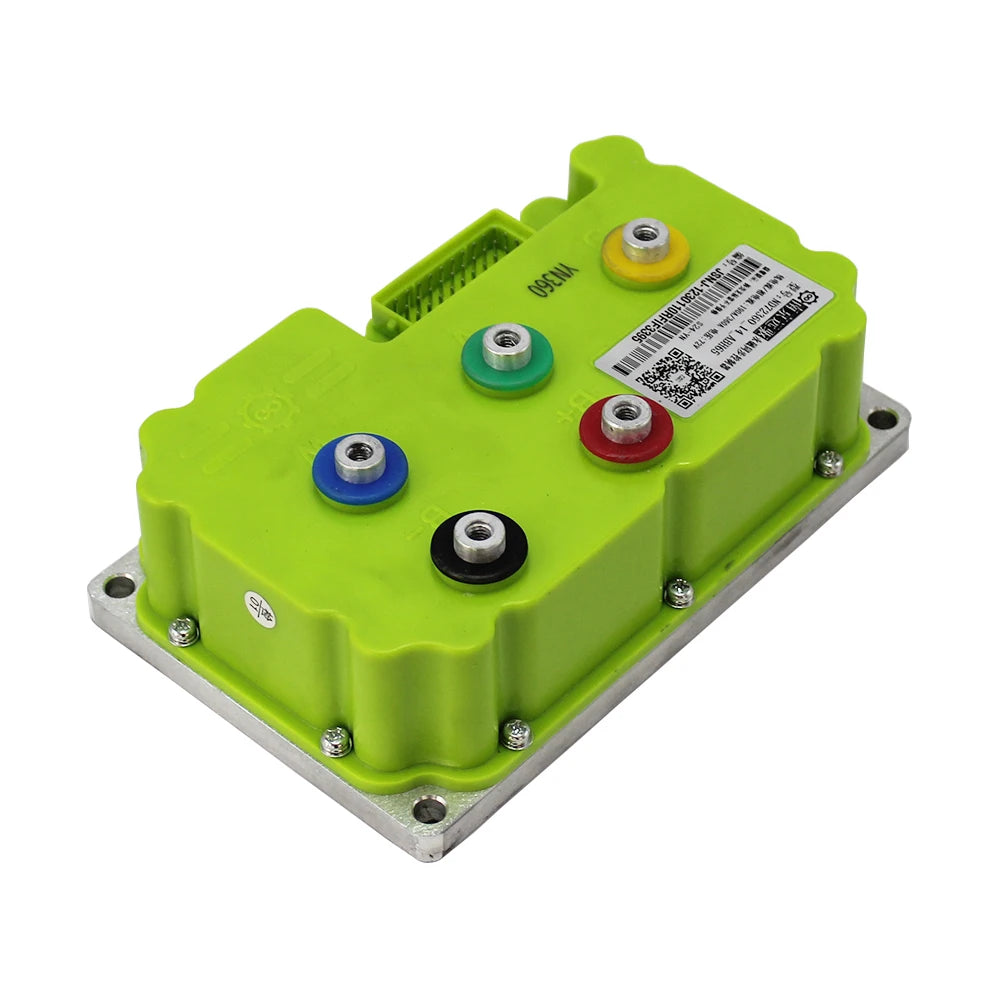

  • A bright lime green industrial electronic module with a silver metal mounting base and four colored terminal connectors (blue, green, red, black) on a white background.

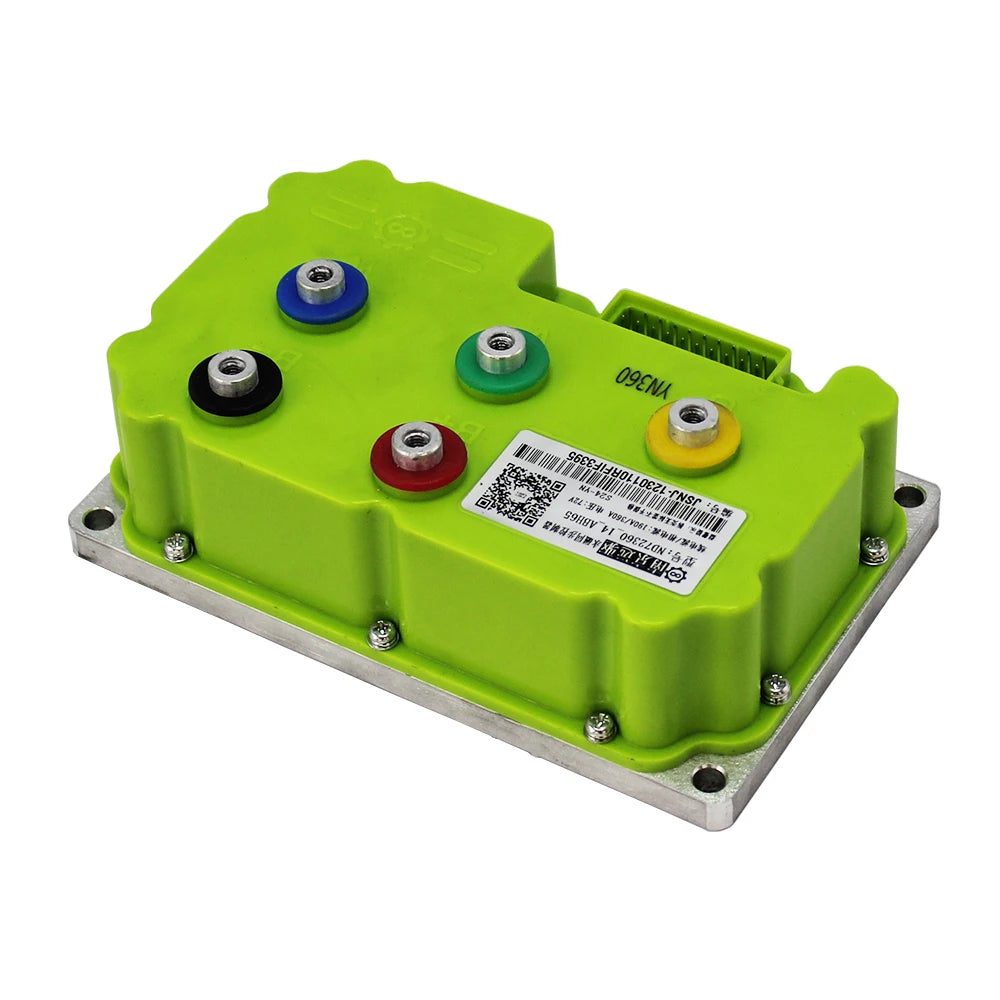

  • A bright lime green industrial electronic module with a silver metal mounting base, featuring multiple colored terminal connectors and a white barcode label.

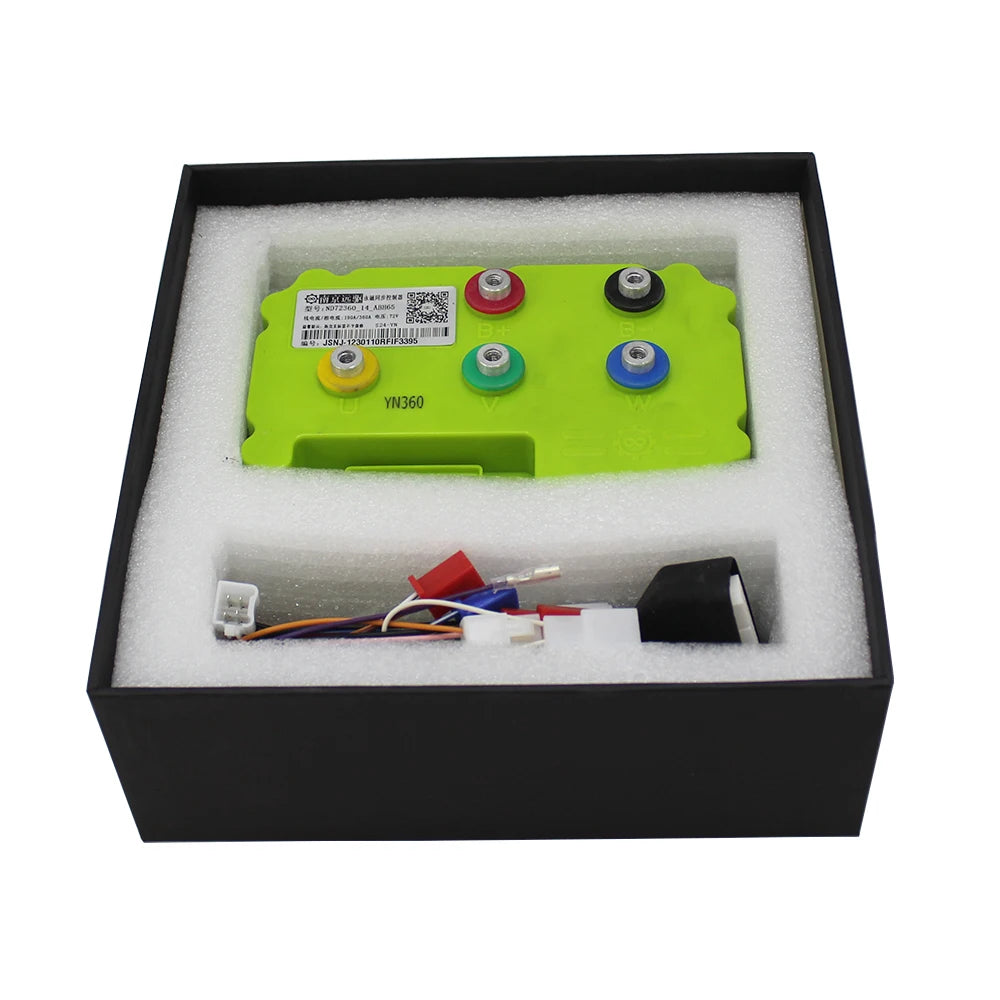

  • A green electronic control module with four colored terminal buttons and attached wiring, presented in a black box with white foam insert.

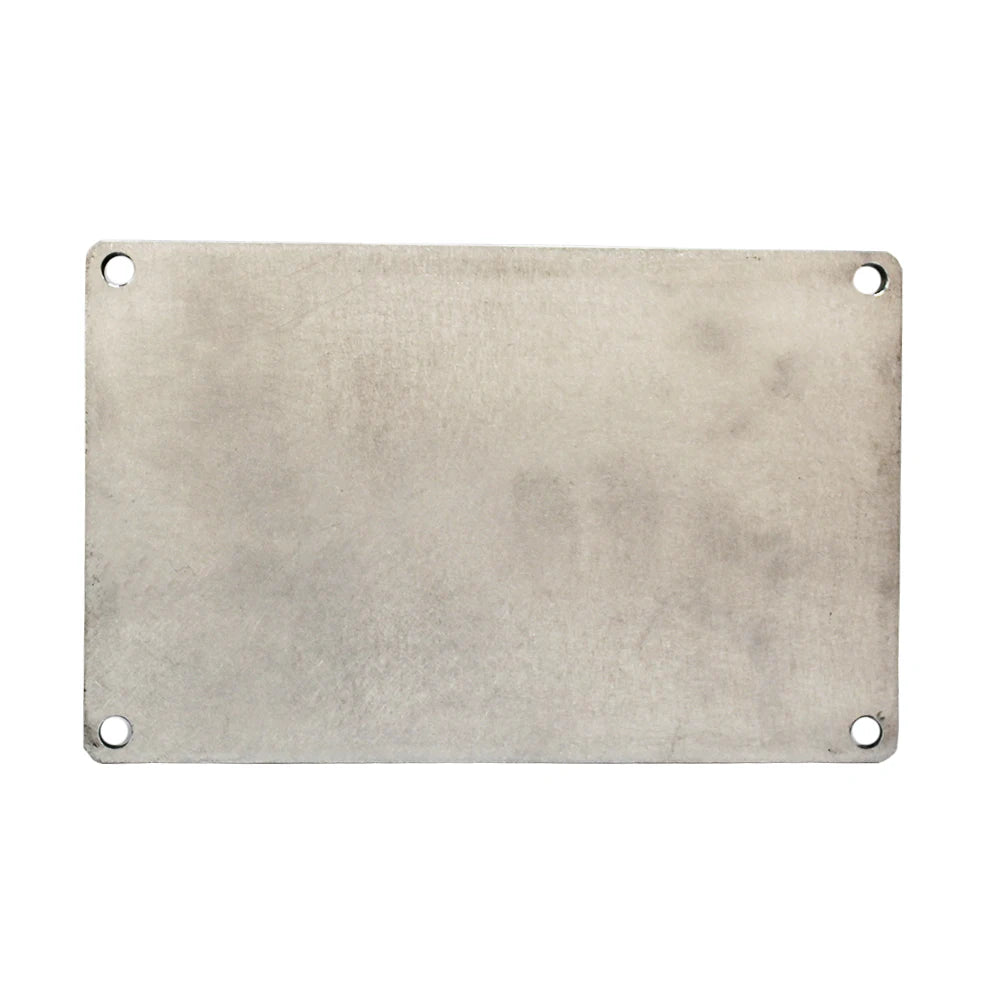

  • A rectangular metal mounting plate with rounded corners and four pre-drilled holes, shown against a plain white background.
1 6

Charge My E-Bike

Fardriver ND72360 60V-72V 190A DC Sine Wave with Bluetooth

Fardriver ND72360 60V-72V 190A DC Sine Wave with Bluetooth

$371.61 USD
$171.61 USD $371.61 USD
Sale Sold out
Shipping calculated at checkout.
Default Title

Nanjing FarDriver ND72360 High-Performance Programmable FOC Sine Wave DC Motor Controller –

60V to 72V Dual-Voltage Range (190A Continuous DC Current, 360A Peak Phase Current) Complete with Plug-and-Play Wireless Bluetooth Debugging & Programming Adapter for Electric Scooters, E-Bikes & QS Motors

Take full control of your electric scooter, performance e-bike, or custom EV build with the Nanjing FarDriver ND72360 FOC Sine Wave Motor Controller. Engineered to power 3KW to 4KW continuous brushless DC (BLDC) hub and mid-drive motors, this high-efficiency controller delivers up to 190A continuous DC battery current and a massive 360A peak phase current across 60V and 72V system setups.

Utilizing advanced Field-Oriented Control (FOC) sine wave technology, the ND72360 provides whisper-quiet motor operation, silky-smooth throttle response, and lower thermal output compared to standard square-wave controllers. Every unit comes bundled with a plug-and-play Bluetooth Programming Adapter, allowing you to wirelessly tune throttle curves, phase current limits, flux weakening, and regenerative braking parameters directly from your smartphone.

⚠️ System Compatibility & Operating Limits

IMPORTANT VOLTAGE & MOTOR SPECIFICATIONS:

  • Operating Voltage Range: Formulated specifically for 60V to 72V DC nominal battery systems (operates up to 88V DC maximum peak charge cutoff).

  • High Output Capacity: Handles up to 190A continuous DC battery current and 360A peak surge phase current.

  • QS Motor Optimization: Pre-configured auto-learning routines pair effortlessly with QS Motors and Yuma Motors. (Third-party BLDC motors can easily be calibrated using the built-in auto-learn procedure via the mobile app).

  • Physical Dimensions & Weight: Compact $190 \times 120 \times 70\text{ mm}$ footprint weighing $2.5\text{ kg}$ ($5.5\text{ lbs}$).

🚀 Key High-Performance Features

  • High Output Handling (190A DC / 360A Phase): Formulated for 3KW–4KW motor builds, providing instant launch torque, strong hill climbs, and smooth continuous speed.

  • Included Wireless Bluetooth Dongle: Connect wirelessly via the FarDriver App (iOS & Android) to monitor live diagnostics, tune phase current, adjust throttle sensitivity, and calibrate regen braking.

  • Advanced FOC Sine Wave Technology: Provides quiet motor rotation, improved power efficiency, and reduced heat buildup compared to noisy square-wave units.

  • Integrated Self-Learning Function: Simplifies initial commissioning by automatically detecting Hall sensor sequence and motor phase angles.

  • Compact Heavy-Duty Housing: Heavy-duty aluminum casting ($190 \times 120 \times 70\text{ mm}$) protects internal MOSFETs and aids thermal dissipation during aggressive acceleration.

📊 Technical Specifications Matrix

Specification Parameter Nanjing FarDriver ND72360 Specifications
Manufacturer Nanjing FarDriver
Model Number ND72360
Controller Architecture FOC Sine Wave BLDC / PMSM Controller
Operating Voltage Range 60V – 72V DC Nominal (88V Max Peak Cutoff)
Max Battery DC Current 190A Continuous
Max Peak Phase Current 360A Peak Surge
Supported Motor Power 3KW to 4KW Continuous Motor Ratings
Physical Dimensions ($L \times W \times H$) $190 \times 120 \times 70\text{ mm}$
Net Weight $2.5\text{ kg}$ ($5.5\text{ lbs}$)
Wireless Interface Included Plug-and-Play Bluetooth Adapter
Motor Compatibility Optimized for QS Motors & Yuma Motors



📋 Ideal Applications

The FarDriver ND72360 Controller with Bluetooth is engineered for:

  • 60V & 72V High-Power Electric Scooters, Street Mopeds & E-Bikes

  • 3KW to 4KW QS Motor & Yuma Motor Mid-Drive and Hub Motor Upgrades

  • High-Speed Custom Light EV Conversions & Off-Road Buggies

📦 Package Contents

  • 1 x Nanjing FarDriver ND72360 60V/72V 190A DC Sine Wave Controller

  • 1 x Plug-and-Play Wireless Bluetooth Programming Adapter

  • 1 x Main Signal & Power Wiring Harness Assembly

  • 1 x Downloadable App Link & User Manual Access Document

Equip your 60V/72V build with complete FarDriver wireless tuning. Select your quantity above, click Add to Cart, and order today!
