Nanjing FarDriver High-Power Programmable Sine Wave DC Motor Controller Series –
Models ND722600 / ND842600 / ND962600 (Massive 2600A Peak DC Current) Engineered for 20kW to 25kW Electric Motors Across 48V to 96V Systems (IP67 Waterproof Enclosure, Bluetooth/PC Programmable Telemetry & CE Certified)
Take complete control of ultra-high-performance electric motorcycles, racing karts, and heavy EV builds with the Nanjing FarDriver ND2600 Series Programmable Sine Wave Controllers. Engineered for massive energy delivery, this flagship controller family delivers up to a staggering 2600A peak DC current, making it the premier choice for driving 20kW to 25kW continuous high-power BLDC and PMSM motors.
Utilizing advanced FOC (Field-Oriented Control) sine wave technology, the FarDriver series provides silky-smooth acceleration, ultra-quiet motor operation, and maximum energy efficiency while virtually eliminating low-speed motor shudder. Sealed in a rugged IP67 waterproof aluminum chassis ($470 \times 160 \times 320\text{ mm}$), these controllers are fully customizable via smartphone app or PC software to fine-tune throttle response, flux weakening, and regenerative braking parameters.
⚠️ Controller Model Selection & Operating Limits
IMPORTANT VOLTAGE & CURRENT SPECIFICATIONS:
FarDriver ND722600: Rated for 48V to 72V DC nominal | 2600A Peak Current | Designed for 72V high-power racing builds.
FarDriver ND842600: Rated for 60V to 84V DC nominal | 2600A Peak Current | Ideal for high-voltage 84V performance setups.
FarDriver ND962600: Rated for 72V to 96V DC nominal | 2600A Peak Current | Ultimate performance option for 96V high-voltage platforms up to 25kW+.
Motor Compatibility: Engineered for high-pole-pair brushless DC (BLDC) hub motors, mid-drive motors, and permanent magnet synchronous motors (PMSM).
🚀 Key High-Performance Features
-
Massive 2600A Peak Output: Handles extreme current demands to maximize launch acceleration and top-end performance on 20kW–25kW motors.
-
Advanced FOC Sine Wave Architecture: Delivers precise torque control, lower motor operating temperatures, and silent motor rotation compared to square-wave controllers.
-
Fully Programmable Telemetry: Adjust phase current, battery current limits, flux weakening (top speed boost), throttle curves, and regen braking via Bluetooth app or USB-PC link.
-
Rugged IP67 Sealed Housing: Heavy-duty aluminum casting offers complete dustproof protection and waterproof immersion resistance for harsh off-road or track conditions.
-
Comprehensive Thermal Protection: Continuous temperature monitoring dynamically throttles power to protect internal MOSFETs and motor windings from thermal overload.
-
CE Safety Certified: Built to meet international standards for industrial and electric vehicle motor controllers.
📊 Technical Specifications Matrix
| Specification Parameter | FarDriver ND2600 Controller Series Specifications |
| Brand Name | Nanjing FarDriver |
| Model Options | ND722600 | ND842600 | ND962600 |
| Controller Type | FOC Sine Wave DC Motor Controller |
| Operating Voltage Ranges | 48V – 72V (ND722600) | 60V – 84V (ND842600) | 72V – 96V (ND962600) |
| Peak DC Current | 2600A Maximum Output |
| Supported Motor Power | 20kW to 25kW Continuous / Peak Power |
| IP Rating | IP67 Waterproof & Dustproof |
| Dimensions ($L \times W \times H$) | $470 \times 160 \times 320\text{ mm}$ |
| Weight | Approx. 7.0 kg ($15.4\text{ lbs}$) |
| Programming Interface | Bluetooth / PC Software (Customizable Parameters) |
| Certifications | CE Certified |
📋 Ideal Applications
The FarDriver ND2600 Controller Series is engineered for:
-
High-Speed 20kW–25kW Electric Racing Motorcycles & Track Bikes
-
Custom Electric Go-Karts, Buggies & Off-Road Utility Vehicles (UTVs)
-
High-Power Mid-Drive & Hub Motor EV Conversions (48V to 96V)
-
Commercial Heavy Electric Mobility Platforms

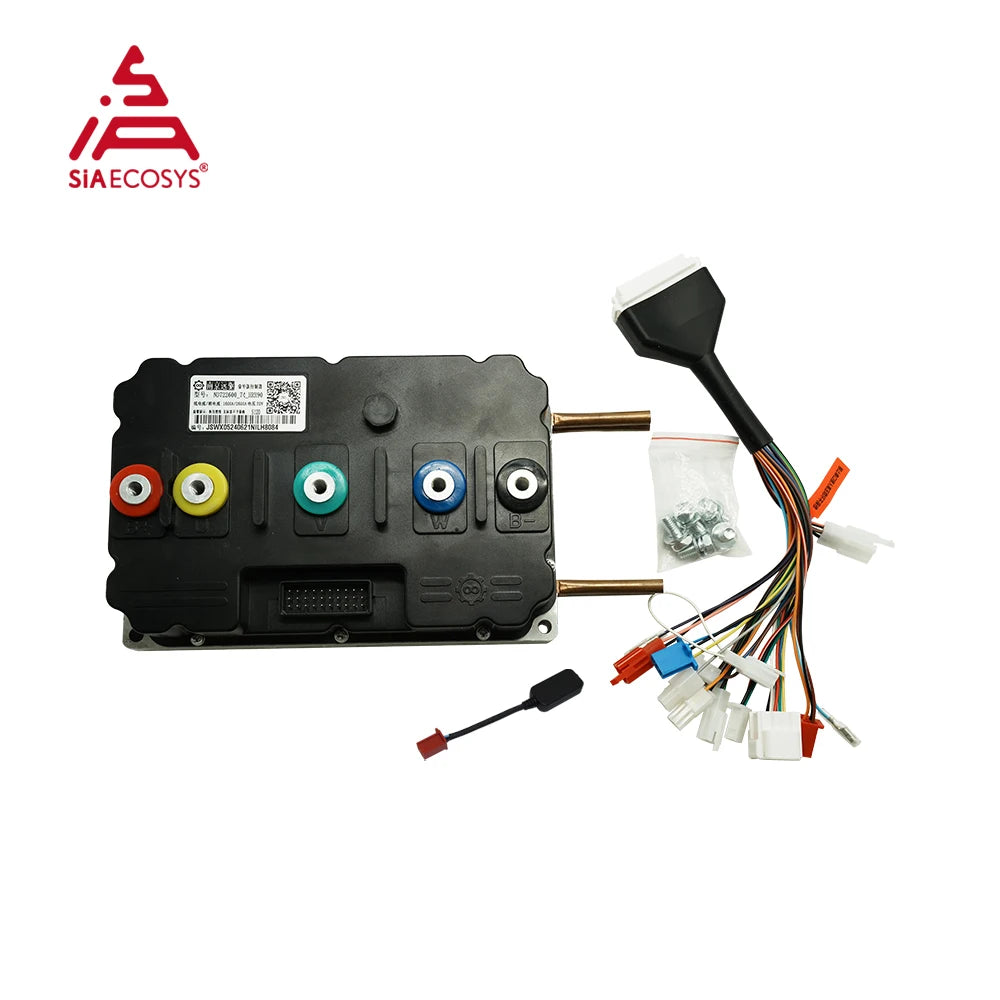

📦 Package Contents
-
1 x Nanjing FarDriver High-Power Sine Wave Controller (ND722600, ND842600, or ND962600)
-
1 x Wiring Harness & Signal Connector Assembly
-
1 x Bluetooth Programming Adapter / PC Data Cable (Selectable Option)
Take total control of your 25kW build with high-power FarDriver tuning. Select your model voltage above, click Add to Cart, and order today!
FarDriver ND722600/ND842600/ND962600-Top Selling Programmable 96V 2600A DC Motor Speed Controller 20-25kw Electric Motors 48V-96V Sine Wave

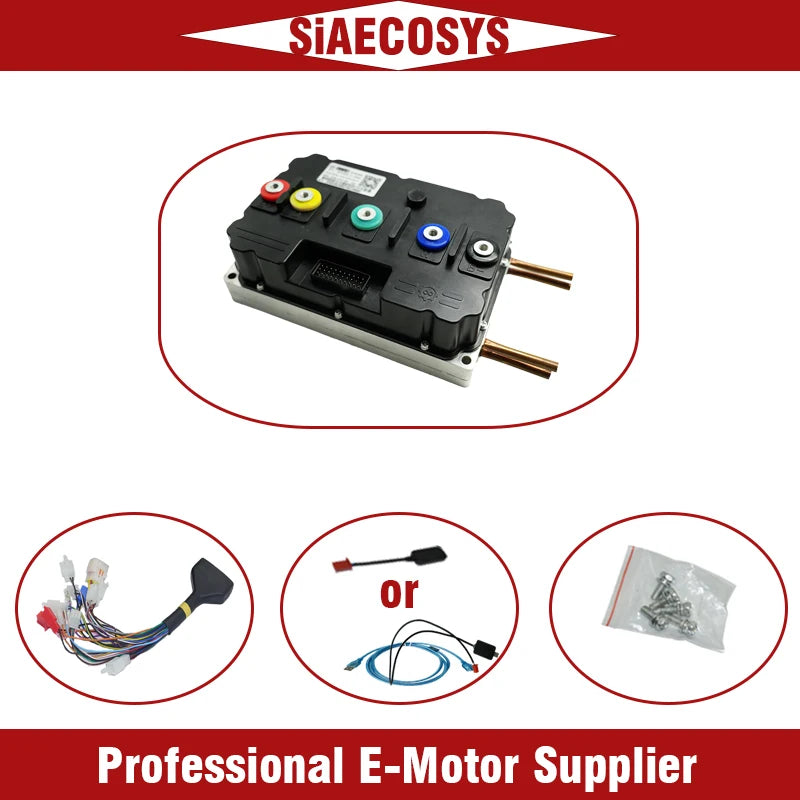

One set including below kits
Combo1.
1. 1pcs X ND722600 sine wave controller
2. 1pcs X Bluetooth
Combo2.
1. 1pcs X ND842600 sine wave controller
2. 1pcs X Bluetooth
Combo3.
3. 1pcs X ND962600 sine wave controller
4. 1pcs X Bluetooth
Key Features
1). All the raw materials are imported, using high-performance Moss tube, full metal shielding and aluminum die heat dissipation structure; the hardware architecture and software implementation are perfectly matched and refined.
2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board
3). Small in size
4). High efficiency, low temperature rise, small running current
5). With self-learning function, excellent commonality
6). The app is compatible with Android and IOS
7). With flux weakening function.(The product does not contain magnetism)
Product Description

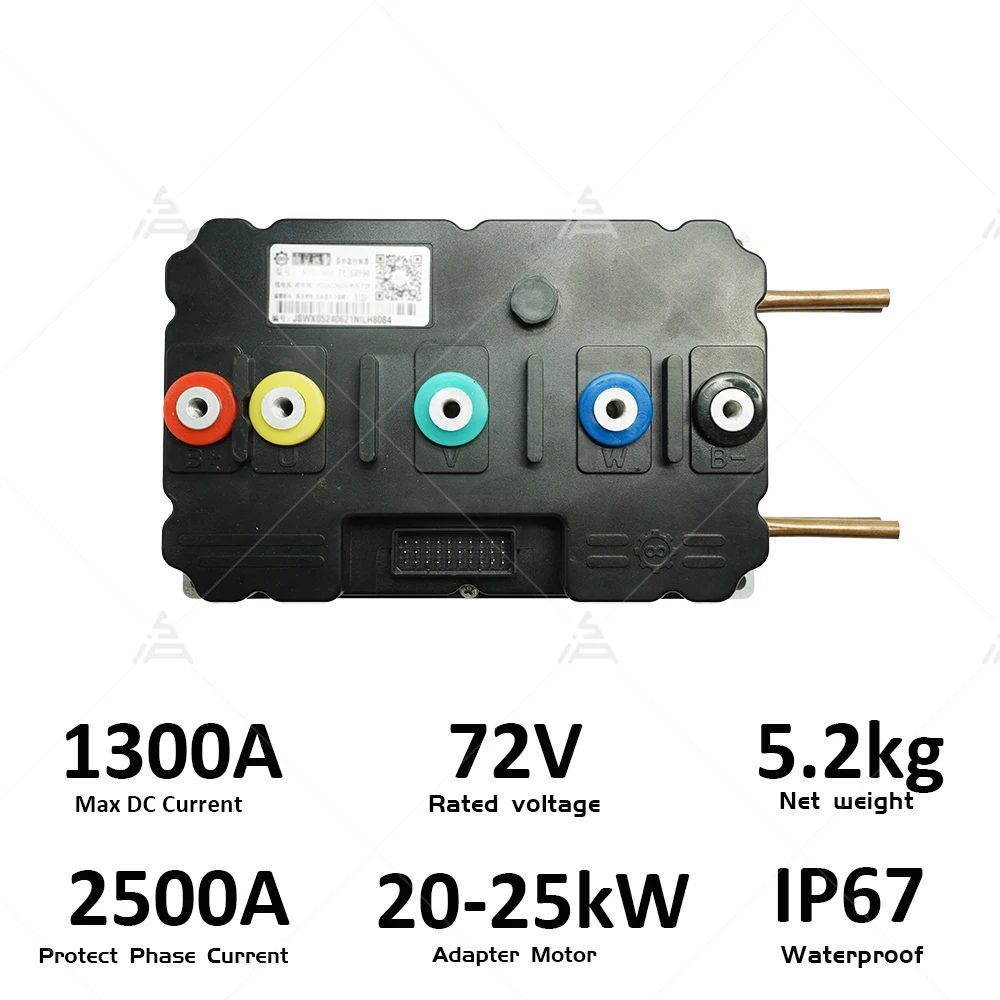

ND722600 Spec

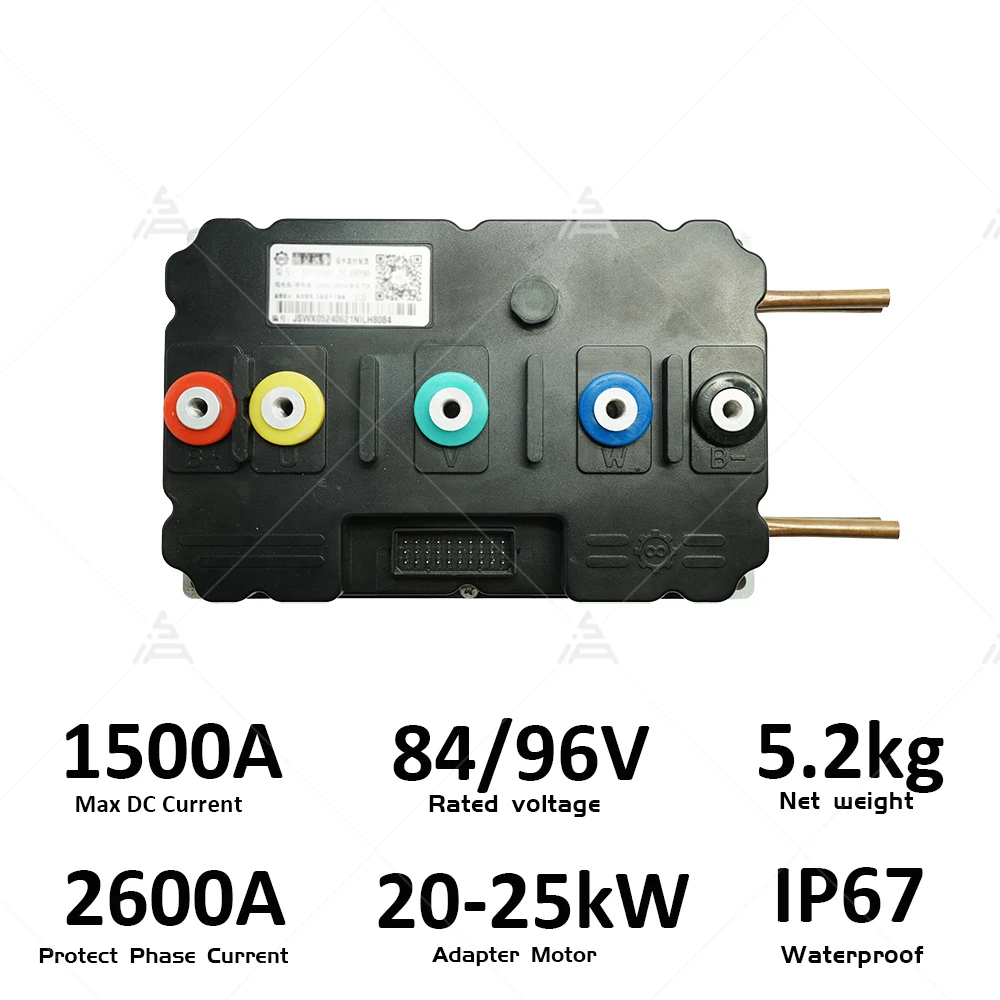

ND842600/ND962600 Spec
Drawing
To be updated

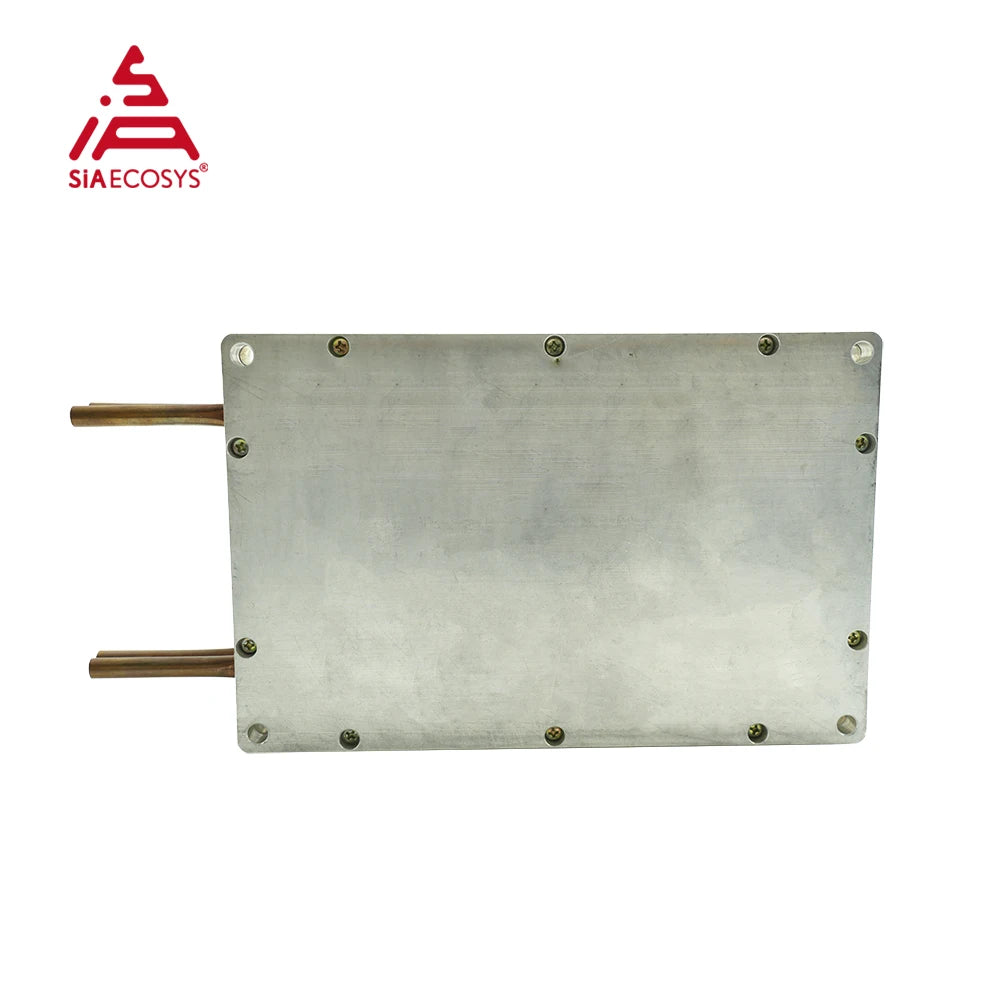

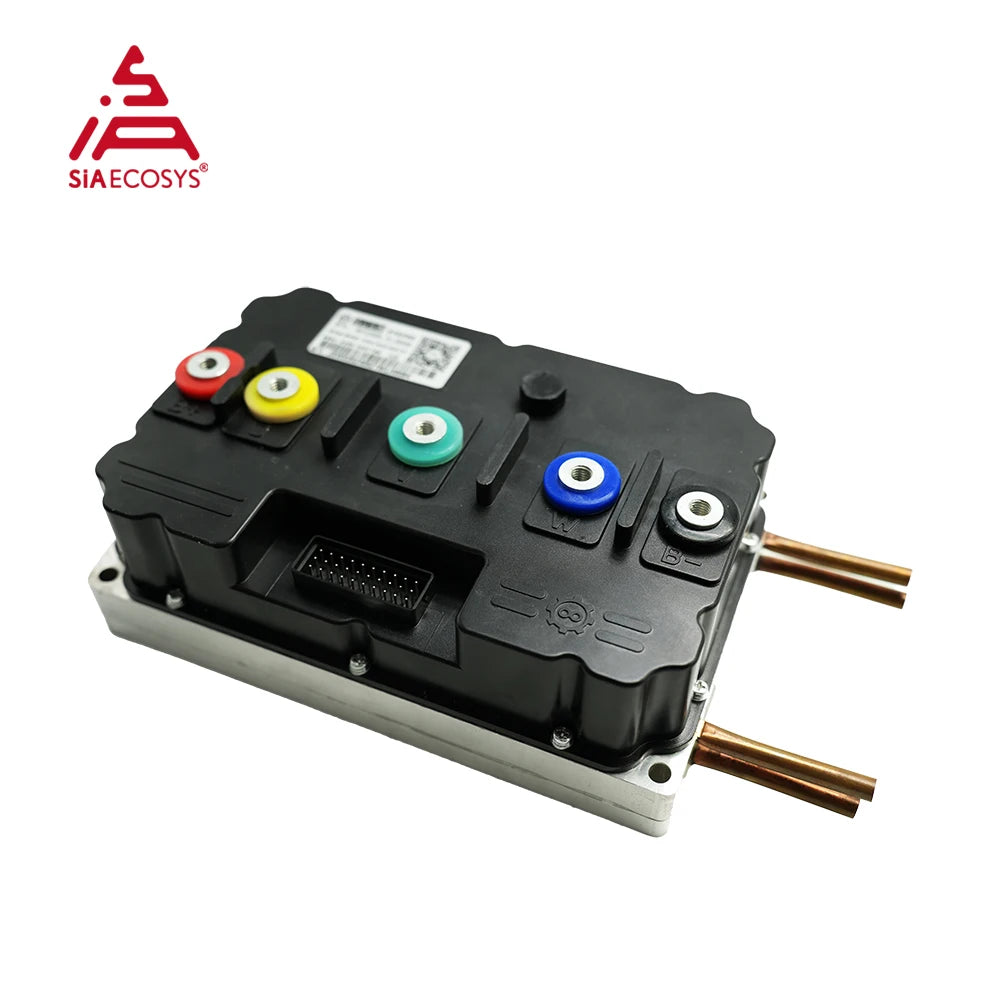

Please Note: This controller is a water-cooled version with a flat bottom board.

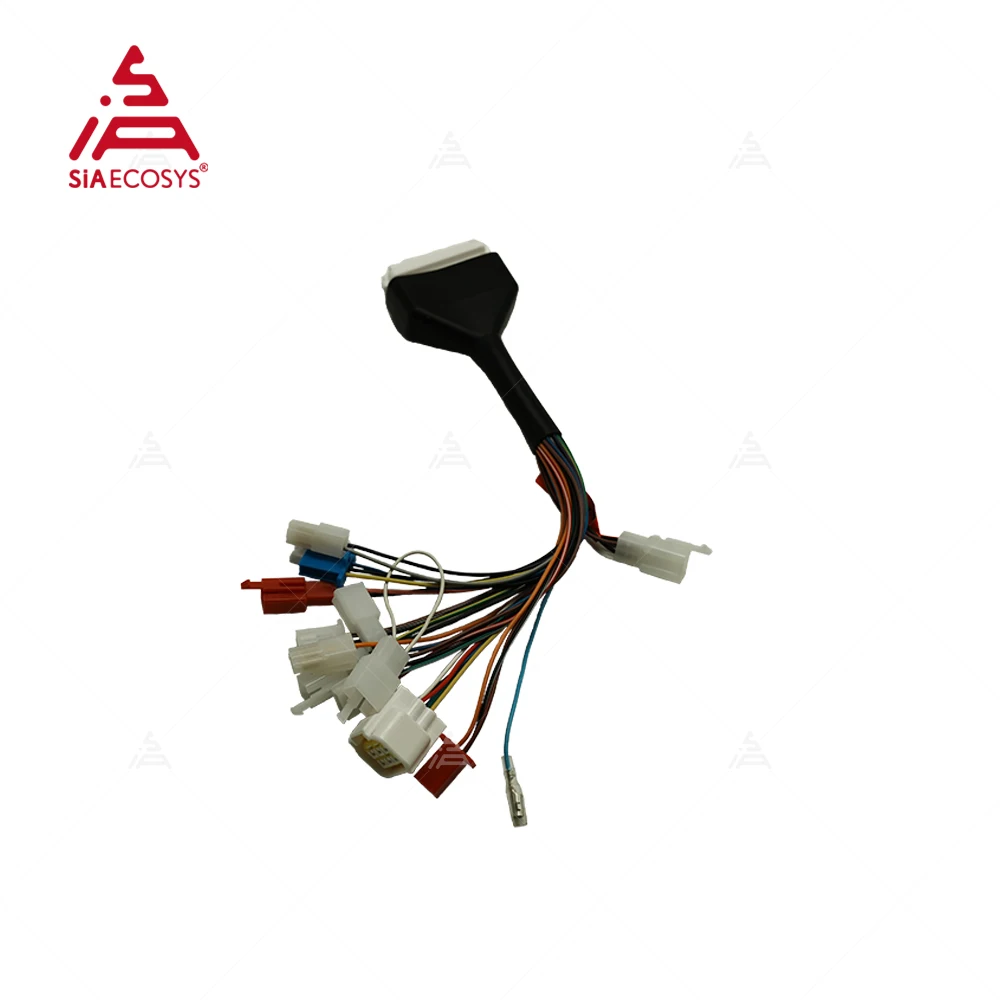

Adapter Cable

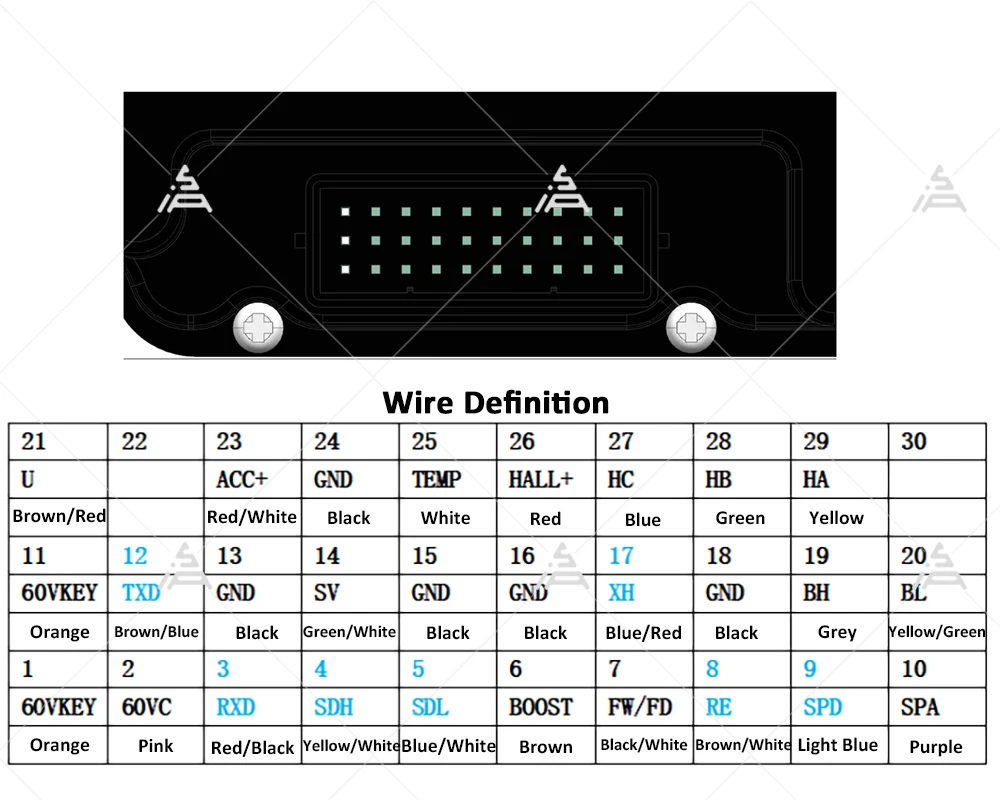

Wire Definition

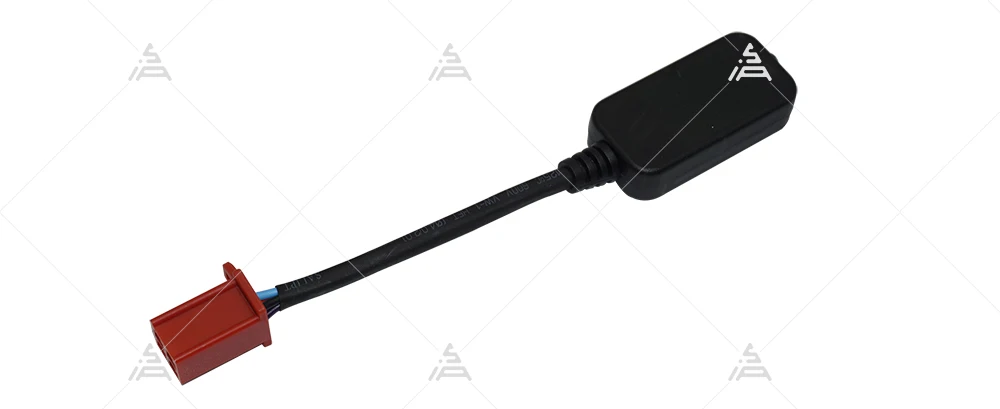

Bluetooth

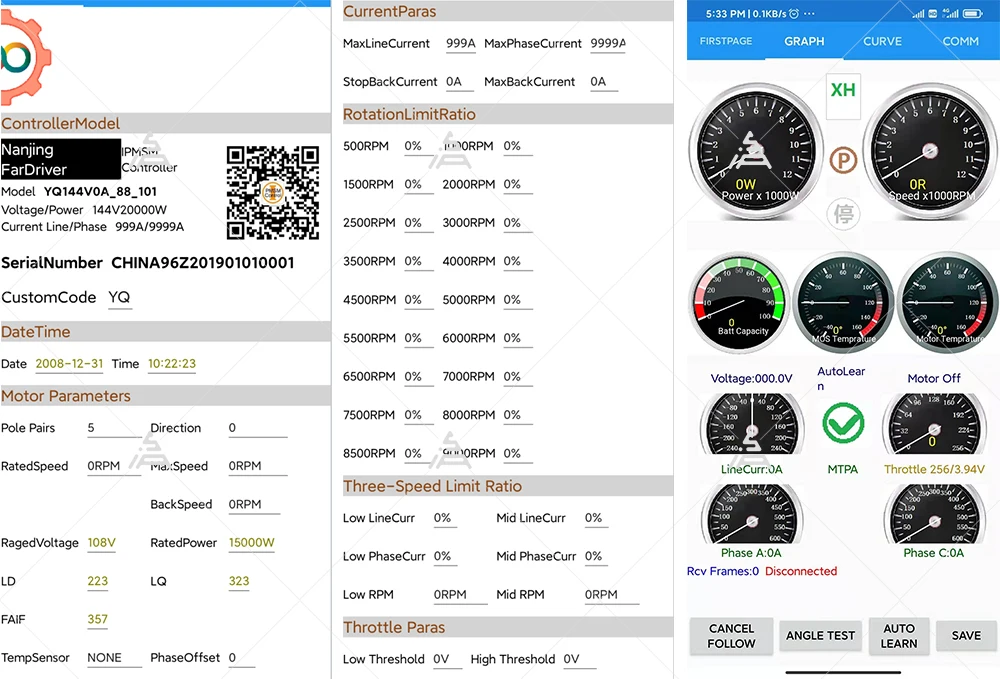

Software interface（App）

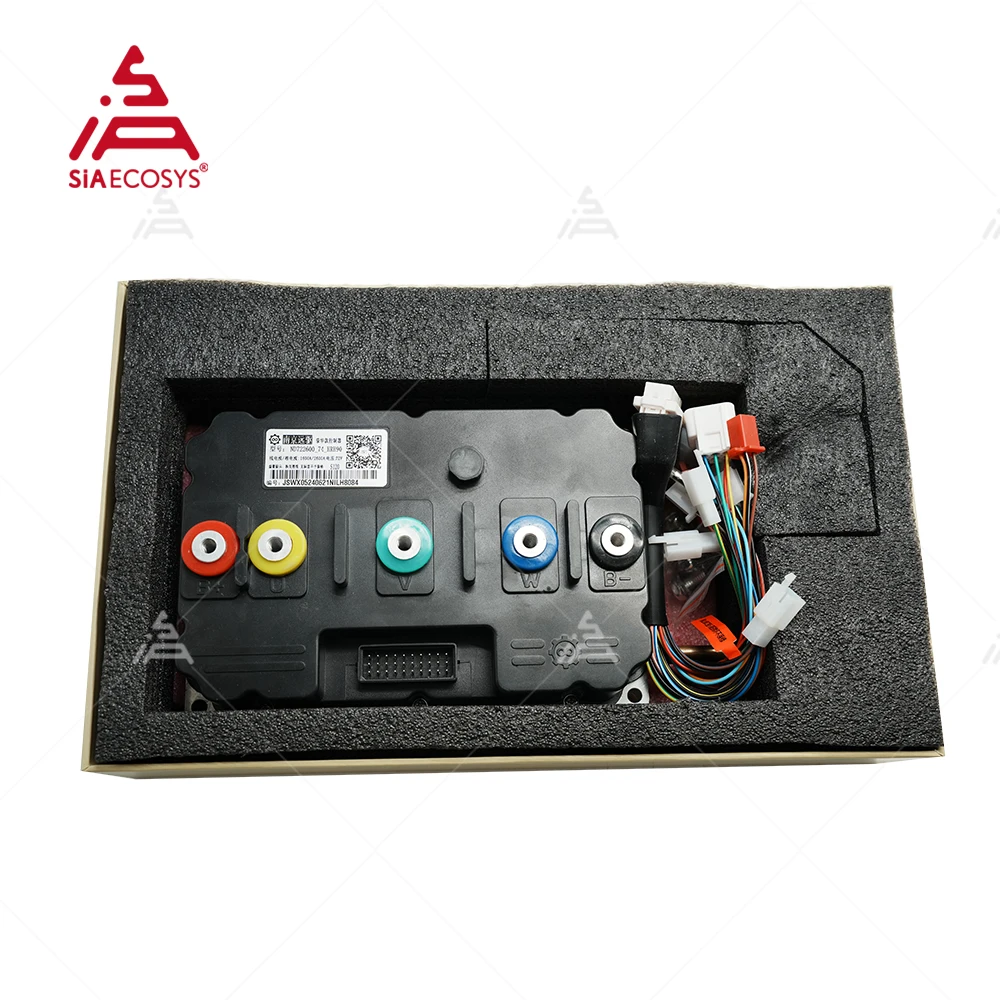

Package
Programmable Software & User manual (Before you received the controller)
Pls. Contact sales to get the link and password to download the manuals and software before/when you receive the controllers.
Recommend motor

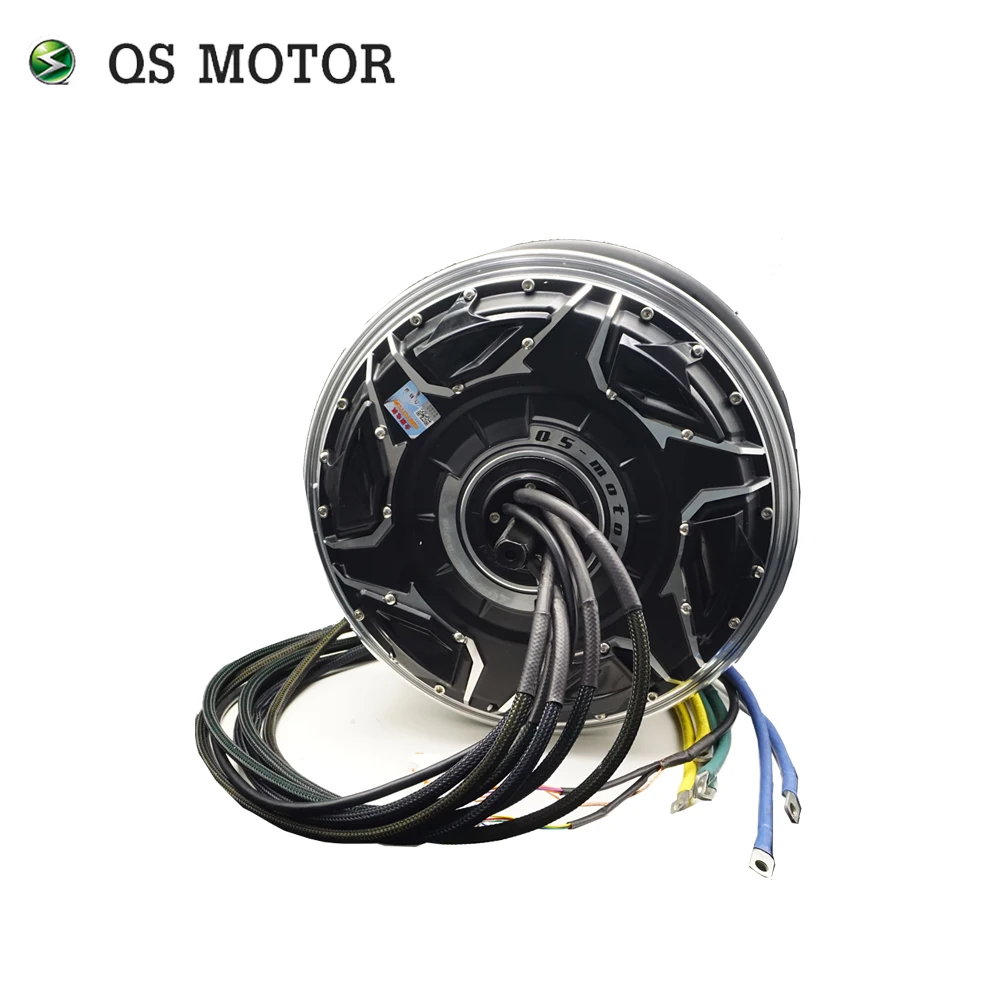

QSMOTOR 12*3.5inch QS268 90H 25kW Powerful Racing Hub Motor
