NBPower / FarDriver Extreme High-Power Programmable FOC Sine Wave BLDC Motor Controller Series –

 Models ND721800 & ND961800 (Massive 1800A Peak Current Capacity) Engineered for 12,000W to 30,000W Extreme Electric Motorcycles, Racing Vehicles & EV Conversions (Integrated Auto-Learning Function & QS Motor Optimization)

Power extreme-performance electric vehicles, track-built motorcycles, and custom EV conversions with the NBPower / FarDriver ND1800 Extreme Controller Series. Engineered to deliver maximum current density, this heavy-duty controller line provides up to an unprecedented 1800A peak current output, making it the premier choice for driving 12,000W, 15,000W, 20,000W, and up to 30,000W (30kW) continuous brushless DC (BLDC) and PMSM motors.

Utilizing advanced FOC (Field-Oriented Control) sine wave technology, the FarDriver series provides smooth, whisper-quiet motor operation, high torque delivery from 0 RPM, and thermal efficiency. Optimized for seamless pairing with QS Motors, it features an auto-learning routine that simplifies setup across high-power hub and mid-drive platforms.

⚠️ Model Selection & System Operating Limits

IMPORTANT VOLTAGE & POWER SPECIFICATIONS:

• FarDriver ND721800: Rated for 72V DC nominal (operates across an 84.0V max full-charge cutoff) | 1800A Peak Output | Engineered for 72V high-current racing builds up to 20kW+.

• FarDriver ND961800: Rated for 84V to 96V DC nominal (operates up to 115V max voltage limit) | 1800A Peak Output | Designed for ultra-high voltage 96V electric cars, motorcycles, and race platforms up to 30kW peak power.

• QS Motor Optimization: Pre-configured auto-learning routines pair seamlessly with QS Motor hub and mid-drive motor lines. Note: Third-party motor brands can be paired by running parameter calibration via software/app.

🚀 Key High-Performance Features

• Massive 1800A Peak Output Capacity: Handles extreme continuous and peak amperage requirements without voltage sag or thermal cut-offs.

• Advanced FOC Sine Wave Architecture: Delivers precise torque response, lower motor operating temperatures, and silent motor rotation compared to standard controllers.

• Fully Programmable Telemetry: Adjust battery current limits, phase current, flux weakening (top speed extension), throttle response curves, and regenerative braking.

• Integrated Self-Learning Function: Simplifies initial motor commissioning by automatically detecting phase angle and Hall sensor timing.

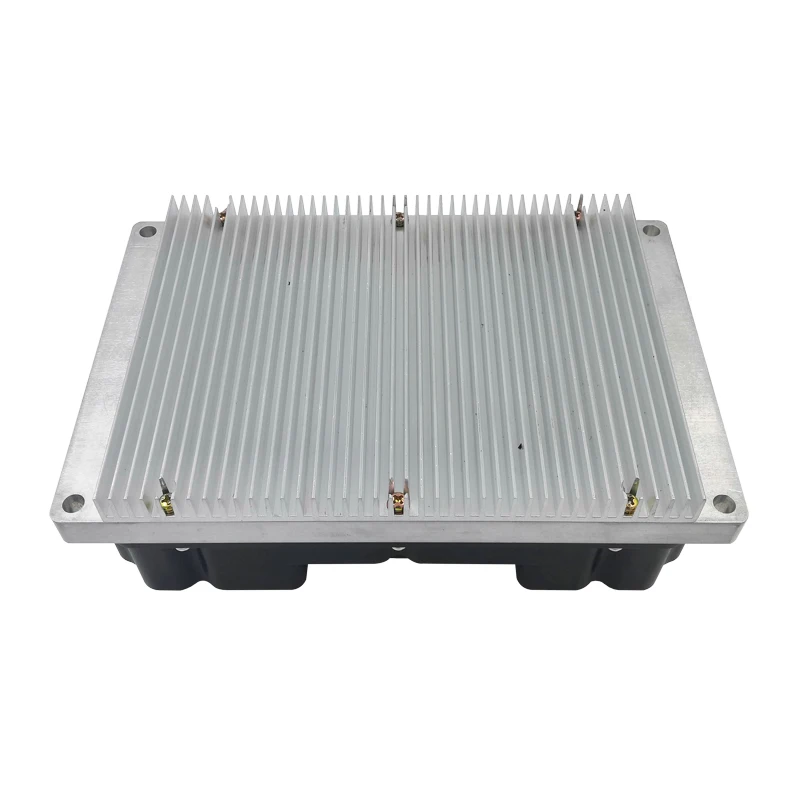

• Heavy-Duty Thermal Management: A heavy aluminum alloy housing absorbs and dissipates heat during prolonged high-wattage acceleration.

📊 Technical Specifications Matrix

📋 Ideal Applications

The FarDriver ND1800 Controller Series is engineered for:

• 12kW to 30kW Ultra High-Speed Electric Motorcycles & Track Bikes

• Electric Cars, Race Karts & Custom Light EV Conversions

• Heavy Electric Scooter Platforms & High-Torque QS Motor Builds

📦 Package Contents

• 1 x NBPower / FarDriver High-Power Sine Wave Controller (ND721800 or ND961800)

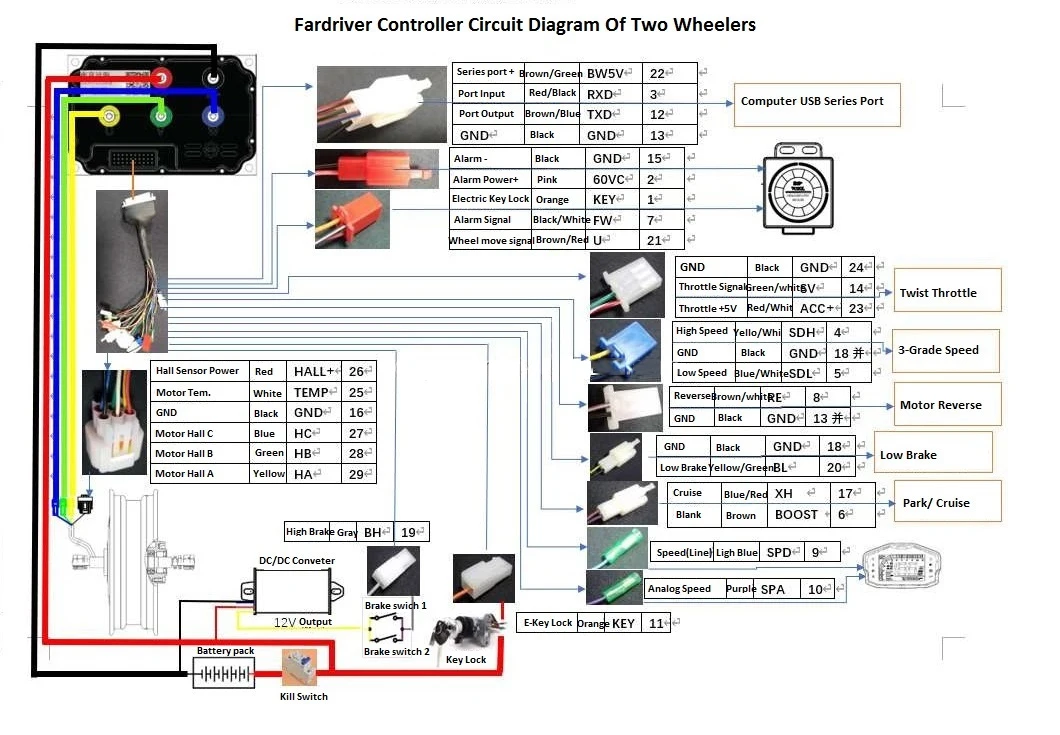

• 1 x Main Signal Wiring & Sensor Harness Assembly

• 1 x Setup & Software Access Documentation Link

Power your 30kW extreme vehicle build with raw FarDriver performance. Select your voltage model above, click Add to Cart, and order today!

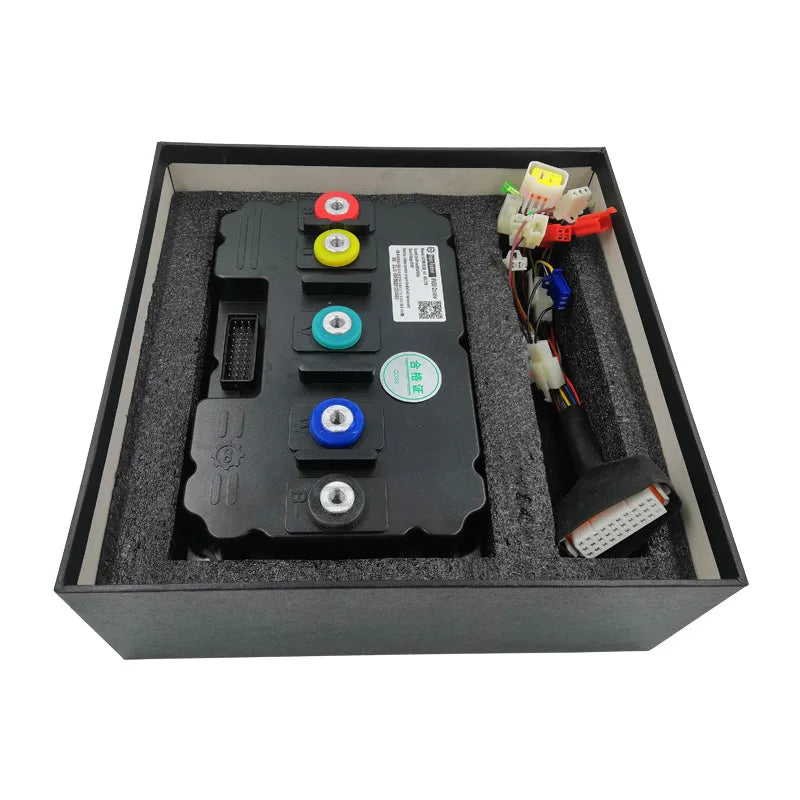

One set includes the following kits

1. 1pcs X ND721800 or ND961800 sine wave motor controller

2. 1 pc X Bluetooth Adapter

Key Features

1). All the raw materials are imported, using high-performance Moss tube

2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board

3). Small in size

4). High efficiency, low temperature rise, small running current

5). With self-learning function, excellent commonality

6). The app is compatible with Android and Apple

7). With flux weakening function

Product Description

ND721800 ND961800 is a sine wave motor controller. It is more cost-effective with waterproofing grade IP67, suitable for 10-15kw motor

General SPEC

Nanjing Fardriver Controller
1Model: ND721800
2Working Communication: Hall Sensor
3Available Rated Battery Voltage: 72V
4Peak Battery Voltage: 88v
5Available Motor Power: 12KW - 20KW
6Default Throttle Working Voltage: 0V - 5V
7Peak DC Current: 800A
8Peak Phase Current: 1500A
9Mosfets Detail: 60 FET
10Weight: 5kgs

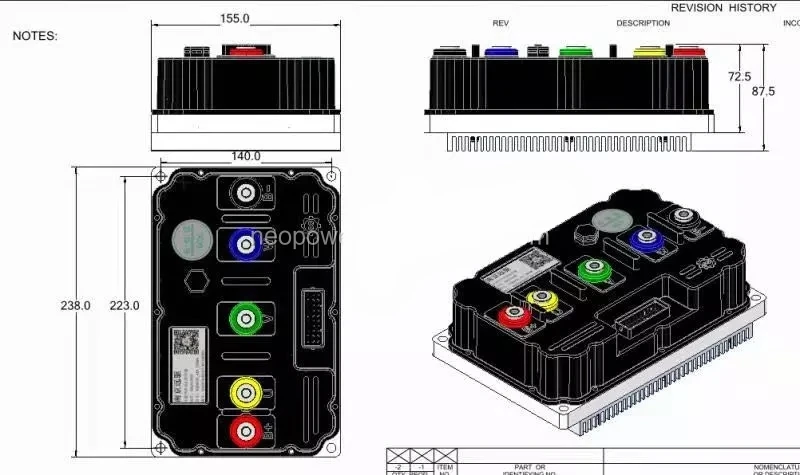

11Instaliing Size: 238mm * 155mm * 72mm
12Controller Design: Sine Wave BLDC
13Case Material: Aluminum
14 Support Programmable: PC & Phone
15Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV, Car

General SPEC

Nanjing Fardriver Controller
1Model: ND961800
2Working Communication: Hall Sensor
3Available Rated Battery Voltage: 72V/84V/96V
4Peak Battery Voltage: 115V
5Available Motor Power: 12KW - 20KW
6Default Throttle Working Voltage: 0V - 5V
7Peak DC Current: 800A
8Peak Phase Current: 1800A
9Mosfets Detail: 60 FET
10Weight: 5kgs
11Instaliing Size: 238mm * 155mm * 72mm
12Controller Design: Sine Wave BLDC
13Case Material: Aluminum
14 Support Programmable: PC & Phone
15Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV,Car

Features:

The ND series Hall one-line pass-through controller is a high-end, high-power permanent magnet synchronous motor controller with the advantages of high quality, high efficiency, and intelligence. It is suitable for vehicle applications of various Hall motors. It is suitable for middle- and high-speed motorcycles with in-wheel motors, mid-mounted motors, and high-end electric tricycles. Using high-quality fully imported MOS core, full metal shielding, and an aluminum die heat dissipation structure, the hardware architecture and software implementation are perfectly matched and refined.

Rich software parameter configuration: * Monitor and configure the controller through the visual computer interface, and update and upgrade online.

* The current at different speeds can be adjusted online. * The maximum speed of forward and backward, economic speed can be set. * The overall bus current and phase current can be set. * The accelerator pedal threshold can be set to adjust the response sensitivity of the pedal.



Perfect protection function: Monitor working voltage, current, temperature, motor, gear, accelerator pedal, brake, etc. Ensure the safety of vehicle driving control

Items

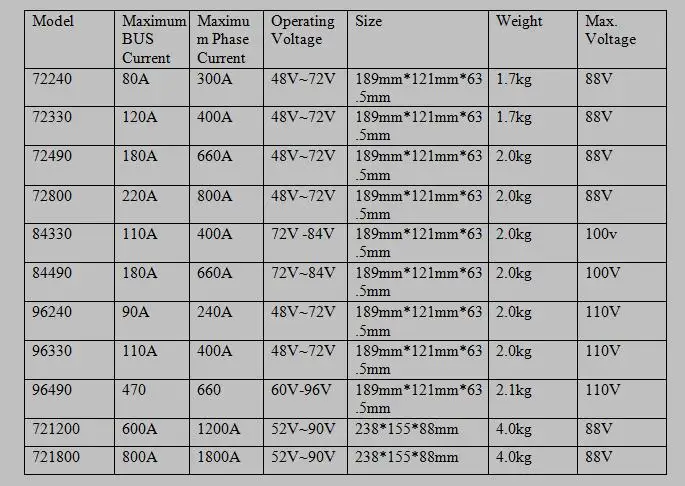

Different Model:



FAQ

Q: How about the Duty & Tax?
A: All products are sent in DDU mode; the total price does not include tax and duty. The relevant tax and duty need to be paid by the buyer.
We are not responsible for product customs clearance; please ensure that you have the ability to clear the goods before purchasing.

Q: How long is the delivery time?
A: Fardriver controllers are sent by UPS or FedEx, 7- 10 working days. But if there is no stock(the stock on this page is not exact), the preparation time is about 1-2weeks.
