Fardriver ND721200 ND961200 Controller | 1200A Phase Current FOC

Fardriver ND721200 ND961200 Controller | 1200A Phase Current FOC

$728.00 USD
$528.00 USD $728.00 USD
Sale Sold out
Shipping calculated at checkout.
Color

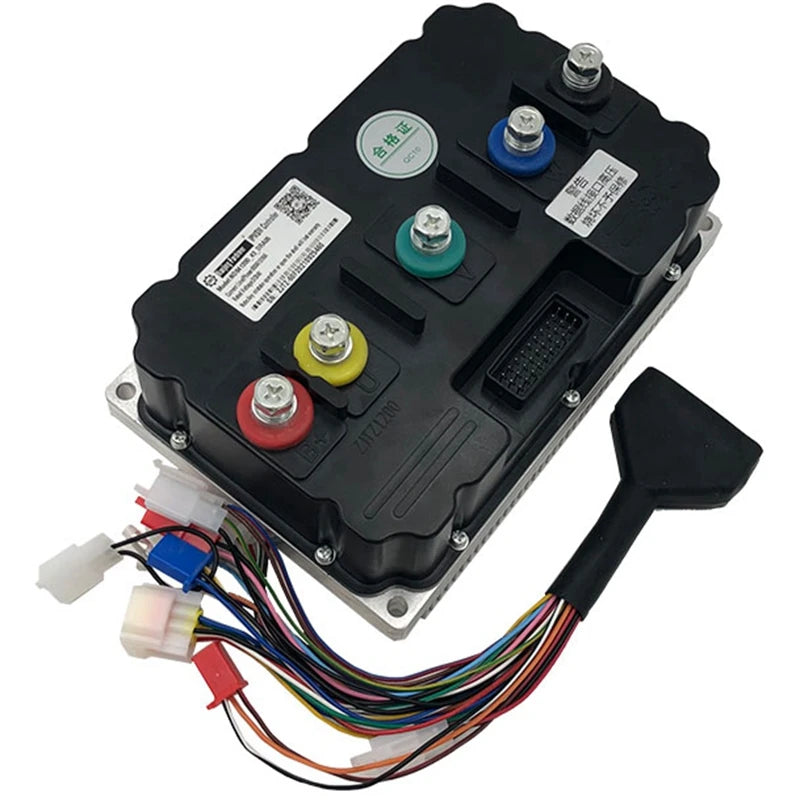

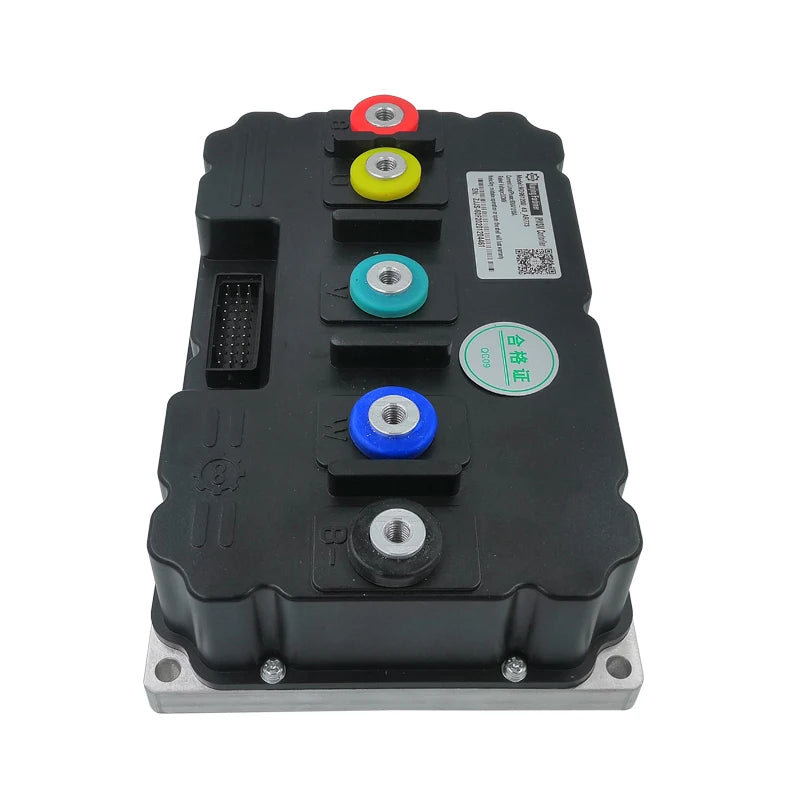

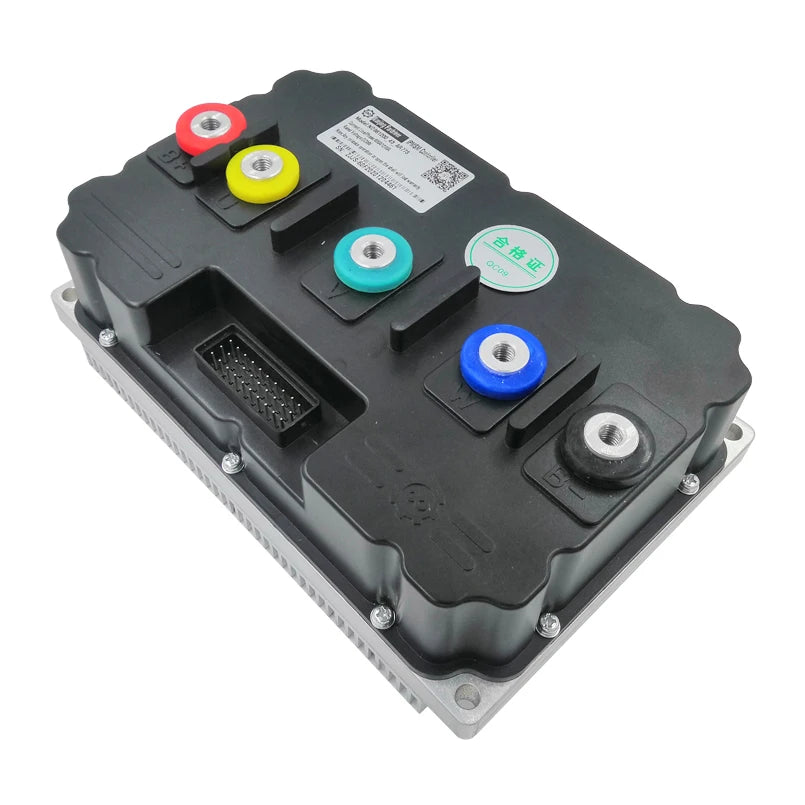

Fardriver ND721200 / ND961200 High-Power Sine Wave BLDC Motor Controller (8kW–12kW)

1200A Peak Phase Current Vector Unit with Bluetooth Adapter

Engineered for extreme-performance electric vehicles, the Fardriver ND721200 / ND961200 series represents the peak of high-output Field-Oriented Control (FOC) power management.

Delivering up to 1200A of peak phase current and handling motors rated from 8,000W to 12,000W+, these 60-MOSFET controllers are designed for heavy-duty hub motors, mid-drives, electric motorcycles, go-karts, ATVs, and custom EV conversions.

Enclosed in a full-metal shielding die-cast aluminum heat sink, the ND series utilizes premium imported MOS cores to deliver whisper-quiet motor operation, instant low-end launch torque, and precise thermal management.

Every kit includes a plug-and-play Bluetooth Adapter for real-time mobile app monitoring, parameter tuning, auto-learning setup, and flux weakening adjustments.

🚀 Key High-Performance Features

  • Extreme Power Delivery: Built with a 60-MOSFET architectural array to push up to 1200A peak phase current for massive launch acceleration without thermal overload.

  • FOC Vector Sine Wave Efficiency: Smooth, ultra-quiet power delivery that minimizes motor vibration, reduces heat buildup in motor windings, and extends overall battery range.

  • Smart Self-Learning Calibration: Automatically detects motor phase angles and Hall sensor signals during setup via software, ensuring seamless synchronization with QS Motors, Yuma Motors, and other high-pole BLDC designs.

  • Full Mobile & PC Programmability: Fine-tune throttle curves, battery line current limits, regenerative braking strength, three-speed modes, and electronic flux weakening (speed boost) via iOS, Android, or PC software.

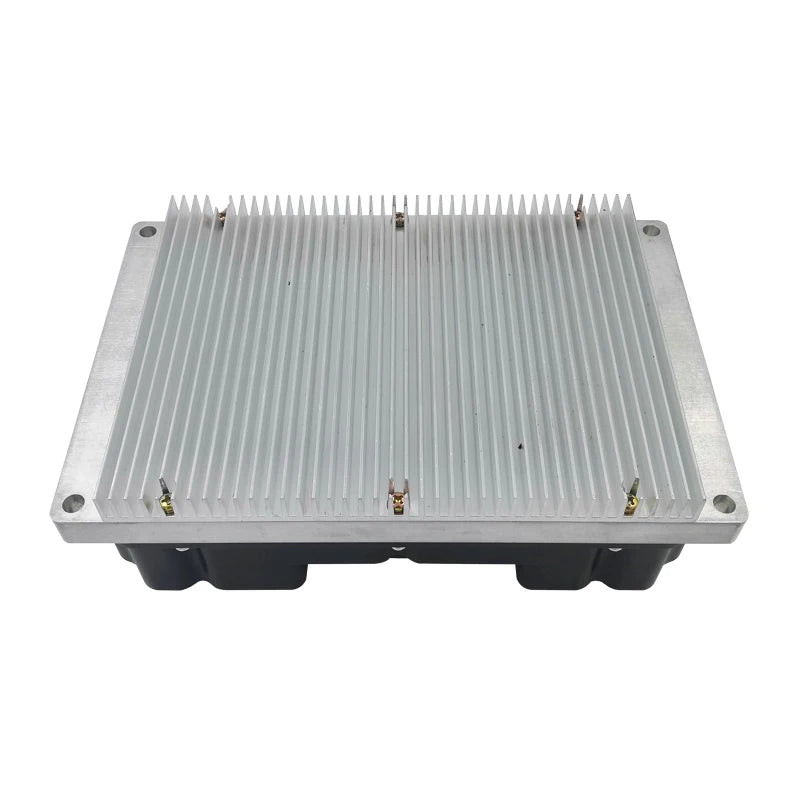

  • Complete Thermal & Electrical Defense: Housed in a heavy-duty die-cast aluminum heat-sink casing engineered for maximum passive thermal dissipation under high continuous amp draw.

📊 Technical Specifications Comparison

Choose between the 72V High-Amperage Architecture (ND721200) or the 96V High-Voltage System (ND961200) depending on your battery build and target top speed:



Feature / Parameter Fardriver ND721200 Specs Fardriver ND961200 Specs
Rated Battery Voltage 72V Nominal 96V Nominal
Peak Battery Voltage Limit 88V Max 115V Max
Continuous / Rated Motor Power 8,000W – 12,000W 8,000W – 12,000W
Peak Battery (DC) Current 600A 500A
Peak Motor Phase Current 1,200A 1,200A
MOSFET Architecture 60 High-Quality Imported FETs 60 High-Quality Imported FETs
Default Throttle Input Voltage 0.8V – 4.2V Signal Range 0V – 5V Signal Range
Sensor Communication Hall Sensor Interface Hall Sensor Interface
Unit Weight 3.8 kg (8.38 lbs) 5.0 kg (11.02 lbs)
Physical Dimensions 238mm x 155mm x 72mm 238mm x 155mm x 72mm
Casing Construction Full Metal Shielding / Aluminum Die-Cast Full Metal Shielding / Aluminum Die-Cast
System Compatibility E-Motorcycles, Karts, ATVs, Trikes High-Voltage Track Rides & EV Conversions

⚙️ System Wiring & Tuning Guidelines

  1. Battery BMS Line Current Configuration: Ensure your battery pack's Battery Management System (BMS) and continuous discharge rate match or exceed the controller's DC Line Current rating (600A for 72V; 500A for 96V).

  2. Phase Wire Connections: Due to the extreme 1200A phase current potential, use heavy-gauge copper phase cables (typically 4AWG or larger) with heavy-duty ring terminals to prevent resistance heat buildup.

  3. Motor Compatibility & Tuning: While these controllers are optimized out of the box for QS Motor configurations, pairing with non-standard motors requires running the self-learning auto-detect function in the mobile app before applying high throttle loads.

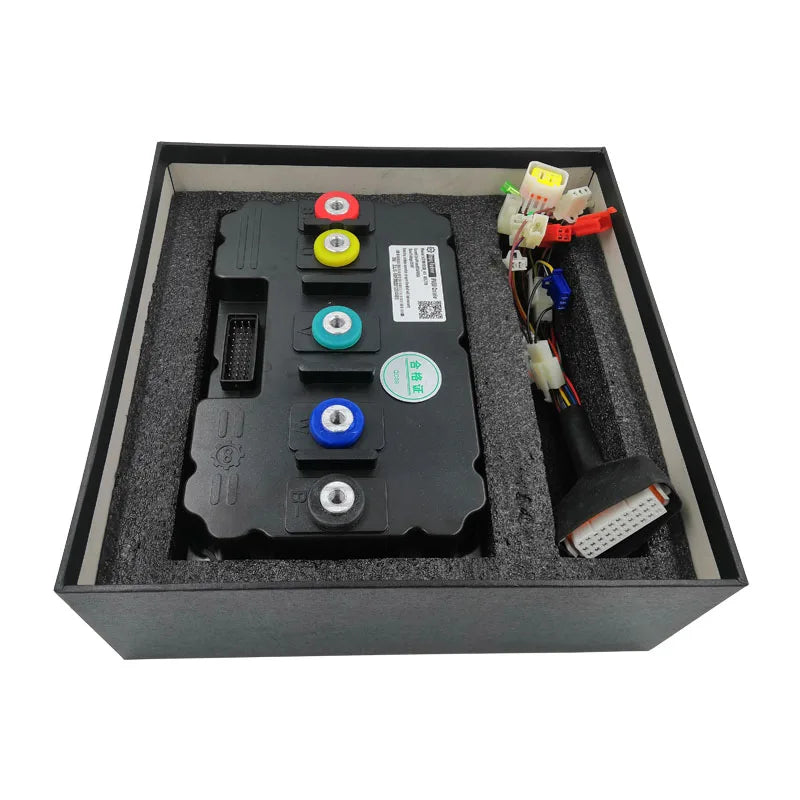

📦 What's Included in the Package?

  • 1 x Fardriver High-Power Sine Wave BLDC Controller (ND721200 or ND961200 selection)

  • 1 x Wireless Bluetooth Programming Adapter (for iOS / Android App connection)

  • 1 x Primary Wiring Control Harness & Signal Connector Leads

Build the ultimate high-power electric powertrain. Select your operating voltage option (72V or 96V) below, add to cart, and unlock maximum torque!

Controller Drawing





Features:
The ND series Hall one-line pass-through controller is a high-end, high-power permanent magnet synchronous motor controller with the advantages of high quality, high efficiency, and intelligence. It is suitable for vehicle applications of various Hall motors. It is suitable for middle- and high-speed motorcycles with in-wheel motors, mid-mounted motors, and high-end electric tricycles. Using a high-quality, fully imported MOS core, full metal shielding, and an aluminum die heat dissipation structure, the hardware architecture and software implementation are perfectly matched and refined.

Rich software parameter configuration: * Monitor and configure the controller through the visual computer interface, and update and upgrade online.
* The current at different speeds can be adjusted online. * The maximum speed of forward and the economic speed can be set. * The overall bus current and phase current can be set. * The accelerator pedal threshold can be set to adjust the response sensitivity of the pedal.

Perfect protection function: Monitors working voltage, current, temperature, motor, gear, accelerator pedal, brake, etc. Ensure the safety of vehicle driving control
