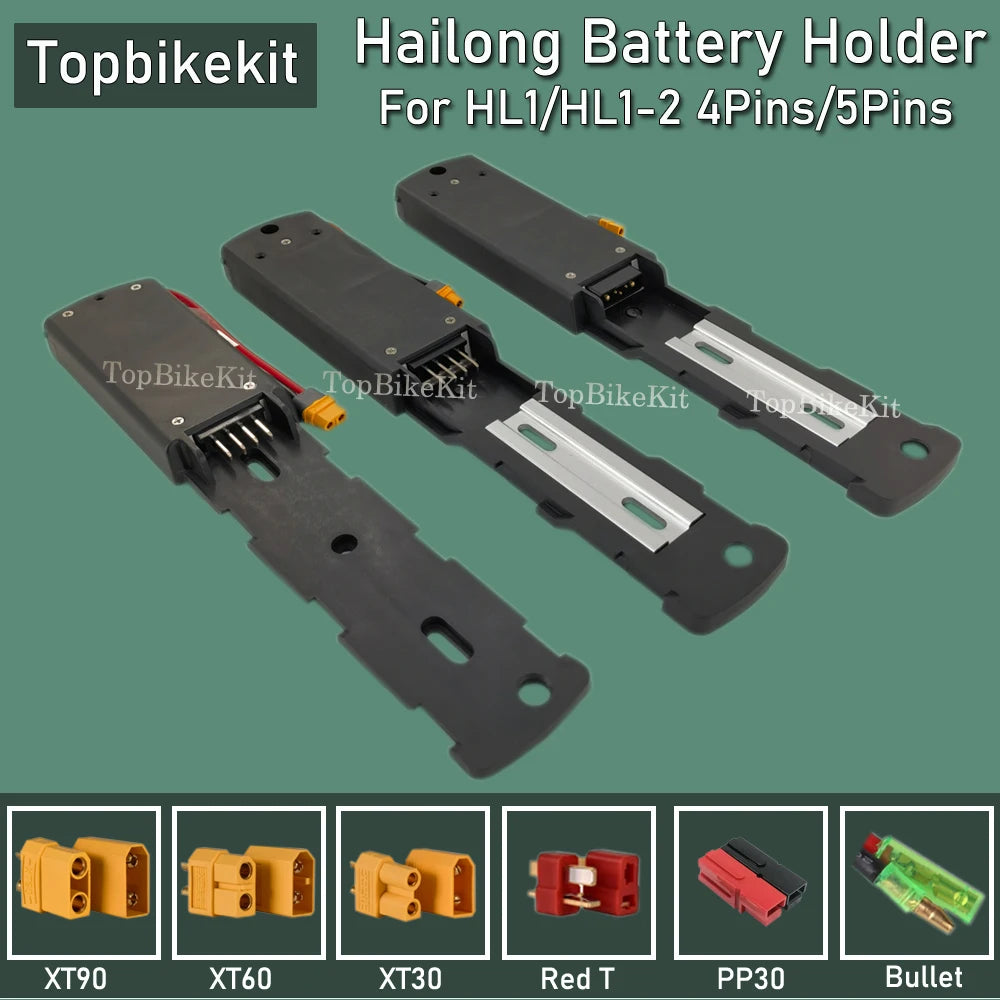

Universal Hailong 1 & Hailong 1-2 E-Bike Battery Mounting Base Plate Bracket (4-Pin / 5-Pin Options)
Secure your down-tube lithium battery pack with this Hailong E-Bike Battery Mounting Base Plate Holder. Engineered specifically for standard Hailong 1 and Hailong 1-2 battery cases (widely used across DIY conversion kits, frame-mounted e-bikes, and custom builds), this mounting bracket provides a rigid frame rail attachment and a clean electrical connection between your battery cradle and motor controller.
⚠️ Fitment & Pin Configuration Guidelines
CRITICAL FITMENT & TERMINAL SELECTION:

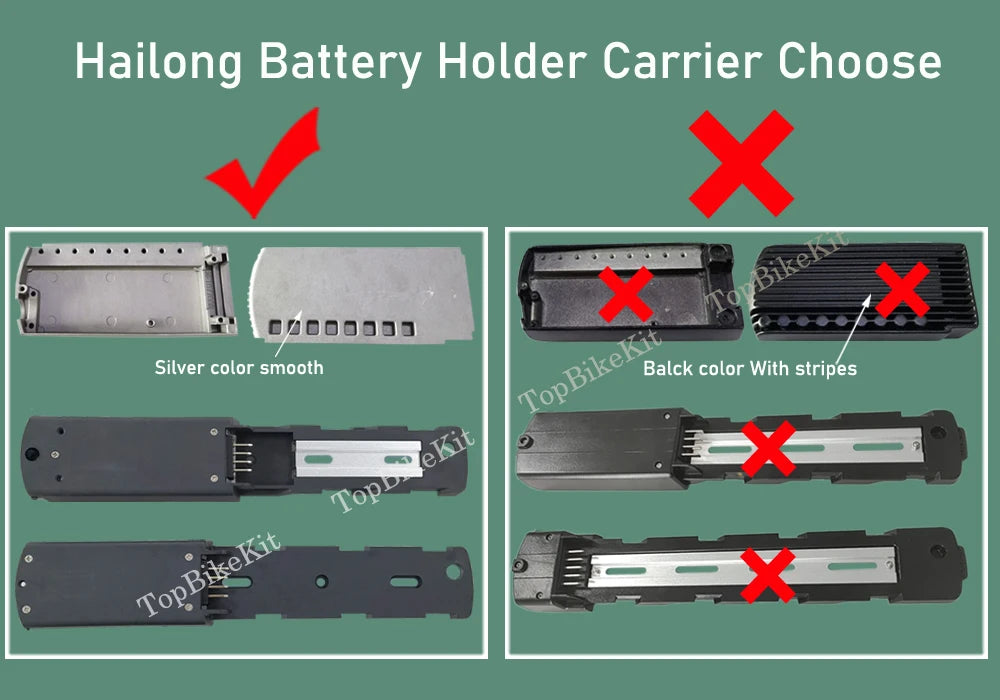

Verify Your Case Profile: Designed strictly for Hailong 1 and Hailong 1-2 cases. Will not fit Polly, Reention, or Shanshan tank-style cases.

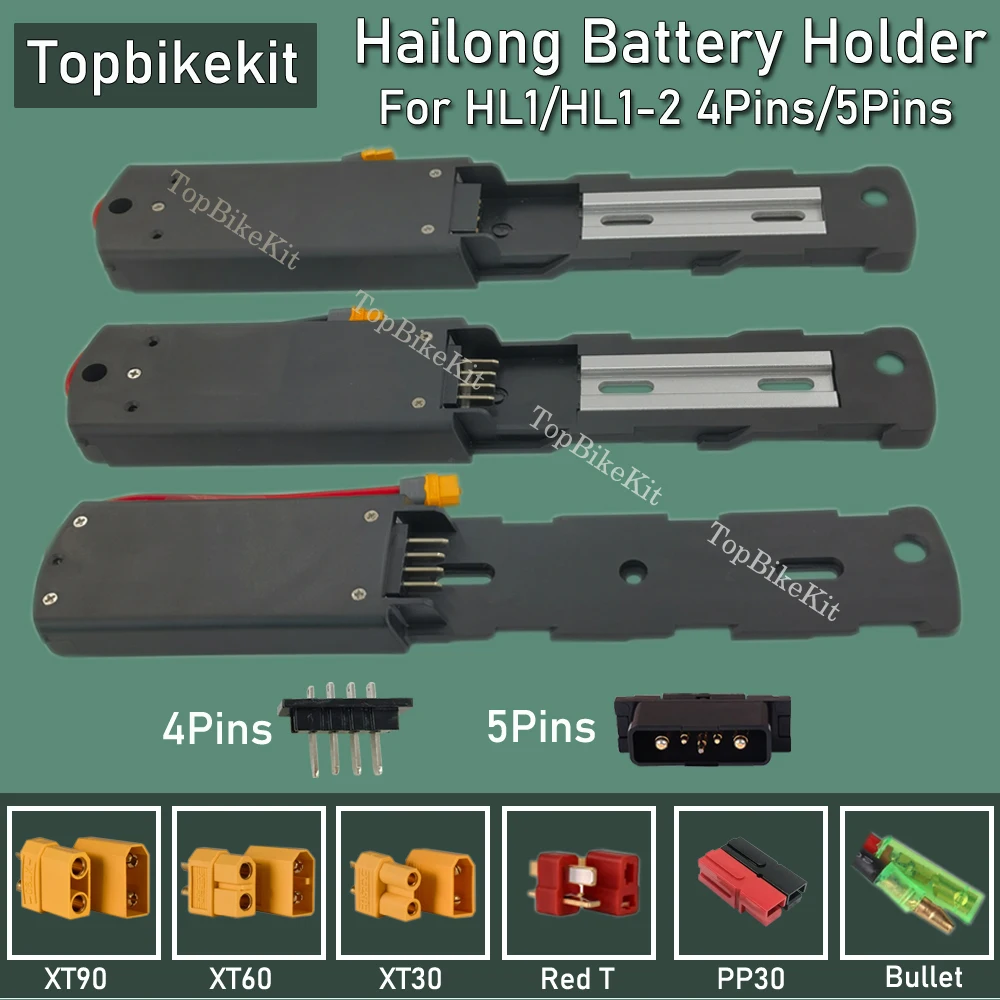

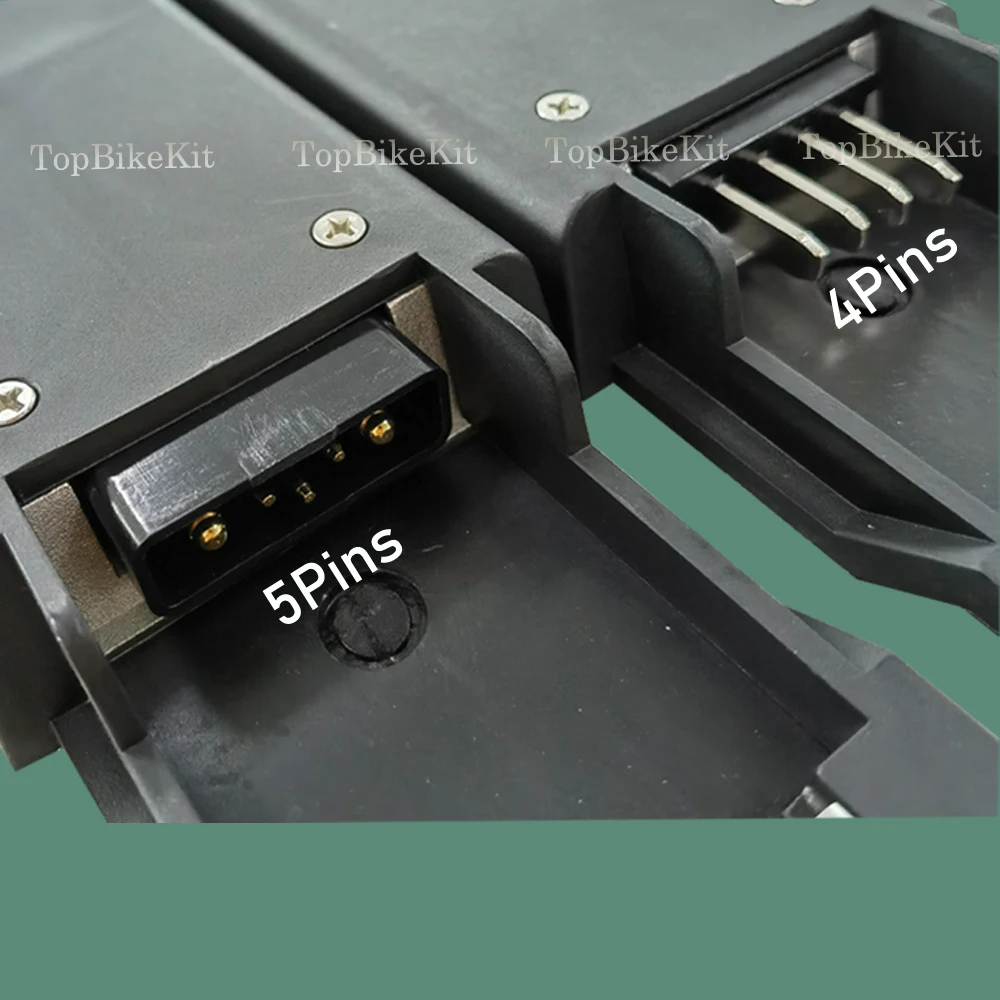

4-Pin vs. 5-Pin Terminal Block: Check the bottom discharge interface on your battery casing before ordering:

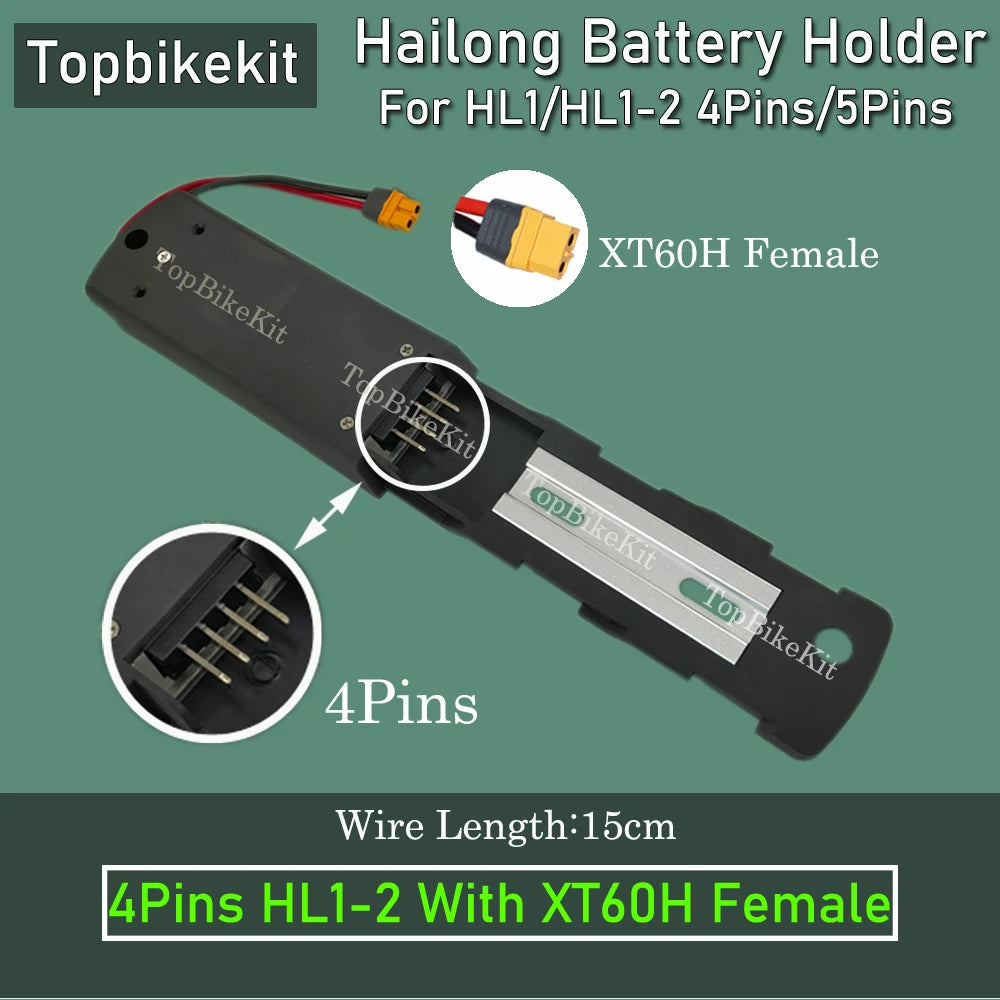

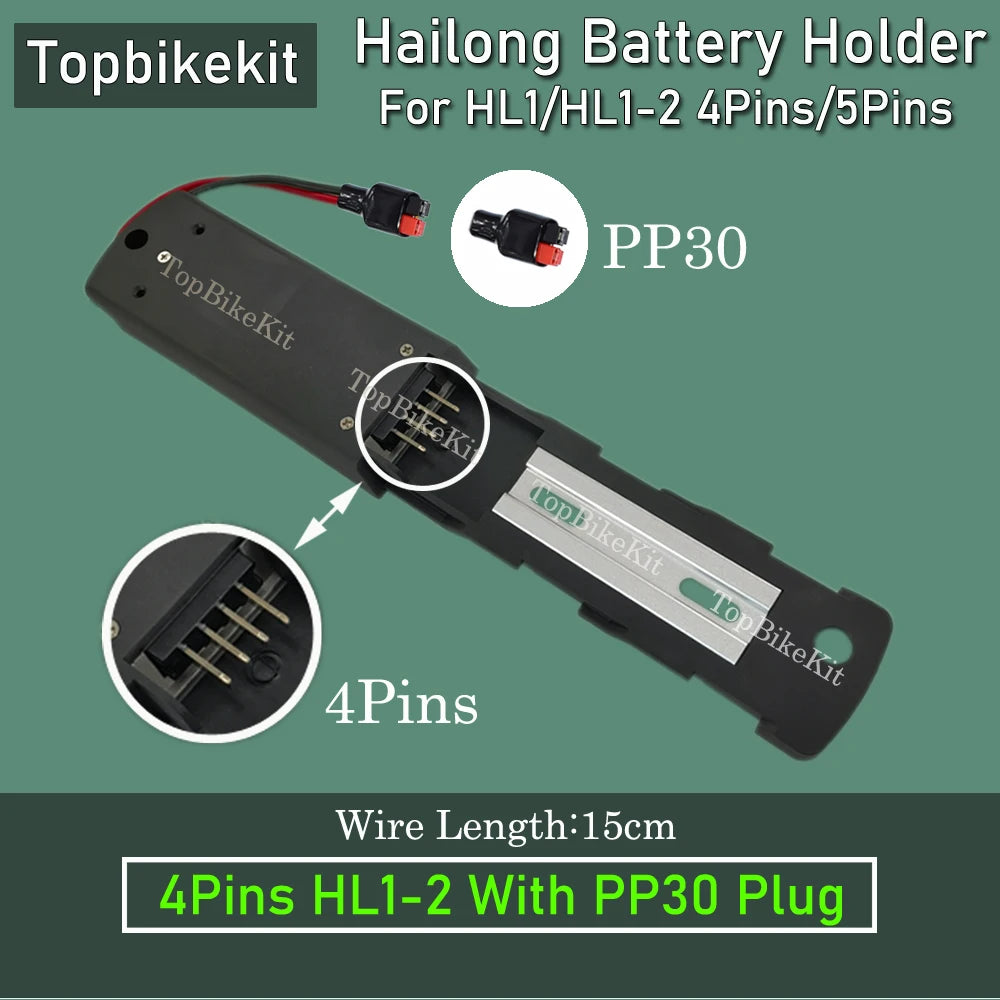

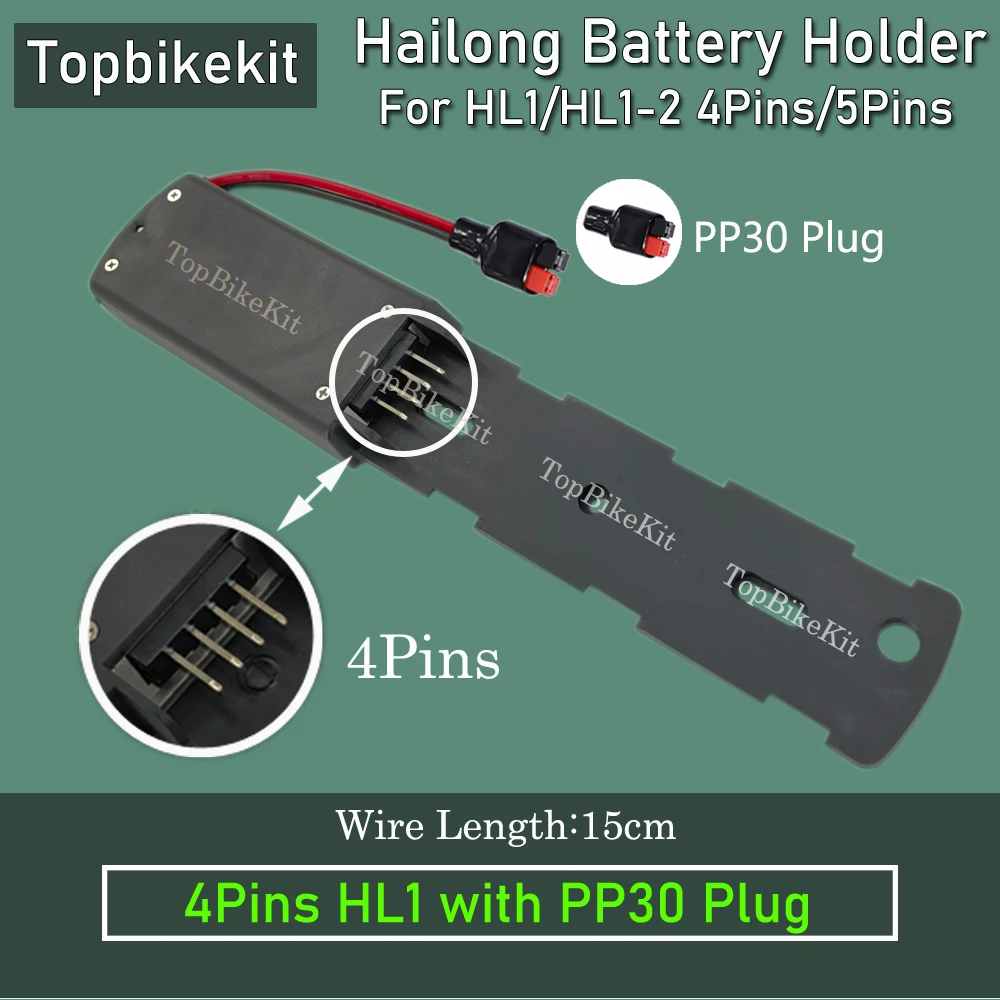

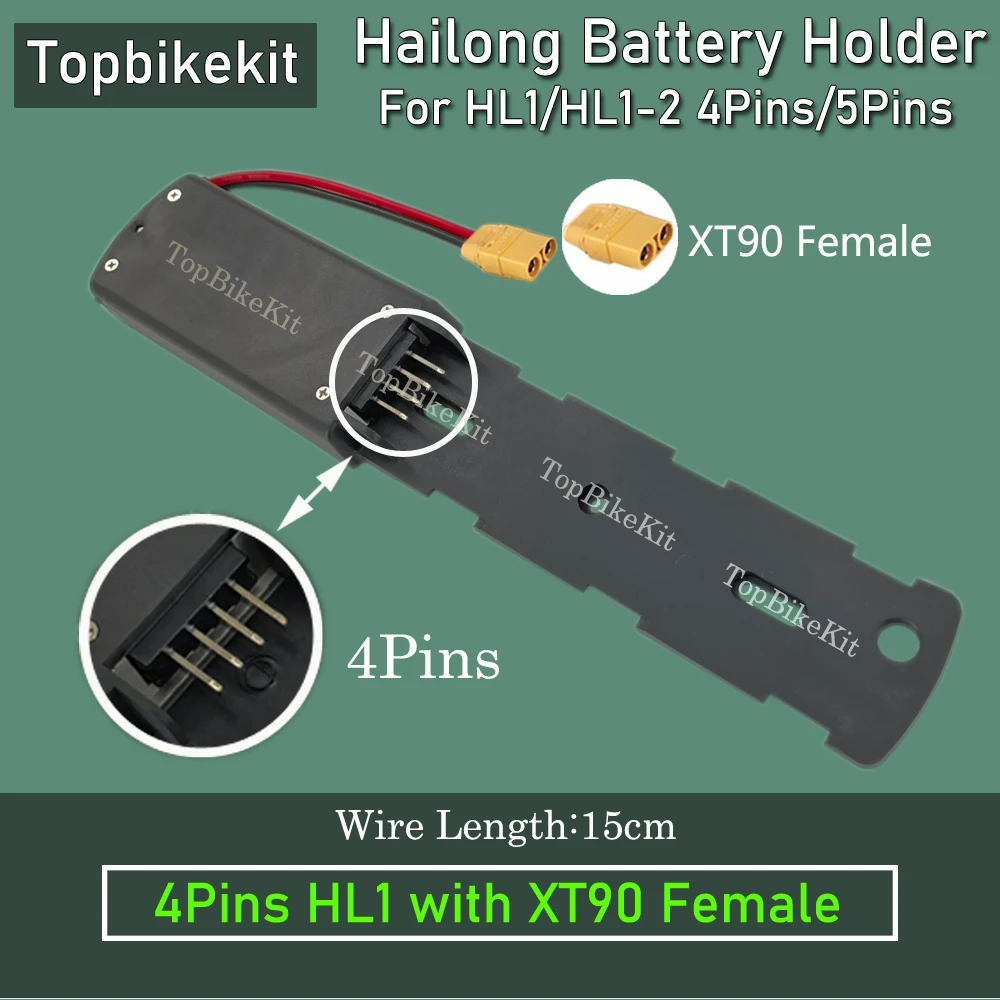

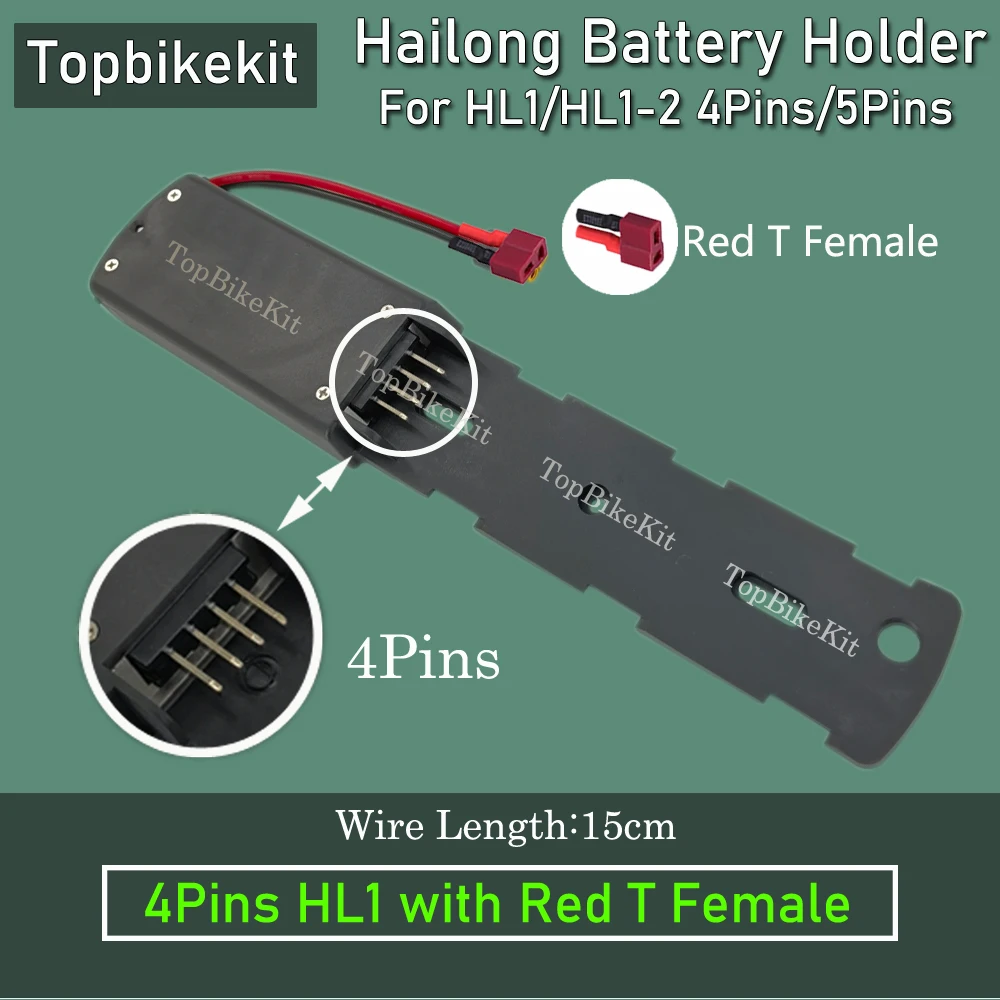

4-Pin Version: Features 4 solid brass blade/pin contacts.

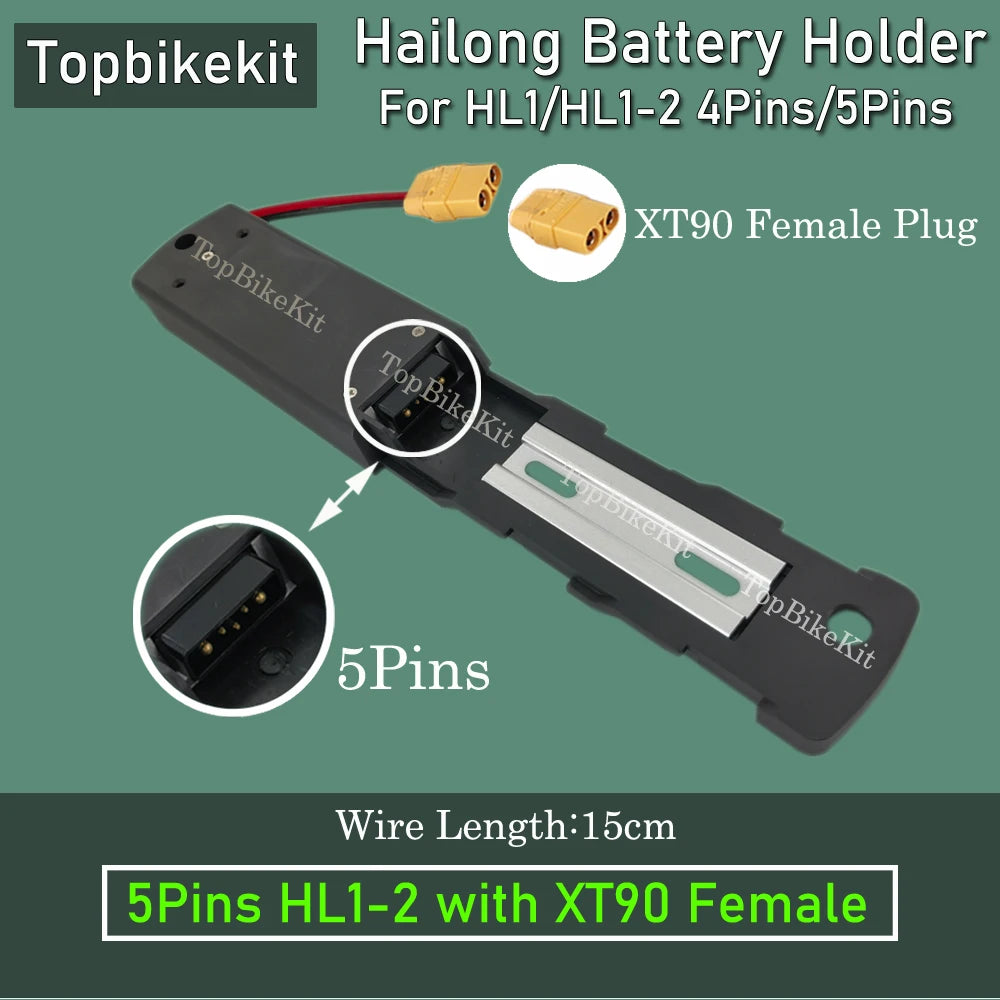

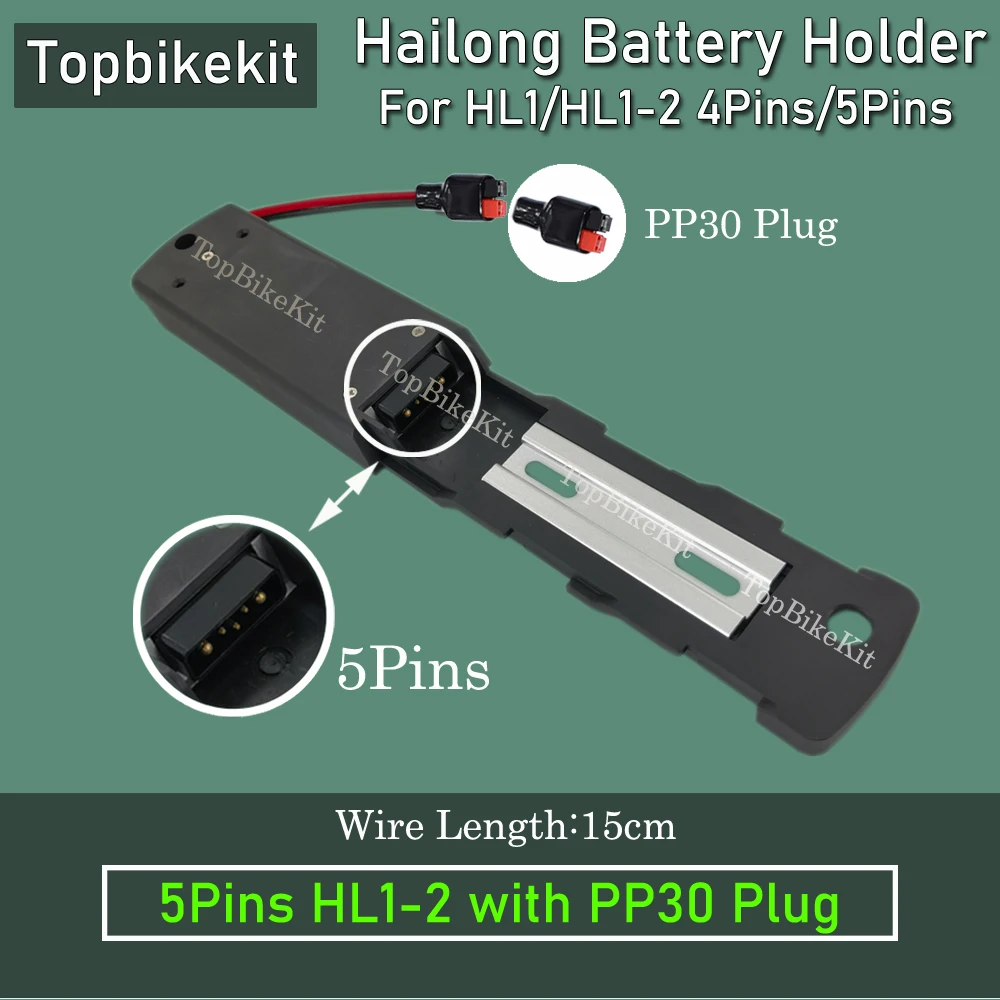

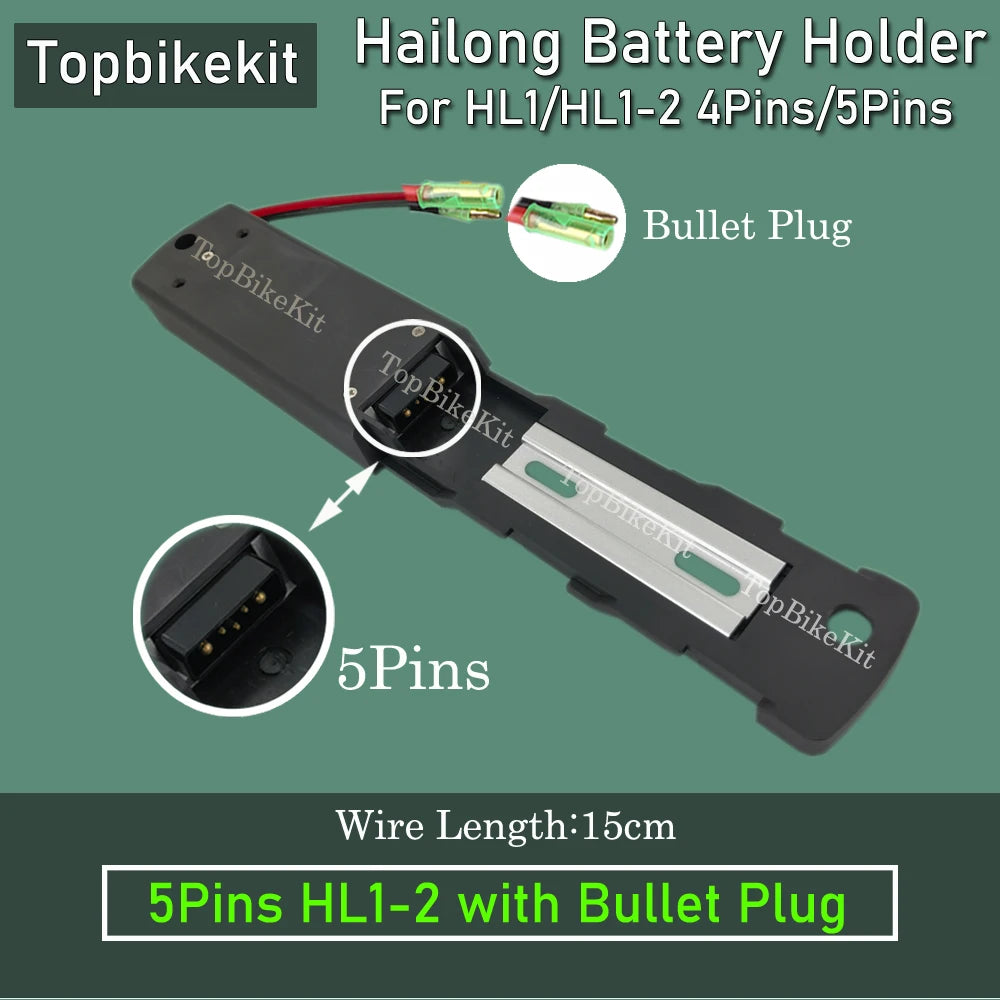

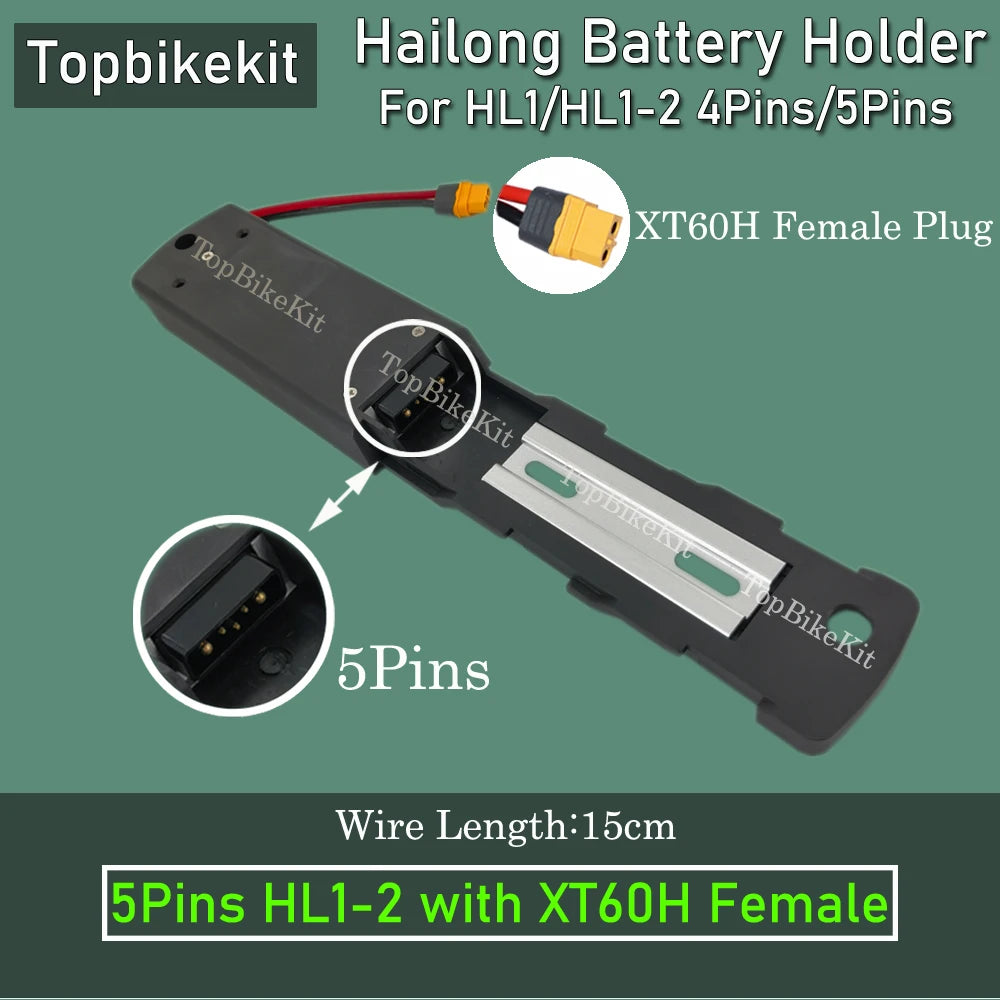

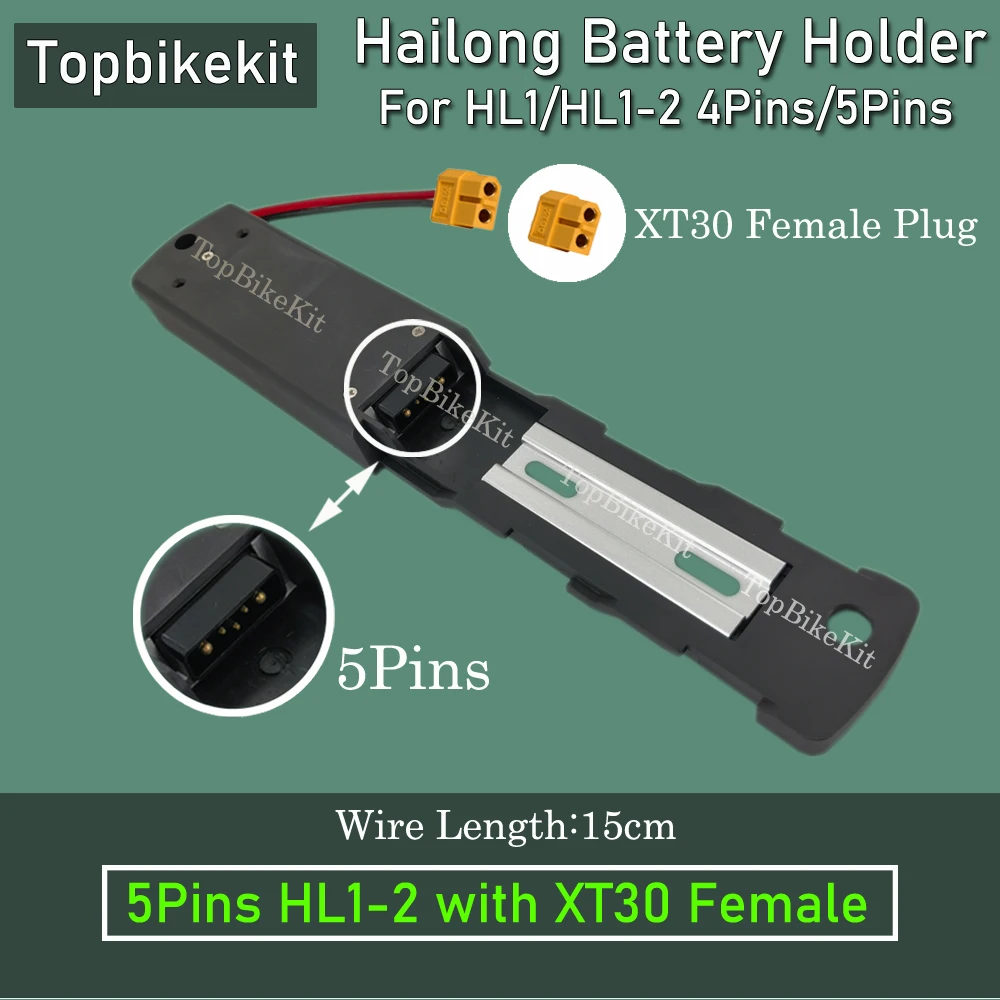

5-Pin Version: Features 5 solid brass blade/pin contacts.
Frame Rail Alignment: Mounts directly to standard water bottle cage bosses on aluminum frame down-tubes using standard M5 hex bolts.
🚀 Key High-Performance Features
-
Direct OEM Fitment: Exact replacement base plate for Hailong 1 and Hailong 1-2 battery cases.
-
Heavy-Duty Brass Terminals: Available in 4-pin or 5-pin terminal blocks for low-resistance, high-current power transfer to your motor controller.
-
Impact-Resistant Frame Cradle: High-strength molded composite housing prevents battery chatter and absorbs trail vibration.
-
Integrated Controller Pocket / Wire Channel: Internal cavity allows clean routing of discharge leads directly to your motor controller.
📊 Technical Specifications Matrix
| Specification Parameter | Hailong Base Plate Specifications |
| Brand / Series | miling Hailong Series |
| Case Compatibility | Hailong 1 & Hailong 1-2 Down-Tube Cases |
| Available Terminal Plugs | 4-Pin Blade Plug | 5-Pin Blade Plug |
| Mounting Orientation | Frame Down-Tube (Standard Water Bottle Boss Spacing) |
| Material Construction | Impact-Resistant Reinforced Polymer & Brass Contacts |
| Incompatible Models | Incompatible with Polly, Hailong Max, and Shanshan Cases |
📋 Ideal Applications
-
Replacing Damaged or Broken Base Plates on Hailong 1 or Hailong 1-2 battery packs.
-
Setting Up a Second E-Bike Frame to share a single Hailong battery pack across two bikes.
-
Repairing Loose or Melted Terminal Pins from high-current draw or road vibration.
📦 Package Contents
-
1 x Hailong E-Bike Battery Mounting Base Plate Holder (Select 4-Pin or 5-Pin / Hailong 1 or 1-2)
Lock your Hailong battery down tight and restore clean power transfer! Select your case style and pin count above, click Add to Cart, and order today!

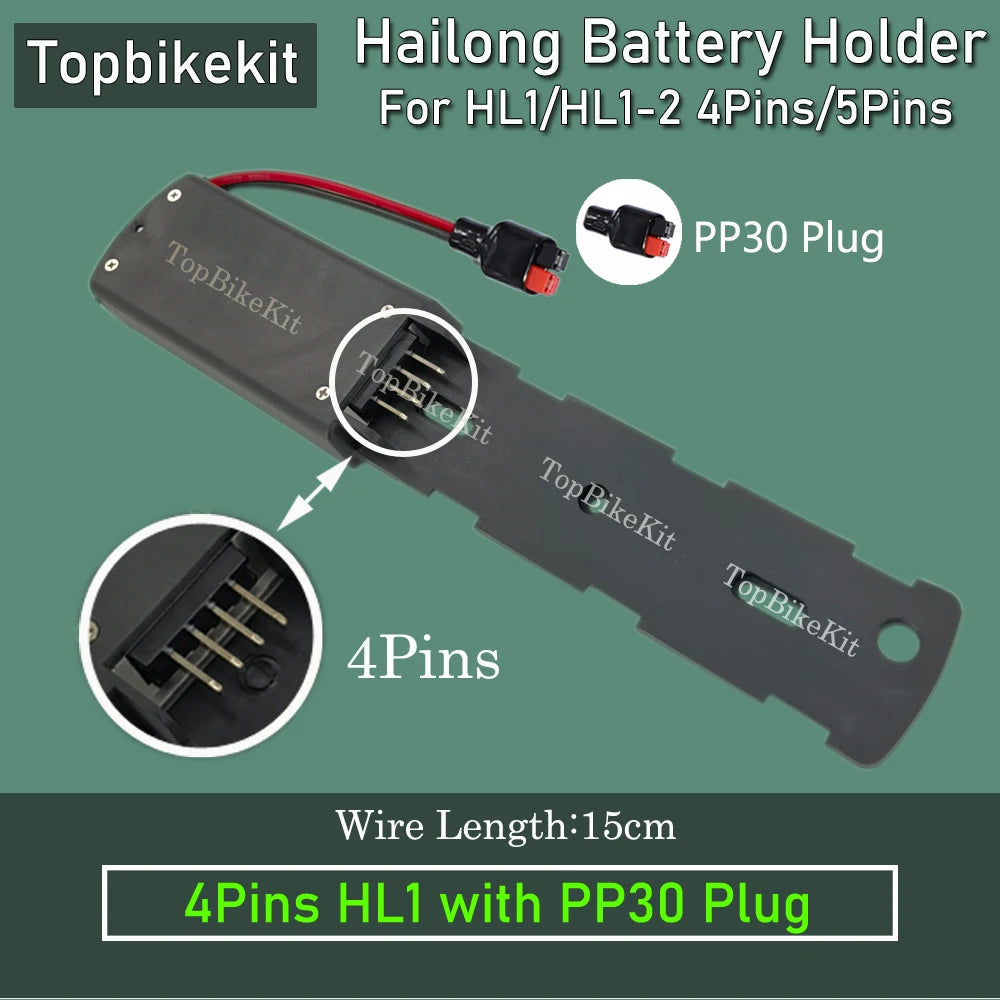

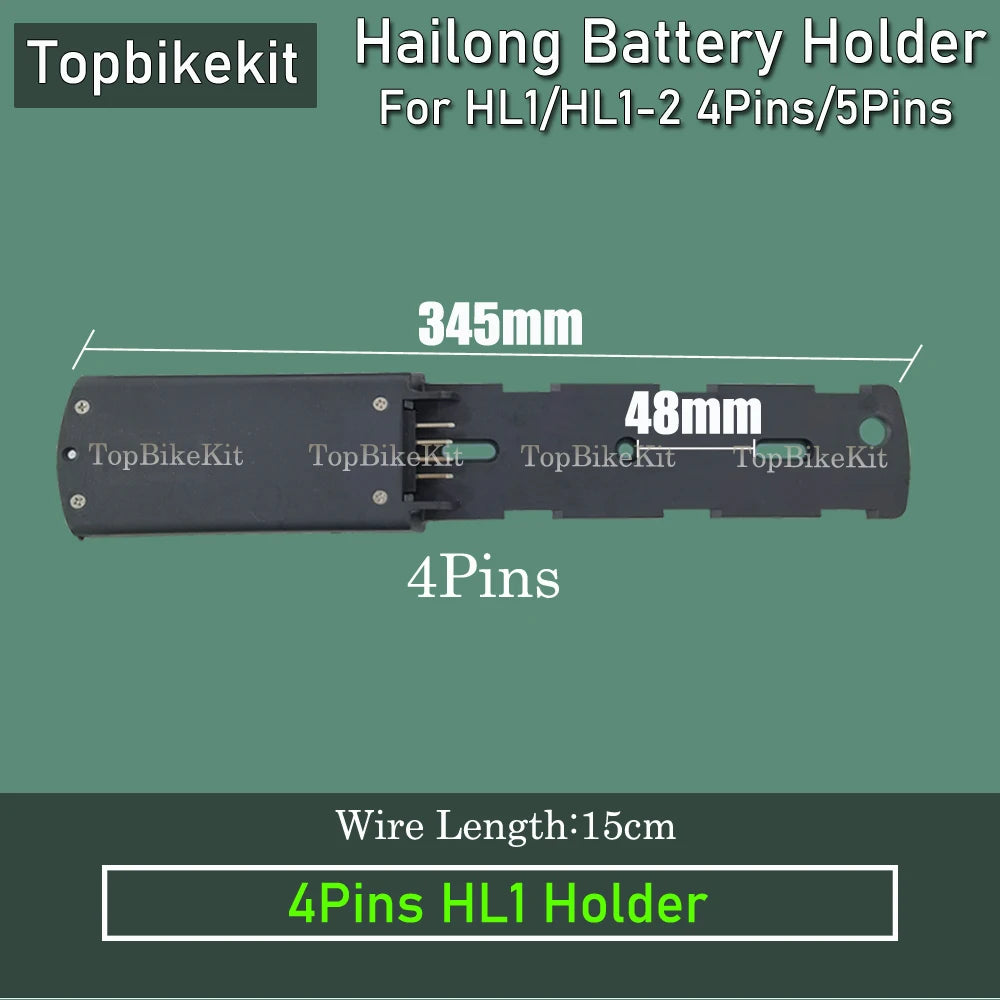

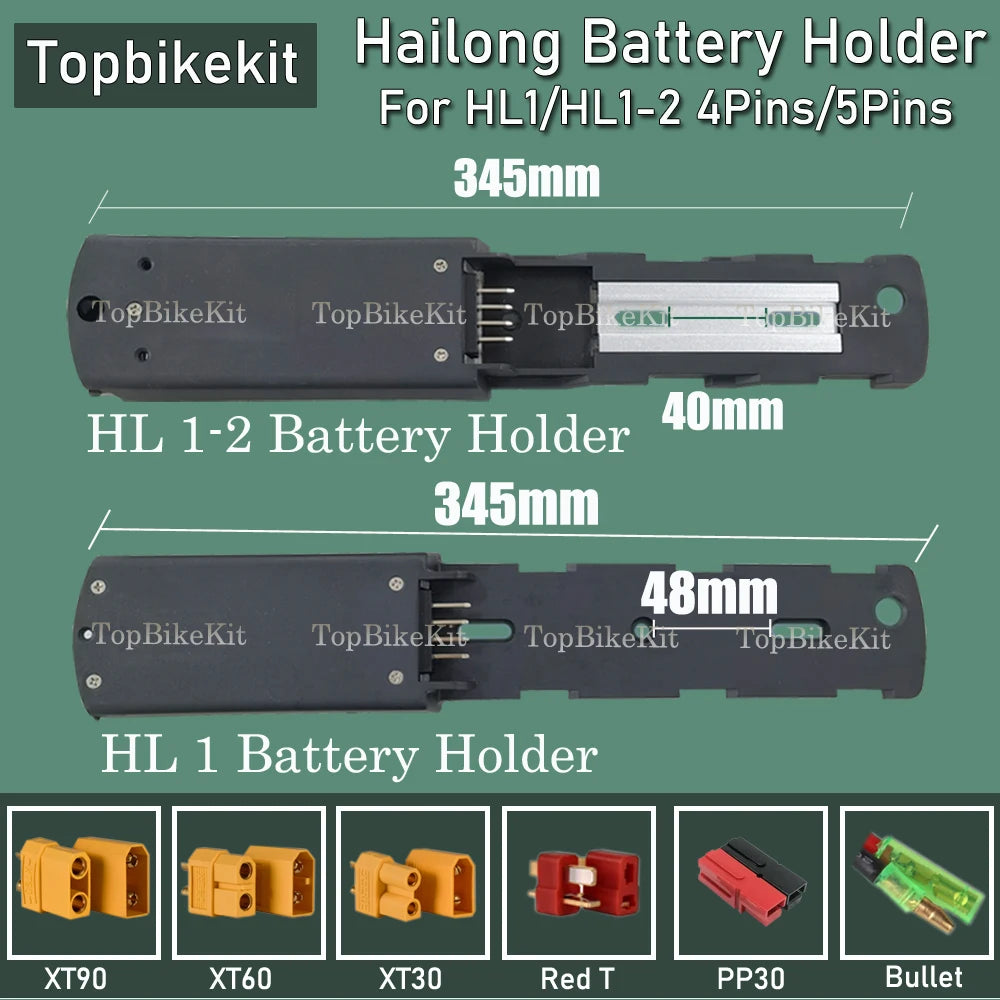

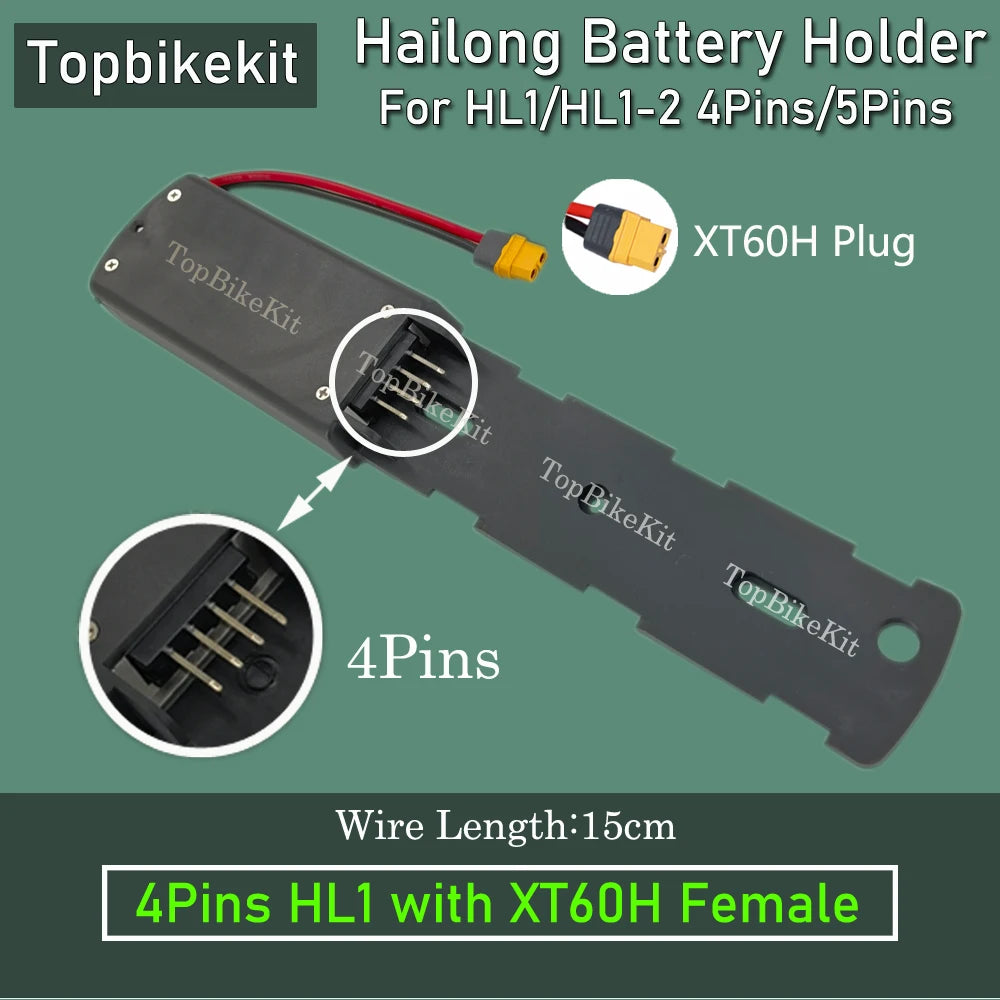

Hailong 1 Battery Holder Carrier

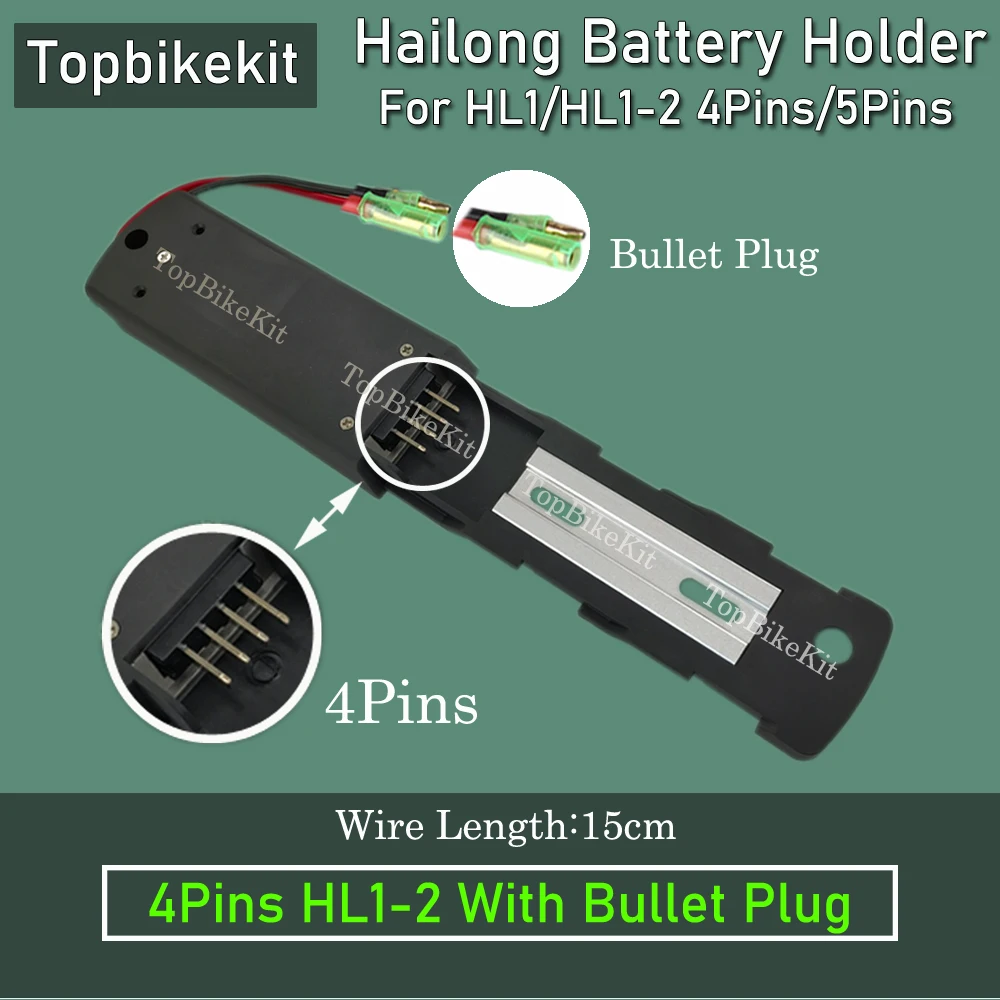

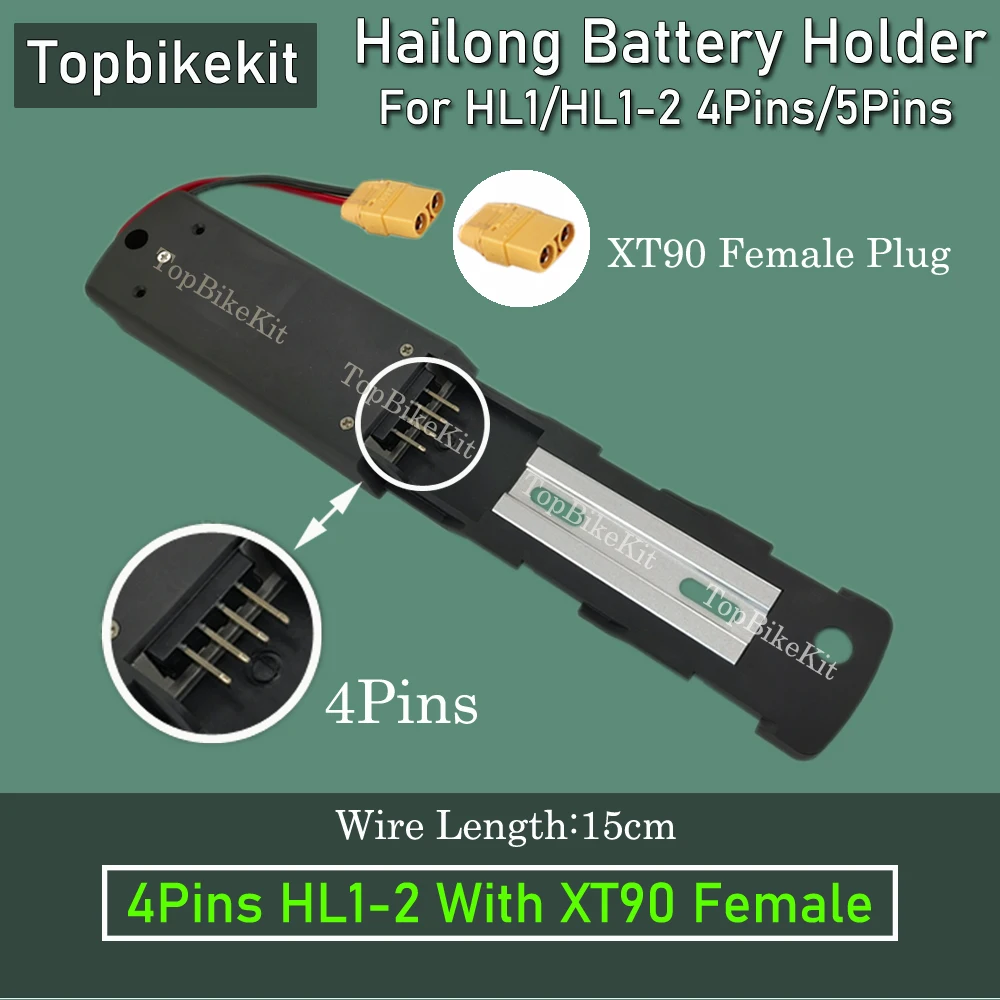

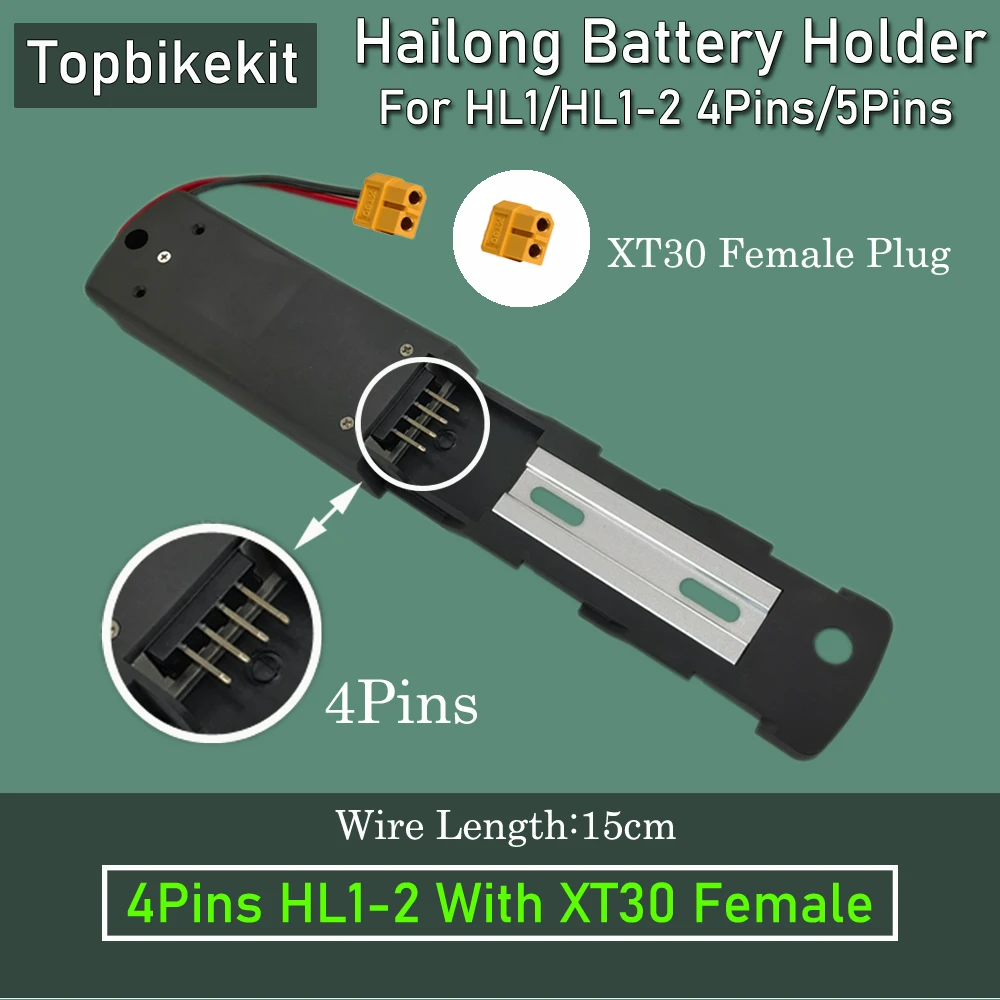

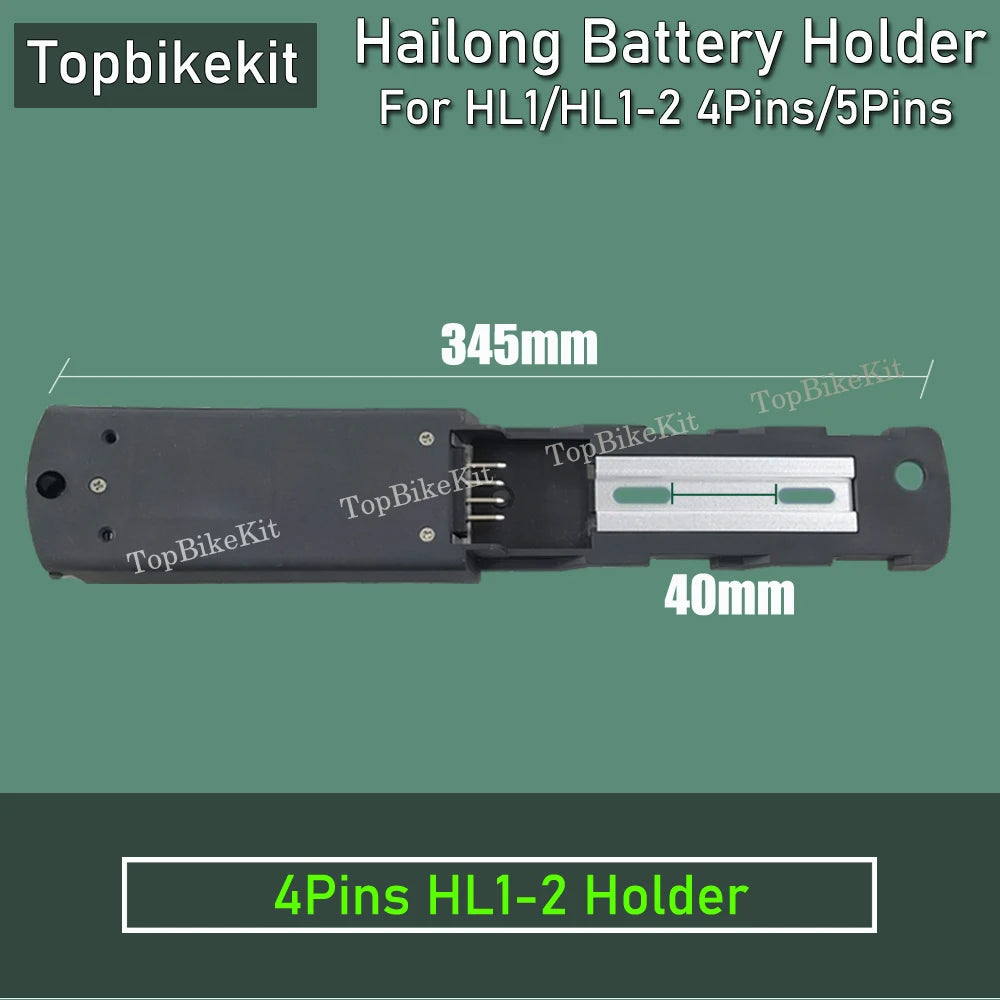

4Pins Hailong 1-2 Battery Holder Carrier

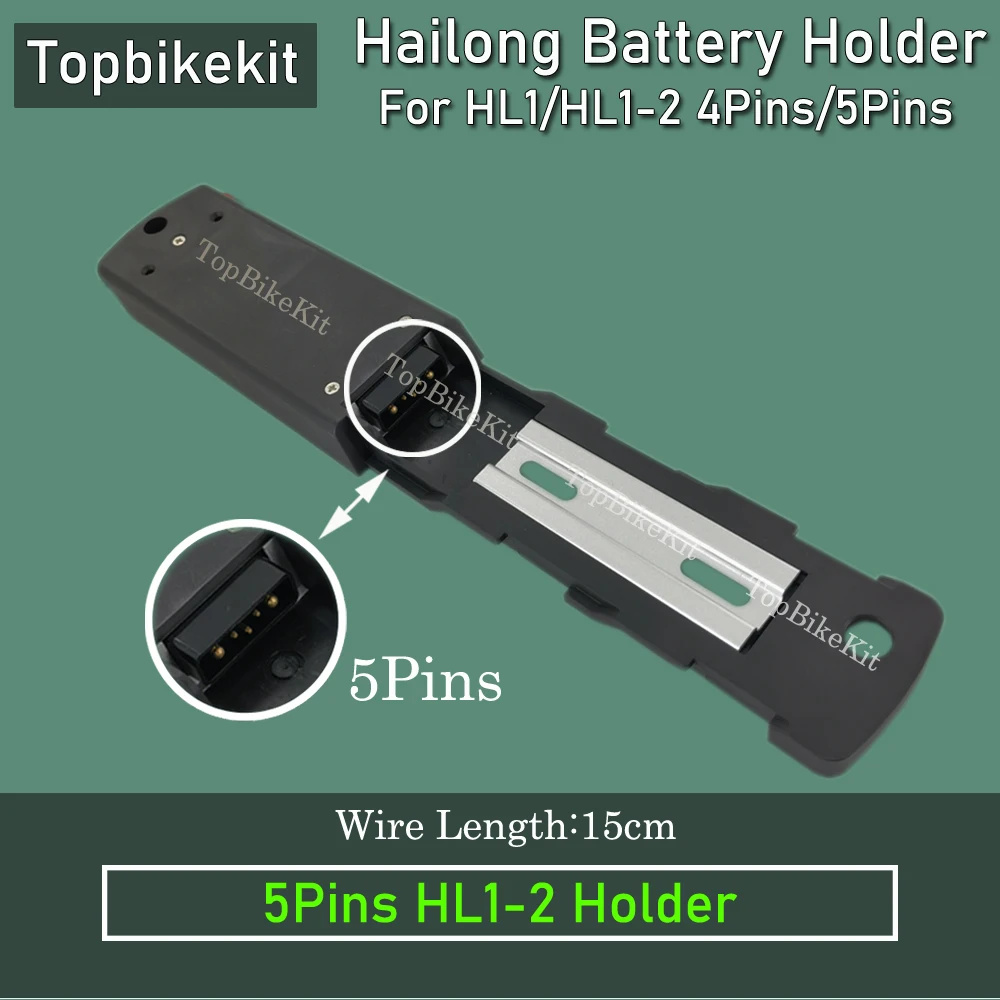

5Pins Hailong 1-2 Battery Holder Carrier
