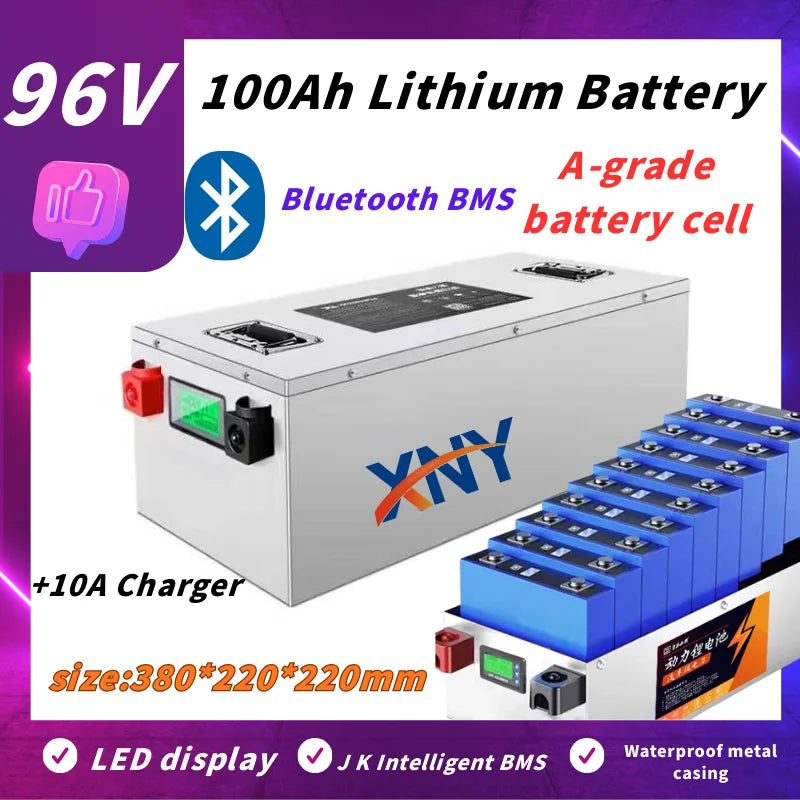

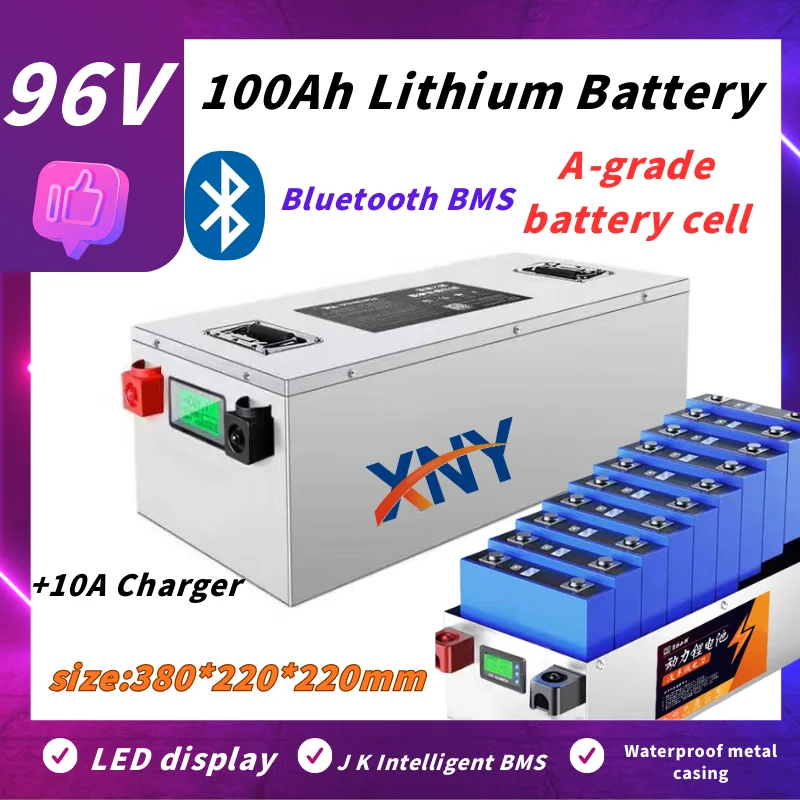

DIXSG 96V 100Ah High-Capacity Lithium Battery with BMS & 10A Charger

Power compatible high-voltage equipment with the DIXSG 96V battery pack, designed for applications that require substantial energy storage. This rechargeable battery is advertised for electric vehicles, RV power systems, AGVs, forklifts, boats, inverters, and other compatible high-voltage equipment.

The battery features a Battery Management System (BMS) with advertised overcharge, over-discharge, overcurrent, short-circuit, reverse-polarity, and cell-balancing functions. Custom dimensions and discharge-current configurations may be available through the supplier.

Please confirm the battery capacity, chemistry, waterproof rating, and included charger before ordering. The supplier's listing contains conflicting specifications that need clarification.

Product Highlights

• Brand: DIXSG

• Advertised voltage: 96V

• Advertised capacity: 100Ah — supplier confirmation required

• Battery chemistry: Listed as LiFePO₄ and lithium-ion; exact chemistry must be confirmed

• Battery management: Integrated BMS

• Advertised charger: 109.2V, 10A

• Charging method: CC/CV, as specified by the supplier

• Advertised dimensions: 380 × 220 × 220 mm; customization may be available

• Advertised weight: Approximately 38 kg

• Applications: Compatible with electric vehicles, RV systems, AGVs, forklifts, boats, and inverter systems

High-Capacity Energy Storage

At the advertised nominal voltage of 96V and capacity of 100Ah, the battery would provide approximately 9,600Wh (9.6kWh) of nominal energy.

Actual usable energy depends on the battery chemistry, BMS limits, operating conditions, and manufacturer specifications.

Built-In Battery Management System

The supplier advertises the following BMS functions:

• Overcharge protection

• Over-discharge protection

• Overcurrent protection

• Short-circuit protection

• Reverse-polarity protection

• Cell-balancing functions

Confirm the BMS continuous discharge rating, peak current, low-voltage cutoff, and compatibility with your equipment before purchase.

Charging Specifications

The supplier lists a 109.2V, 10A charger with the battery package. The charger must match the exact battery chemistry, series configuration, and manufacturer's charging requirements.

• Advertised charging voltage: 109.2V

• Advertised charger current: 10A

• Charging temperature listed by supplier: 0°C to 45°C (32°F to 113°F)

Do not connect a charger until the battery's chemistry and required charging voltage have been confirmed.

Dimensions and Installation

The supplier lists approximate dimensions of 380 × 220 × 220 mm and a weight of approximately 38 kg. Custom sizing may be available.

Before ordering, check the installation space, mounting arrangement, cable sizing, connector type, polarity, ventilation requirements, and equipment voltage limits.

Intended Applications

This battery is advertised for use with compatible:

• Electric utility vehicles and custom EV projects

• RV and auxiliary power systems

• Automated guided vehicles (AGVs)

• Forklifts and industrial equipment

• Marine electrical systems

• Compatible inverter and energy-storage systems

Compatibility depends on the actual battery chemistry, voltage range, BMS discharge rating, and the electrical requirements of the intended equipment.
