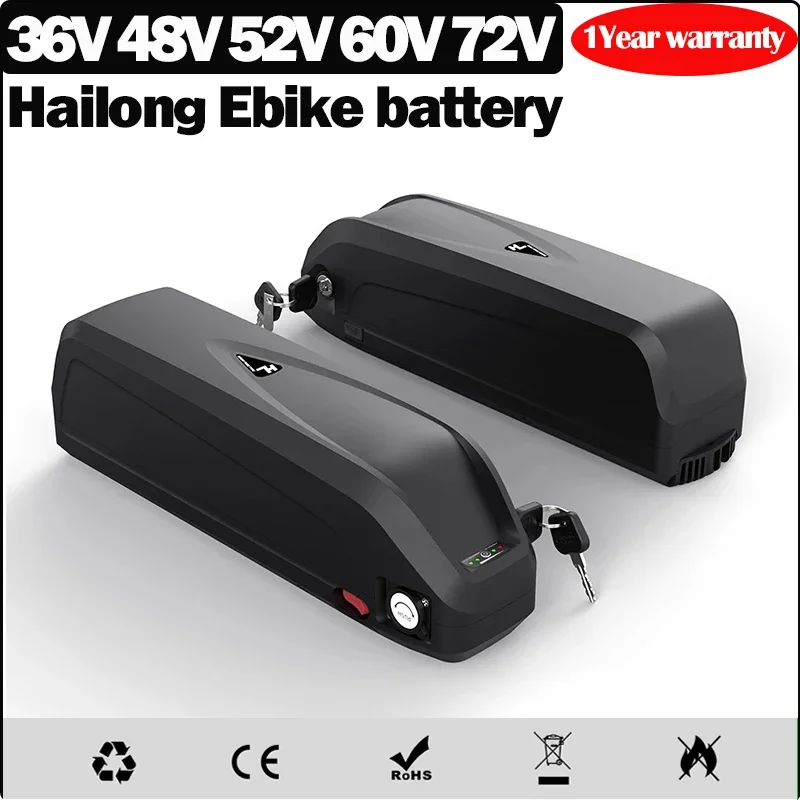

ChamRider Heavy-Duty Hailong Frame E-Bike Battery Series – Extreme Capacity Lithium Power Blocks (30Ah to 60Ah | Up to 3000W)
Push your custom electric bicycle, extreme commuter, or high-velocity scooter build to its absolute physical limits. The ChamRider Huge-Capacity Hailong Frame Battery Series is custom-engineered for maximum throttle range and unyielding acceleration. Built with premium, high-density 18650 cell matrices and paired with massive high-output smart BMS boards (up to 90A), this ultra-powerful fuel cell delivers unrelenting current to top-tier motor systems from 1000W up to a staggering 3000W.
Wrapped in the universally popular, frame-mounted Hailong casing profile, this setup eliminates the need for bulky custom battery bags while adding a dedicated external USB charge port to power your mobile devices on the fly.
🚀 Key High-Performance Features
-
Massive Commercial-Grade Capacity: Break away from standard limitations with selectable capacity configurations ranging from 30Ah, 40Ah, 50Ah, up to an elite 60Ah layout—perfect for high-mileage cargo delivery, long trail tracking, and cross-city cruising.
-
Built for Ultra-High Power Motors: Engineered with massive discharge tolerances to feed demanding mid-drives and raw hub motor kits from 250W all the way up to 2000W and 3000W peak loads.
-
Free 5A High-Amperage Fast Charger: Don't get stuck waiting all day to fill up huge capacity reservoirs. Every battery kit ships with a complimentary premium 5A aluminum fast charger upgrade to cut down wall-plug times drastically.
-

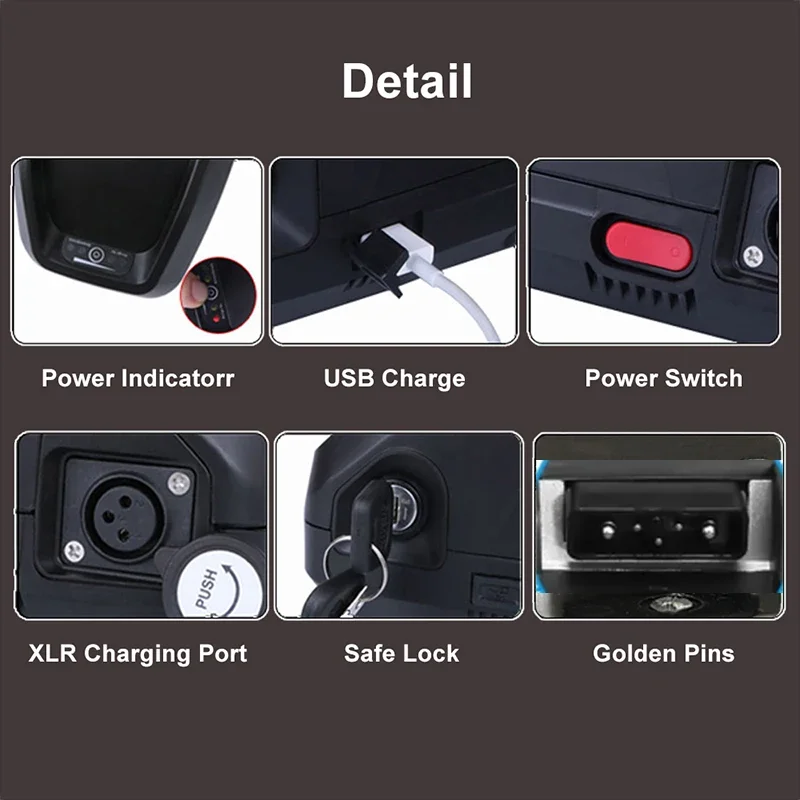

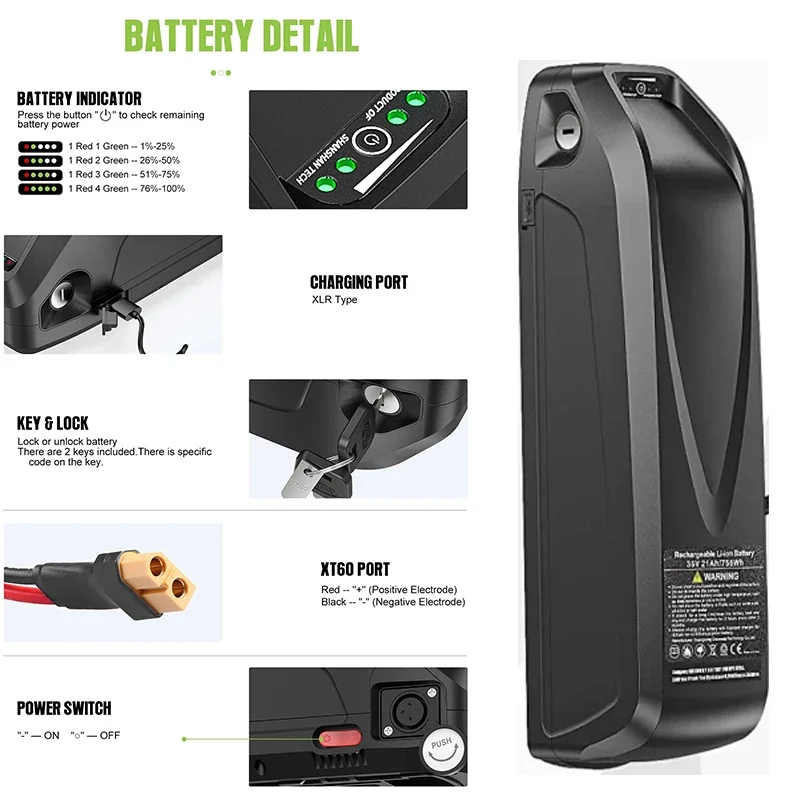

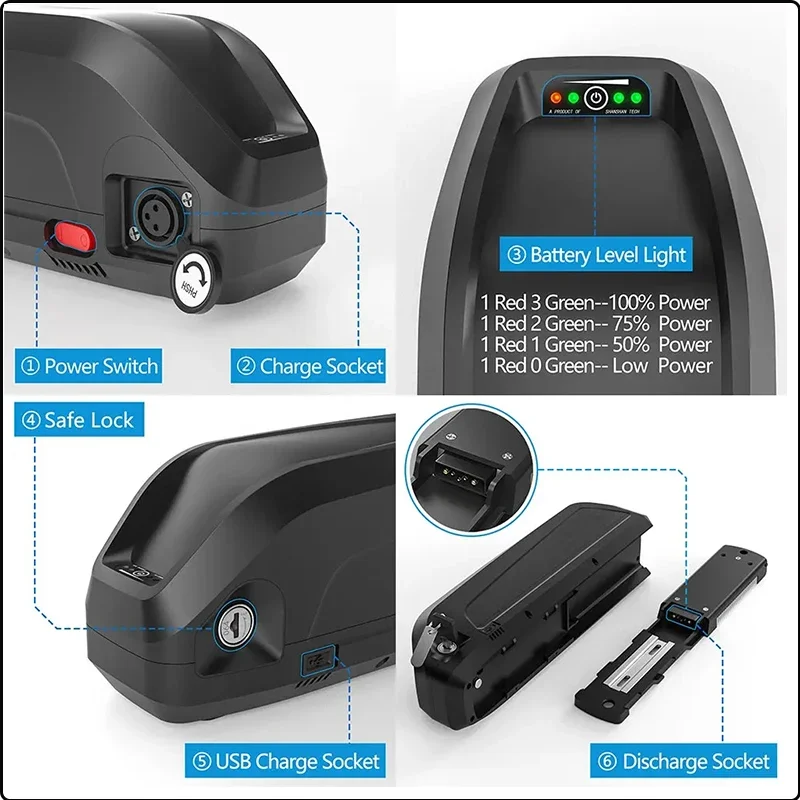

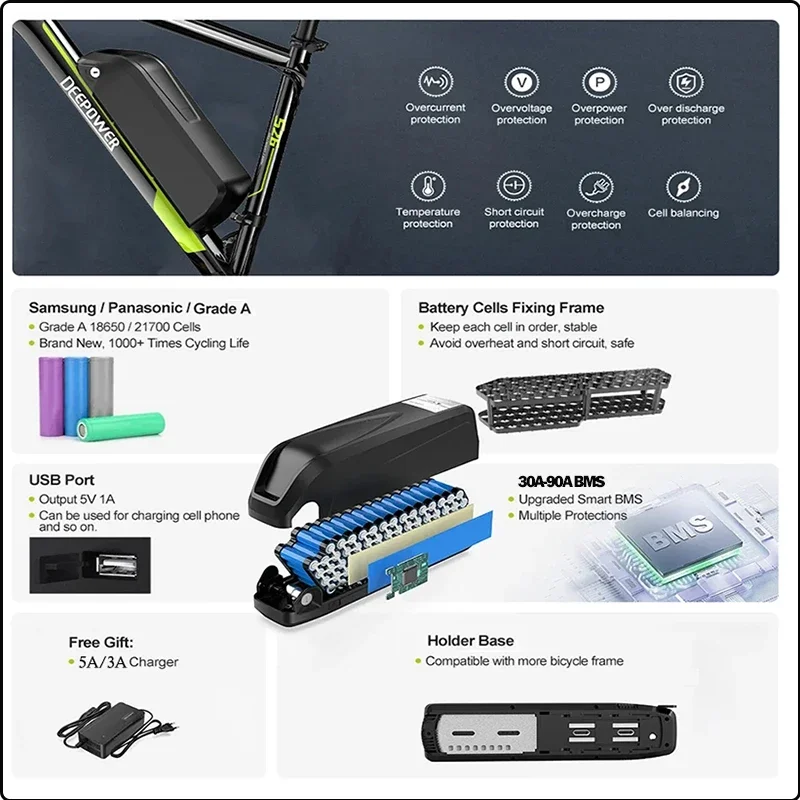

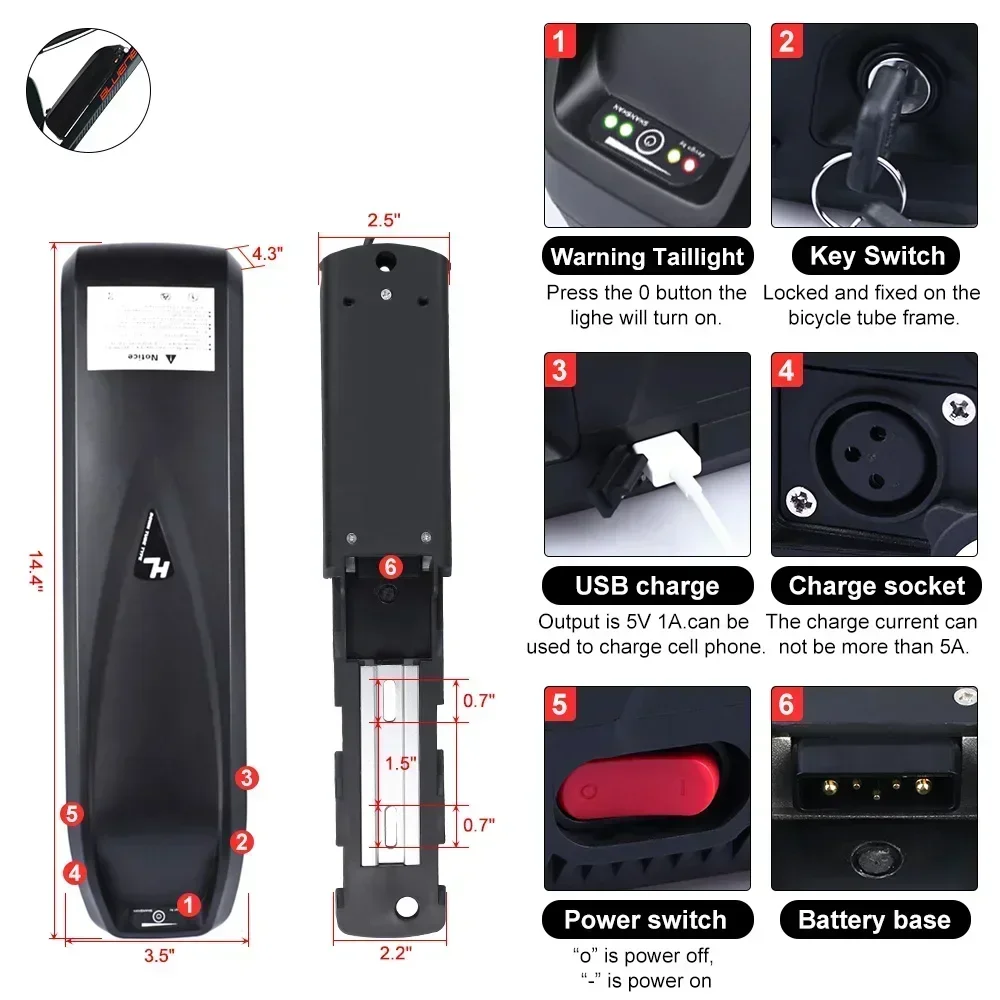

Premium Integrated Features: Built into a sleek 365mm downtube frame geometry featuring an onboard mechanical power switch, real-time LED battery life check bar, an integrated security key lock mechanism, and a handy 5V USB accessory output for mobile device charging.
📊 Comprehensive Technical Configuration Matrix
Please match your specific motor controller requirements with our precision voltage and capacity builds:
| Nominal Voltage Profile | Available Amp-Hour Capacities | Built-in Smart BMS Range | Charge Cut-Off Point | Supported Motor Power |
| 48V Systems | 30Ah / 45Ah / 50Ah / 60Ah | 30A – 50A Continuous | 54.6V | 500W – 2000W Motors |
| 52V Systems | 30Ah / 40Ah / 50Ah / 60Ah | 30A – 50A Continuous | 58.8V | 750W – 2000W+ Motors |
| 60V Systems | 30Ah / 40Ah / 50Ah / 60Ah | 50A – 80A Continuous | 67.2V | 1000W – 3000W Motors |
| 72V Systems | 30Ah / 40Ah / 50Ah / 60Ah | 50A – 90A Continuous | 84.0V |
1500W – 3000W Ultra-Peak |
🛡️ Verified Global Quality Controls & Safety Barriers
-
Universal Compliance Framework: Fully tested and certified under rigid global regulatory standards, including CE, FCC, and UL certifications. Completely free of toxic chemicals of great concern (
High-concerned chemical: None). -
Heavy-Duty Lifecycle Rating: Designed for long-term daily cycling, retaining strong energy hold metrics through 800 to 1,000 full charge-discharge loops.
-
12-Month Comprehensive Factory Warranty: Your heavy-duty infrastructure investment is backed by a full 1-year product replacement and repair guarantee against manufacturer or cell defects.
📦 What's Inside the Box?
-
1 x ChamRider Huge-Capacity Hailong Series Lithium Battery Pack
-

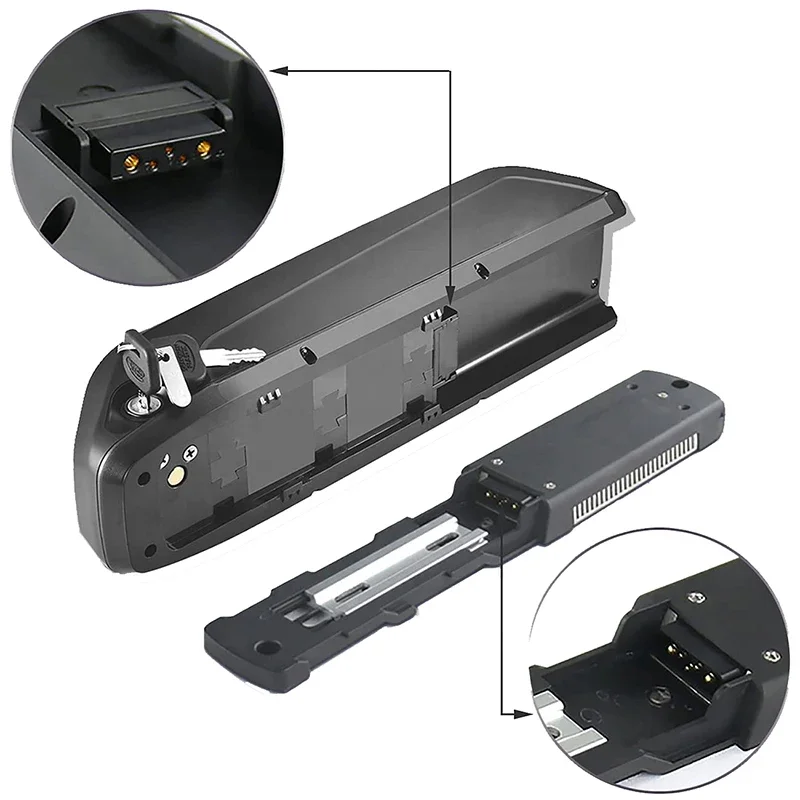

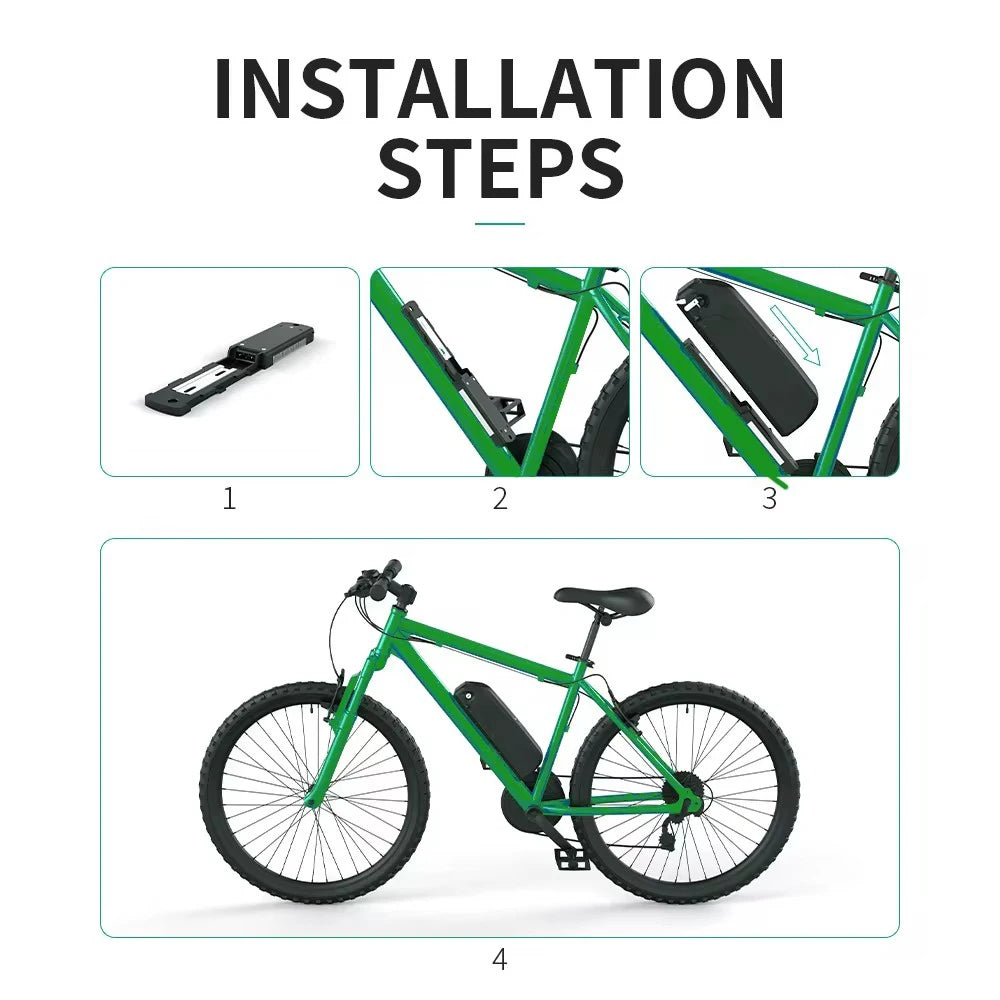

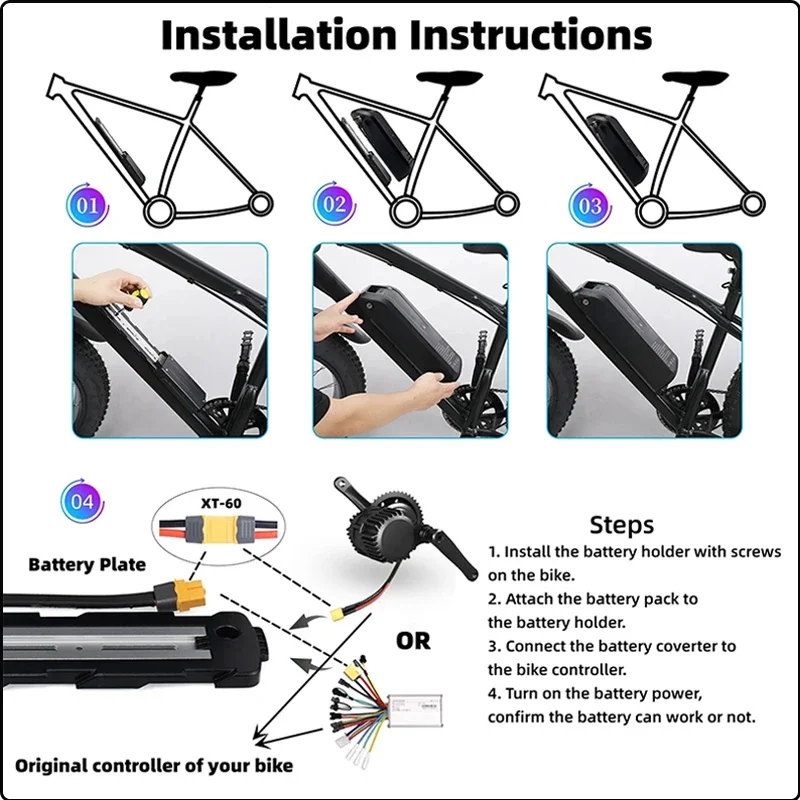

1 x Rigid Frame-Mounting Docking Base Cradle Plate with Wiring Terminals
-
1 x Free Upgraded 5A Smart Fast Charger (Paired to your matching voltage select)
-
2 x Anti-Theft Security Lock Keys
-
1 x Complete User Setup & Safe Maintenance Guide
Upgrade to extreme capacity and leave range anxiety in the dust. Select your target system voltage, choose your massive capacity layout below, and click Add to Cart to secure your ChamRider Hailong Power Pack today!
1. Maintenance service: 1-year warranty. If there are any quality issues, please contact us for free repair or replacement (if the battery damage is caused by personal behavior, the seller will not bear any losses or provide any services)
2. DDP services (tariffs for the following countries are borne by the seller): Russian Federation, Belarus, France,Ukraine, South Korea, Thailand, Singapore, Malaysia, Germany, Spain, Netherlands, Italy, Bulgaria, Belgium, Latvia, Poland, Denmark, Finland, Portugal, Sweden, Slovakia, Slovenia, Greece, Hungary, Czech Republic, Lithuania, Luxembourg, Romania, Ireland, Estonia, Austria, Croatia, Australia!
Notice for shipping time:
1. Since the battery is a special product, the transportation channel is different from that of ordinary products, and the delivery time will be longer than that of ordinary products, but we will use faster express delivery to mail it to you, please rest assured.
2. From the perspective of Chinese orders, it takes 1-2 days for stocking and 7-15 days for shipping to various countries. We choose air transportation (which belongs to land transportation in Russia) to deliver the products to customers in the fastest way possible (ignoring the default time on AliExpress)
36VElectric Bike Battery Specifications:
Nomal Volt: 36V
Rated Capacity:16ah/23ah/30ah/40ah/50ah

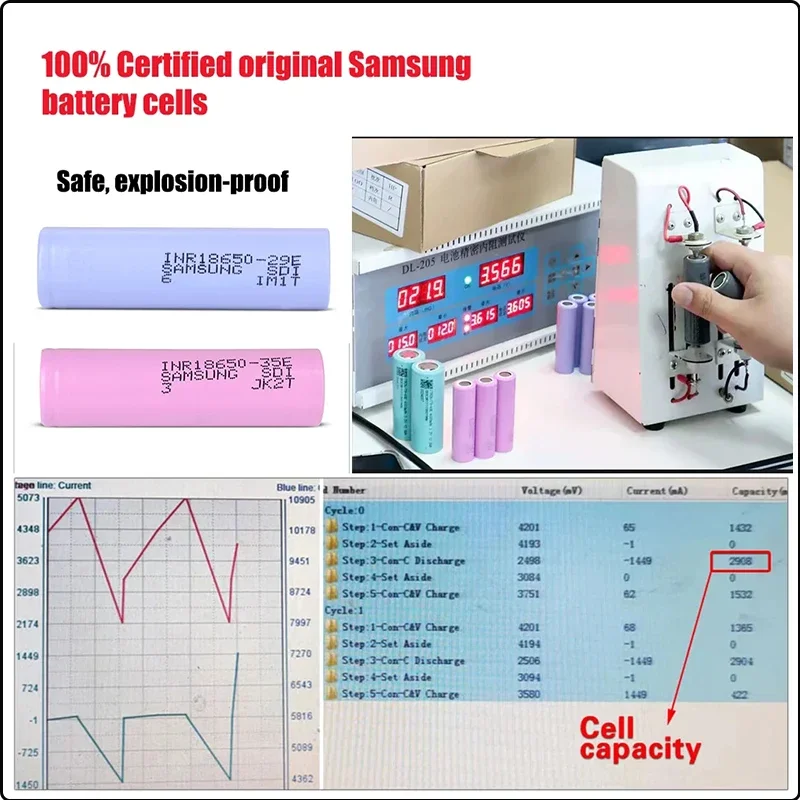

Battery Cell: 18650 Samsung battery
Type composition:10S5P

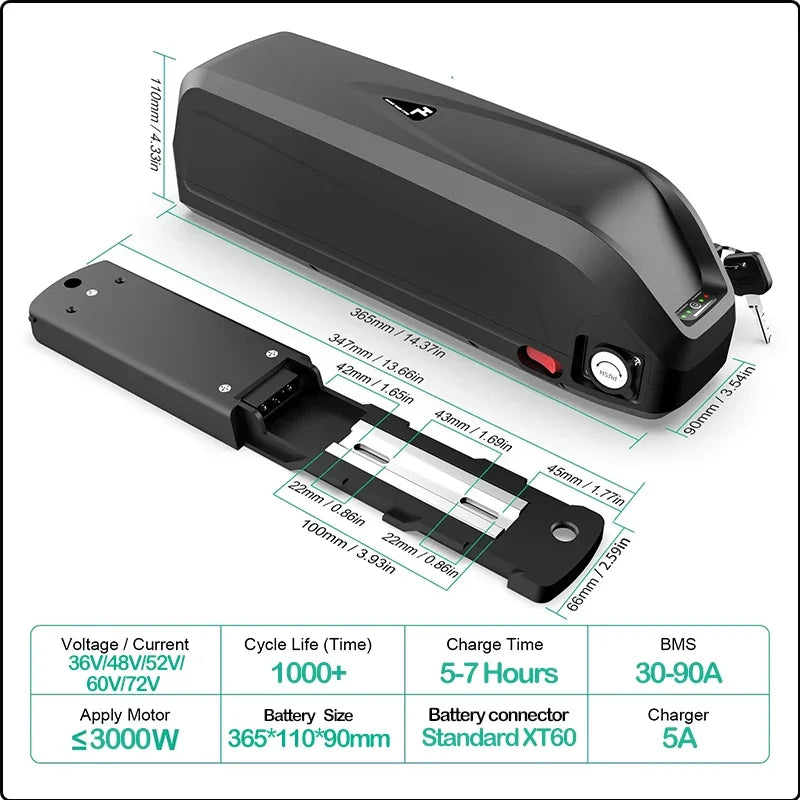

Battery size:365*110*90mm
Battery Weight:about 4KG
Max Constant Discharge Current:100A
Peak current:60A
BMS :30A-90A
Charge voltage:42V
Discharge cut off voltage:28V
Charge Current:5A;
Charge Time:5-7Hours
Way of Charge:CC/CV
Cycle Life:800-1000 tims
Charge Temperature:-15-65℃
Discharge Temperature:-15-65℃

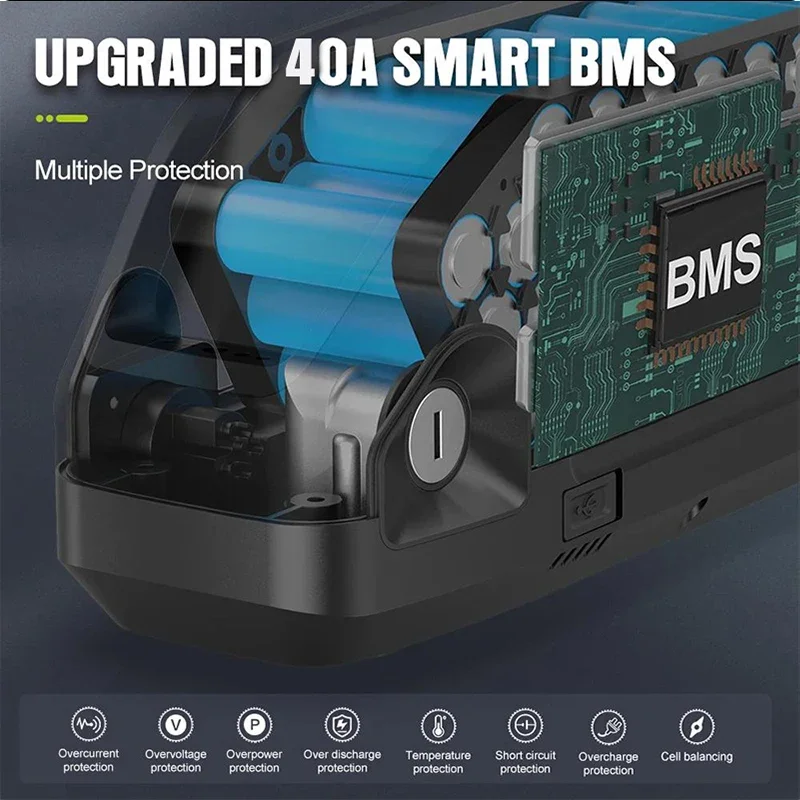

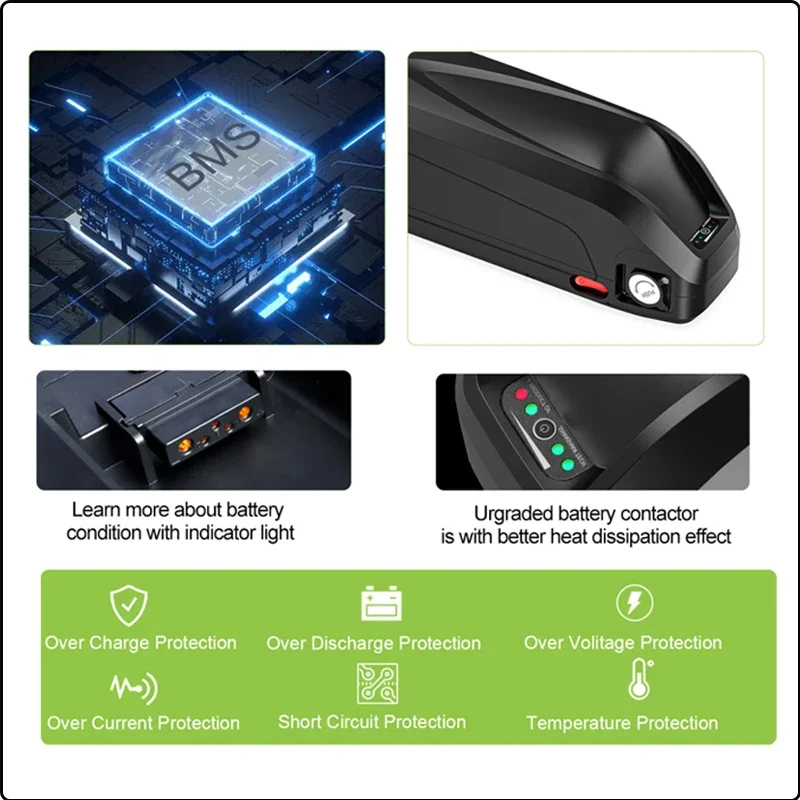

Protection Function:Over charge, Over discharge,Over current, Short circuit, Balance
48V Electric Bike Battery Specifications:
Rated voltage: 48V
Rated capacity: 17.5ah/20ah/24ah/30ah/35ah/40ah/50ah
Battery Cell: 18650 Samsung battery
Type composition: 13S5P
Battery size: 365mm x 110mm x 90mm
Battery weight: about 5 kg.
Max Constant Discharge Current:100A
Peak current:60A
BMS: 30A-90A,
Charging voltage: 54.6V
Discharge cut-off voltage: 39.2V
Standard charging current: 2A.
Charge Current:5A;
Charge Time:5-7Hours
Charging method:CC/CV
Cycle life: 800-1000 times
Charging temperature: -15-65℃
Discharge temperature: -15-65℃
Protection function: overcharge, overdischarge, overcurrent, short circuit, balance
52V Electric Bike Battery Specifications:
Rated voltage: 52V
Rated capacity:
20ah/25ah/30ah/35ah/40ah/45ah/50ah
Battery Cell: 18650 Samsung battery
Type composition: 14S4P
Battery size: 365mm x 110mm x 90mm
Battery weight: about 5 kg.
Max Constant Discharge Current:100A
Peak current:60A
BMS: 30A-90A,
Charging voltage: 58.8V
Discharge cut-off voltage: 42V
Standard charging current: 2A.
Charge Current:5A;
Charge Time:5-7Hours
Charging method:CC/CV
Cycle life: 800-1000 times
Charging temperature: -15-65℃
Discharge temperature: -15-65℃
Protection function: overcharge, overdischarge, overcurrent, short circuit, balance
60V Electric Bike Battery Specifications:
Rated voltage: 60V
Rated capacity:
20ah/25ah/30ah/35ah/40ah/45ah/50ah
Battery Cell: 18650 Samsung battery
Type composition: 16S4P
Battery size: 365mm x 110mm x 90mm
Battery weight: about 5 kg.
Max Constant Discharge Current:100A
Peak current:60A
BMS: 30A-90A,
Charging voltage: 67.2V
Discharge cut-off voltage: 48V
Standard charging current: 2A.
Charge Current:5A;
Charge Time:5-7Hours
Charging method:CC/CV
Cycle life: 800-1000 times
Charging temperature: -15-65℃
Discharge temperature: -15-65℃
Protection function: overcharge, overdischarge, overcurrent, short circuit, balance
72V Electric Bike Battery Specifications:
Rated voltage: 72V
Rated capacity:
20ah//30ah//40ah/50ah/60ah
Battery Cell: 18650 Samsung battery
Type composition: 20S34P
Battery size: 365mm x 110mm x 90mm
Battery weight: about 5 kg.
Max Constant Discharge Current:100A
Peak current:60A
BMS: 30A-90A,
Charging voltage: 84V
Discharge cut-off voltage: 72V
Standard charging current: 2A.
Charge Current:5A;
Charge Time:5-7Hours
Charging method:CC/CV
Cycle life: 800-1000 times
Charging temperature: -15-65℃
Discharge temperature: -15-65℃
Protection function: overcharge, overdischarge, overcurrent, short circuit, balance
Original 18650 battery 36V 48V 52V 60V 72V electric bicycle battery suitable for 250W 350W 500W 750W 1000W 1500W 2000W 3000W motor kit!
(Please note: The voltage of the ordered battery must be the same as the voltage of the motor accessories, otherwise it may cause incompatibility between the motor and battery)
Precautions for battery use:
1. Before first use, please fully charge the battery.
2. Do not immerse the battery in water or get the battery wet!
3. Do not reverse the positive and negative poles, or short-circuit the battery with wires or other metallic objects!
4. Do not nail, knock, step on the battery or disassemble the battery and battery pack in any way!
5. It is forbidden to put the battery in the microwave oven, pressure vessel or fire source!
6. If the battery emits odor, heat, deformation, discoloration or any abnormal phenomena, please stop using it immediately!
7. Do not use the battery in direct sunlight or high temperature environment. Otherwise, the battery pack will overheat, affecting battery performance and shortening battery life!
8. The battery pack and charger should be stored in a clean, dry, ventilated place, avoid contact with corrosive substances, and away from fire and heat sources.
9. When the battery pack is to be stored for a long time, please charge the battery pack to about 50% capacity and store it in a dry and ventilated place, and charge it for 2 to 3 hours every 3 months.
10.If you have any questions about product quality, please contact us by email immediately, we will try our best to solve these problems!
