18650 Hailong Battery 36V 48V 52V 9Ah 12Ah 15Ah 18Ah Rechargeable High Capacity for Bafang BBS02 BBS03 BBSHD Motor
18650 Hailong Battery 36V 48V 52V 9Ah 12Ah 15Ah 18Ah Rechargeable High Capacity for Bafang BBS02 BBS03 BBSHD Motor
CANGLV 18650 Hailong High-Capacity Lithium-Ion Battery Pack – 36V / 48V / 52V Options, 9Ah to 18Ah Capacities for Bafang BBS02, BBS03, BBSHD Motors & Marine Trolling Motors
Power your custom electric bicycle, commuter rig, or trolling motor setup with the CANGLV 18650 Hailong Lithium-Ion Battery Pack. Encased in the industry-standard, heavy-duty Hailong down-tube hardcase (370mm × 110mm × 90mm), this high-efficiency battery series utilizes premium 18650 lithium-ion cells to provide stable voltage delivery, consistent power output, and exceptional cycle life.
Fully certified under CE and KC safety standards, the CANGLV Hailong battery features a built-in protective Battery Management System (BMS). It is engineered for optimal performance when paired with high-draw mid-drive kits like the Bafang BBS02, BBS03, and BBSHD, as well as hub motors and electric marine trolling setups.
⚠️ Motor & Voltage Compatibility Guide
IMPORTANT SELECTION & FITMENT NOTICE:
Bafang BBSHD & High-Power Mid-Drives: We recommend selecting the 48V or 52V pack to unlock full torque, higher motor RPM, and maximum power potential.
Bafang BBS02 & Standard Hub Motors: Fully compatible with 36V or 48V configurations depending on your controller's maximum voltage rating.
Marine & Utility Applications: Safely configured for 36V/48V electric trolling motors and small utility builds.
Frame Fit Check: Please confirm down-tube clearance for the Hailong case dimensions (370mm L × 110mm W × 90mm H) prior to ordering.
🚀 Key High-Performance Features
-
High-Density 18650 Cell Architecture: Provides high energy density and dependable power discharge under continuous high-load riding conditions.
-
Integrated BMS Protection Board: Internal protective circuitry prevents over-charging, deep discharge, over-current spikes, short-circuiting, and thermal stress.
-
Locking Quick-Release Mounting Base: Includes a lockable slide track that mounts directly to standard water bottle bosses for easy removal and theft prevention.
-
CE & KC Safety Certified: Rigorously tested to ensure strict electrical, thermal, and mechanical safety compliance.
-

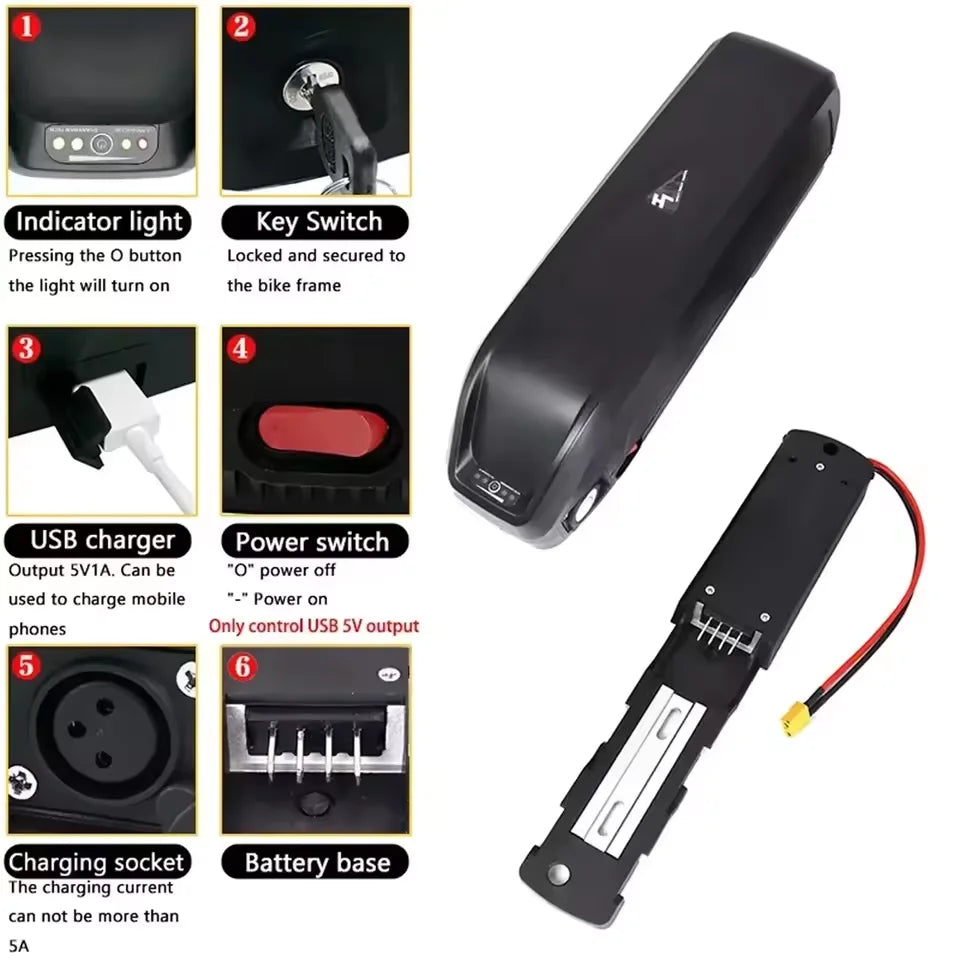

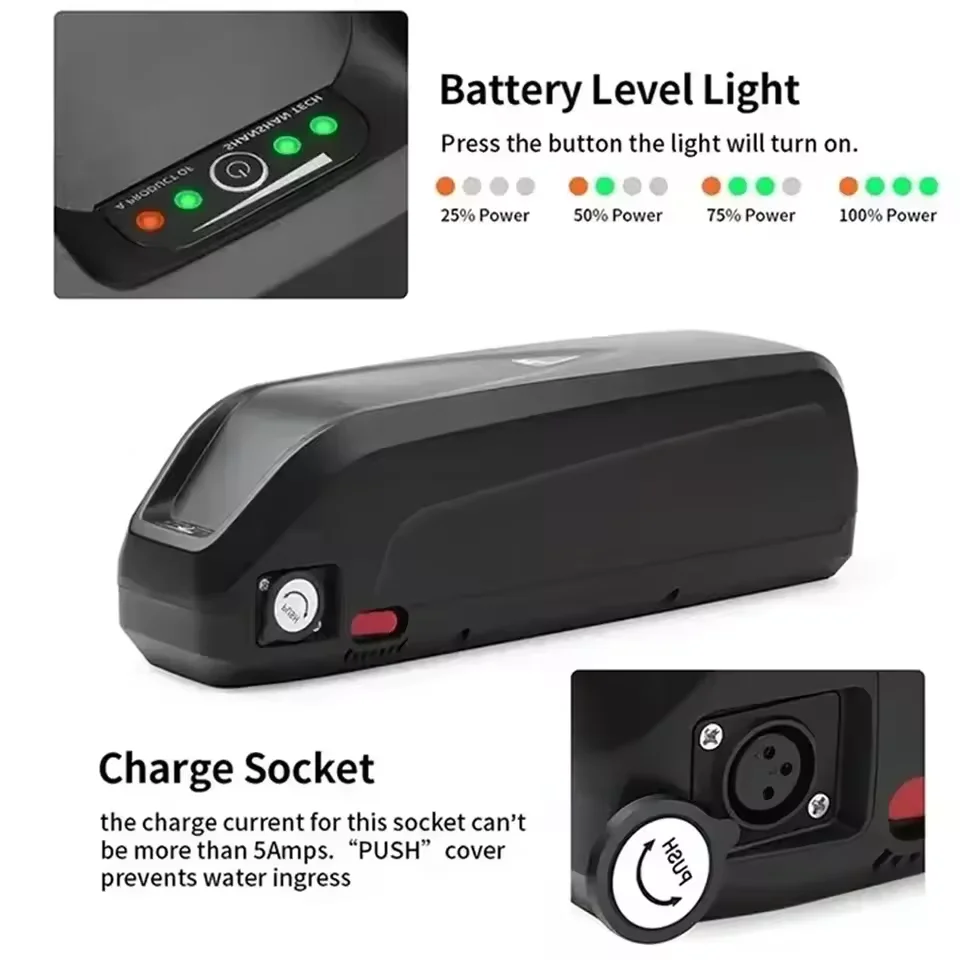

On-Pack LED Power Meter: Integrated push-button LED battery level display lets you check your remaining charge at a glance.
📊 Technical Specifications Matrix
18650 Hailong Battery Specification Table

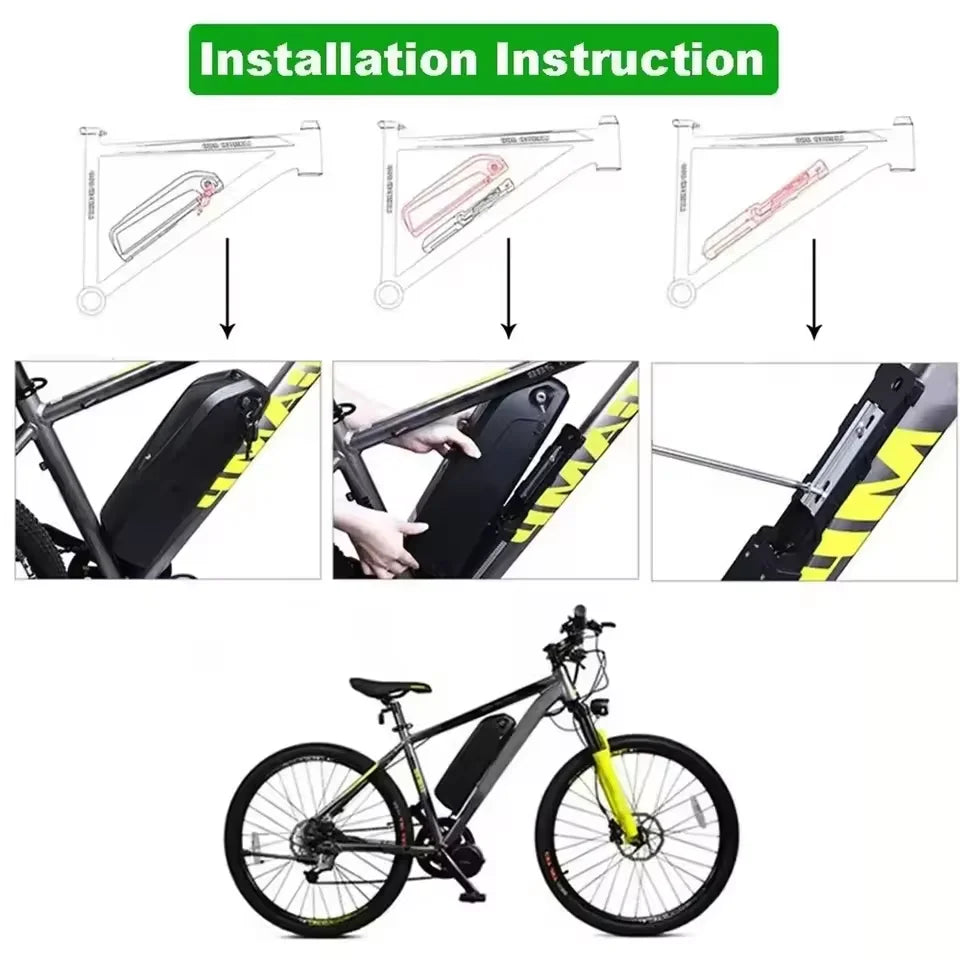

⚙️ Installation & Care Instructions
-
Mounting Base Setup: Secure the Hailong base plate to your frame's down-tube bottle cage bosses using the included stainless steel hardware.
-
Wiring Connection: Connect your motor controller's main power leads to the base plate's discharge connector, taking care to observe correct positive (+) and negative (-) polarity.
-
Lock & Ride: Align the battery casing with the track, slide it down until fully seated into the discharge terminal, and lock it into place using the security key.
📦 Package Contents
-
1 x CANGLV 18650 Hailong Lithium-Ion Battery Pack (Selected Voltage & Capacity)
-
1 x Frame Mounting Base Plate with Power Cable
-
2 x Battery Security Keys
-

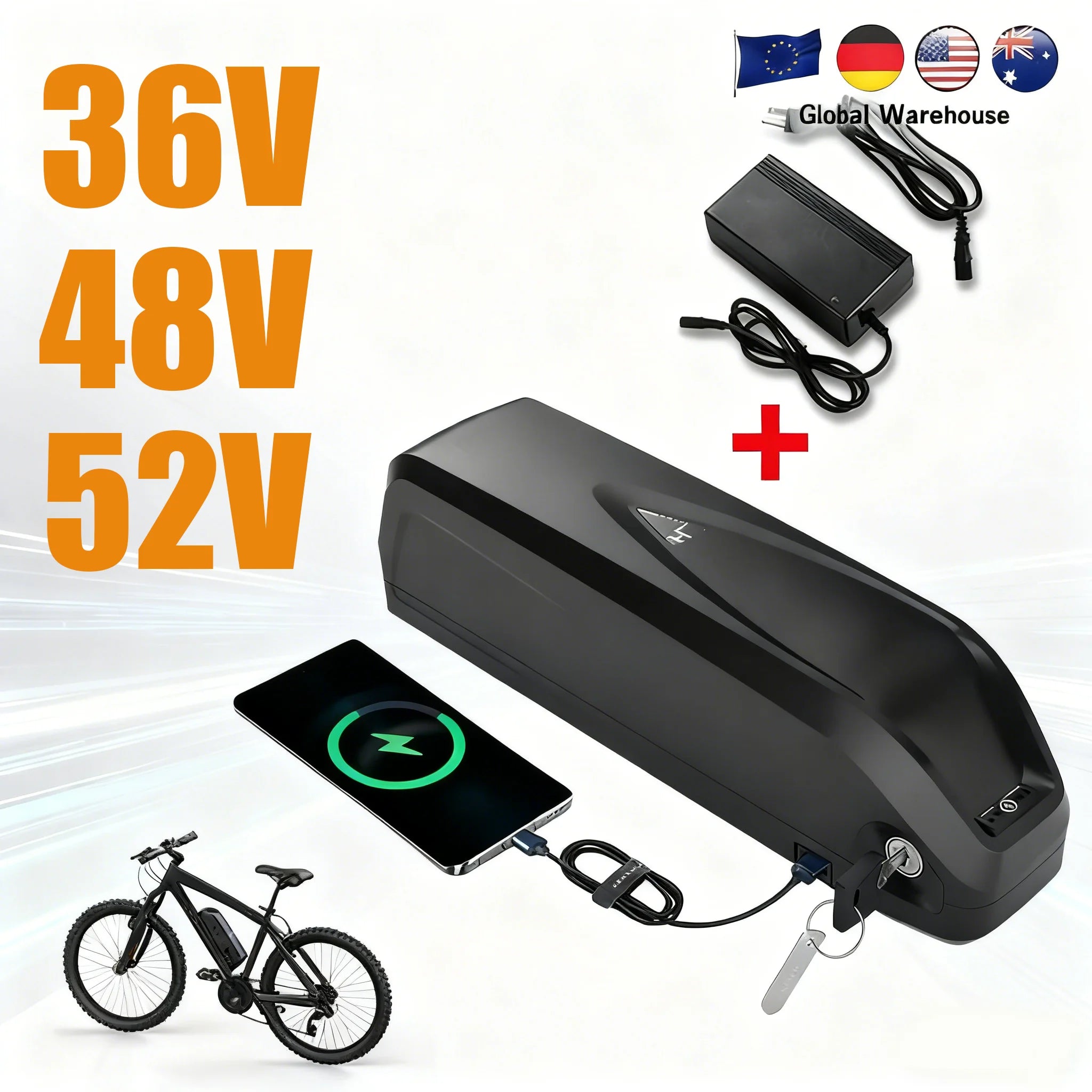

1 x Smart CC/CV Lithium Battery Charger
Equip your Bafang e-bike or trolling motor with dependable 18650 lithium power. Select your voltage and capacity options below, click Add to Cart, and order today!
