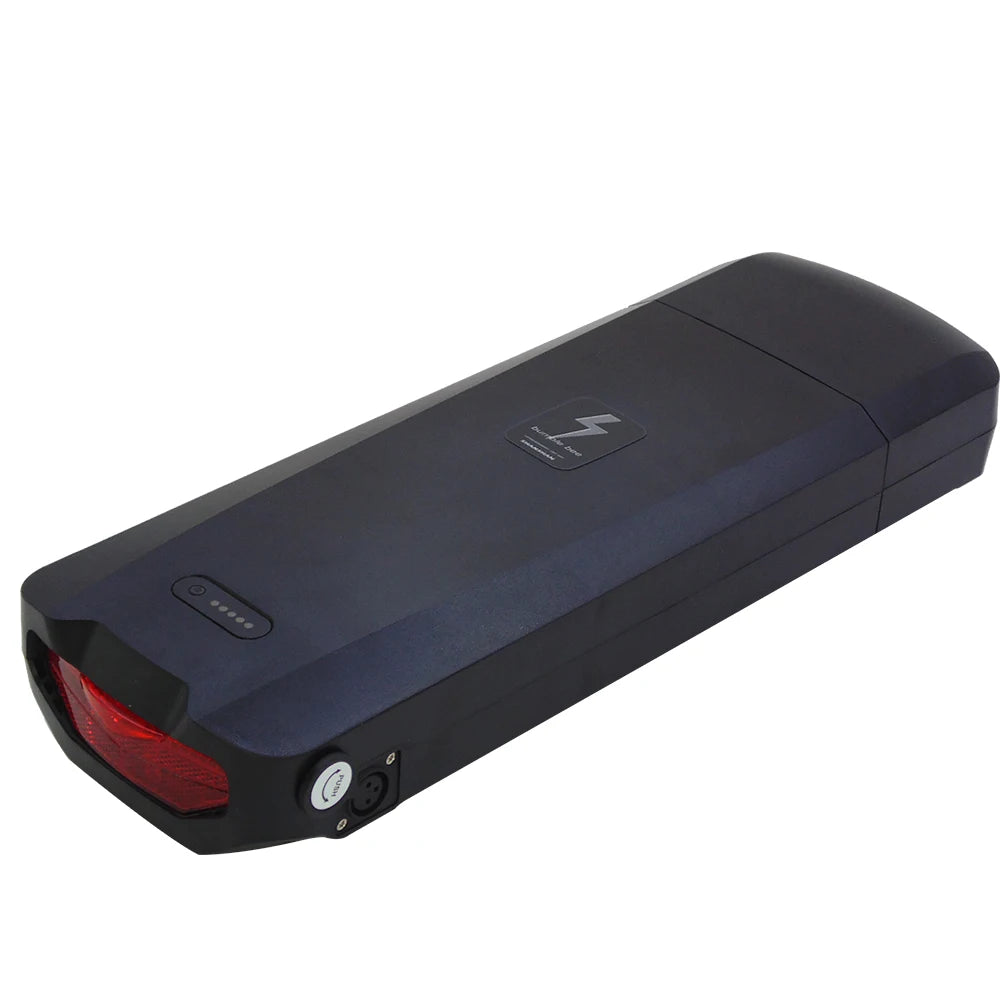

  • A dark blue rectangular electronic device, likely a portable power bank or bicycle light, featuring a red translucent light panel on one end, a power button, and a circular port, shown on a plain white background.

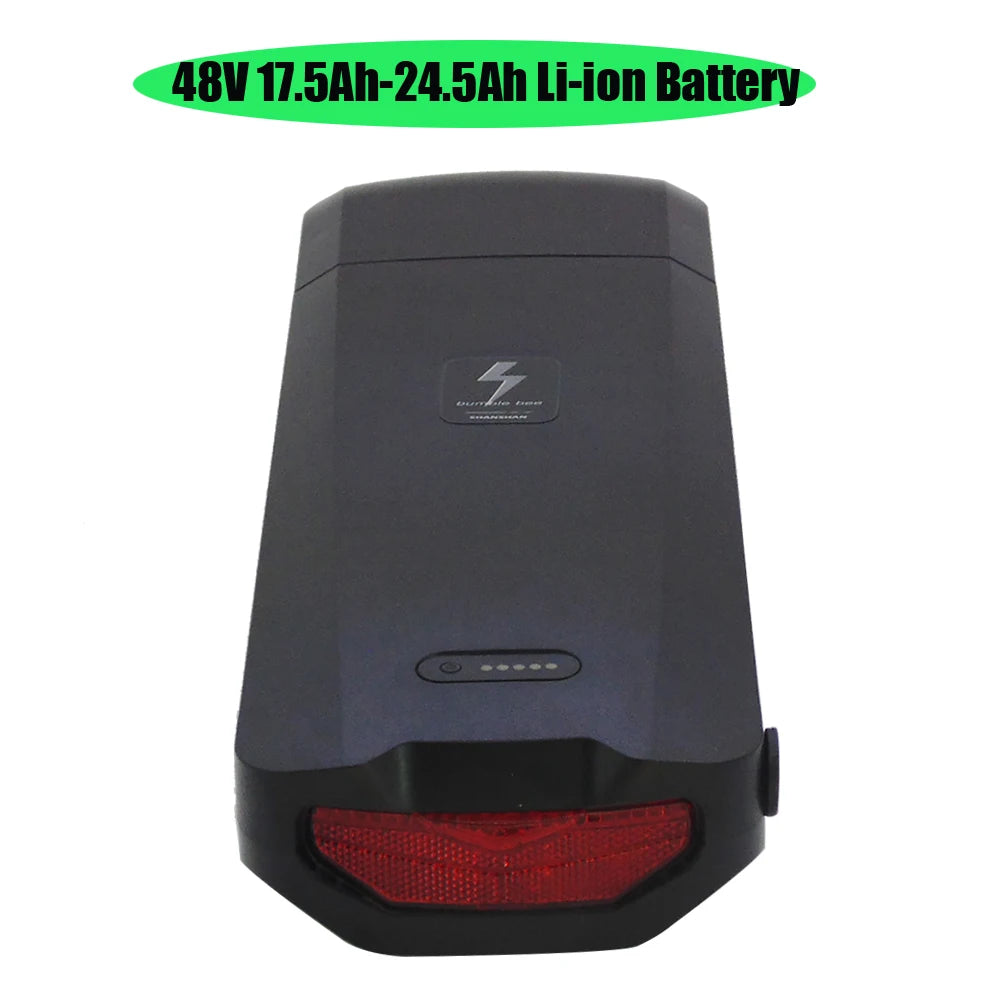

  • A 48V 17.5Ah-24.
  • A black plastic battery or power pack accessory with a red accent on one end, shown alongside mounting brackets and a small key on a plain white background.

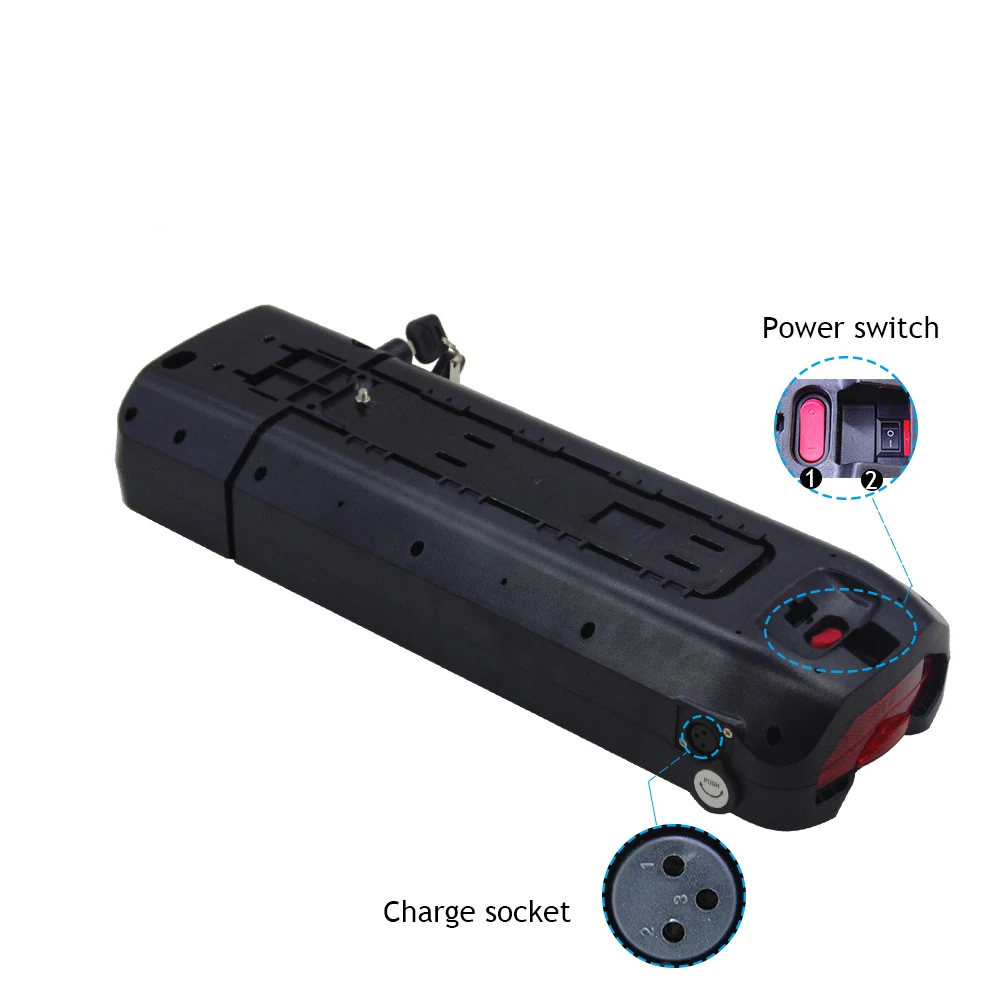

  • A black rectangular power bank or battery charger shown on a white background, with callout circles and labels pointing to a power switch and a charge socket.

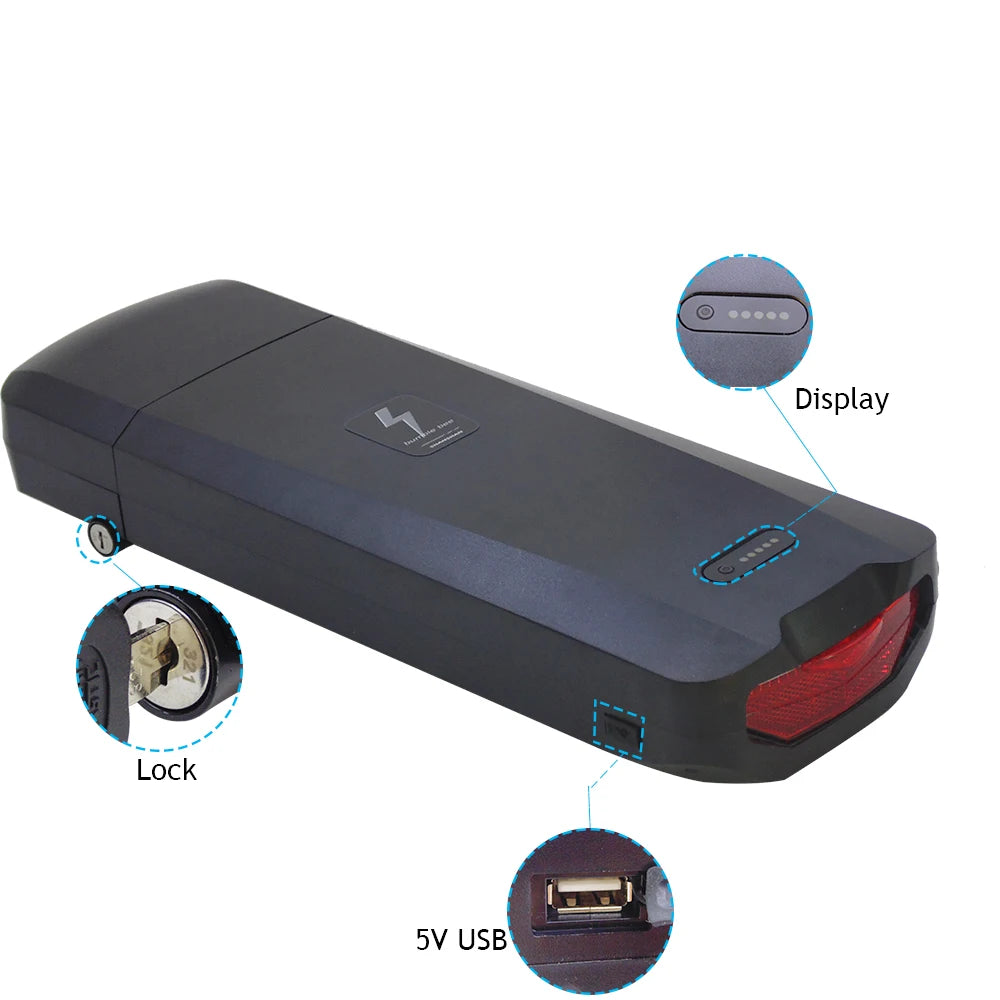

  • A black rectangular electronic device with a red end cap, shown on a white background with four circular callout insets labeled Display, Lock, and 5V USB, indicating features and ports.

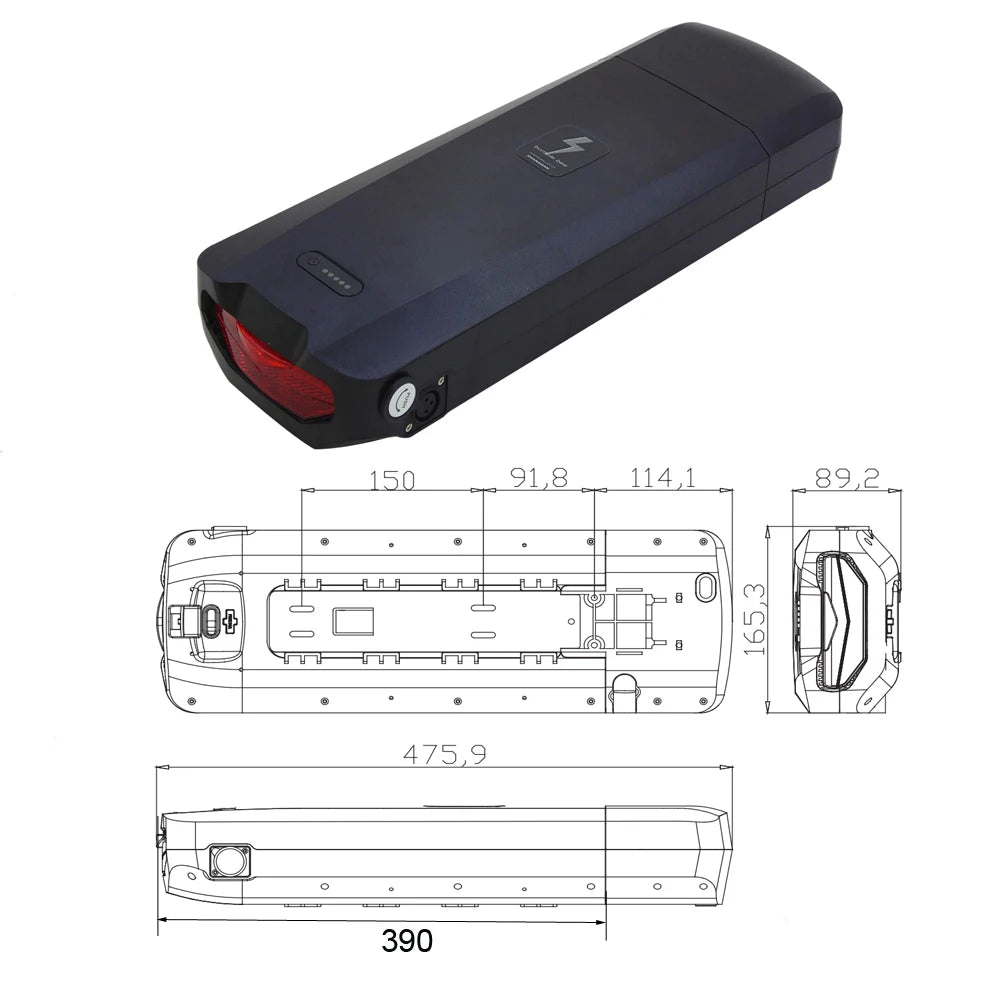

  • A dark blue rectangular bicycle light shown on a white background, with dimension line drawings below showing front, side, and top measurements.
  • A portable power station and its charger accessories shown on a white background, with red check marks indicating compatibility or features. A blue information panel at the bottom lists specifications: 48V voltage, 24.

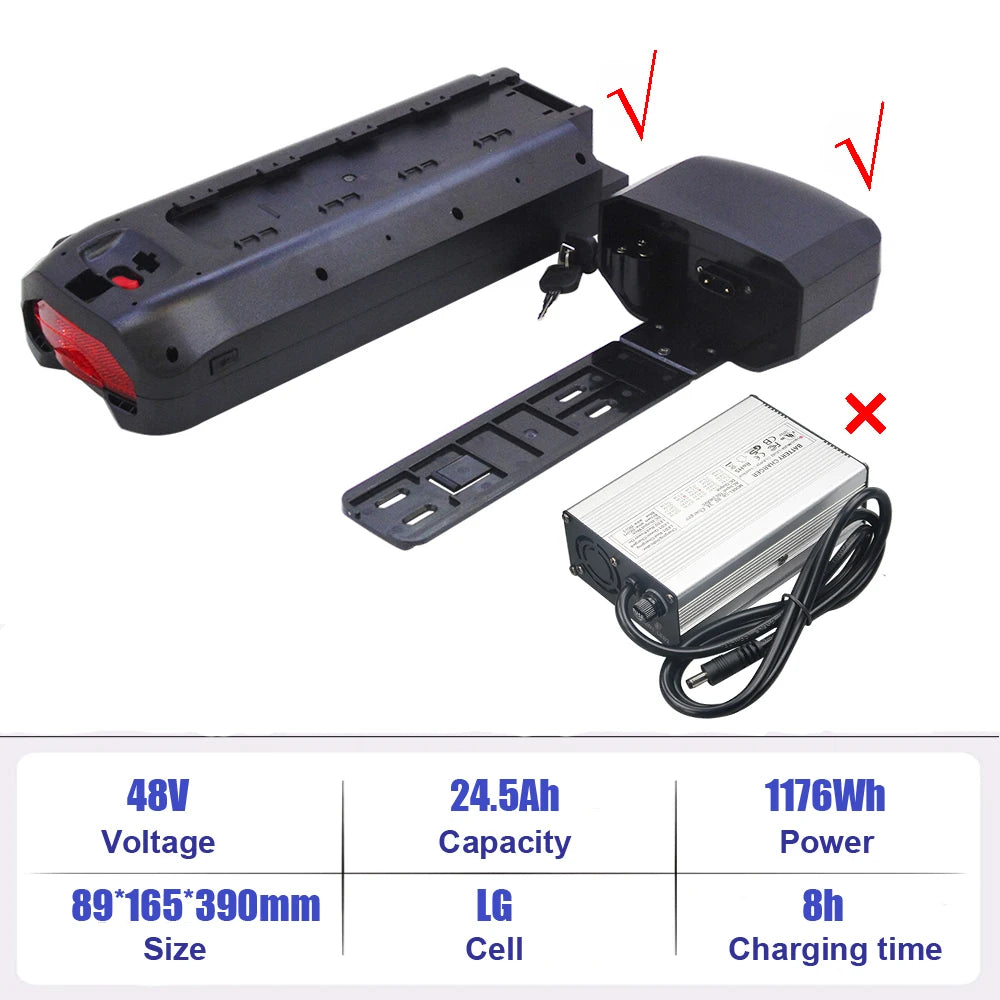

  • A portable power station and its charger adapter shown on a white background, with a blue specification table at the bottom listing 48V voltage, 24.5Ah capacity, 1176Wh power, 89x165x390mm size, LG cell, and 8h charging time.
  • A battery charger kit shown on a white background, including a black battery, a black charger unit, a metal power supply, and a mounting bracket. A feature comparison graphic with red X and check marks highlights included components, and a blue specification table at the bottom lists 48V voltage, 21Ah capacity, 1008Wh power, 89*165*390mm size, LG cell, and 7h charging time.
  • A battery charger kit with a black battery, a black charger unit, a metal power supply, and a mounting bracket on a white background, with red check marks and a specification table at the bottom.
  • A battery charger kit shown on a white background with a feature comparison graphic. The kit includes a black battery terminal block with a red accent, a black adapter, a silver metal power supply, and a mounting bracket.
  • A battery charger kit shown on a white background with a measurement/specification table at the bottom. The kit includes a black battery, a black charger unit, a mounting bracket, and a silver power adapter with a black cable.

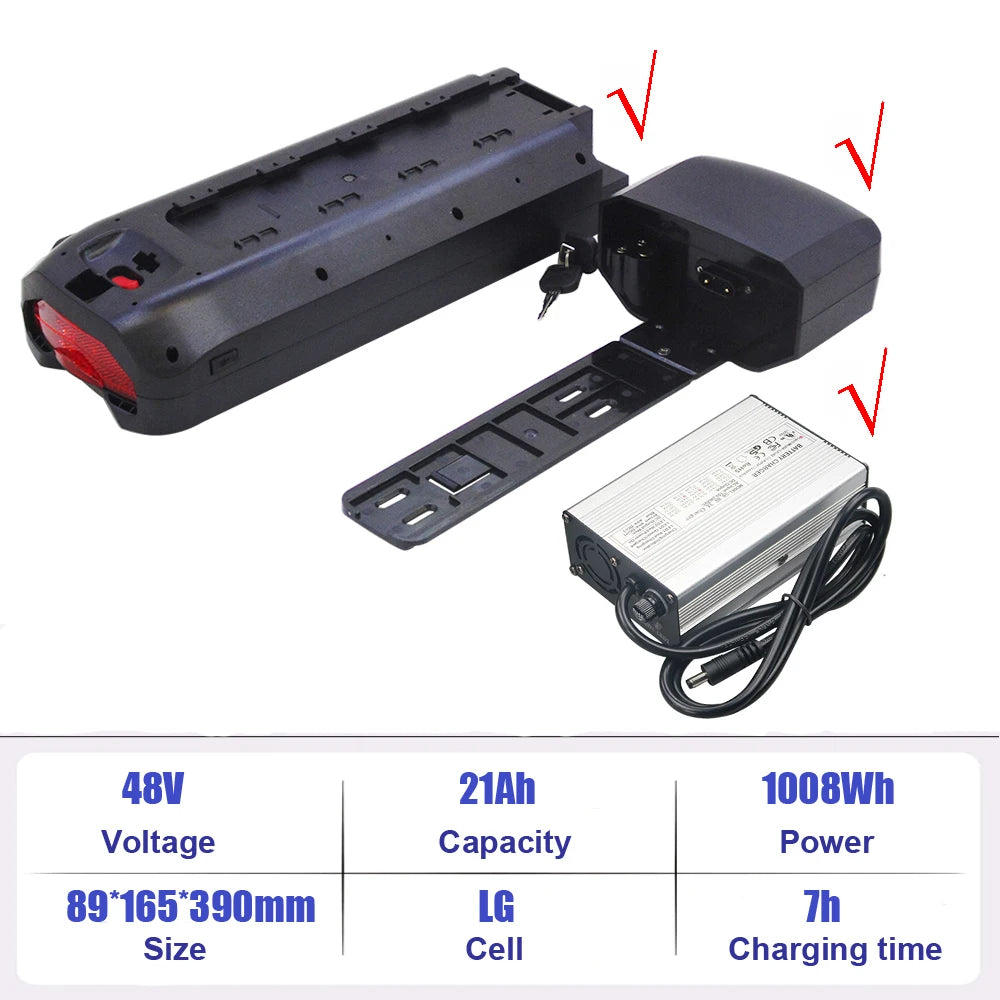

  • A battery charger kit shown on a white background, including a black battery terminal block with red accent, a black adapter/plate, a silver power supply with black cable, and a blue specification table at the bottom listing 48V, 21Ah, 1008Wh, 89*165*390mm size, LG cell, and 7h charging time.
  • A battery charger kit shown on a white background, including a black battery terminal block with a red accent, a black mounting bracket, a silver power supply unit with a black cable, and a blue specification chart at the bottom listing 48V voltage, 21Ah capacity, 1008Wh power, 89*165*390mm size, LG cell, and 7h charging time.
  • A battery charger kit shown on a white background with a feature comparison graphic and technical specifications. The kit includes a black battery terminal adapter, a black power supply block, a metal power supply unit with a black cable, and a mounting bracket.
  • A dark blue rectangular electronic device, likely a portable power bank or bicycle light, featuring a red translucent light panel on one end, a power button, and a circular port, shown on a plain white background.
  • A 48V 17.5Ah-24.
  • A black plastic battery or power pack accessory with a red accent on one end, shown alongside mounting brackets and a small key on a plain white background.
  • A black rectangular power bank or battery charger shown on a white background, with callout circles and labels pointing to a power switch and a charge socket.
  • A black rectangular electronic device with a red end cap, shown on a white background with four circular callout insets labeled Display, Lock, and 5V USB, indicating features and ports.
  • A dark blue rectangular bicycle light shown on a white background, with dimension line drawings below showing front, side, and top measurements.
  • A portable power station and its charger accessories shown on a white background, with red check marks indicating compatibility or features. A blue information panel at the bottom lists specifications: 48V voltage, 24.
  • A portable power station and its charger adapter shown on a white background, with a blue specification table at the bottom listing 48V voltage, 24.5Ah capacity, 1176Wh power, 89x165x390mm size, LG cell, and 8h charging time.
  • A battery charger kit shown on a white background, including a black battery, a black charger unit, a metal power supply, and a mounting bracket. A feature comparison graphic with red X and check marks highlights included components, and a blue specification table at the bottom lists 48V voltage, 21Ah capacity, 1008Wh power, 89*165*390mm size, LG cell, and 7h charging time.
  • A battery charger kit with a black battery, a black charger unit, a metal power supply, and a mounting bracket on a white background, with red check marks and a specification table at the bottom.
  • A battery charger kit shown on a white background with a feature comparison graphic. The kit includes a black battery terminal block with a red accent, a black adapter, a silver metal power supply, and a mounting bracket.
  • A battery charger kit shown on a white background with a measurement/specification table at the bottom. The kit includes a black battery, a black charger unit, a mounting bracket, and a silver power adapter with a black cable.
  • A battery charger kit shown on a white background, including a black battery terminal block with red accent, a black adapter/plate, a silver power supply with black cable, and a blue specification table at the bottom listing 48V, 21Ah, 1008Wh, 89*165*390mm size, LG cell, and 7h charging time.
  • A battery charger kit shown on a white background, including a black battery terminal block with a red accent, a black mounting bracket, a silver power supply unit with a black cable, and a blue specification chart at the bottom listing 48V voltage, 21Ah capacity, 1008Wh power, 89*165*390mm size, LG cell, and 7h charging time.
Belicore 48V Rear Rack E-Bike Battery 24.5Ah

Belicore 48V Rear Rack E-Bike Battery 24.5Ah

$442.80
$442.80 $294.80
Shipping calculated at checkout.
Color

Belicore 48V High-Capacity Rear Rack E-Bike Battery Pack (17.5Ah – 24.5Ah | Premium Korean 3500mAh Cells | Gogobest GF750 Plus Compatible)


Power through long-distance commutes and heavy cargo hauls with the Belicore 48V High-Capacity Rear Rack E-Bike Battery Pack. Engineered for rear-rack mounting systems—including the popular Gogobest GF750 Plus dual-motor and fat-tire models—this battery pack uses premium Grade-A Korean 3500mAh lithium-ion cells (13S configuration). Available in high energy capacities ranging from 17.5Ah up to 24.5Ah (840Wh- 1,176Wh), the Belicore pack easily drives motors from 200W up to 1500W peak output and includes a heavy-duty 54.6V 3A aluminum-case smart charger.

⚠️ Key Performance & Safety Guidelines

IMPORTANT VEHICLE & BATTERY SPECIFICATIONS:

  • Premium Grade-A Korean 3500mAh Cells: Assembled with high-density Korean cell chemistry (13S5P to 13S7P configurations) for low internal resistance, high discharge efficiency, and reduced thermal buildup.

  • Broad Motor Power Compatibility: Designed with a heavy-duty BMS that reliably powers 48V motors rated from 200W to 1500W continuous/peak output.

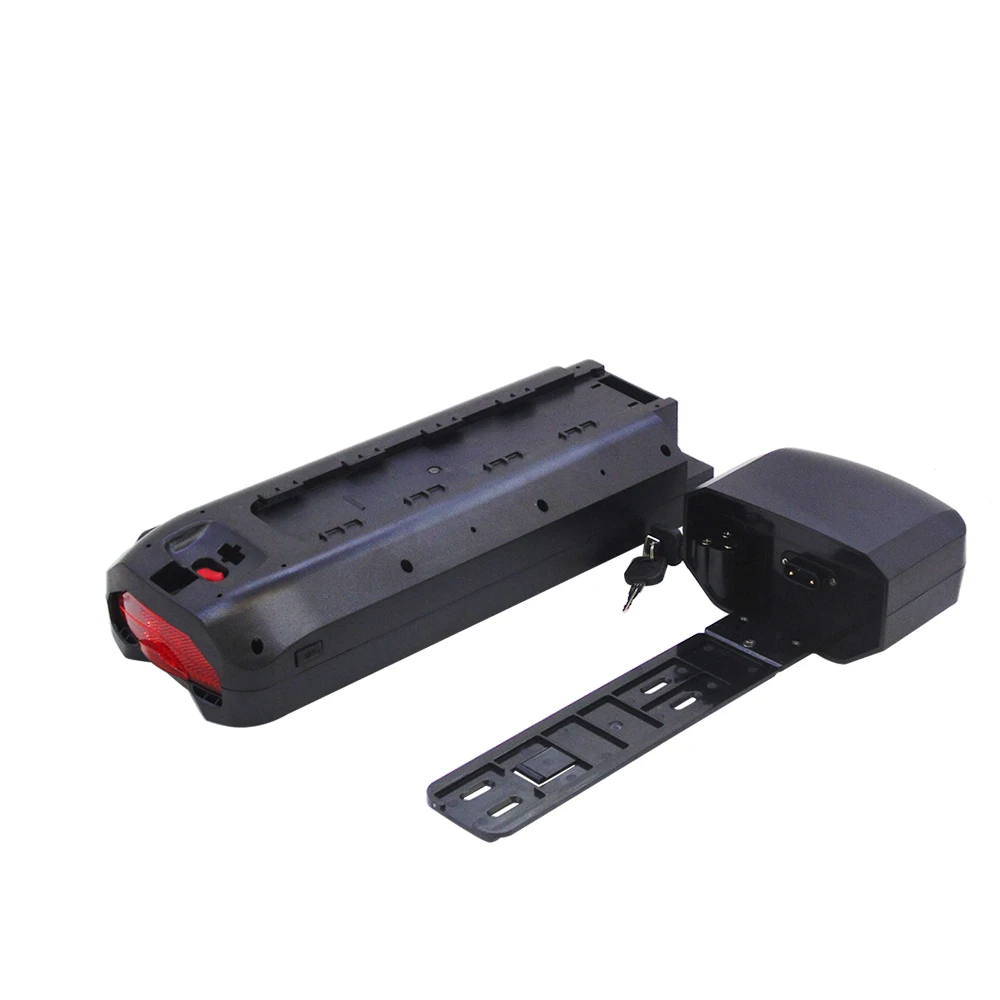

  • Standard Rear Rack Slide-In Form Factor: Fits securely onto standard e-bike rear cargo racks with integrated locking rail mechanisms.

  • High-Current Fast Charger Bundle: Comes complete with a 54.6V 3A aluminum-cased smart charger featuring active fan cooling and auto cut-off protection.

🚀 Key High-Performance Features

  • Massive Energy Reserve (Up to 24.5Ah / 1,176Wh): Extended range capacity eliminates range anxiety on long commuter routes, cargo deliveries, and off-road expeditions.

  • Integrated Rear Safety Light / Reflector: High-visibility rear reflector housing improves rider safety during night rides and low-light weather conditions.

  • Key-Locking Carrier Mechanism: Built-in mechanical key lock anchors the battery firmly to your rear rack rail to prevent theft and keep it stable on rough roads.

  • Robust Aluminum Fast Charger Included: Premium 54.6V 3A aluminum-cased charger provides faster charge cycles and superior heat dissipation compared to standard plastic chargers.

  • 12-Month Factory Warranty: Backed by a full 1-year limited warranty covering cell balance and BMS performance.

📊 Technical Specifications Matrix

Specification Parameter Belicore Rear Rack Battery Specifications
Brand & Manufacturer Belicore Power Systems
Compatible E-Bike Models Gogobest GF750 Plus & 48V Rear-Rack E-Bikes
Cell Chemistry & Origin Korean 3500mAh Grade-A Lithium-Ion Cells

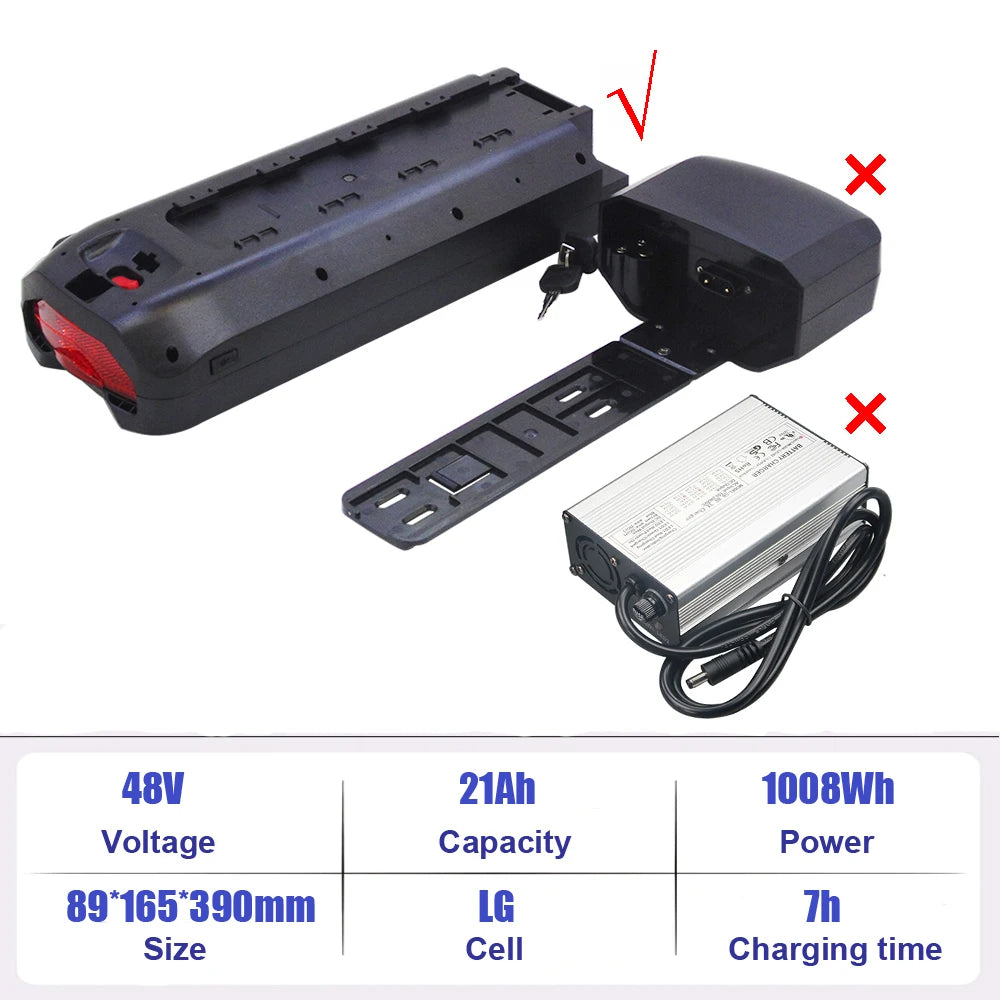

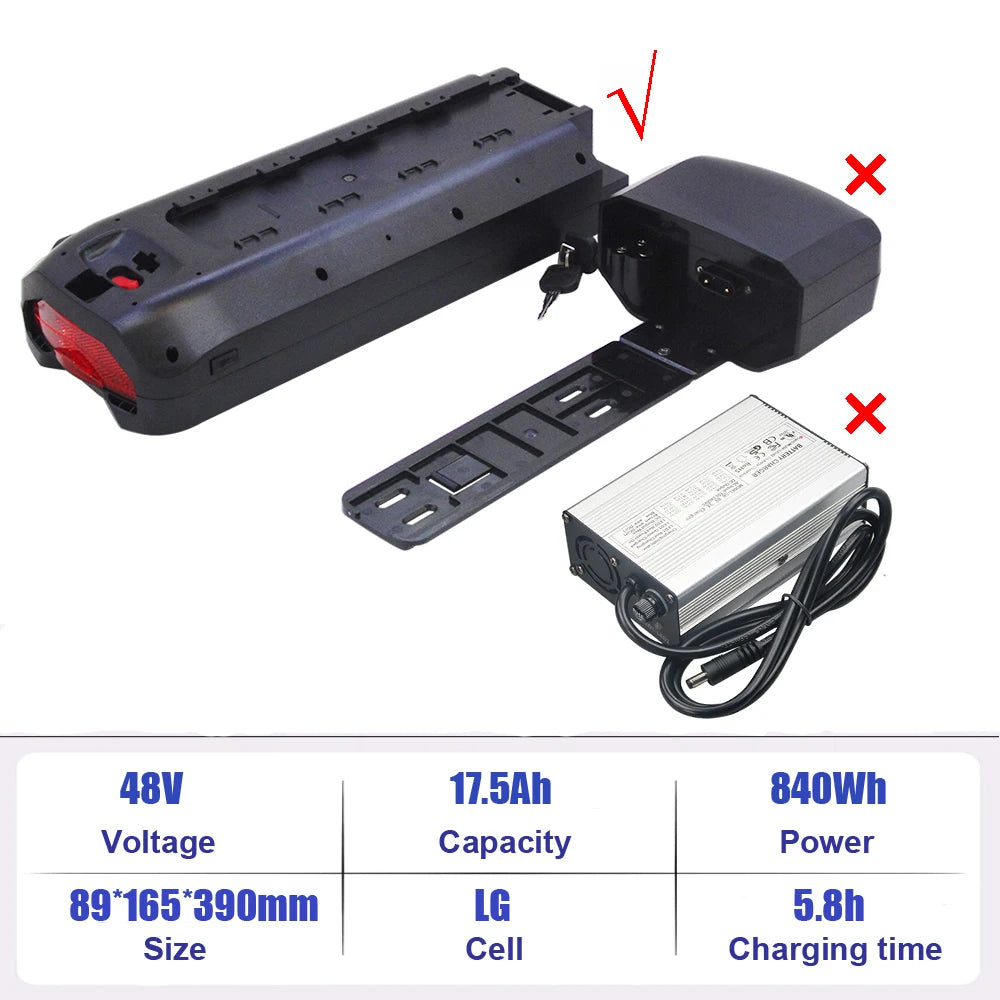

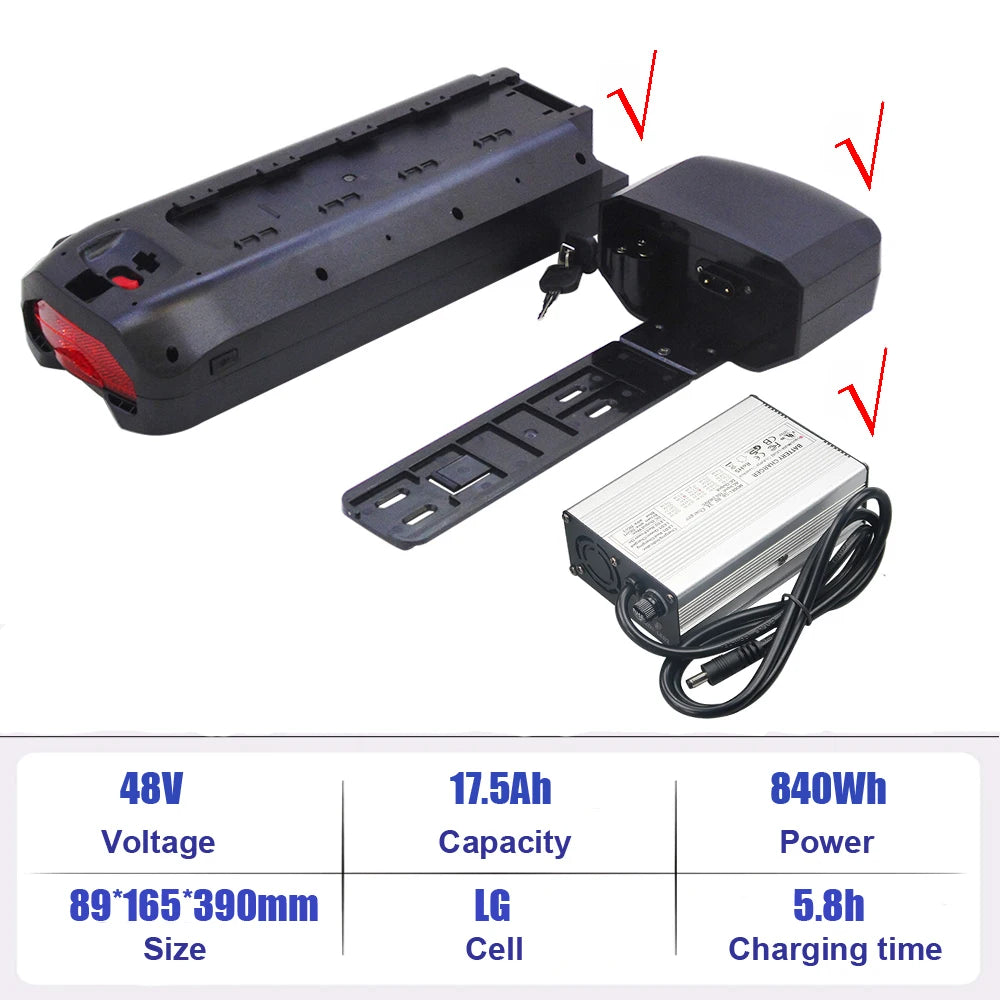

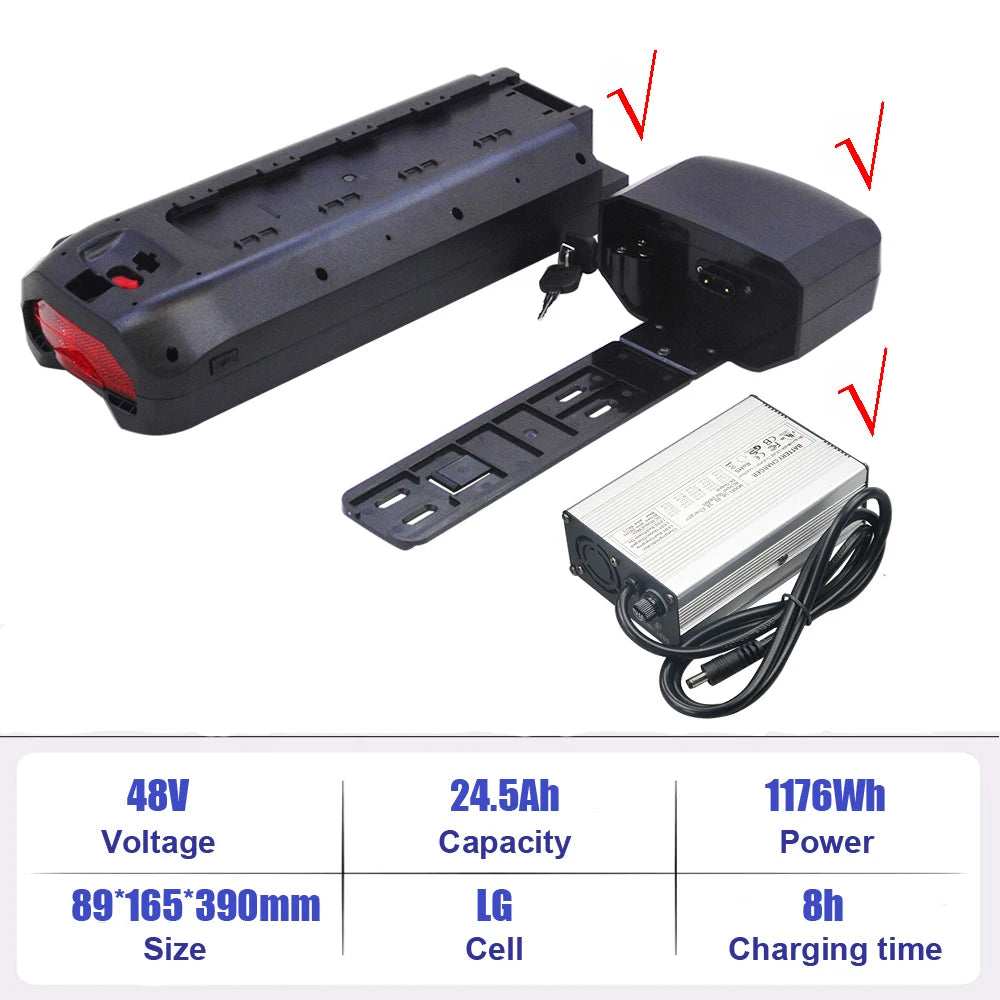

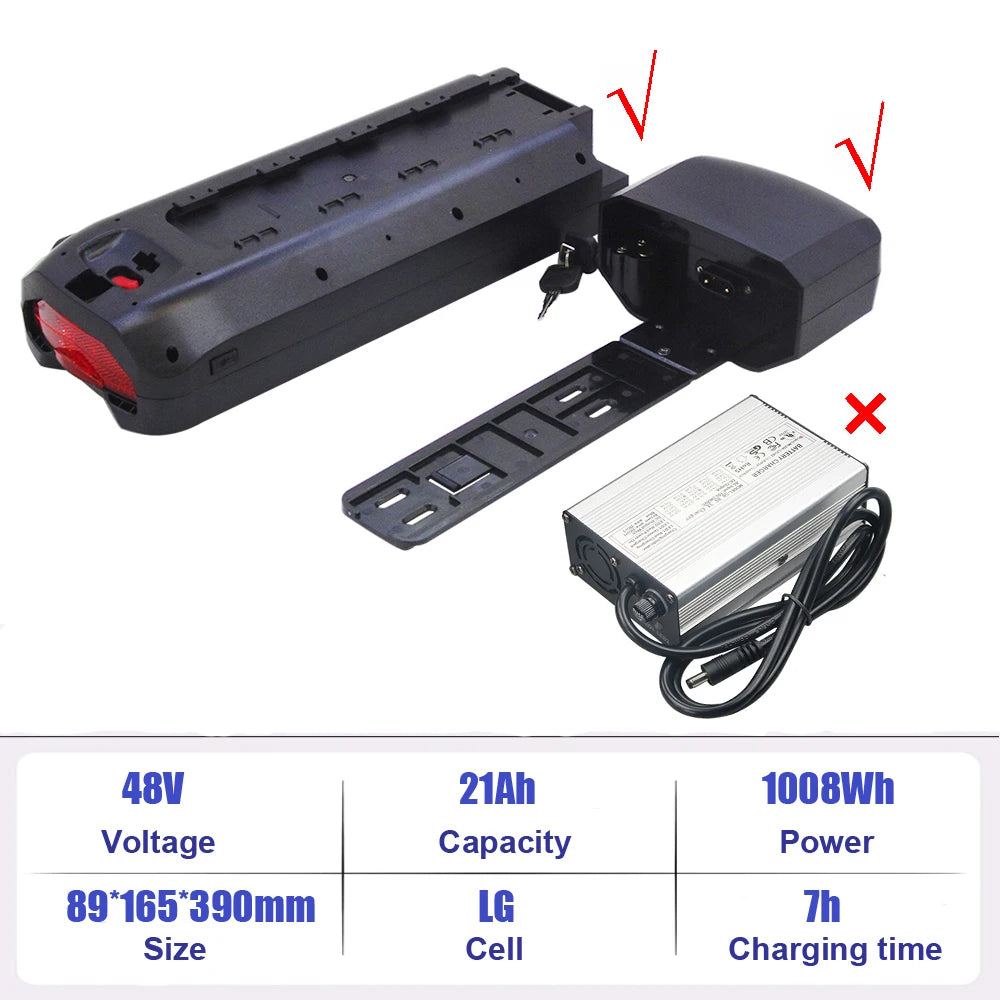

Configuration Options 13S5P (17.5Ah) / 13S6P (21Ah) / 13S7P (24.5Ah)
System Voltage 48V Nominal (54.6V Max Charge Voltage)
Energy Storage Capacity 17.5Ah ($840\text{Wh}$) up to 24.5Ah ($1,176\text{Wh}$)
Compatible Motor Output 48V Systems Rated $200\text{W} - 1500\text{W}$
Casing & Color High-Impact ABS / Aluminum Frame (Black)
Included Charger 54.6V 3A Aluminum-Case Smart Fast Charger
Warranty Coverage 12-Month Factory Warranty


📋 Ideal Applications

  • Gogobest GF750 Plus Battery Replacement & Upgrade: Direct slide-in replacement or high-capacity secondary pack for Gogobest GF750 series fat bikes.

  • Cargo & Utility E-Bikes: Power high-draw rear-hub or dual-motor setups on cargo and utility bikes without severe voltage sag.

  • Long-Distance Commuting: Scale up to the 24.5Ah (1,176Wh) capacity option to cover long round-trip commutes without needing a mid-day recharge.

📦 Package Contents

  • 1 x Belicore 48V Rear Rack Lithium-Ion Battery Pack

  • 1 x 54.6V 3A Aluminum-Cased Fast Smart Charger (US/EU/UK/AU plug based on destination)

  • 2 x Rear Rack Lock Security Keys

  • 1 x Owner Operating & Safety Guide

Power your Gogobest or rear-rack e-bike with premium Korean cell capacity! Select your amp-hour capacity above, click Add to Cart, and order today!


Powerful Ebike Battery 48V 17.5Ah 20Ah 23Ah Rear Rack Lithium E-Bike Battery for Gogobest GF750 Plus Electric Bike

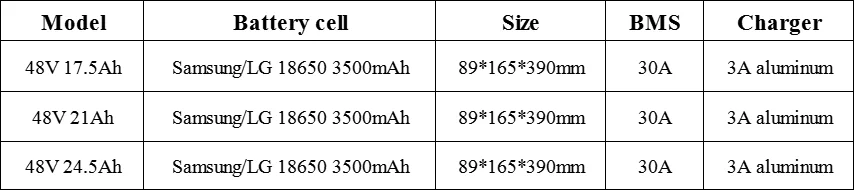

1. Battery characteristics:




2. Battery picture:


●Charger plug: We provide different plugs for different countries.

3. Shipping instructions:

1. We can ship to most European countries, RU, AU, South Korea, USA, Canada, and so on.

2. There is a surcharge charged by UPS for some remote European districts. We’ll notice customer when they place an order.

3. If you have other requirements, please let me know.

4. Warranty: Our warranty is 12 months from the date it’s shipped. If there is any accessories are broken during the 12 months caused by our quality problem, please contact us, and we’ll help to resolve.

5. Standard export package(1pcs 48V 17.5Ah-24.5Ah SX ebike battery and 1pcs 54.6V 3A aluminum case charger)
