Charge My E-Bike

67.2V Fast Charger for 16S 60V | 3A 5A 10A

67.2V Fast Charger for 16S 60V | 3A 5A 10A

$109.12 USD
$54.56 USD $109.12 USD
Sale Sold out
Shipping calculated at checkout.

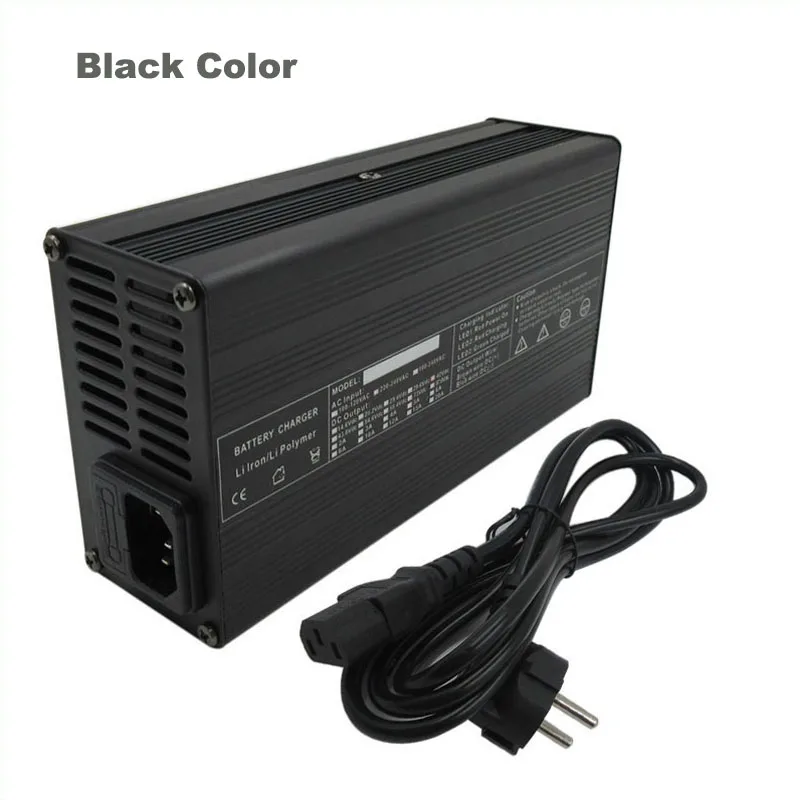

Color
Socket Standard

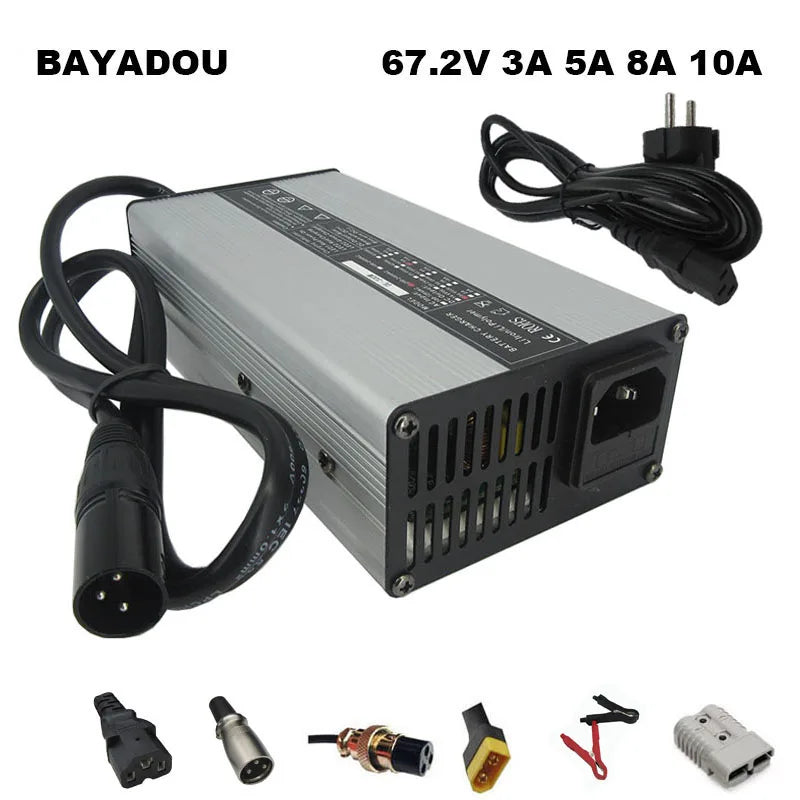

BAYADOU 67.2V Smart Lithium-Ion Fast Battery Charger

 (For 16S 60V Lithium Battery Packs | 3A / 5A / 10A Options | Multi-Plug Connectors)

Power up your high-performance 60V electric bikes, scooters, and custom lithium setups with the BAYADOU 67.2V Smart Fast Lithium Battery Charger. Engineered specifically for 16-string (16S) 60V Lithium-Ion (NMC / Li-Co) battery packs, this versatile charger operates on an intelligent CC-CV (Constant Current / Constant Voltage) charge algorithm with a precise 67.2V peak cutoff voltage (16×4.20V).

Available in 3A, 5A, and 10A output amperage configurations, and configurable with multiple plug options (GX16, 3-Pin XLR, 3-Pin IEC, XT60, XT90), the BAYADOU series delivers high-efficiency charging backed by comprehensive multi-stage circuit protection.

⚠️ Important Battery Compatibility & Safety Guidelines

CRITICAL VOLTAGE & BATTERY SPECIFICATIONS:

  • STRICTLY FOR 16S 60V LITHIUM-ION BATTERIES ONLY: Engineered exclusively for 16-series (16S) Lithium-Ion battery packs with a 67.2V peak cutoff voltage (16×4.20V=67.2V). DO NOT use on Lead-Acid batteries or 18S 60V (75.6V) battery setups.

  • Multiple Output Amperage Choices (3A / 5A / 10A): Match your charging speed to your battery pack's BMS rating. Ensure your battery management system and wiring continuously support higher currents (e.g., 10A fast charging).

  • Full 5-Stage Protection Suite: Built-in protective circuitry guards against Short-Circuiting, Over-Current, Over-Voltage, Reverse Polarity, and Over-Temperature conditions.

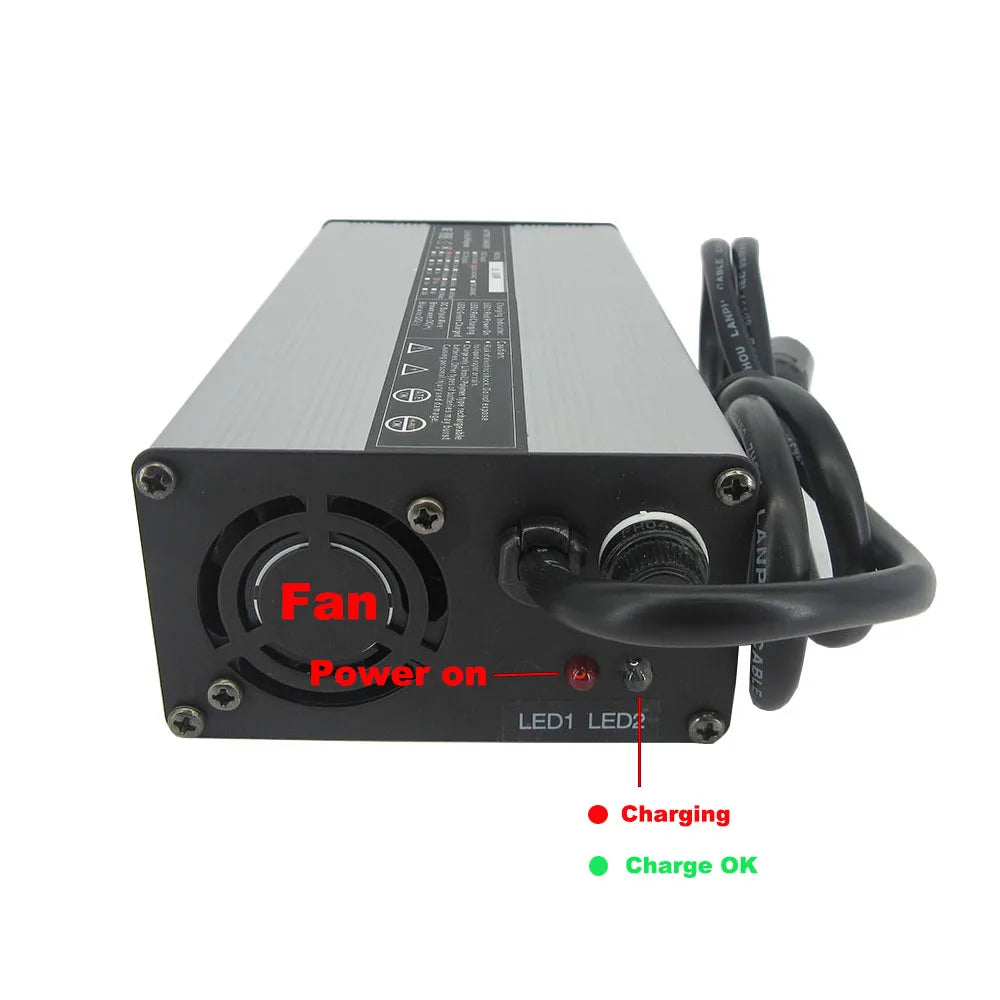

  • Dual LED Status Guidance: LED 1 glows RED for power-on state; LED 2 glows RED during active charging and turns GREEN upon full charge completion.

🚀 Key High-Performance Features

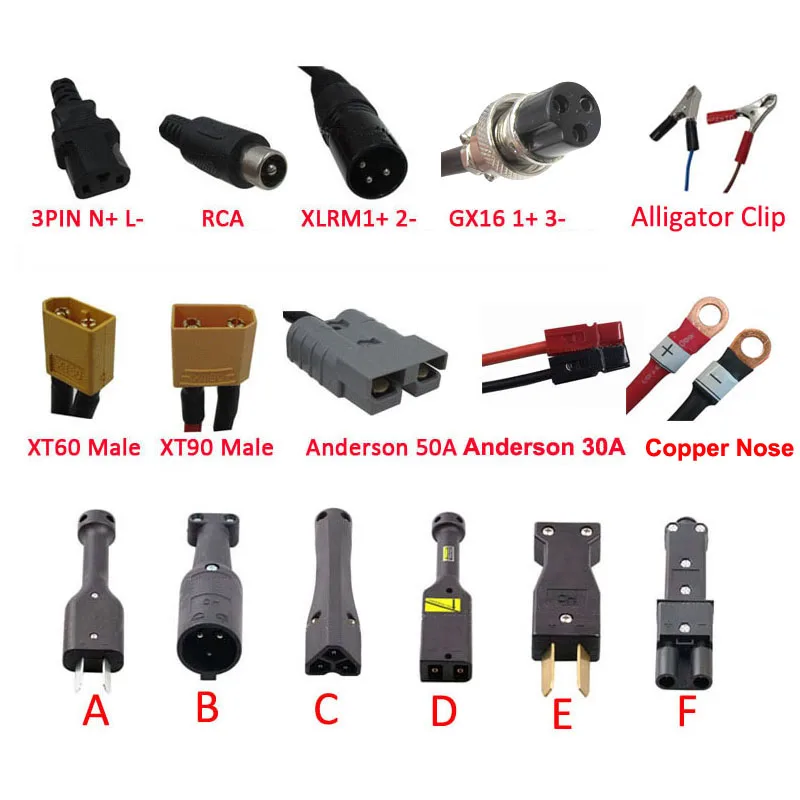

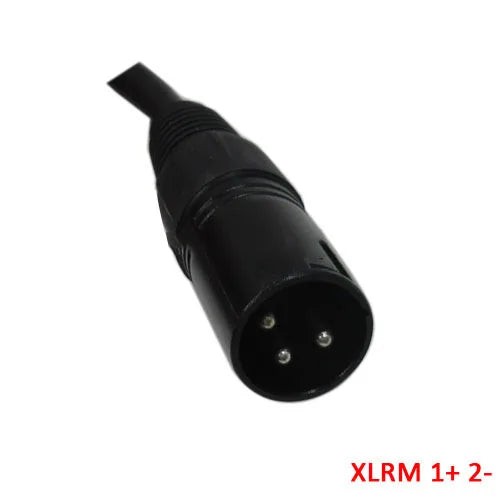

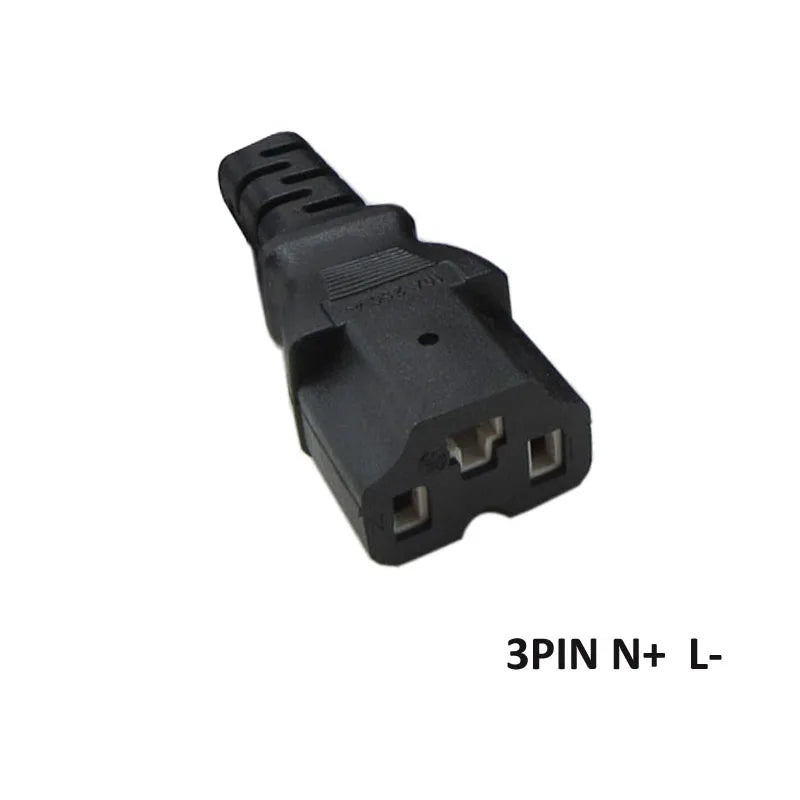

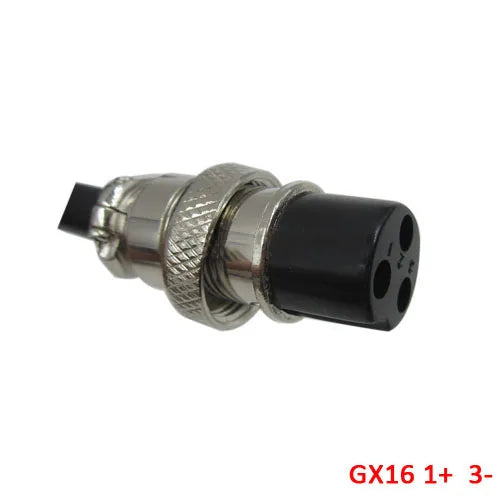

  • Multi-Connector Plug Options: Choose the precise output connector for your setup, including GX16 Aviation Plug, 3-Pin XLR, 3-Pin IEC C13, XT60, or high-current XT90 terminals.

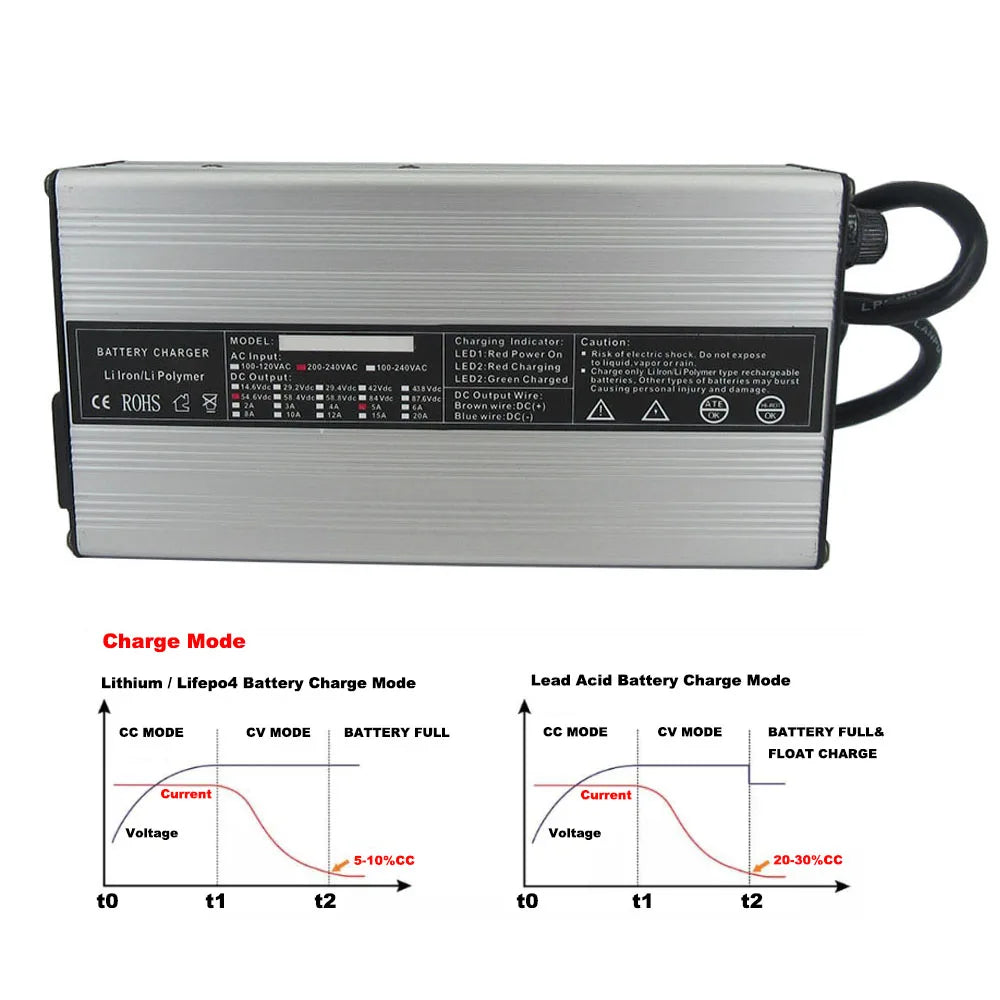

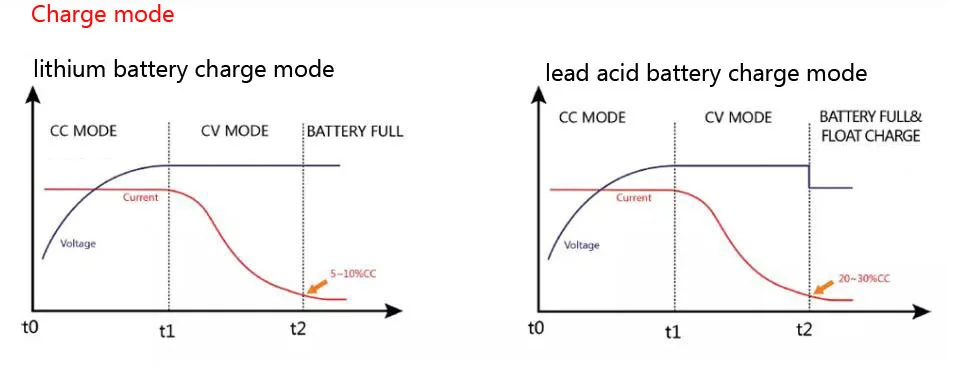

  • Smart CC-CV Fast Charging Algorithm: Maximizes charging speed during constant current mode before transitioning smoothly to constant voltage saturation to preserve lithium cell lifespan.

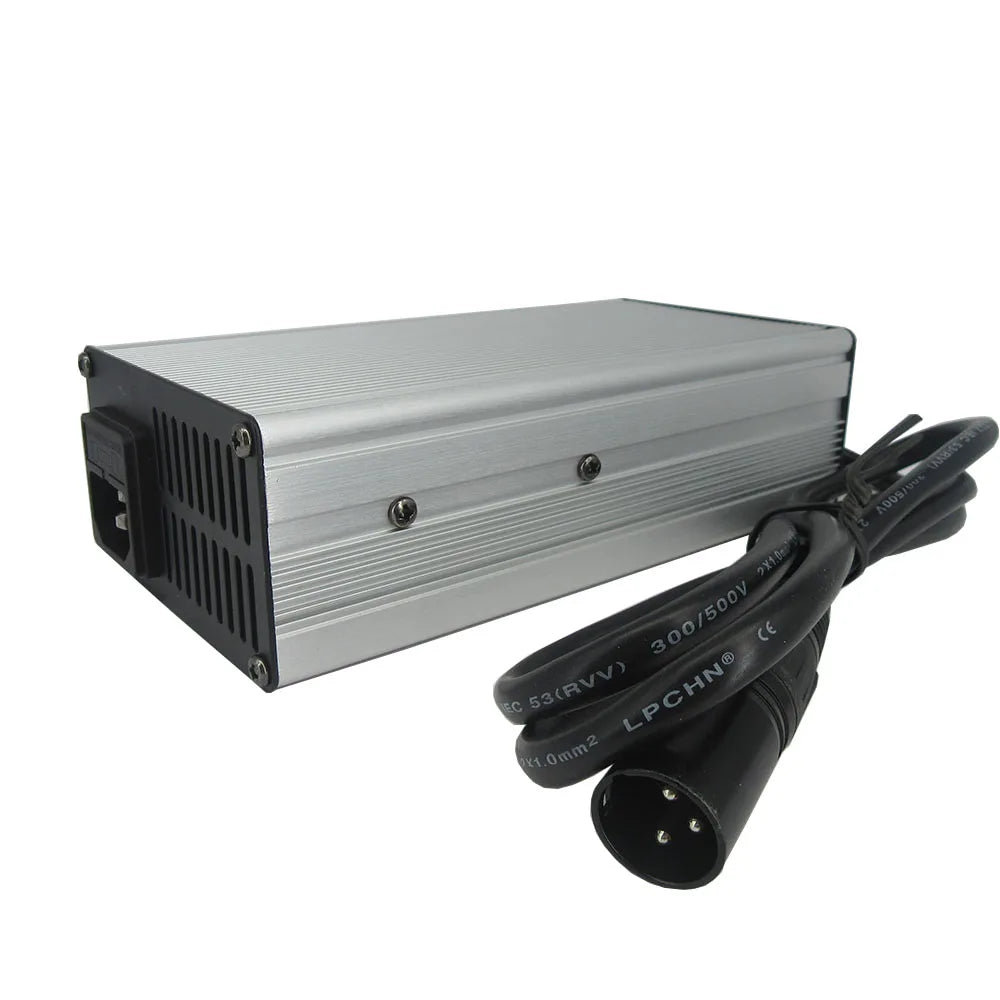

  • Heavy-Duty Heat Dissipating Shell: Compact aluminum casing (135×90×50 mm for 3A/5A; 170×90×50 mm for 10A) ensures efficient thermal dissipation during high-output charge cycles.

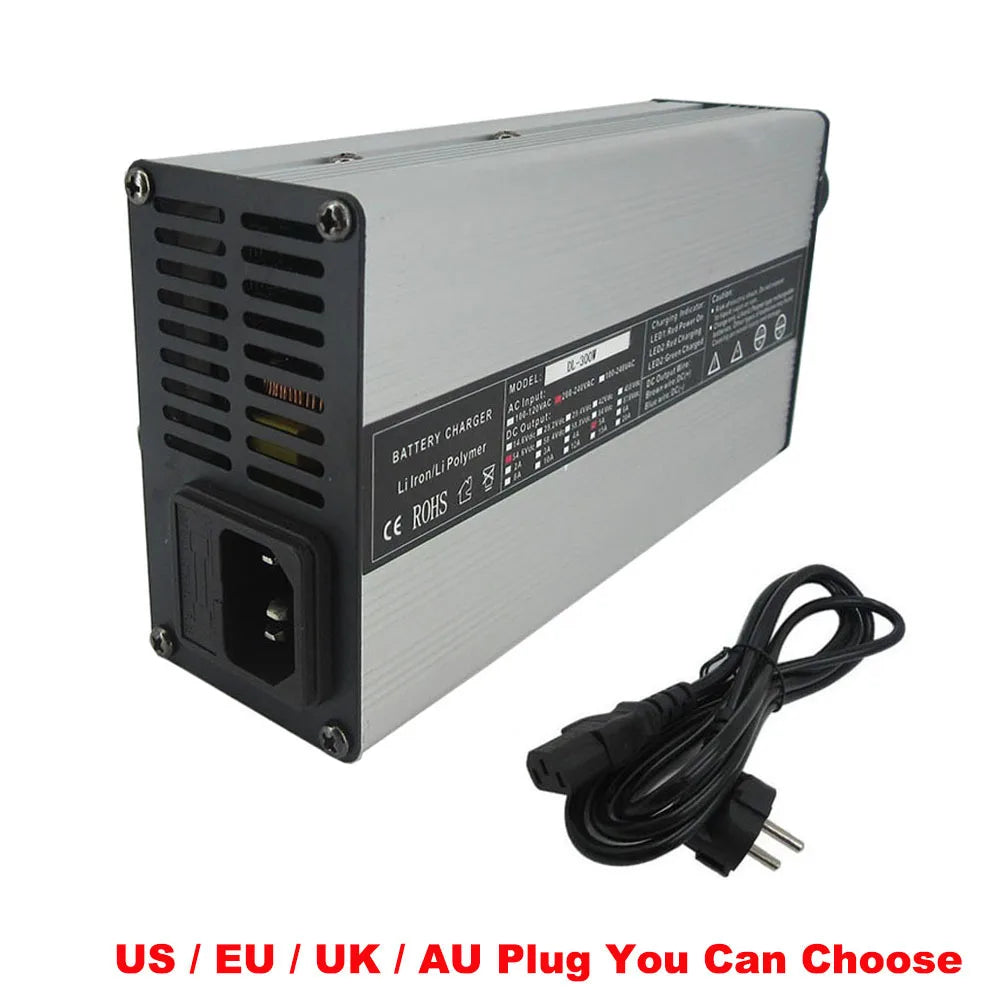

  • Dual AC Line Voltage Compatibility: Works with standard 100−120V AC or 200−240V AC input power (50/60Hz) with worldwide wall plug adapters (US, EU, UK, AU).

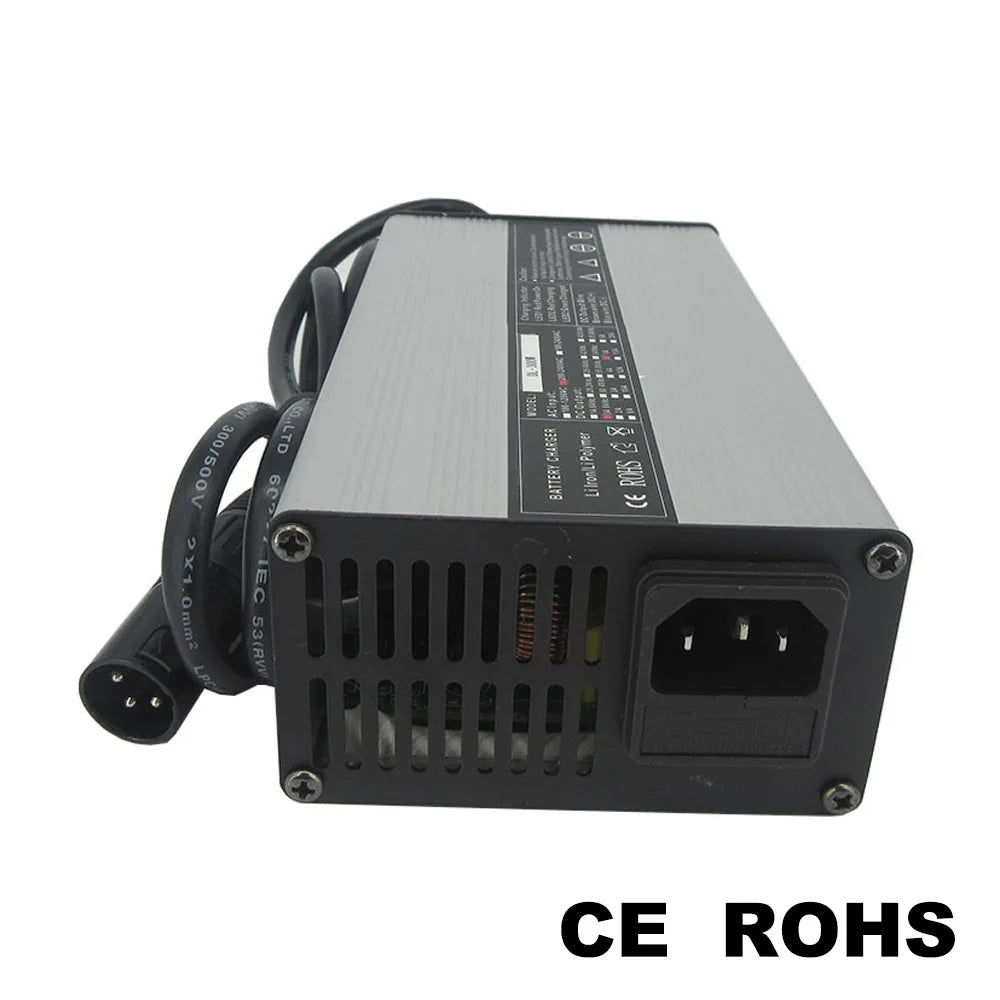

  • CE & RoHS Certified Quality: Fully tested and certified compliant with international electrical safety standards, backed by a 1-year warranty.

📊 Technical Specifications Matrix

Specification Parameter BAYADOU 67.2V Charger Specifications
Brand & Model Series BAYADOU 67.2V Fast Charger Series
Target Battery Chemistry 16S ($16\text{ Series}$) Lithium-Ion / Li-Polymer Only
Nominal Battery Voltage 60V DC ($59.2\text{V}$ nominal)
Maximum Cutoff Voltage 67.2V DC ($16 \times 4.20\text{V}$ per cell)
Output Amperage Options 3.0A / 5.0A / 10.0A DC Continuous Output
Charging Algorithm 2-Stage CC / CV (Constant Current - Constant Voltage)
Output Connector Choices GX16, 3-Pin XLR, 3-Pin IEC, XT60, XT90
Input AC Line Voltage 100–120V AC / 200–240V AC, 50 / 60 Hz
Unit Dimensions & Weight 3A/5A: $135 \times 90 \times 50\text{ mm}$ ($0.8 - 1.0\text{ kg}$) | 10A: $$170 \times 90 \times 50\text{ mm$ ($$1.2\text{ kg$)
Safety Certifications

CE, RoHS Certified | 1-Year Warranty






📋 Ideal Applications

  • 16S 60V Electric Bikes & Scooters: Quick replacement or high-power upgrade charger for 60V 16S lithium-powered e-bikes and performance scooters.

  • Micromobility Fleet Charging Hubs: High-reliability fast charging for rental and fleet operations needing 5A or 10A current turnover.

  • Custom 60V DIY Battery Builds: Match your exact discharge terminal preference with pre-fitted XT60, XT90, or GX16 connectors.

📦 Package Contents

  • 1 x BAYADOU 67.2V Lithium Smart Fast Charger (Selected 3A, 5A, or 10A Model)

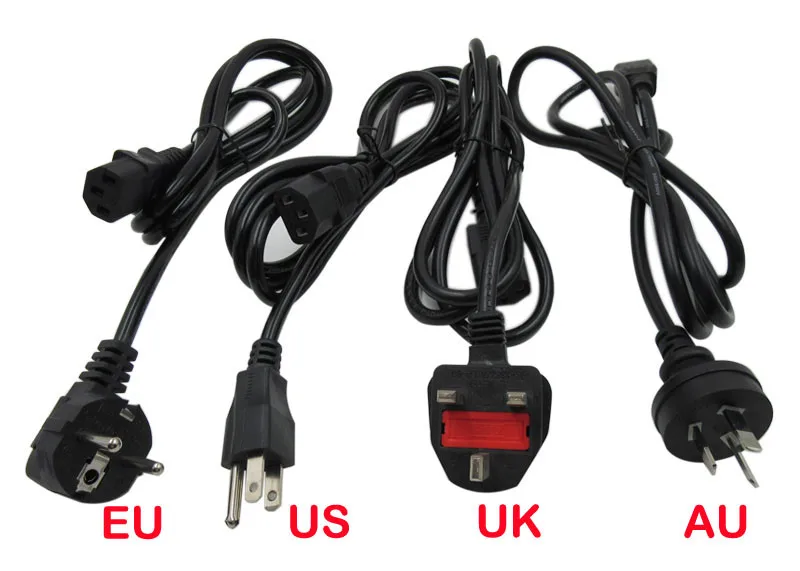

  • 1 x Detachable AC Power Cable (US / EU / UK / AU Plug as ordered)

  • 1 x Pre-Fitted Selected Output Terminal Connector

  • 1 x User Manual & Warranty Card

Upgrade your 16S 60V lithium charging setup! Select your amperage and output connector option above, click Add to Cart, and order today!


Note: If you need another charger or a different connector, contact us directly. Thanks!


Parcel includes:

1pcs 67.2V Charger
1 pc AC Power Cord Cable
