67.2V 3A Fast Charger for 16S 60V Lithium Battery | IEC 3-Pin

67.2V 3A Fast Charger for 16S 60V Lithium Battery | IEC 3-Pin

$83.04 USD
$27.68 USD $83.04 USD
Sale Sold out
Shipping calculated at checkout.
Color
Socket Standard

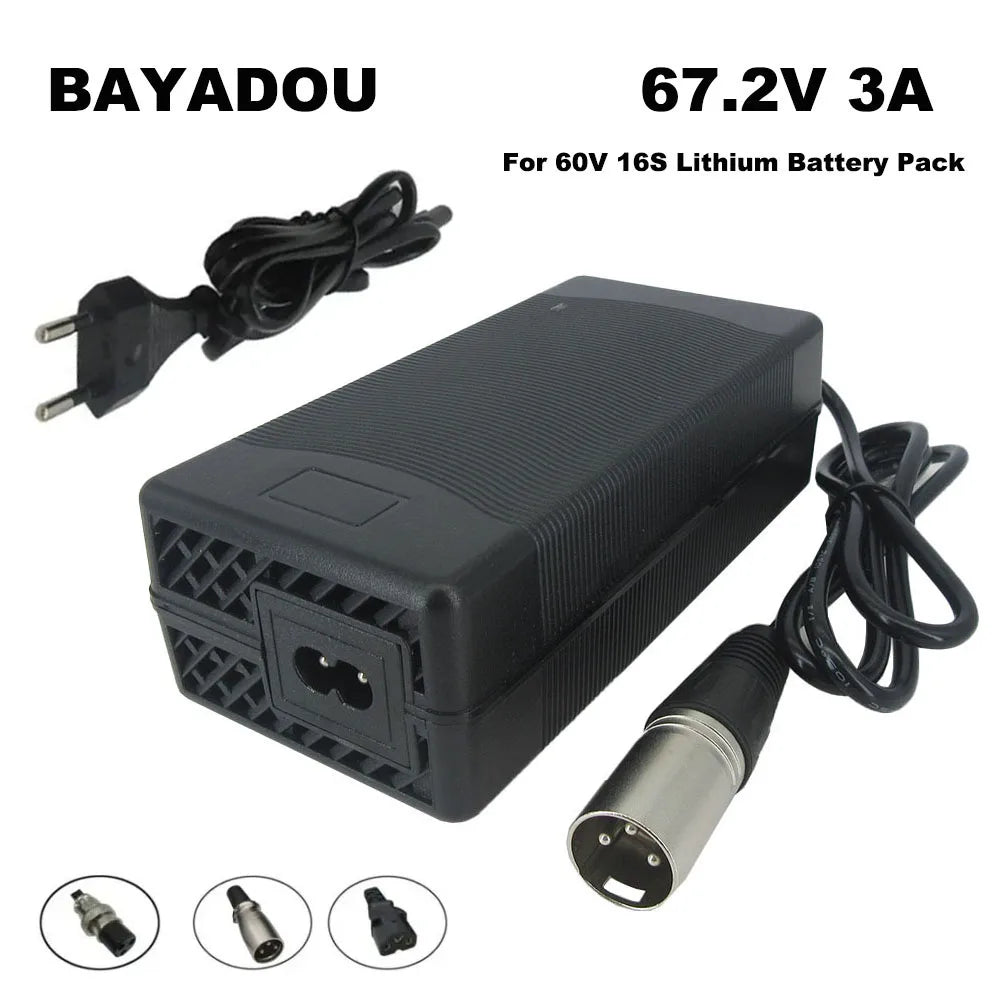

BAYADOU 67.2V 3A Smart Lithium-Ion Battery Charger

(For 16S 60V Battery Packs | T / PC / IEC 3-Pin Connector | Active Fan Cooling)

Maintain peak performance for your 60V electric bikes, e-scooters, and personal mobility vehicles with the BAYADOU 67.2V 3A Smart Lithium-Ion Charger. Purpose-built for 16-series 60V Li-Ion battery packs (10Ah–20Ah capacity range), this compact charger utilizes an intelligent CC-CV (Constant Current / Constant Voltage) charge profile with a precise 67.2V peak output cutoff.

Equipped with an active internal cooling fan, a standard 3-pin IEC / PC connector, and comprehensive circuit safeguards, the BAYADOU 3A charger delivers smooth, temperature-controlled charging to extend battery cycle life.

⚠️ Important Battery Compatibility & Safety Guidelines

CRITICAL VOLTAGE & BATTERY SPECIFICATIONS:

  • STRICTLY FOR 16S 60V LITHIUM-ION BATTERIES ONLY: Designed specifically for 16-series Lithium-Ion battery packs with a 67.2V peak cutoff voltage. DO NOT use on 60V Lead-Acid batteries or 18S 60V battery setups.

  • Ideal for 10Ah to 20Ah Packs: 3.0A continuous output provides an optimal charge rate for standard 10Ah–20Ah e-bike and scooter battery packs without stressing internal BMS circuits or cell chemistry.

  • Active Fan Heat Dissipation: Integrated internal cooling fan actively exhausts internal thermal buildup during full 3A charging cycles.

  • Smart CC-CV Charging Intelligence: Automatically transitions from Constant Current to Constant Voltage saturation mode and stops power output upon full charge completion.

🚀 Key High-Performance Features

  • 3-Pin IEC / PC / T-Style Connector: Factory-fitted with a heavy-duty 3-pin IEC output plug standard across many 60V e-bikes and urban mobility scooters.

  • Smart CC-CV Fast Charge Algorithm: Maximizes energy intake efficiently during the constant-current stage before topping off cells safely at 67.2V.

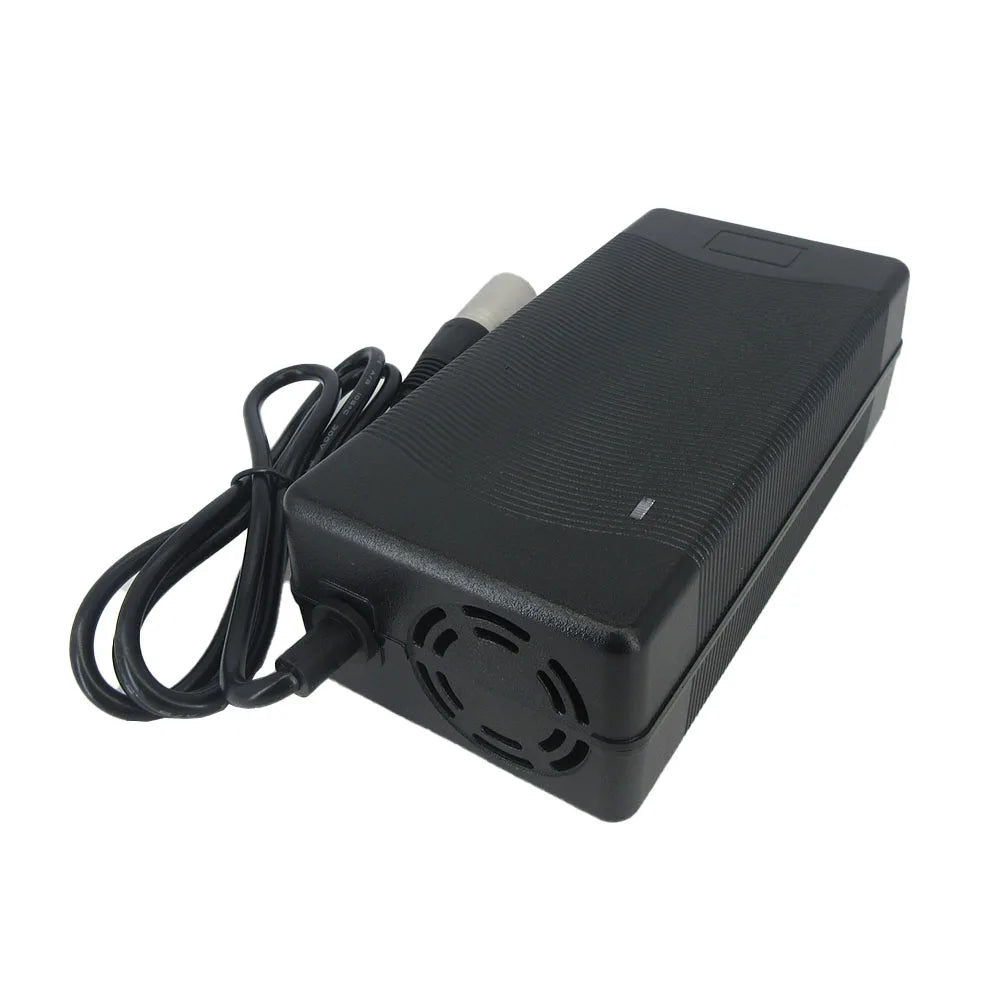

  • Integrated Forced-Air Cooling Fan: Built-in low-noise exhaust fan keeps operational temperatures cool during continuous high-power delivery.

  • Full Multi-Level Circuit Safeguards: Features built-in protection against over-voltage, over-current, short circuits, and reverse polarity.

  • CE Certified Quality & 1-Year Warranty: Tested to meet rigorous international CE safety standards and backed by a 1-year manufacturer warranty.

📊 Technical Specifications Matrix

Specification Parameter BAYADOU 67.2V 3A Charger Specifications
Brand & Model BAYADOU 67.2V 3A Series
Compatible Battery Chemistry 16S { Series} Lithium-Ion Only
Nominal Battery System Voltage 60V DC (nominal)
Peak Saturation Output Voltage 67.2V DC per cell)
Continuous Output Current 3.0 Amperes DC Output
Recommended Battery Capacity 10Ah – 20Ah Battery Packs
Charging Algorithm 2-Stage CC / CV (Constant Current - Constant Voltage)

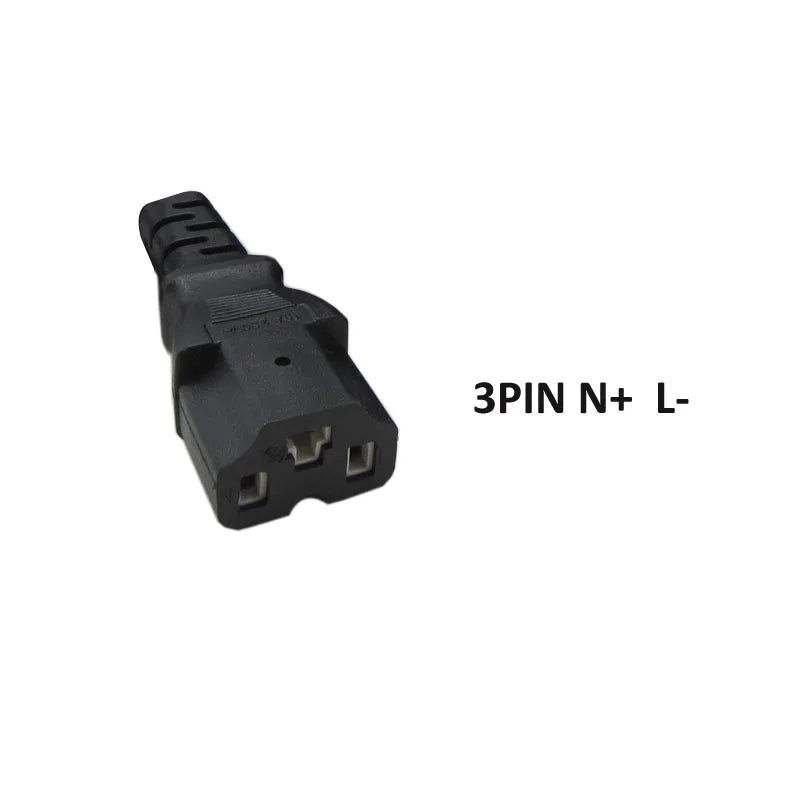

Output Port Standard 3-Pin IEC / PC / T-Style Connector
Thermal Management Active Exhaust Cooling Fan
AC Input Compatibility 100–240V AC, 50 / 60 Hz Universal Input
Safety Certifications CE Certified | 1-Year Manufacturer Warranty



📋 Ideal Applications

  • 16S 60V E-Bikes & Scooters: Direct replacement or backup desktop charger for 60V e-bikes and urban commuter scooters running 10Ah to 20Ah lithium packs.

  • Personal Mobility Maintenance: Ideal, gentle 3A charging current for prolonging cell health on daily-driver light electric vehicles.

  • Benchtop Charging & Storage Maintenance: Compact and lightweight design makes it easy to stow in a pannier bag or backpack for charging at work or on the go.

📦 Package Contents

  • 1 x BAYADOU 67.2V 3A Lithium-Ion Smart Battery Charger

  • 1 x AC Power Cable (US / EU / UK / AU Plug as selected)

  • 1 x Pre-Fitted 3-Pin IEC Output Connector Cable

  • 1 x User Operating Instructions

Keep your 16S 60V lithium setup topped off and ready to ride! Select your preferred AC wall plug option above, click Add to Cart, and order today!


Charger description
Input Voltage:100-240V AC 50/60HZ
Output Voltage:67.2V
Output Current:3A

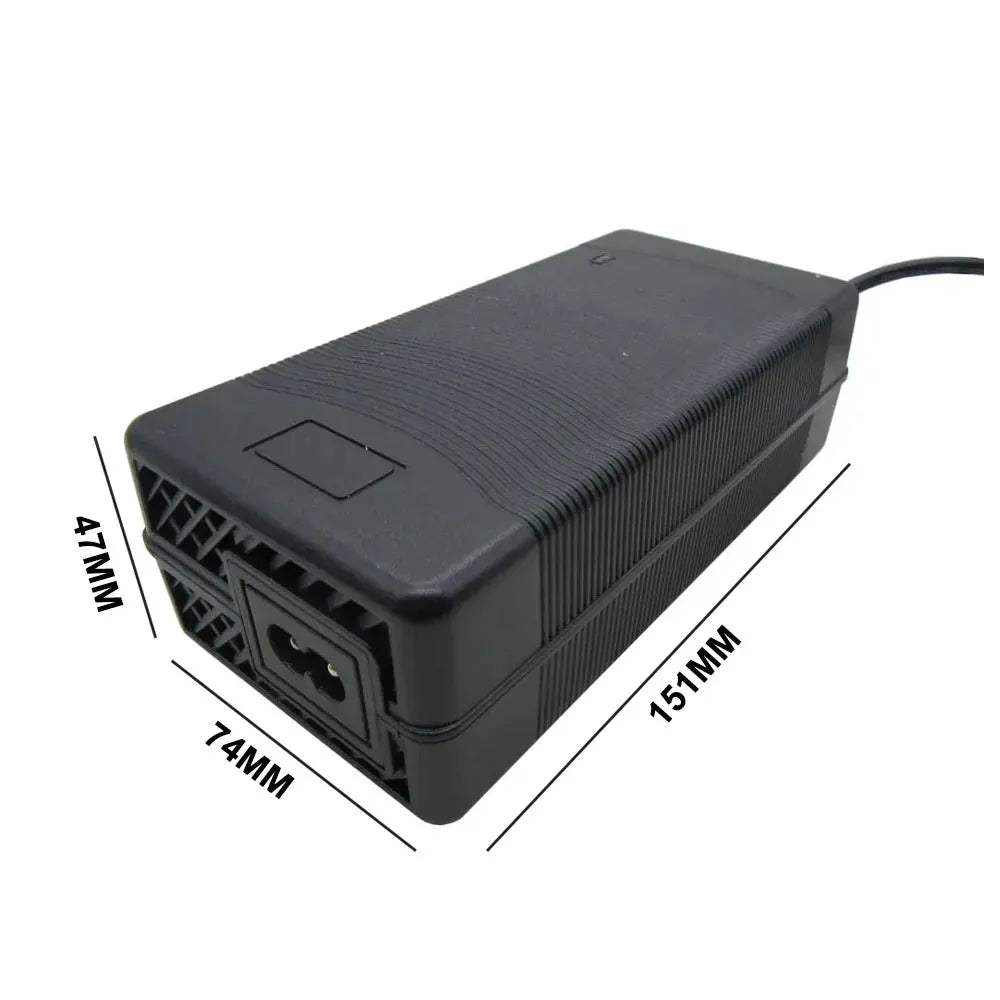

Charger size:151*74*47mm

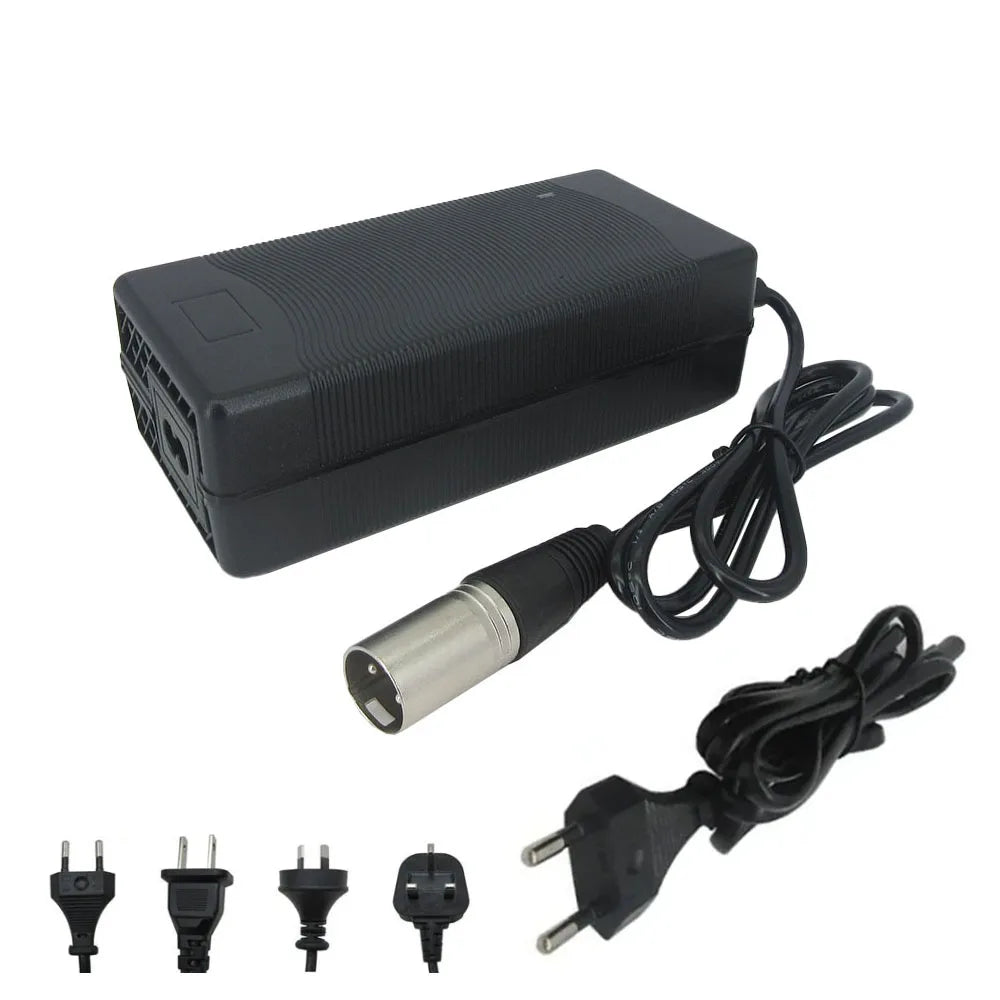

Charging Plug: US/EU/UK/AU plug available
Charge port:3PIN
Safety standard: CE/RoHS

Applies to:60V 16S Lithium Li-ion battery

Safety protection: OVP/OCP/ Overload protection/ Short-circuit protection

Charge Mode: CC-CV

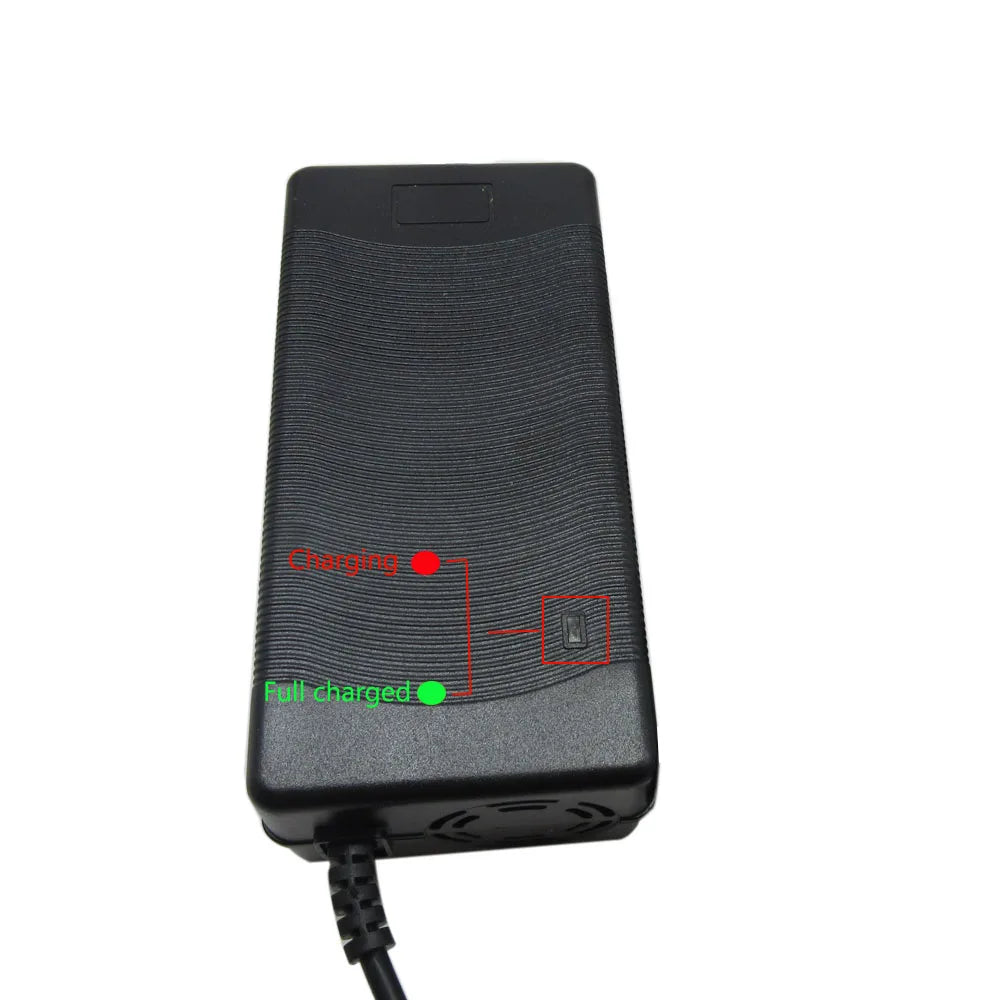

LED Light:

RED ---Charging

Green --- Fully charged; stops automatically and turns green when the battery is fully charged.



Charge mode: CC-CV


First stage: CC-constant current charging; the LED indicator is red. When charging to the rated voltage, it will switch to the second stage.

Second stage: CV (constant voltage charging; the current will gradually decrease until the LED indicator turns green, and the battery has been fully charged to 90% - 95%. The battery continues to charge at a small current until it is fully charged.





Parcel include:1 pc charger and AC Power Cord Cable
