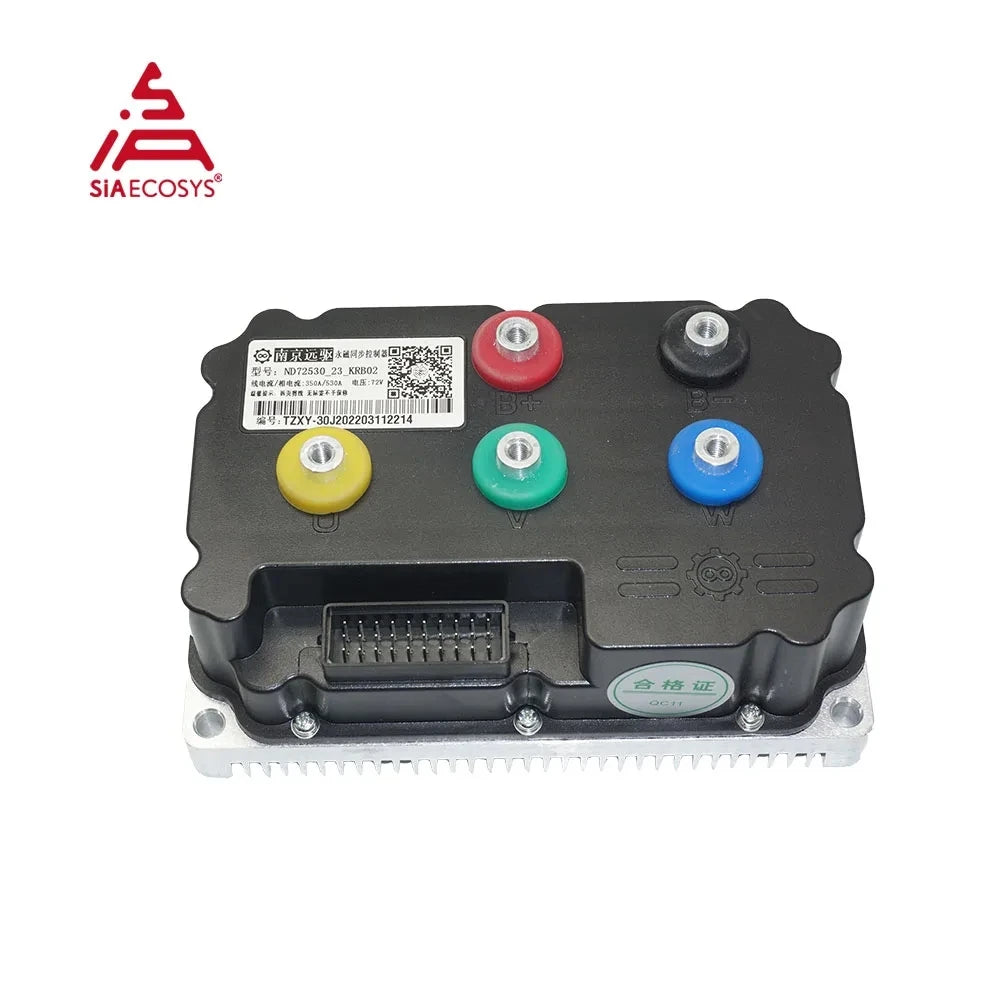

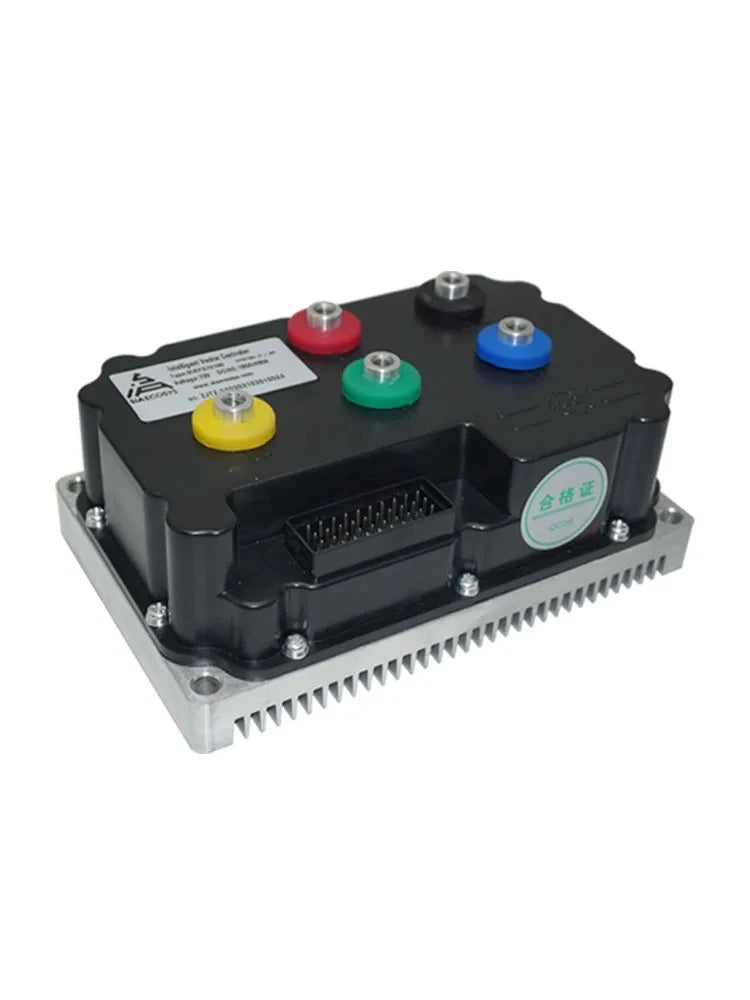

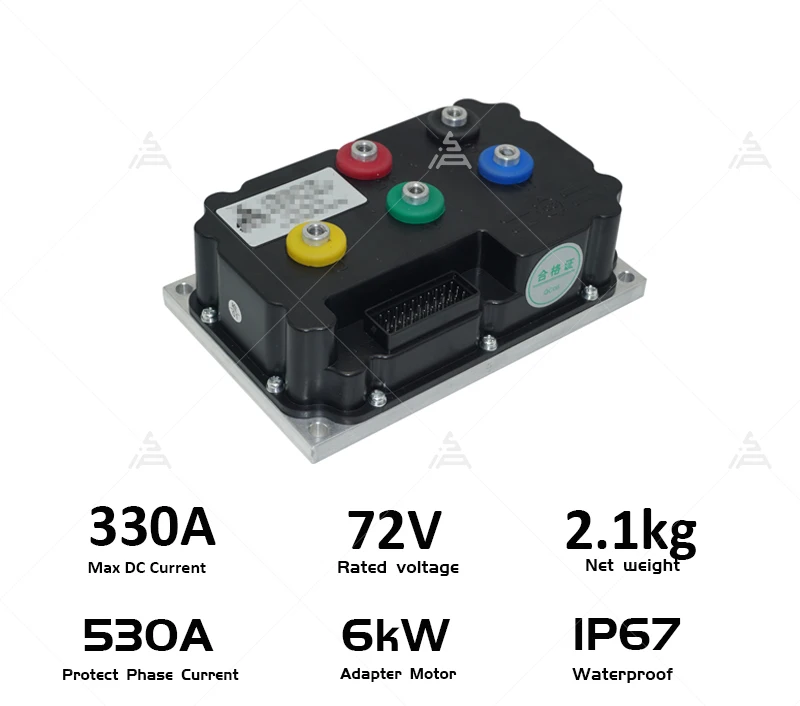

SIAECOSYS / FarDriver ND72530 High-Power Programmable FOC Sine Wave DC Motor Controller –

72V Nominal / 75V Rated System Architecture (330A Continuous DC Battery Current, 530A Peak Phase Current) Engineered for 6000W QS Motor Brushless Hub & Mid-Drive Platforms (IP67 Waterproof Heavy-Duty Aluminum Heatsink Casing)

Unleash high performance, continuous reliability, and precise throttle response on your electric motorcycle or high-speed EV build with the SIAECOSYS FarDriver ND72530 Sine Wave Controller.

Specifically engineered to drive 6000W continuous (up to 8000W peak) brushless DC (BLDC) and PMSM hub and mid-drive motors, this high-output unit delivers 330A continuous DC battery current and a massive 530A peak phase current.

Built using advanced Field-Oriented Control (FOC) sine wave technology, the ND72530 minimizes low-speed motor shudder while delivering whisper-quiet operation and lower operating temperatures.

Encased in a heavy-duty IP67 waterproof aluminum casting, this controller features an integrated self-learning function for simplified commissioning.

⚠️ Speedometer & Hardware Compatibility Notice

IMPORTANT DISPLAY & MOTOR MATCHING GUIDELINES:

• Hall Output Speedometer Requirement: The FarDriver ND72530 defaults to Hall signal speed output. It does NOT support ONE-LIN (single-line signal) speedometers like the DKD series out of the box. Ensure your speedometer or dash display accepts standard Hall speed pulses.

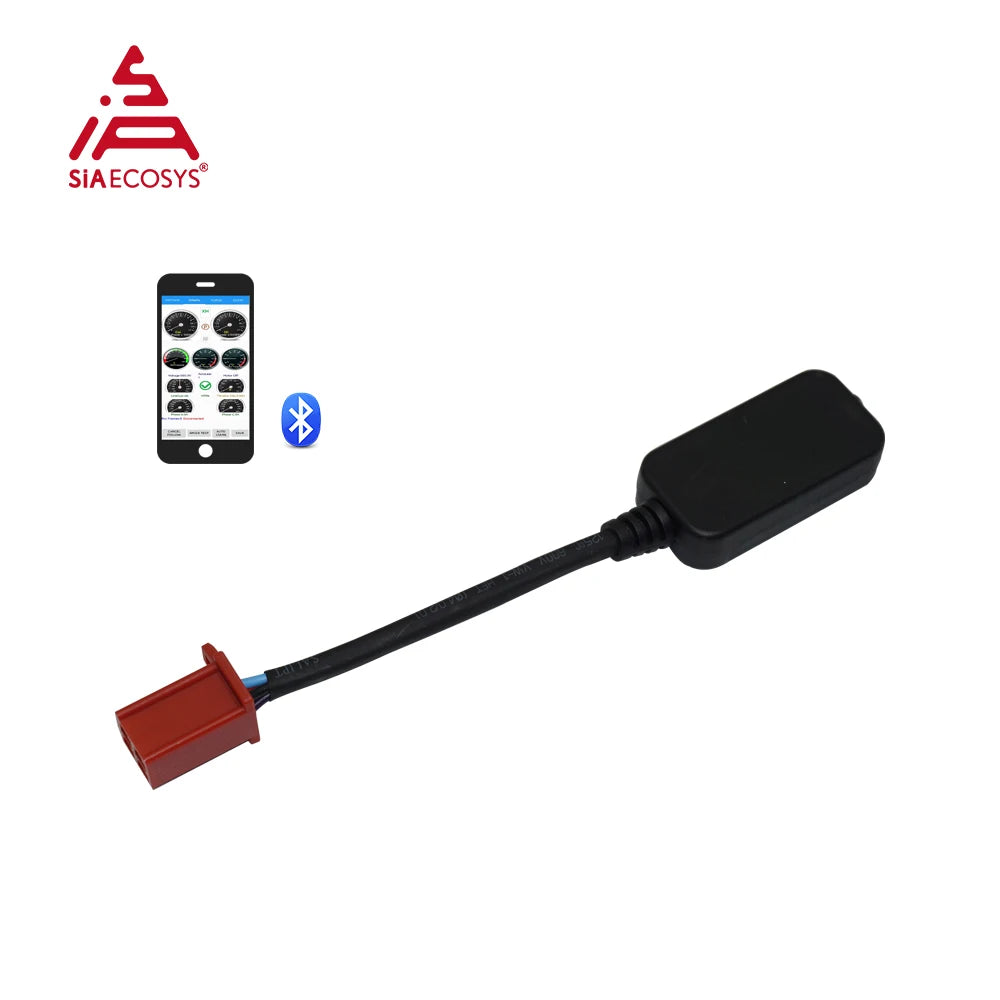

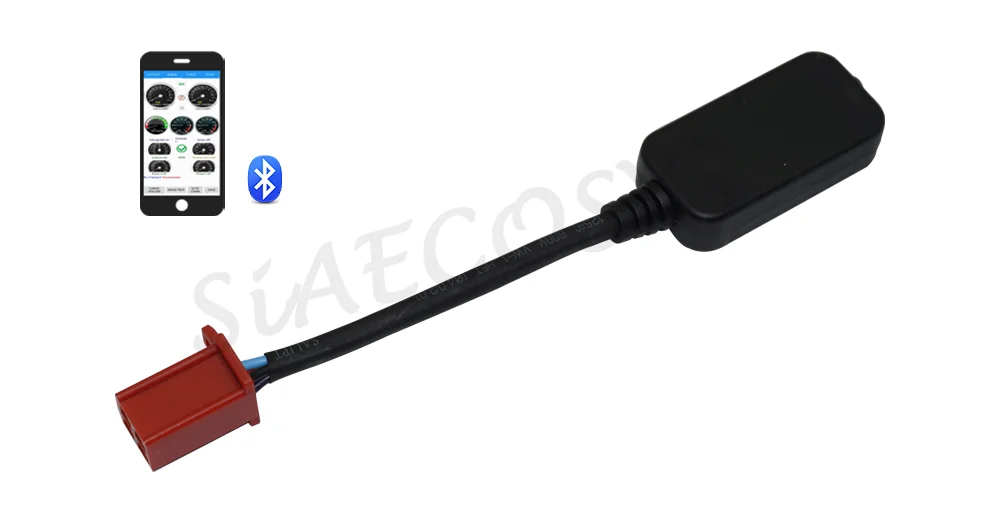

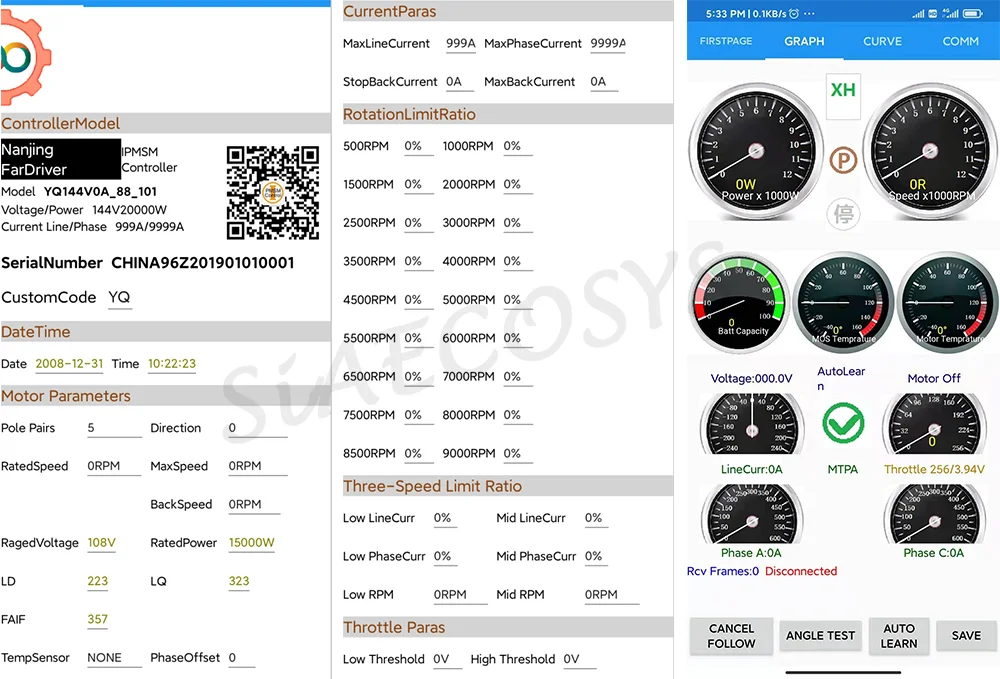

• QS Motor Optimization: Pre-configured auto-learning routines pair effortlessly with QS Motor 6000W hub and mid-drive motor series. (Third-party BLDC motors can easily be calibrated using parameter tuning via PC or Bluetooth).

• Operating Voltages: Designed for 72V DC nominal battery systems (75V rated voltage architecture, maximum operating threshold up to 88V DC).

🚀 Key High-Performance Features

• Massive Power Output (330A DC / 530A Phase): Delivers intense launch acceleration and sustained top-end power for 6000W electric motorcycles and heavy-duty scooters.

• FOC Sine Wave Architecture: Provides whisper-quiet motor operation, high torque efficiency, and lower thermal buildup compared to square-wave units.

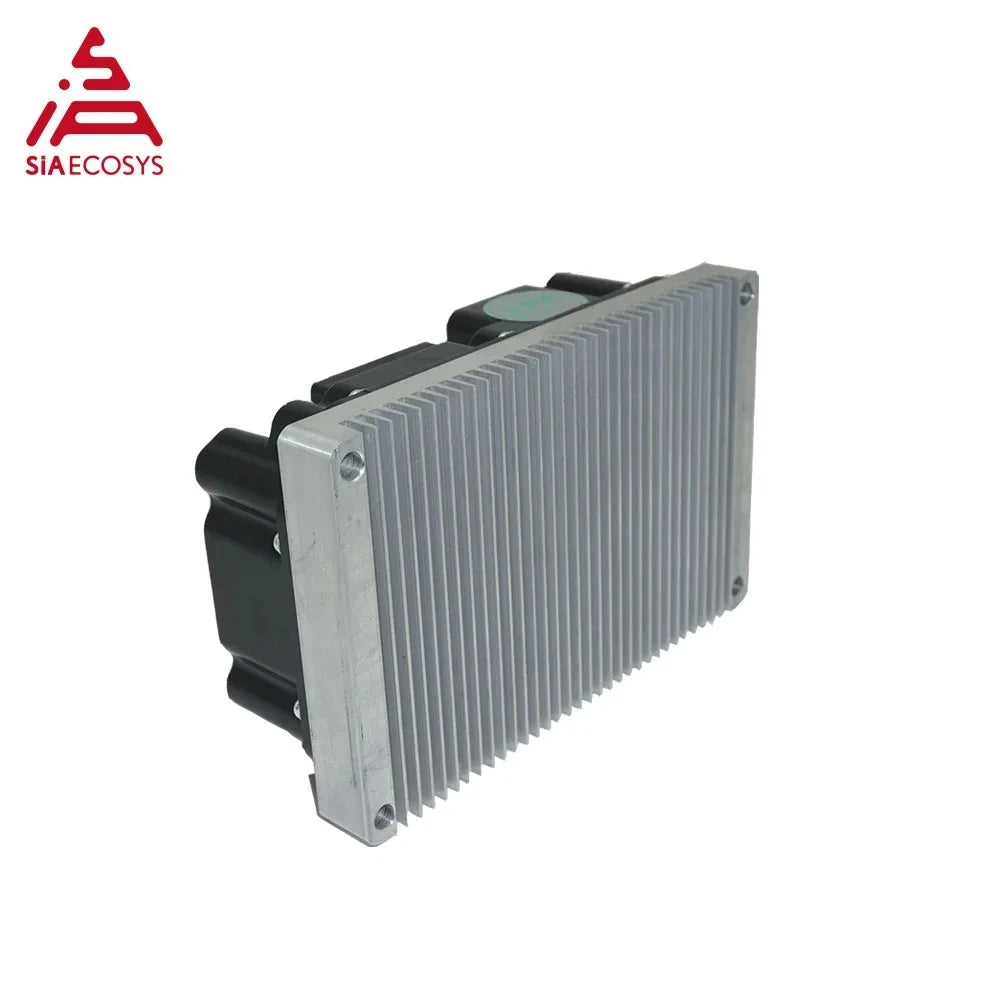

• Rugged IP67 Sealed Housing: Encased in a die-cast aluminum heat sink structure to protect internal power MOSFETs during harsh wet weather and high-load riding.

• Self-Learning Commissioning Routine: Simplifies motor setup by automatically identifying motor phase angles and Hall sensor timing.

• Comprehensive Multi-Protection Suite: Monitors operating voltage, temperature, motor phase current, and throttle inputs to protect your drivetrain from electrical stress.

📊 Technical Specifications Matrix
