AOAE Hailong High-Capacity eBike Battery – 36V 48V 52V | 20Ah & 30Ah
High-Capacity Lithium-Ion Battery for Bafang Mid-Drive eBikes
Power your eBike build with the AOAE Hailong High-Capacity Lithium-Ion Battery Series, available in 36V, 48V, and 52V configurations with 20Ah and 30Ah capacity options.
Designed around a Hailong-style downtube battery enclosure, this battery provides a practical frame-mounted solution for compatible Bafang mid-drive systems and other electric bike applications.
With a stated 30A continuous BMS and up to 60A peak burst capability, the battery is designed for high-demand applications where consistent power delivery is important.
Key Features
Brand: AOAE
Battery Type: Lithium-Ion
Voltage Options: 36V / 48V / 52V
Capacity Options: 20Ah / 30Ah
Battery Case: Hailong downtube style
Approx. Case Dimensions: 360 × 90 × 110 mm
BMS: 30A continuous
Peak BMS Output: Up to 60A burst
Cell Balancing: Smart cell balancing
Application: eBike / electric bicycle / conversion systems
Compatible Motor Range: Approximately 250W–1,000W, depending on system configuration
Compatible Bafang Systems: BBS01 / BBS02 / BBS03 / BBSHD
Choose Your Voltage

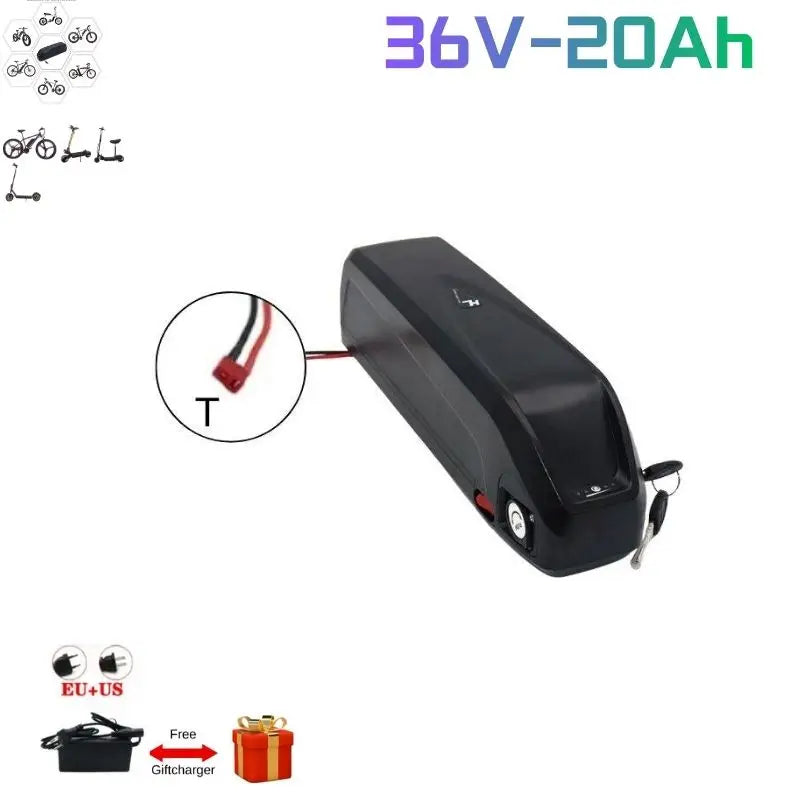

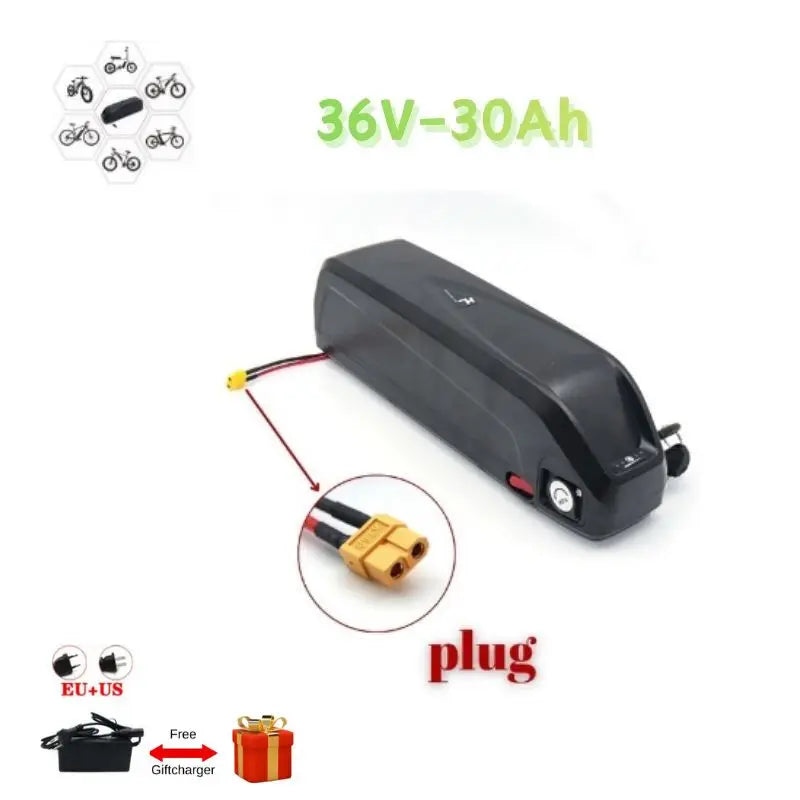

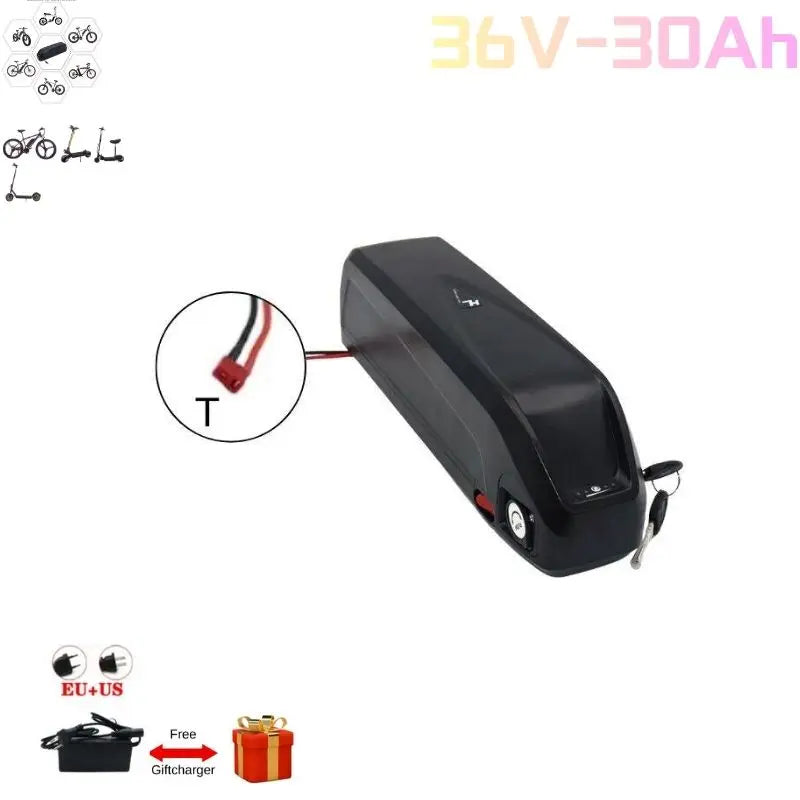

36V eBike Battery
The 36V configuration is designed for compatible lower-power eBike and commuter applications.
Maximum charging voltage: 42.0V
Listed cutoff: 28.0VThe 36V configuration is marketed for compatible 250W–500W systems.
Approximate Energy
36V 20Ah: 720Wh
36V 30Ah: 1,080Wh

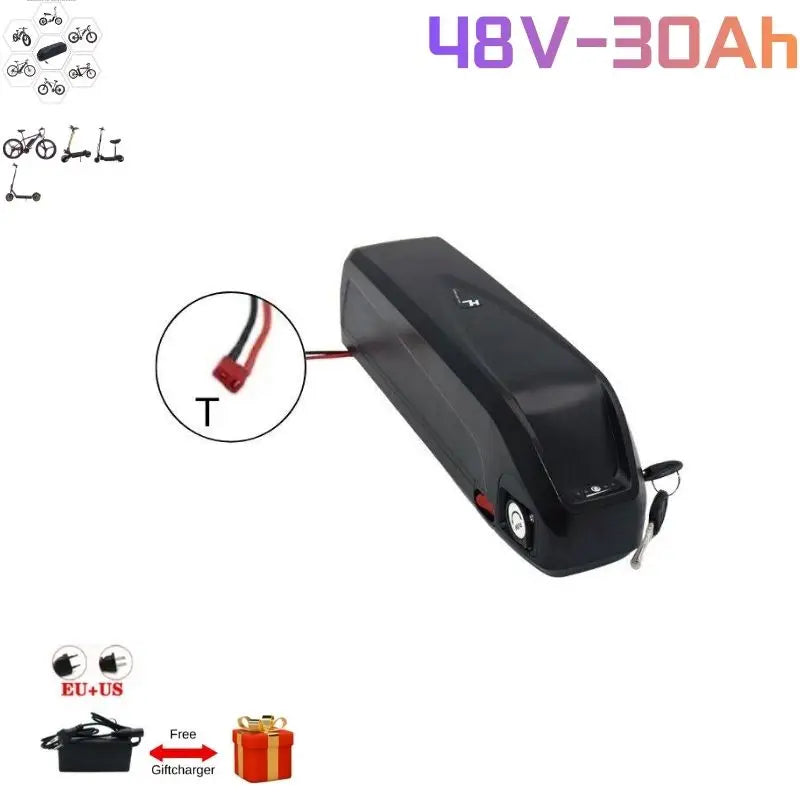

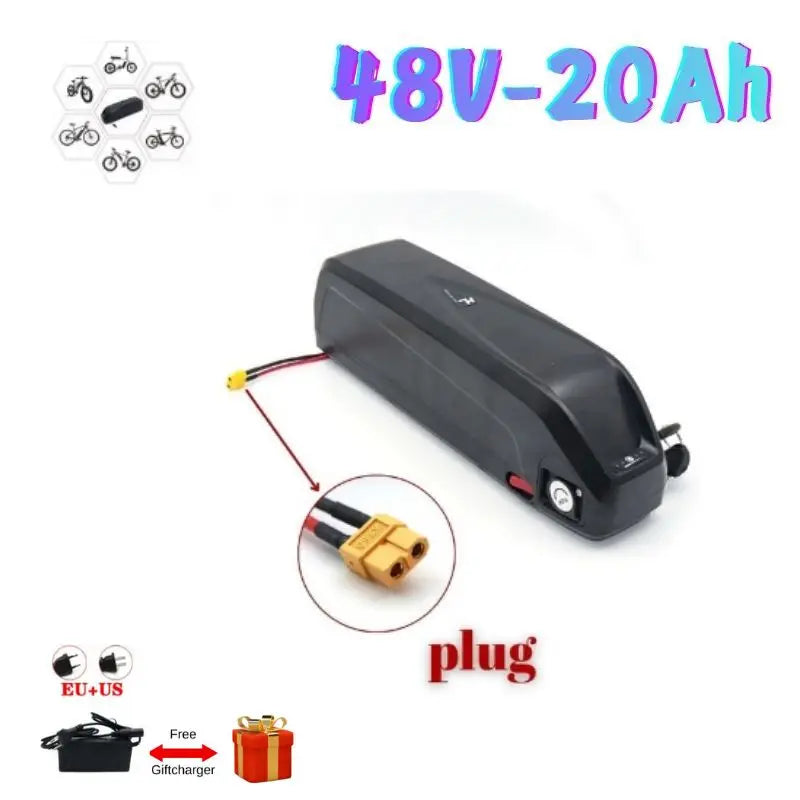

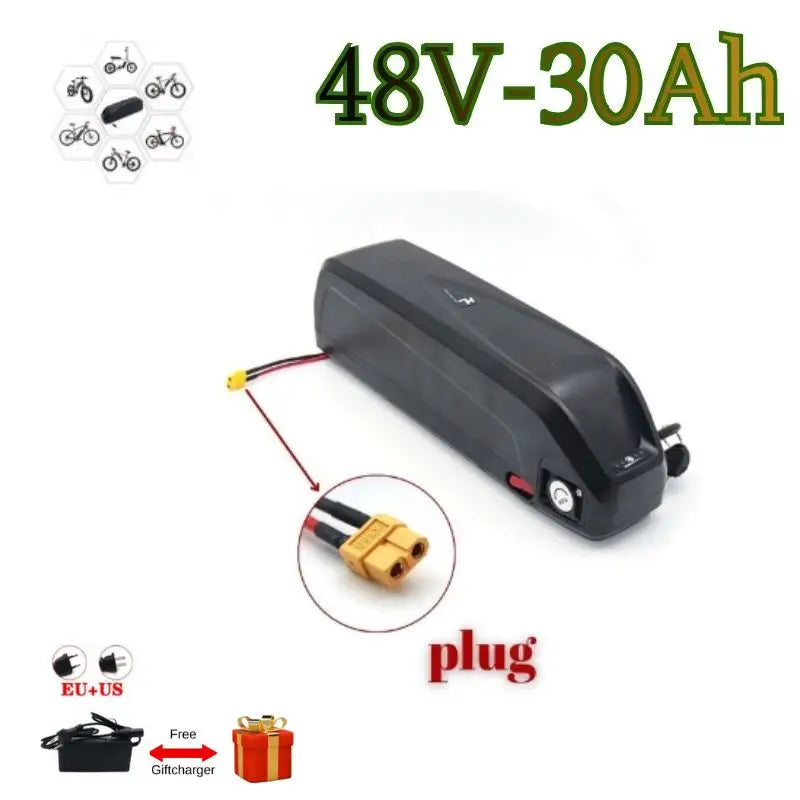

48V eBike Battery
The 48V configuration is designed for compatible mid-power eBike systems.
Maximum charging voltage: 54.6V
Listed cutoff: 36.4VThe product information identifies this configuration for applications including compatible 500W–750W Bafang systems.
Approximate Energy
48V 20Ah: 960Wh
48V 30Ah: 1,440Wh

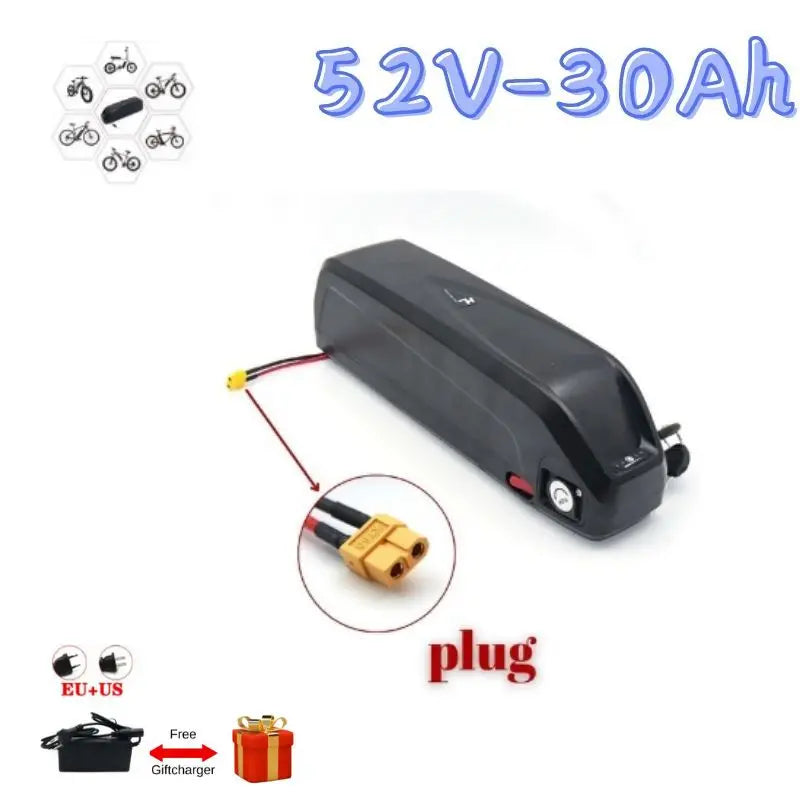

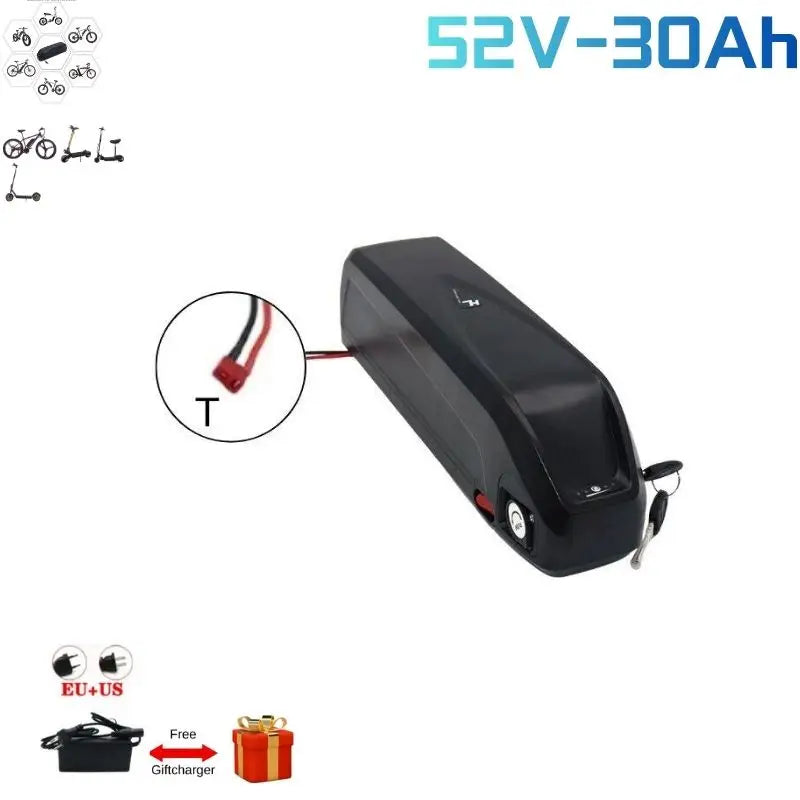

52V eBike Battery
The 52V configuration is intended for compatible high-performance eBike systems.
Maximum charging voltage: 58.8V
Listed cutoff: 39.2VThe product information identifies this configuration for compatible 750W–1,000W Bafang systems.
Approximate Energy
52V 20Ah: 1,040Wh
52V 30Ah: 1,560Wh

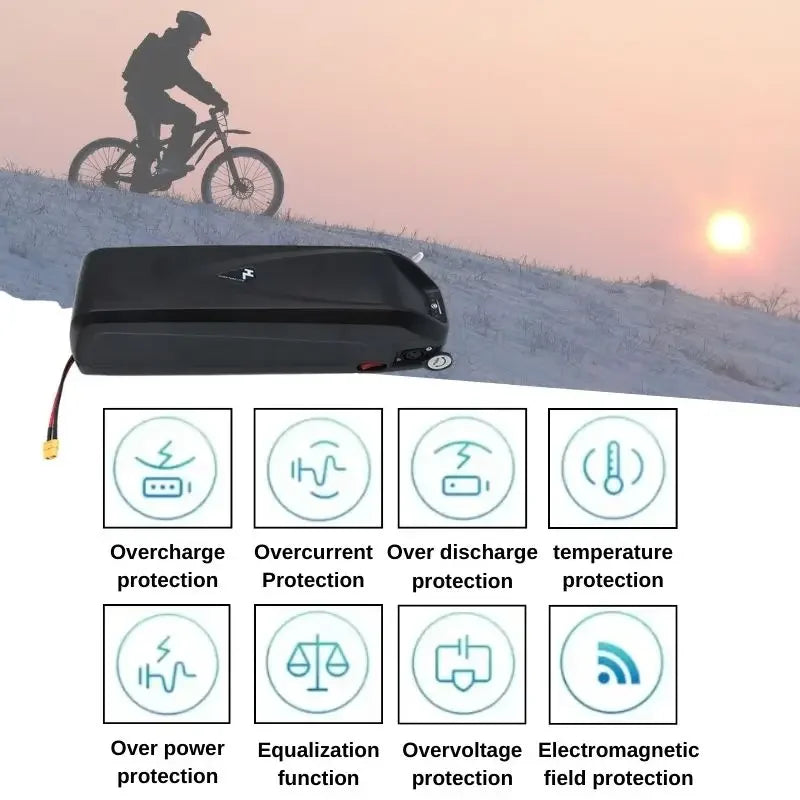

30A Continuous BMS with 60A Peak Burst
The battery features a stated 30A continuous BMS with up to 60A peak burst capability.
The Battery Management System helps monitor and protect the lithium-ion battery pack during operation.
BMS functions can include:
Overcharge protection
Over-discharge protection
Over-current protection
Short-circuit protection
Cell balancing
Battery monitoring
The 60A peak rating is a burst capability and should not be treated as a continuous operating rating.
Your controller's current requirements must be compatible with the battery and BMS.
Smart Cell Balancing
The battery is equipped with smart cell balancing designed to help maintain balanced voltage among the battery cells.
Proper cell balancing is important for maintaining battery performance and helping the battery operate within its intended voltage range.

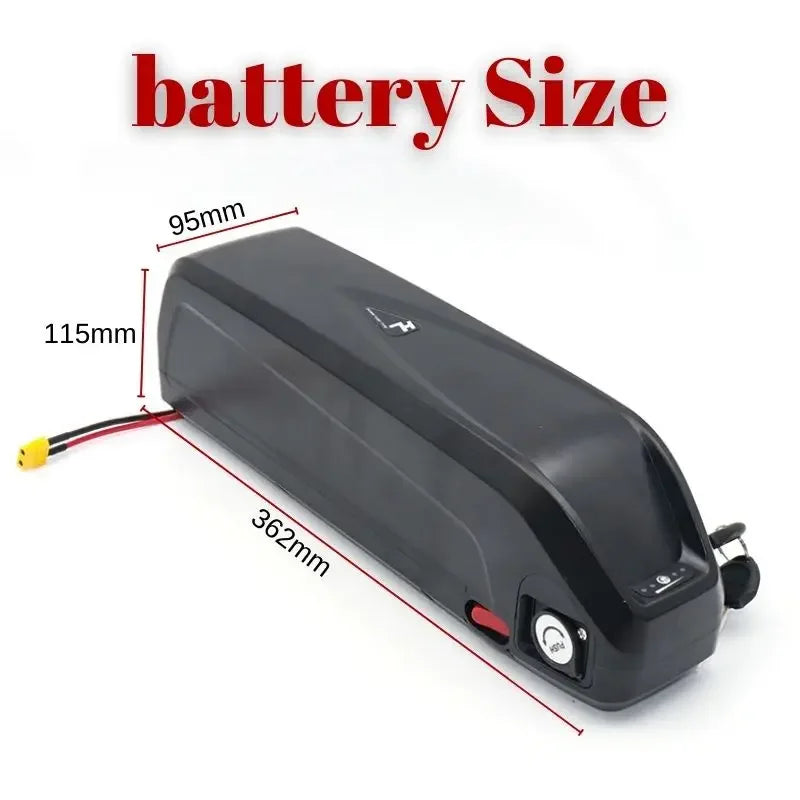

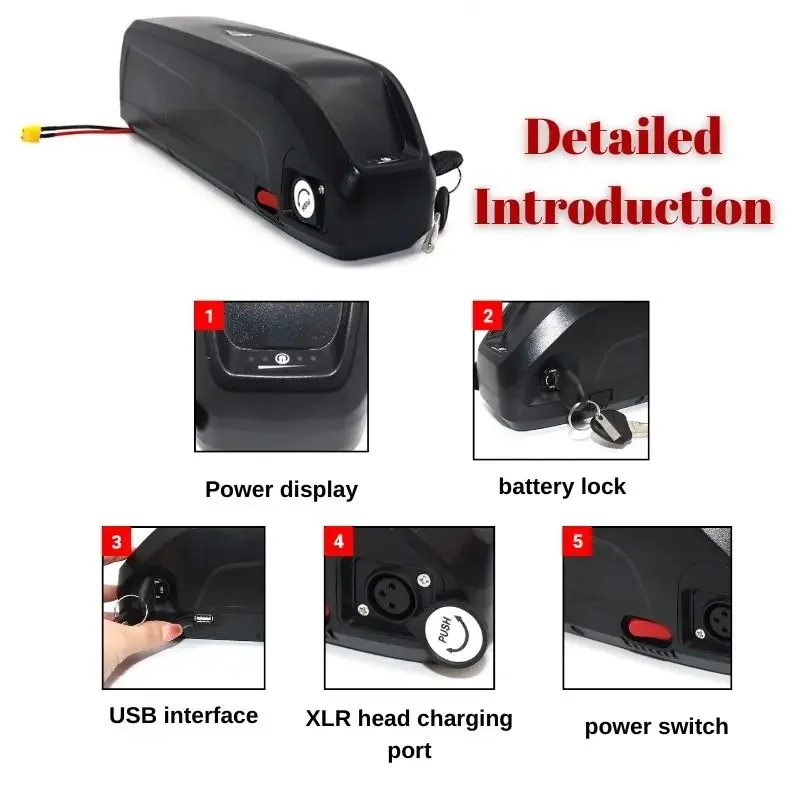

Hailong Downtube Battery Design
The AOAE battery uses a Hailong-style downtube enclosure designed for compatible frame-mounted installations.
The stated case dimensions are approximately:
360 × 90 × 110 mm

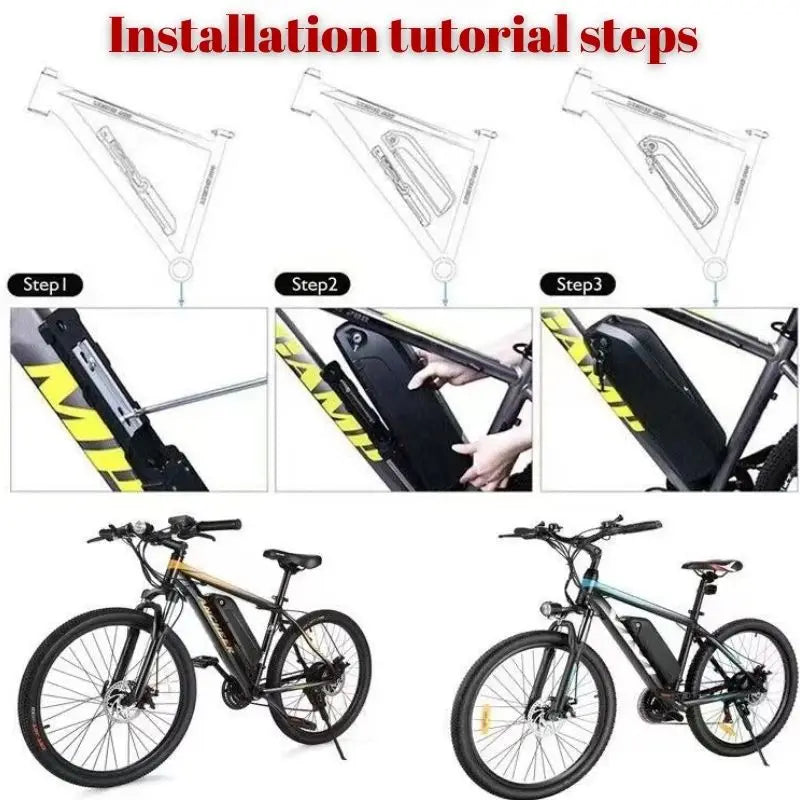

The battery mounts within the frame area, providing a clean integrated appearance while keeping the battery positioned low on the bicycle.
Before ordering, verify:
Battery case dimensions
Mounting rail
Frame clearance
Mounting-hole spacing

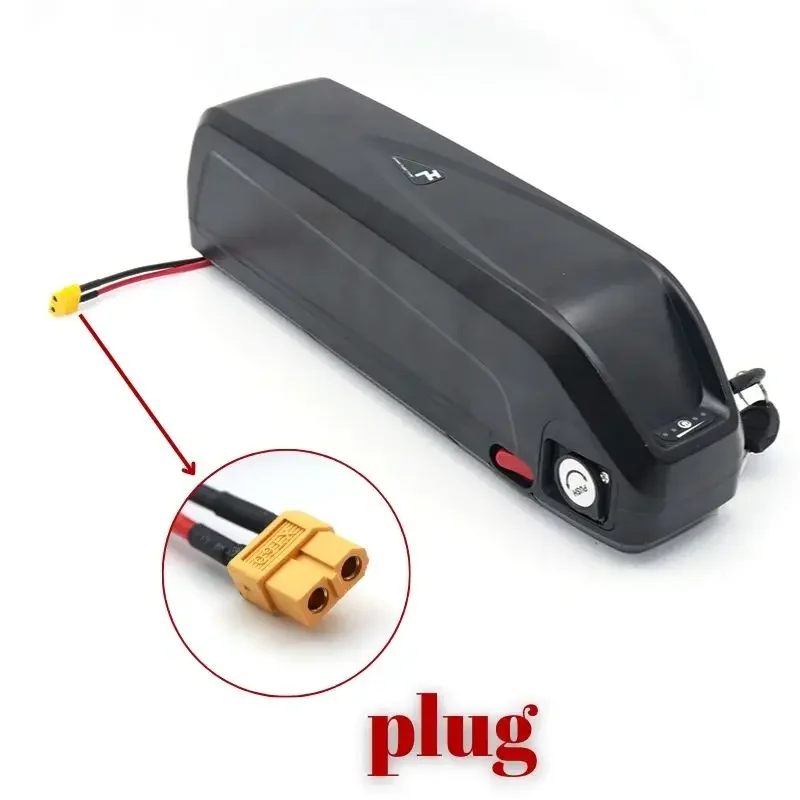

Battery connectors
Connector polarity
Cable routing
Battery removal clearance
Compatible with Bafang Mid-Drive Systems
The battery is marketed for compatible Bafang mid-drive systems including:
Bafang BBS01
Bafang BBS02
Bafang BBS03
Bafang BBSHD
It is also listed for compatible hub-motor and conversion applications ranging from approximately 250W to 1,000W.
Motor wattage alone does not determine battery compatibility. The motor, controller, battery voltage, BMS current rating, connectors, and wiring must all be compatible.
Battery Capacity: 20Ah vs. 30Ah
Choosing between 20Ah and 30Ah depends primarily on how much energy you need and how much battery capacity your frame can accommodate.
20Ah Battery
A good option when you want a balance between battery capacity, size, and weight.
30Ah Battery
Provides approximately 50% more amp-hour capacity than a 20Ah battery at the same voltage.
This can provide substantially more stored energy, although the actual range depends on the complete eBike system and riding conditions.
Battery Energy Guide
Configuration Nominal Energy 36V 20Ah 720Wh 36V 30Ah 1,080Wh 48V 20Ah 960Wh 48V 30Ah 1,440Wh 52V 20Ah 1,040Wh 52V 30Ah 1,560Wh Watt-hours (Wh) = nominal voltage × amp-hours (Ah).
Actual usable energy and riding range will vary depending on speed, terrain, rider weight, motor efficiency, controller settings, temperature, tire pressure, and riding style.
Important Voltage Compatibility
Do not select a battery based solely on the motor's wattage.
Your controller must support the battery's complete voltage range.
36V System
Requires a controller designed for a 36V battery and approximately 42V maximum charging voltage.
48V System
Requires a controller designed for a 48V battery and approximately 54.6V maximum charging voltage.
52V System
Requires a controller designed for a 52V battery and approximately 58.8V maximum charging voltage.
A 52V battery should not be connected to a controller that is only rated for a standard 48V system unless the controller manufacturer specifically confirms 52V compatibility.

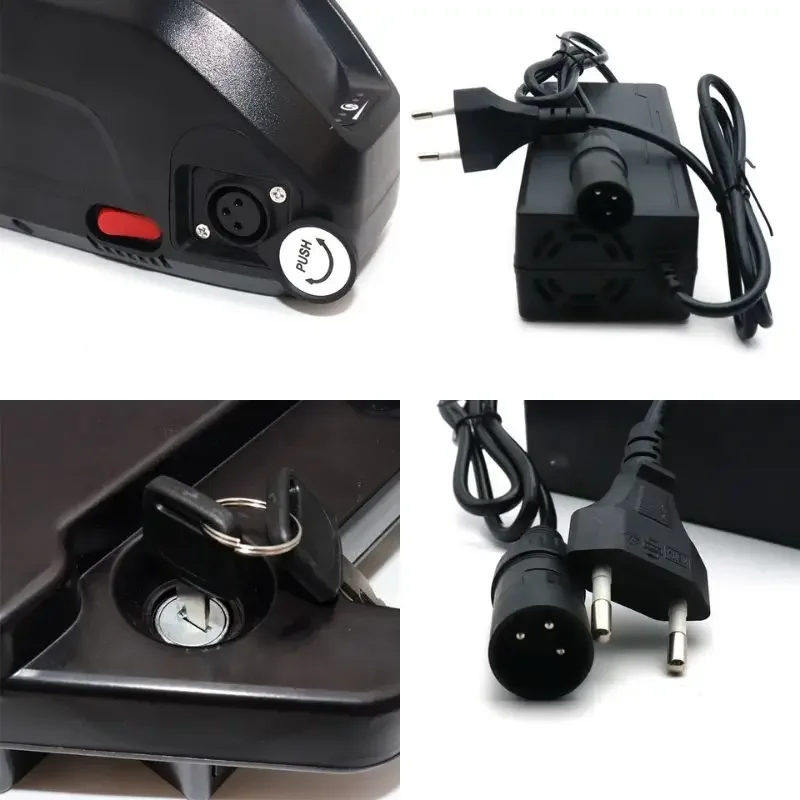

Charging Requirements
Use a charger specifically matched to the selected battery configuration.
Typical full-charge voltages are:
Battery Full-Charge Voltage 36V 42.0V 48V 54.6V 52V 58.8V Using the wrong charger can damage the battery and create a safety hazard.
Always verify the battery label and charger specifications before charging.
Frequently Asked Questions
What voltage options are available?
The AOAE Hailong battery is available in 36V, 48V, and 52V configurations.
What capacity options are available?
The listed capacity options are 20Ah and 30Ah.
Is this battery compatible with Bafang motors?
The product is marketed for compatible Bafang BBS01, BBS02, BBS03, and BBSHD mid-drive systems. Verify your specific motor and controller voltage requirements before ordering.
What is the BMS rating?
The battery is listed with a 30A continuous BMS and 60A peak burst capability.
What is the maximum charging voltage?
The listed maximum charging voltages are:
36V battery → 42.0V
48V battery → 54.6V
52V battery → 58.8V
Is a 52V battery better than a 48V battery?
They are different system configurations. A 52V battery can provide higher nominal system voltage, but it must be used with a compatible controller, motor, charger, and electrical system.
How much range will a 30Ah battery provide?
Range cannot be determined from Ah alone. Motor power, speed, terrain, rider weight, temperature, controller settings, and riding conditions all affect range.
Does the battery fit a Hailong mount?
The product uses a Hailong-style downtube enclosure. Verify the 360 × 90 × 110 mm dimensions and mounting configuration against your existing battery before ordering.
Upgrade Your Bafang eBike
The AOAE Hailong High-Capacity Lithium-Ion Battery Series gives eBike builders multiple voltage and capacity choices for compatible Bafang mid-drive and electric bicycle systems.
36V • 48V • 52V
20Ah • 30Ah
30A Continuous BMS • 60A Peak Burst • Smart Cell Balancing
Power Your Ride. Charge Anywhere. Ride Longer.
Shop eBike batteries at ChargeMyEBike.com.
.
🚀 Key High-Performance Features
-
Bafang Mid-Drive Optimization: Designed to seamlessly handle the amp draw requirements of Bafang BBS02, BBS03, and BBSHD motor kits.
-
Integrated 30A Smart BMS: Full internal protection against overcharging, over-discharging, short circuits, and thermal limits, featuring active cell balancing.
-
Proven 18650 Cell Matrix: Built with durable 18650 lithium-ion cells tested for over 1,000 full charge cycles.
-
Wide Operating Temperature Range: Operates reliably in harsh conditions
-

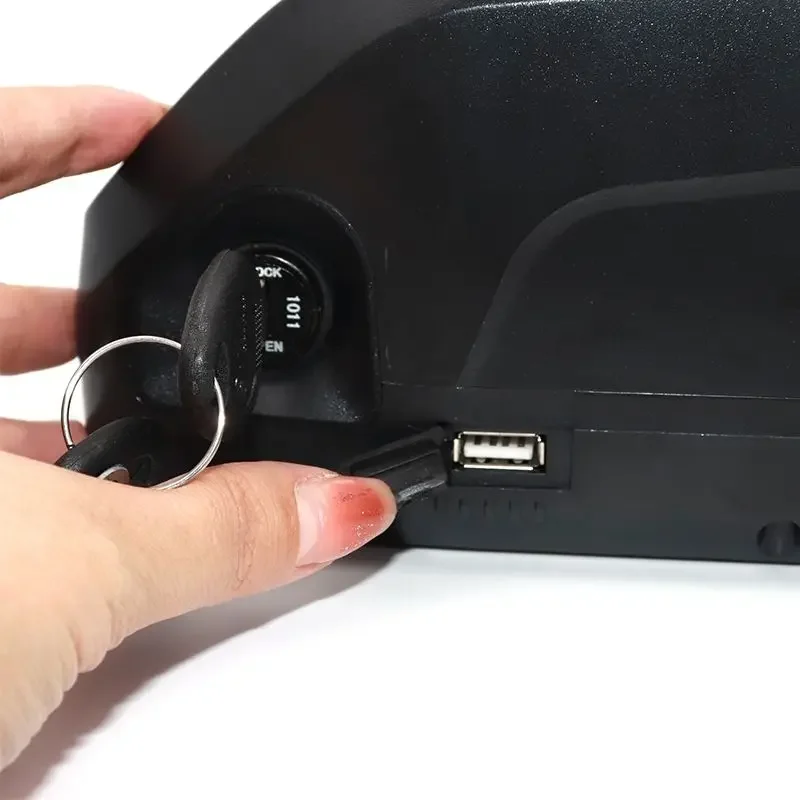

Lockable Quick-Release Frame Mount: Includes a frame-mounting base rail with an integrated security lock to protect your battery against theft.
-
CE Safety Certified: Fully certified to meet European micro-mobility electrical safety standards.
📦 Package Contents
-
1 x AOAE Hailong Lithium-Ion Battery Pack (Selected Voltage & Capacity)
-
1 x Lockable Downtube Mounting Base Rail
-
2 x Anti-Theft Security Keys
-
1 x Discharge Connection Harness
