Charge My E-Bike

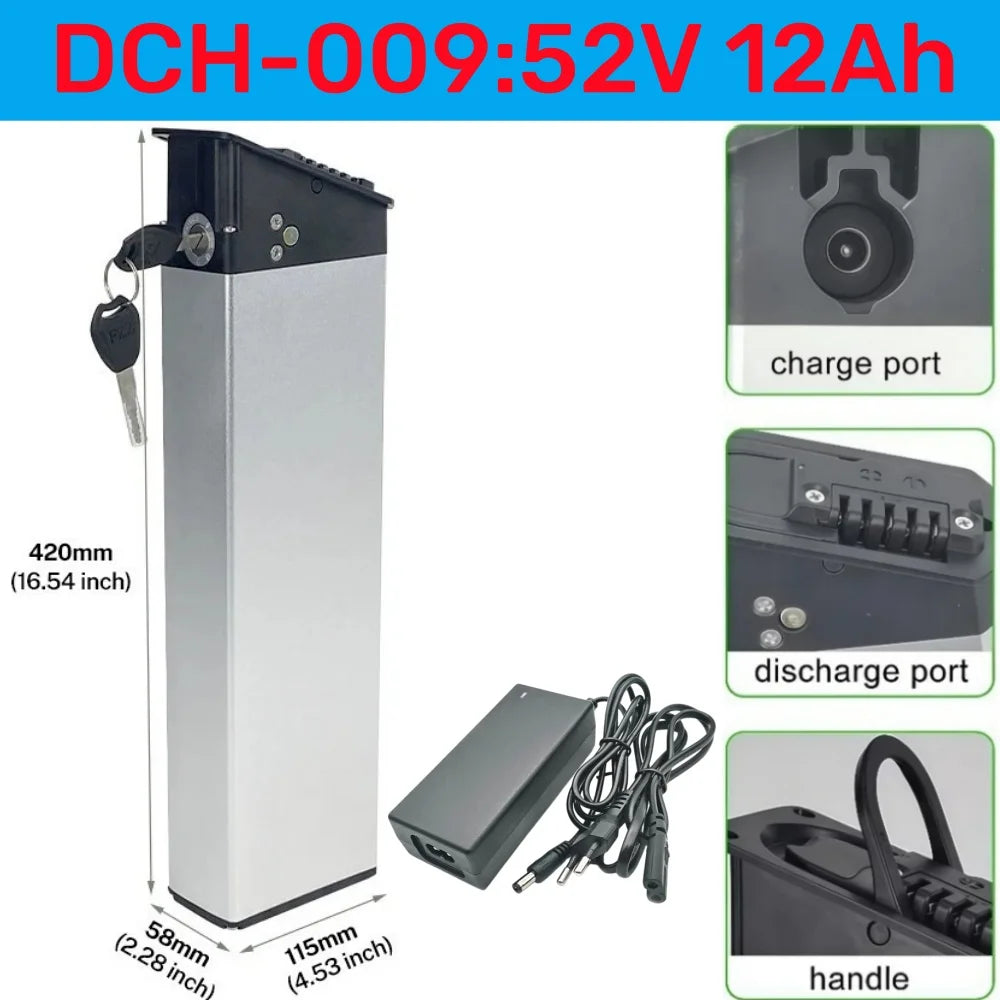

DCH-009 E-Bike Battery 48V 52V 17.5Ah

DCH-009 E-Bike Battery 48V 52V 17.5Ah

$333.52 USD
$183.52 USD $333.52 USD
Sale Sold out
Shipping calculated at checkout.
Color

Aleaivy DCH-009 Upgraded 48V / 52V Folding E-Bike Replacement Battery (13Ah / 15Ah / 17.5Ah | Engwe EP-2 Pro, Engine X/Pro & MATE X Compatible)

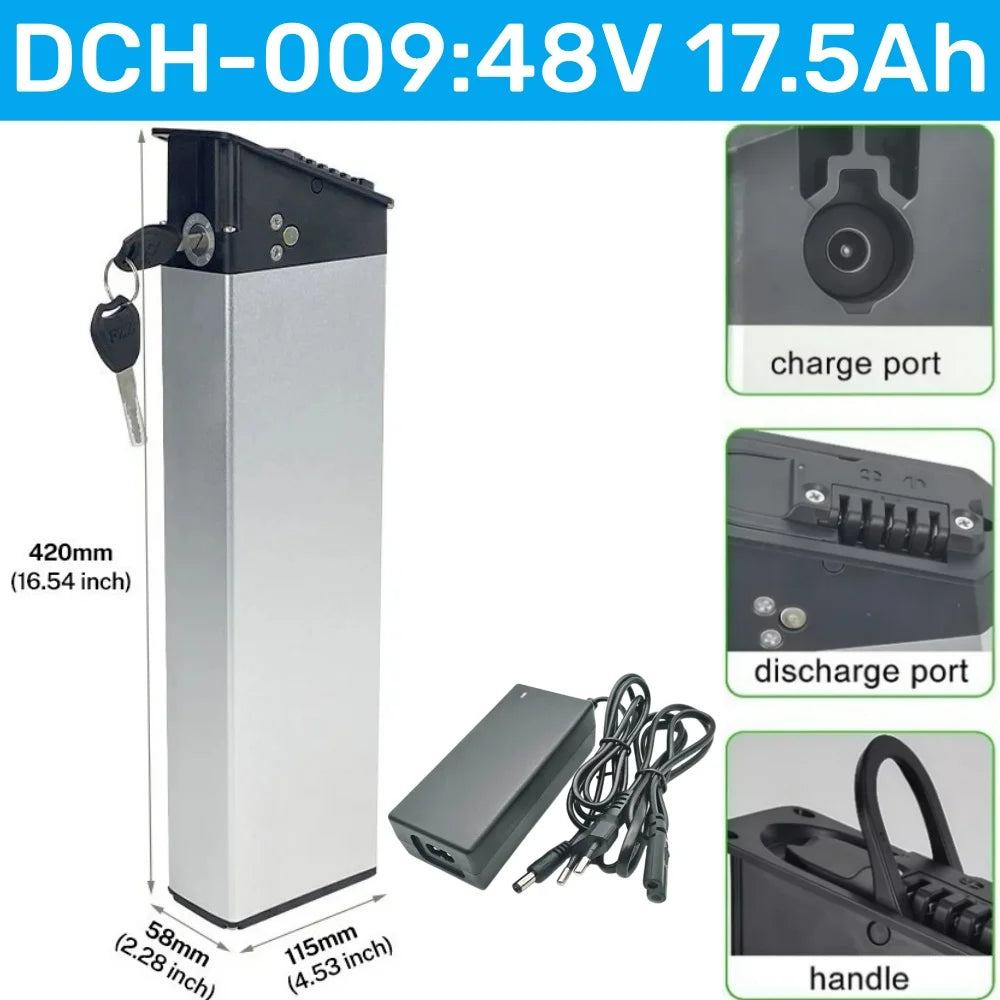

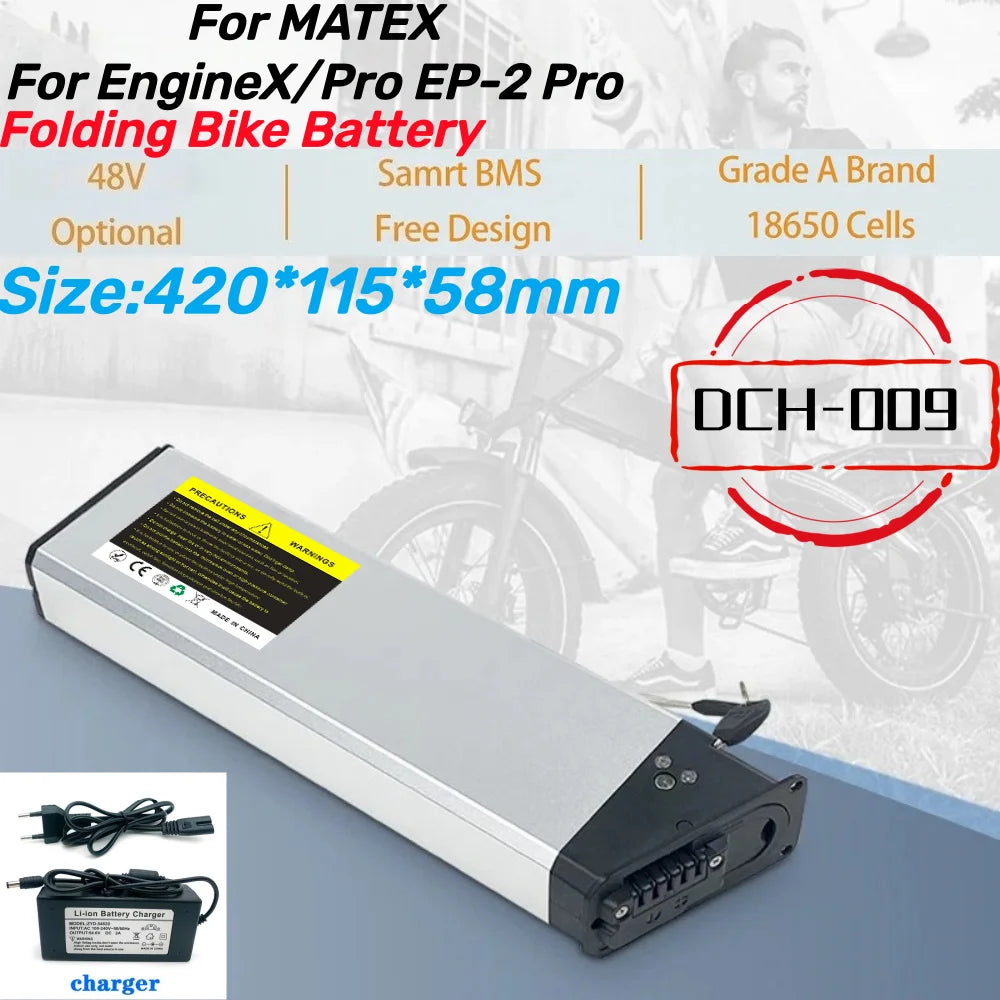

Revitalize your folding fat-tire e-bike with the Aleaivy DCH-009 High-Capacity Replacement Battery Pack. Purpose-built for internal frame integration, this DCH-009 battery is a direct drop-in replacement or backup battery for popular folding e-bikes, including the Engwe EP-2 Pro, Engwe Engine X, Engwe Engine Pro (16Ah version), MATE X, CMACEWHEEL RX20, Bezior XF200 / X Plus, and Ginghma R7 Pro. Standardized at $420 \times 115 \times 58\text{ mm}$, this pack features high-density lithium-ion cells in a durable aluminum casing and is available in 48V and 52V configurations with capacities up to 17.5Ah ($840\text{Wh} - 910\text{Wh}$).

⚠️ Important Fitment Notice & Safety Guidelines

CRITICAL FITMENT INFORMATION (DCH-009 vs. DCH-006):

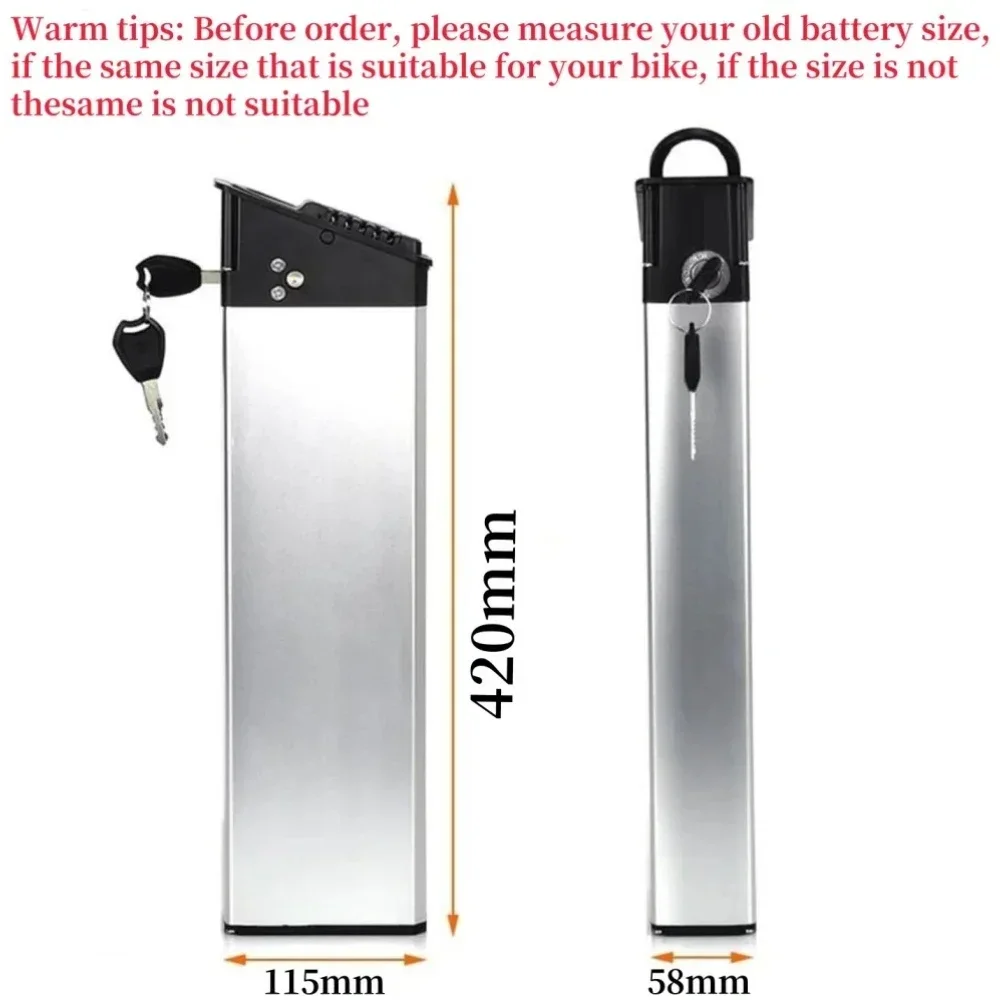

  • Check Your Battery Dimensions Before Ordering: Newer model Engwe and Bezior e-bikes utilize the DCH-009 battery ($58\times114\times418\text{ mm}$ / $420\times115\times58\text{ mm}$ outer profile). Older production runs used the thinner DCH-006 battery ($43\times103\times430\text{ mm}$). Please verify your original pack's dimensions to ensure correct frame fit.

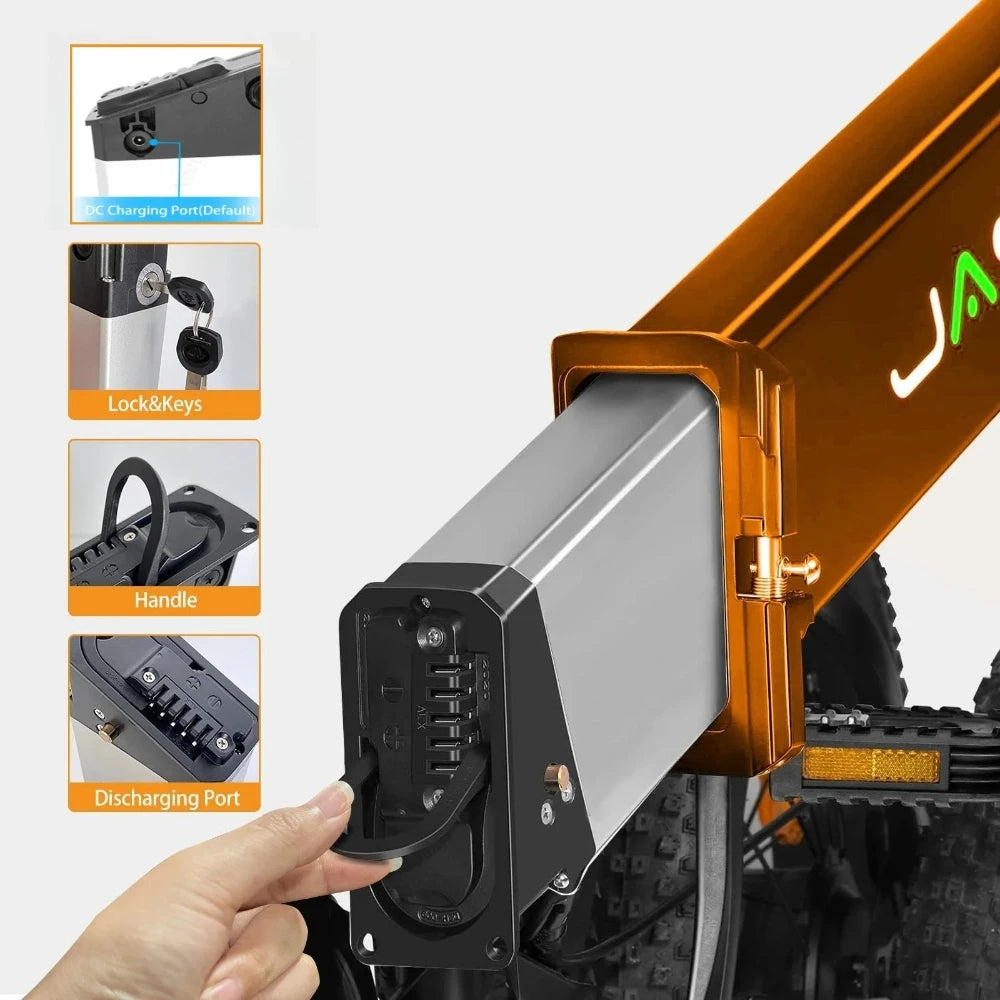

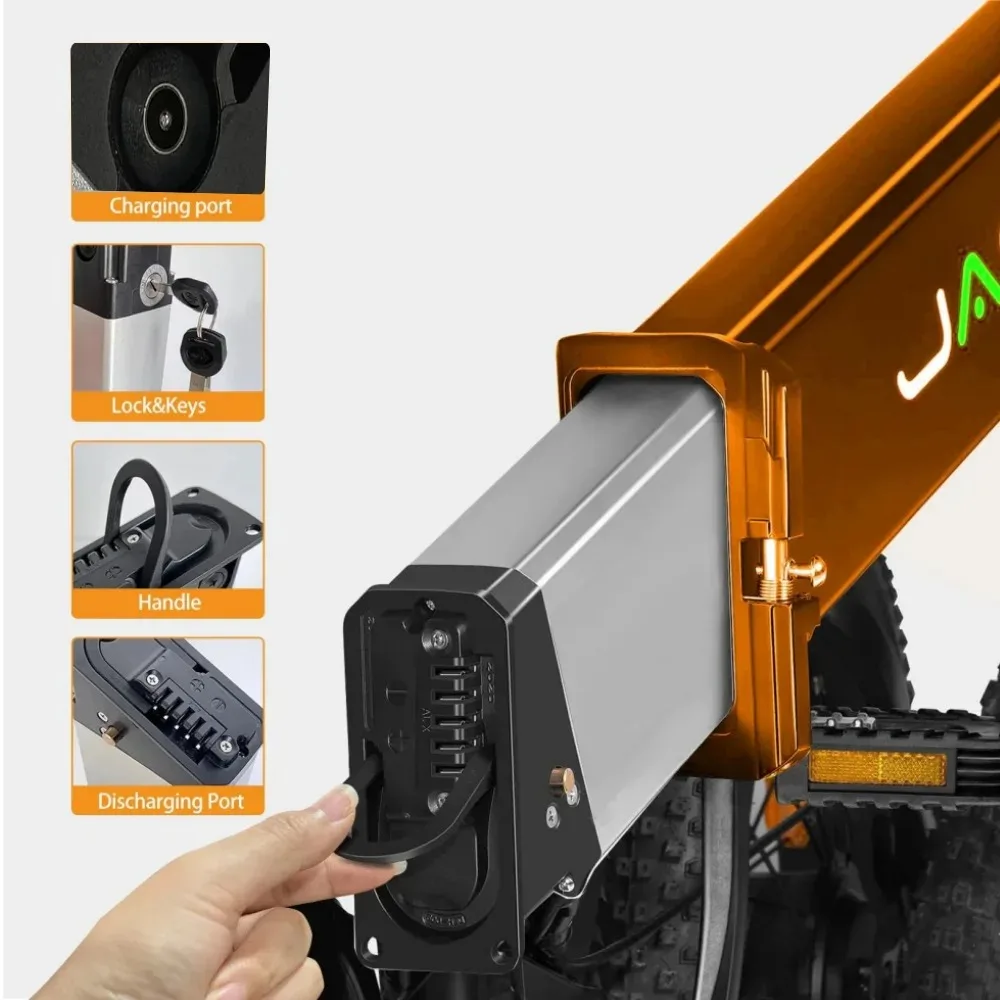

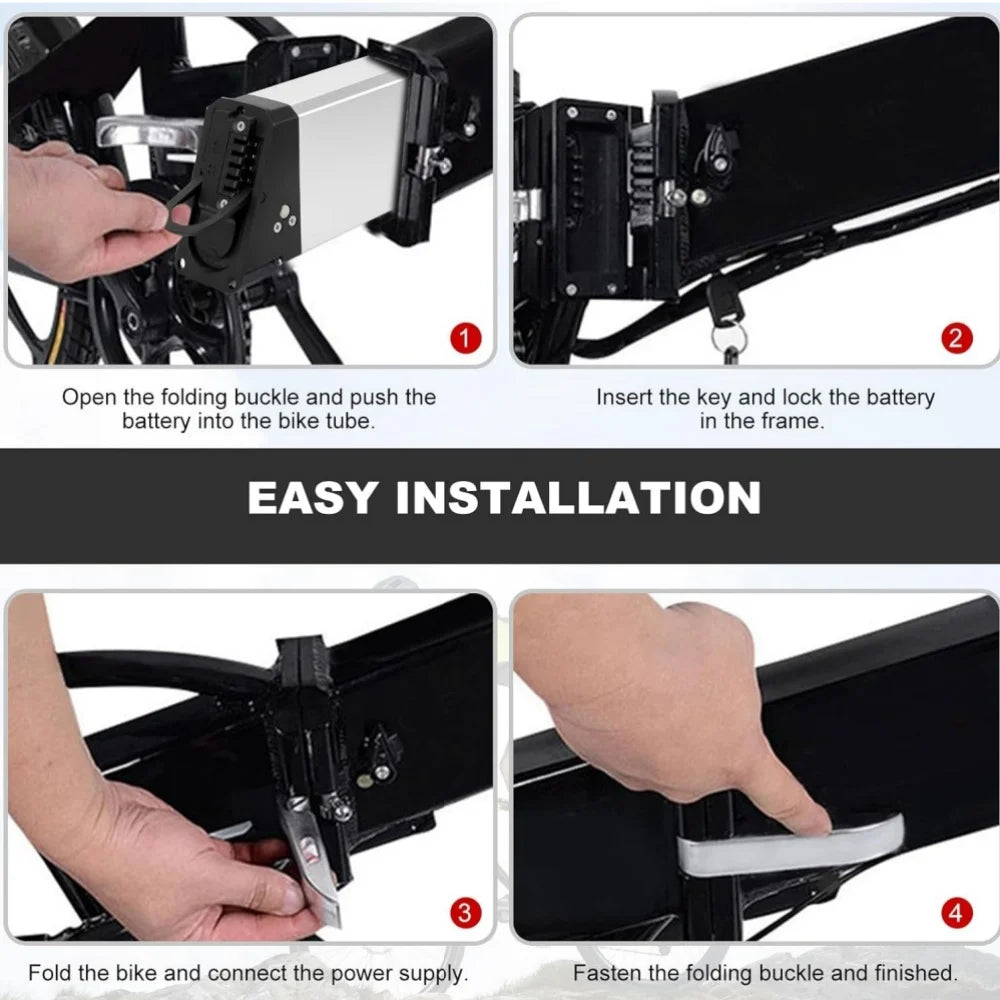

  • Internal Frame Slide-In Form Factor: Precision-machined aluminum body slides directly inside the bike's main folding frame tube.

  • 52V Upgrade Option: Choose the 52V configuration for improved throttle response, greater hill-climbing torque, and reduced voltage sag under high motor loads.

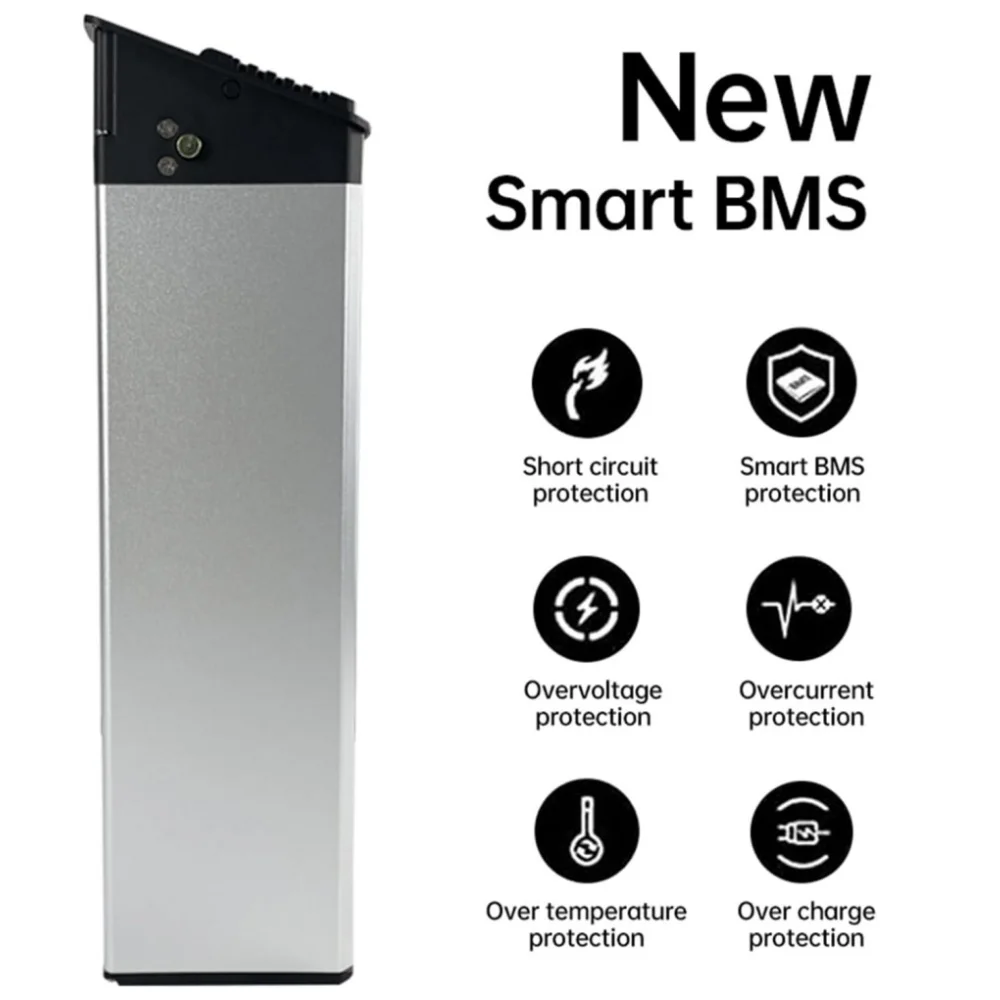

  • CE Certified BMS Protection: Equipped with an internal Battery Management System that continuously guards against over-charging, over-discharging, short circuits, and thermal runaway.

🚀 Key High-Performance Features

  • Expanded Range Options (13Ah, 15Ah, 17.5Ah): Delivers up to $910\text{Wh}$ of energy storage to power longer commutes, off-road expeditions, and daily urban riding.

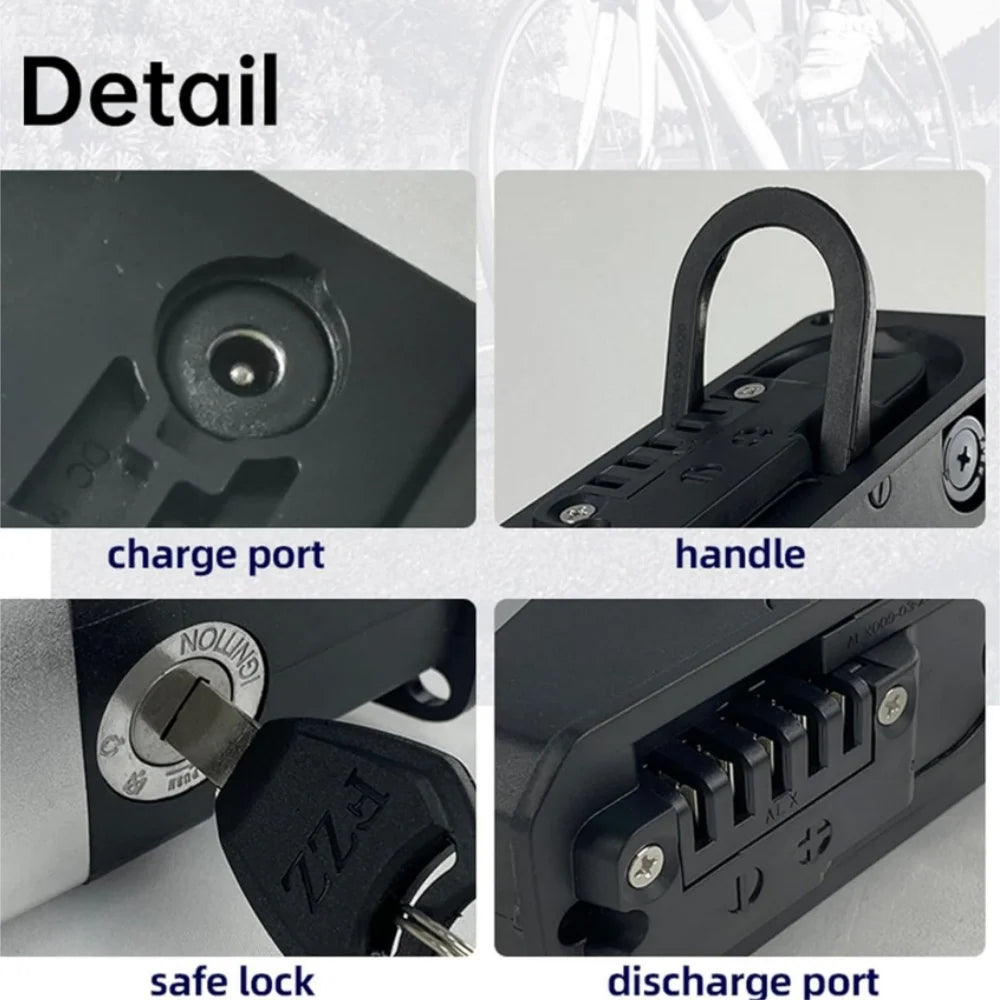

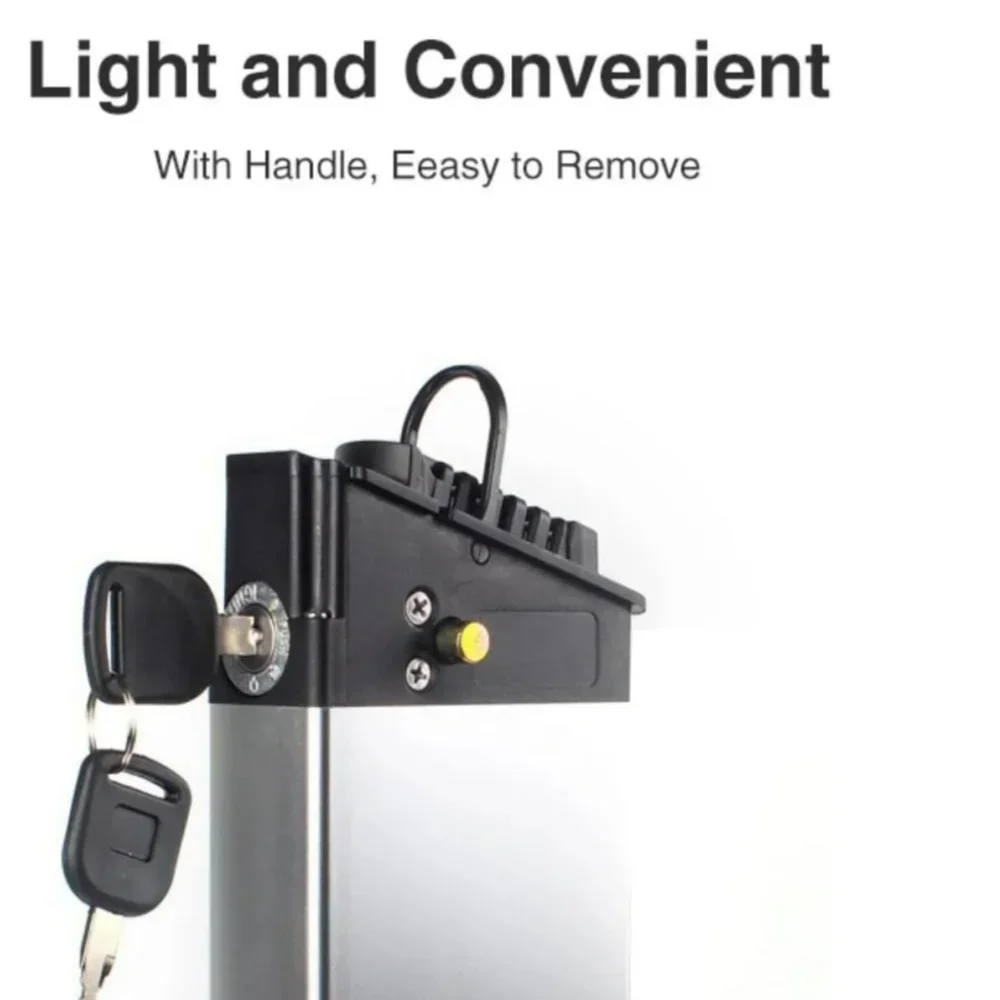

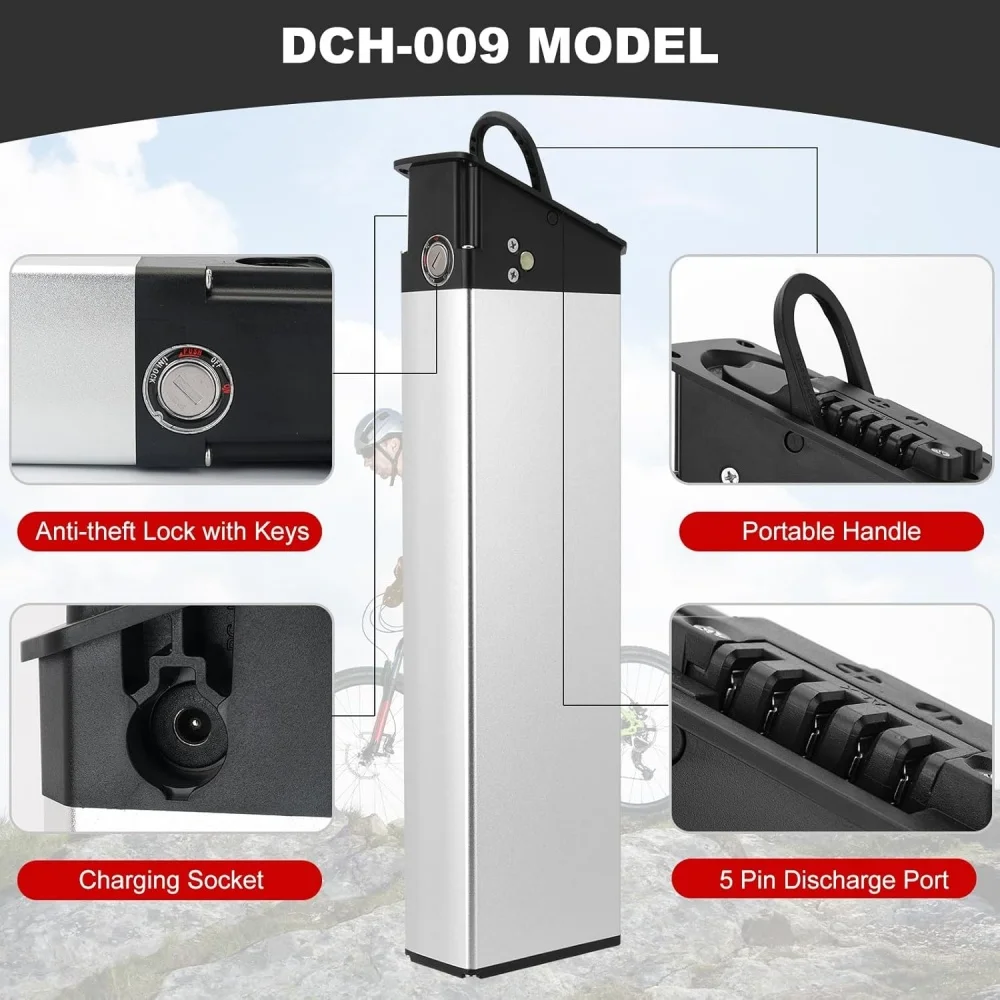

  • Integrated Folding Extraction Handle: Features a heavy-duty top handle for quick, hassle-free removal from the bike's frame tube for off-bike charging.

  • Mechanical Security Key Lock: Locks the battery safely inside the frame structure to prevent theft and keep the battery firmly connected during rough trail riding.

  • External Charge Port & Power Switch: Charge the battery directly while installed inside the bike frame, or remove it for desktop charging at home or in the office.

  • Durable Heat-Dissipating Alloy Casing: Rugged aluminum shell protects internal lithium cells against impact, trail vibrations, and heat buildup.

📊 Technical Specifications Matrix

Specification Parameter Aleaivy DCH-009 Battery Specifications
Brand & Model Line Aleaivy / Cheterdoli DCH-009 Series
Compatible E-Bike Models Engwe EP-2 Pro, Engine X, Engine Pro, MATE X, Bezior XF200 / X Plus

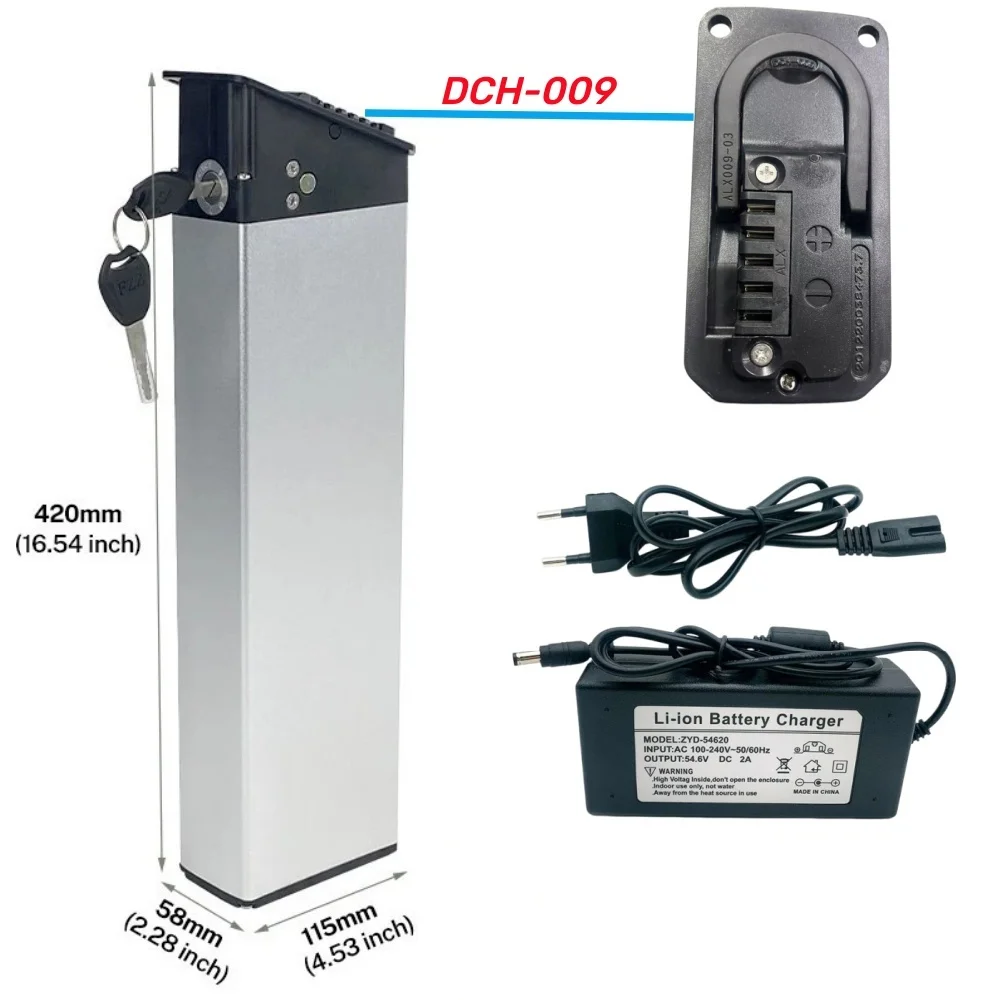

Physical Outer Dimensions $420\text{ mm} \times 115\text{ mm} \times 58\text{ mm}$ ($16.5" \times 4.5" \times 2.3"$)
Model Compatibility Standard DCH-009 Form Factor (Fatter Housing)
Voltage Configurations 48V Nominal / 52V High-Output
Capacity Tiers 13Ah ($624\text{Wh}$) / 15Ah ($720\text{Wh}$) / 17.5Ah ($840\text{Wh}-910\text{Wh}$)
Cell Chemistry & Type High-Density Lithium-Ion (Li-Ion)
Unit Weight $3.0\text{ kg} - 3.8\text{ kg}$ ($6.6\text{ lbs} - 8.38\text{ lbs}$)
Safety Certification CE Certified


Aleaivy, DCH-009, DCH009, Engwe EP-2 Pro, Engwe Engine X, Engwe Engine Pro, MATE X, Bezior XF200, 48V Battery, 52V Battery, 17.5Ah Battery, Folding Ebike Battery



 ]












Product certification

Packing &Shipment

FAQ
Q: What type of electric bike battery?
A: It is a Li-ion battery, Chemical is Li(NiCoMn)O 2.
Q: What is the difference between a Li-ion battery, Ni-Mn battery, and a lead-acid battery?
A: E-bike Li-ion batteries have a longer cycle life; the normal cycle life is 800-1000 cycles, and also have a light weight, small size, no memory effect, are non-toxic, environmental friendly.
Q: What's the temperature range of charge and discharge?
A: Charge Temperature: 0 to 45°C and Discharge Temperature: -20 to 65°C
Q: What kind of cells are used in this electric bicycle battery?
A: Different capacity with different cells. We make the battery with original A-grade brand and high-quality domestic cells; all can be customized according to your requests.
Q: Do your e-bike batteries come with a charger?
A: All of our e-bike batteries come with a charger. We have a normal charger and a fast charger. If you need a fast charger, please contact us.
Q: Do your electric bike batteries come with BMS?
A: Yes, our batteries have a SEIKO IC BMS, with stable performance. This can protect the battery and avoid short circuits, overcharging, over-discharging, and overcurrent.
Q: Can you provide OEM and ODM service?
A: Yes, we are a professional electric bike battery manufacturer with a factory that produces all kinds of high-quality E-bike lithium batteries according to customers' requirements and designs. You are welcome to place OEM and ODM orders and visit our factory.
