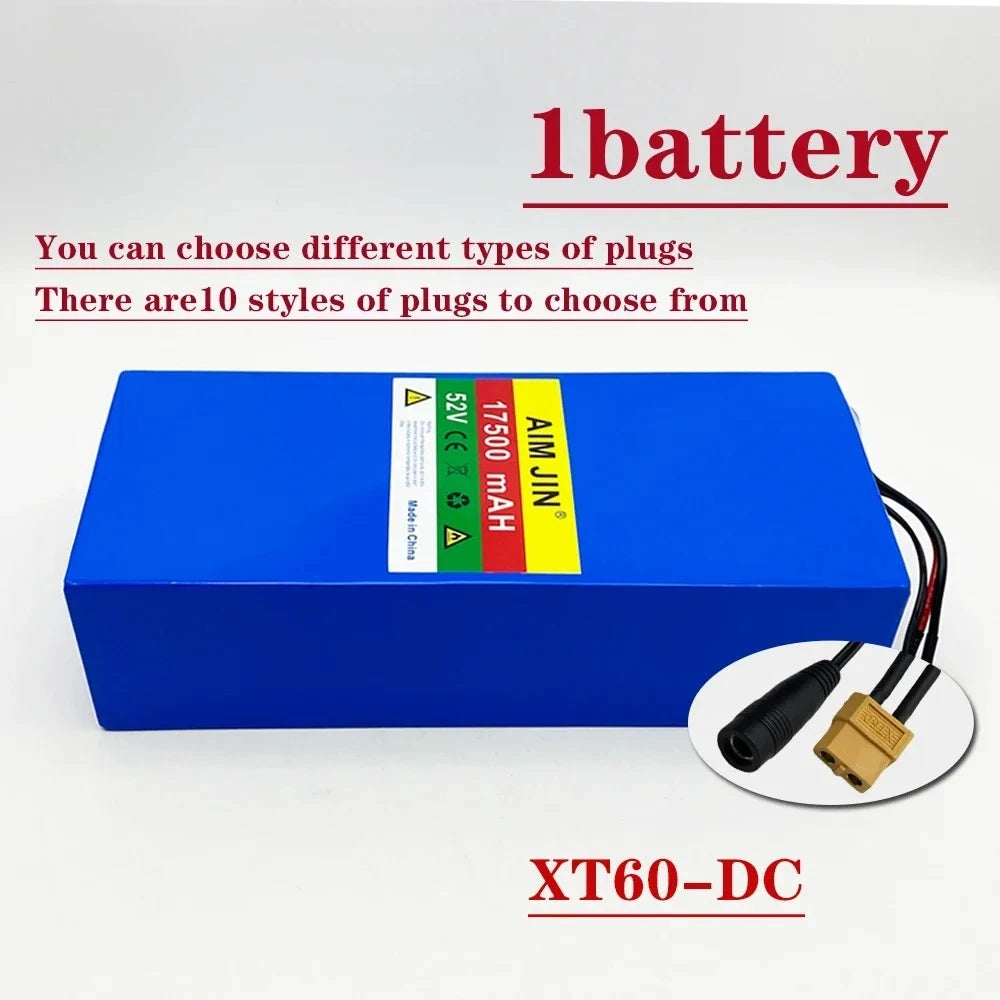

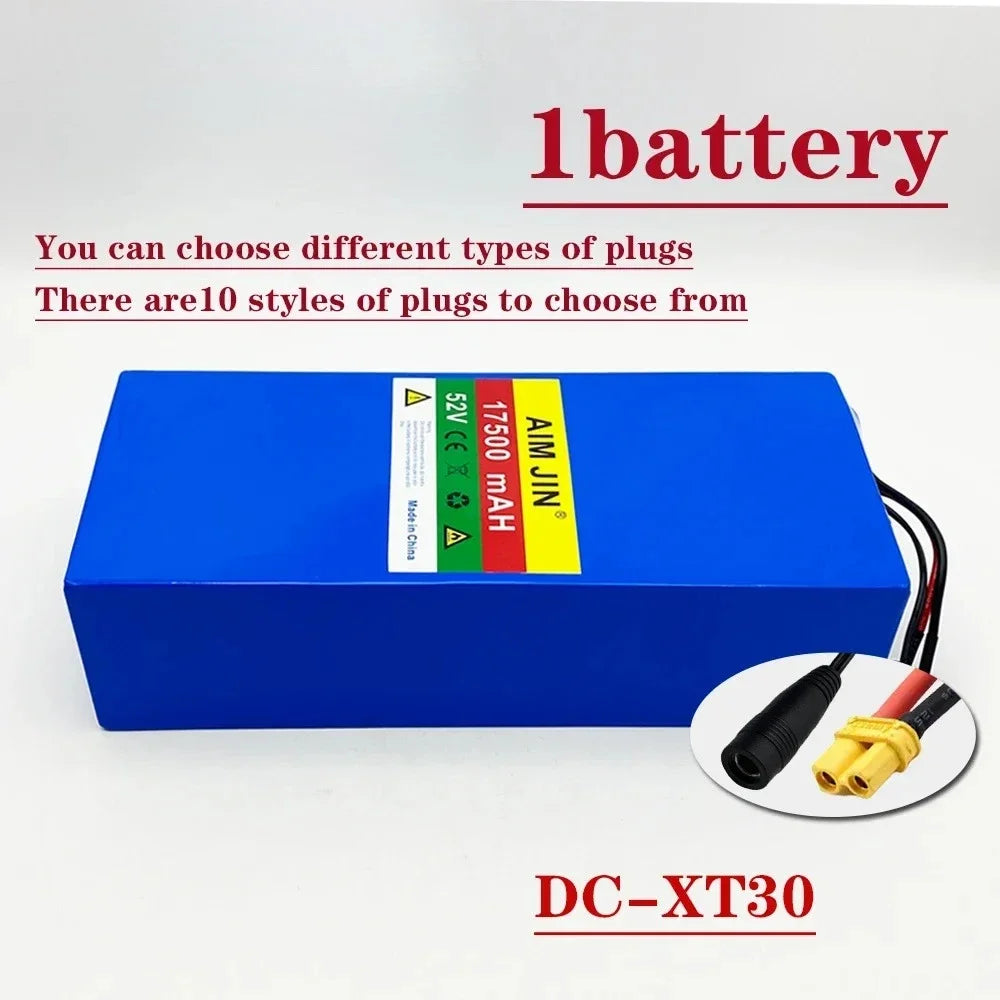

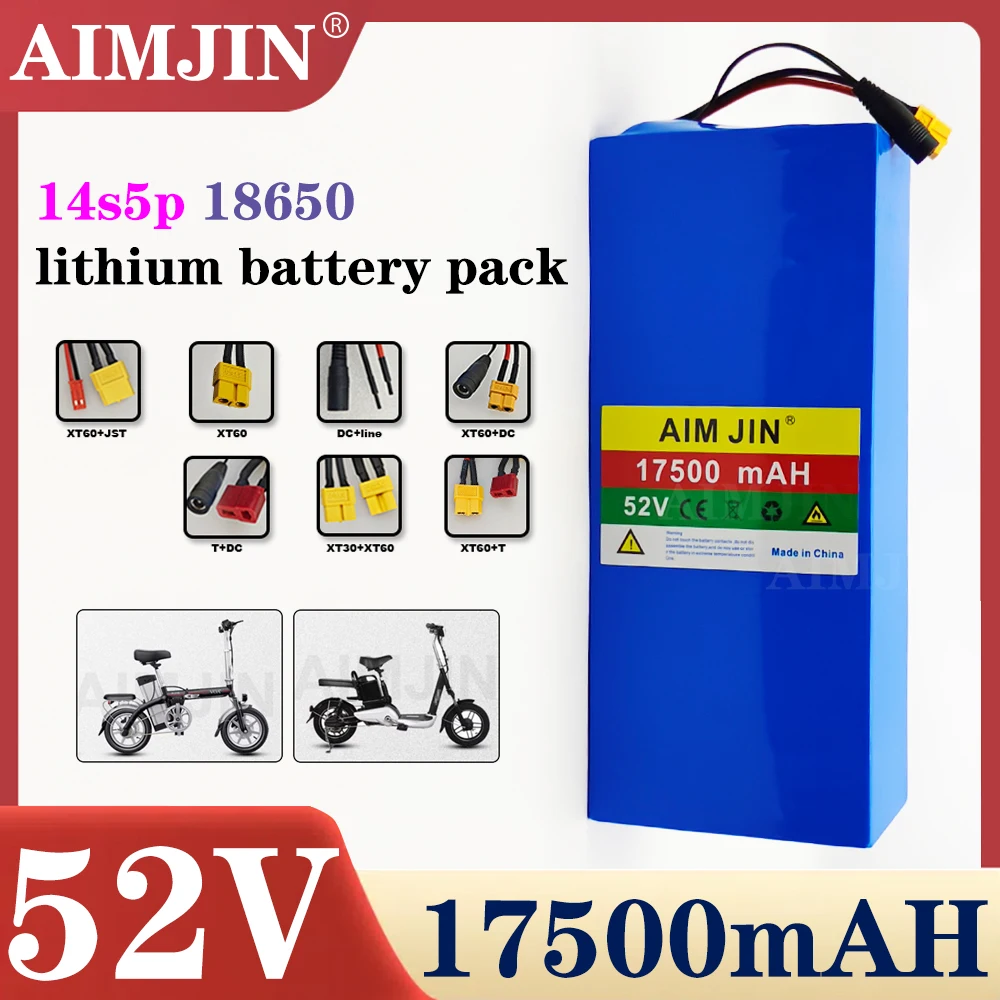

aimjin 52V 17.5Ah (17,500mAh) 14S5P High-Output Lithium-Ion Battery Pack with Integrated Smart BMS & Matching Fast Charger –
Designed for 1500W Electric Scooters, E-Bikes & Transportation Equipment
Power up your custom e-bike build, electric scooter, or urban transit equipment with the aimjin 52V 17.5Ah Lithium-Ion Battery Pack System. Arranged in an efficient 14S5P 18650 cell matrix, this high-density power supply delivers strong, consistent energy output tailored for high-draw brushless motor systems up to 1500W.
This complete power bundle includes a dedicated 58.8V matching lithium charger, eliminating compatibility guesswork so you can start riding right out of the box. Engineered with an integrated Smart Battery Management System (BMS), the compact 260 x 110 x 68 mm pack actively balances individual cells while protecting against over-charging, deep discharge, over-current spikes, and thermal degradation.
⚠️ System Requirements & Dimensions Notice
IMPORTANT FITMENT & VOLTAGE CHECKLIST:

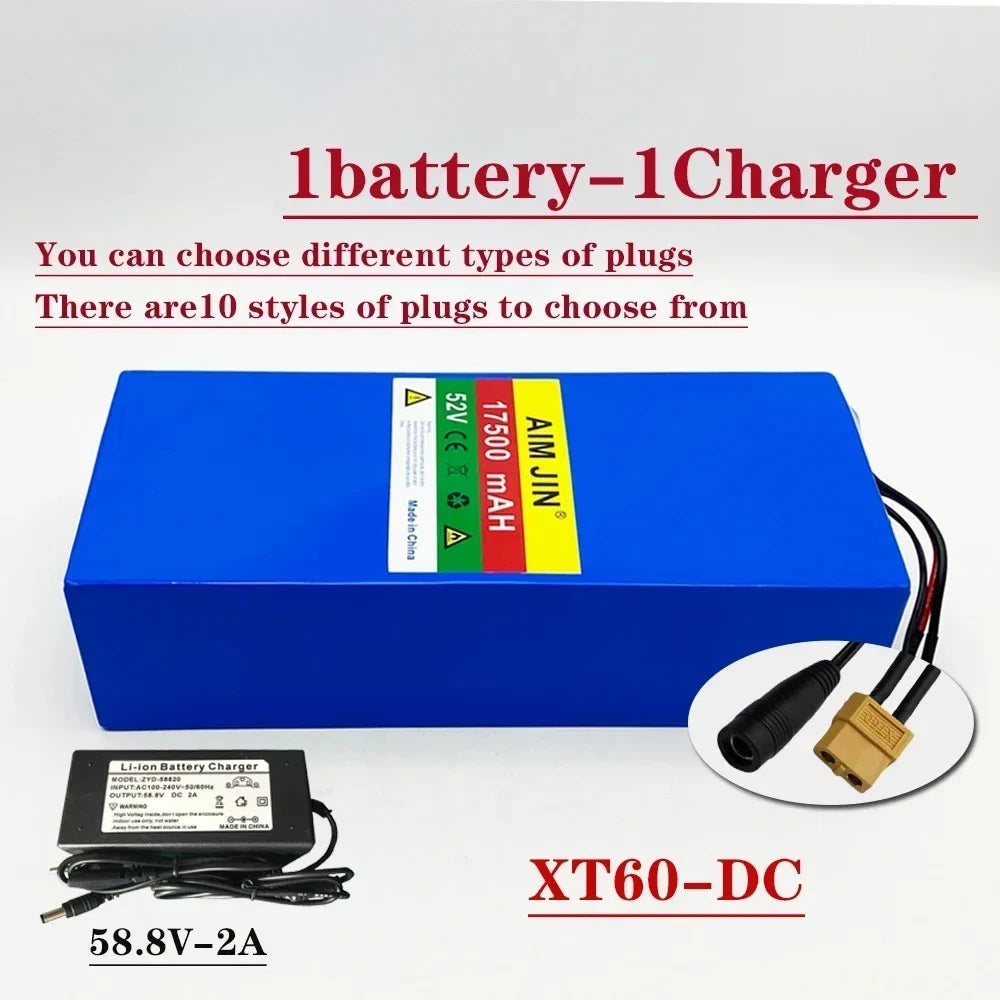

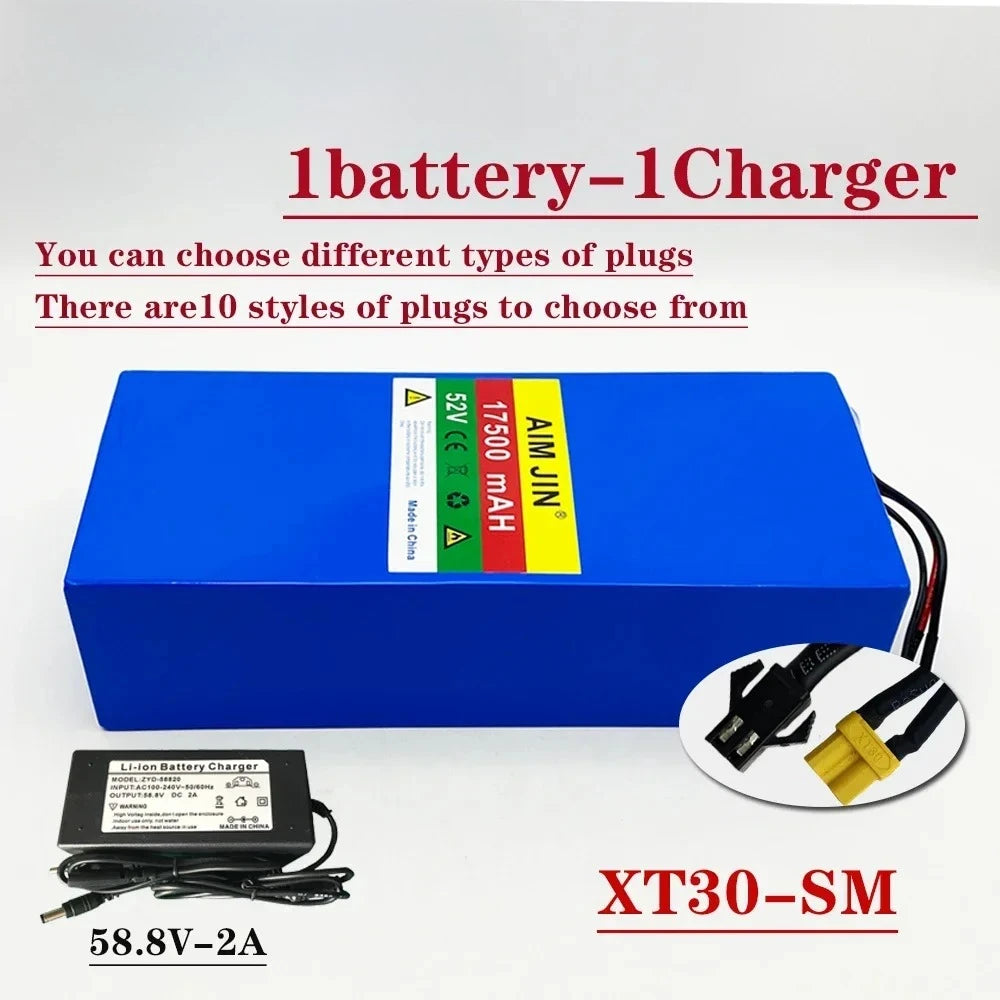

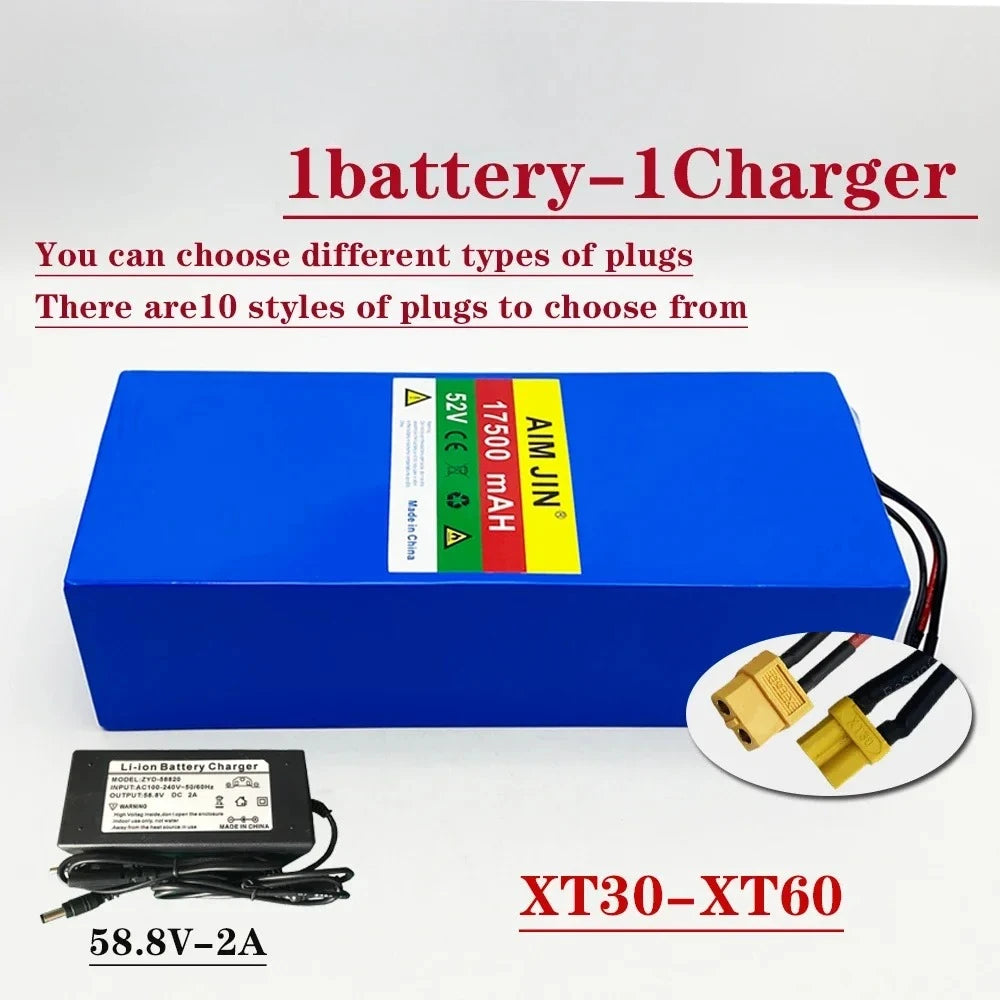

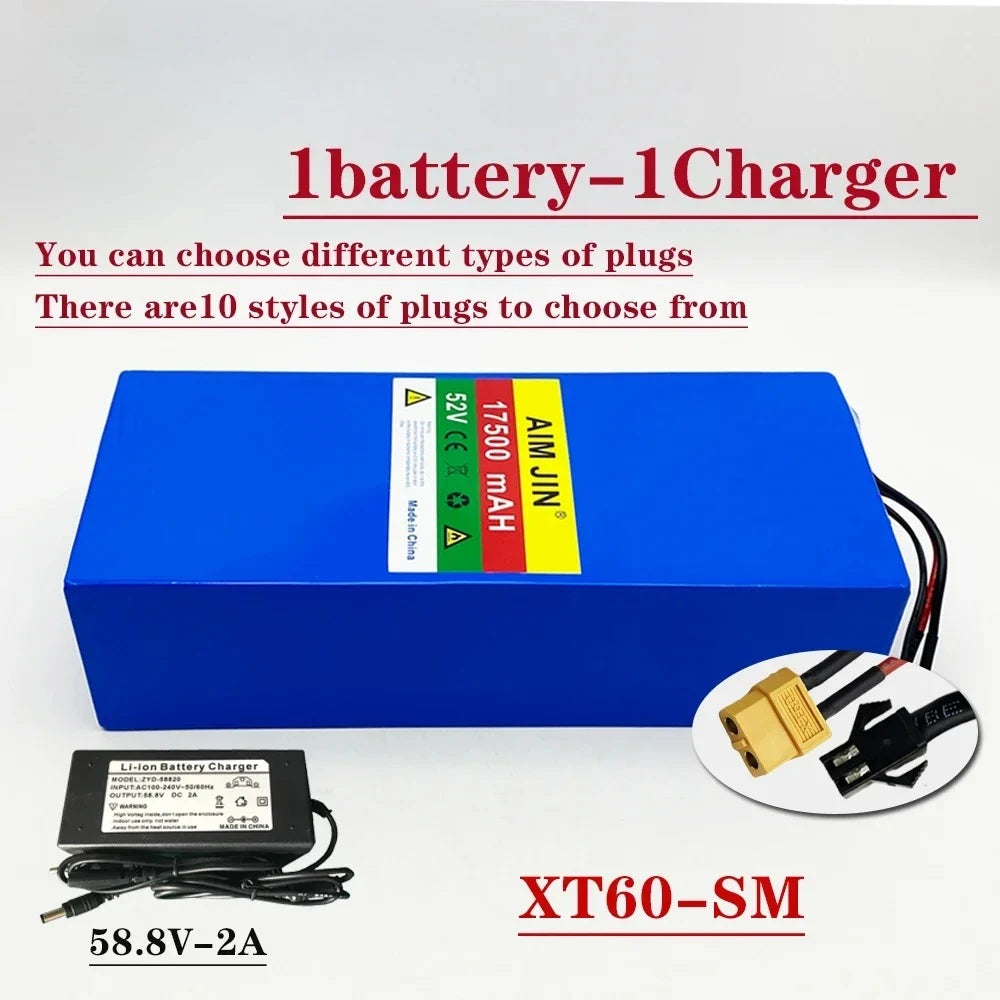

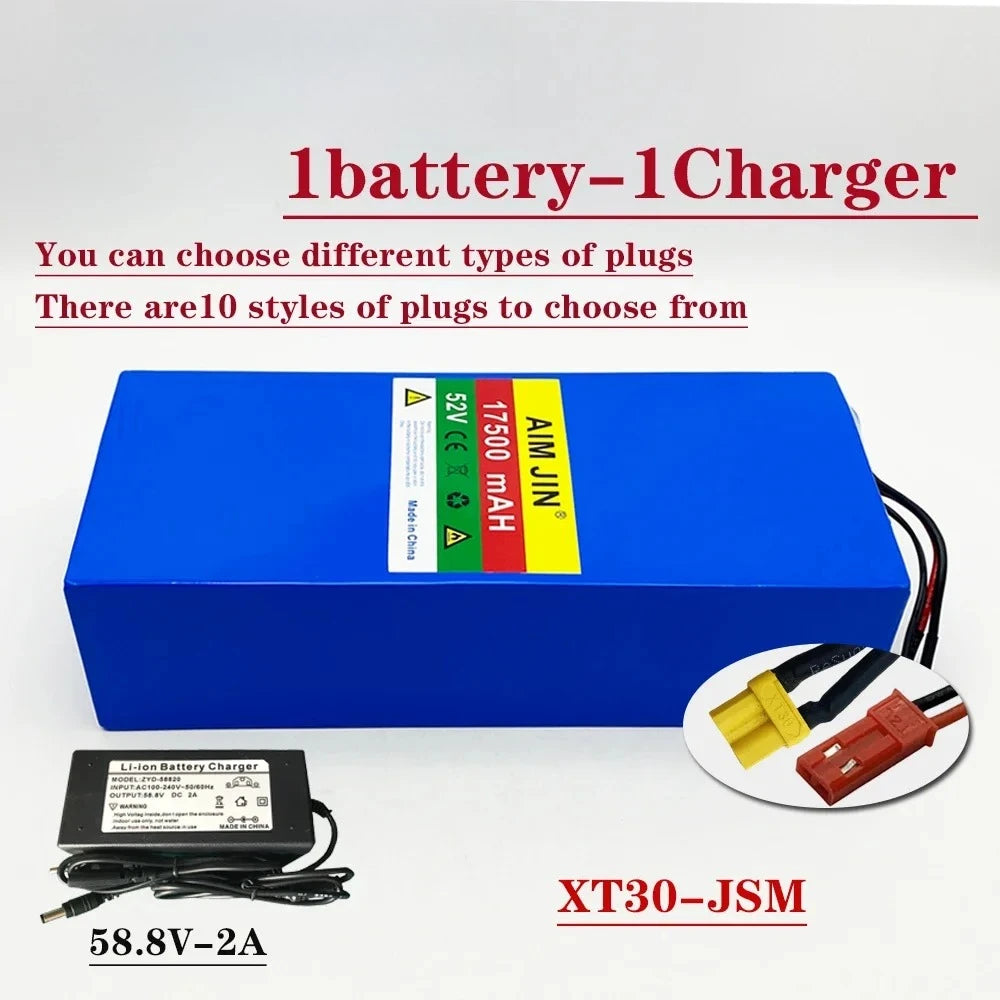

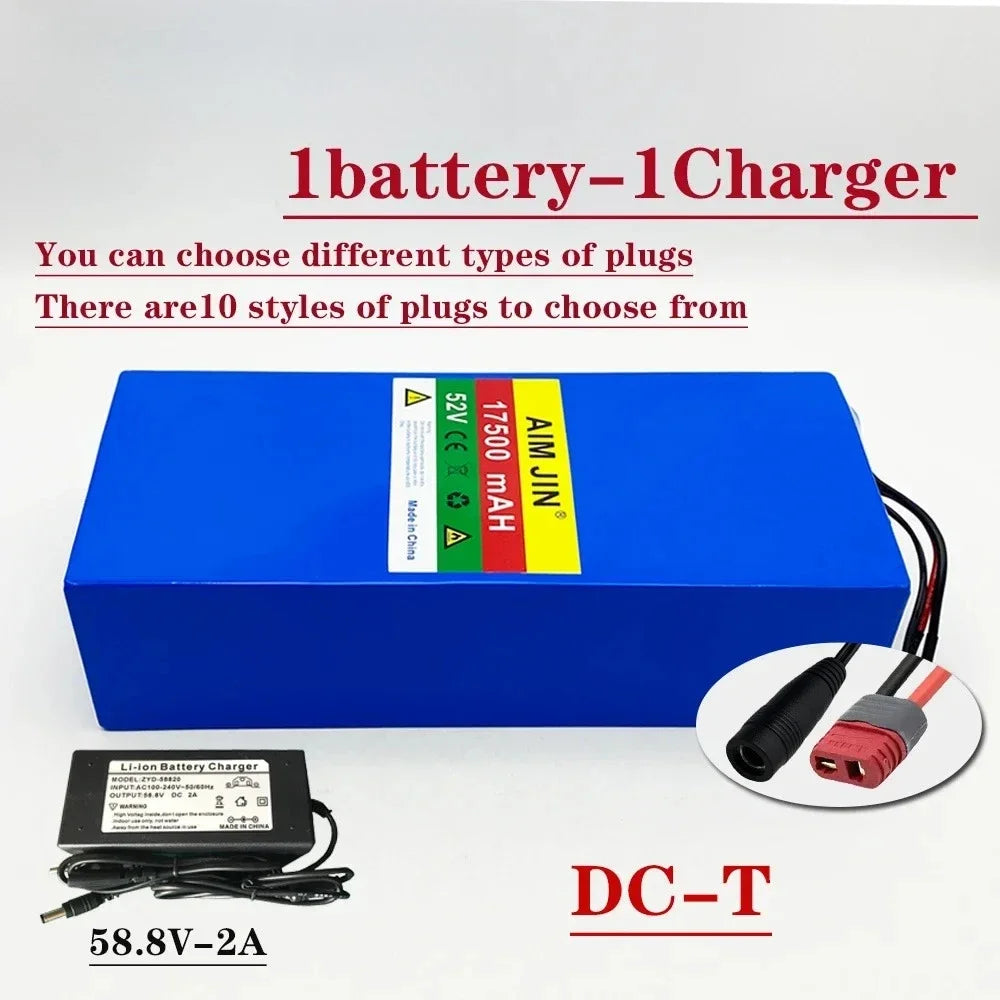

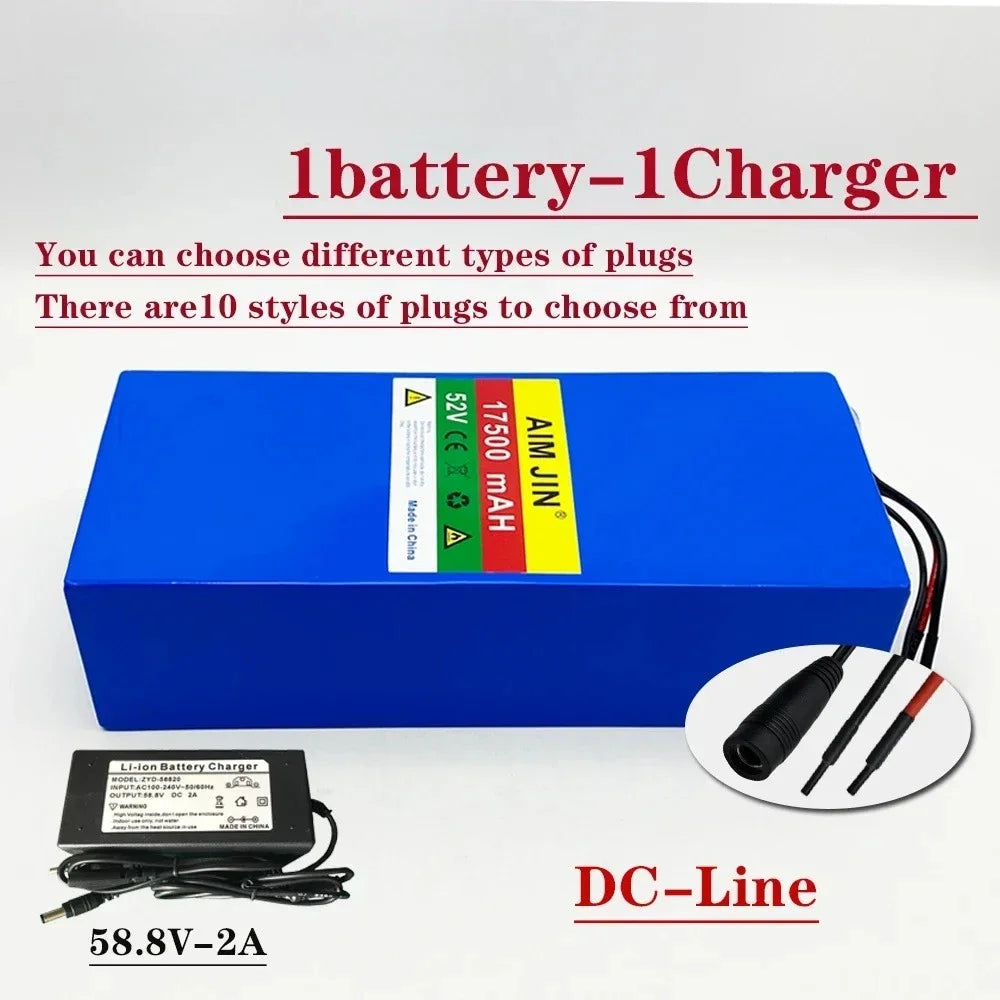

Includes Dedicated Charger: Comes bundled with a matching automatic lithium-ion charger rated for 52V battery architectures (58.8V peak cutoff).

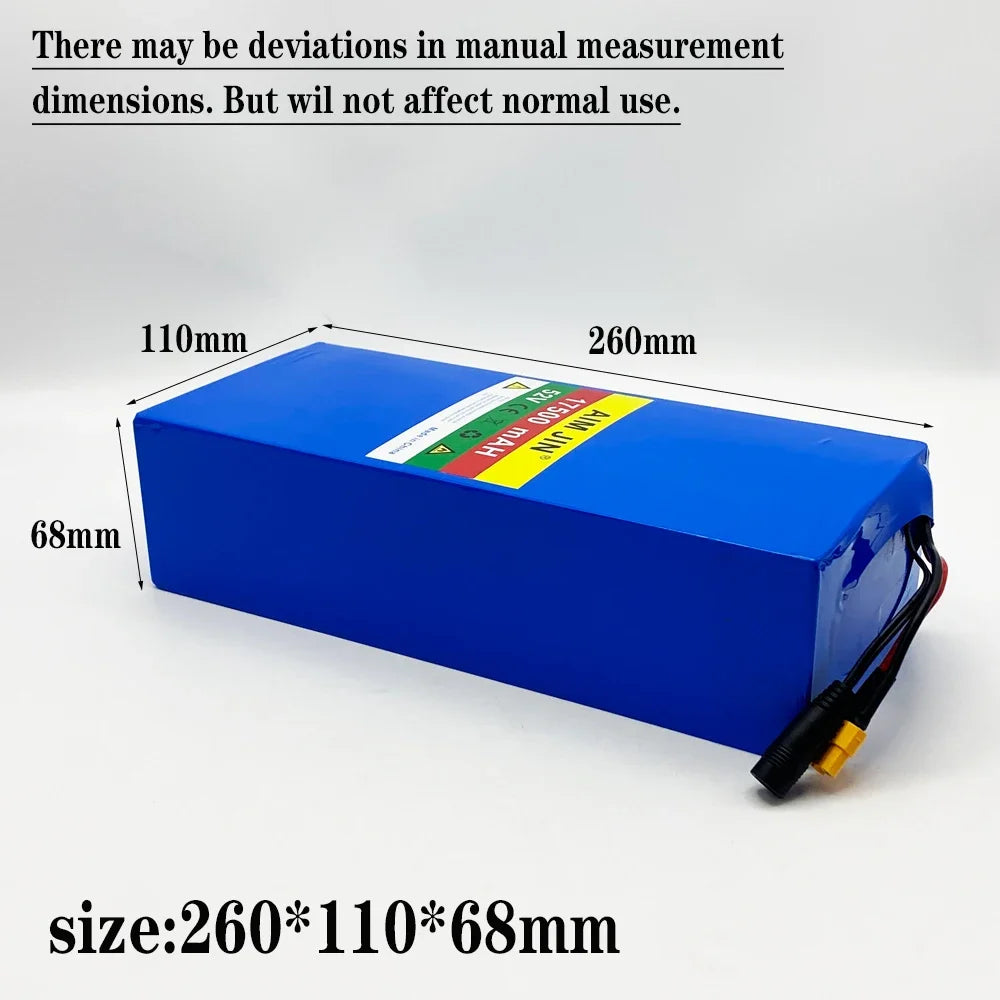

Physical Space Check: Measures 260mm L x 110mm W x 68mm H and weighs 2940g (6.48 lbs). Verify your frame bag, under-deck battery tray, or equipment bay dimensions prior to installation.
1500W Power Support: Optimized to support continuous high-discharge loads for drive systems ranging from 250W up to 1500W peak motor power.
🚀 Key High-Performance Features
-

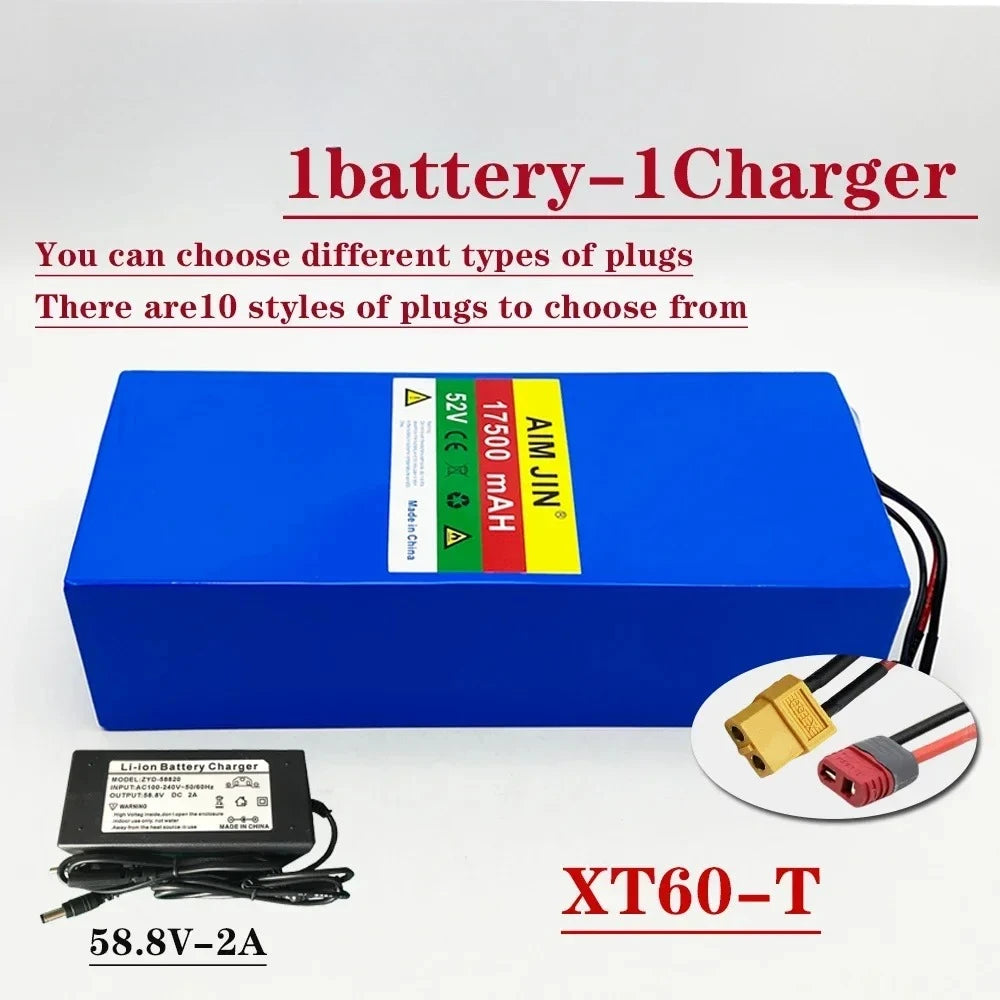

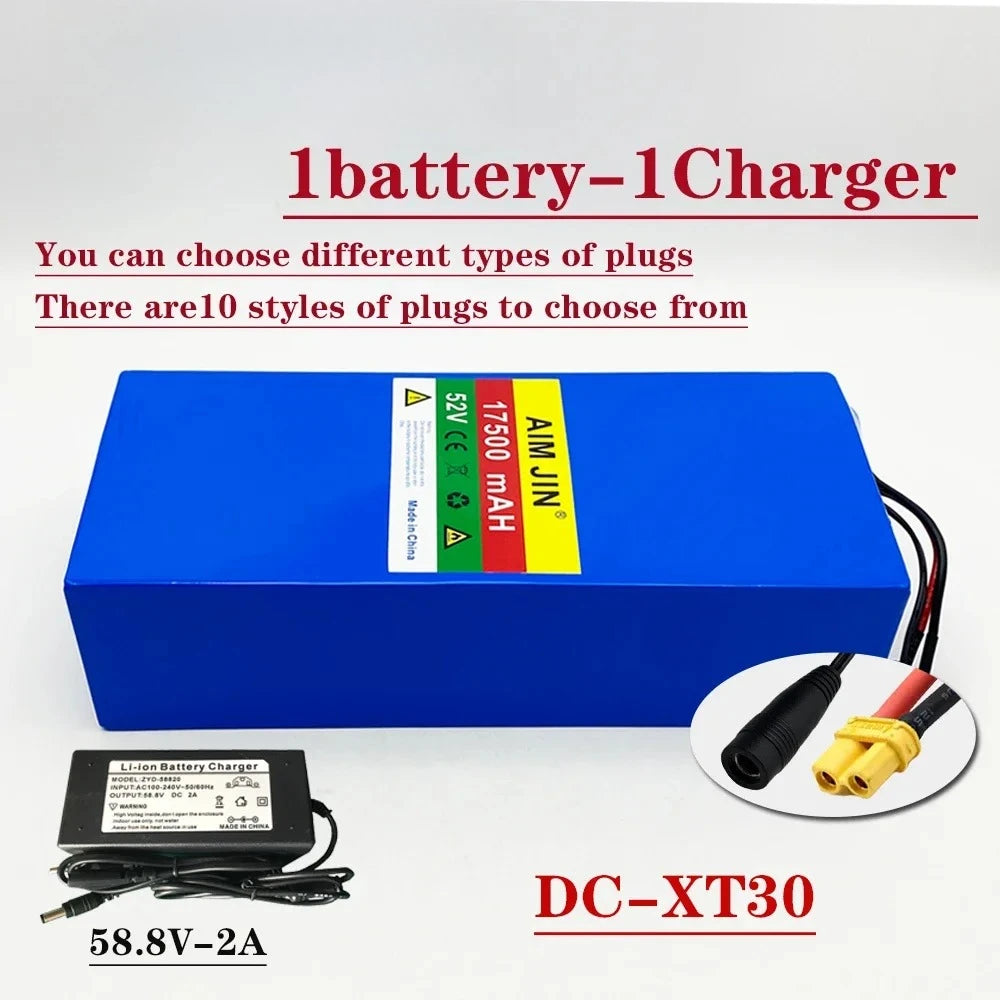

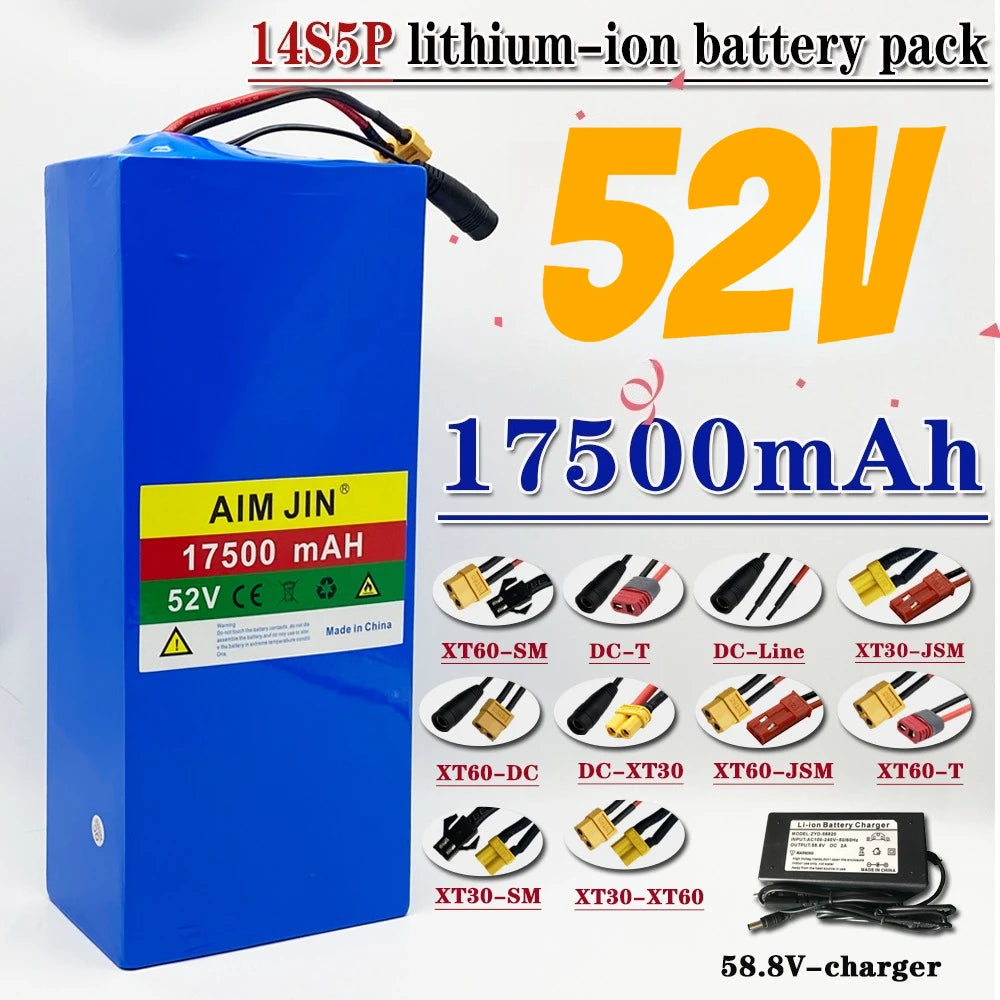

Complete All-In-One Power Bundle: Includes both the 52V 17.5Ah 18650 battery pack and its corresponding dedicated lithium-ion fast charger.
-

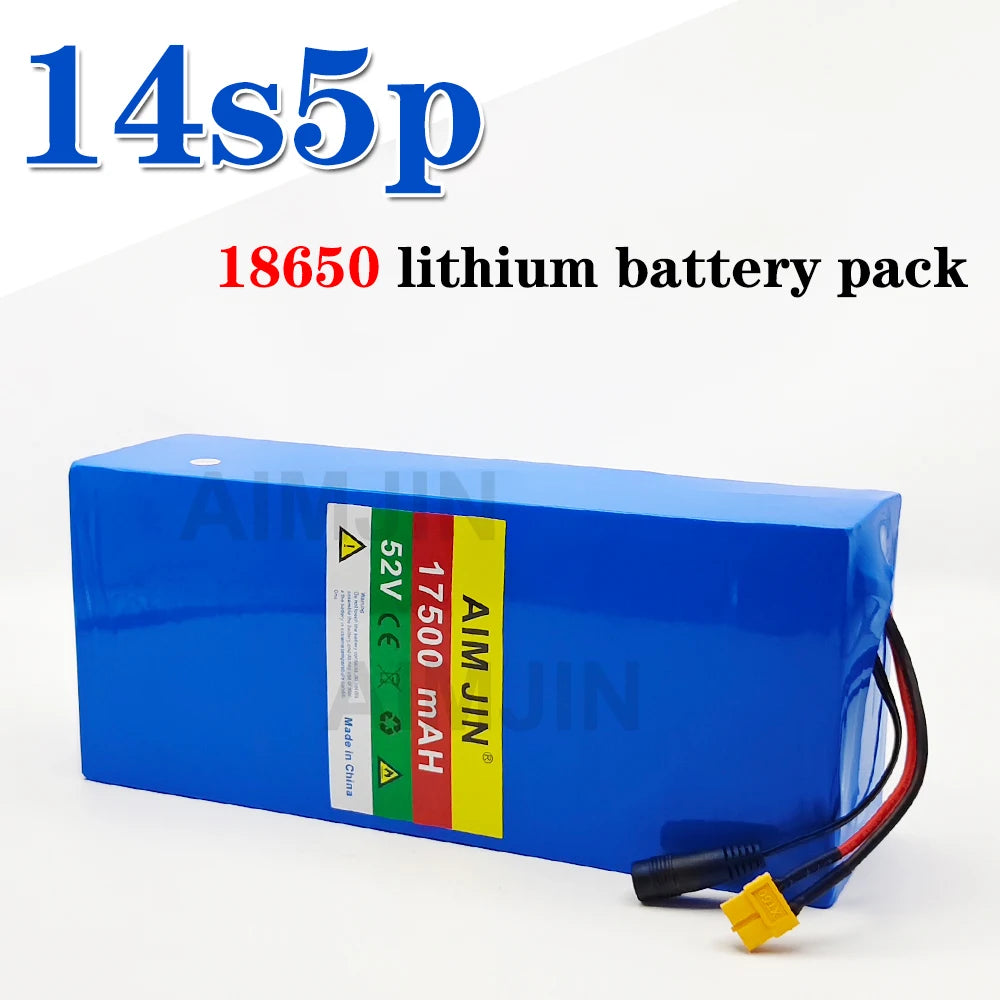

High-Density 14S5P Cell Configuration: Utilizes 70 high-grade 18650 cells to deliver a true 17.5Ah (17,500mAh) capacity at 52V nominal.
-

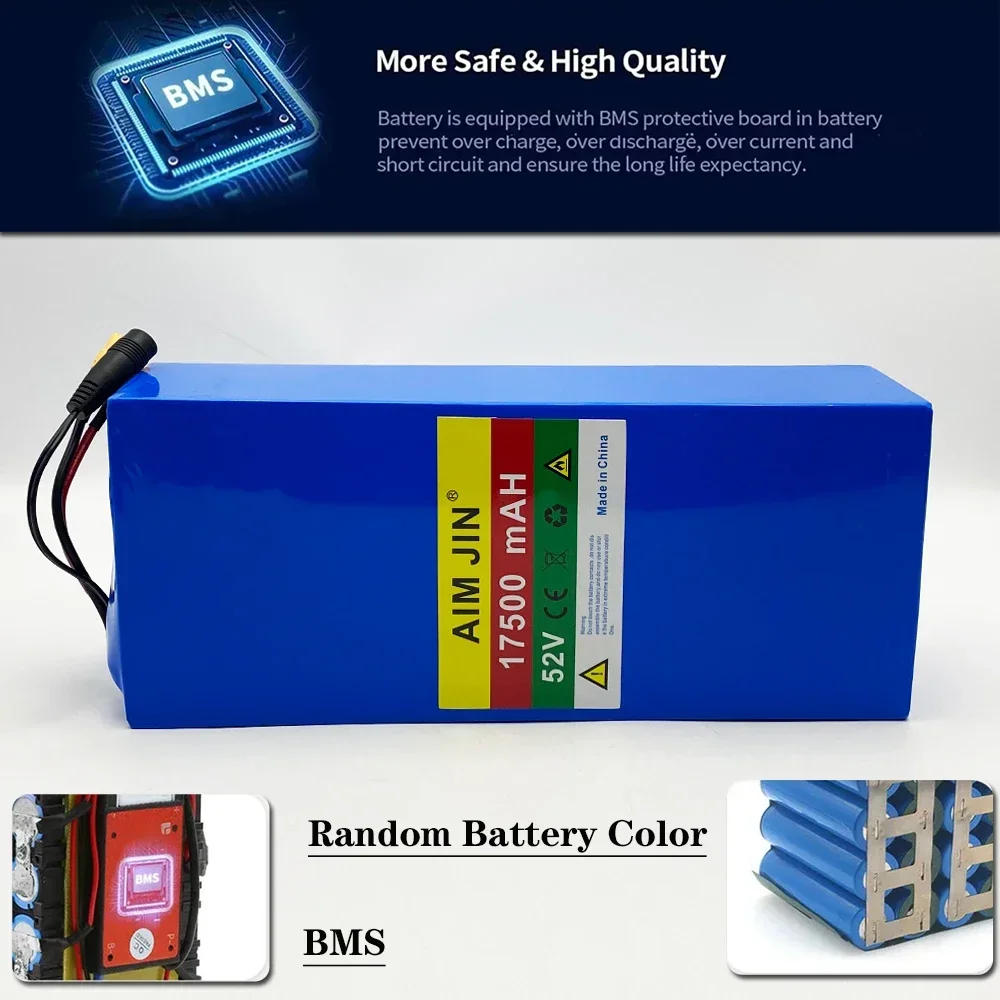

Integrated Smart BMS Board: Protects against short circuits, over-voltage, over-discharge, and current overloads while preserving long-term battery cell health.
-

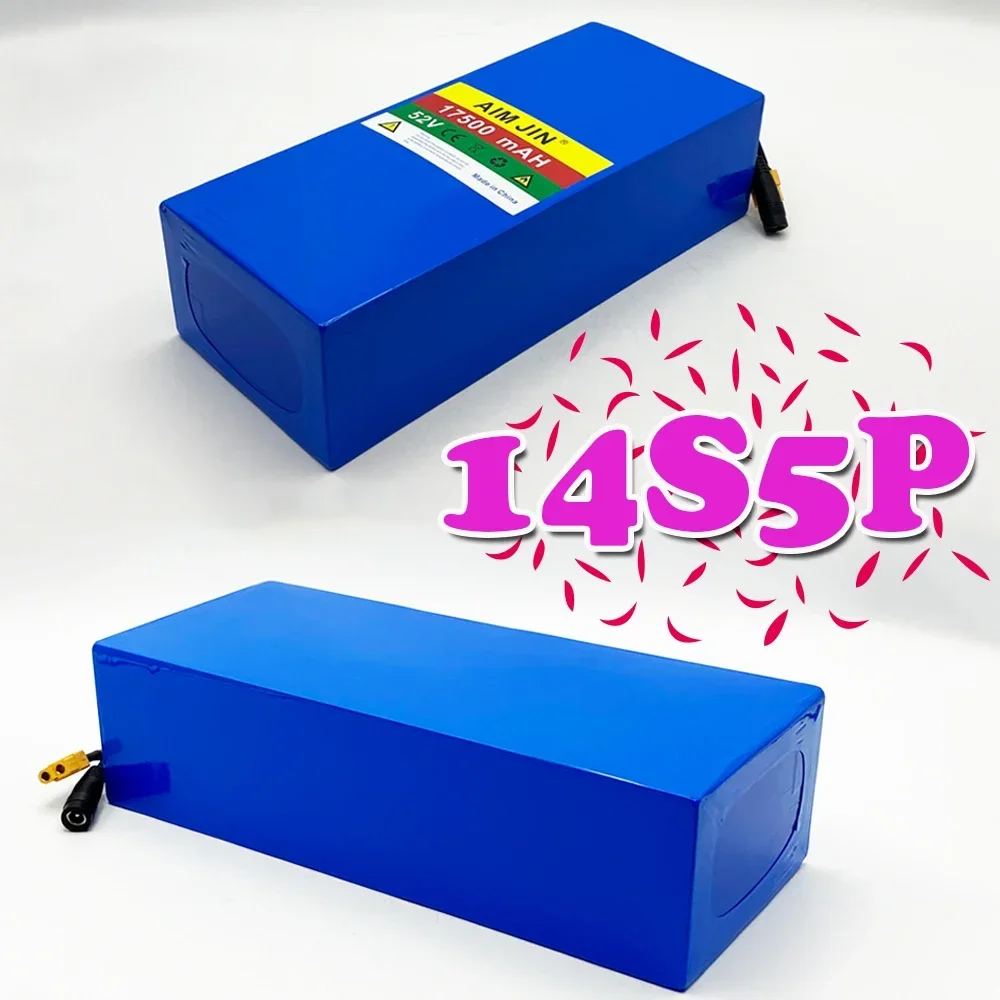

Streamlined Form Factor: Weighing under 6.5 lbs, the compact blue PVC casing fits easily into scooter decks, cargo boxes, and triangle frame bags.
-
CE Safety Certified: Tested and certified to comply with strict international CE safety standards.
📊 Technical Specifications Matrix
| Specification Parameter | aimjin 14S5P-52V Specifications |
| Brand / Model | aimjin / 14S5P-52V |
| Chemistry / Cell Type | Lithium-Ion (18650 Format) |
| Cell Configuration | 14S5P (14 Series, 5 Parallel) |
| Nominal Voltage | 52V DC (58.8V Fully Charged) |
| Nominal Capacity | 17.5Ah / 17,500mAh |
| Compatible Motor Power | Up to 1500W Continuous / Peak |
| Physical Dimensions | 260mm × 110mm × 68mm |
| Pack Weight | 2940g (6.48 lbs) |
| Included Accessories | Dedicated Lithium Fast Charger Included |
| Protection Circuit | Built-In Smart BMS |
| Safety Certifications | CE Certified |

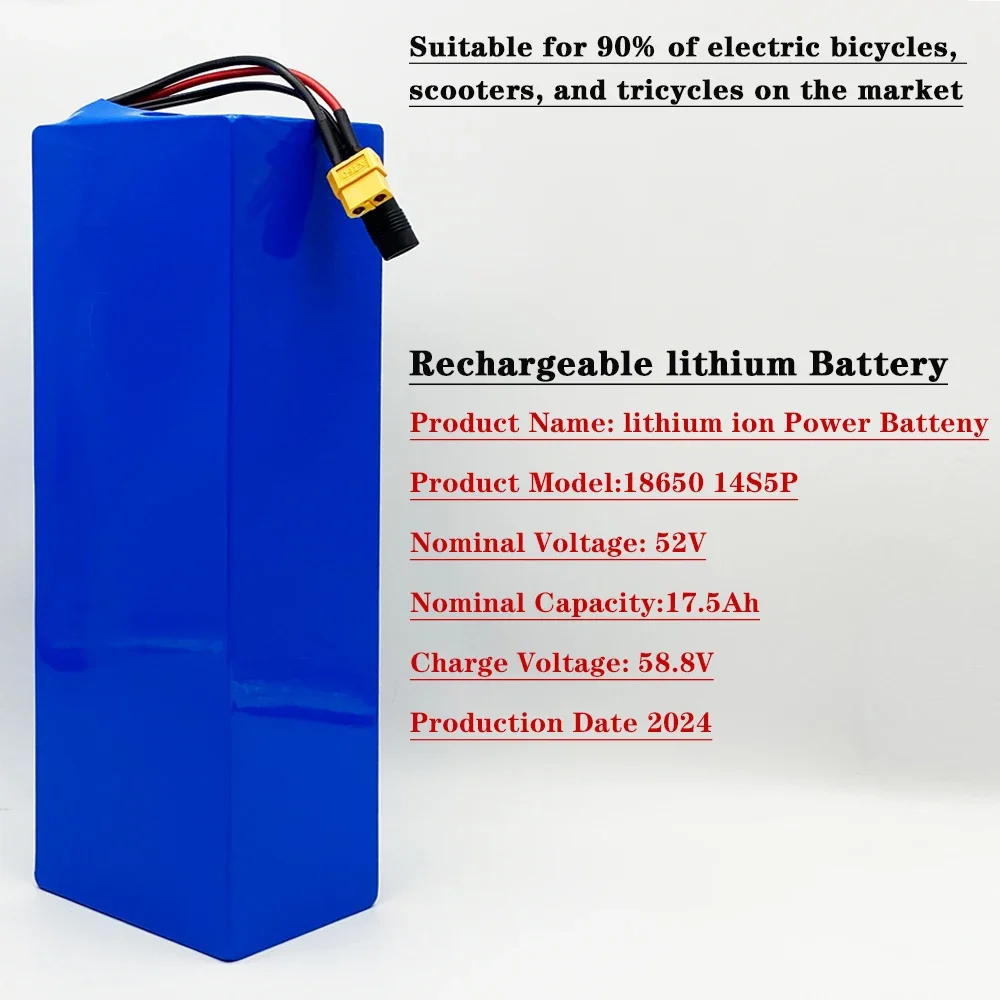

14S5P lithium battery 52V 17.5AH 18650 with BMS For 1500W various electronic devices and transportation equipment+charger
Battery model: 52V 17.5AH
Battery type: Lithium-Ion
Rated voltage: 52v
Rated capacity: 17500mah
Cell combination: 14s5p
Number of cells (parallel/row): 70pieces
Life cycle: 800-times (80% DOD)
Net weight: appro 2940G
Dimension: 260*110*68MM
Discharge shuts off voltage: 44 +/- 1v
Charge shuts down voltage: 58.8 V
Rated Discharge Current: 30A
Instantaneous Maximum Discharge Current: 60A
Maximum Continuous Discharge Current: 30A
Maximum Continuous Charge Current: 5A
Charge Mode: CC-CV
Standard Charge Current: 2A
Fast Charge Current: 5A
Charge Temperature Range : 0-45°C
Discharge Temperature Range: -20-65°C
Power:100-1500W
Built-in high-quality high-current BMS: battery has overcharge, overdischarge, overcurrent, short circuit, charge compensation of automatic identification, and protection circuit.
Application:

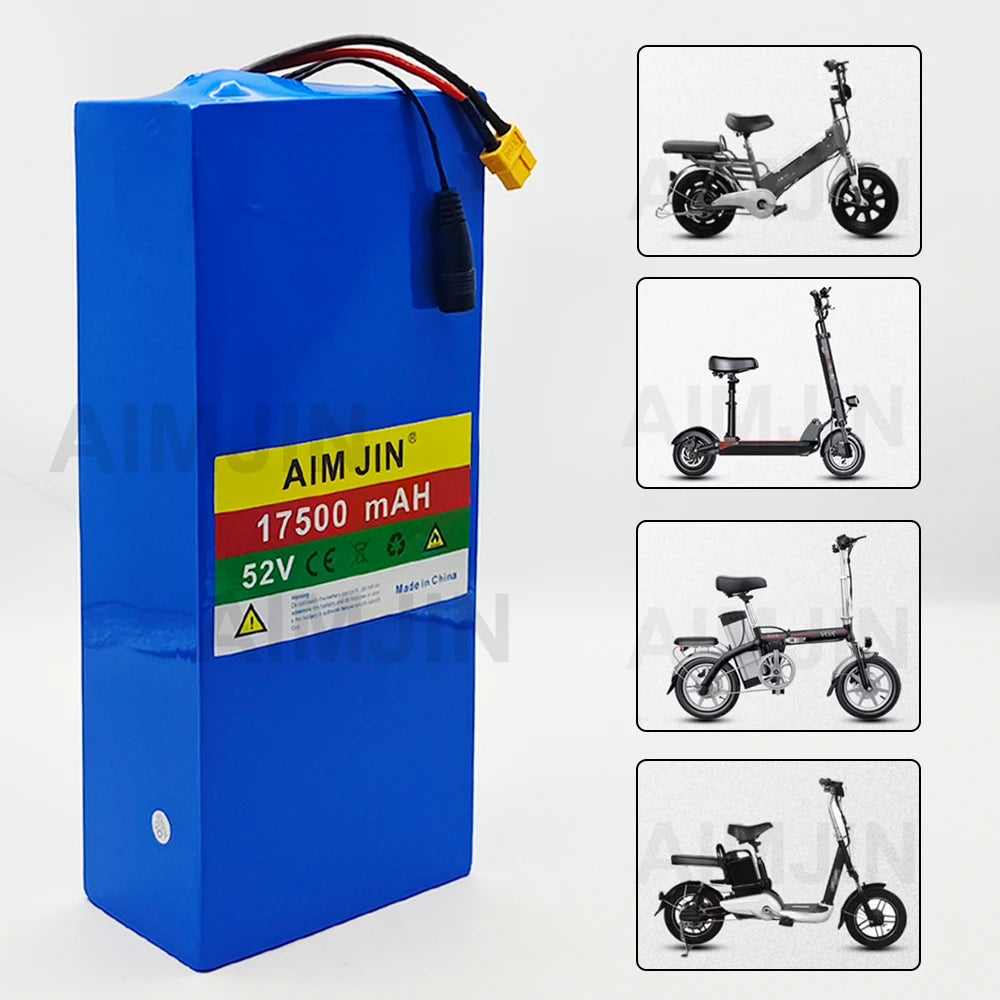

Suitable for under 1500W all 58.8V electric motor equipment, electric bike, electric scooter, electric tricycle, electric motor wheel, wheelchair, spare battery, etc.
