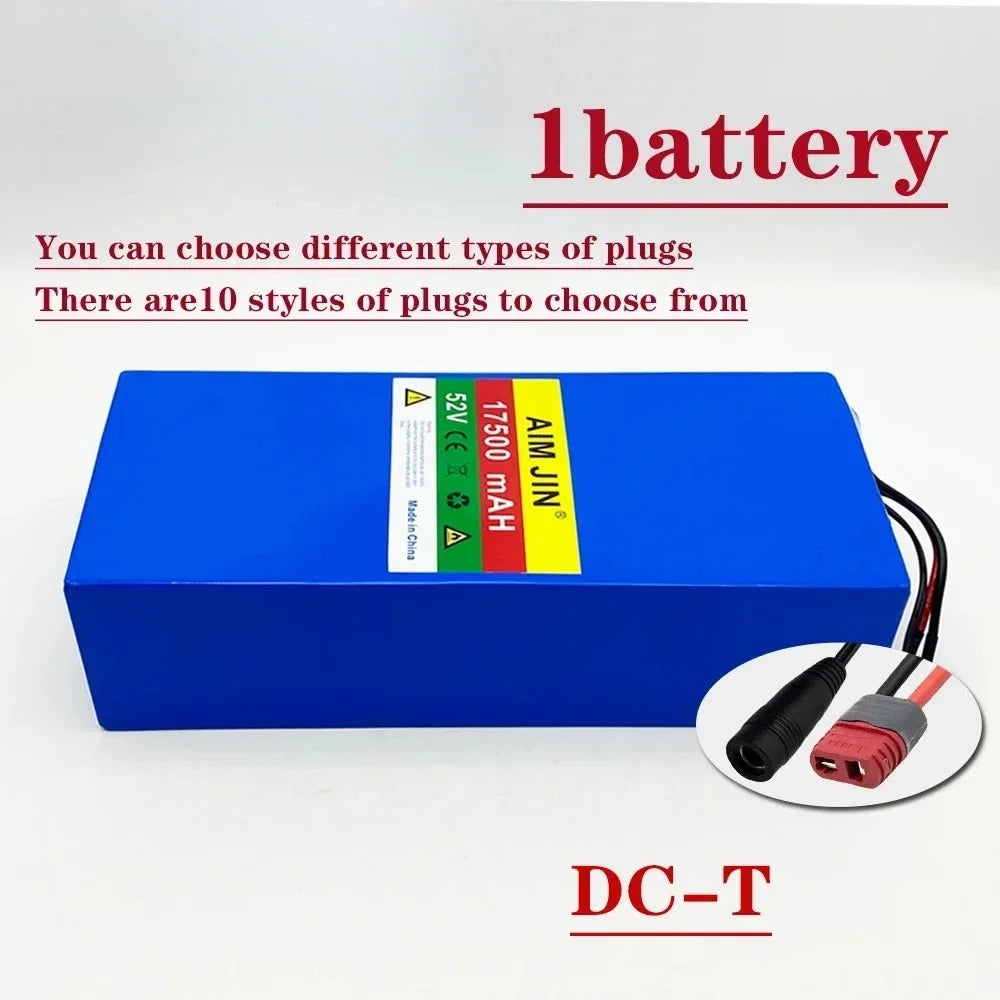

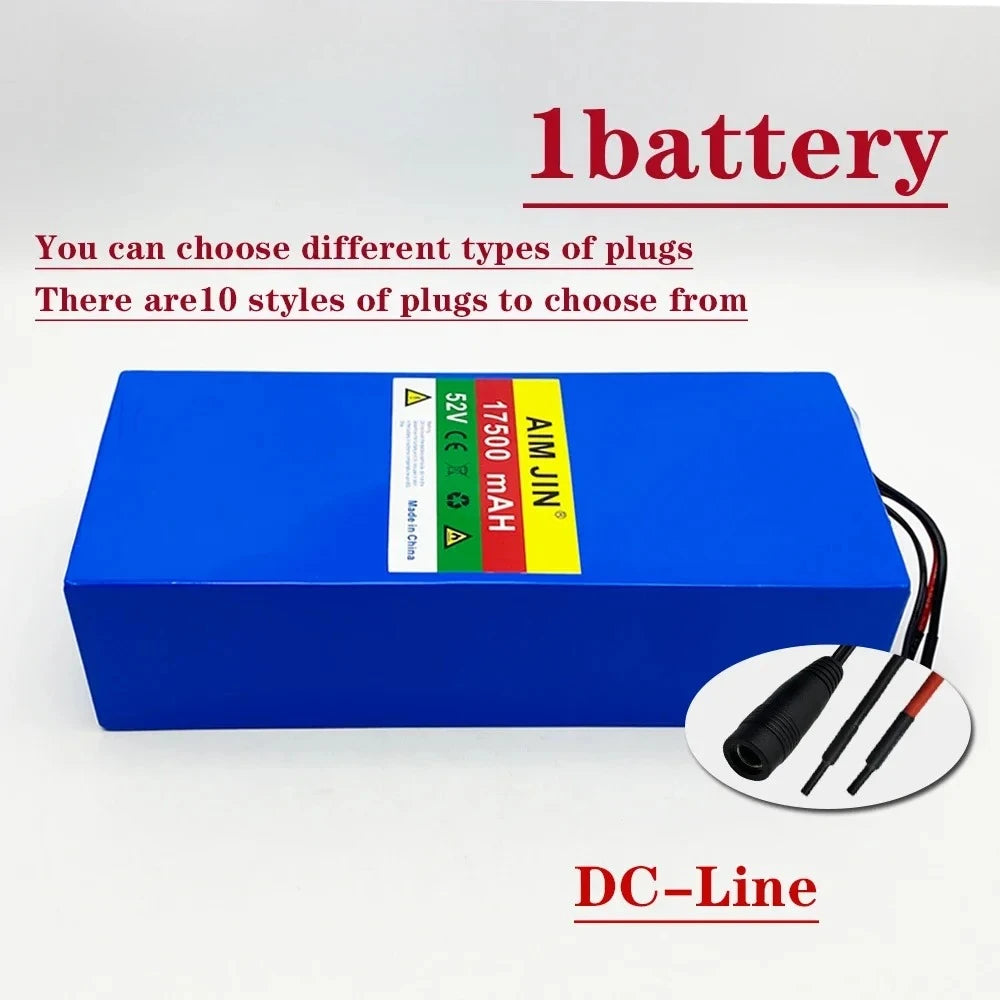

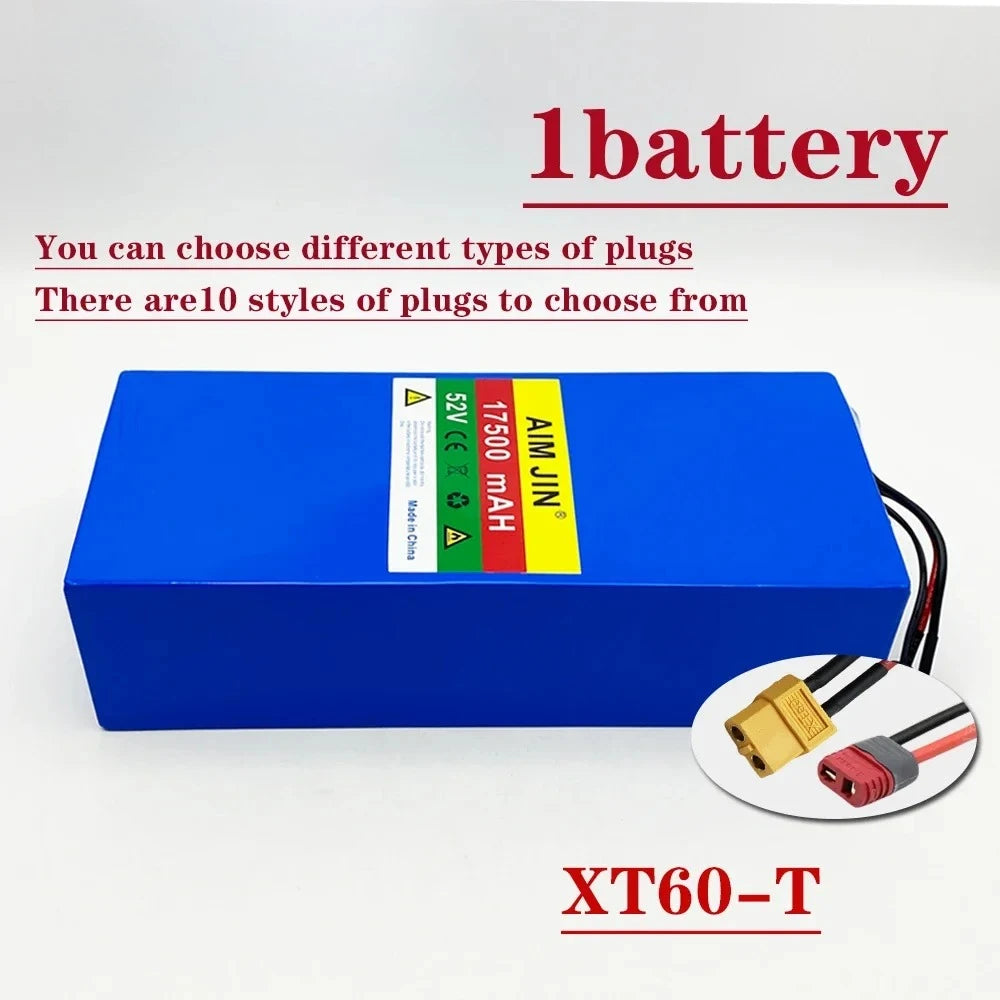

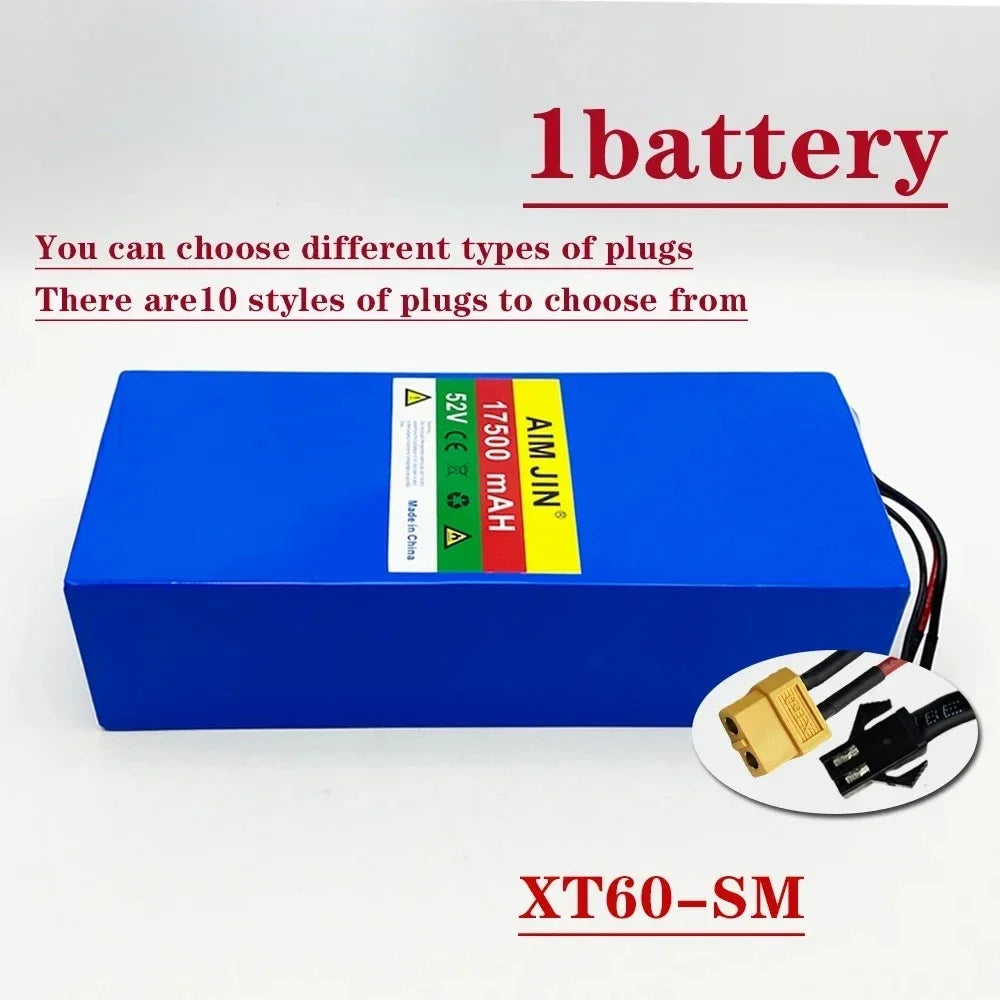

• A blue rectangular lithium-ion battery pack with a multicolor label, shown on a white background with text overlays and a circular inset showing included black and red cable connectors.
  • A blue rectangular lithium-ion battery pack with a yellow, green, and white label reading AIM JIN 17500 mAh 32C, shown on a white background with text overlays '14s5p' and '18650 lithium battery pack'.
  • A blue rectangular lithium battery pack with black and red cables and a yellow connector, shown on a white background with large text reading 52V, 17500mAH, and smaller text for a 14s5p 18650 lithium battery pack. Small connector type icons appear on the right.
  • Blue rectangular lithium-ion battery with dimension markings of 260mm x 110mm x 68mm, shown on a light gray background with text noting measurement deviations.
  • A blue rectangular rechargeable lithium-ion power battery with attached black, red, and gold wires, shown on a white background with product specifications text.

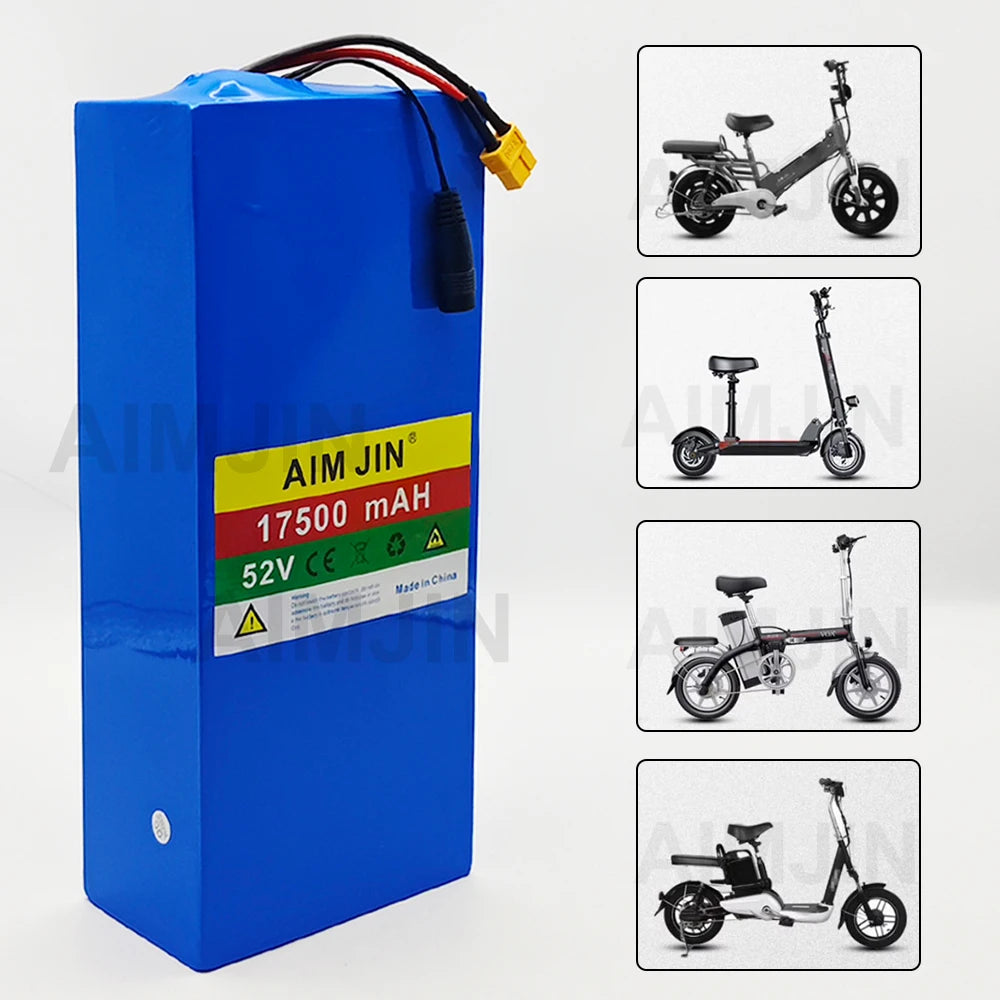

  • A blue rectangular AIM JIN battery pack with a yellow, red, and green label showing 17500 mAh and 52V, alongside four small inset images of different electric bicycles and scooters that use this battery.
1 6

Charge My E-Bike

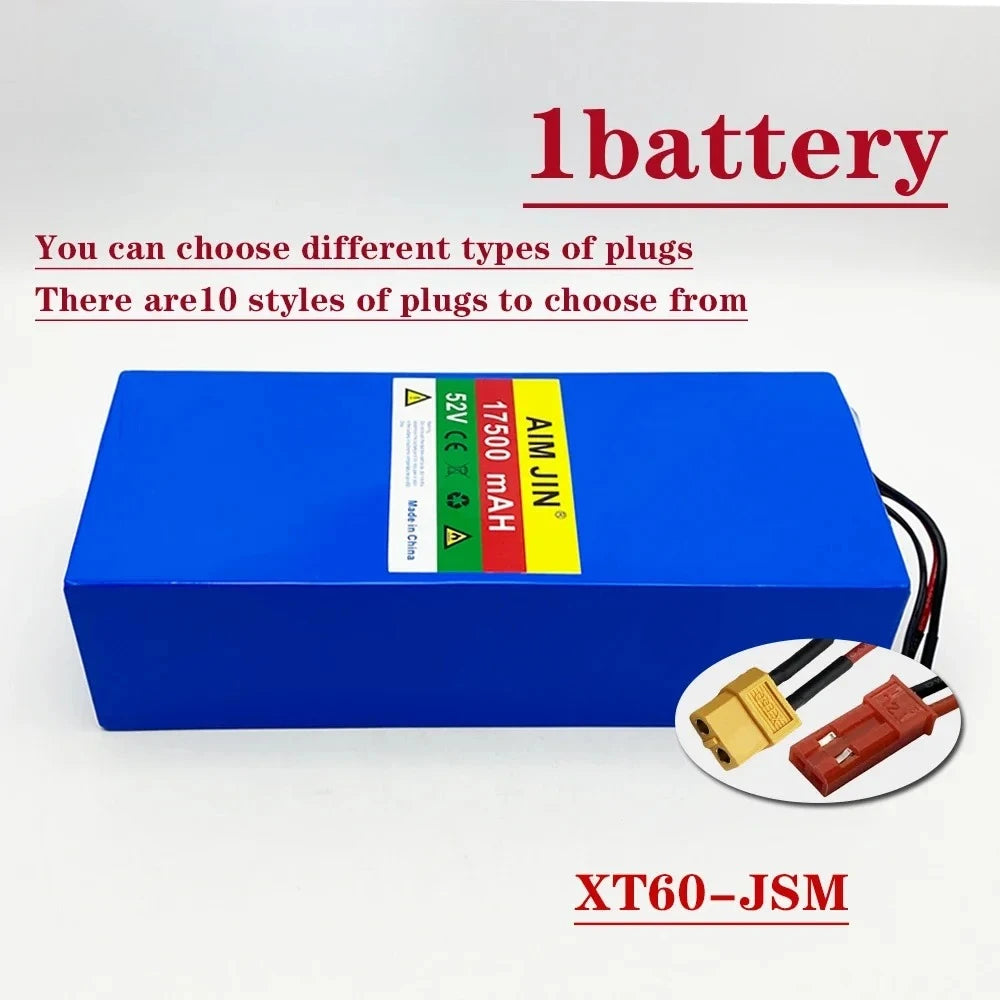

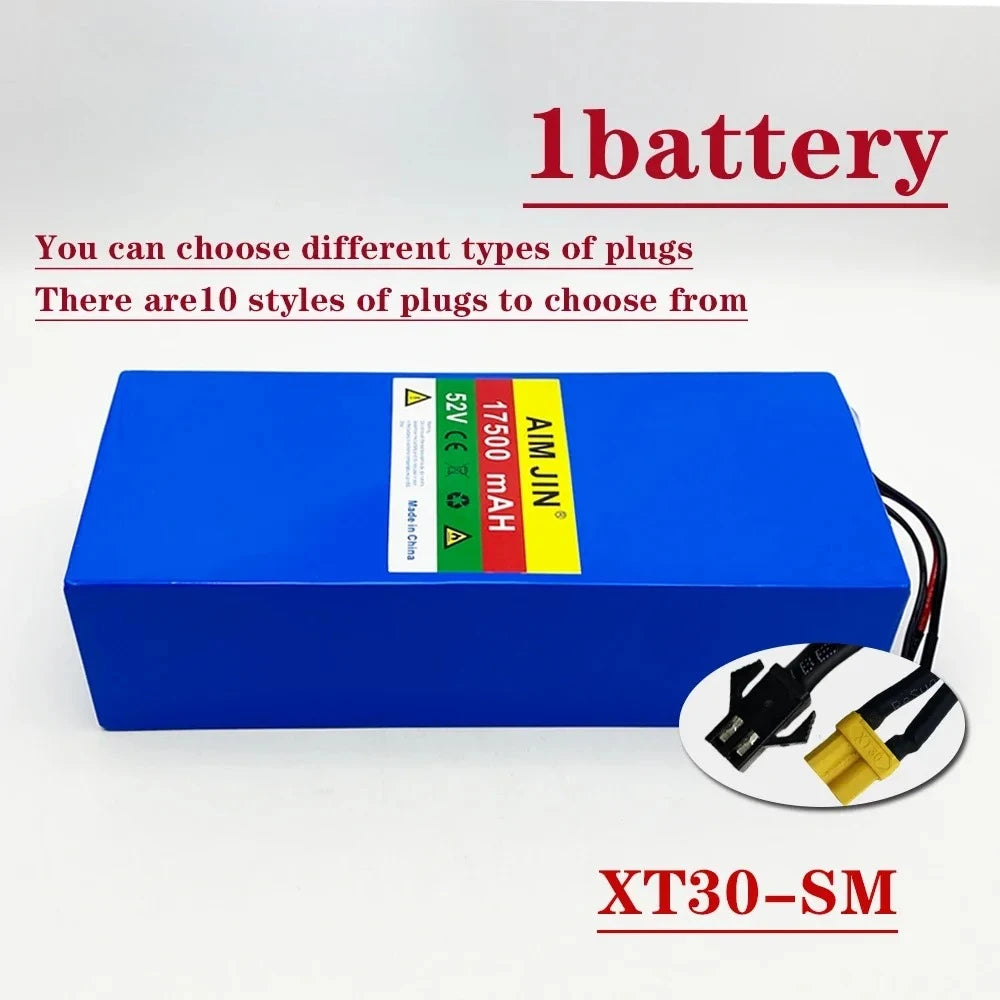

52V 17.5Ah (17,500mAh) 14S5P Lithium-Ion Battery Pack

52V 17.5Ah (17,500mAh) 14S5P Lithium-Ion Battery Pack

$363.51 USD
$163.51 USD $363.51 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Color

aimjin 52V 17.5Ah (17,500mAh) 14S5P Lithium-Ion Battery Pack with Integrated Smart BMS –

High-Output Power Supply for 1500W Electric Scooters & Mountain Bikes

Inject massive power and extended range into your custom electric mountain bike, high-speed commuter, or electric scooter with the Aimjin 52V 17.5Ah Lithium-Ion Battery Pack.

Custom-configured in a highly efficient 14S5P cell matrix, this compact energy powerhouse utilizes premium 18650 lithium-ion cells to deliver stable, high-current discharge capable of continuously driving high-torque motors up to 1500W.

Engineered for DIY builders, system upgrades, and custom mobility platforms, this 2.94kg (6.48 lbs) shrink-wrapped battery block features a built-in Smart Battery Management System (BMS) to maximize cell health.

It actively protects against overcharging, deep depletion, thermal overload, and short circuits, ensuring a long and safe operating lifecycle for your e-mobility investment.

⚠️ Dimensions & System Compatibility Notice

IMPORTANT CUSTOM BUILD MEASUREMENTS:

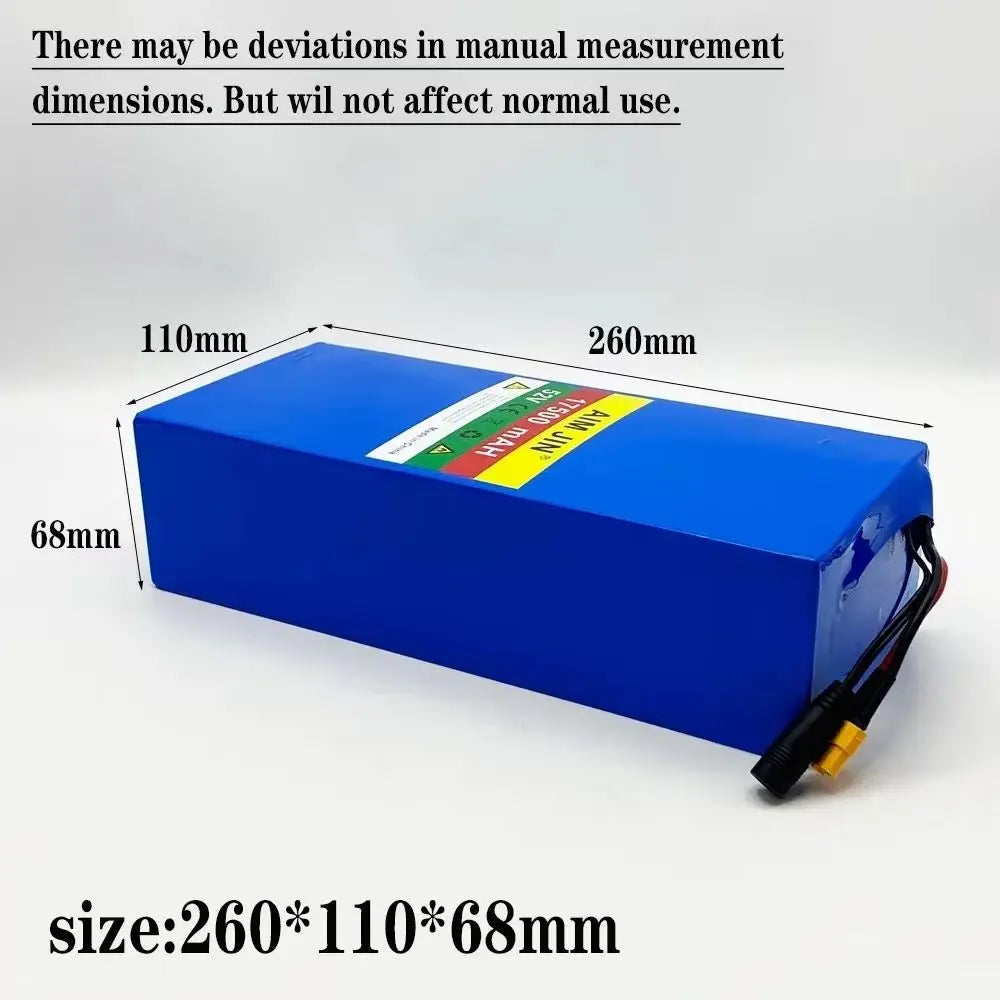

  • Pack Dimensions: This shrink-wrapped pack measures exactly 260mm x 110mm x 68mm. Please measure your battery bag, scooter deck enclosure, or frame triangle carefully before ordering.

  • Controller Compatibility: Ensure your motor controller is rated to accept 52V nominal (58.8V fully charged) power inputs.

  • Motor Rating: Optimized for high-draw systems ranging from standard 500W motors up to 1500W peak output applications.

🚀 Key High-Performance Features

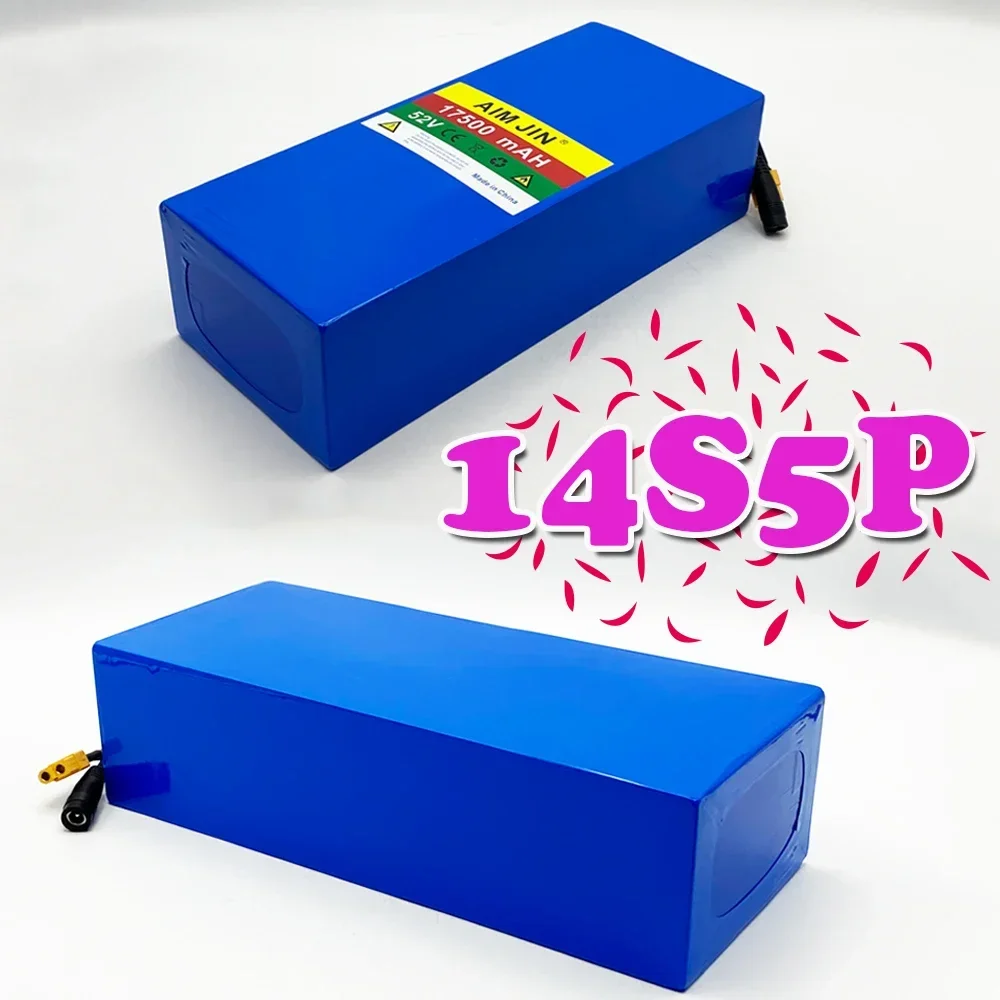

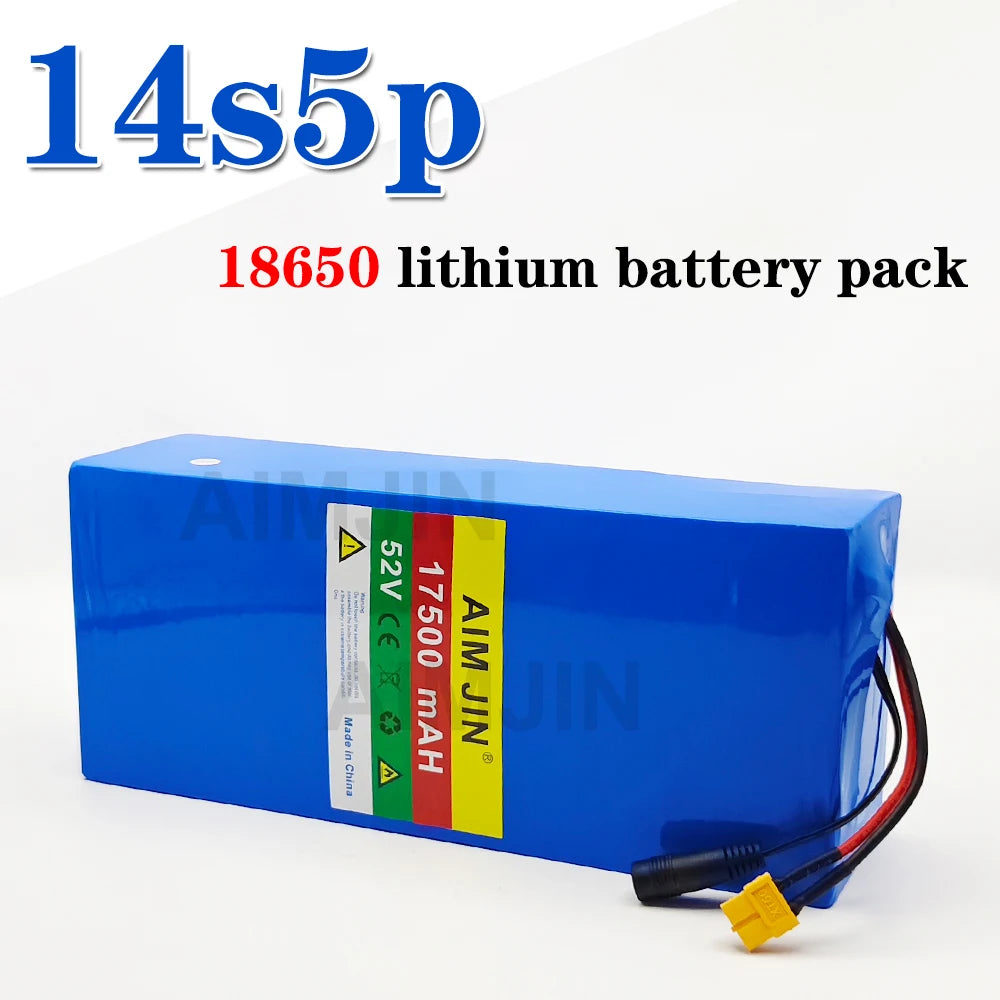

  • High-Density 14S5P Architecture: Combines 70 individual high-quality 18650 lithium cells (14 Series, 5 Parallel) to achieve a true 17.5Ah (17,500mAh) capacity at 52V.

  • 1500W Motor Support: Delivers reliable, continuous high-current discharge without voltage sag to drive powerful e-bike hub and mid-drive motors.

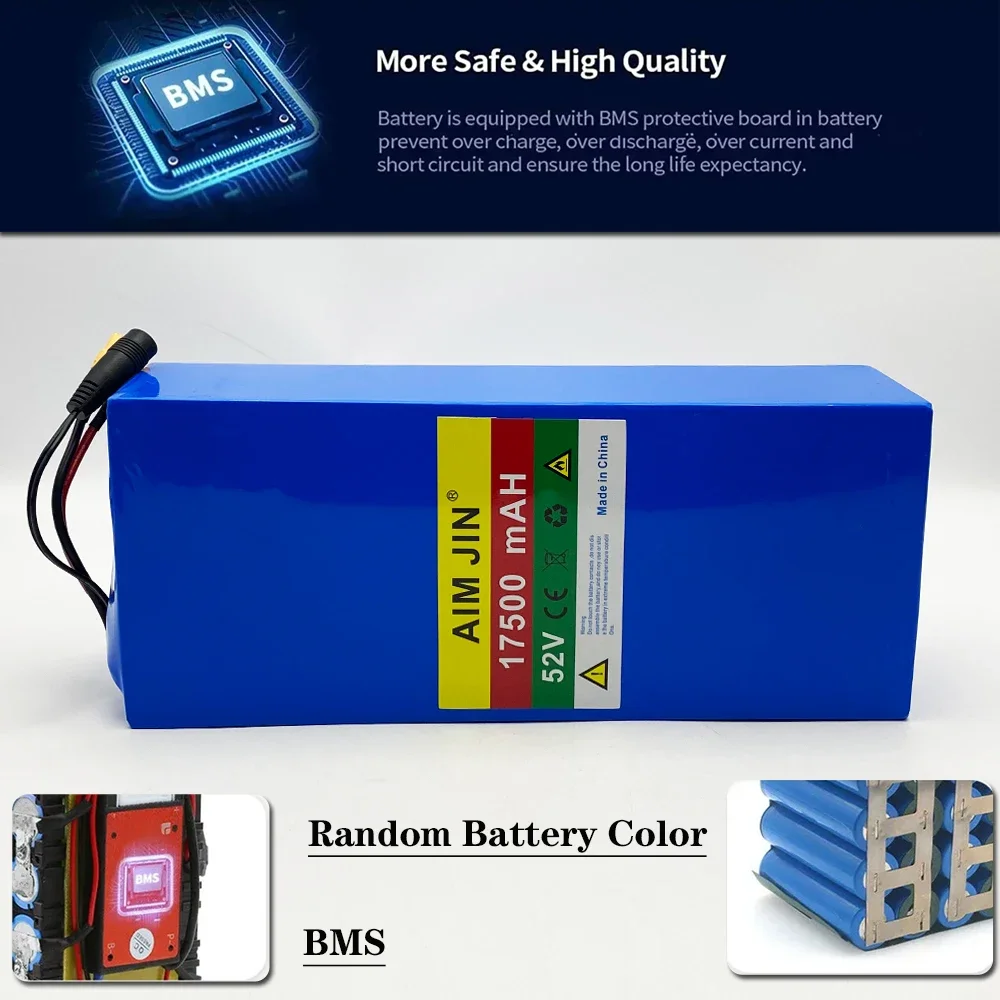

  • Integrated Smart BMS Board: Continuously monitors cell balance while safeguarding against over-current, over-charge, over-discharge, and short-circuit faults.

  • Compact & Lightweight Format: Weighing just 2940g (6.48 lbs) with a streamlined PVC shrink-wrap casing, it perfectly fits inside triangle frame bags and under-deck scooter compartments.

  • CE Safety Certified: Meets strict international CE safety, environmental, and quality control standards.

📊 Technical Specifications Matrix

Specification Parameter aimjin 14S5P-52V Specifications
Brand / Model aimjin / 14S5P-52V
Battery Chemistry Lithium-Ion (18650 Cell Format)
Cell Configuration 14S5P (14 Series, 5 Parallel)
Nominal Voltage 52V DC (Fully Charged = 58.8V)
Nominal Capacity 17.5Ah / 17,500mAh
Supported Motor Power Up to 1500W Continuous
Physical Dimensions 260mm × 110mm × 68mm
Pack Weight 2940g (Approx. 6.48 lbs)
Protection System Built-in Smart BMS
Safety Certification CE Certified
Primary Applications

Custom Electric Bicycles, E-Scooters, Mountain Bikes



\



⚙️ Installation & Wiring Guide

  1. Verify Dimensions: Before hardwiring, test-fit the 260x110x68mm battery pack inside your intended enclosure (scooter deck, battery box, or frame bag).

  2. Controller Integration: Splice or solder the battery's primary discharge leads to your e-bike or scooter controller, matching the exact polarity (Red to Positive, Black to Negative). Ensure all connections are fully insulated with heat shrink.

  3. Secure the Pack: Ensure the battery is padded with vibration-dampening foam (EVA) inside its enclosure to prevent physical shock damage to the cells during off-road or high-speed riding.

📦 Package Contents

  • 1 x aimjin 52V 17.5Ah (14S5P) PVC Shrink-Wrapped Lithium-Ion Battery Pack with Built-in BMS

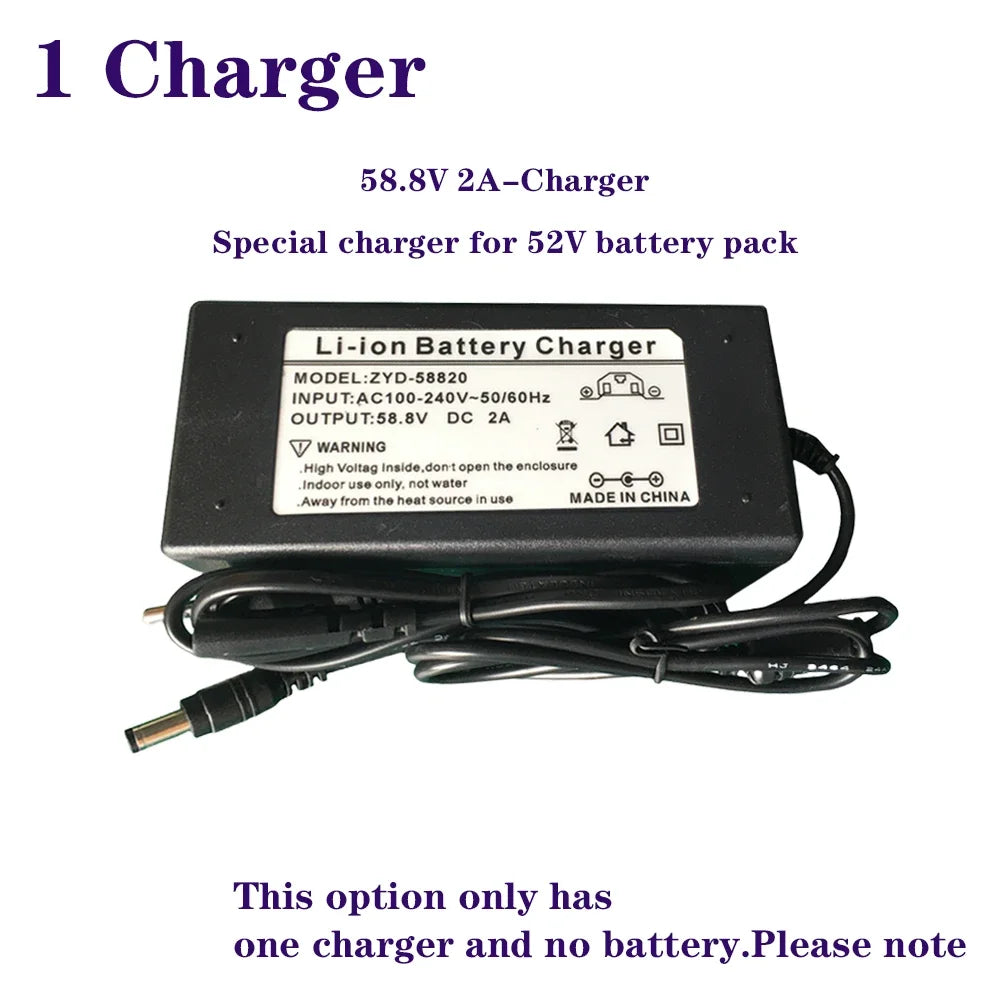

  • (Note: Battery charger and exterior mounting cases are not included with bare-pack configurations)

Upgrade your e-mobility rig with 52V high-capacity 18650 lithium power. Verify your dimensions, click Add to Cart, and supercharge your ride today!

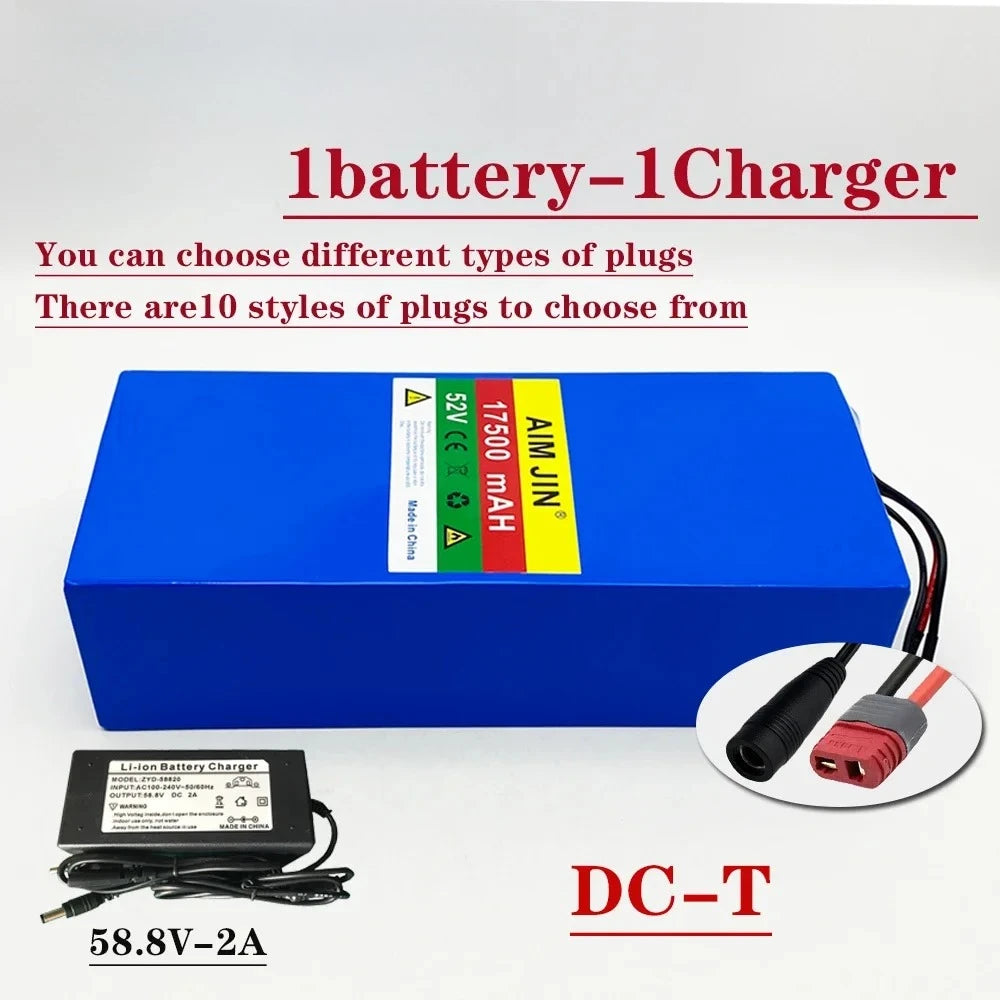

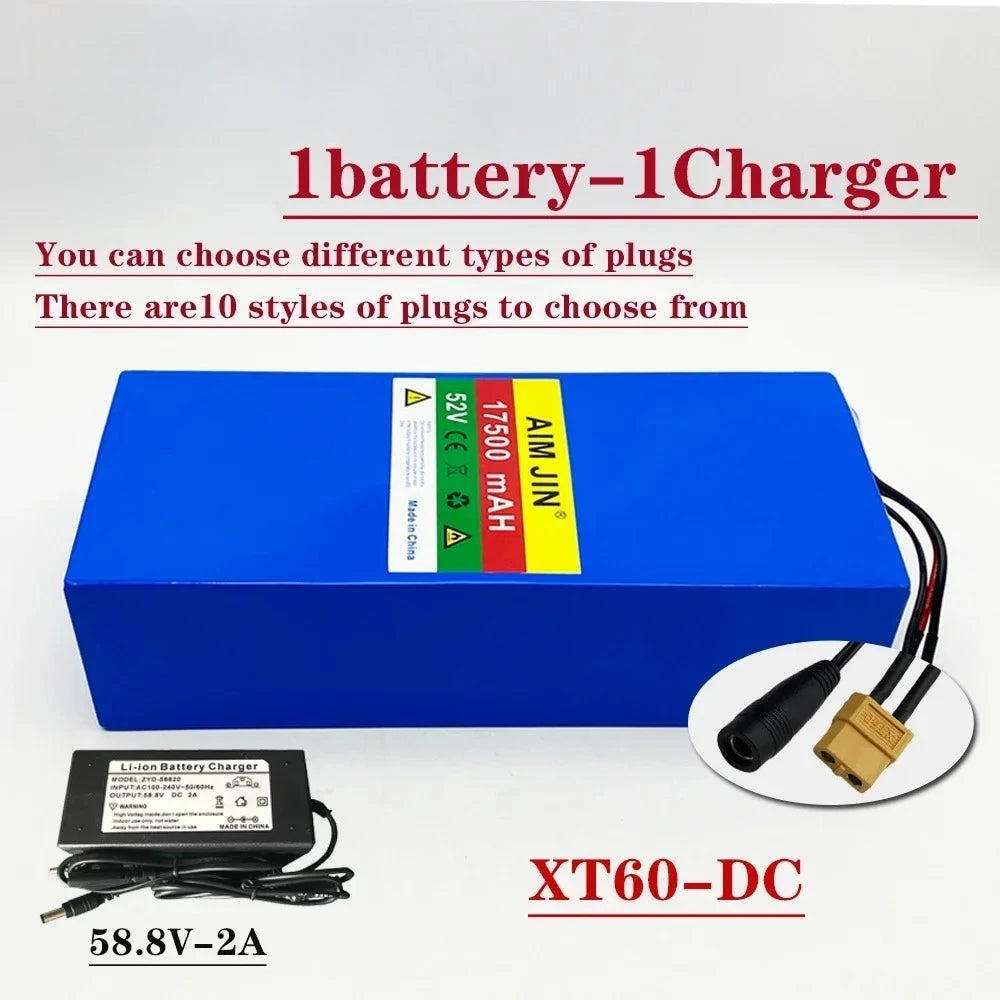

14S5P lithium battery 52V 17.5AH 18650 with BMS For 1500W various electronic devices and transportation equipment+charger

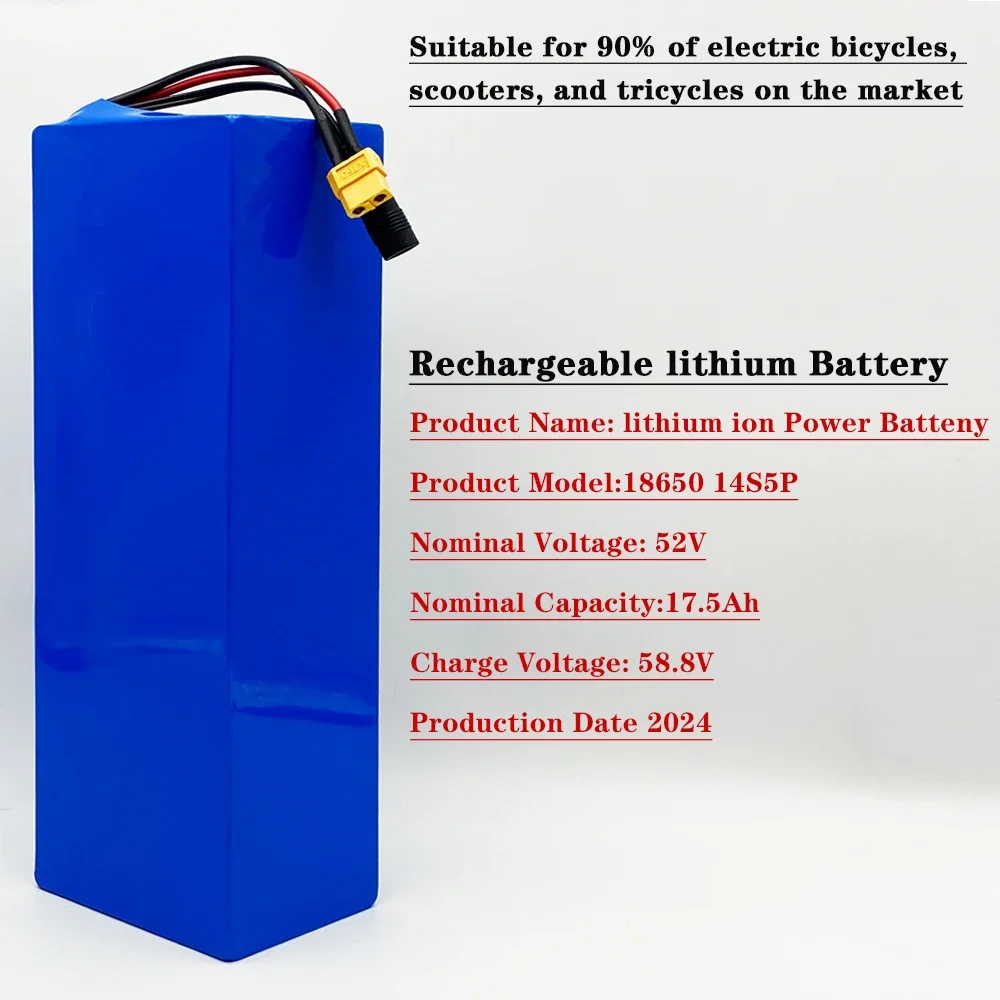

Battery model: 52V 17.5Ah

Battery type: Lithium-Ion

Rated voltage: 52v

Rated capacity: 17500mah

Cell combination: 14S5P

Number of cells (parallel/row): 70pieces

Life cycle: 800 times (80% DoD)

Net weight: appro 2940G

Dimension: 260*110*68MM

Discharge shut-off voltage: 44 +/- 1v

Charge shut-off voltage: 58.8 V

Rated Discharge Current: 30A
Instantaneous Maximum Discharge Current: 60A
Maximum Continuous Discharge Current: 30A
Maximum Continuous Charge Current: 5A
Charge Mode: CC-CV
Standard Charge Current: 2A
Fast Charge Current: 5A
Charge Temperature Range : 0-45°C
Discharge Temperature Range: -20-65°C
Power:100-1500W

Built-in high quality high current bms: battery has overcharge, over discharge, over current, short circuit, charge compensation, automatic identification, and protection circuits.

Application:

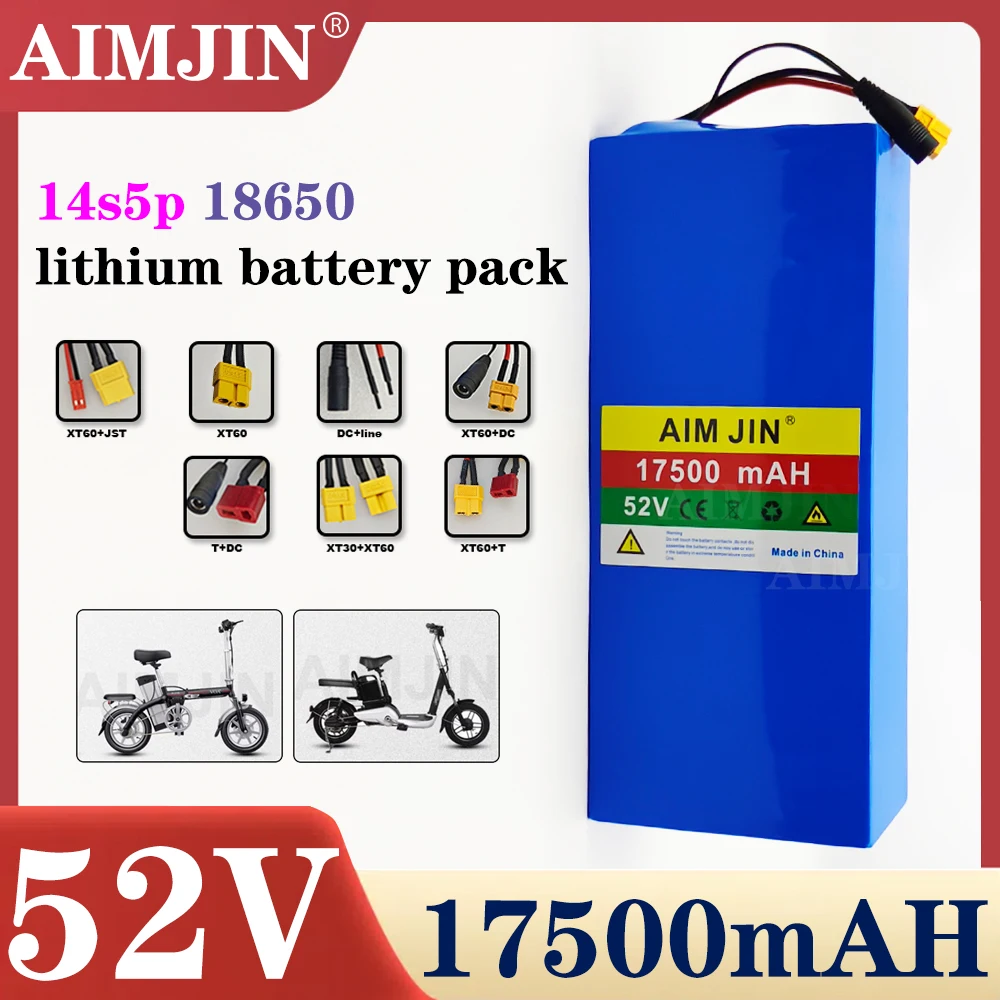

Suitable for under 1500W 58.8V electric motor equipment, electric bike, electric scooter, electric tricycle, electric motor wheel, wheelchair, spare battery, etc.
