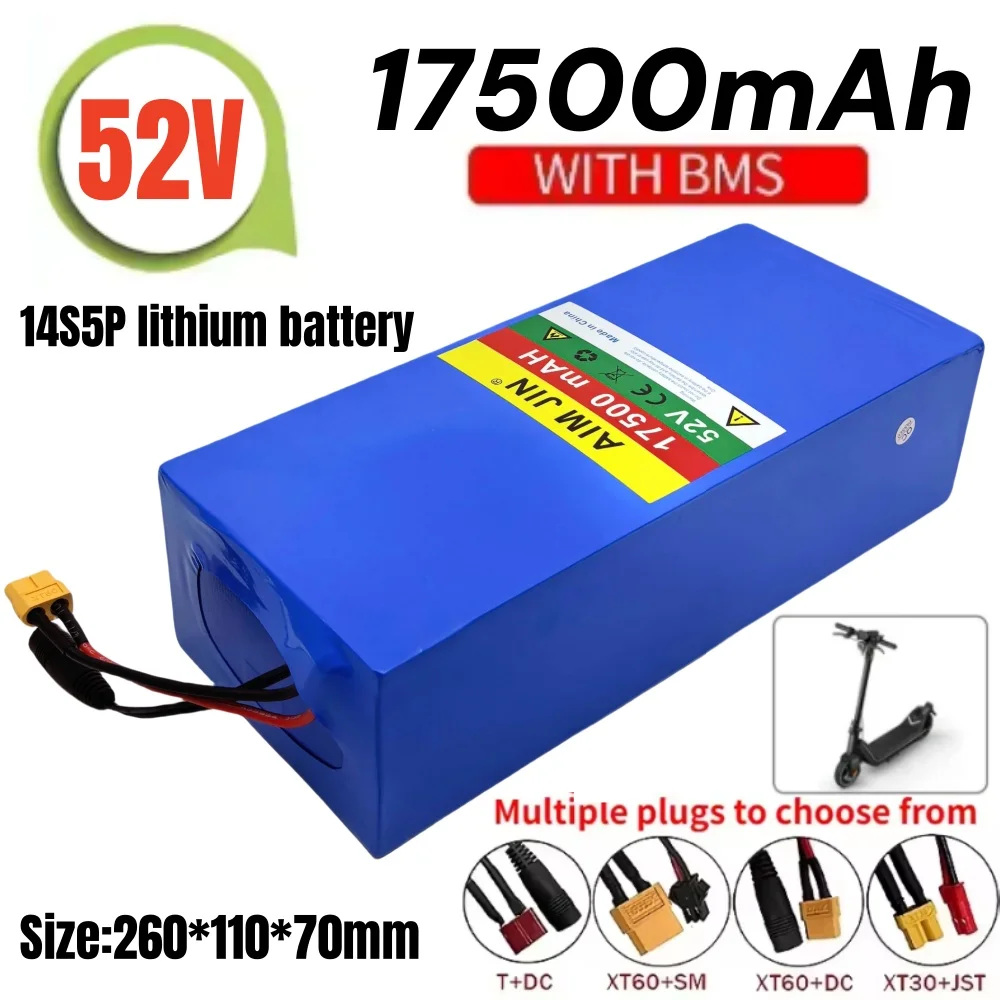

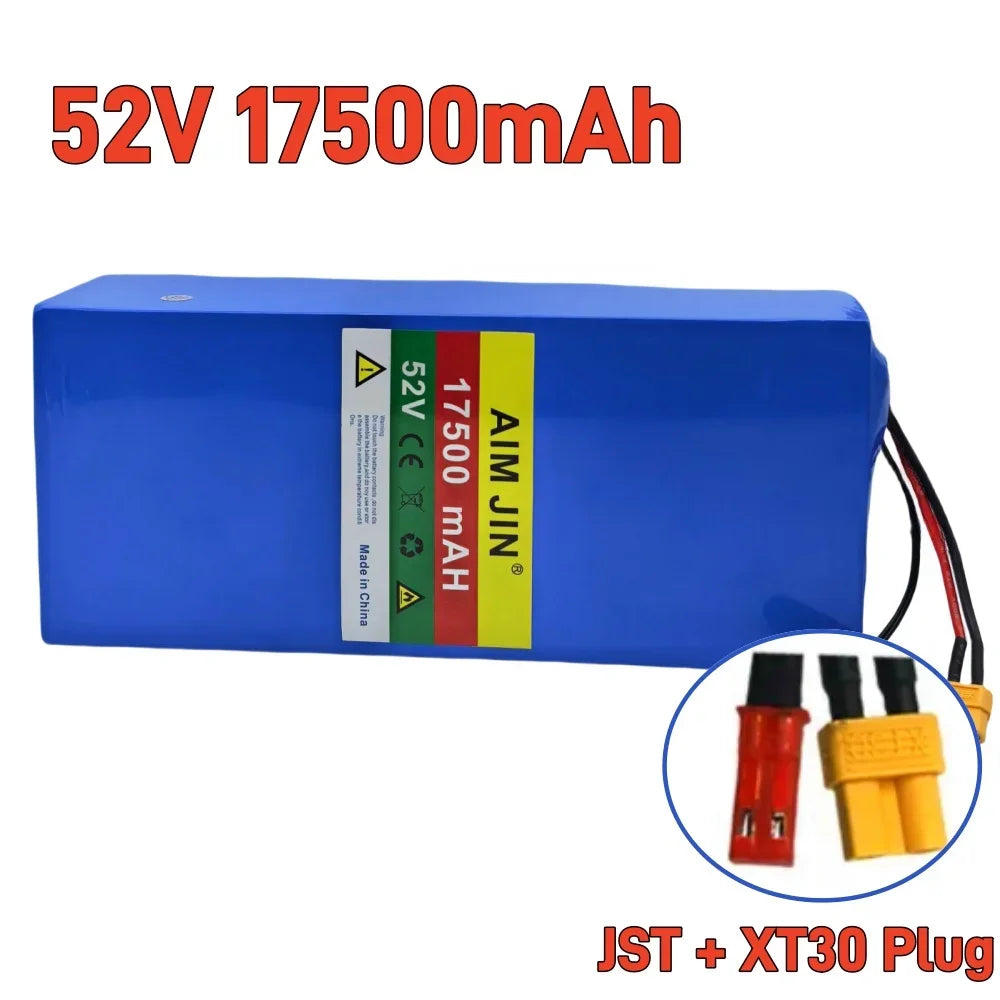

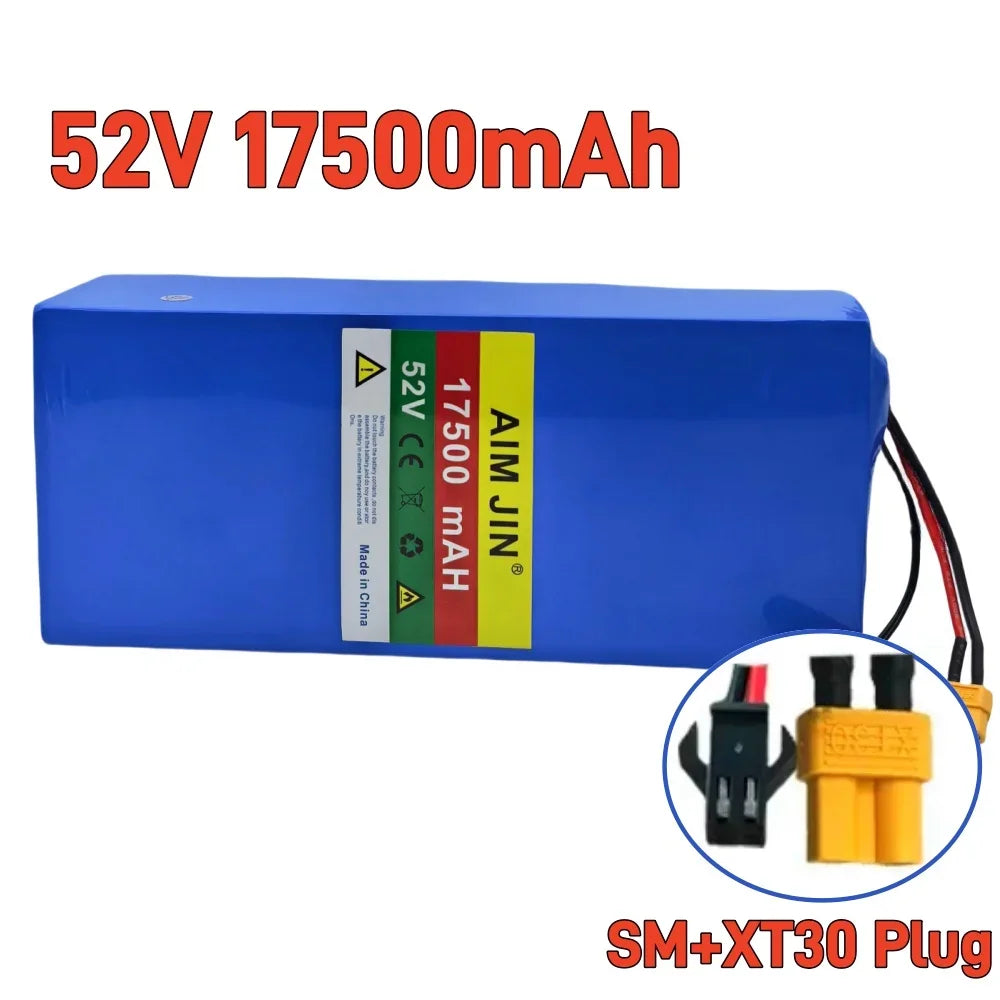

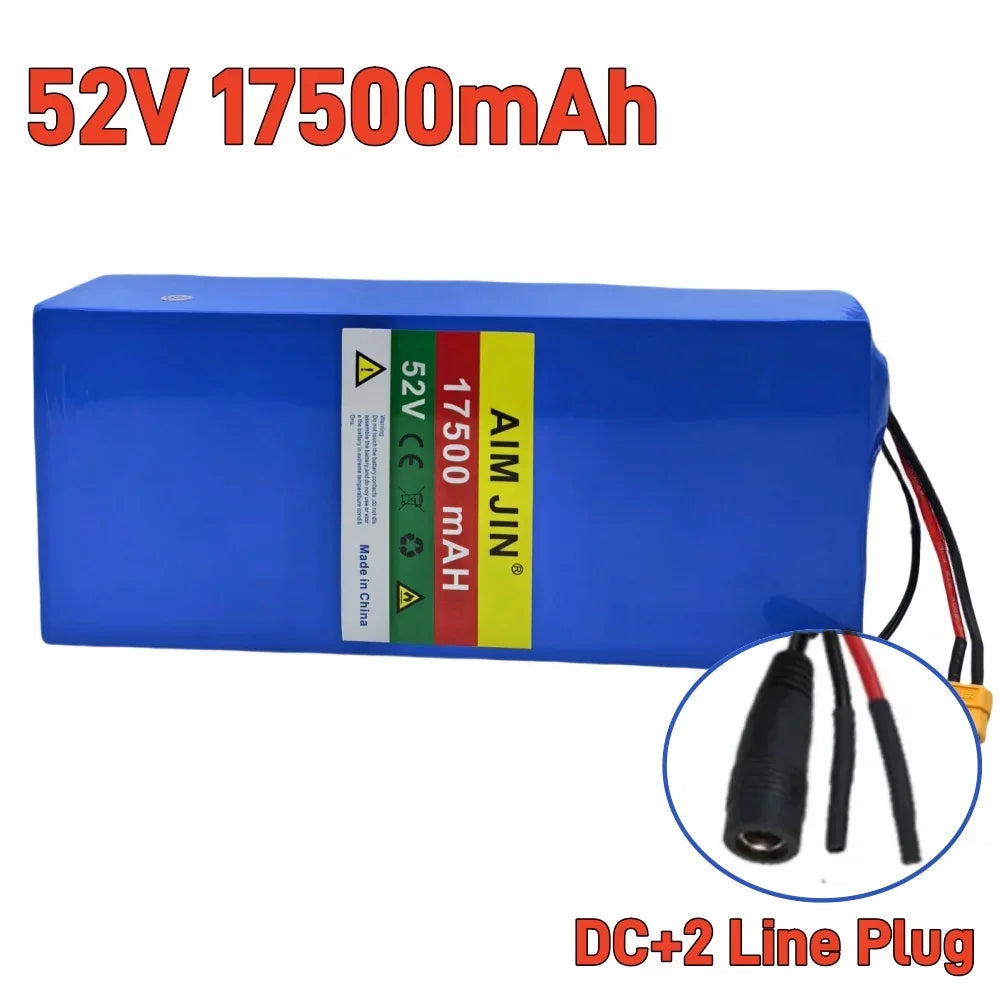

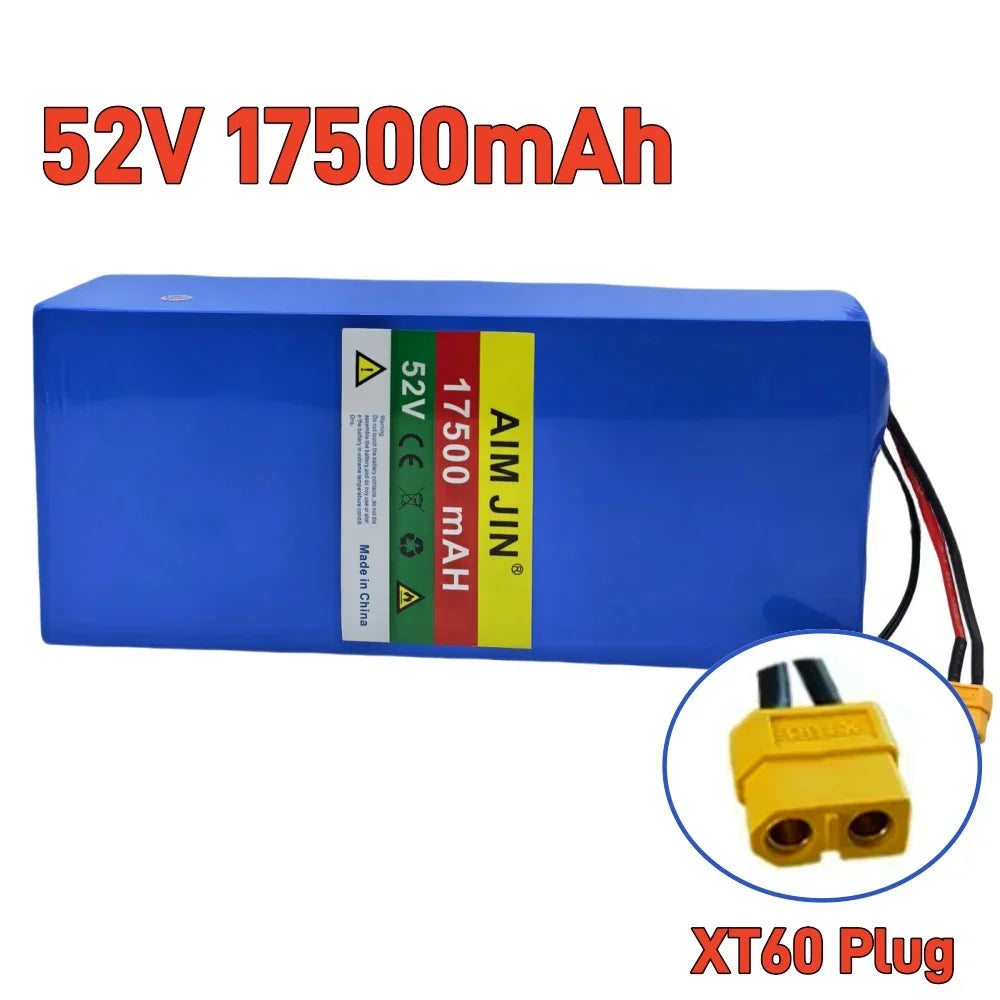

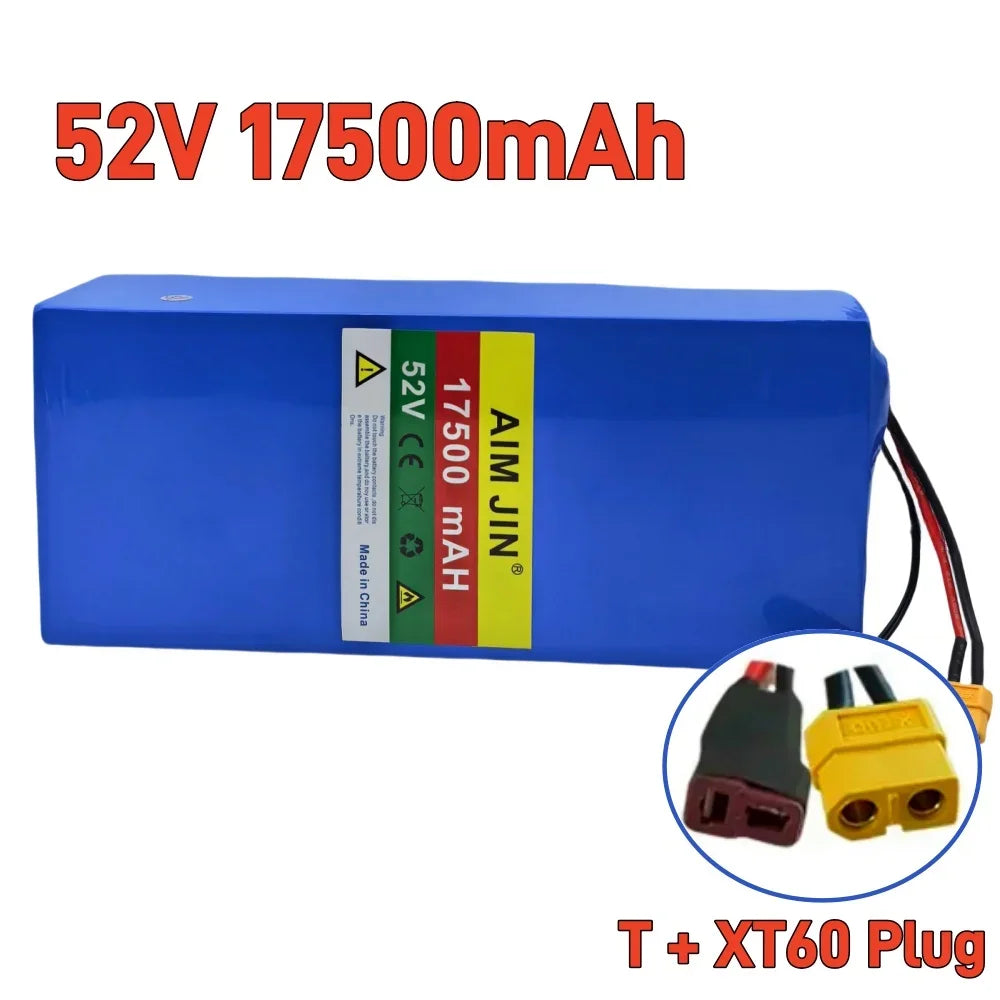

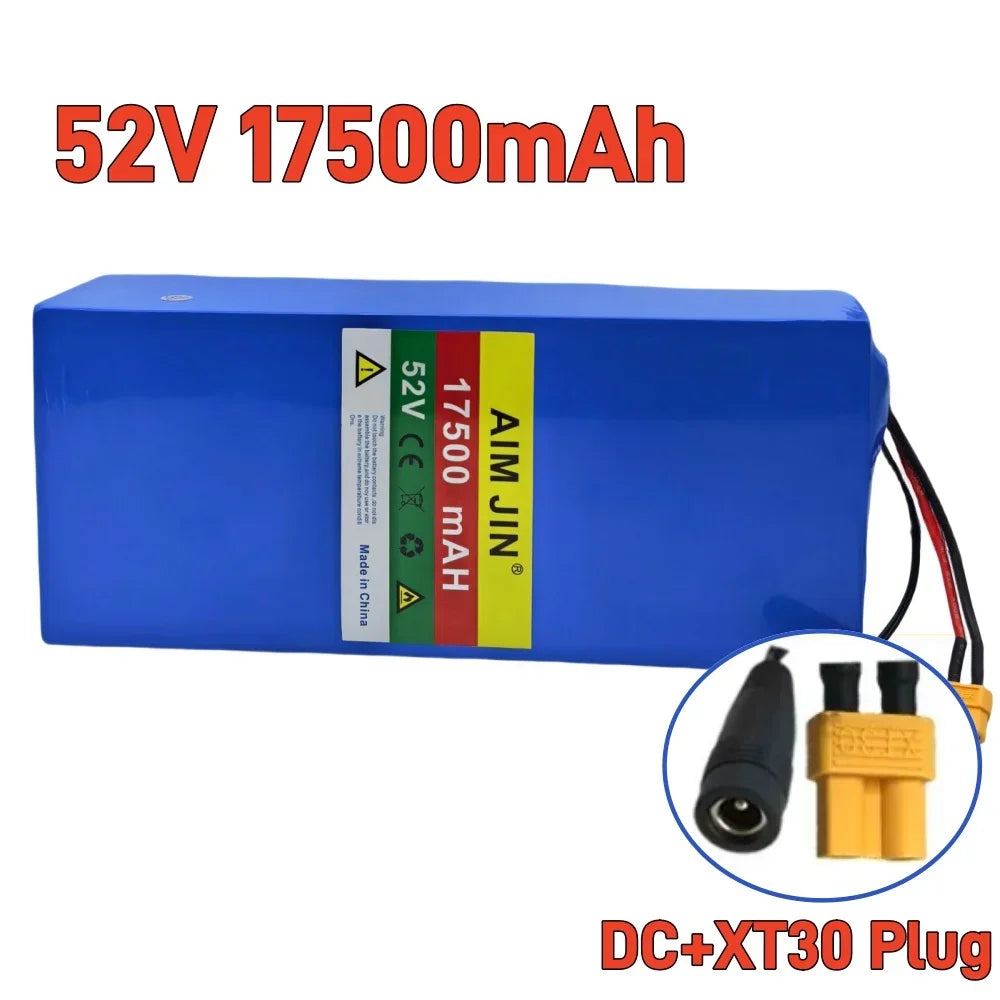

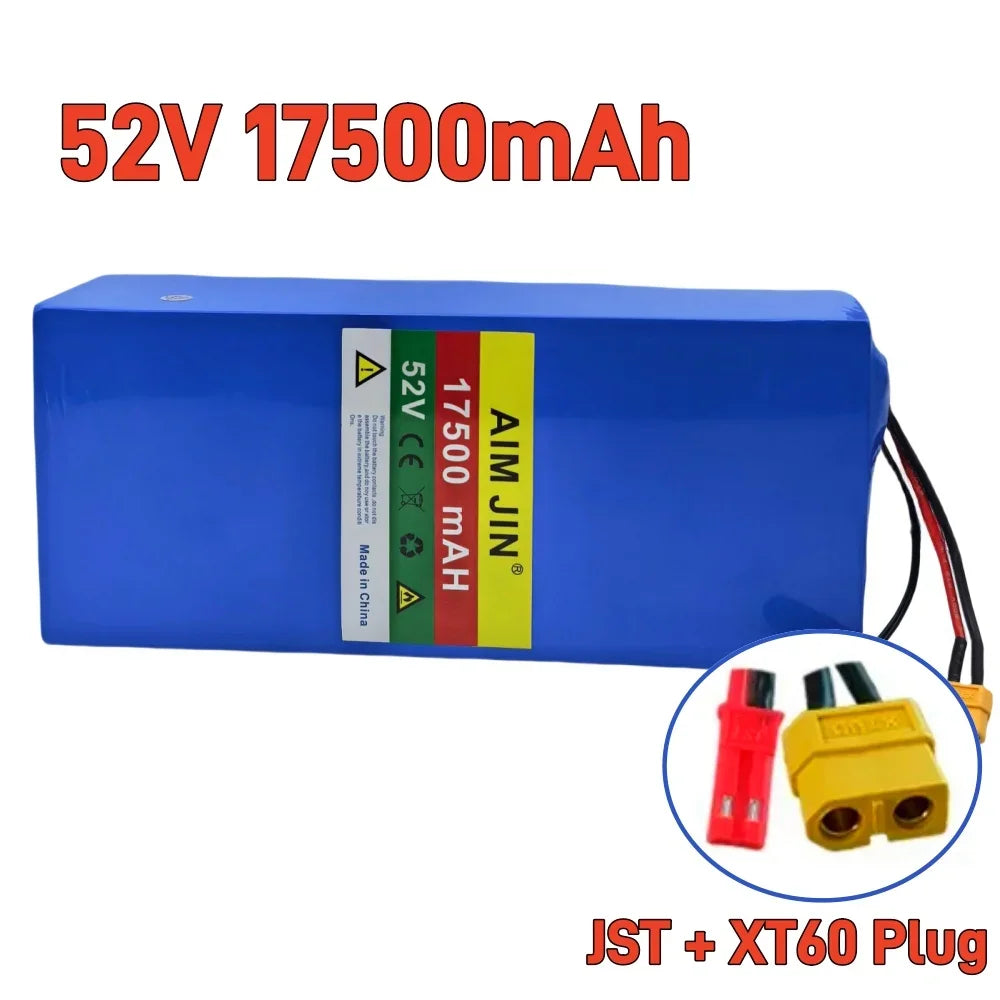

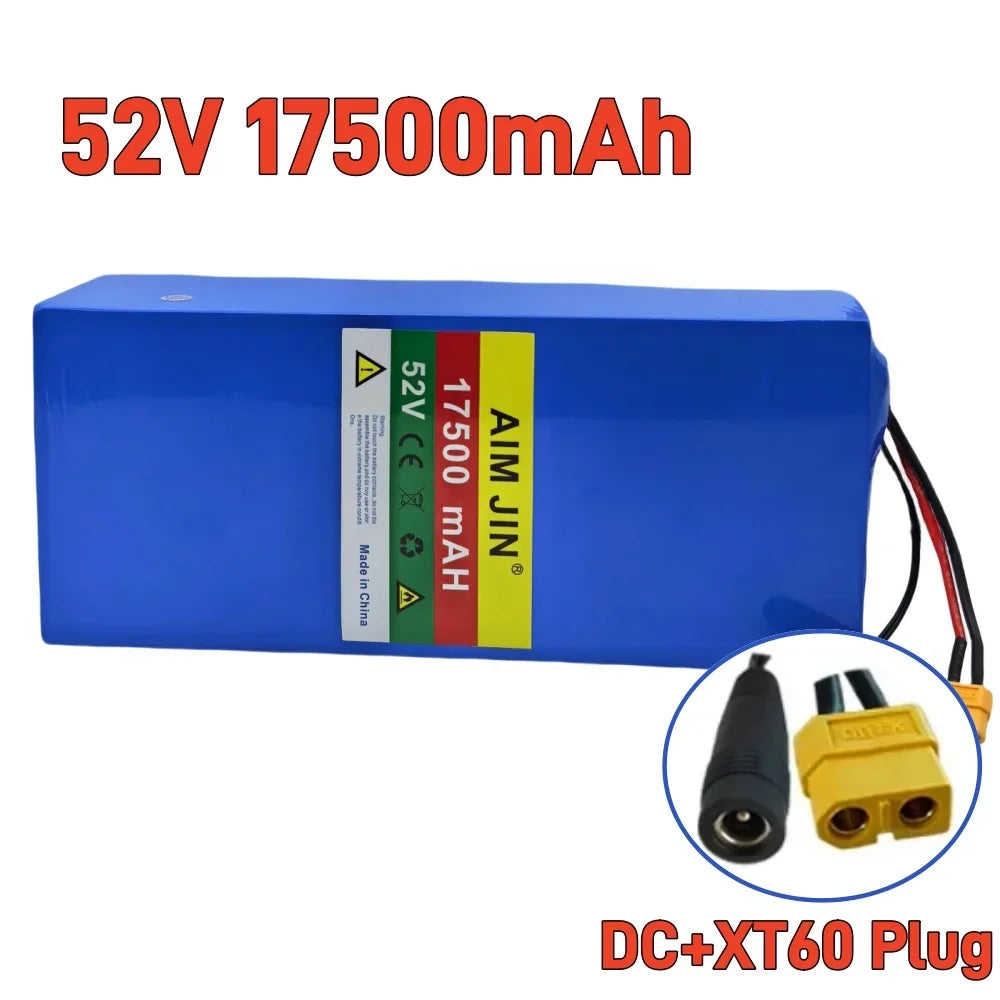

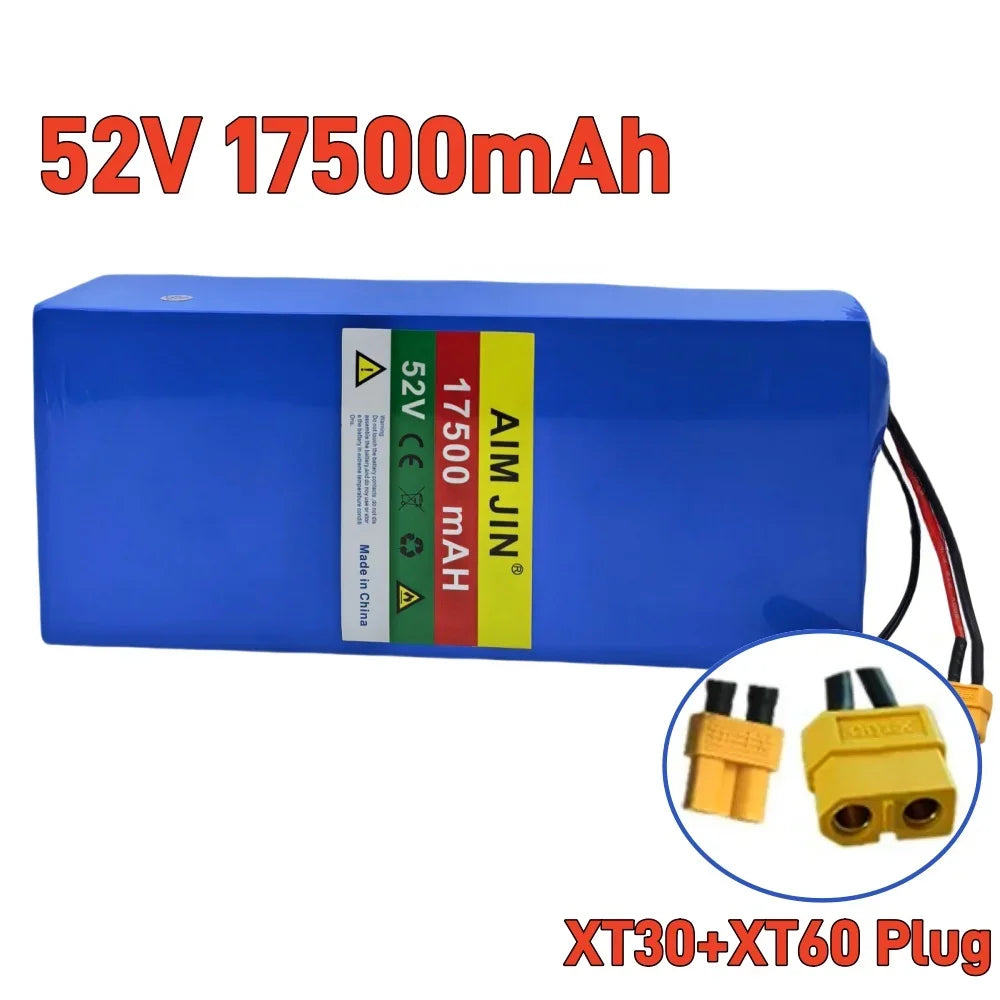

aimjin 52V 17.5Ah (17500mAh) 14S5P 18650 High-Power Lithium-Ion E-Bike & Scooter Battery Pack –
Built-in Smart BMS Protection Board for 500W–1500W Motors (CE Certified)
Power up your off-road trail rides, mountain bikes, and high-performance commuters with the aimjin 52V 17.5Ah 14S5P High-Power Lithium-Ion Battery Pack. Constructed using a premium 70-cell configuration (14 series × 5 parallel) of grade-A 18650 lithium-ion cells, this compact 52V pack delivers sustained discharge output for e-bike hub motors, mid-drives, and electric scooters rated from 500W up to 1500W.

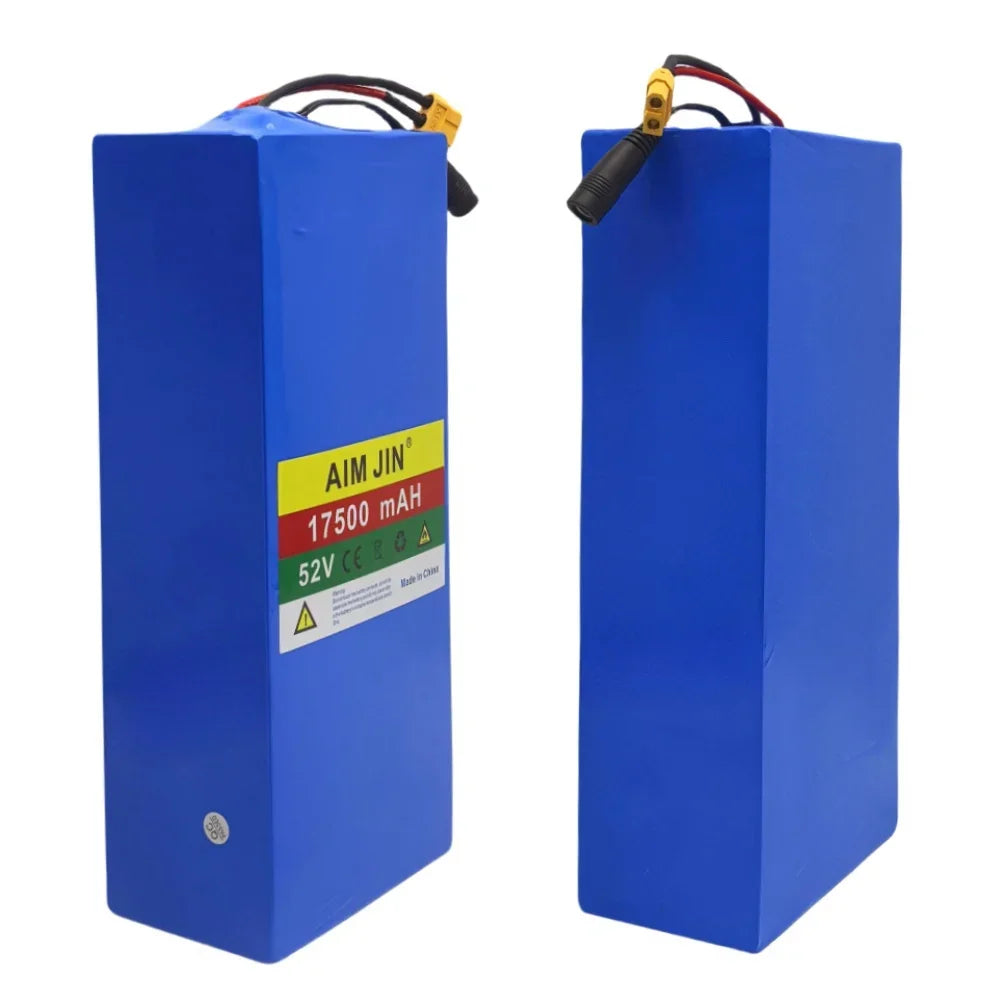

At just 260 × 110 × 70 mm and weighing under 6.5 lbs (2.94 kg), this energy-dense pack provides a sleek form factor for custom soft-pack installations, frame bags, or under-deck scooter compartments. Equipped with an integrated smart Battery Management System (BMS), it continuously monitors cell balance while safeguarding against short circuits, overcharging, over-discharging, and thermal overload.
⚠️ Charger & Voltage Compatibility Notice
CRITICAL VOLTAGE & CHARGING GUIDANCE:
52V NOMINAL / 58.8V MAX: Designed strictly for 52V systems requiring a maximum charge cut-off voltage of 58.8V DC. Always use a matching 58.8V Li-ion charger.
500W – 1500W Motor Support: Optimized for motor controllers pulling continuous current within 500W to 1500W ratings.
Integrated Smart BMS: Built-in circuit protections automatically cut off power during high-temperature anomalies or over-current conditions to prevent thermal runaways.
🚀 Key High-Performance Features
-
52V 17.5Ah High-Density Capacity: Delivers 17,500mAh of continuous energy for extended range on mountain bikes, cargo builds, and commuters.
-
Robust 14S5P Cell Architecture: Built with 70 premium 18650 cells to balance high current delivery with long cycle stability.
-

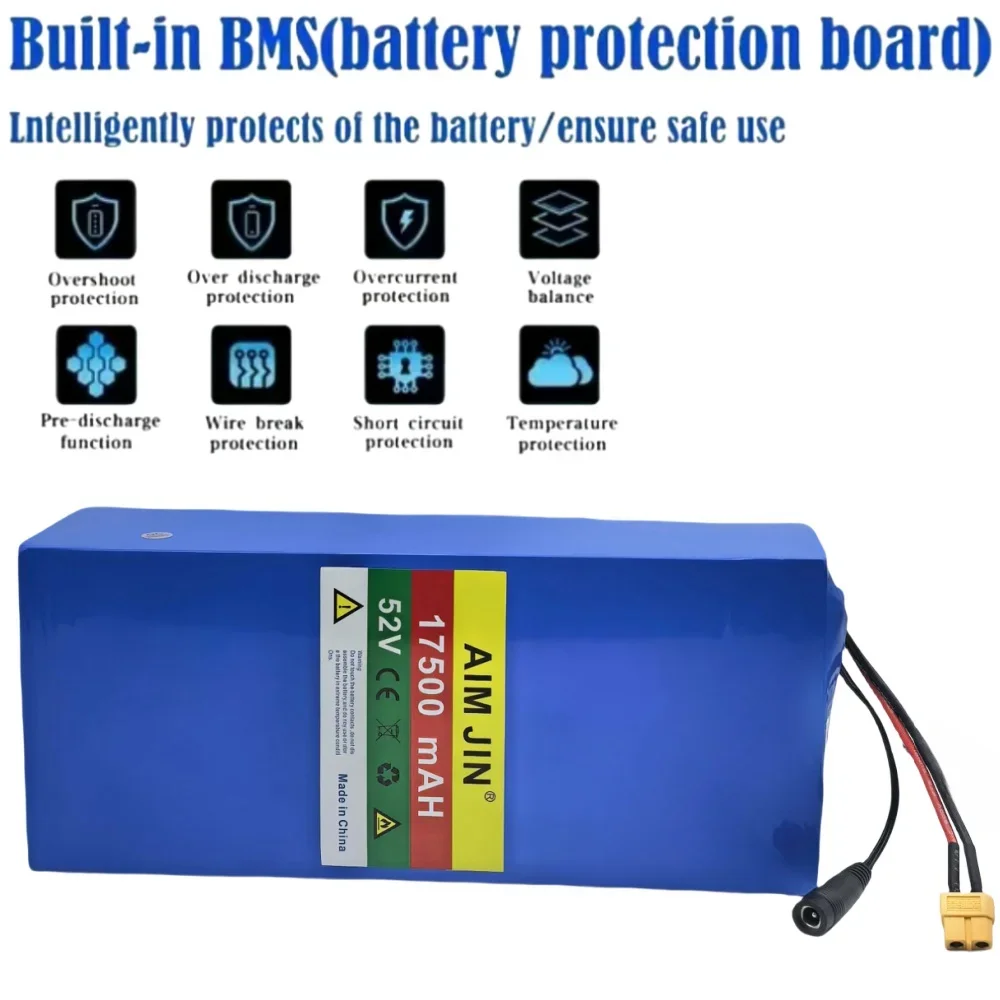

Built-in Smart BMS Protection: Protects against over-charge, over-discharge, over-current, short-circuits, and cell imbalances.
-

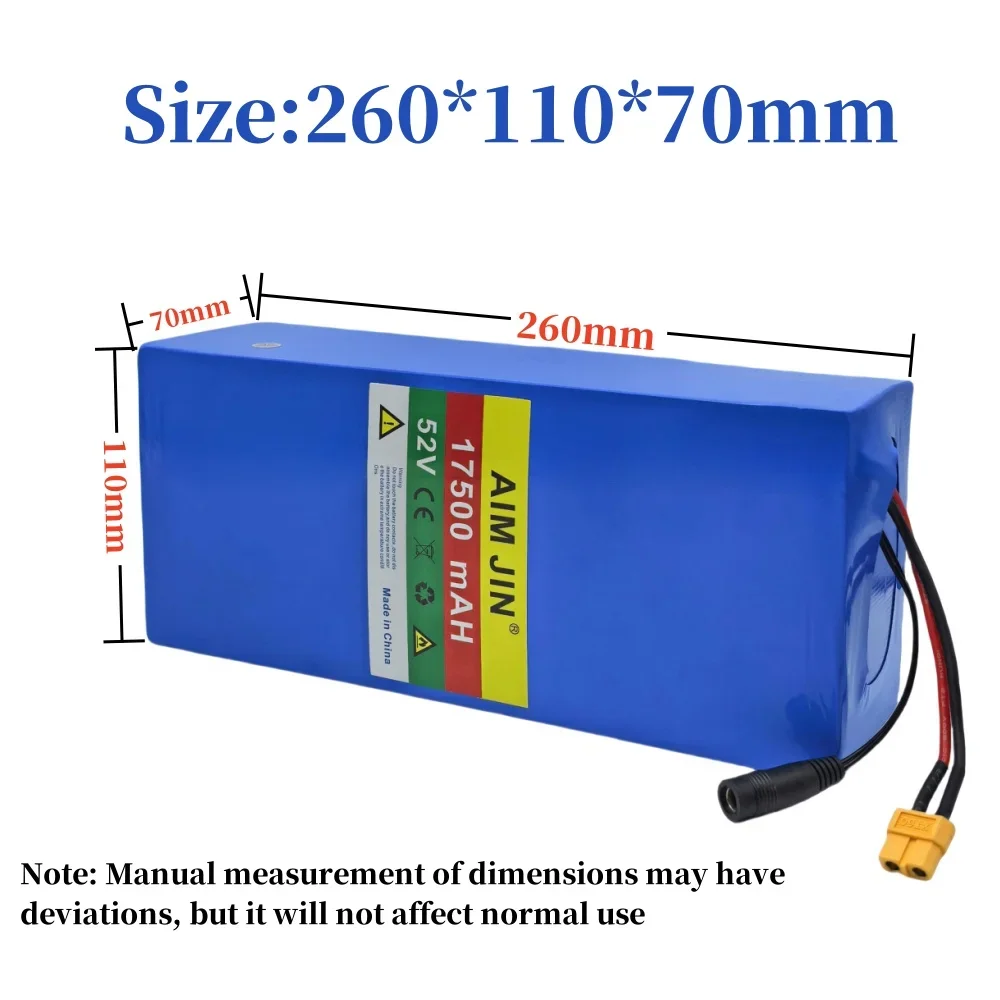

Compact & Lightweight Design: Compact dimensions (260 × 110 × 70 mm) make it ideal for frame bags, rear racks, or custom enclosure builds.
-
Long Service Life: Engineered for 1000+ deep recharge cycles with minimal capacity fade over time.
📊 Technical Specifications Matrix
| Specification Parameter | aimjin 52V 17.5Ah Battery Specifications |
| Brand Name | aimjin |
| Cell Type / Chemistry | 18650 Cylindrical Cells / Lithium-Ion (Li-Ion) |
| Pack Configuration | 14S5P (14 Series, 5 Parallel / 70 Cells total) |
| Nominal System Voltage | 52V DC |
| Max Charge Cut-Off Voltage | 58.8V DC |
| Nominal Energy Capacity | 17.5Ah / 17500mAh |
| Compatible Motor Output | 500W – 1500W Motors |
| Integrated Protection | Internal Smart Battery Management System (BMS) |
| Dimensions (L × W × H) | 260 mm × 110 mm × 70 mm (10.2" × 4.3" × 2.7") |
| Pack Weight | 2942g / 2.94 kg (~6.48 lbs) |
| Certifications | CE Certified |

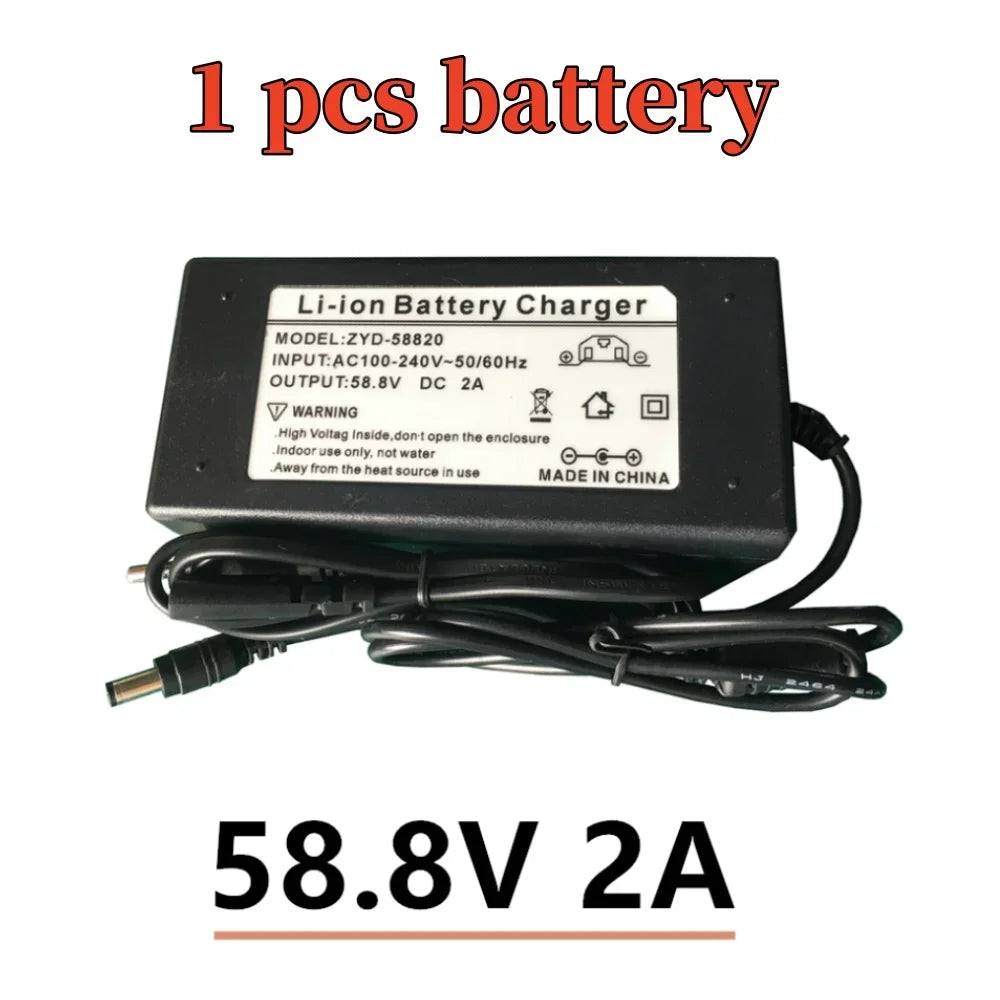

52V 14S5P 17500mAh 18650 1500W Lithium Battery Panasonic for Bicycle Scales, Tricycles, Motorcycle Chargers 58.8V 2A
Specification: 14S5P
Combination method: 14 series 5 parallel
Number of batteries: 70 pcs
Capacity: 17500mAh (17.5Ah)
Standard voltage: 52V
Charging voltage: 58.8V
Battery: 18650
Weight: 2.94kg
Size:260*70*110mm
Support motor power: 500W-1500W
Support charging current: 0.2-10A
The battery has a built-in BMS protection board
Internal battery: Big brand battery. high quality!
Life cycle: more than 1000 times
Application range:
Electric bicycles, airplane models, power tools, battery diy,
Golf carts, sightseeing buses, electric motorcycles, electric wheelchairs, etc.
Lithium battery features:
1. The autonomy is twice that of the lead-acid battery. lighter in weight
2. No memory effect, rechargeable. Longer battery life
3. Safer, more environmentally friendly, free of heavy metals and harmful substances.
4. Built-in IC chip can prevent the battery from overcharging, over-discharging, over-current, overheating, and short circuit.
5. Avoid mechanical accidents caused by vibrations.
