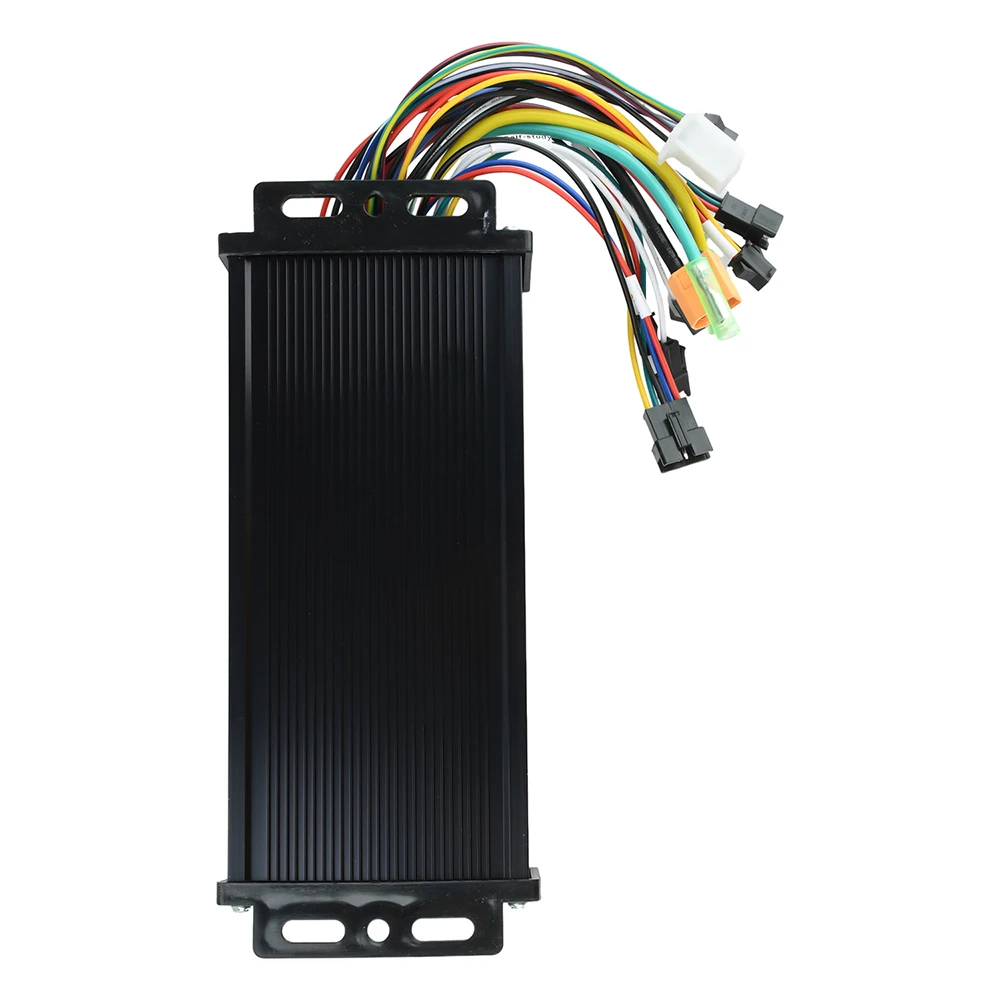

A black rectangular electronic motor controller with a ribbed metal casing, a white product label, and multiple multicolored wires with connectors, shown on a plain white background.

Aideepen 36V/48V/60V 40A Brushless Controller | 1000W-2000W

$51.56

$51.56 $11.56

Shipping calculated at checkout.

Aideepen 36V / 48V / 60V High-Power 40A FOC Sine Wave Brushless Motor Controller

1000W to 2000W Power Capability Built with Premium HY3410 MOS Tubes & Black Gold Circuit Board Architecture (UART No.2 Display Protocol Compatible)

Power high-torque electric bikes, commuter scooters, or custom DIY conversions with the Aideepen 36V / 48V / 60V 40A FOC Sine Wave Brushless Controller. Built on high-performance HY3410 MOSFET power stages and an upgraded Black Gold PCB layout, this heavy-duty controller delivers up to 40A maximum current output for 1000W to 2000W brushless DC motors.

Utilizing advanced FOC (Field-Oriented Control) sine wave technology, it delivers whisper-quiet motor operation, silky-smooth throttle ramps, and reduced heat buildup under heavy acceleration. Encased in a waterproof aluminum alloy housing (

185 \times 87 \times 40\text{ mm}

), it features a full suite of SM series connector leads and supports UART No.2 display protocols (like the S866, SW900, and S966 display series).

⚠️ System Compatibility & Protocol Notice

IMPORTANT DISPLAY & MOTOR MATCHING GUIDELINES:

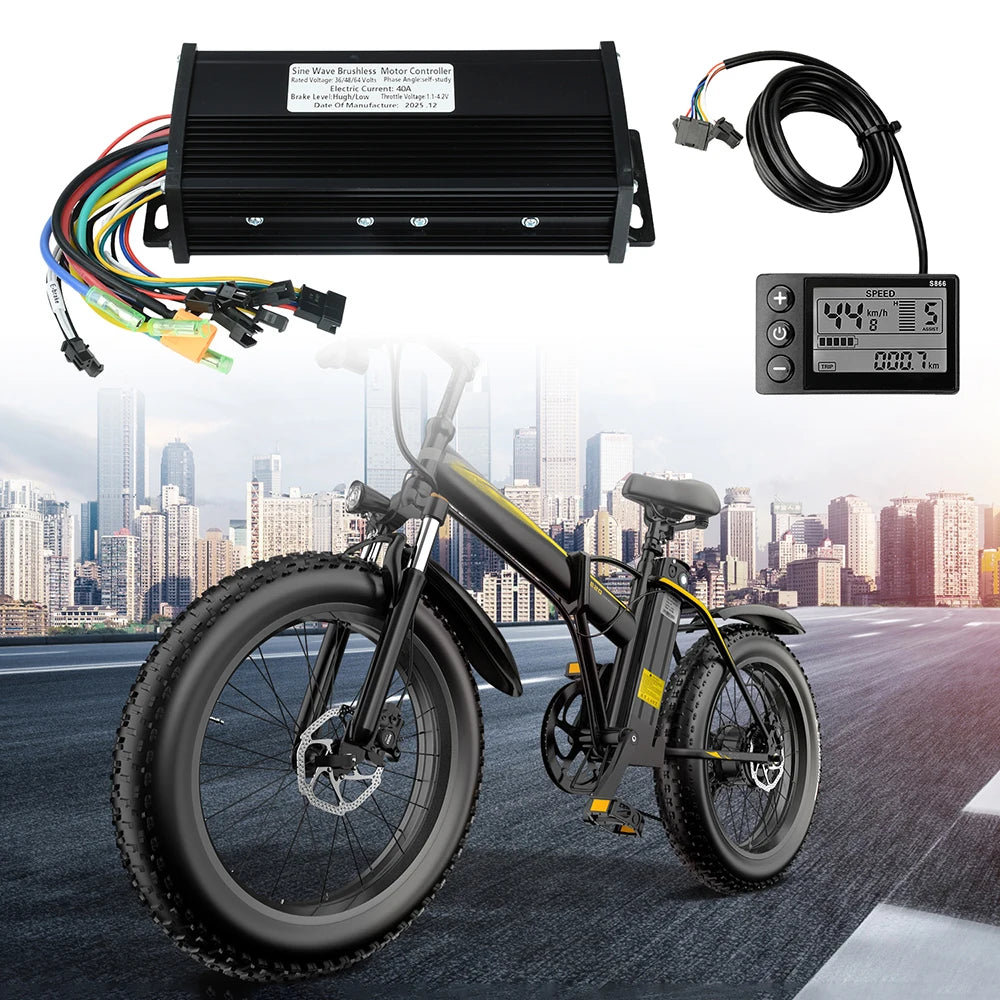

UART No.2 Communication Protocol: Requires an LCD dashboard instrument configured for UART No.2 protocol (compatible with S866, SW900, and S966 displays).

Brushless DC Motor Required: Compatible strictly with 3-phase brushless DC motors (1000W–2000W) equipped with 5-pin Hall sensor harnesses. Not for use with 2-wire brushed motors.

Multi-Voltage Support: Operates seamlessly across 36V, 48V, and 60V DC battery packs (automatically configures power limits).

🚀 Key High-Performance Features

High-Current 40A Power Delivery: Sustains 1000W to 2000W continuous output for aggressive hill climbing and high top-end speeds.
High-Efficiency HY3410 MOS Tubes: Upgraded MOSFET power stages reduce internal resistance, improve power conversion efficiency, and keep heat buildup low.

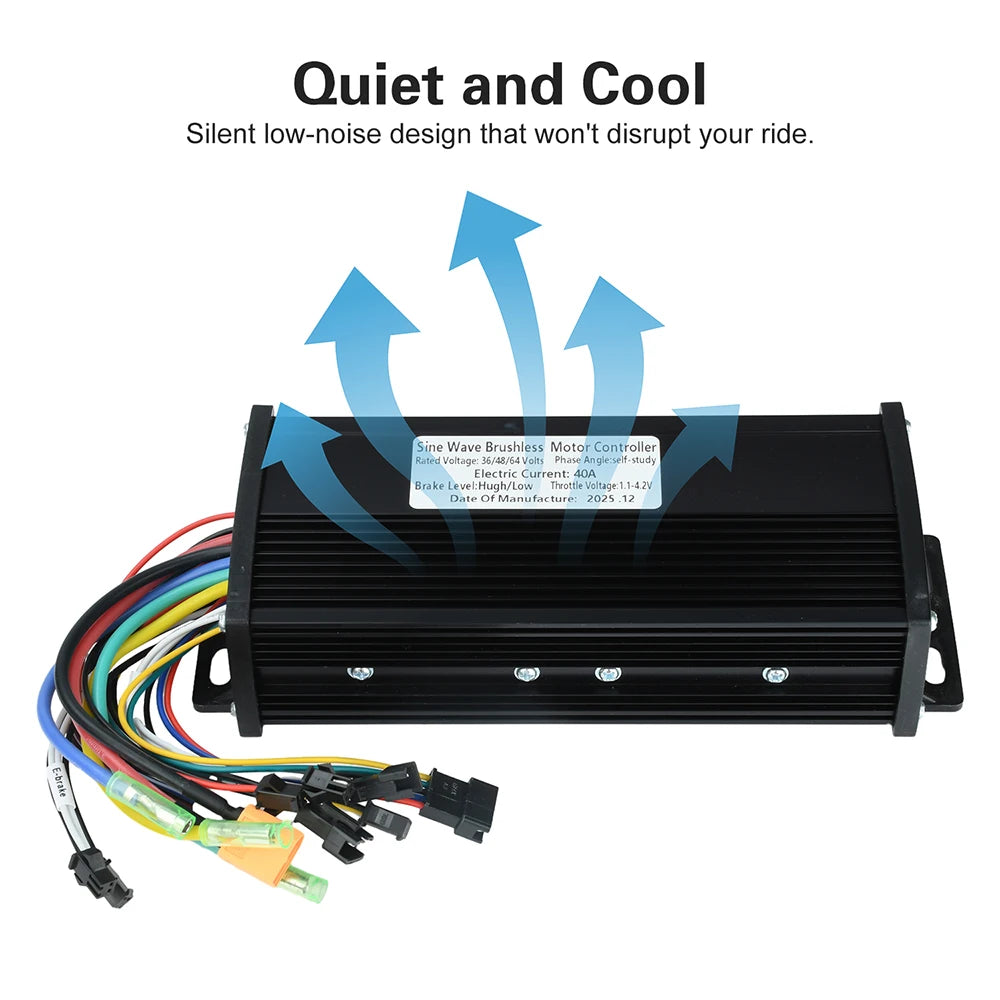

FOC Sine Wave Technology: Eliminates motor hum and low-speed shudder for smooth, whisper-quiet acceleration.

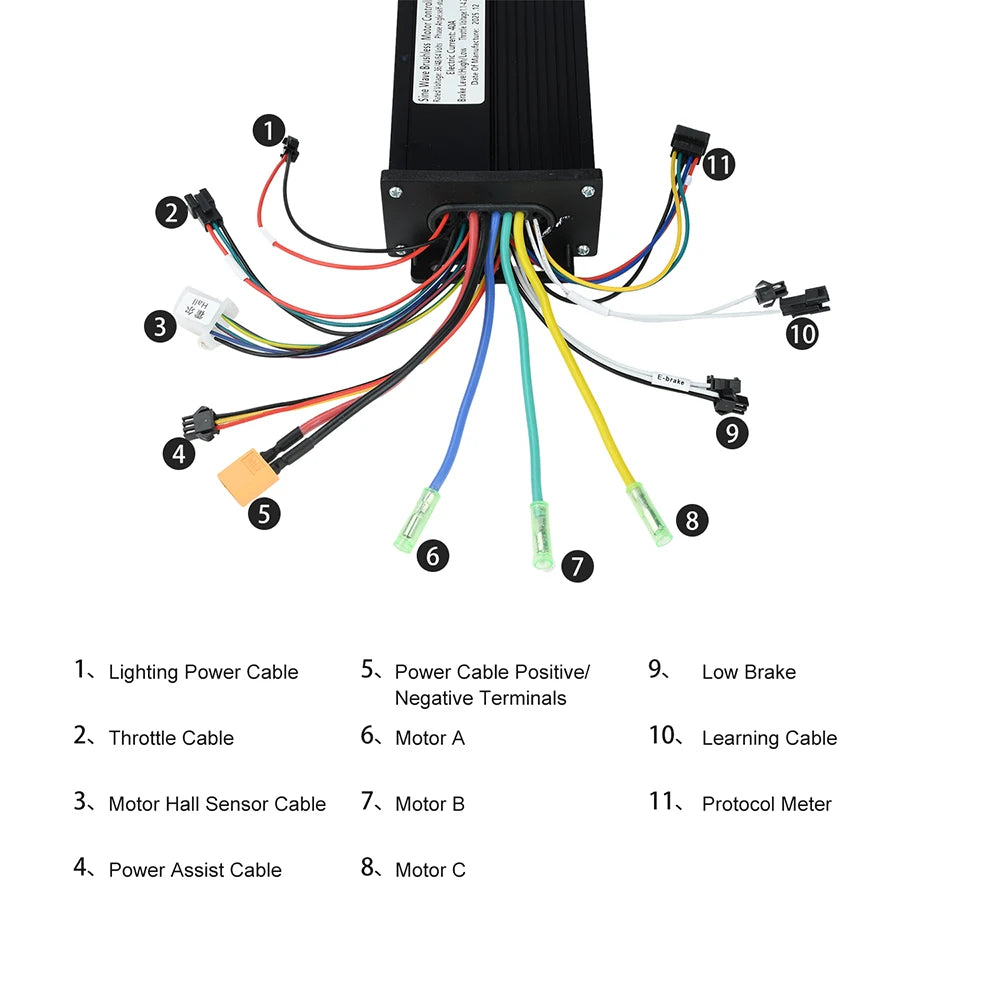

Complete Function Wiring Harness: Equipped with pre-wired SM series connectors for light output, 0-5V throttle, LCD display, 5-pin Hall sensor, dual E-brake cut-offs, PAS sensor, and self-study auto-configuration lines.
Rugged Waterproof Aluminum Casing: Sealed alloy housing ( $185 \times 87 \times 40\text{ mm}$ ) protects internal electronics against rain, road splash, and trail debris.

📊 Technical Specifications Matrix

	36V/48V/52V/60V 40A Sine Wave Brushless Motor Controller 1000W-2000W Triple-Mode Black Gold Edition for E-Bike/electric bicycle Opens in a new window	36V 48V 60V 40A Brushless Electric Vehicle Controller 1000-2000W Sine Wave Triple-Mode Electric Opens in a new window
	$24.08 Opens in a new window	$14.71 5 (1) Opens in a new window
operating_voltage	operating_voltage 36V / 48V / 60V DC	operating_voltage 36V / 48V / 60V DC
max_current	max_current 40A Peak	max_current 40A Peak
mosfet_type	mosfet_type HY3410 MOS Tubes	mosfet_type High-Spec MOS
communication_protocol	communication_protocol UART No.2 Protocol	communication_protocol UART No.2 Protocol

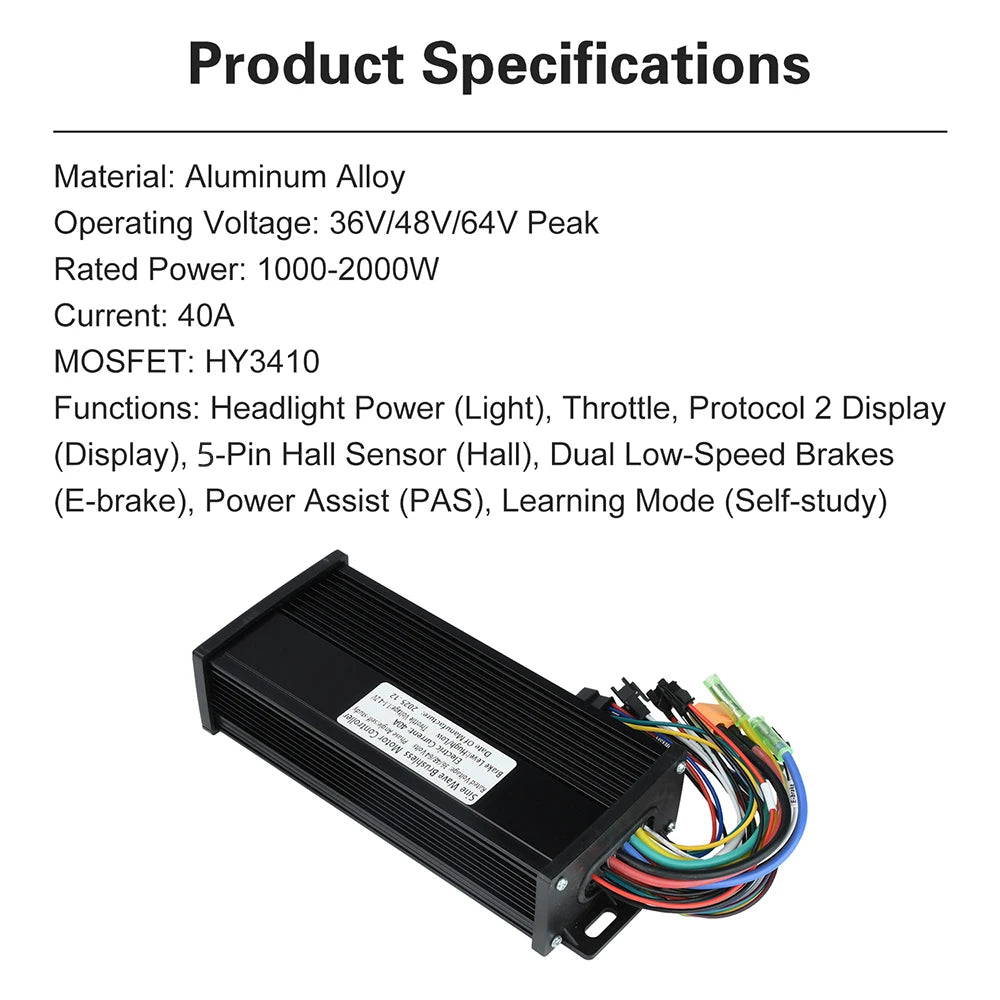

Specification Parameter	Aideepen 40A Controller Specifications
Brand Name	Aideepen
Controller Architecture	FOC Sine Wave Brushless (Black Gold Edition)
MOSFET Specification	HY3410 MOS Tubes
Nominal System Voltages	36V DC \| 48V DC \| 60V DC
Maximum Current Output	40A Peak Current
Power Output Range	1000W to 2000W Brushless Motors
Display Protocol	UART No.2 Protocol

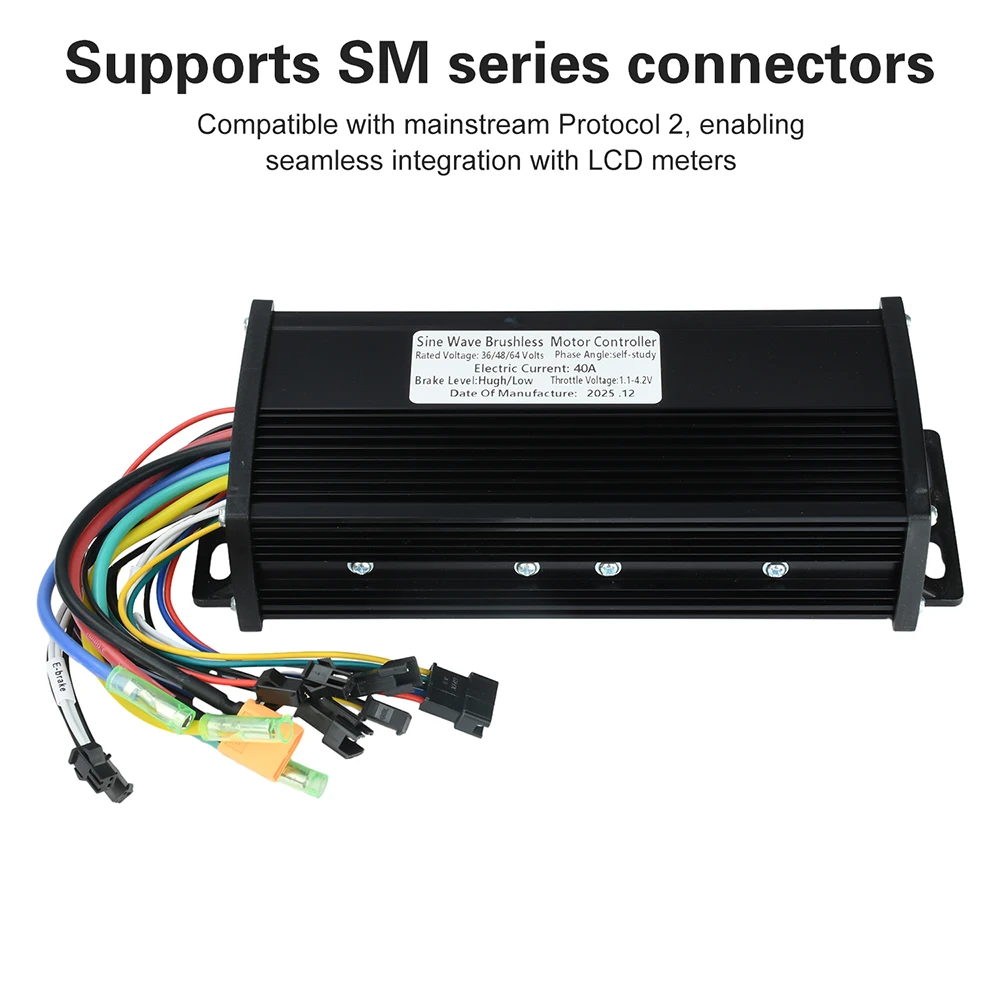

Connector Series	SM Series Waterproof Harness Plugs

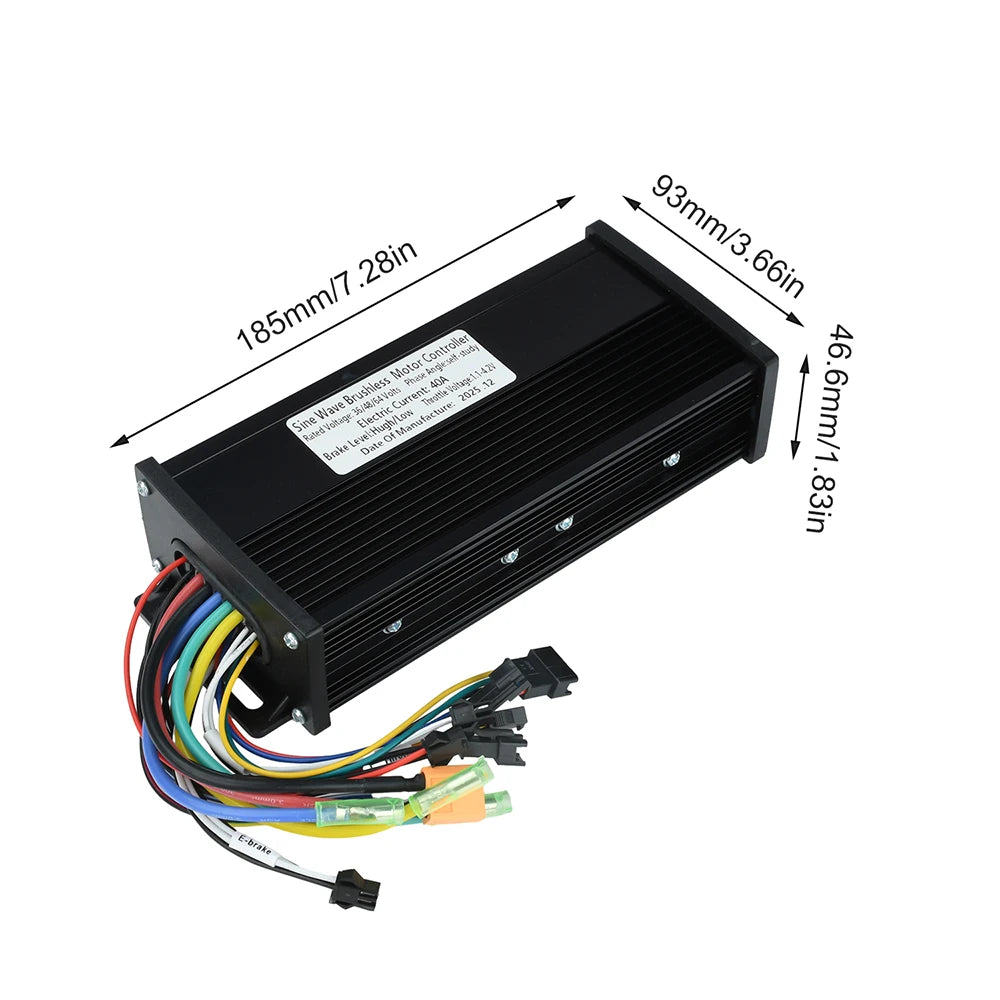

Physical Dimensions ( $L \times W \times H$ )	$185 \times 87 \times 40\text{ mm}$
Housing Material	Waterproof Aluminum Alloy Heatsink

📋 Ideal Applications

The Aideepen 40A Sine Wave Controller is engineered for:

1000W to 2000W High-Speed E-Bikes, Commuter Scooters & E-Mopeds
DIY Front or Rear Hub Motor Conversion Projects
36V, 48V, or 60V Drivetrain Upgrades and Maintenance Repairs

📦 Package Contents

1 x Aideepen 36V/48V/60V 40A Sine Wave Brushless Controller
1 x Complete SM Series Signal Wiring Harness Assembly
1 x Self-Study Calibration Wire Integration

Power your 1000W–2000W build with 40A sine wave performance! Select your options above, click Add to Cart, and order today!

-----------------------------------------------------------------------------------
⚡ eBike Power Network LLC
Smart Power Infrastructure for Next-Gen Urban Transit.
-----------------------------------------------------------------------------------------

CONTACT INFORMATION
Main Office: (678) 340-4455
General Inquiries: info@ebikepowernetwork.com
Support Hours: Mon - Fri | 8:00 AM - 6:00 PM EST


#ebikepowernetwork #SmartMobility #VoltGrid #CleanTransit

-----------------------------------------------------------------------------------------
© 2026 eBike Power Network LLC. All Rights Reserved.
Designed for high-performance residential and commercial infrastructure deployments.
-----------------------------------------------------------------------------------------

🏷️ Electric Bike Controller 36V 48V 52V 60V 40A 1000-2000W Black Gold Sine Wave 3 Mode Brushless Motor 2 Protocol LCD Display Waterproof Aluminum Shell

3-mode black gold sine wave brushless motor controller specially designed for electric bicycles and e-scooters, wide universal voltage covers 36V/48V/52V/60V battery systems, max 40A high output current supports 1000W-2000W high-power motors. Adopts premium black gold material and optimized sine wave algorithm for quieter and higher-efficiency operation; fully waterproof aluminum shell isolates rain and water vapor, seamlessly compatible with 2-protocol LCD dashboard via SM plug connectors, complete multi-function interfaces meet all daily riding modification demands.

5 Core Selling Points

1. Ultra-Wide Compatibility Voltage Range, Match Multiple Battery Configurations
Support four mainstream battery specifications: 36V, 48V, 52V, 60V in a single controller, no need to purchase separate controllers for different voltage bikes. Greatly reduce spare parts inventory pressure for repair shops and DIY enthusiasts, widely compatible with most stock lithium and lead-acid electric bicycle batteries on the market.

2. 40A Max High Output Current, Stable Supply For High Power Motors
Equipped with high-performance HY3410 MOS tubes to sustain continuous 40A large current output, fully meet the power demand of 1000W to 2000W high-torque brushless motors. No voltage drop or overheating under heavy load climbing, stable power output during long-distance riding and heavy load work.

3. Premium Black Gold Material + Sine Wave Drive, Silent & Higher Energy Efficiency
Adopts upgraded black gold conductive core material paired with optimized sine wave driving algorithm. Compared with traditional square wave controllers, it produces far less vibration and running noise during motor operation, converts battery power into driving force with higher efficiency, extend overall e-bike single charge mileage effectively.

4. 2 Protocol LCD Instrument Plug-and-Play Compatibility, Complete Multi-Function Interfaces
Comes with standard SM series connection terminals, perfectly matches mainstream 2-protocol LCD digital dashboards for real-time speed, power, and gear display. Reserved full functional ports including headlight power, throttle, 5-pin hall sensor, dual low e-brake, pedal assist PAS and motor self-study matching; one controller realizes full vehicle circuit control.

5. Full Waterproof Aluminum Alloy Housing, All-Weather Anti-Corrosion Protection
The whole controller uses a thickened aluminum alloy integrated shell with internal waterproof sealing treatment, effectively blocking rainwater, outdoor water vapor, and workshop humid air from eroding internal circuit components. Stable working performance on rainy days, in humid garages, and outdoor construction environments greatly extends controller service life.

Full Technical Specification Table

Item	Parameter Detail
Product Full Name	3 Mode Black Gold Sine Wave Brushless Electric Bike Motor Controller
Universal Working Voltage	36V / 48V / 52V / 60V Wide Compatibility
Applicable Motor Power	1000W ~ 2000W Brushless Motor
Max Continuous Output Current	40A High Current Output
Internal MOS Chip Model	High Durability HY3410 MOS Tube
Overall Outer Size	18.5cm × 8.7cm × 4cm Compact Aluminum Housing
Core Drive Technology	Black Gold Material Sine Wave Algorithm, 3 Adjustable Working Modes
Dashboard Matching Standard	Compatible With 2 Protocol LCD Digital Meter, SM Series Plug Connector
Waterproof Performance	Fully Sealed Waterproof Shell Blocks Rain & Water Vapor Erosion
Reserved Functional Interfaces	Headlight Light, Throttle, 5Pin Hall Sensor, Dual Low E-Brake, PAS Pedal Assist, Self-Study Matching Port
Usage Scenario	36-60V Electric Bicycle & E-Scooter Motor Replacement, Performance Upgrade, Factory Assembly Parts

Wide Multi-Scene Application Scenarios

✅ E-Bike Repair Workshop: Replace Broken Original Controllers For Various 36-60V Electric Bicycles & E-Scooters
✅ DIY Modification Enthusiast: Upgrade Ordinary E-Bikes To High Power 1000-2000W Silent Sine Wave Driving System
✅ Electric Vehicle Assembly Factory: Mass Matching Spare Parts For Self-Made Electric Two-Wheelers
✅ Outdoor Delivery E-Bike: Waterproof Stable High Current Controller Adapt Long-Distance All-Weather Riding
✅ Off-Road Electric Scooter Mod: Provide Sufficient 40A Current For Climbing Heavy Load Off-Road Motor

📦 Complete Full Set Package List

1 × 3 Mode Black Gold Sine Wave Brushless Electric Bike Motor Controller
