60V 20Ah–100Ah Lithium-Ion Battery | 2000W Electric Scooter & Citycoco

Upgrade your electric vehicle with a high-capacity 60V lithium-ion battery designed for compatible electric scooters, Citycoco-style two-wheelers, Harley-style electric vehicles, tricycles, golf carts, mobility equipment, and other 60V applications.

Available in capacities from 20Ah up to 100Ah, this battery is designed for riders and builders looking for increased energy capacity and extended operating time. It features a 30A continuous discharge rating, up to 60A instantaneous discharge, and a maximum charging current of 10A.

A compatible 67.2V charger is required to fully charge this battery.

🔋 Key Features

• 60V-class lithium-ion battery

• 20Ah–100Ah capacity options

• Nominal voltage: 59.2V

• Full-charge voltage: 67.2V

• Up to 30A continuous discharge

• Up to 60A instantaneous discharge

• Maximum charging current: 10A

• Rated service life: 1,500+ cycles

• Designed for compatible systems up to approximately 2000W

• CE, FCC, RoHS, UL and KC certifications listed

• Suitable for electric scooters, Citycoco-style vehicles and other compatible EVs

• Multiple capacity options for different range requirements

⚡ 60V Battery: 59.2V Nominal / 67.2V Full Charge

One important detail about this battery is the difference between its nominal voltage and its charging voltage.

The supplier specifies:

Nominal voltage: 59.2V
Maximum charging voltage: 67.2V

This is consistent with a lithium-ion pack configuration designed to reach approximately 67.2V when fully charged.

Important Charger Warning

A 60V lithium-ion battery requires a 67.2V charger for normal full charging.

Do not substitute:

• 54.6V charger

• 58.8V charger

• 72V/84V charger

• Lead-acid charger

• Charger designed for a different battery chemistry

The charger must also have the correct connector and polarity.

🔋 Available Capacity Options

Choose the capacity based on your vehicle, available installation space, controller requirements, and desired riding range.

Capacity	Approx. Nominal Energy*	Typical Use
60V 20Ah	1,184Wh	Compact scooters and shorter rides
60V 30Ah	1,776Wh	Commuting and recreational riding
60V 40Ah	2,368Wh	Longer-distance riding
60V 50Ah	2,960Wh	Extended-range applications
60V 60Ah	3,552Wh	Long-range electric vehicles
60V 80Ah	4,736Wh	High-capacity EV applications
60V 100Ah	5,920Wh	Maximum-capacity applications

*Energy calculations use the supplier's stated 59.2V nominal voltage × Ah capacity. Actual usable energy varies with battery management settings, load, temperature, and operating conditions.

🛵 Designed for 2000W Electric Vehicles

This battery is marketed for applications such as:

• Harley-style electric vehicles

• Citycoco electric scooters

• Electric bicycles

• Electric tricycles

• Golf carts

• Electric carts

• Mobility equipment

• Wheelchairs

• Electric tools

• Solar/energy-storage applications

• Other compatible 60V lithium-ion systems

For a 2000W motor, the battery's voltage and current capability must be compatible with the motor controller.

At approximately 60V:

2000W ÷ 60V ≈ 33.3A

Because the battery is specified for 30A continuous discharge, a 2000W system operating continuously at full rated power may exceed the listed continuous battery-current rating.

Always verify your controller's maximum battery current before using this battery in a 2000W application.

🔌 Maximum Charging Current

The battery is specified with a maximum charging current of 10A.

A compatible 67.2V charger can therefore be selected based on the desired charging speed, provided the charger does not exceed the battery's permitted charging current.

For example:

• 67.2V × 3A ≈ 202W

• 67.2V × 5A ≈ 336W

• 67.2V × 8A ≈ 538W

• 67.2V × 10A ≈ 672W

Higher charging current can reduce charging time, but the battery, BMS, wiring, connector, and charger must all support the selected current.

🔋 Discharge Capability

The supplier specifies:

Continuous discharge: 30A
Instantaneous discharge: ≤60A

The continuous rating is the more important figure when matching the battery to an electric vehicle controller.

Your controller should not require more continuous battery current than the battery/BMS is designed to provide.

🌡️ Operating Temperature

Supplier-listed operating temperatures:

Charging: 0°C–45°C
Discharging: -20°C–60°C

Avoid charging the battery outside its specified charging-temperature range.

Temperature can significantly affect lithium-ion battery performance, charging safety, and service life.

🔋 Long Service Life

The battery is listed with a service life of more than 1,500 cycles.

Actual battery life depends on:

• Depth of discharge

• Charging frequency

• Charging current

• Storage conditions

• Operating temperature

• Motor/controller load

• Battery maintenance

• Long-term storage practices

A battery's cycle rating does not guarantee a specific number of years of service.

📋 Technical Specifications

Specification	Details
Brand	KEPAH
Model	HL-60V
Battery Type	Lithium-Ion
Nominal Voltage	59.2V
Marketed Voltage Class	60V
Capacity	20Ah–100Ah
Full-Charge Voltage	67.2V
Maximum Charging Current	10A
Continuous Discharge Current	30A
Instantaneous Discharge	≤60A
Service Life	1,500+ cycles
Application	Electric Vehicles / Scooters / Citycoco
Motor Application	Compatible systems up to approximately 2000W
Charging Temperature	0°C–45°C
Discharging Temperature	-20°C–60°C
Certifications Listed	CE / FCC / RoHS / UL / KC
Origin	China

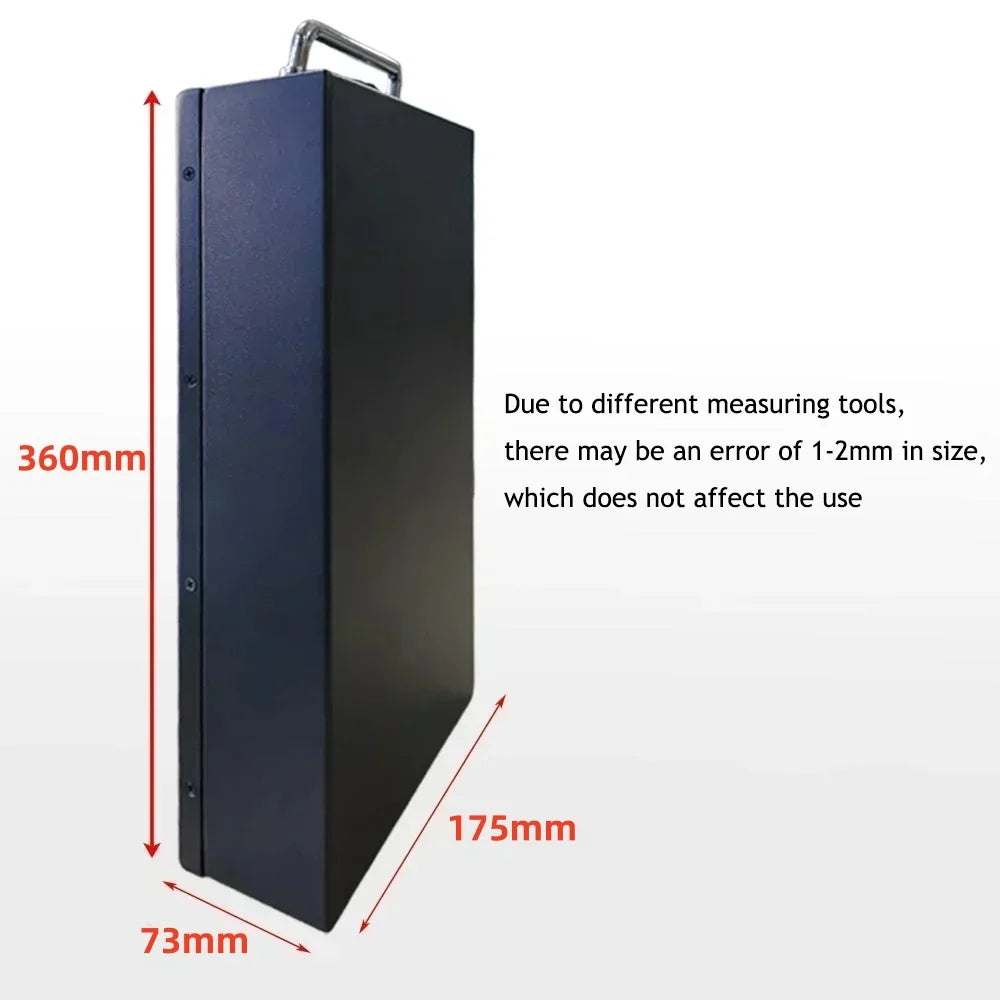

📐 Battery Dimensions

The supplier provides two different dimensions:

175 × 72 × 345 mm

and

360 × 175 × 73 mm

These specifications are inconsistent and may represent different battery configurations, cases, or listings.

Please confirm the exact battery dimensions for your selected Ah capacity before ordering, especially if you have a confined battery compartment.

⚠️ Compatibility Checklist

Before purchasing, verify all of the following:

1. Voltage

Your vehicle should be designed for a 60V-class lithium-ion battery.

2. Controller

Confirm that your controller accepts a fully charged battery voltage of 67.2V.

3. Current

Confirm that the controller's battery-current demand is compatible with the battery's 30A continuous discharge rating.

4. Charger

Use a 67.2V lithium-ion charger.

5. Connector

Confirm the connector type and polarity before installation.

6. Physical Size

Verify the battery dimensions and available mounting space.

7. Capacity

Make sure the selected Ah capacity fits your vehicle's available space and electrical requirements.

⚠️ Important Safety Information

Lithium-ion batteries contain significant stored energy and must be handled carefully.

• Use only a compatible 67.2V lithium-ion charger.

• Never use a charger with an incorrect voltage.

• Do not charge a damaged, swollen, leaking, or overheated battery.

• Do not puncture, crush, open, or modify the battery pack.

• Keep the battery away from fire and excessive heat.

• Do not expose the battery to water unless the specific battery enclosure is confirmed to be water-resistant.

• Keep terminals away from metal objects that could cause a short circuit.

• Do not exceed the battery's specified charging current.

• Do not exceed the battery's continuous discharge capability.

• Charge in a suitable, supervised location.

• Keep the battery away from children and unauthorized users.

❓ Frequently Asked Questions

Is this a 60V battery?

Yes. It is marketed as a 60V lithium-ion battery, with a specified nominal voltage of 59.2V.

What voltage does it charge to?

The specified full-charge voltage is 67.2V.

What charger do I need?

Use a 67.2V lithium-ion battery charger with the correct connector, polarity, and appropriate charging current.

Can I use this with a 2000W motor?

The product is marketed for applications up to approximately 2000W. However, the listed 30A continuous discharge rating should be considered when matching it to a controller.

A 2000W motor can require more than 30A depending on operating conditions, controller settings, acceleration, hills, rider weight, and system efficiency.

What is the largest capacity available?

The listing specifies capacities from 20Ah through 100Ah.

How much energy does a 60V 20Ah battery have?

Using the listed 59.2V nominal voltage:

59.2V × 20Ah = approximately 1,184Wh

How much energy does a 60V 100Ah battery have?

59.2V × 100Ah = approximately 5,920Wh

Can I use this battery on any 60V electric scooter?

Not necessarily. Verify the scooter's controller voltage range, maximum current, connector, polarity, physical battery compartment, and battery-management requirements before installation.

Is a charger included?

The product title indicates a free charger, but the detailed specifications do not state the charger's amperage or connector. Confirm the exact charger supplied with the selected battery configuration before ordering.

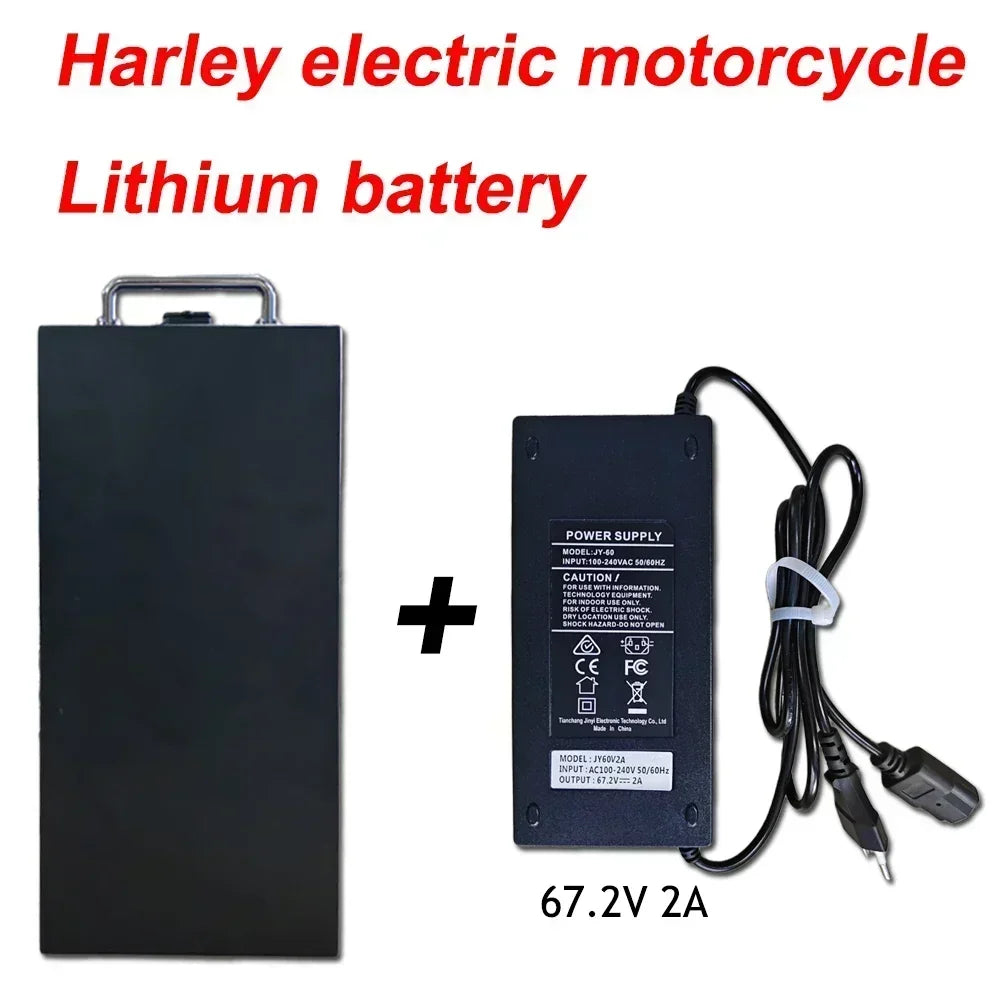

📦 What's Included

Depending on the selected configuration:

• 60V-class lithium-ion battery

• Compatible charger

• Battery connection hardware, where applicable

Charger type and connector may vary by configuration. Please verify the selected option before purchase.

🛒 Power Your Ride With More Capacity

Whether you're building a high-capacity electric scooter, upgrading a Citycoco-style vehicle, or replacing an existing 60V battery, the KEPAH HL-60V provides multiple capacity options from 20Ah to 100Ah.

Choose the capacity that fits your vehicle, verify your controller and charging requirements, and get the energy capacity you need for longer rides.

Power Your Ride. Charge Anywhere. Ride Longer.

---
